Viair 145 PSI High Speed Bolt On Platform - 30016

Viair 145 PSI High Speed Bolt On Platform - 30016

Upgrade your air power game with the Viair 145 PSI High-Speed Bolt-On Platform - the ultimate solution for quick air! This fully self-contained air source unit features dual Viair 400C Air Compressors, a 2-gallon 5-port air tank, and lightning-fast 1-minute fill times. With an impressive 4.55 CFM, it’s perfect for powering suspension systems, train horns, and inflating tires up to 40 inches. Plus, installation is a breeze with pre-wired and pre-plumbed components, a wiring harness, relay, fuses, and more. Get your Viair 145 PSI High-Speed Bolt-On Platform today and start blowing minds (and horns)!

• Dual Heavy-Duty Air Compressors
• Automatic Compressor Cycling
• 0-200 PSI Pressure Regulator

* Supply Voltage: 13.8 Volts

 * Supply Voltage: 13.8 Volts

Manual

• Viair 145 PSI High-Speed Bolt-On Platform Manual
• Viair 145 PSI High-Speed Bolt-On Platform Wiring Diagram
• Viair 145 PSI High-Speed Bolt-On Platform Dimensional Drawing

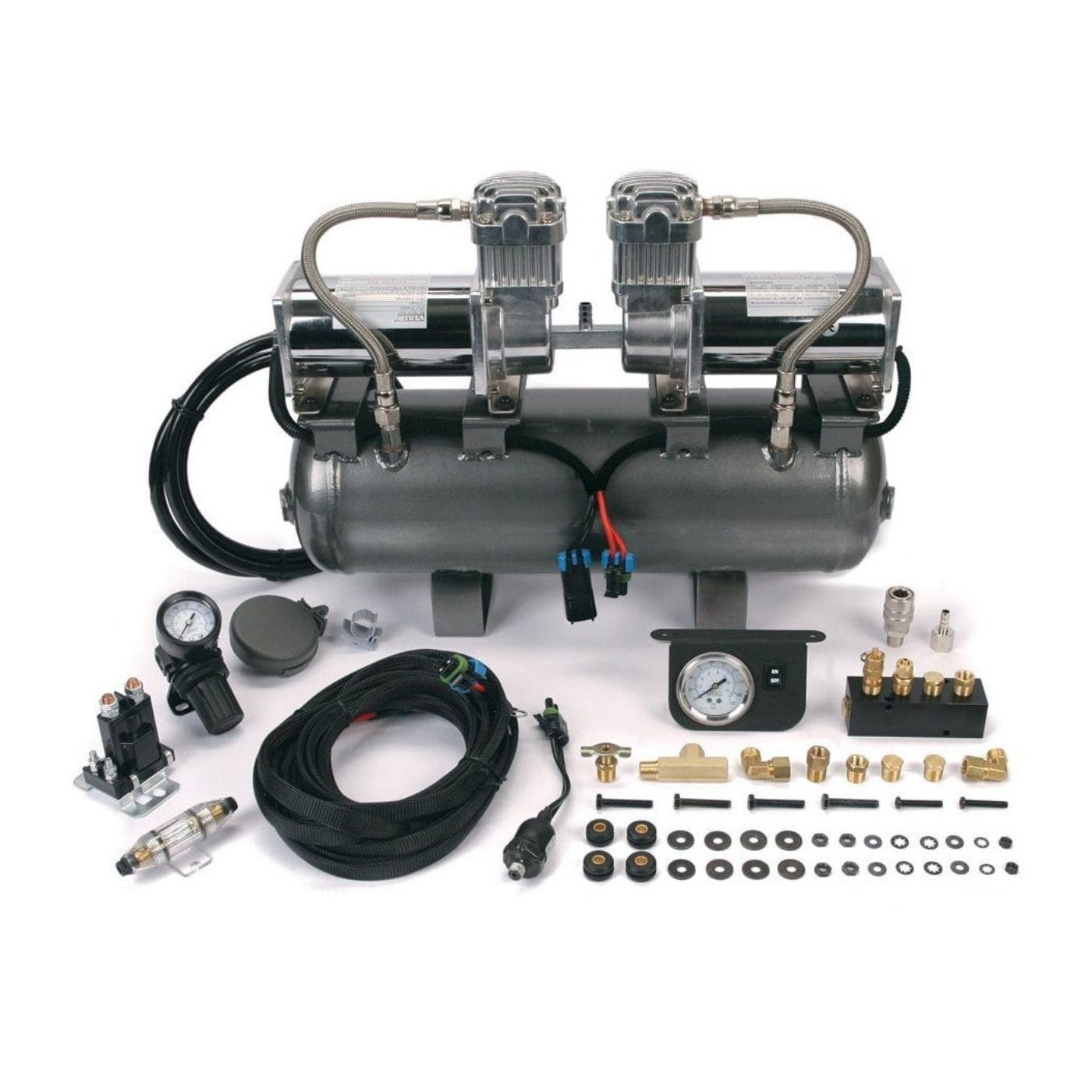

Includes

• Dual Viair 400c Air Compressors
• 2 Gallon 150 PSI Rated Tank
• Viair 110-145 PSI Pressure Switch With Leads
• Viair 0-200 PSI Pressure Regulator
• Viair 80 Amp Heavy Duty Relay
• Remote Air Source Relocation Kit
• Installation Instructions

Specifications

• Part Number: BO-240V
• Manufacturer: Viair
• Model: 30016
• Air Source Kit
• Operating Pressure: 150 PSI
• Length: 18.5″ (470.40 mm)
• Width: 5.9″ (149.86 mm)
• Weight: 30 lb (13.60 Kg)
• Height: 13.5″ (342.9 mm)
• Air Source Tank
• Volume: 2.0 gal (8.8 L)
• 1/4' NPT Ports: 4
• 1/8' NPT Ports: 1
• Length: 19″ (482.6 mm)
• Width: 6″ (152.4 mm)
• Height: 7.5″ (190.5 mm)
• Weight: 12.30 lb (5.58 Kg)
• Air Source Compressors
• Voltage: 12 Volts
• Max Amperage: 59 Amps
• Max Output: 4.55 CFM
• Maximum Duty Cycle: 33% @ 100 PSI
• Maximum Working Pressure: 150 PSI
• Length: 9″ (228.6 mm)
• Width: 4″ (101.6 mm)
• Height: 6.75″ (171.5 mm)
• Weight: 8 lb (3.63 Kg)
