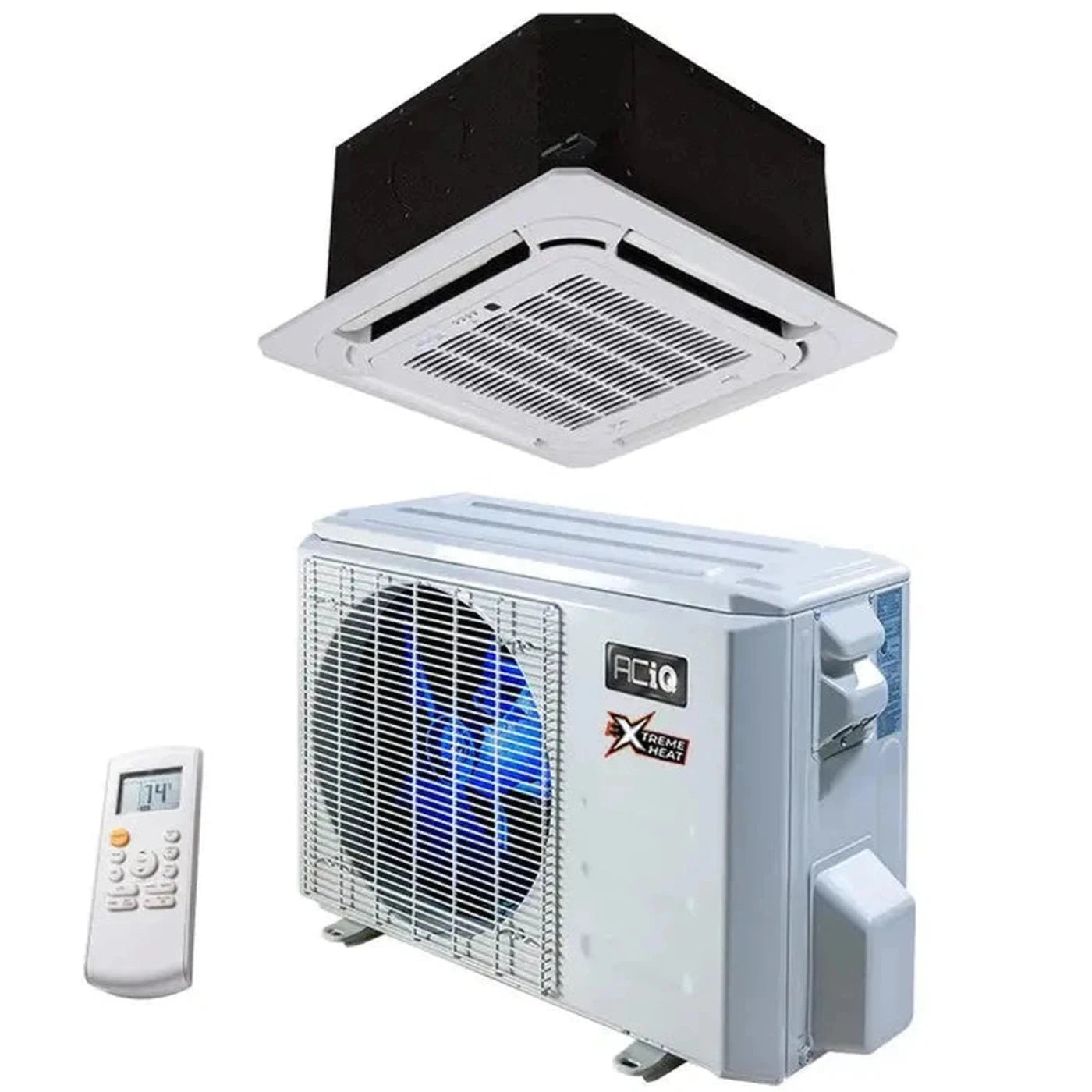

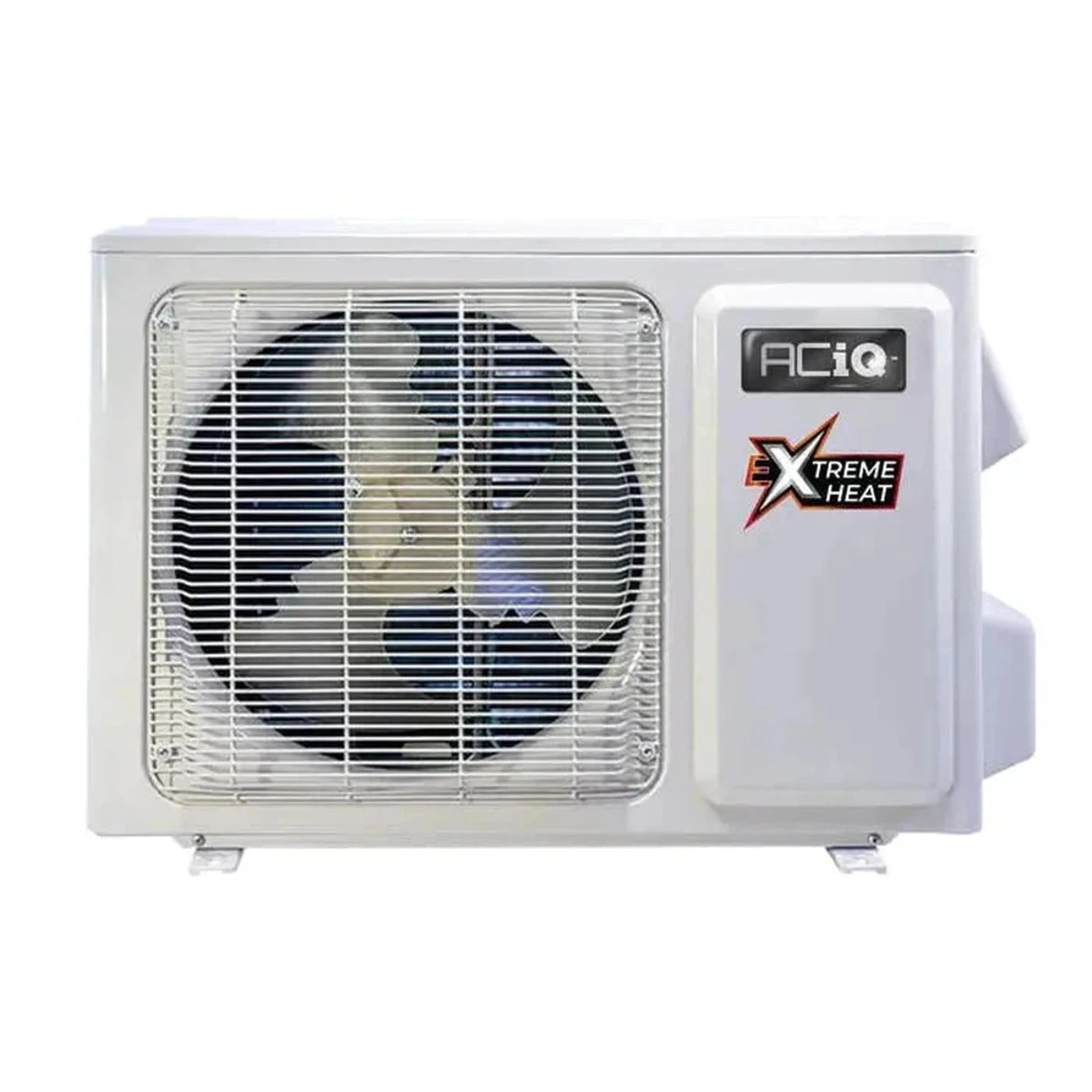

| 18,000 BTU ACiQ Platinum series Single Zone Condenser w/ Extreme Heat |
| SKU |
ACIQ-18ZPL-HP230B |
| Weight (in lbs) |
108.030000 |
| AHRI Certificate Number |
210857317 |
| Brand/Manufacturer |
ACiQ |
| HSPF |
8.3 |
| HSPF2 |
11.3 |
| Cooling BTU |
18,000 BTU |
| Heating BTU |
18,000 BTU |
| Decibel Level (dBA) |
59 |
| Electric Heat |
Heat Pump |
| Energy Star |
Yes |
| Refrigerant |
R410A |
| SEER1 (Efficiency) |
21 |
| SEER2 (Efficiency) |
21.5 |
| EER |
12.5 |
| Electrical |
208/230V | 1 Phase | 60 Hz |
| Max Breaker Size |
25 |
| Min. Breaker Size |
20 |
| Tonnage |
1.5 Ton |
| BTU/Tonnage |
18,000 BTU/1.5 Ton |
| Min/Max Outdoor Temp for Heating |
-22~75 F / -30~24 C |
| Min/Max Outdoor Temp for Cooling |
-22~122 F / -30~50 C |
| Zone Compatibility |
Single Zone |
| Certification |
Energy Star, NEEP, UL AHRI |
| Height |
26.5' |
| Width |
35.04' |
| Depth |
13.46' |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information |
PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
|

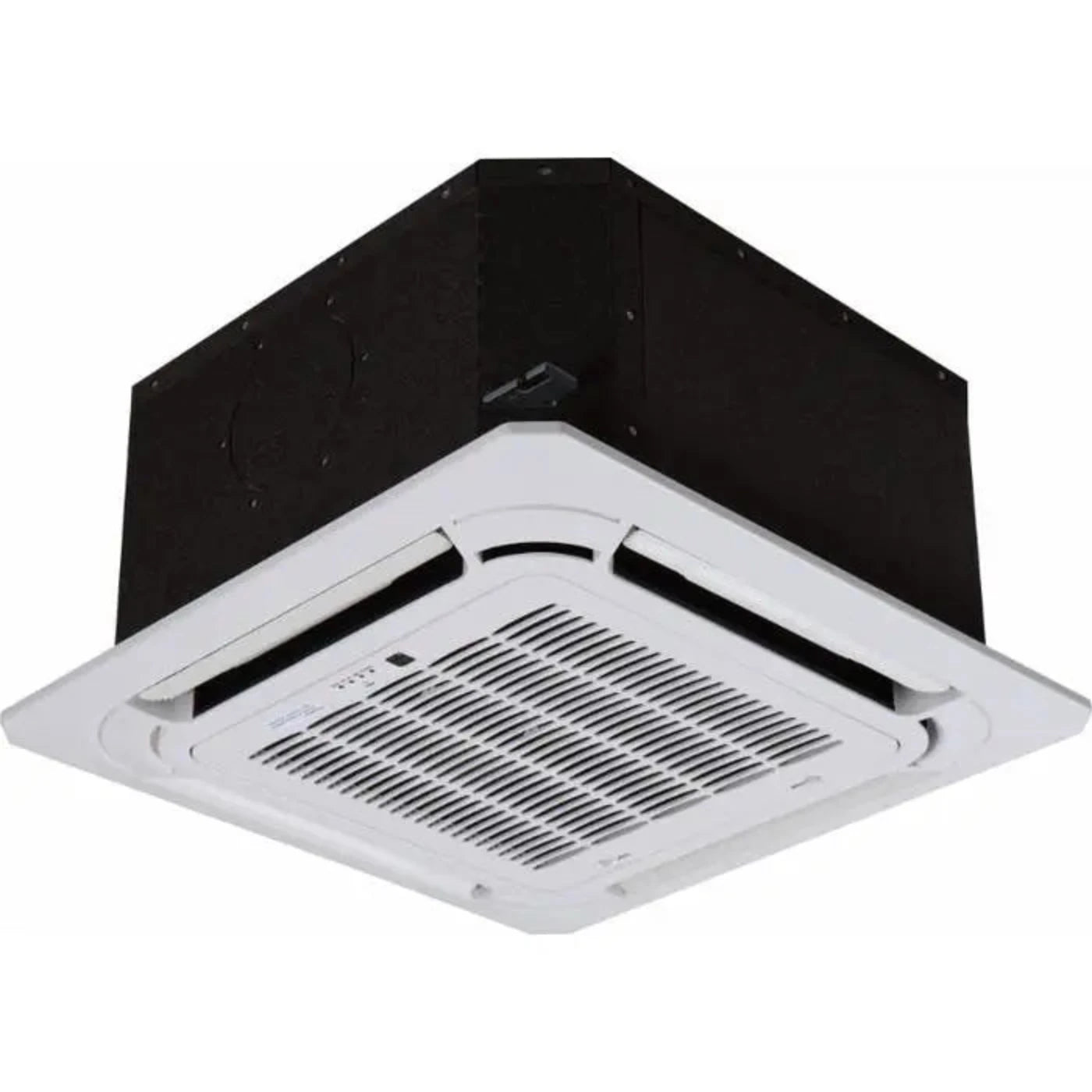

| 18,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler |
| SKU |
ACIQ-18CC-HH-MB / ACIQ-CC-GRILLE |
| Weight (in lbs) |
46.960000 |
| Brand/Manufacturer |
ACiQ |
| Controller |
Wireless Included |
| Cooling BTU |
18,000 BTU |
| Heating BTU |
18,000 BTU |
| Maximum CFM |
562.35 |
| Decibel Level (dBA) |
As low as 35.5 |
| Electric Heat |
Heat Pump |
| Refrigerant |
R410A |
| Capacity |
Dehumidification Rate: 0.586 gal/hr |
| SEER2 (Efficiency) |
22.3 |
| Liquid Line |
1/4' |
| Suction Line |
1/2' |
| Electrical |
208/230V 1 Phase 60Hz |
| Phase |
Single Phase |
| Max Breaker Size |
25 |
| Min. Breaker Size |
20 |
| BTU/Tonnage |
18,000 BTU/1.5 Ton |
| Mini-Split Type |
Ceiling Cassette |
| Zone Compatibility |
Multi Zone |
| Height |
10.25' |
| Width |
22.5' |
| Depth |
22.5' |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information |
PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
|
What Our Experts Think
-
High Cooling Power: With 18,000 BTU, it efficiently cools larger rooms, delivering consistent comfort.
-
Energy Efficient: A 21 SEER rating ensures lower energy consumption and reduced utility bills.
-
Extreme Heat Capability: Built to perform reliably in extreme temperatures, ideal for year-round use.
-
Discreet Design: The ceiling cassette design blends seamlessly with any space, saving wall and floor space.
-
Quiet Performance: Operates quietly, providing a peaceful environment without noisy distractions.
-
Smart Technology: Offers easy control with smart features, allowing you to adjust settings remotely.
Q&A
Q: What is the cooling capacity of this system?
A: The system provides 18,000 BTU, ideal for cooling larger rooms.
Q: How energy-efficient is this unit?
A: With a 21 SEER rating, it ensures high efficiency and lower energy costs.
Q: Can this system handle extreme heat?
A: Yes, it’s designed to perform in extreme temperatures for reliable comfort year-round.
Q: Is it quiet during operation?
A: Yes, it operates quietly, providing a comfortable, noise-free environment.
Q: Can I control the system remotely?
A: Yes, it includes smart control options for easy remote adjustments.
Q: Is it easy to install?
A: Yes, the ceiling cassette design allows for straightforward installation in various spaces.
Maintenance Tips
-
Clean filters regularly: Check and clean every 1-2 months to maintain airflow and efficiency.
-
Clear the drain line: Ensure the condensate drain is free of blockages to prevent water damage.
-
Inspect the unit: Remove any debris around the ceiling cassette for optimal airflow.
-
Annual professional service: Schedule yearly maintenance with a technician for peak performance.
-
Keep outdoor unit clear: Ensure the outdoor unit is unobstructed for proper heat exchange and airflow.
