Rockford Fosgate P3D2-10 10" 1000W 2-Ohm Car Subwoofers Subs + 2600W 2-Ch Amp - 54996

Feature

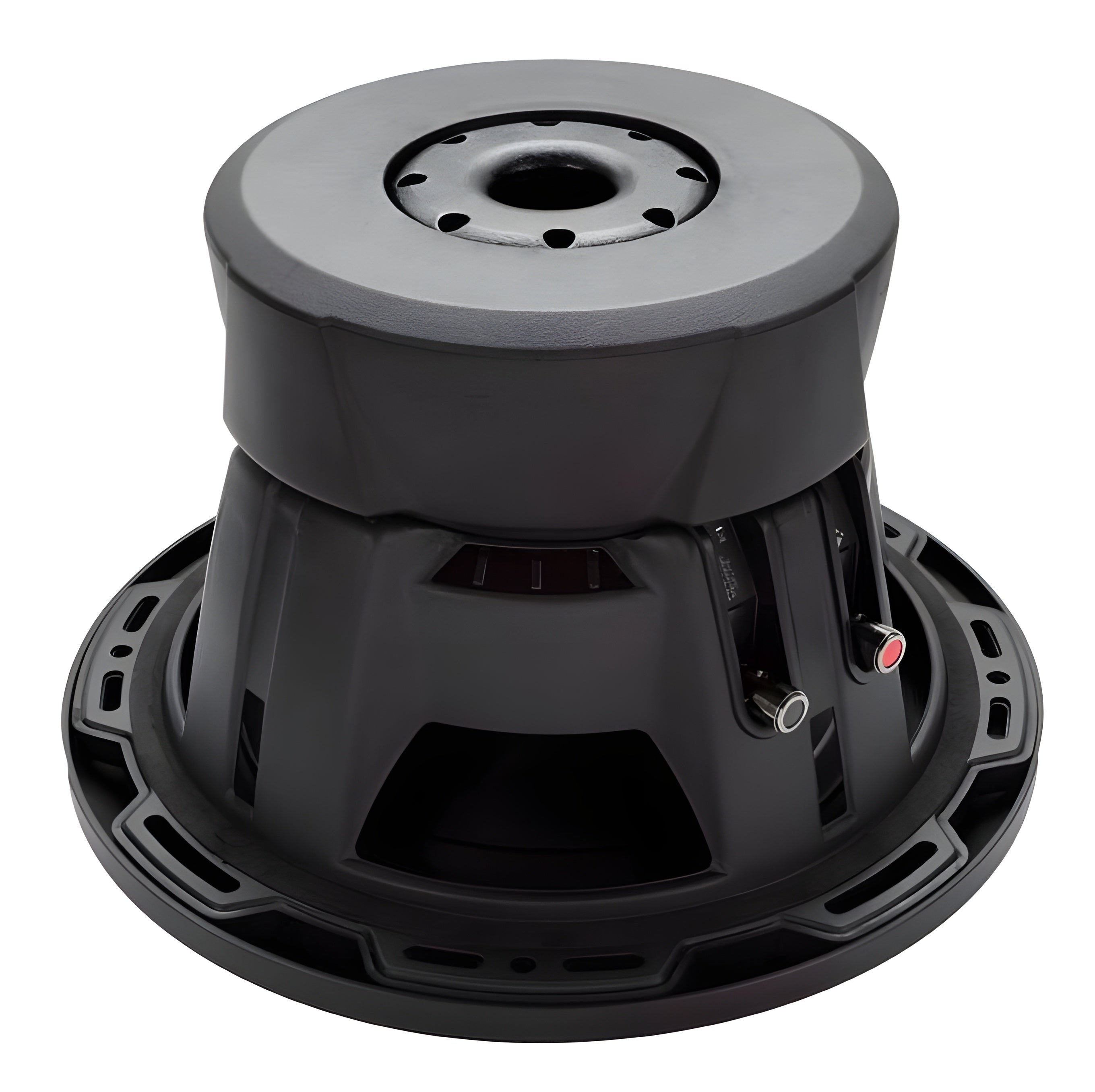

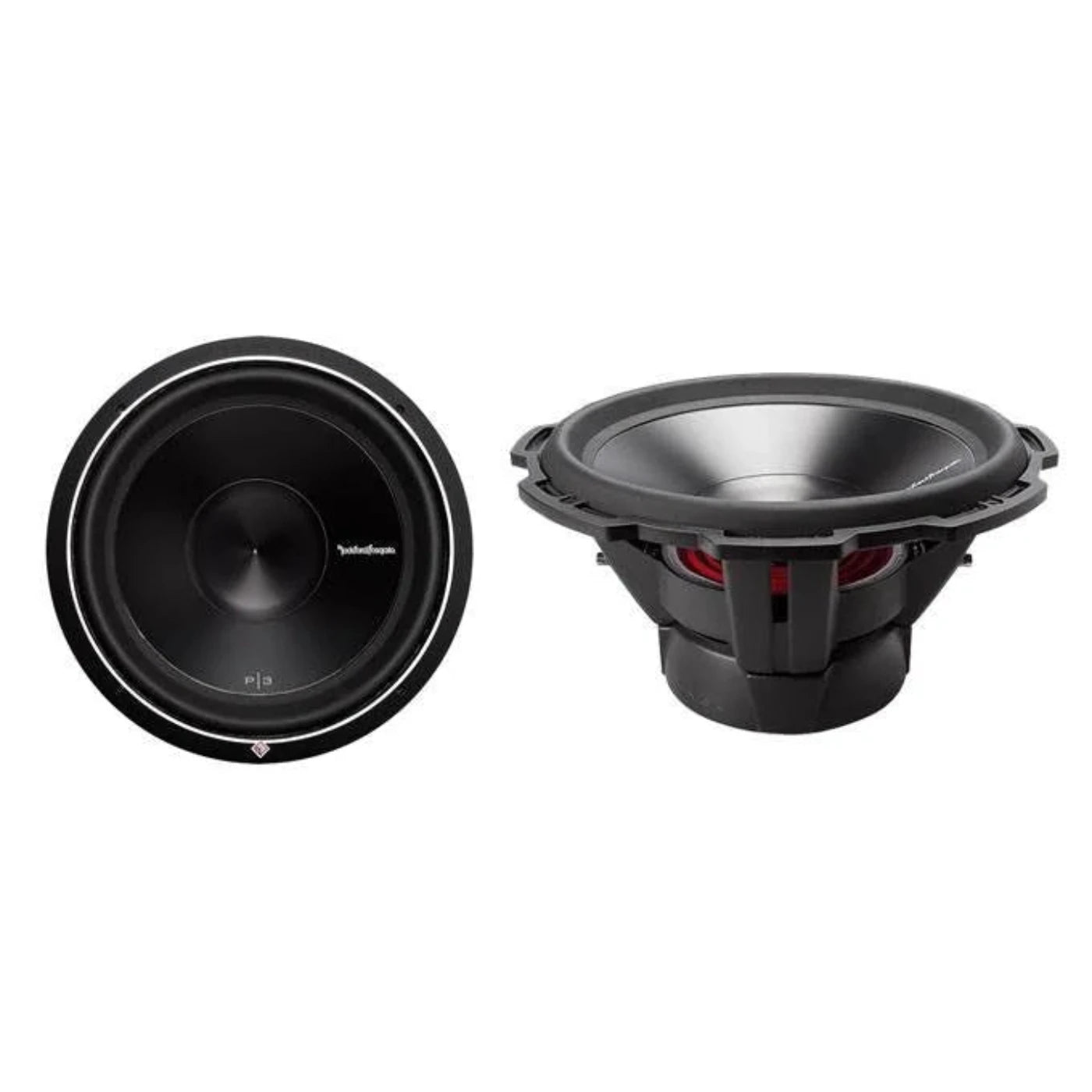

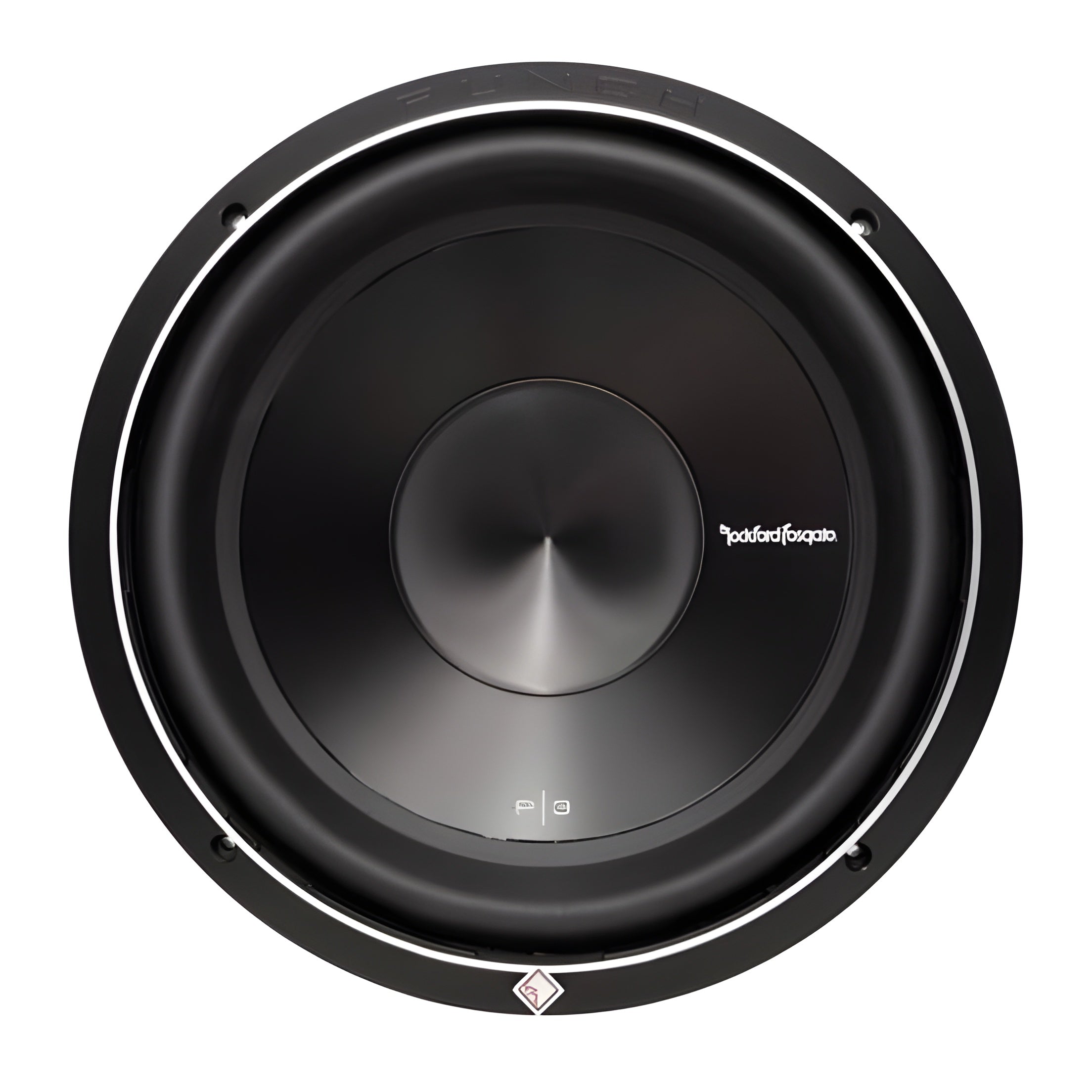

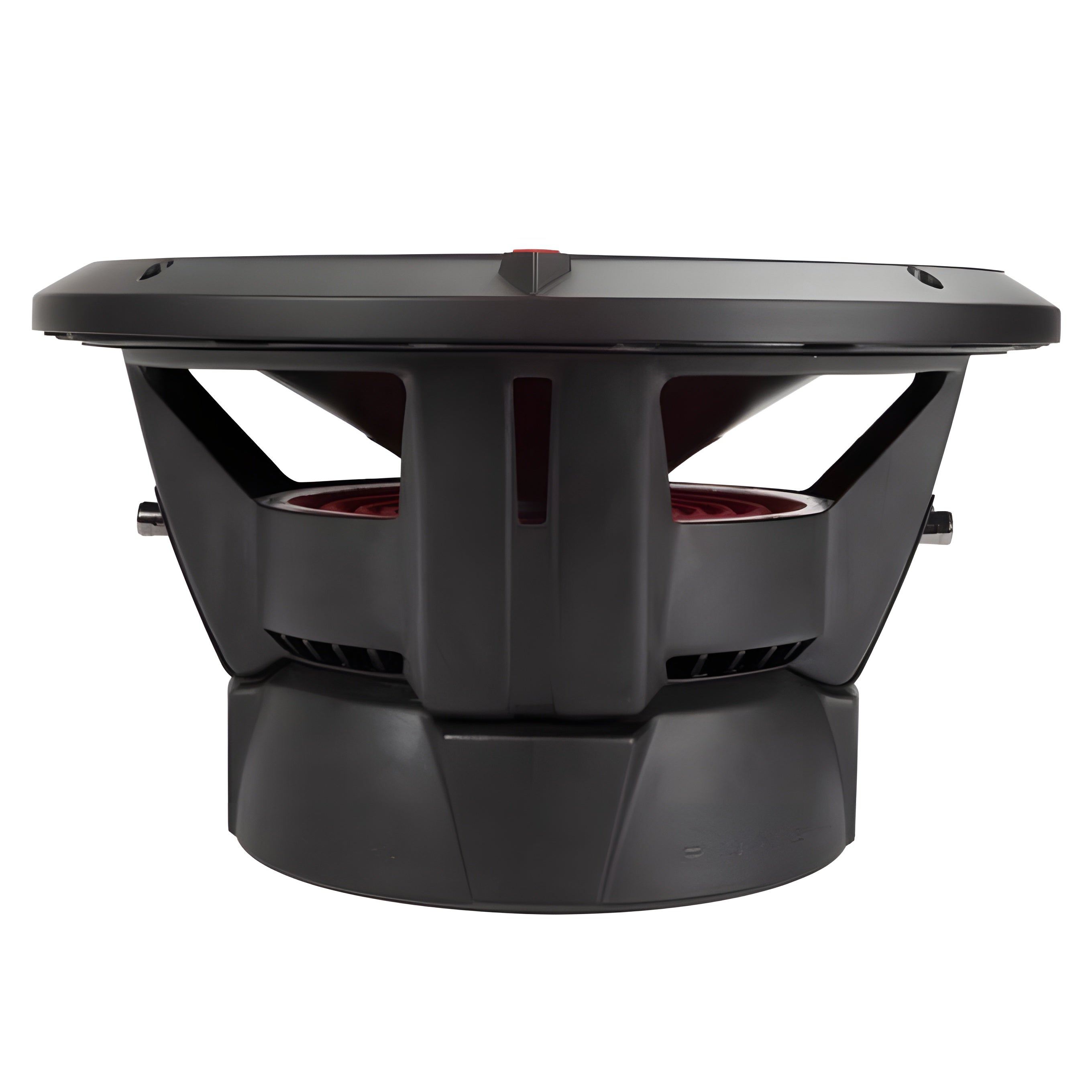

• TWO NEW Rockford Fosgate P3D2-10" 10" 1000 Watt 2-Ohm Punch Series Car Audio Subwoofers

• 1000 Watts MAX per sub (2000 watts per pair)

• 500 Watts RMS per sub (1000 watts per pair)

• Anodized aluminum cone and dust cap

• High temp voice coil with spun laced Nomex insulating reinforcement collar

• Custom 10-AWG nickel plated push terminals

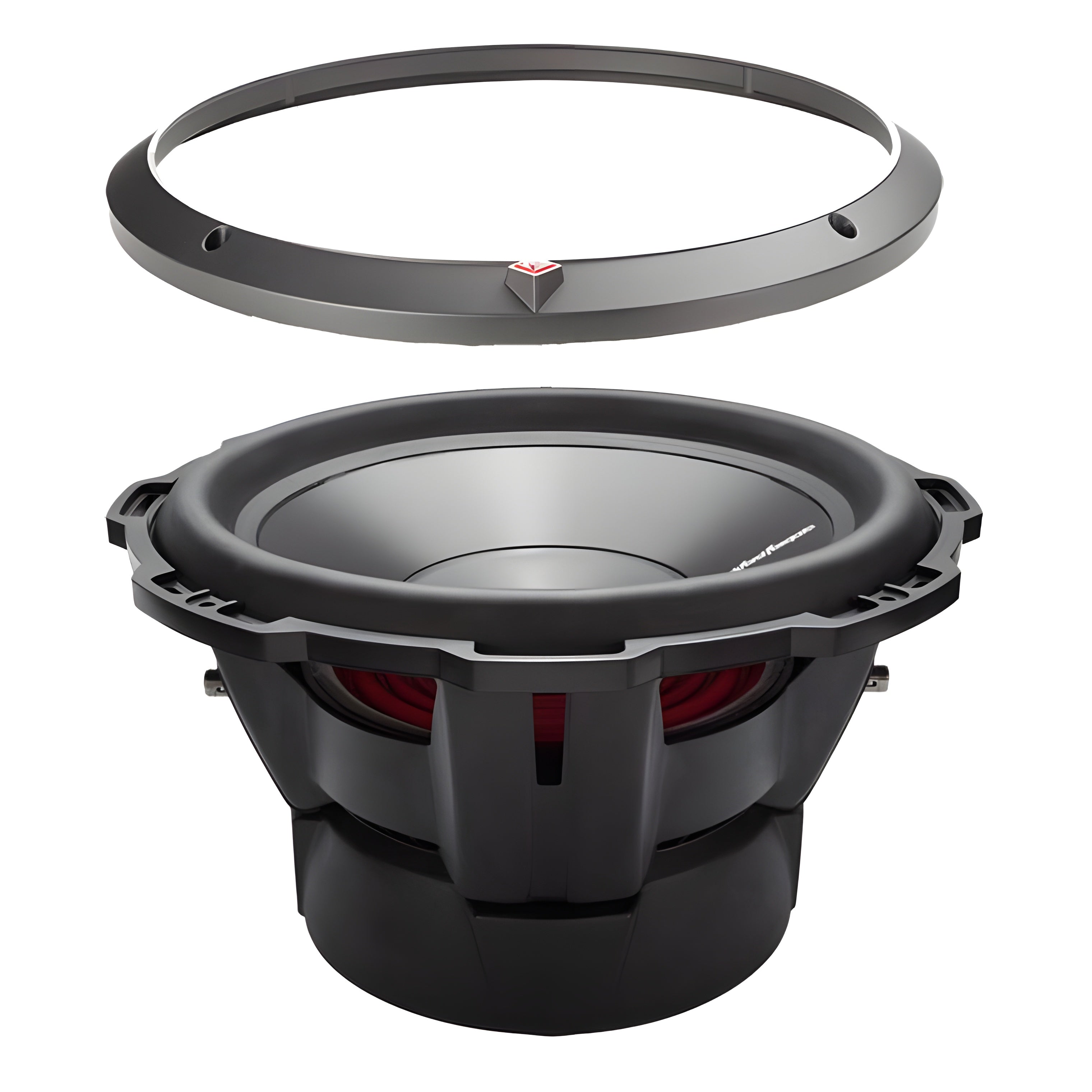

• Diamond cut cast aluminum trim ring with optional grille (grille insert not included)

• Soft touch rubber over-mold for greater grip

• Extended pole piece and bumped vented backplate

• Protective PVC textured magnet cover

• StampCast basket with integrated spider venting

• CEA-2031 Compliant

• Size: 10"

• Nominal Impedance: Dual 2-Ohm

• Voice Coil Diameter: 2.25" (57.7 mm)

• Magnet Weight: 81 oz. (2.30 kg.)

• Speaker Connector: Dual 10 AWG compression

• Fs (Hz): 26.6

• Re (Ohms): 3.20

• Le (mH): 4.5

• Qms: 6.00

• Qes: 0.54

• Qts: 0.49

• Vas (Liters): 27.0

• Sd (cm2): 360

• SPL (dB @ 1w/1m): 82

• Xmax (mm): 15.2

• Subwoofer Displacement: 0.127 Cu. Ft. (3.6 Liters)

• Cutout Diameter: 9.13 Inches (232 mm)

• Mounting Depth: 6.18 Inches (156.8 mm)

• **grille insert not included**

• Quantity: 2 Subwoofers

• Weight: 34.6 lbs (shipping for both subs)

• Condition: BRAND NEW!

• Part Number: **P3D2-10**

• Warranty: 2 Year VMInnovations Warranty

• **Amplifier:**

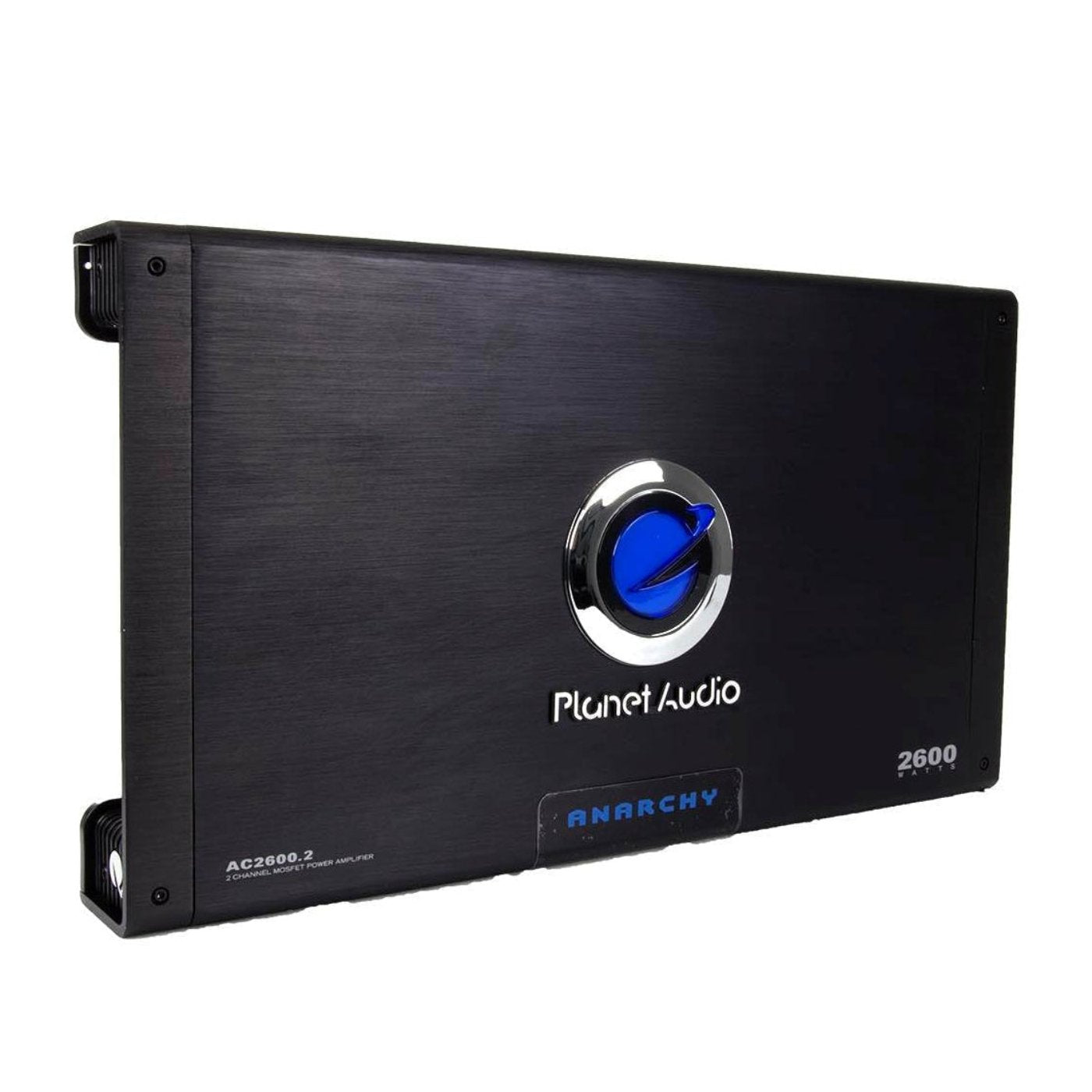

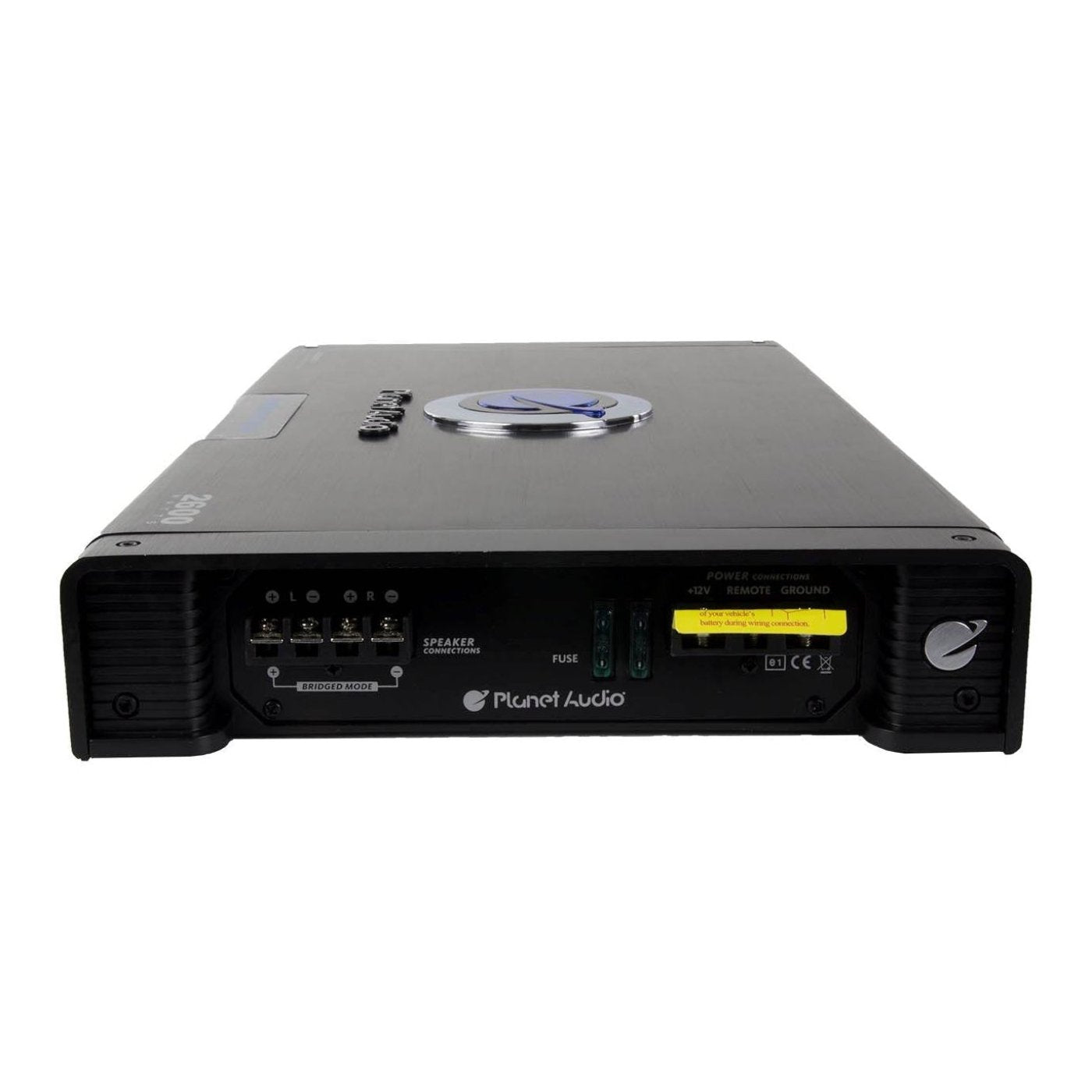

• NEW PLANET AUDIO **AC2600.2** 2600 Watt 2 Channel Car Audio Amplifier

• RMS Power:

• 900 Watt x 2 Channel @ 2 Ohm

• 1800 Watt x 1 Channel @ 4 Ohm Bridged

• Max Power:

• 1300 Watt x 2 Channel @ 2 Ohm

• 2600 Watt MAX

• MOSFET Power Supply

• Bridgeable • Trimode Operation

• Illuminated Logo

• Power and Protection LEDs

• Input Sensitivity Selector

• Variable Bass Boost (0 to +1 8dB)

• Switchable Phase Shift (0-180º)

• Continuously Variable High Pass and Low Pass Crossover

• Low Level High Inputs

• 3 Way Protection

• Heavy Duty Set-Screw Style Terminals

• Chrome-Plated Connections

• Variable high-pass filter (45-90 Hz, 24 dB/octave)

• Variable low-pass filter (50-500 Hz, 24 dB/octave)

• Damping factor: >125

• Signal to Noise Ratio: 102 dB

• Frequency Response: 20Hz-20kHz

• Remote Bass Control Included!

• Dimensions: 15-9/16"L x 10"W x 2-3/16"H

• 4 Gauge Power and Ground Wiring Is Required!

• Weight: 13 Lbs.

• Product Condition: BRAND NEW!

• Part Number: AC2600.2

Package Includes

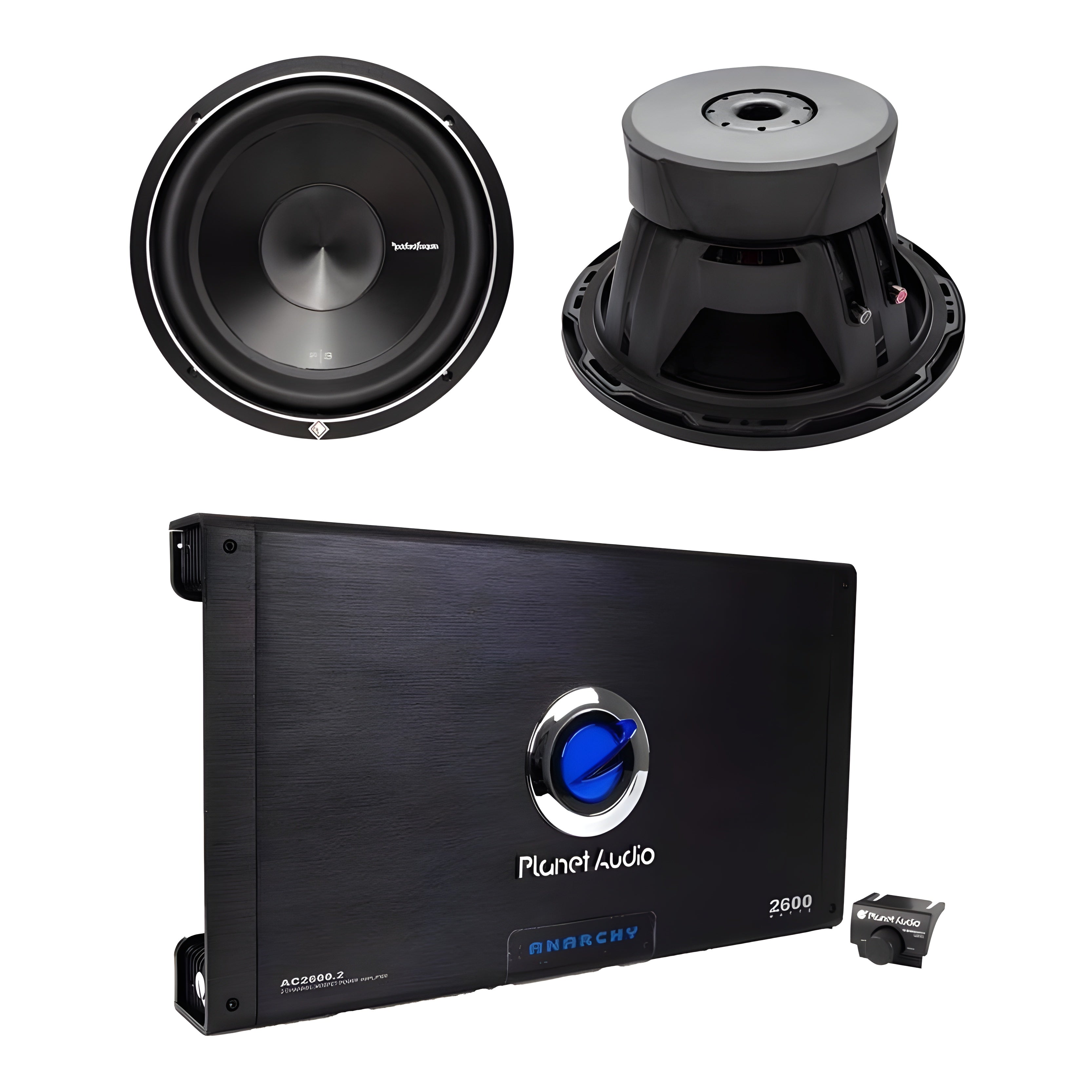

• 2 x Rockford Fosgate P3D2-10 10" 1000W Car Subwoofers

• 1 x Planet Audio AC26002 2600W 2-Channel Car Amplifier

What Our Experts Think

• Secure Placement: Mount the enclosure securely to minimize vibrations and ensure consistent bass output.
• Regular Cleaning: Use a soft, dry cloth to remove dust and dirt. Avoid water or harsh cleaners that could damage the components.
• Inspect Wiring: Check speaker connections and wiring for tightness, wear, or corrosion. Replace any damaged wires promptly.
• Optimize Ventilation: Ensure the enclosure is placed in a well-ventilated area to prevent overheating during extended use.
• Adjust Settings: Calibrate amplifier gain, crossover, and bass boost settings carefully to match the subwoofers and avoid distortion.
• Protect from Moisture: Keep the enclosure dry to prevent water or humidity damage.
• Monitor Performance: Regularly listen for unusual sounds or distortion and address issues immediately to prevent further damage.
• Avoid Overpowering: Use an amplifier that matches the enclosure's power handling capacity to avoid overloading the system.

Q&A

Q: What is included in this package?
A: The package includes two Rockford Fosgate P3D2-10 10-inch, 1,000-watt 2-ohm car subwoofers and a 2,600-watt 2-channel amplifier.

Q: What is the power handling of the subwoofers?
A: Each subwoofer delivers 1,000 watts peak power and 500 watts RMS for high-performance bass.

Q: What are the features of the subwoofers?
A: The P3D2-10 subwoofers feature anodized aluminum cones, Santoprene surrounds, and a high-temperature voice coil for durability and exceptional sound quality.

Q: What are the specifications of the amplifier?
A: The included 2-channel amplifier delivers 2,600 watts of peak power, providing ample output to drive the subwoofers effectively.

Q: Is the system compatible with most vehicles?
A: Yes, the subwoofers' standard 10-inch size and amplifier's versatile connectivity make the system compatible with a wide range of vehicles.

Q: How does this setup ensure optimal performance?
A: The 2-ohm dual voice coil design of the subwoofers and the amplifier's high power output are perfectly matched for deep, distortion-free bass.

Maintenance Tips

• Clean Regularly: Use a soft, dry cloth to clean the subwoofer cones and amplifier casing. Avoid liquids or abrasive cleaning agents.
• Inspect Wiring: Check all power, ground, and speaker connections for tightness and signs of wear or corrosion. Replace damaged wires promptly.
• Ensure Proper Ventilation: Install the amplifier in a well-ventilated location to prevent overheating, and avoid enclosing it in tight spaces.
• Calibrate Settings: Adjust the amplifier's gain, crossover, and bass boost settings to match the subwoofers’ specifications, ensuring clear, distortion-free sound.
• Moisture Protection: Keep the subwoofers and amplifier in a dry, weather-resistant environment to prevent water damage or rust.
• Monitor Performance: Regularly listen for any unusual sounds or distortion, addressing issues early to prevent further damage.
• Power Compatibility: Use a compatible power source and ensure the amplifier matches the subwoofers’ power handling to avoid overloading or underpowering.
• Fuse Inspection: Check the amplifier’s fuse periodically and replace it if blown to ensure consistent power delivery and protection.
