Viair 200 PSI High Flow 2 Gallon Air Source Kit

Viair 200 PSI High Flow 2 Gallon Air Source Kit

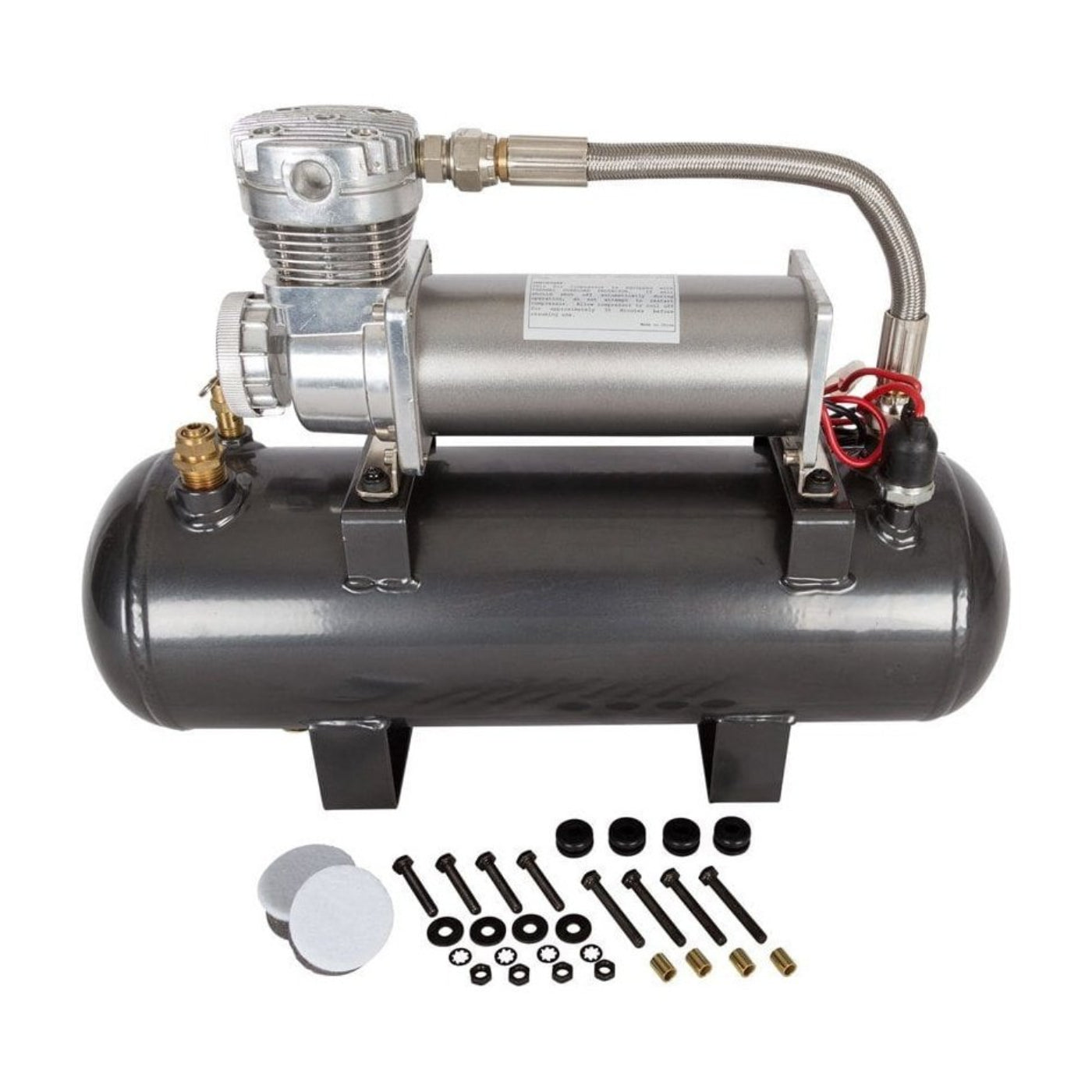

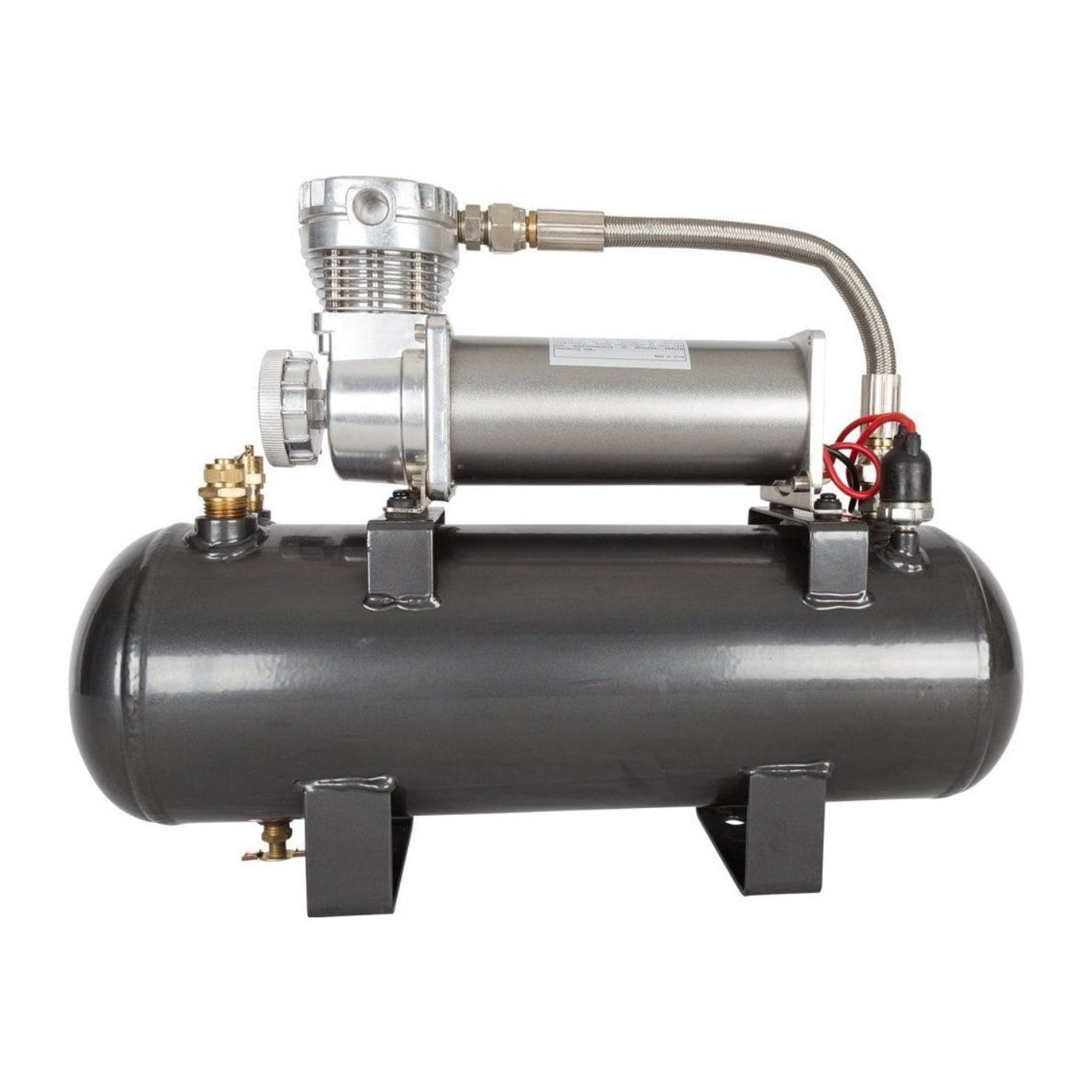

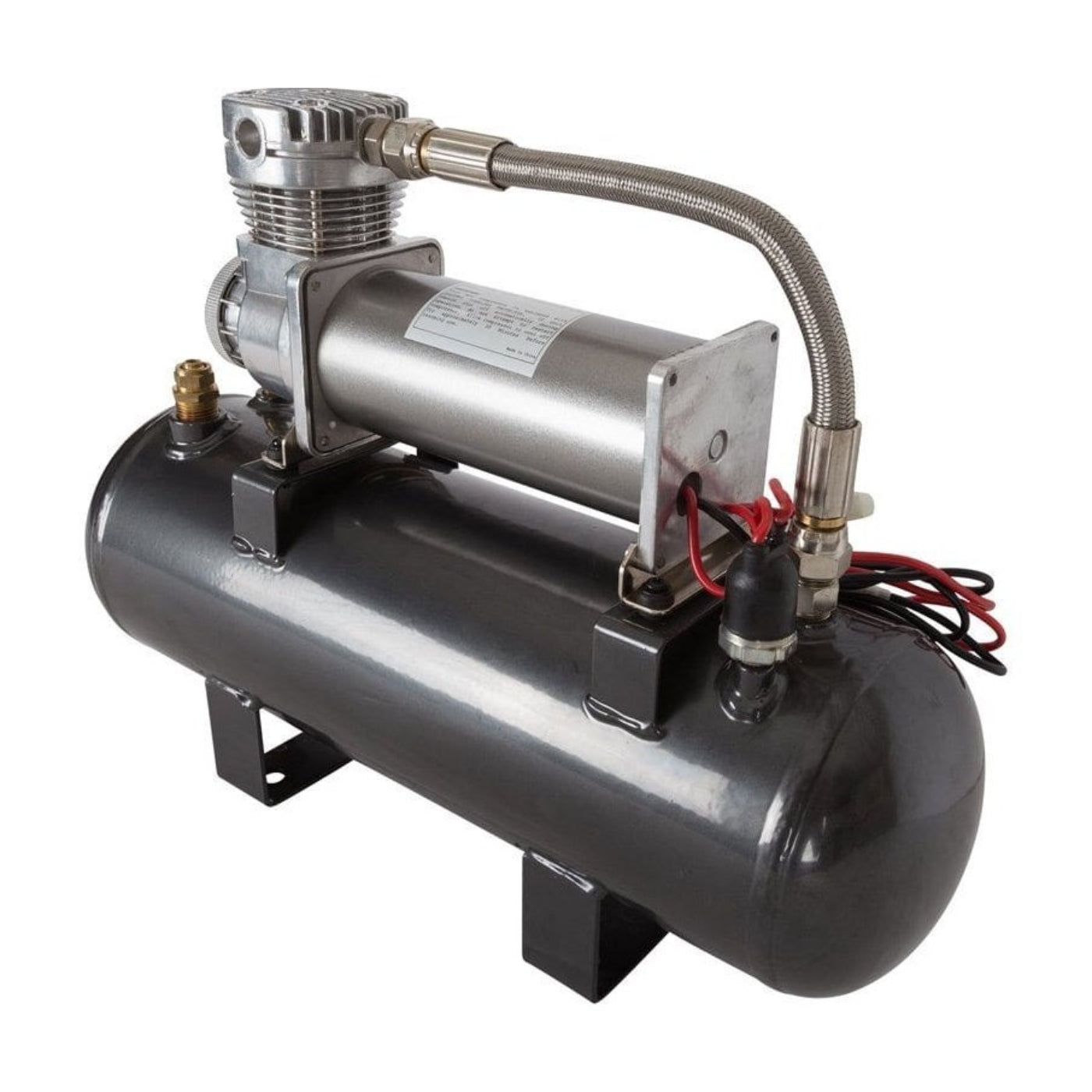

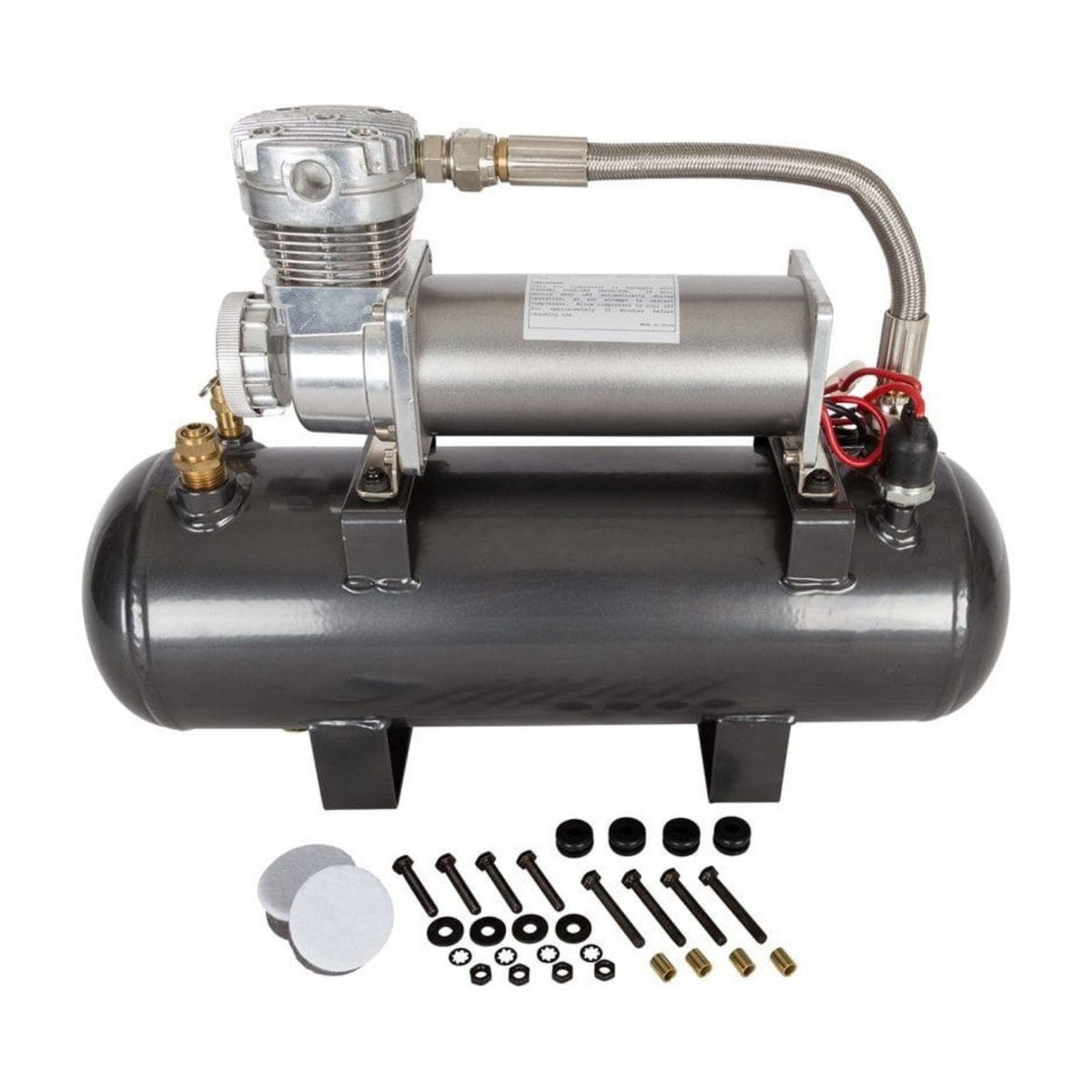

Elevate your air power with the Viair 200 PSI Air Source Unit, perfect for air suspension, air tools, and HornBlasters horns. This compact, all-in-one kit includes a tank-mounted Viair 480C Air Compressor, delivering impressive speed and performance. With a 100% duty cycle at 100 PSI and 50% duty cycle at 200 PSI, this unit handles long jobs efficiently. Experience quick fill and recharge times, and easy installation with pre-wired and pre-plumbed components.

• Pre-Installed Pressure Switch
• 1/4' NPT 250 PSI Safety Blow Off
• 1/4' Drain Cock
• 1/2' NPT Compression Fitting
• Insulated Wiring with Connectors
• Installation Instructions

(Note: Tank mounted air compressors are not fully sealed.  For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc...)

Performance Data & Fill Rates

* Supply Voltage: 13.8 Volts

 * Supply Voltage: 13.8 Volts

Manual

• Viair 200 PSI 2 Gallon Air Source Unit Manual
• Viair 200 PSI 2 Gallon Air Source Unit Dimensional Drawing

Includes

• Viair 480c Air Compressor
• 2 Gallon Viair Air Tank
• 165/200 PSI Pressure Switch
• 250 PSI Safety Valve & Drain Cock
• 1/2' Compression Fitting

Specifications

• Part Number: MC-248
• Manufacturers Part Number: 20008

• Operating Pressure: 200 PSI
• Length: 19.0″ (482.6 mm)
• Width: 5.9″ (149.86 mm)
• Height: 14.2″ (360.68 mm)
• Volume: 2.0 gal (8.8 L)
• Voltage: 12 Volts
• Max Amperage: 23 Amps
• Max Output: 1.86 CFM
• Maximum Duty Cycle: 100% @ 100 PSI
