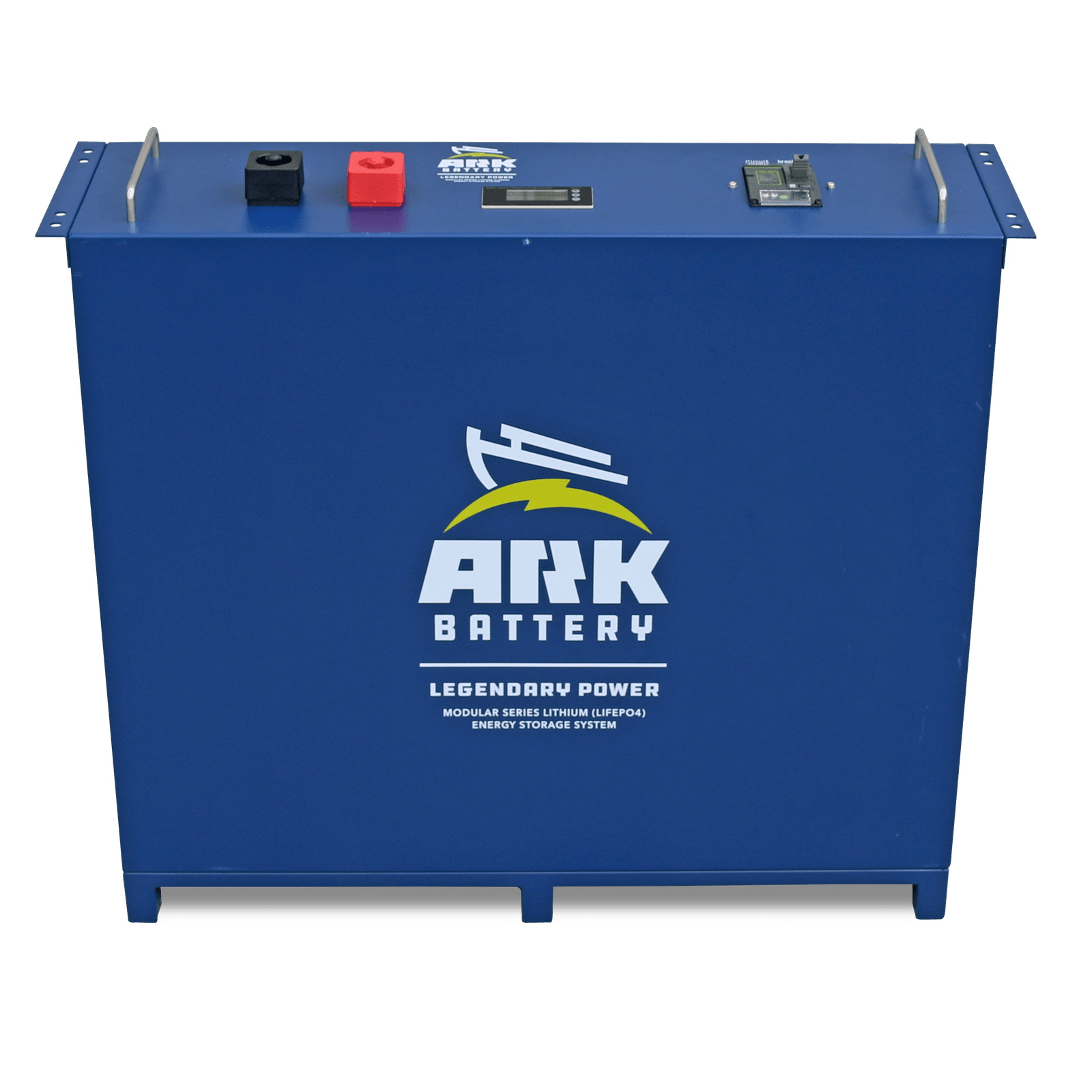

Ark Battery 200AH, LiFe PO4 Battery, ARK512200, 51.2 Volts - ARK512200

Ark Battery 200AH, LiFe PO4 Battery, ARK512200, 51.2 Volts - ARK512200

To guarantee that all cells are charged and discharged equally, each ARK Battery has a unique (Impactiv) balancing system. This accomplishes the same thing that lead-acid battery “equalizing” does. External equalization of LiFePO4 batteries may not be possible, but it is essential that each cell maintain the same voltage. An “imbalanced” battery will have a lower capacity, a significantly shorter cycle life, and bothersome BMS shut-offs.

All ARK Batteries use IMPACTIV balancing, which distributes extra power from high-voltage cells to low-voltage cells and increases dissipative consumption if a cell reaches dangerously high voltage.

Features

• Stable Voltage.

• Maintenance Free.

• Light Weight.

• Field Serviceable.

• Integrated breaker protection.

• Temperature Protected.

• BMS Protected.

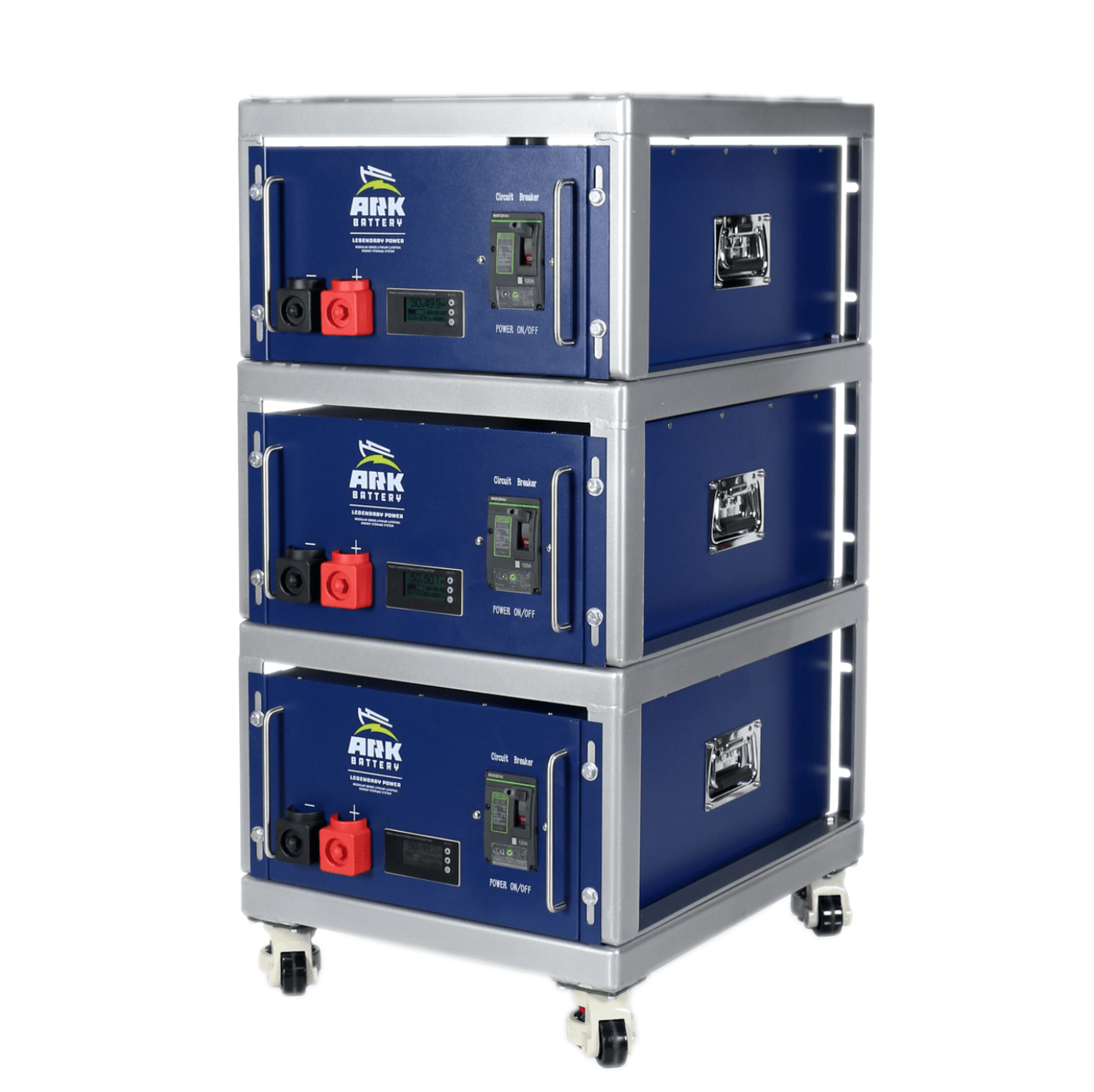

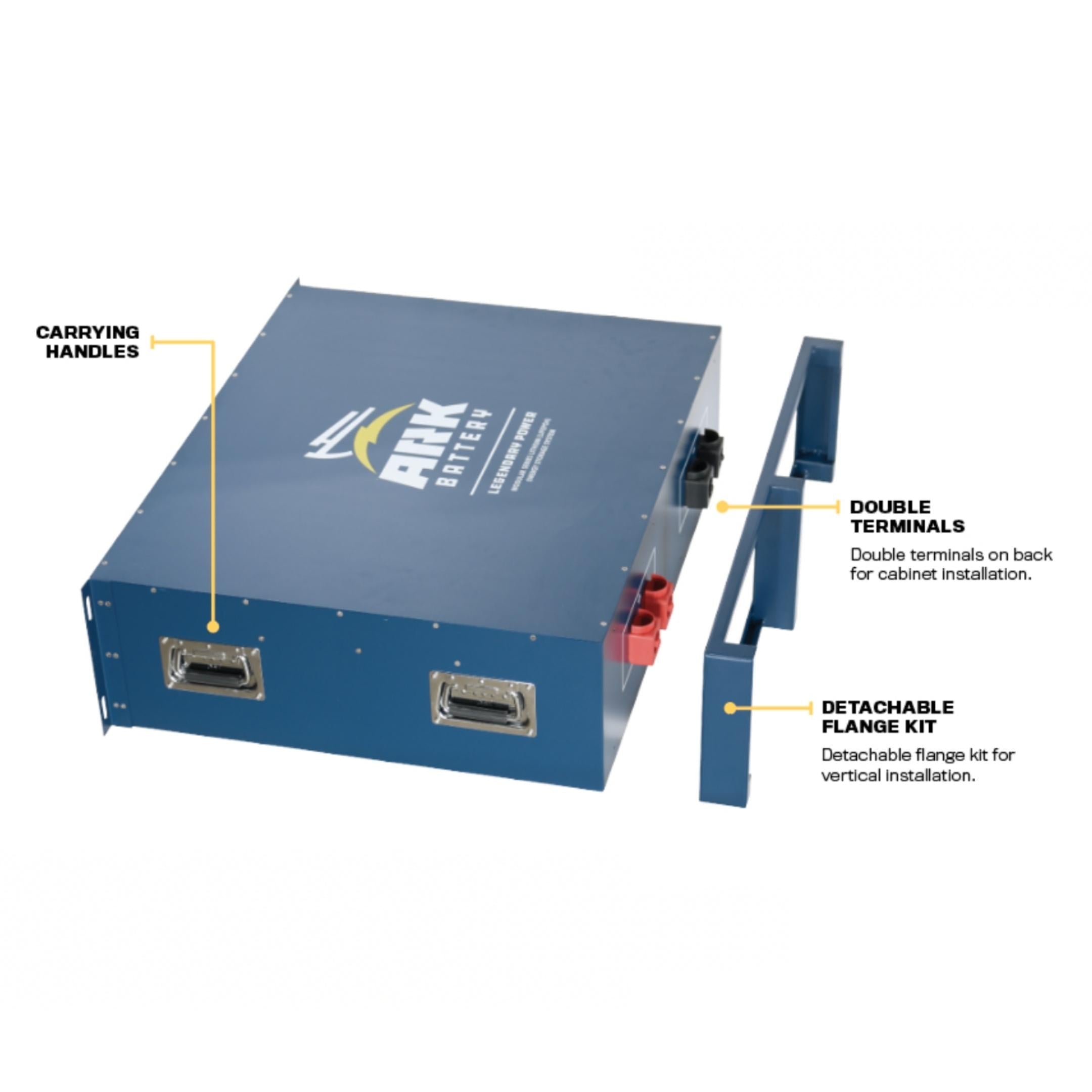

• In a rack or cabinet, ARK Batteries can be mounted vertically or horizontally. Both the front and back of the device have terminals that make it easier to cable either position.

• When compared to lead acid batteries, ARK Batteries can be charged in less than half the time.

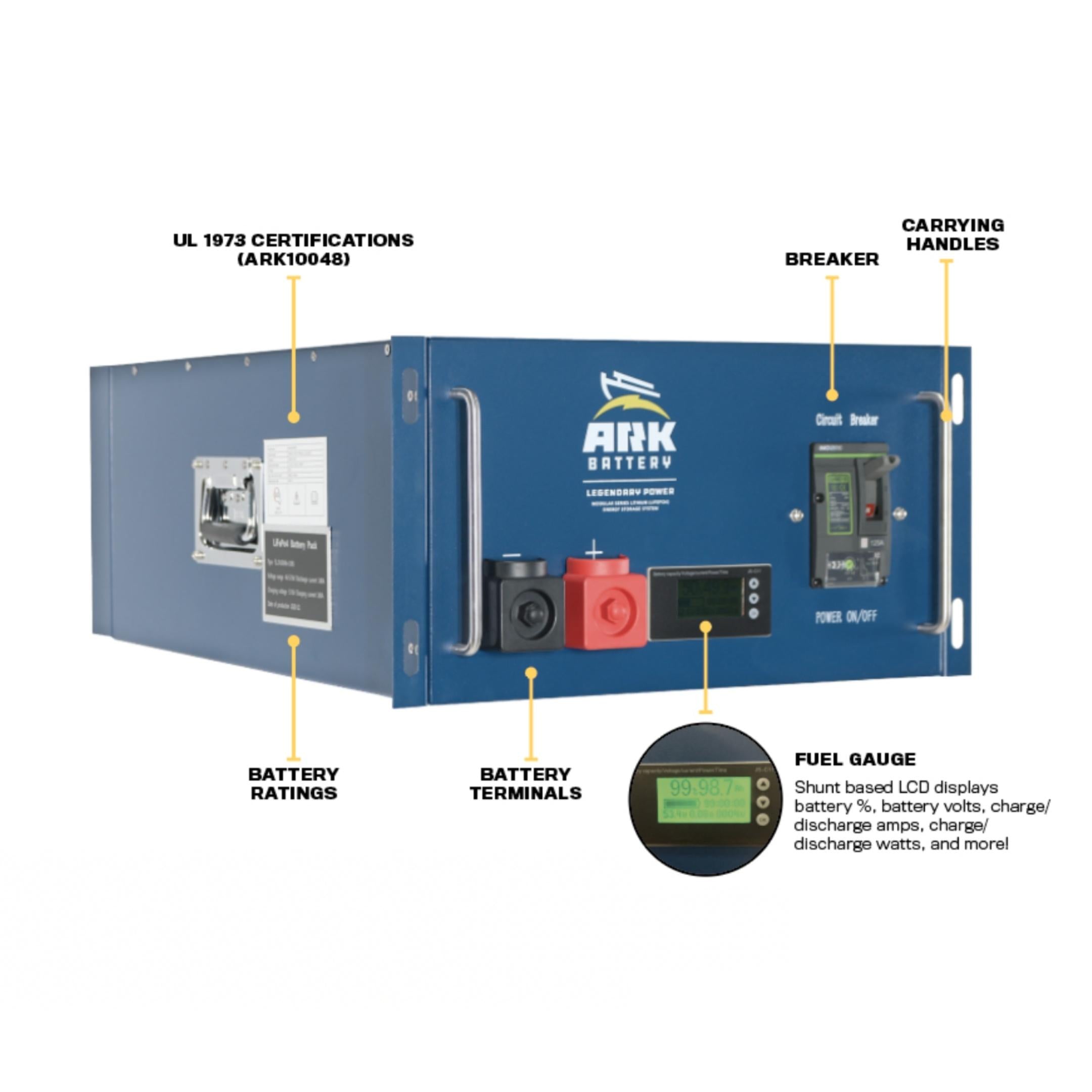

• Battery percentage, battery volts, charge/discharge amps, and charge/discharge watts are all displayed on a shunt-based LCD.

Specifications

Downloads & Manual

ARK512200 Battery Spec Sheet

What Our Experts Think

• Powerful Capacity: The Ark Battery 200AH offers an impressive 200Ah capacity, ensuring reliable power for your high-demand applications.
• Lithium Iron Phosphate (LiFePO4): Delivers exceptional efficiency, longer lifespan, and greater safety compared to traditional lead-acid batteries.
• High Voltage Output: With 51.2V, it provides stable, consistent energy for a wide range of systems, from solar setups to RVs and more.

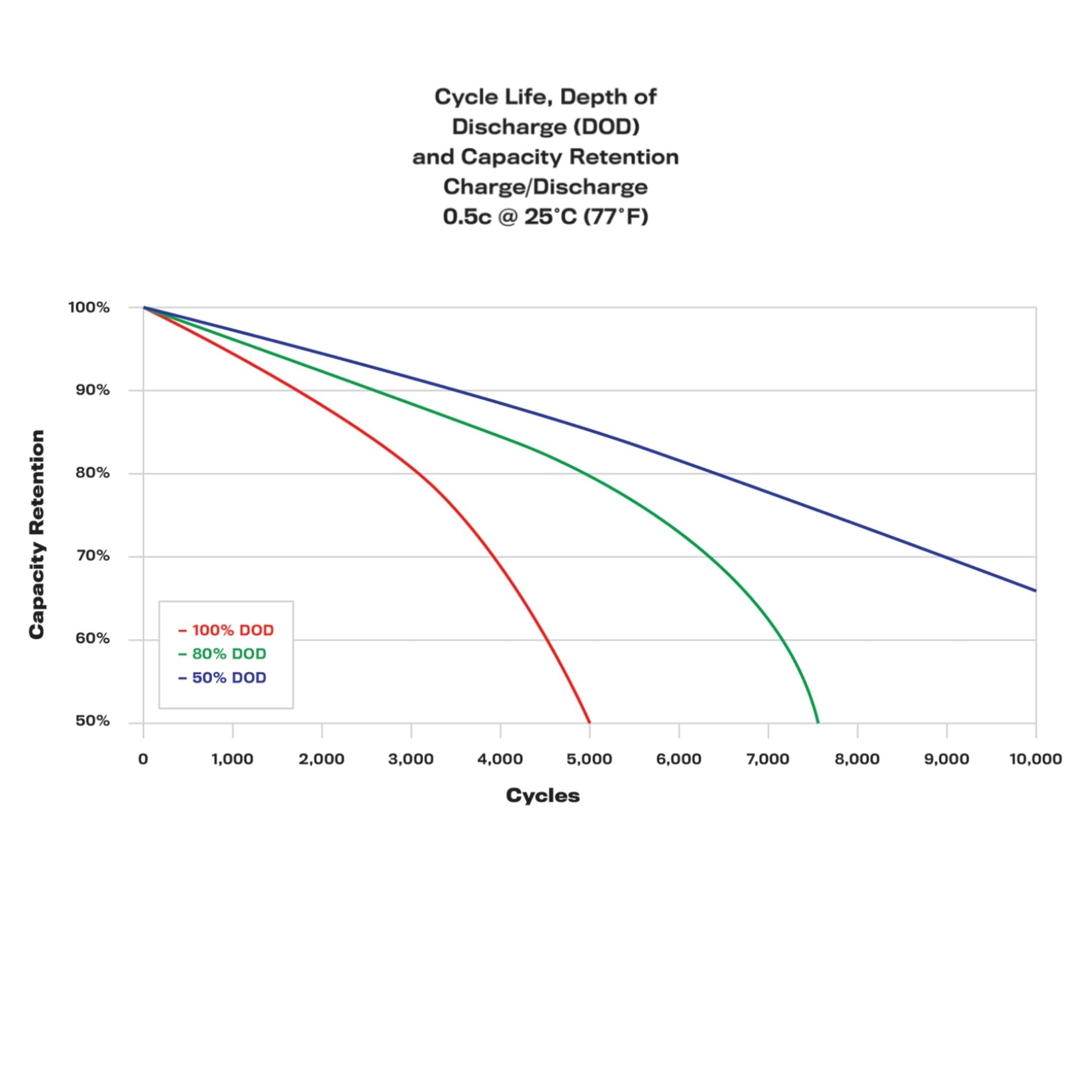

• Long Cycle Life: Designed to last over 4,000 charge cycles, reducing the need for frequent replacements and lowering long-term costs.
• Fast Charging: Features a quick recharge time, so your systems stay operational with minimal downtime.
• Built-in Safety: Integrated BMS (Battery Management System) ensures optimal performance and prevents overcharging, overheating, and deep discharge.

Q&A

Q: What is the Ark Battery 200AH LiFePO4 Battery (ARK512200)?
A: The Ark Battery 200AH is a high-capacity, lithium iron phosphate (LiFePO4) battery providing 51.2 volts, ideal for use in solar energy storage, off-grid systems, and high-demand applications.

Q: What are the key features of the ARK512200?
A:

• 200Ah capacity with 51.2 volts for reliable, long-lasting power.
• LiFePO4 technology for high efficiency, safety, and long lifespan (up to 6000 charge cycles).
• Built-in Battery Management System (BMS) for overcharge, over-discharge, and thermal protection.
• Lightweight and compact design for easier installation and maintenance.
• Ideal for solar systems, RVs, marine, and backup power solutions.

Q: What makes LiFePO4 batteries better than traditional lead-acid batteries?
A: LiFePO4 batteries are lighter, longer-lasting, and more energy-efficient than lead-acid batteries. They also have a higher safety profile, with less risk of thermal runaway.

Q: How long will the Ark Battery last?
A: With proper maintenance, the Ark Battery can last up to 6000 charge cycles, offering a longer lifespan compared to traditional batteries.

Q: Is the ARK512200 easy to integrate into a power system?
A: Yes, its standard design makes it compatible with most off-grid systems, solar setups, and other high-demand applications for seamless integration.

Maintenance Tips

• Regular Charging: Charge the battery using a LiFePO4-compatible charger, ensuring the voltage stays within the recommended range (51.2V nominal).
• Monitor Battery Health: Check voltage and current levels periodically to maintain performance and identify any irregularities.
• Avoid Deep Discharge: Ensure the battery doesn’t discharge below 20% to prolong its lifespan.
• Keep Terminals Clean: Clean the battery terminals regularly to prevent corrosion and ensure a strong connection.
• Proper Storage: If not in use for extended periods, store in a cool, dry place and recharge every 3-6 months to maintain battery health.
• Temperature Control: Avoid exposing the battery to extreme temperatures; optimal charging and usage temperature is between 0°C and 45°C (32°F to 113°F).
• Safety Check: Inspect for any signs of damage, swelling, or leakage; discontinue use immediately if any issues arise.
