2060 evo+ 8' with Pearl Transmitter

2060 evo+ 8' with Pearl Transmitter

Product Features

• 600 Newton Motor (3/4 HP equivalent)
• 3-piece c-channel rail for doors up to 8' tall
• One 4-button Pearl transmitter included
• Wired safety sensors
• Wired 3-button wall station

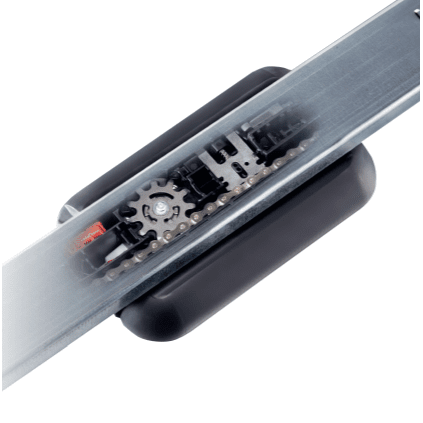

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• The operator actively pushes in the closed direction during an attempted break-in
• The emergency release can be disengaged and re-engaged in any position

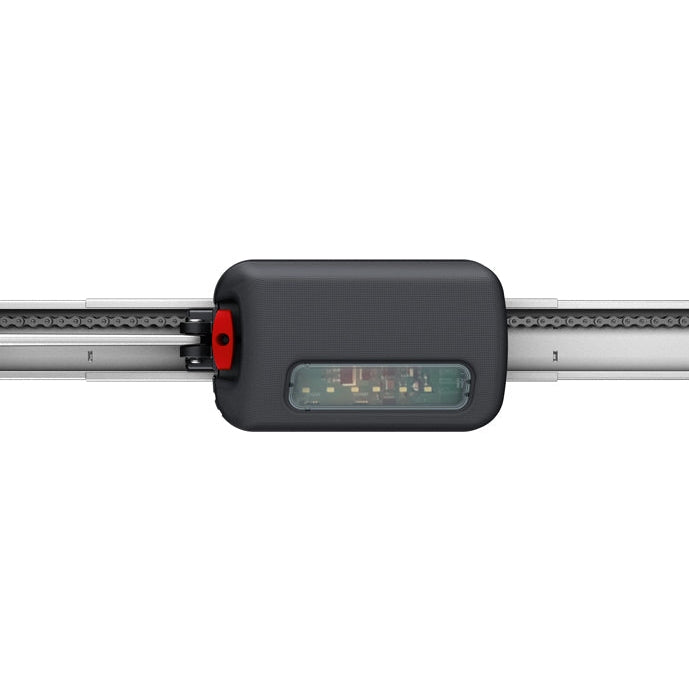

• Built-in LED lighting at the motor carriage
• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short, Medium, or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on the motor carrier to avoid coil cords or taking up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Pre-programmed 4-button Pearl transmitter in the box
• Repeating and forwarding radio functions for maximum range
• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
• Transmitter management on-site or remotely through Codemaster+
• Accu internal battery backup or Accu 2.2 external battery backup provides power for standby operation during power outages
• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments

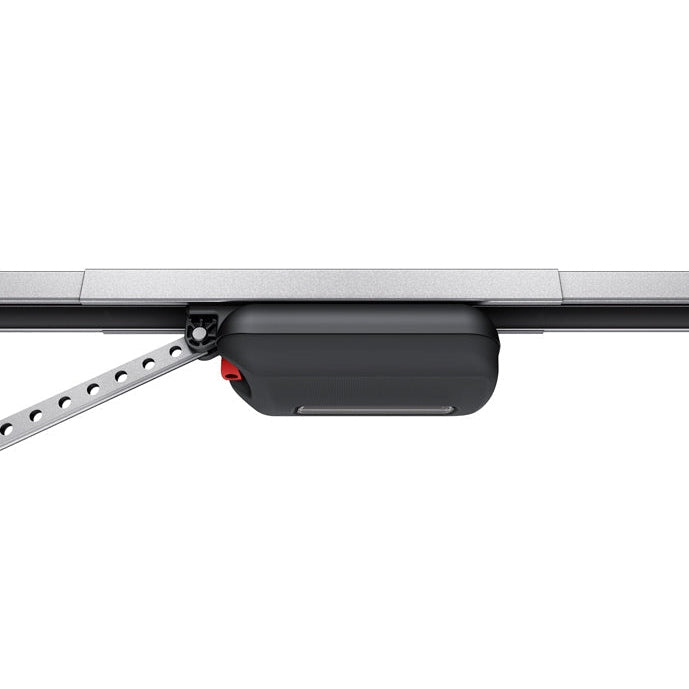

• The motor carriage can be easily removed for service or repair without needing to disassemble rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

• Assembled size: 140.8"L x 4.37"W x 5.55"H
• 922.5 MHz radio frequency with 128-bit AES encryption
• SOMloq2 system
• Rolling code
• 4-channel on-board receiver
• 40-slot receiver memory (expandable to 450 slots with Memo)
• Homelink module included for 310 MHz direct programming
• Tested to 125,000 cycle threshold in beta phase
• Rated for doors up to 600 lbs. counter-balanced weight (see Door Weight Chart for reference)
• Up to 9.4" per second operating speed at 7,800 RPM
• Duty rating: 40% (see Duty Rating Chart for more information)
• Max travel with extensions: 24' (see Door Height by Extensions chart for additional information)
• UL listed and compliant with current UL325 requirements for residential and commercial doors
• 6' power cord
• 120V AC 60 Hz power input
• 24V AC, 100 VA transformer with Class 2 UL protection rating
• 24V DC motor
• 1A max power draw with >3 W standby power
• >59 dBA noise level (operator only)
• NEMA 1 / IP 21 rated
• FCC ID: T8C206
• IC ID: 6496A-206

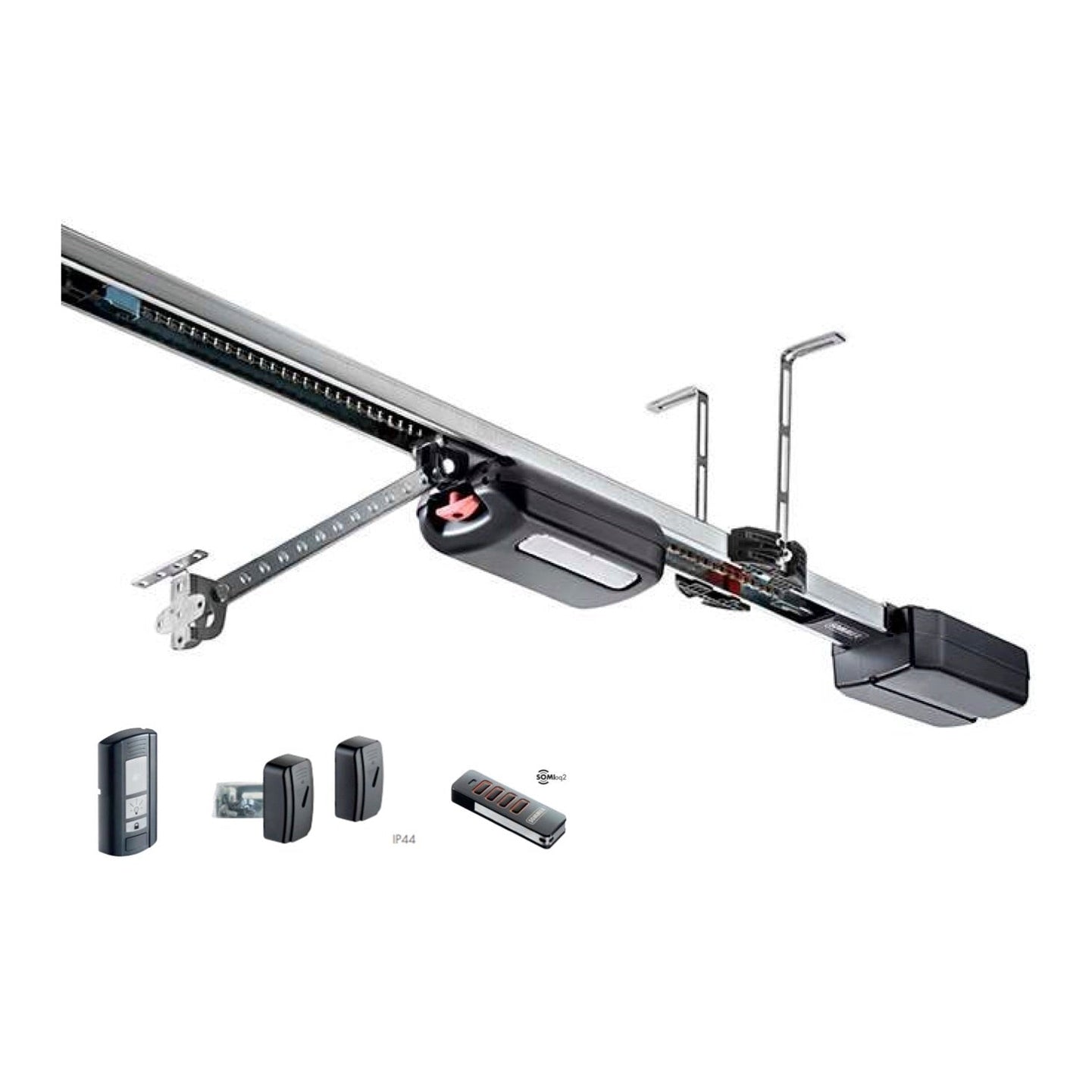

Included in the Box

1. 2060 motor carriage
2. Control Housing
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Wired 3-button wall station kit
14. Wiring kit
15. Docs bag
16. English technical manual
17. Spanish technical manual

 Video

Additional Documents

evo+ Brochure
evo+ Technical Manual
evo+ Quick Install Guide
evo+ Shop Drawings and Technical Data Sheet
evo+ Warranty
Maximum Door Weights Chart
Duty Rating Chart
Door Height by Rail Extension Chart
Header to Obstruction Chart
Multi-Tenant Garage Specification and Transmitter Compatibility
Homelink Instructions evo+_pro+
