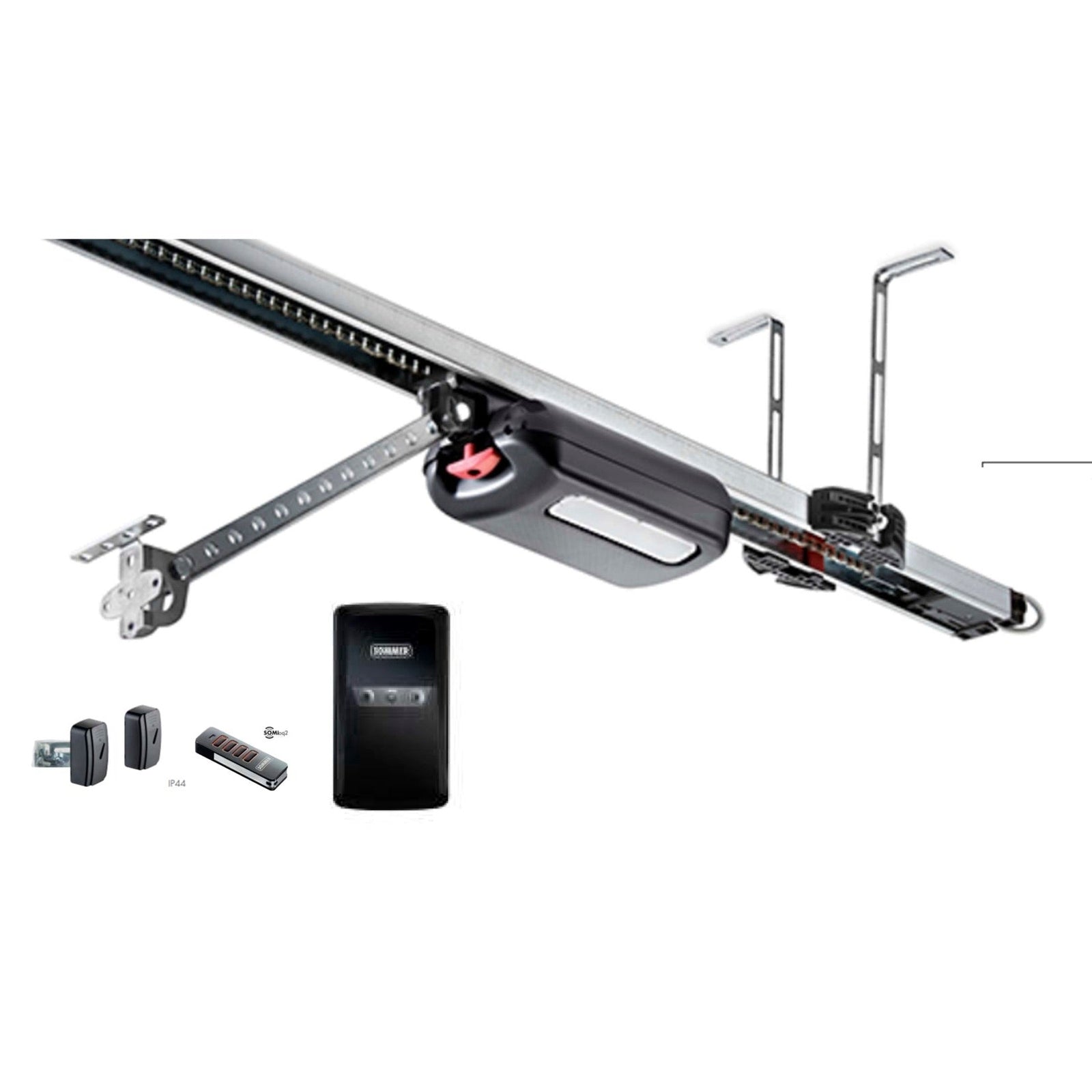

Sommer 2060 pro+ 8' with Pearl Transmitter - YS10249-00001

Sommer 2060 pro+ 8' with Pearl Transmitter - YS10249-00001

Features

• 600 Newton Motor (3/4 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

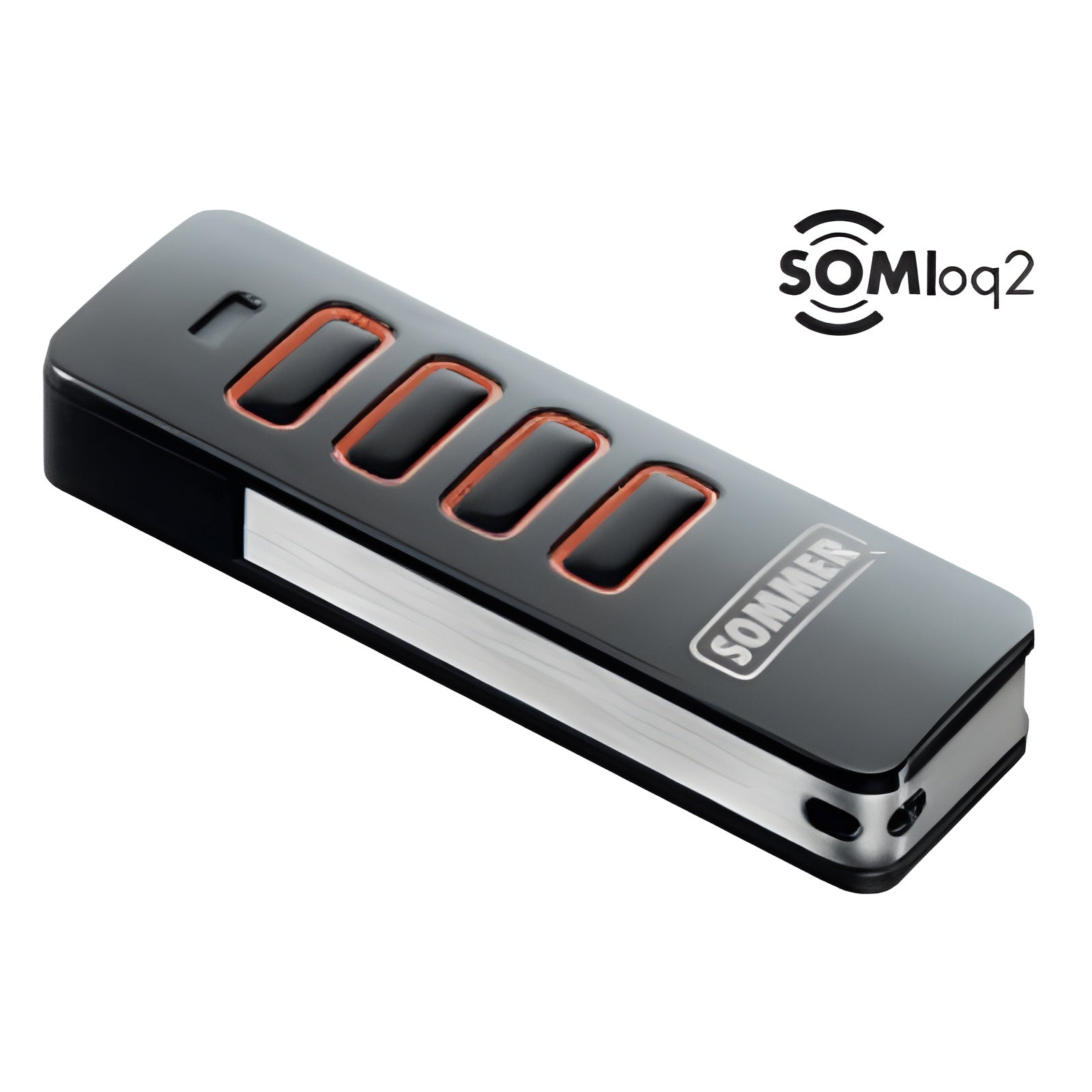

• One 4-button Pearl transmitter included

• Wired safety sensors

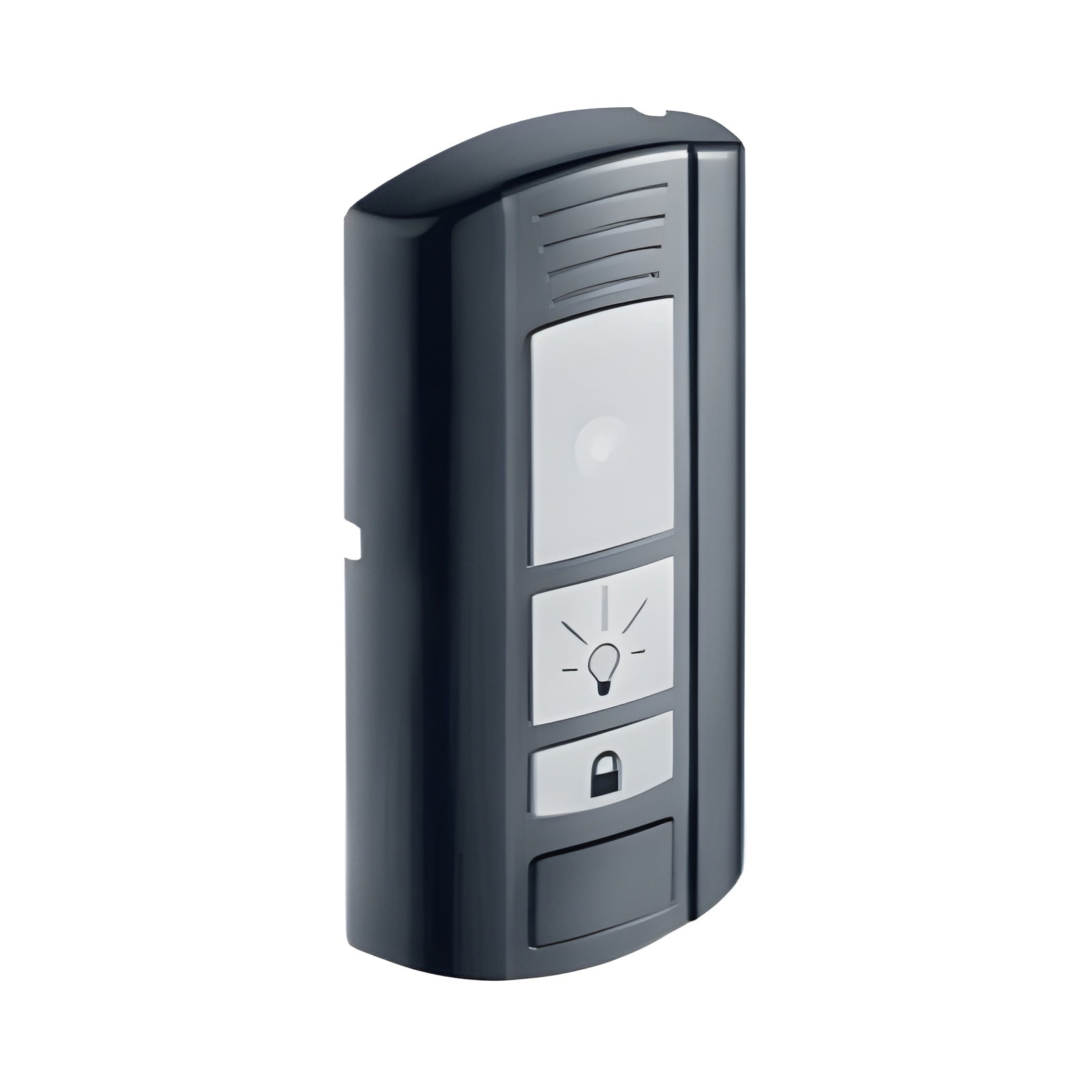

• Remote-mount control housing with integrated buttons

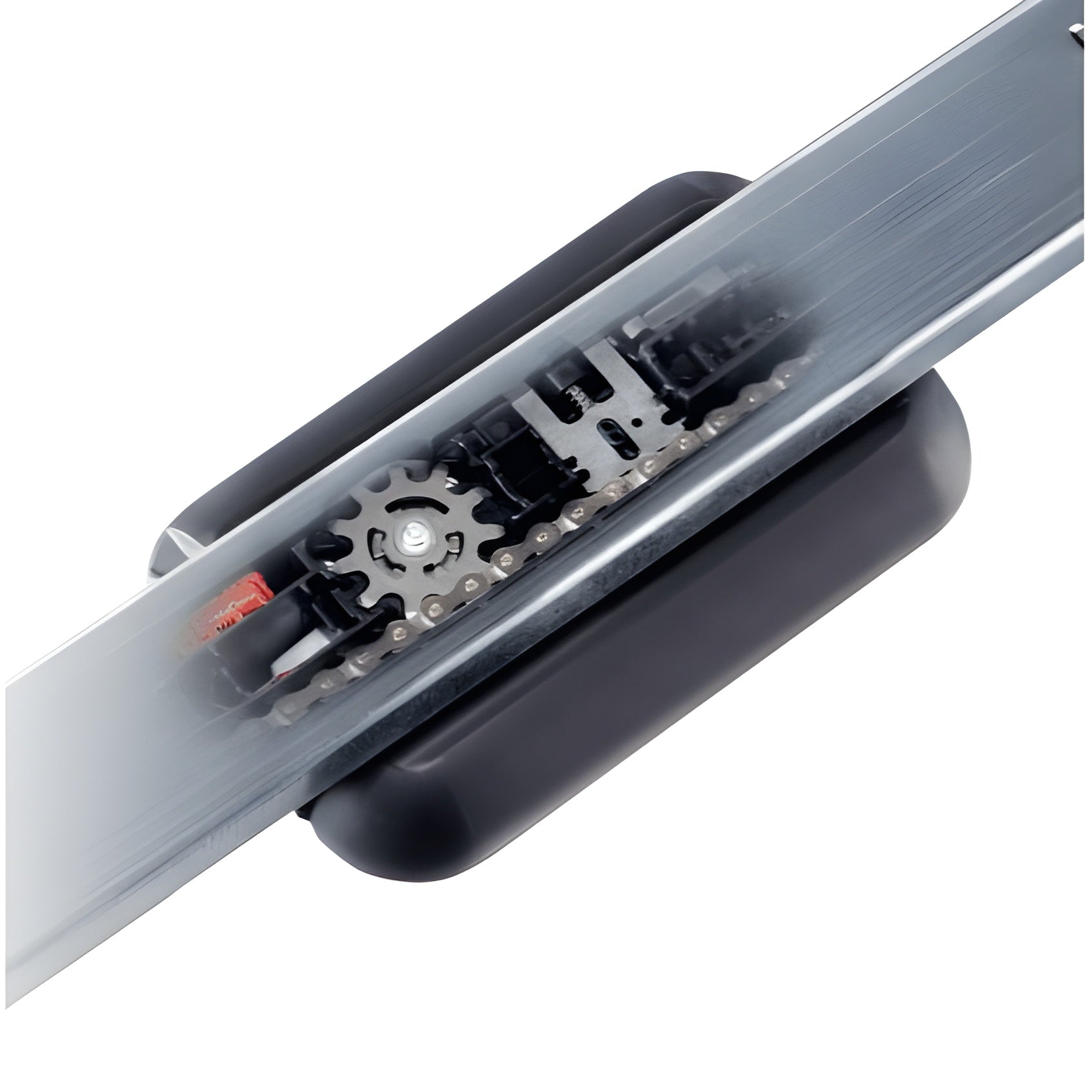

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• Operator actively pushes in the closed direction during attempted break-in

• Emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage and control housing

• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Pre-programmed 4-button Pearl transmitter in the box

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator

• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close

• Transmitter management on-site or remotely through Codemaster+

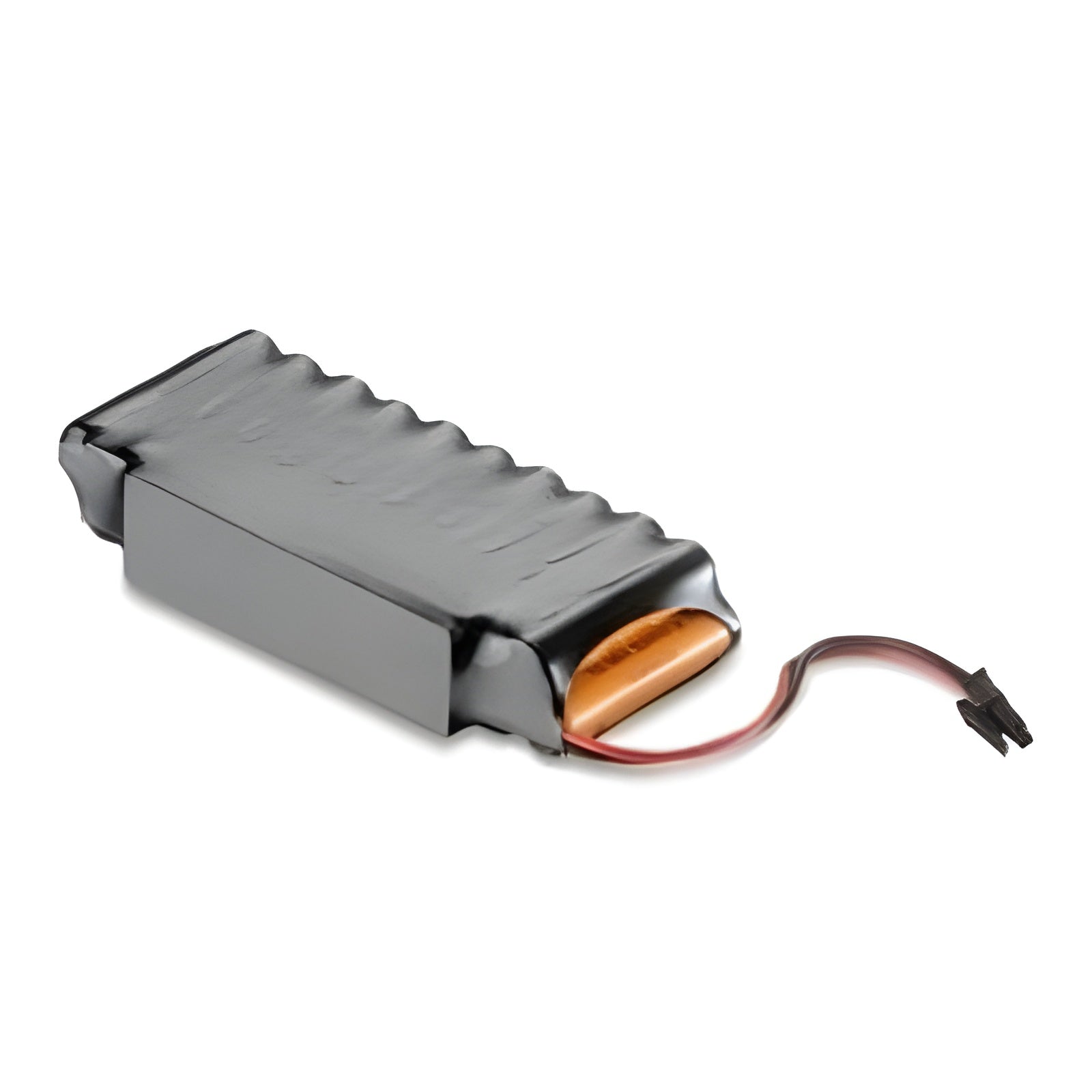

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages

• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble the rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Included in the Box

1. 2060 motor carriage
2. Control housing
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Connector wire
7. Chain with isolator
8. Straight door arm
9. Curved door arm
10. Installation bag
11. Door hardware bag
12. Ceiling bracket kit
13. Safety sensor kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Premium Performance: Specifically built for 8' garage doors, ensuring smooth, efficient, and reliable operation with minimal noise.
• Pearl Transmitter Included: Offers long-range, secure communication for easy control of your garage door from a distance.
• Quiet Operation: Features noise-reduction technology for a quiet and comfortable environment, making it ideal for attached garages.
• Durable and Robust: Built to last with high-quality materials, ensuring longevity and minimal maintenance.
• Compact and Efficient Design: Space-saving while maintaining powerful functionality and ease of installation.
• Enhanced Convenience: Works seamlessly with a variety of additional accessories and transmitters for further customization.

Q&A

Q: What is the Sommer 2060 PRO+ 8' with Pearl Transmitter - YS10249-00001?
A: The Sommer 2060 PRO+ 8' system is a high-performance garage door operator that includes the Pearl Transmitter for convenient remote control. This system is designed for residential doors up to 8 feet tall and offers a reliable, quiet, and efficient operation.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Designed for residential garage doors up to 8 feet in height.
• Pearl Transmitter: Comes with a Pearl Transmitter for easy, remote operation of your garage door.
• Silent Operation: Uses a belt-drive system for a smooth, quiet opening and closing of your door.
• Powerful Motor: Reliable and capable of handling heavier garage doors with ease.
• Battery Backup: Ensures continuous operation even during power outages (when battery backup is installed, sold separately).
• Durable Build: High-quality components ensure long-lasting durability and low maintenance.

Q: Does this kit include a transmitter?
A: Yes, this kit includes the Pearl Transmitter for convenient remote control of the garage door.

Q: Why choose the Sommer 2060 PRO+ 8' with Pearl Transmitter?
A: This operator kit is ideal for homeowners who want quiet and reliable garage door operation with the convenience of remote control. The included Pearl Transmitter allows easy access to your garage at the push of a button.

Q: Is professional installation recommended?
A: While this system is designed for easy installation, professional installation is recommended for optimal setup, performance, and safety

Maintenance Tips

• Regular Cleaning: Keep the operator, motor, and surrounding areas clean by wiping them down with a dry cloth. Avoid using water or harsh cleaning chemicals.

• Lubricate Moving Parts: Apply silicone-based lubricant to the moving components like the rails and hinges at least twice a year to ensure smooth movement and reduce friction.

• Battery Backup Maintenance: Ensure the battery backup is functioning correctly. Check the charge level periodically and replace the battery every 2-3 years or when it starts showing signs of decreased performance.

• Inspect Safety Features: Regularly test the safety sensors, photo eyes, and reverse mechanism to ensure they are operating correctly. Adjust or clean them as needed to maintain safety.

• Check Transmitter Battery: Inspect the transmitter for low battery and replace it as needed to ensure reliable communication with the operator system.

• Inspect for Wear and Damage: Periodically examine the operator, gears, motor, and any moving parts for signs of wear or damage. Replace worn-out components to avoid operational failure.

• Electrical Connection Inspection: Check all electrical wiring and connections for loose or corroded terminals. Tighten and clean as needed to maintain secure electrical contact.

• Surge Protection: Install a surge protector to safeguard the operator’s electronics against power surges or fluctuations that may cause damage.

• Overload Protection: Ensure the system is not overloaded by keeping the door weight and dimensions within the specified limits of the operator. Excessive weight can strain the motor.

• Annual Professional Inspection: Schedule an annual maintenance check with a professional technician to ensure the system, including the transmitter and motor, is working at peak efficiency.
