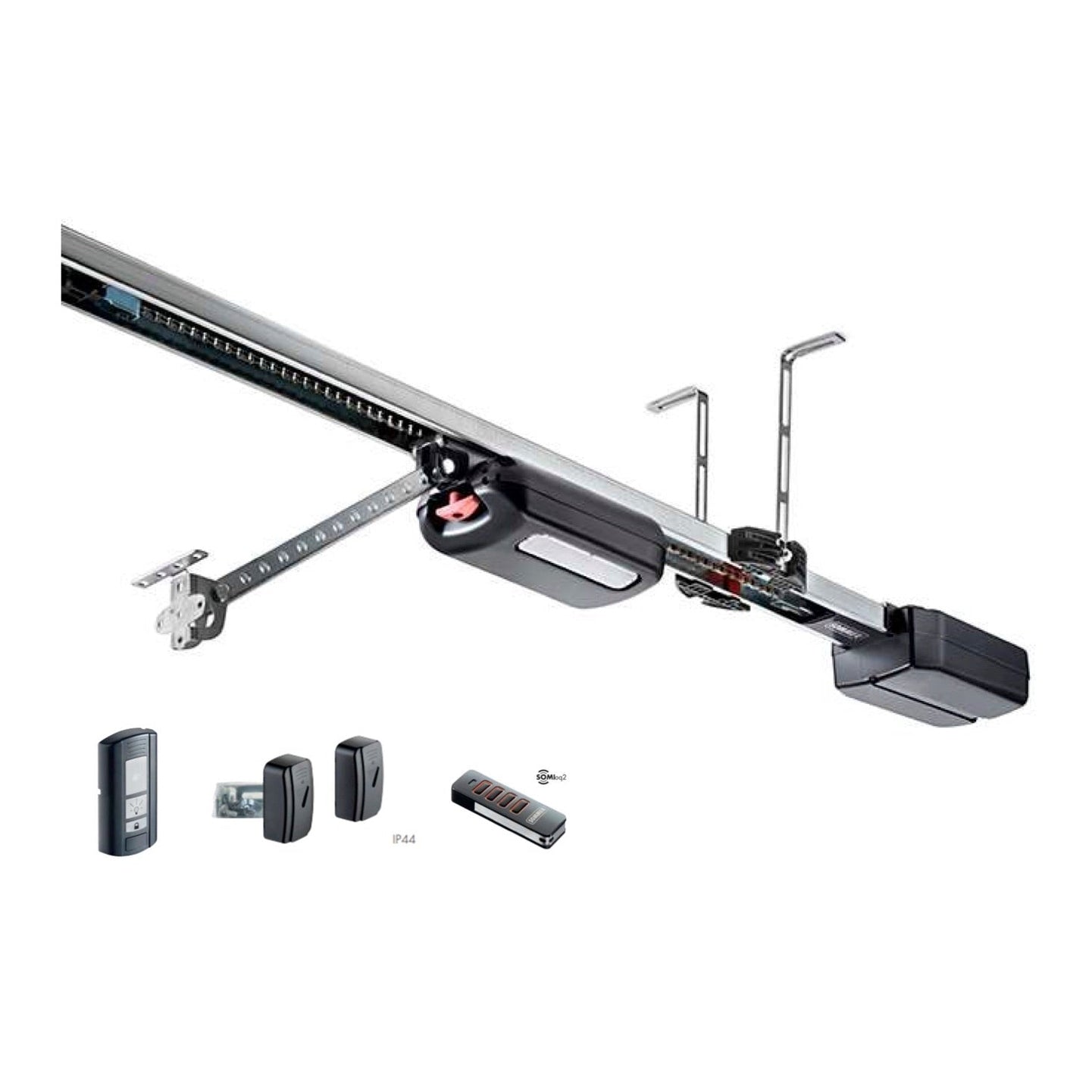

Sommer 2080 evo+ 8' with Pearl Transmitter - YS10251-00001

Sommer 2080 evo+ 8' with Pearl Transmitter - YS10251-00001

Features

• 800 Newton Motor (1 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• One 4-button Pearl transmitter included

• Wired safety sensors

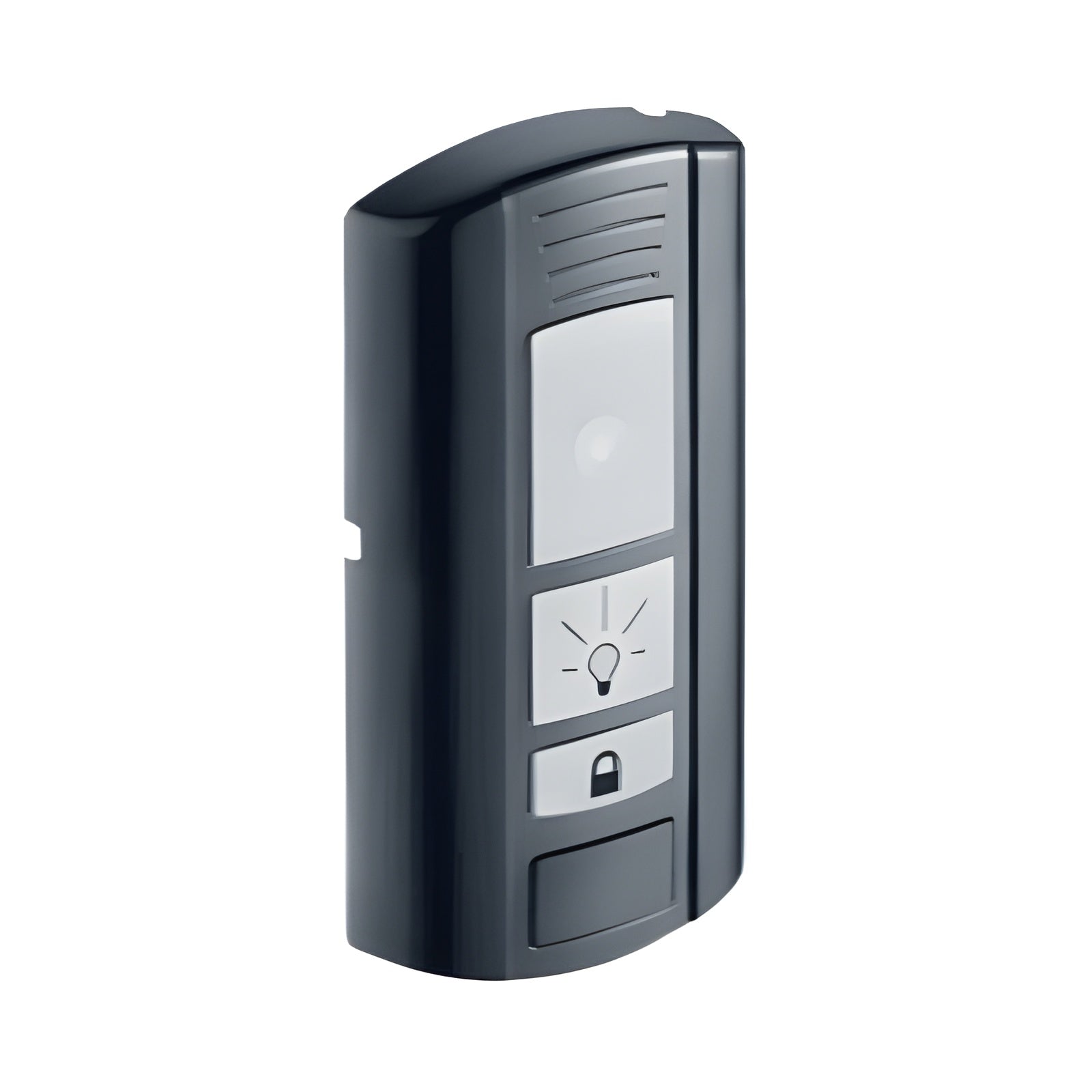

• Wired 3-button wall station

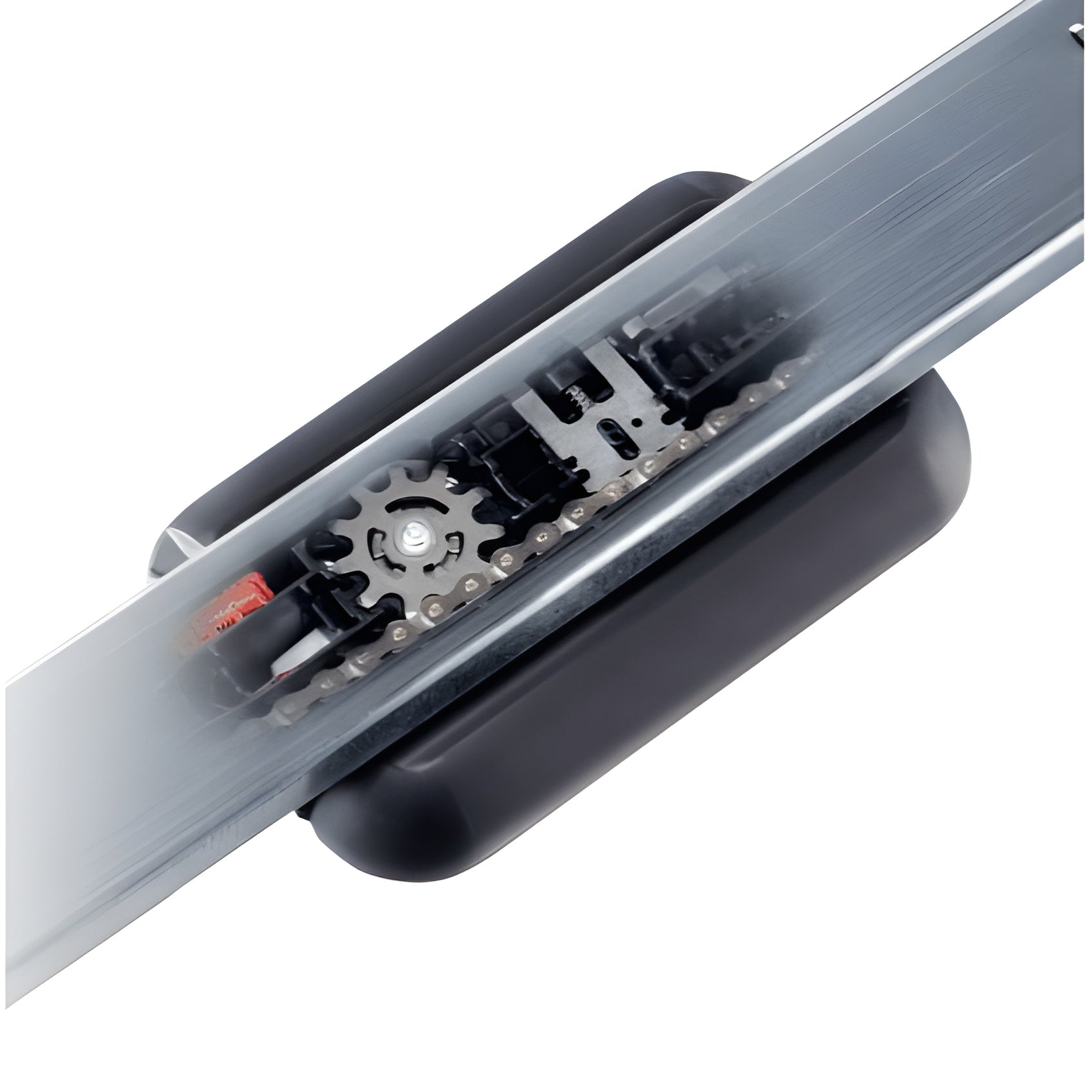

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• The operator actively pushes in the closed direction during an attempted break-in

• The emergency release can be disengaged and re-engaged in any position

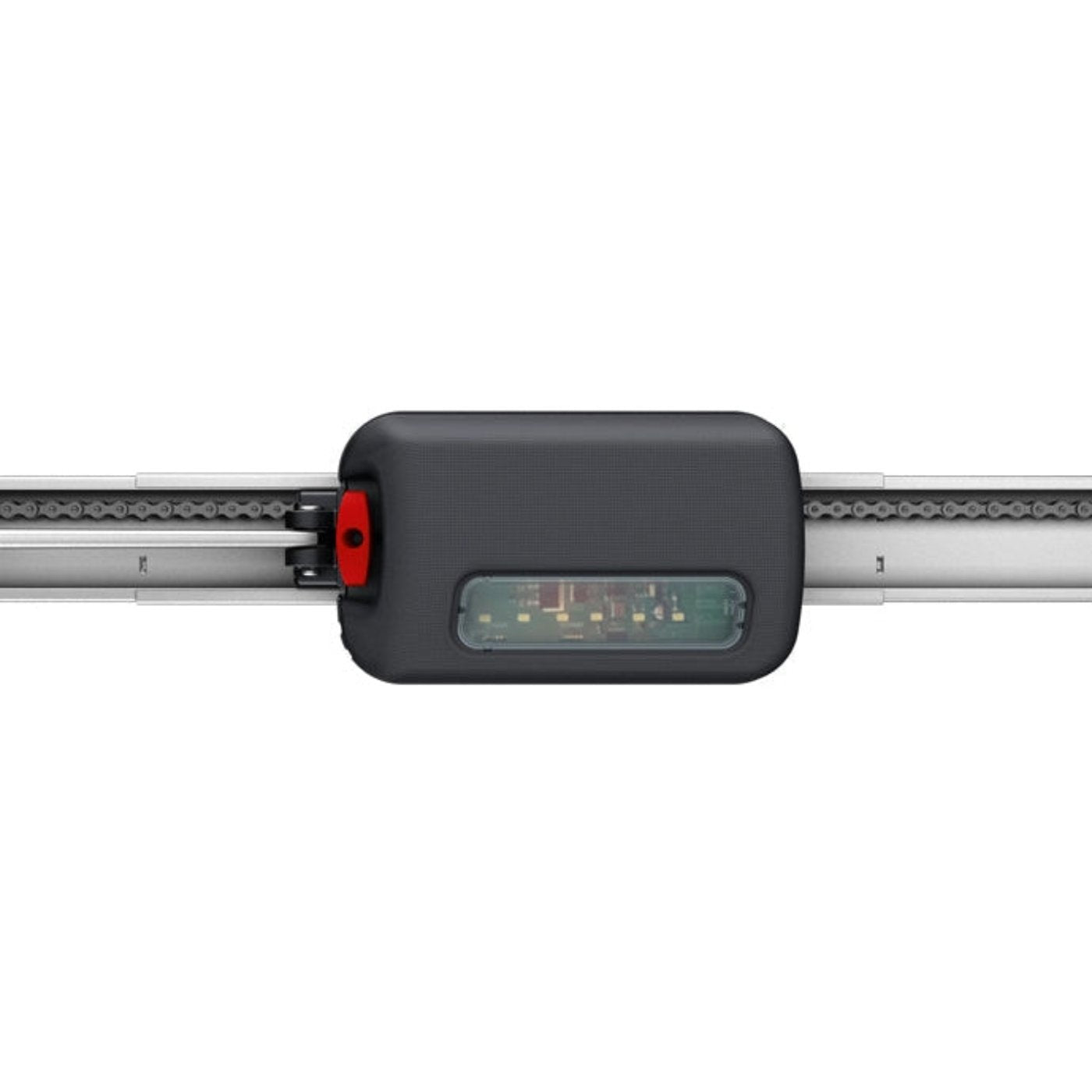

• Built-in LED lighting at the motor carriage

• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels

• Interlock capable for pass doors, mechanical locks, etc.

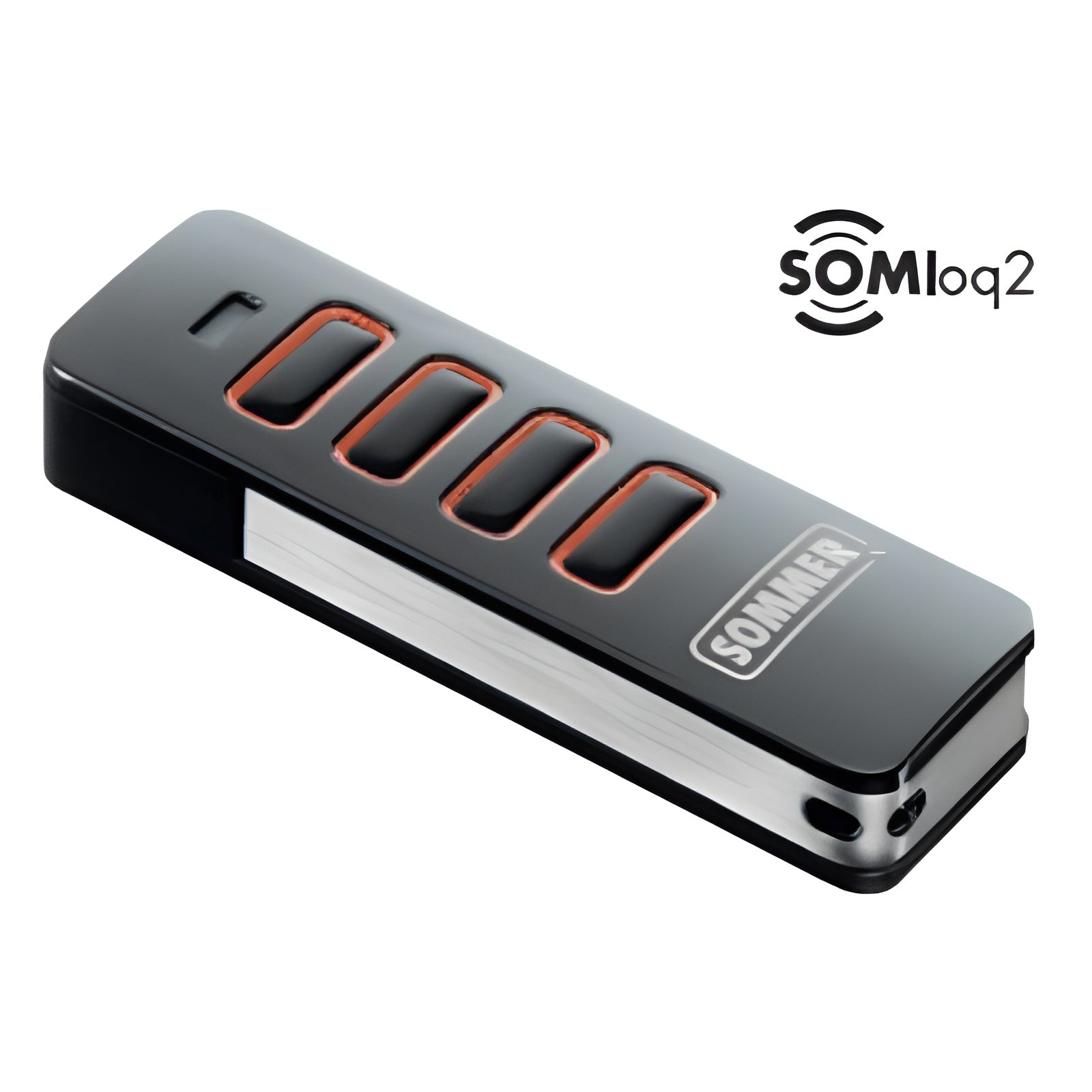

• Pre-programmed 4-button Pearl transmitter in the box

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator

• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close

• Transmitter management on-site or remotely through Codemaster+

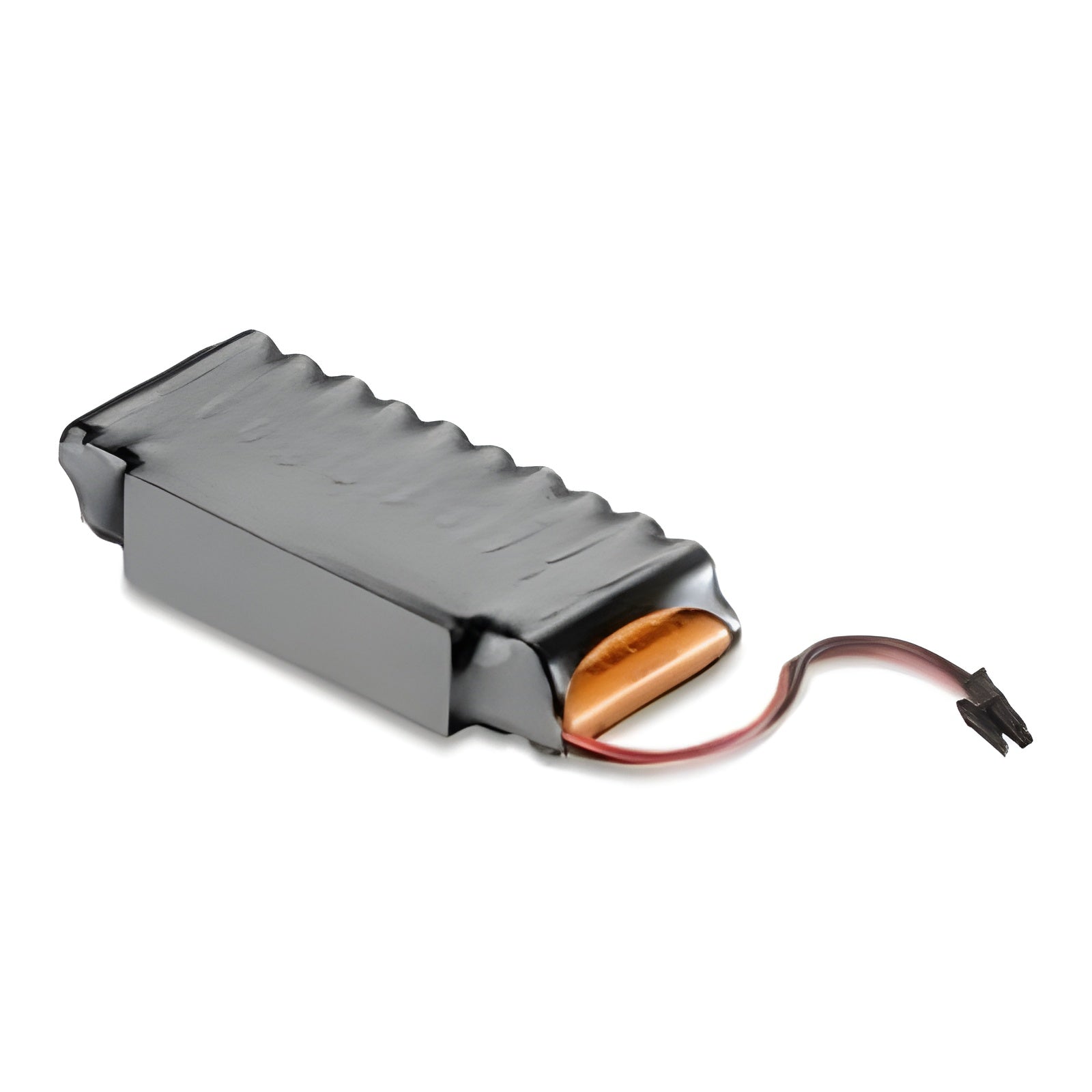

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages

• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

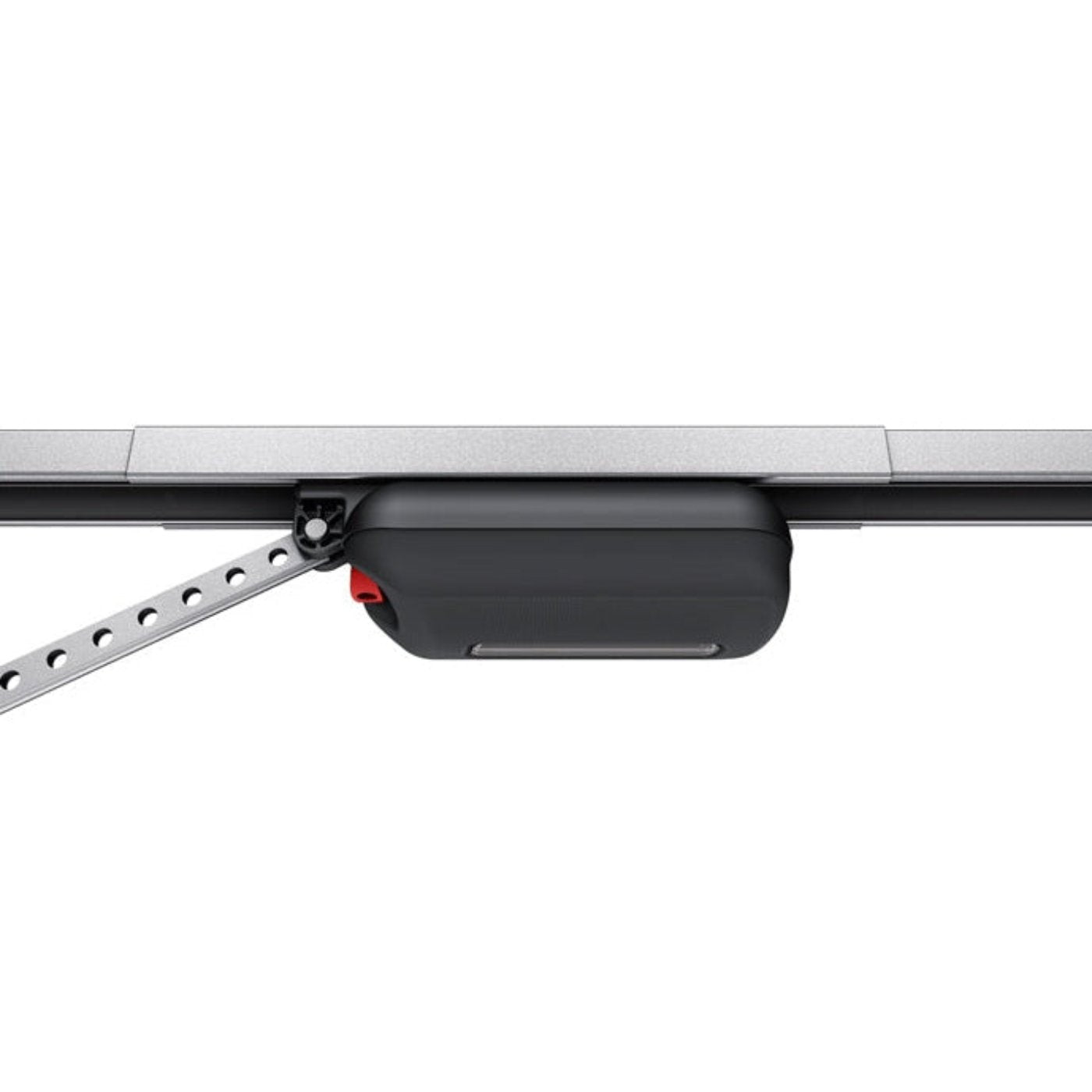

• The motor carriage can be easily removed for service or repair without needing to disassemble rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

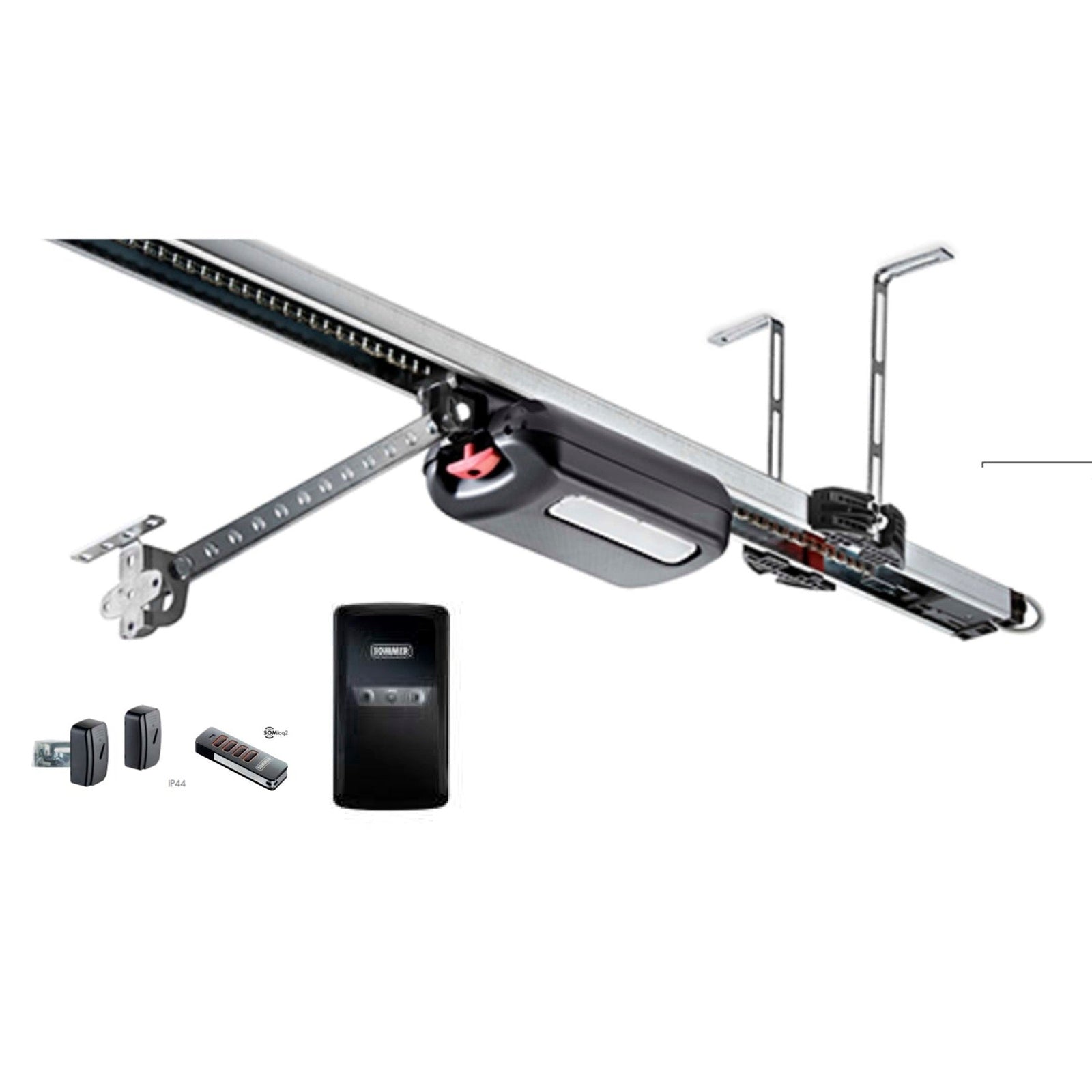

Items Included in the Box

1. 2080 motor carriage
2. Controller
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Wired 3-button wall station kit
14. Wiring kit
15. Docs bag
16. English technical manual
17. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Advanced Technology: Equipped with EVO+ technology for smooth, quiet, and efficient operation.
• Reliable Range: Includes a Pearl Transmitter with excellent signal strength and easy programming.
• High Compatibility: Supports a wide range of residential garage doors up to 8 feet in height.
• Durable Build: Built with high-quality materials for long-lasting performance and minimal maintenance.
• Safety Features: Comes with integrated obstacle detection and secure coding for enhanced safety.

Q&A

Q: What is the Sommer 2080 EVO+?
A: It’s an 8-foot garage door opener system designed for smooth, reliable, and quiet operation.

Q: What makes the EVO+ unique?
A: It features a durable, energy-efficient design with a direct-drive motor for minimal wear and tear.

Q: What is the Pearl Transmitter?
A: The Pearl Transmitter is an advanced remote control included with the system, offering secure and convenient door operation.

Q: Is it compatible with different garage doors?
A: Yes, it is designed to work with various residential garage door types up to 8 feet high.

Q: Why choose the Sommer EVO+?
A: It’s known for durability, whisper-quiet performance, and advanced security, making it an excellent choice for modern home

Maintenance Tips

• Lubricate Moving Parts: Regularly oil hinges, tracks, and rollers for smooth operation.
• Inspect and Tighten: Check for loose screws, brackets, and bolts on the opener and door.
• Clean Tracks: Remove debris from tracks to prevent obstructions.
• Test Safety Features: Check auto-reverse and photo-eye alignment for reliable function.
• Battery Check: Replace the Pearl Transmitter battery as needed to maintain signal strength.
• Weather Seals: Inspect and replace damaged seals to improve energy efficiency.
• Professional Servicing: Schedule annual maintenance for the motor and control system
