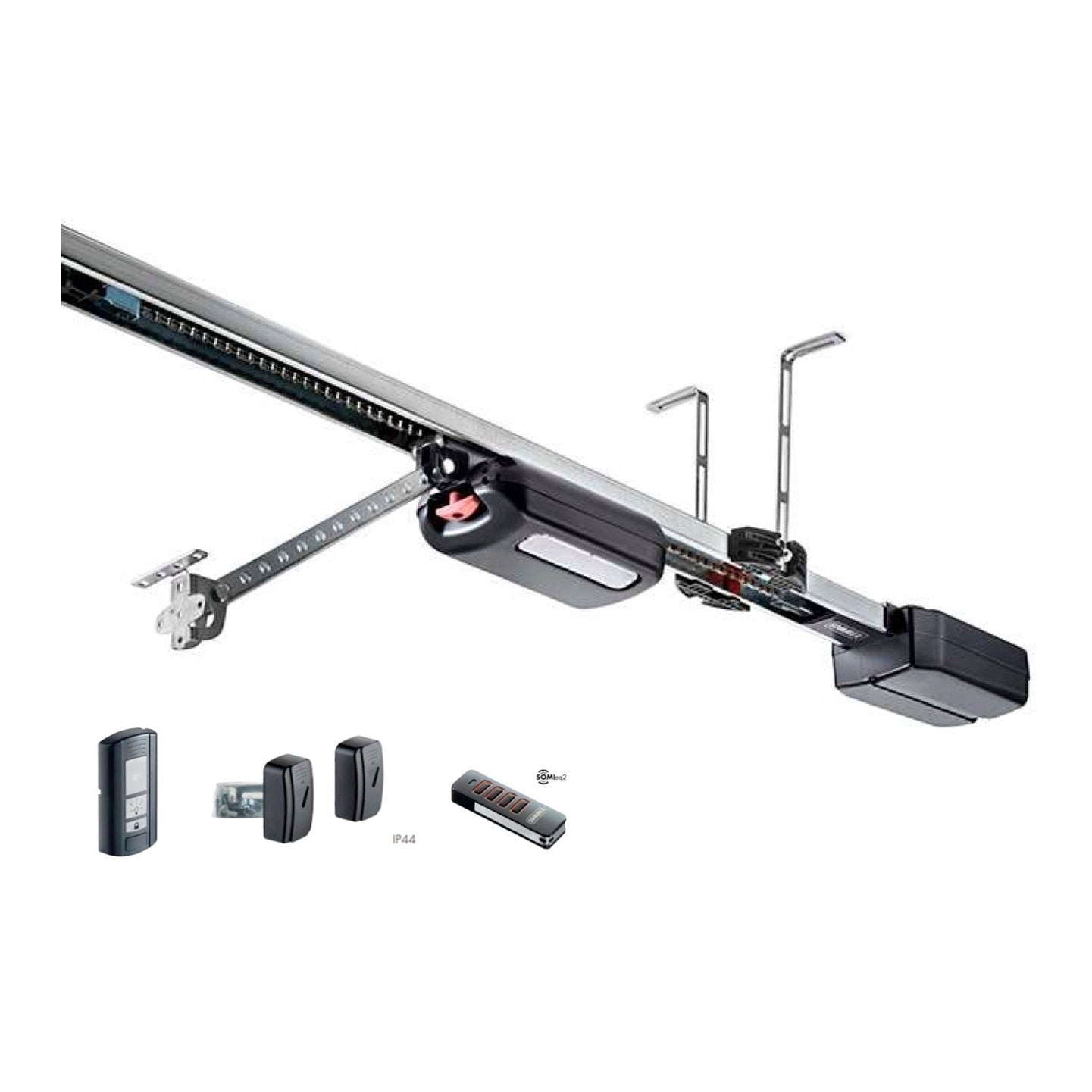

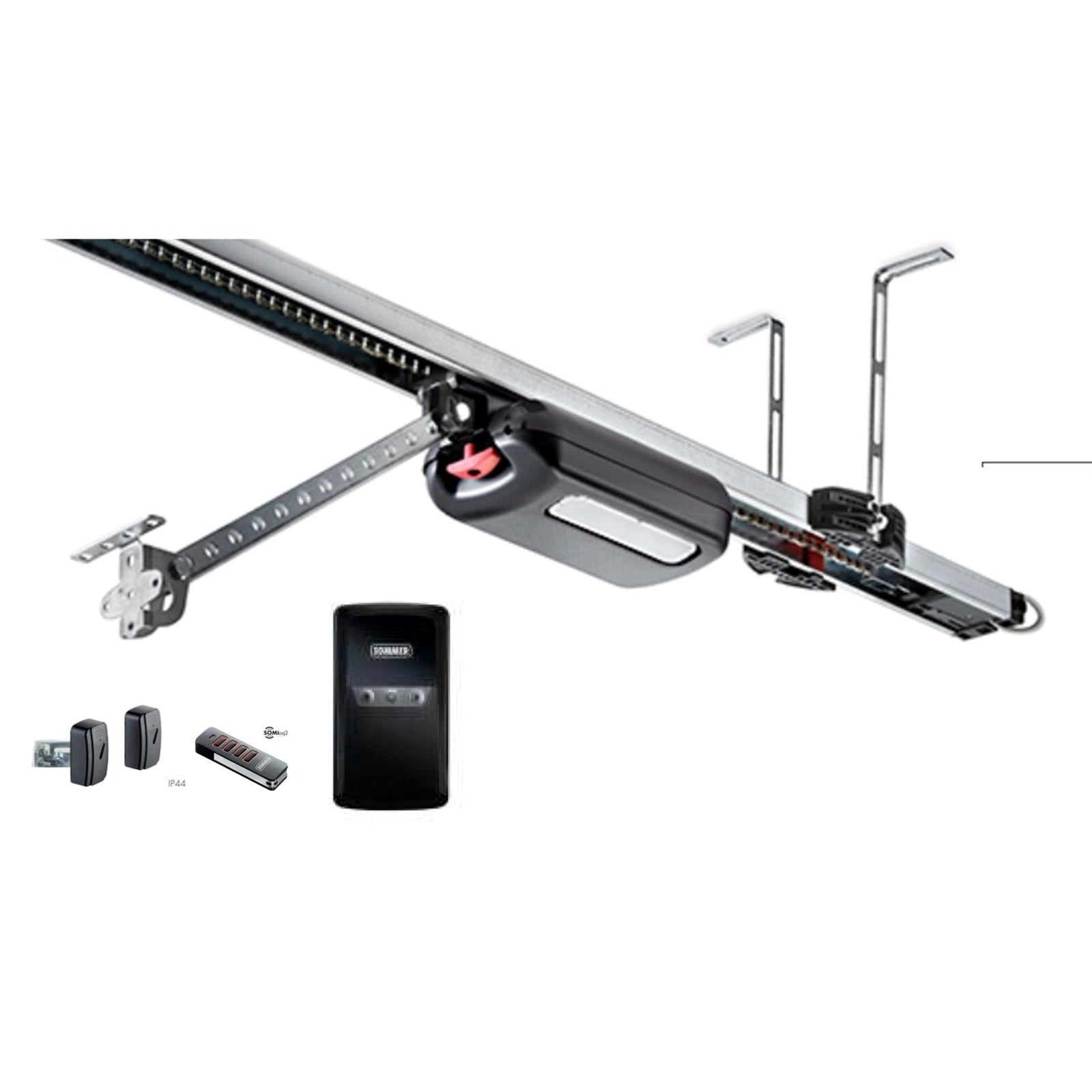

Sommer 2110 evo+ 8' with Pearl Transmitter - YS10254-00001

Sommer 2110 evo+ 8' with Pearl Transmitter - YS10254-00001

Features

• 1100 Newton Motor (1.25 HP equivalent)
• 3-piece c-channel rail for doors up to 8' tall
• One 4-button Pearl transmitter included
• Wired safety sensors

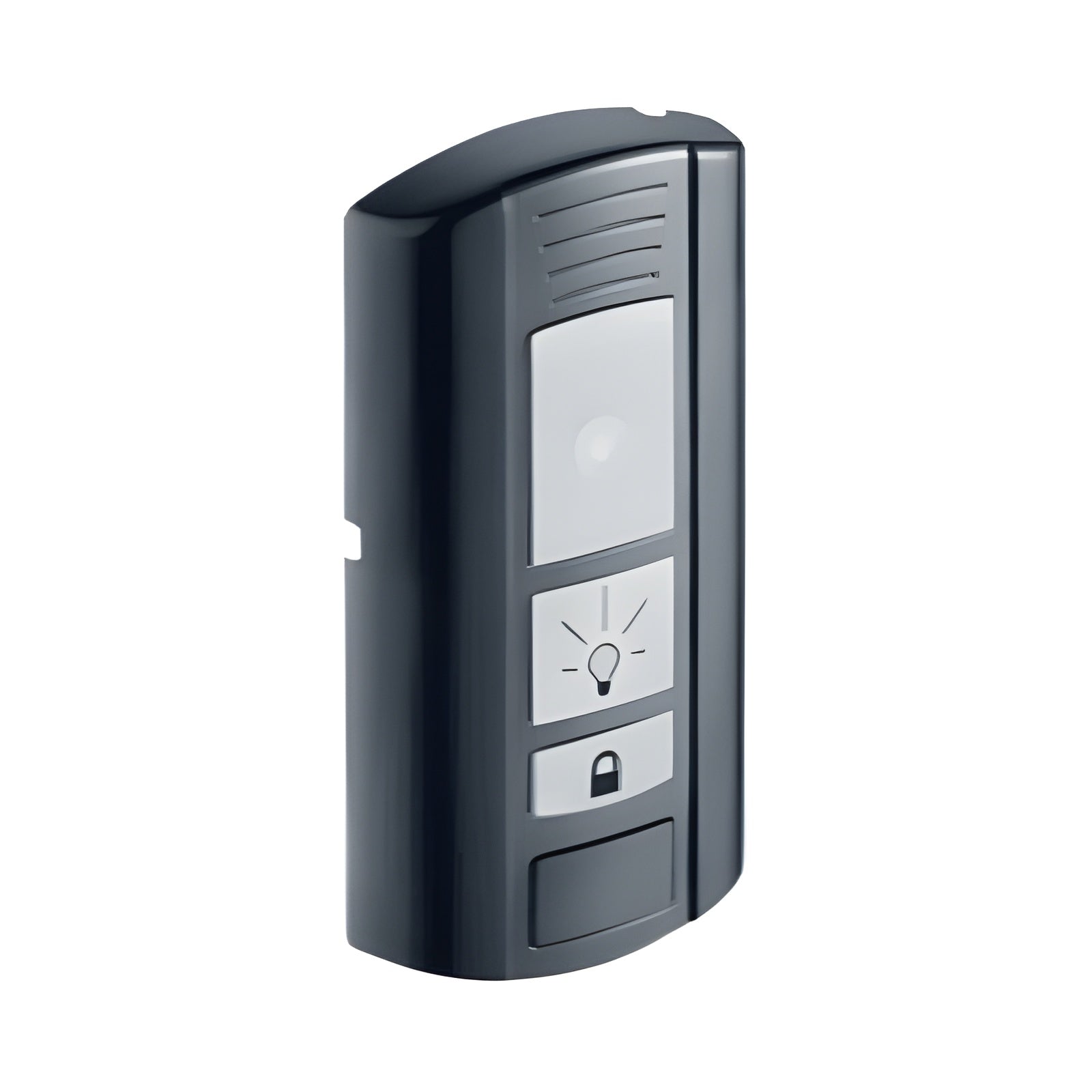

• Wired 3-button wall station

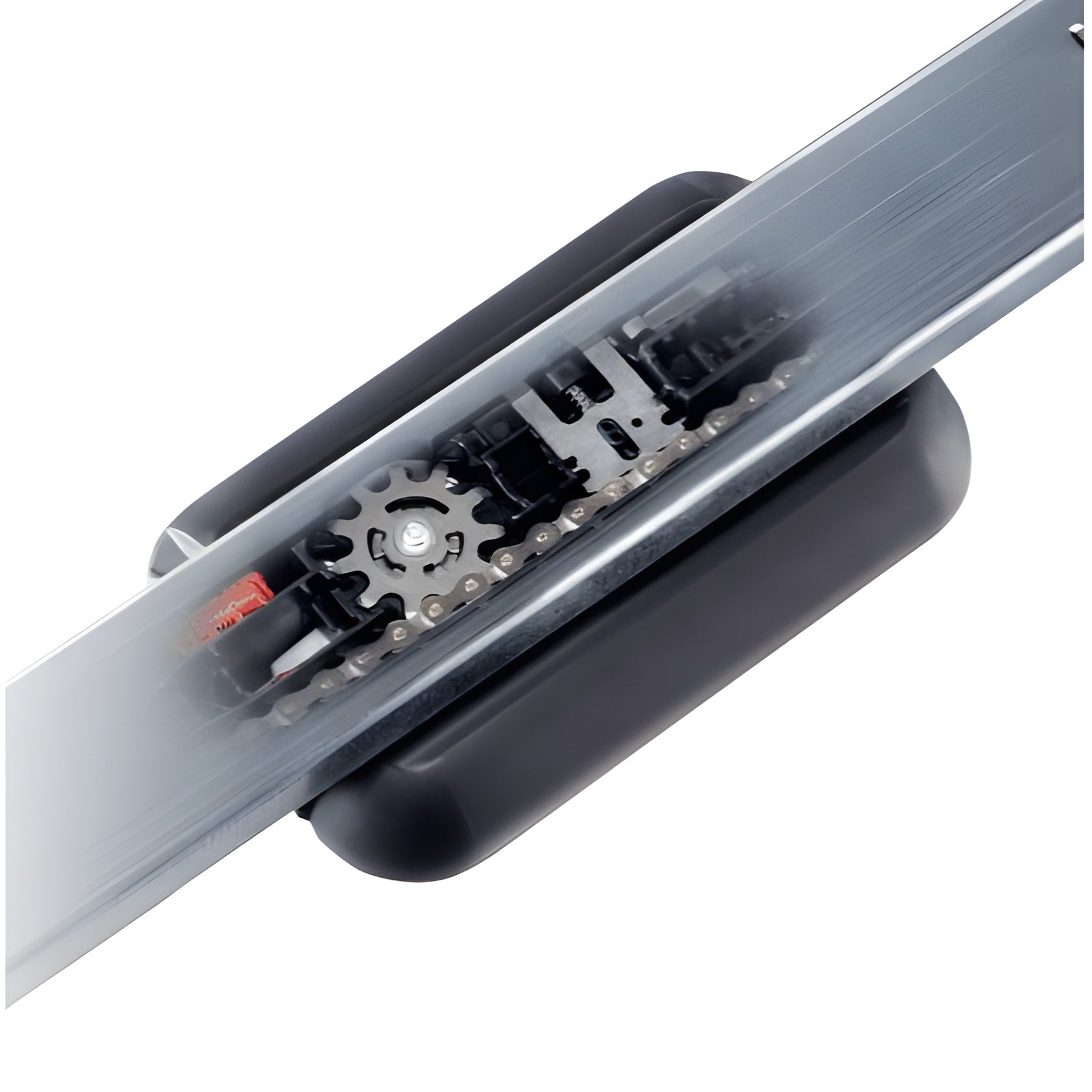

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• The operator actively pushes in the closed direction during an attempted break-in
• The emergency release can be disengaged and re-engaged in any position

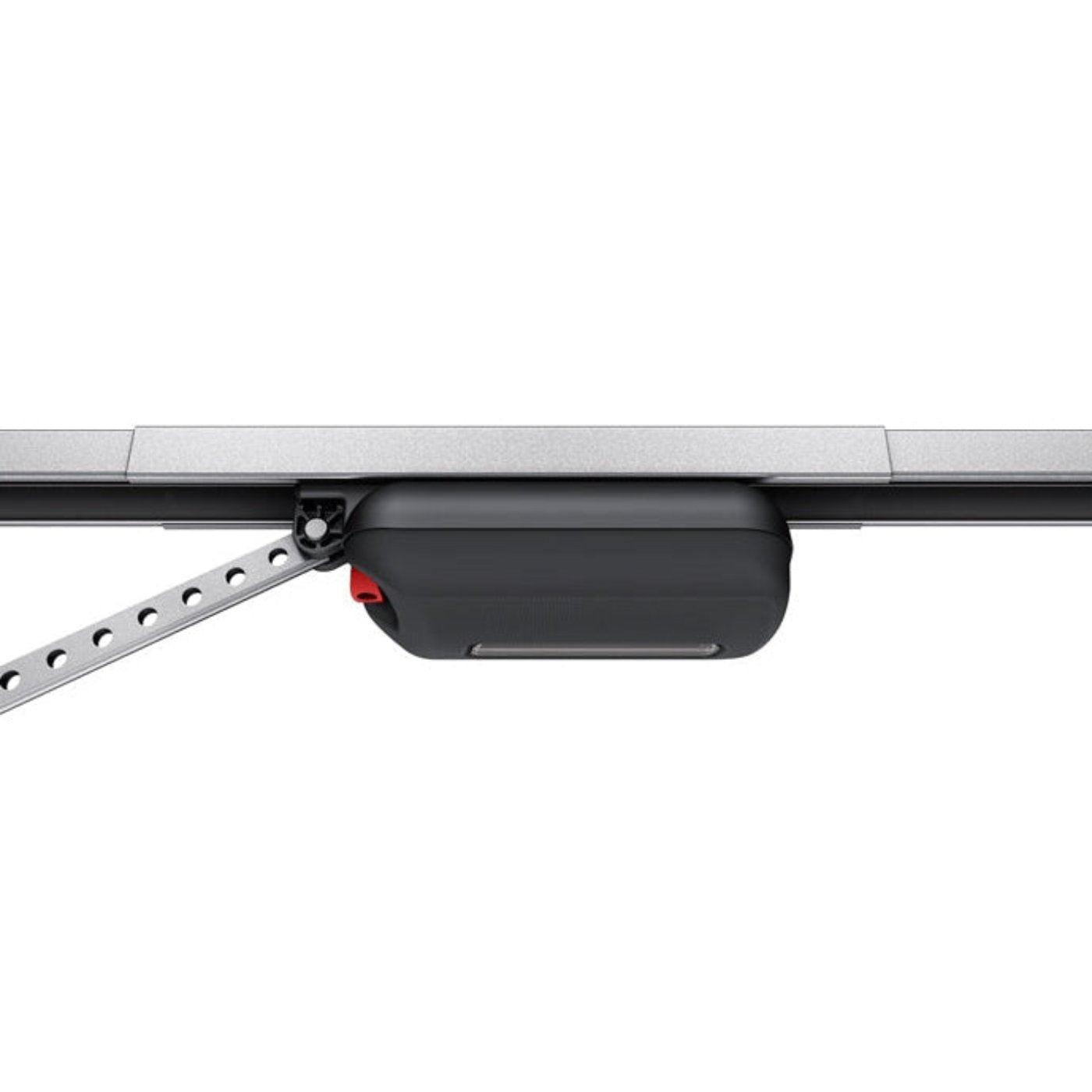

• Built-in LED lighting at the motor carriage
• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels
• Interlock capable for pass doors, mechanical locks, etc.

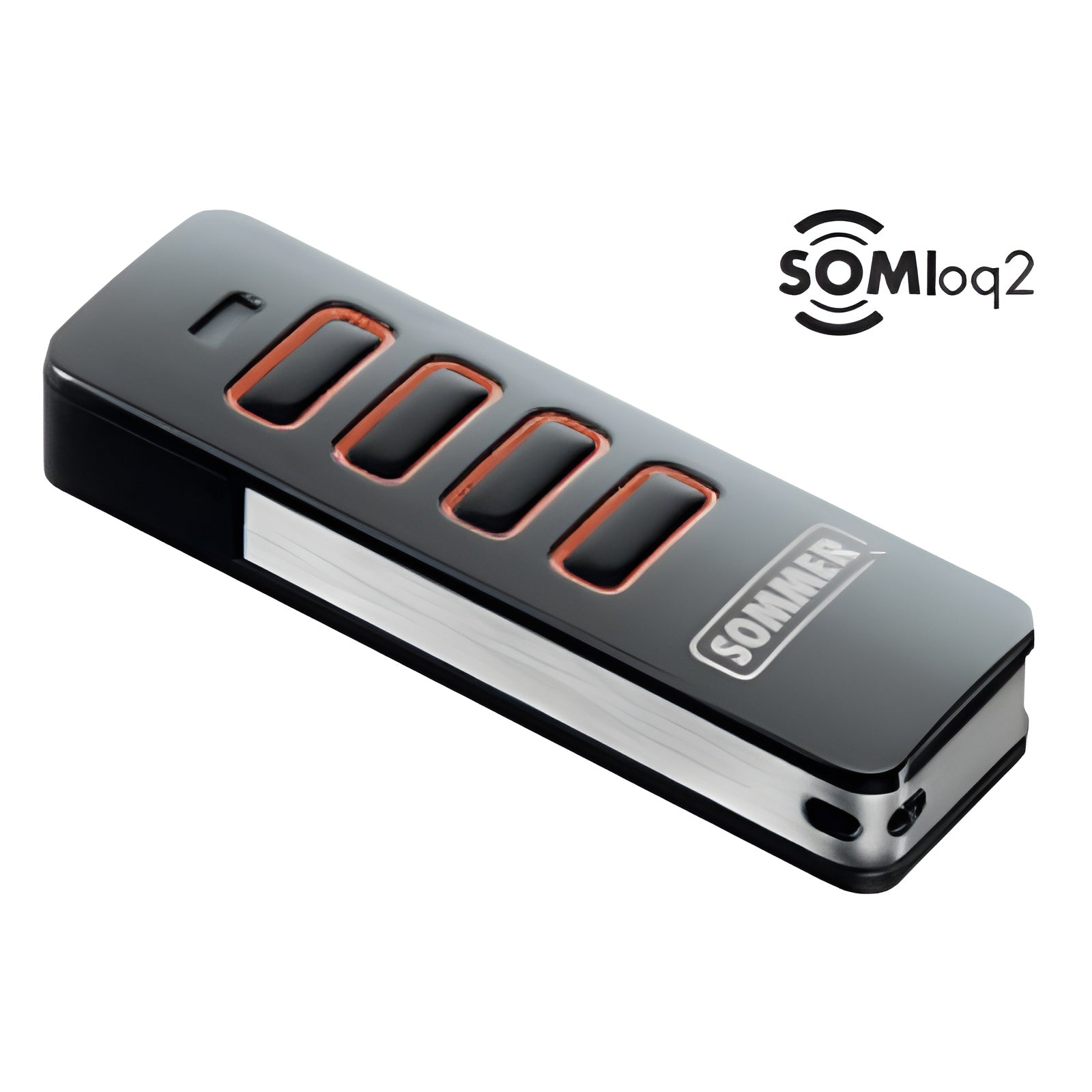

• Pre-programmed 4-button Pearl transmitter in the box
• Repeating and forwarding radio functions for maximum range
• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
• Transmitter management on-site or remotely through Codemaster+

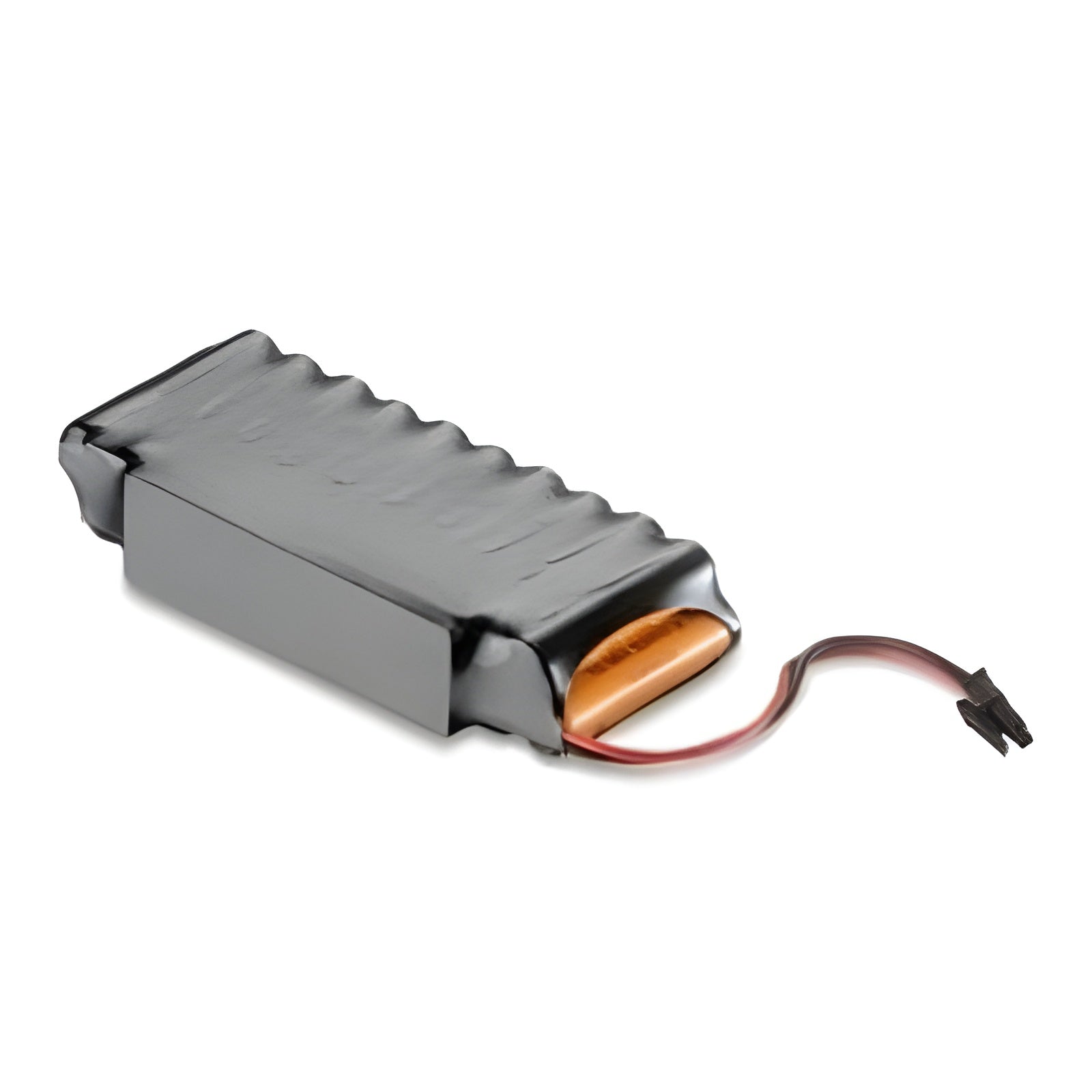

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages
• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2110 motor carriage
2. Controller
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Wired 3-button wall station kit
14. Wiring kit
15. Docs bag
16. English technical manual
17. Spanish technical manual

 Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Smooth and Quiet Operation: EVO+ technology ensures efficient and silent performance.
• Pearl Transmitter: Provides secure, long-range control with easy programming.
• Versatile Compatibility: Suitable for garage doors up to 8 feet in height, meeting diverse needs.
• Reliable Durability: Built with high-quality materials for long-lasting performance.
• Safety Features: Integrated obstacle detection enhances security and peace of mind.

Q&A

Q: What is the Sommer 2110 EVO+ 8' with Pearl Transmitter?
A: It’s a premium 8-foot garage door opener system featuring a powerful direct-drive motor and a Pearl Transmitter for secure, convenient remote operation.

Q: What makes the 2110 EVO+ unique?
A: It offers enhanced power for heavier or larger residential garage doors while maintaining ultra-quiet and efficient performance.

Q: What is the Pearl Transmitter?
A: The Pearl Transmitter is an included remote control that ensures easy and secure operation of the garage door.

Q: Is it suitable for all garage doors?
A: Yes, it’s compatible with residential garage doors up to 8 feet high, including heavier doors.

Q: Why choose the Sommer 2110 EVO+ with Pearl Transmitter?
A: It’s an excellent choice for homeowners needing a reliable, powerful, and quiet opener with convenient remote control capabilities

Maintenance Tips

• Lubricate Regularly: Apply lubricant to hinges, rollers, and tracks for smooth operation.
• Clean Tracks: Clear debris from tracks to prevent obstructions.
• Transmitter Battery: Check and replace the Pearl Transmitter battery as needed to maintain strong signal performance.
• Inspect Door Balance: Ensure proper balance to reduce strain on the motor.
• Secure Hardware: Tighten all screws, bolts, and brackets for stability.
• Motor Care: Dust the motor and schedule annual professional servicing.
• Test Safety Features: Verify auto-reverse and emergency release mechanisms for reliable safety compliance.
