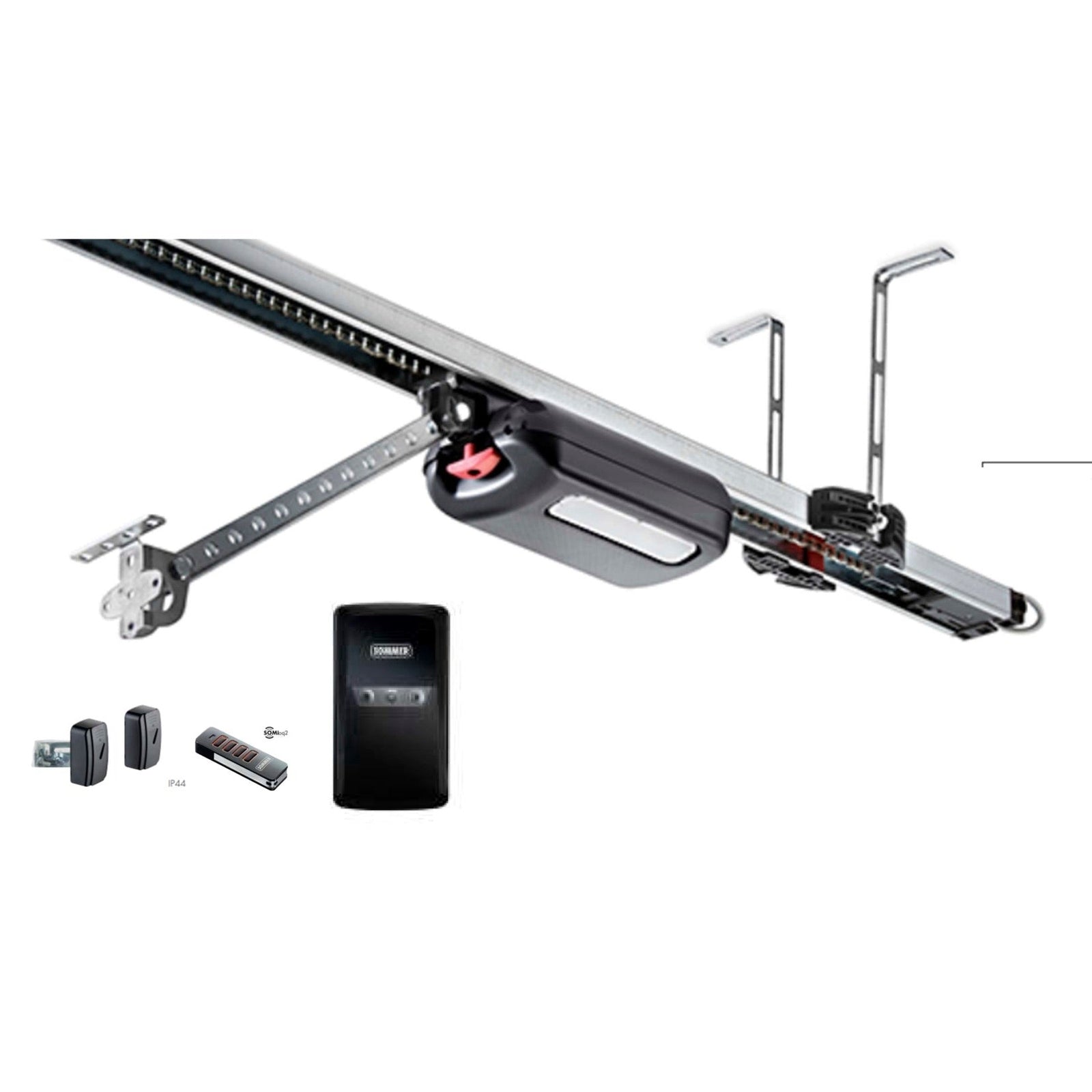

Sommer 2110 pro+ 8' with Pearl Transmitter - YS10255-00001

Sommer 2110 pro+ 8' with Pearl Transmitter - YS10255-00001

2110 pro+ Garage Door Operator

Includes Wall-Mounted Controller with Wall Buttons Integrated

Features

• 1,100 Newton (1.25 HP)

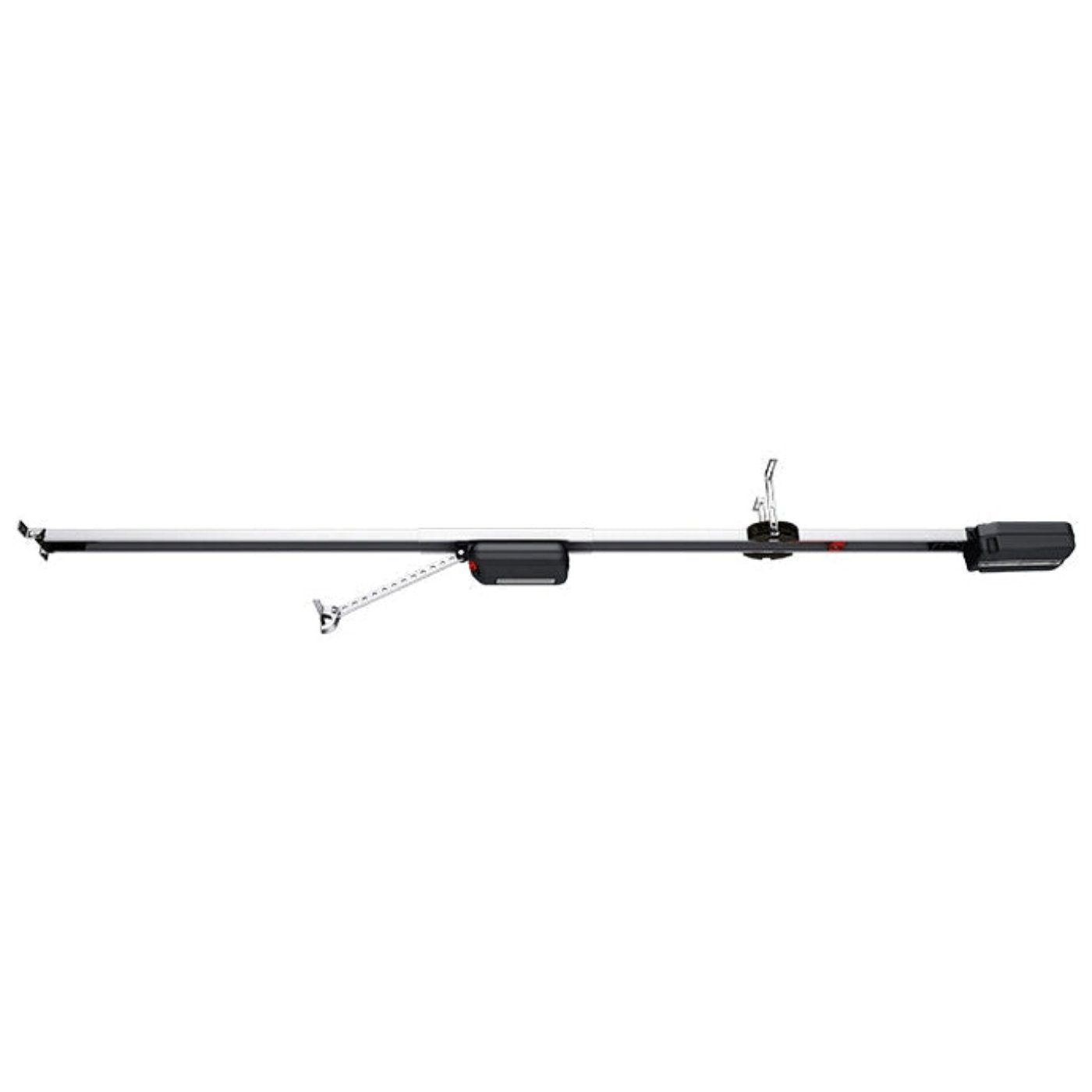

• 3-piece c-channel rail for doors up to 8' tall

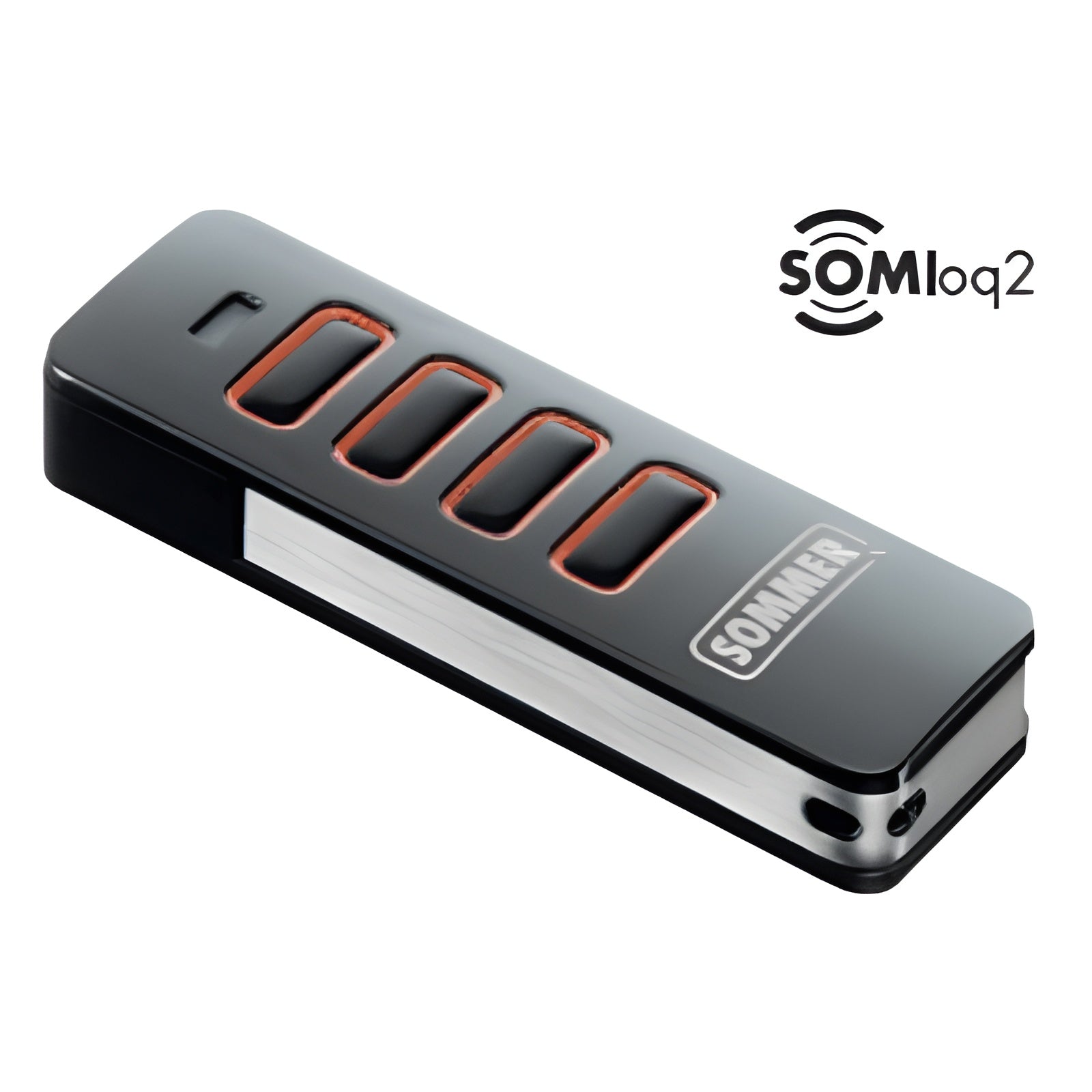

• One 4-button Pearl transmitter included
• Wired safety sensors

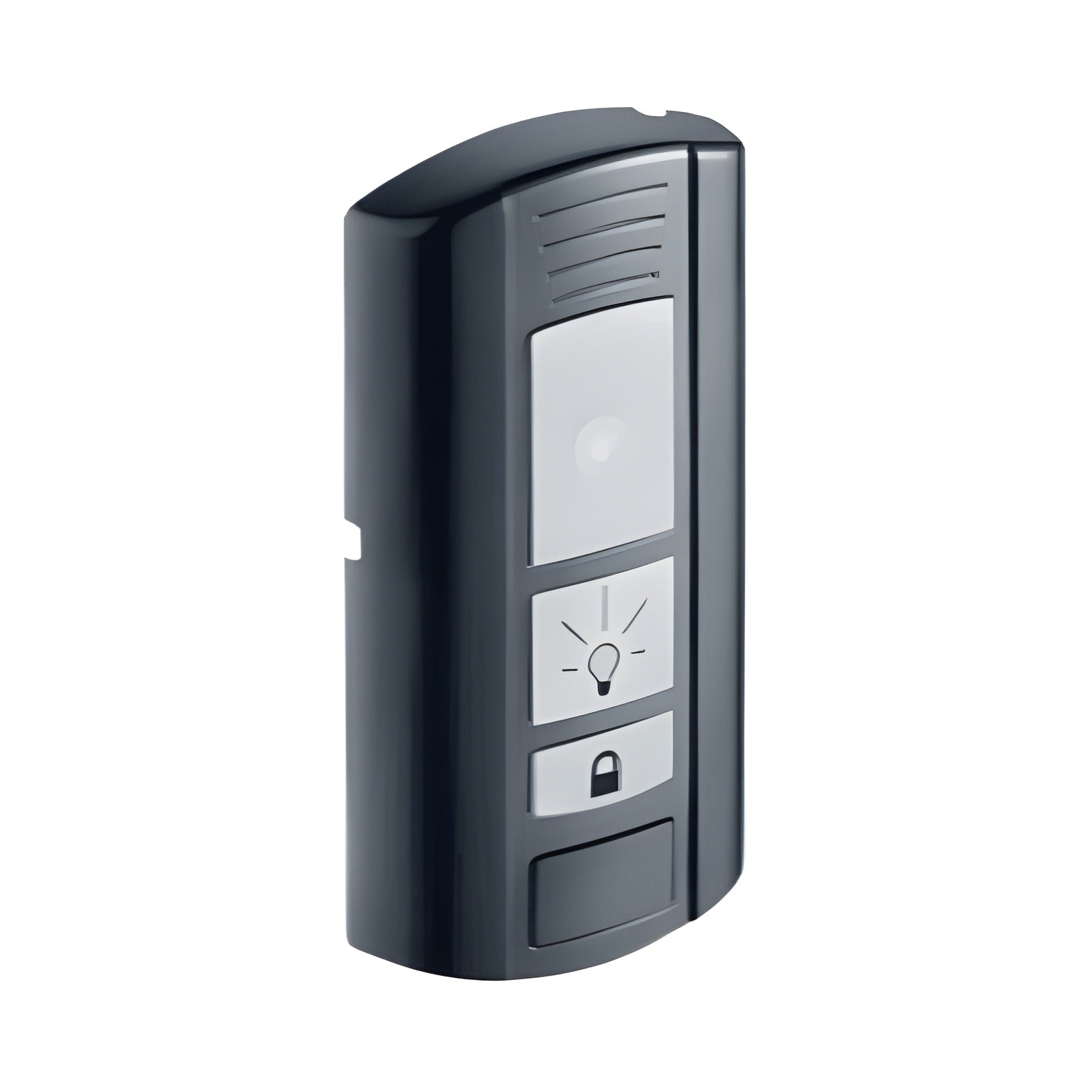

• Remote-mount control housing with integrated buttons

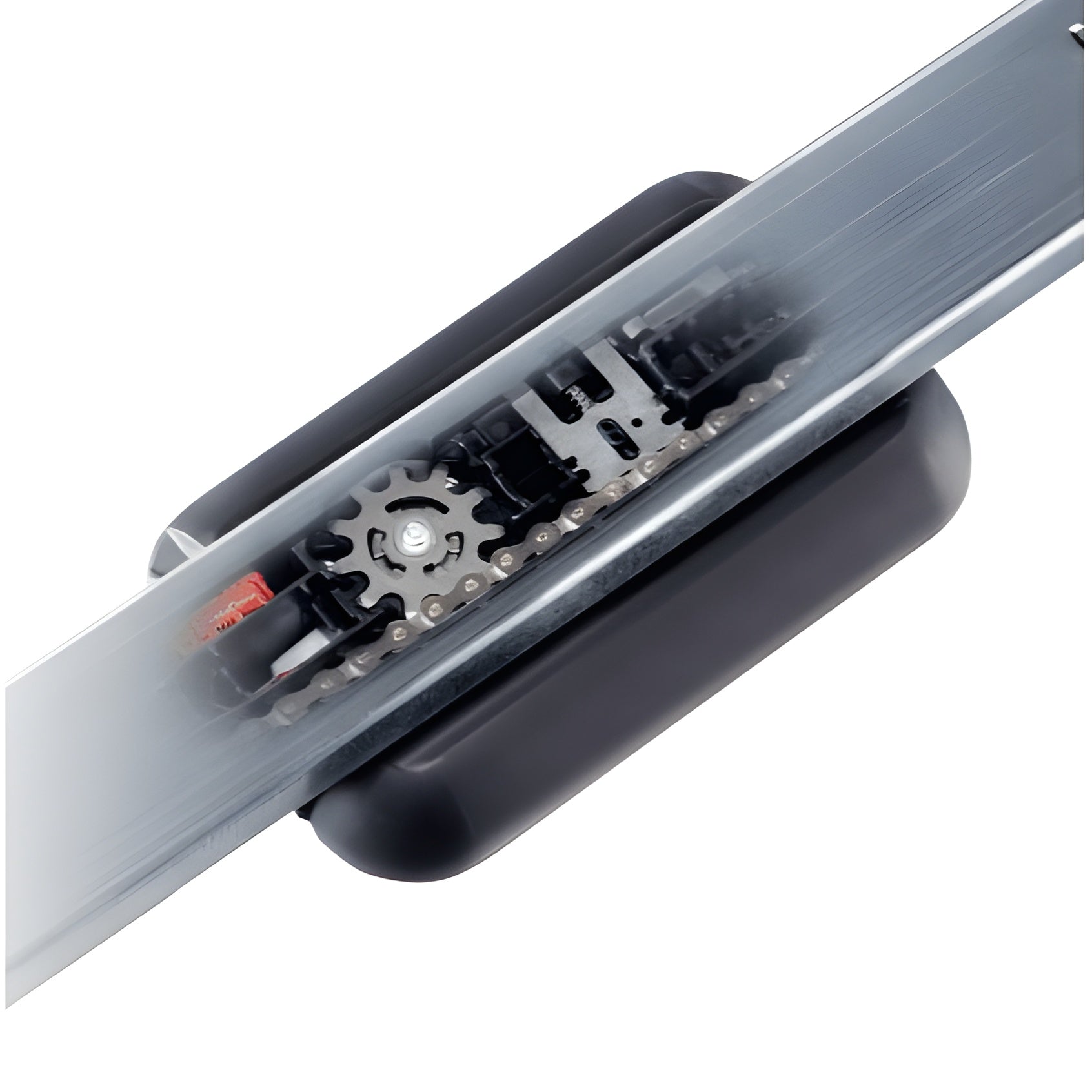

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• Operator actively pushes in the closed direction during attempted break-in
• Emergency release can be disengaged and re-engaged in any position
• Built-in LED lighting at the motor carriage and control housing
• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Pre-programmed 4-button Pearl transmitter in the box
• Repeating and forwarding radio functions for maximum range
• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator
• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close
• Transmitter management on-site or remotely through Codemaster+

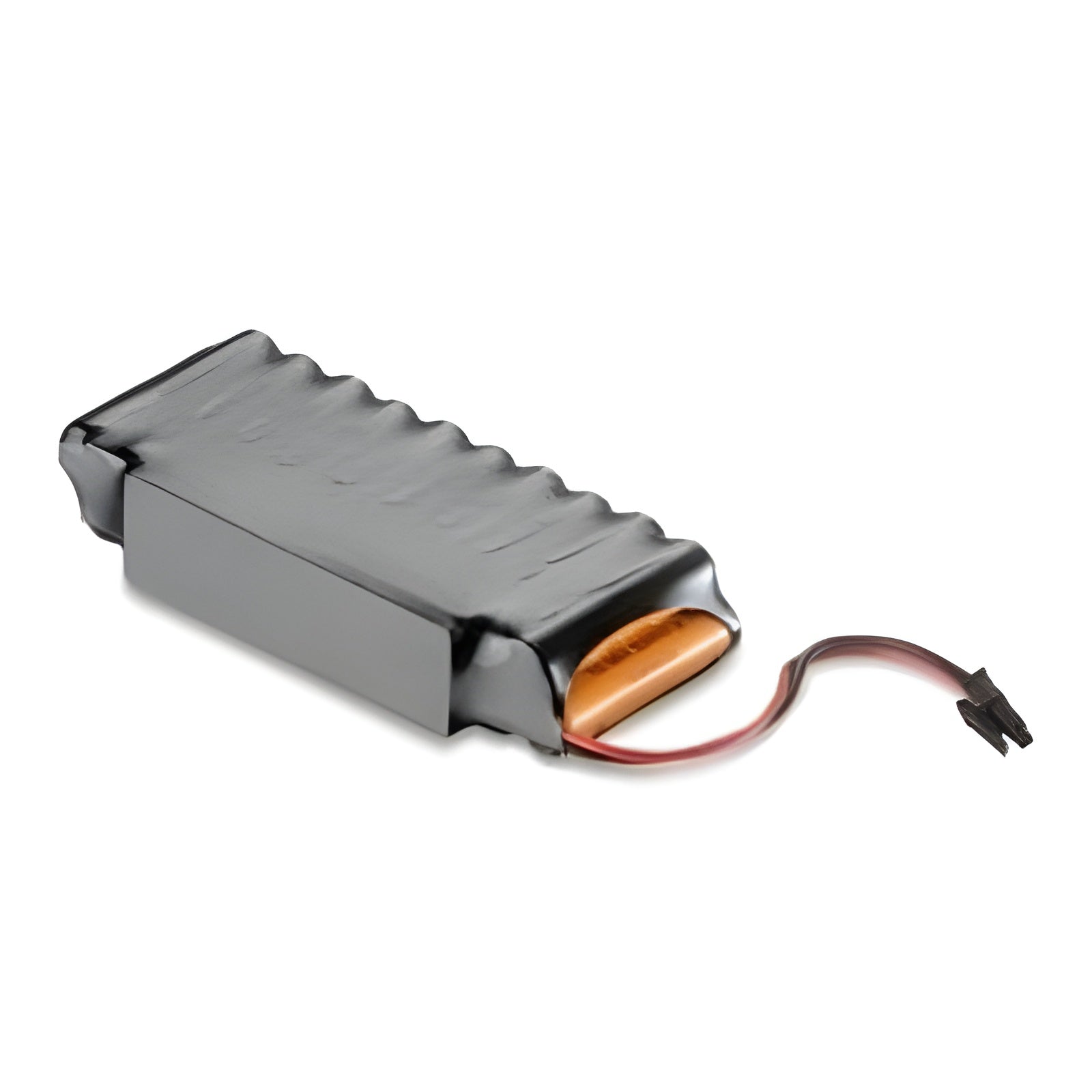

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages
• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble the rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

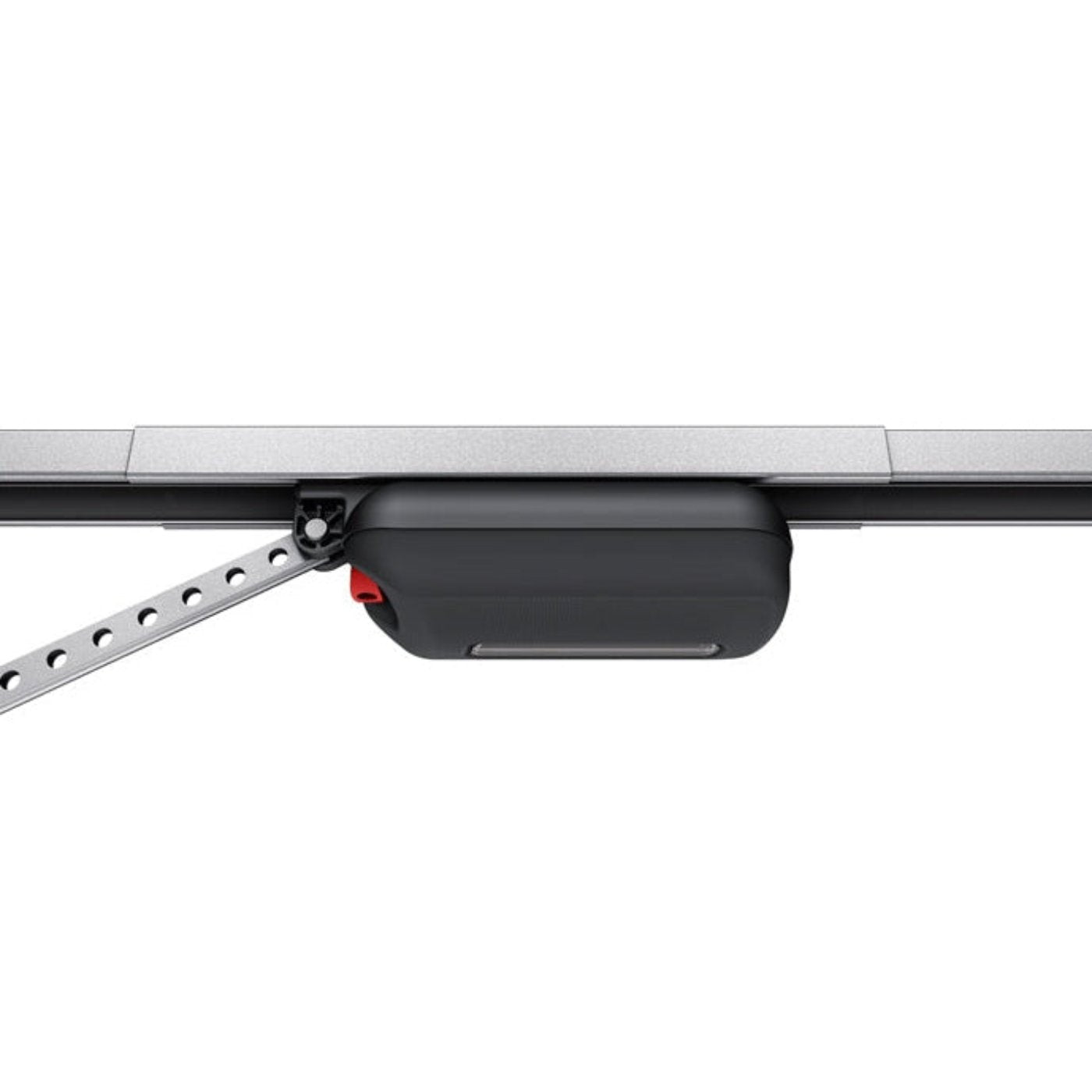

1. 2110 motor carriage
2. Control housing
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Connector wire
7. Chain with isolator
8. Straight door arm
9. Curved door arm
10. Installation bag
11. Door hardware bag
12. Ceiling bracket kit
13. Safety sensor kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

What Our Experts Think

• Quiet and Efficient: PRO+ technology ensures smooth, noise-free, and energy-efficient operation.
• Pearl Transmitter: Provides secure, long-range access with easy setup and reliable performance.
• Versatile Compatibility: Suitable for garage doors up to 8 feet in height, covering a range of residential needs.
• Durable Design: Built for long-lasting performance under frequent use.
• Enhanced Safety: Features integrated obstacle detection for secure and worry-free operation

Q&A

Q: What is the Sommer 2110 PRO+ 8' with Pearl Transmitter?
A: It’s a professional-grade garage door opener system with an 8-foot rail, a powerful direct-drive motor, and a Pearl Transmitter for convenient remote operation.

Q: What makes the 2110 PRO+ unique?
A: It’s designed for heavy-duty performance, offering quiet, durable, and efficient operation for residential garage doors, including heavier models.

Q: What is the Pearl Transmitter?
A: The Pearl Transmitter is a secure and user-friendly remote control included with this kit for easy operation of your garage door.

Q: Is it suitable for all garage doors?
A: Yes, it’s compatible with residential garage doors up to 8 feet high.

Q: Why choose the Sommer 2110 PRO+ with Pearl Transmitter?
A: It’s an excellent choice for homeowners or professionals seeking a robust, reliable, and quiet garage door opener with the convenience of remote control functionality

Maintenance Tips

• Lubricate Moving Parts: Regularly apply lubricant to hinges, rollers, and tracks for smooth door movement.
• Clean Tracks: Keep tracks clear of debris to avoid obstructions.
• Transmitter Battery: Replace the Pearl Transmitter battery as needed for consistent signal performance.
• Inspect Door Balance: Ensure proper door balance to reduce motor strain and wear.
• Tighten Hardware: Secure all screws, bolts, and brackets for stable operation.
• Motor Maintenance: Clean the motor and schedule annual professional servicing for peak performance.
• Test Safety Features: Check auto-reverse and emergency release mechanisms for safety compliance.
