Eco-Worthy 240W 390W 12V RV Complete Kit with DC-DC MPPT On-Board Battery Charger

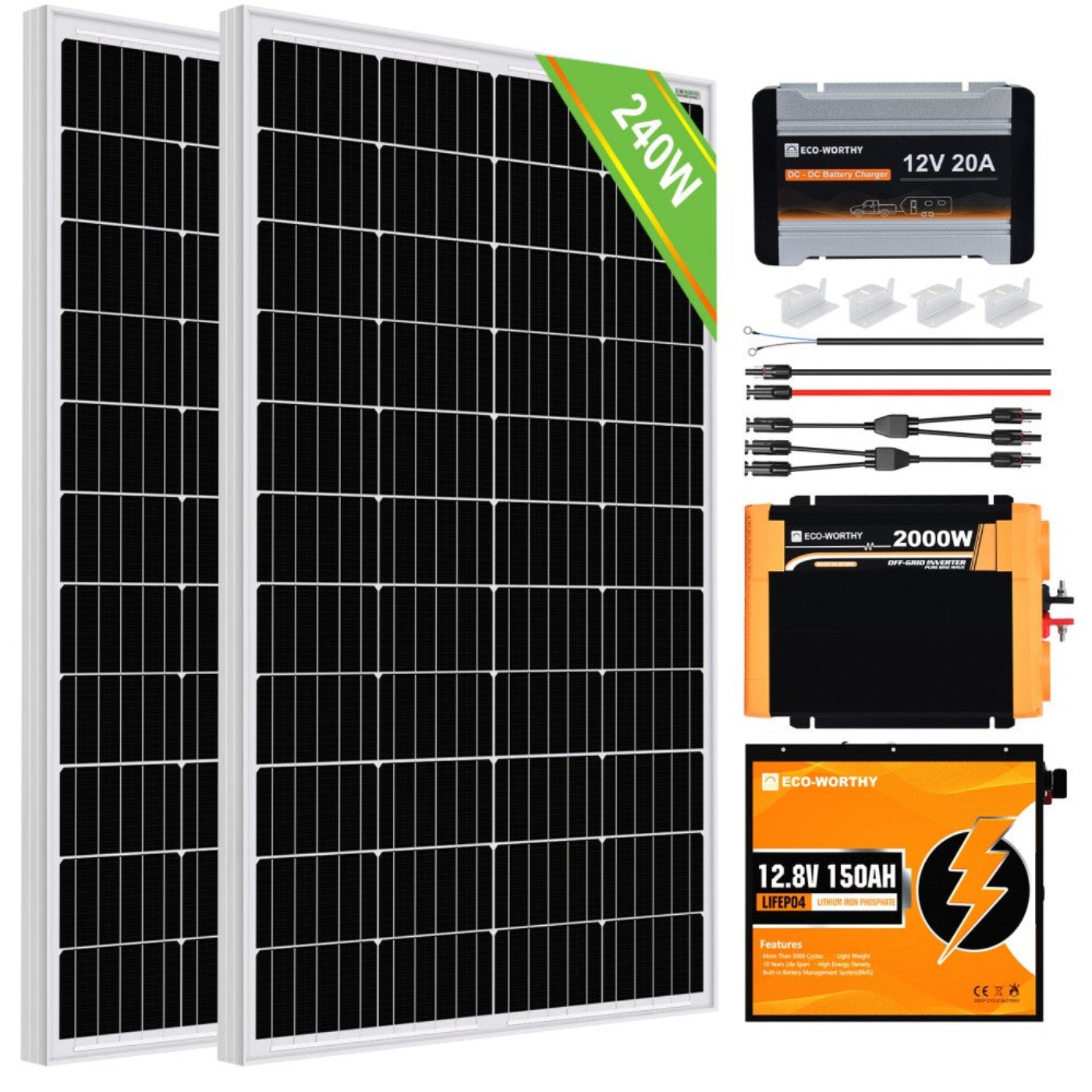

Package Includes
240W (2x120W) 12V Solar Kit
2x 120W Mono Solar Panel
1x 20A MPPT DC to DC Charger
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 2000W 12V-220V Pure Sine Wave Inverter
1x 150Ah 12V LiFePO4 Lithium Battery
390W (2x195W) 12V Solar Kit
2x 195W Mono Solar Panel
1x 40A MPPT DC to DC Charger
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 2000W 12V-220V Pure Sine Wave Inverter
2x 150Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable
Specifications
120W Monocrystalline Solar Panel
| Rated Power: 120W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 18V | Open Circuit Voltage(Voc): 21.6V |
| Short circuit current: 7.72A | Maximum current: 6.67A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector | Size: 37.8' x 26.3' x 1.4' |
| Weight: 16.5 lbs(7.5 kg) |
195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 24.5 V |
| Short circuit current: 10.14A | Maximum current: 9.65A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range:－40℃～ +85℃ |
| Frame: Aluminum alloy frame | Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector | Weight: 21.47 lbs(9.74 kg) |
| Size: 58.26x26.3x1.38in (1480*668*35mm) |
20A DC to DC Charger
| Type: Multi Stage | Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V | Output Current: DC Output: 20A; Solar Output: 20A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged | Soft Start: Yes |
| Soft Charge Current: 20A |
40A DC to DC Charger
| Type: Multi Stage | Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V | Output Current: DC Output: 40A; Solar Output: 40A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged | Soft Start: Yes |
| Soft Charge Current: 40A |
2000W 12V Off Grid Inverter
| Output Continuous Watts(W): 2000W+18W USB | Surge Capacity (PeakPower): 4000W |
| Rated Input DC (V,A): 12V Battery, 200A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 | Rated Output AC (V,A): 115Vac±10%, 18A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1.2A |
| Optimum Efficiency: 85% min | Fuse (A): 40A*6 |
| FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 16.8*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |
150Ah LiFePO4 Lithium Battery
| Battery Capacity: 150ah | Battery Power: 1920Wh |
| Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 80A/100A |
| Charge Temperature Range: 0-55℃ | Disharge Temperature Range: ﹣20－55℃ |
| Maximum Charge Voltage: 14.5V | Discharge Cut-Off Voltage: 10V |
| Screw size: M8 | Battery Size: 330*175*215mm（13.0*6.9*8.5inch） |
| Weight: 42.9lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
What Our Experts Think
- Efficient Solar Panels: Combines 240W and 390W panels, providing reliable energy for RVs, ensuring power for extended trips.
- DC-DC MPPT Charger: The advanced MPPT on-board charger optimizes charging from solar to battery, increasing energy efficiency.
- Ideal for RV Use: Tailored for RVs, offering everything needed to keep your battery charged and your appliances running off-grid.
- Versatile System: Supports a variety of RV electrical setups with multiple output options, including 12V and USB ports.
- Durable & Easy to Install: Panels and components are designed for rugged use and easy installation, built for the demands of outdoor travel.
Q&A
Q: What is the Eco-Worthy 240W 390W 12V RV Complete Kit?
A: The Eco-Worthy 240W 390W 12V RV kit includes solar panels and a DC-DC MPPT on-board battery charger, designed to provide reliable off-grid power for RVs, campers, or boats.
Q: What are its key features?
- Power Output: 240W to 390W total, ideal for RV, camper, or boat energy needs.
- Panels: High-efficiency solar panels designed for maximum energy capture.
- Charger: DC-DC MPPT on-board battery charger for efficient energy transfer to your RV’s battery.
- Durability: Weather-resistant components for long-lasting use in outdoor environments.
- Applications: Perfect for RVs, campers, boats, or any mobile off-grid power needs.
Q: Who is this solar kit ideal for?
A: Ideal for RV owners, campers, and boaters who want a portable, reliable, and eco-friendly power solution for their off-grid adventures.
Q: Why choose the Eco-Worthy 12V RV Kit?
A: Its high-efficiency panels, MPPT charging technology, and comprehensive setup provide a dependable and efficient off-grid energy solution for all your mobile power needs
Maintenance Tips
- Solar Panel Cleaning: Clean the panels regularly with a soft cloth and water to remove dirt and debris, ensuring efficient sunlight absorption.
- Panel Inspection: Check for cracks, scratches, or damage on the panels. Ensure they are positioned correctly and free from shading or obstructions.
- Battery Maintenance: Regularly monitor battery voltage and connections. Keep the battery terminals clean and free from corrosion. Avoid overcharging and deep discharging.
- DC-DC MPPT Charger: Ensure the MPPT charger is functioning correctly by checking for error codes or irregularities in charging. Keep it cool and well-ventilated.
- Wiring & Connectors: Inspect all wiring and connectors for signs of wear, corrosion, or loose connections. Replace or repair as necessary to prevent power loss.
- Inverter Monitoring: If using an inverter, monitor its temperature and performance. Ensure it remains cool and well-ventilated.
- Mounting Stability: Check the solar panel mounts and hardware to ensure they are secure and free from rust. Tighten any loose bolts to prevent misalignment.
- System Performance Monitoring: Track the energy output and battery charge levels to ensure the system is functioning efficiently.
- Weatherproofing: Ensure that all components, especially wiring and junction boxes, are sealed and protected from weather elements such as rain or dust.
- Storage and Charging: If the RV is not in use for extended periods, ensure the solar system is properly charged and the battery is maintained. Recharge every 3-6 months during storage.
