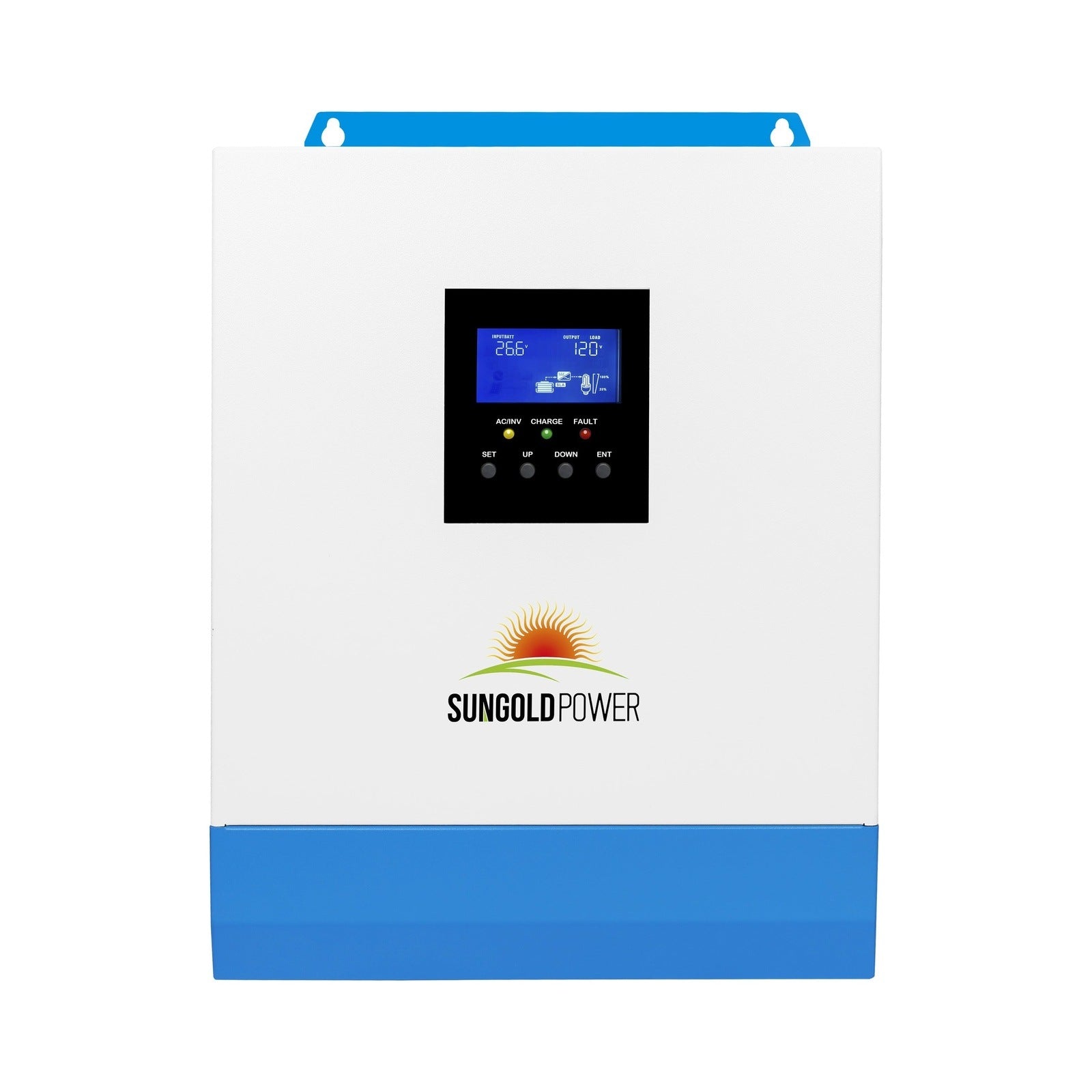

3000W 24V Solar Inverter Charger - SPH302460A

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight

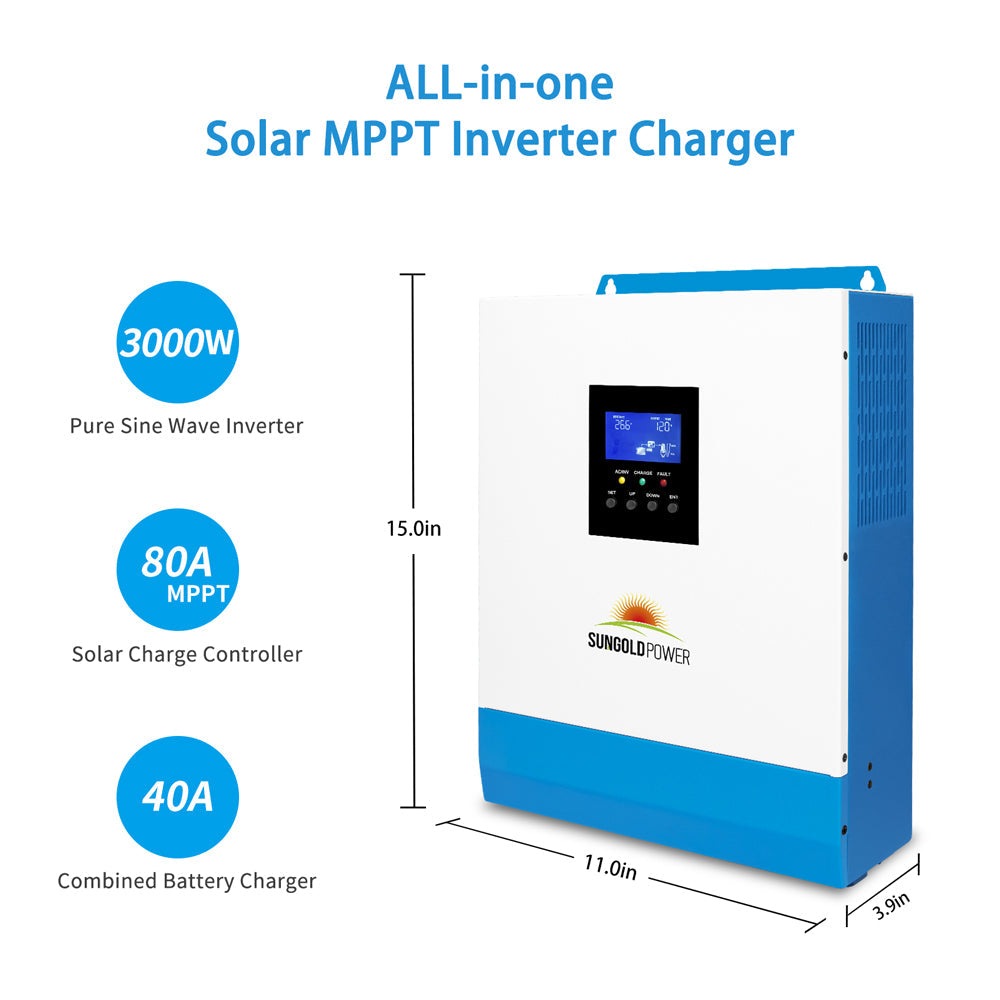

• ★ All-in-one solar charge inverter: 3000 Watts Pure Sine Wave Inverter Combined with 80A MPPT solar charging and 40A AC battery charging, you can enjoy stable power from the sun and the utility grid to keep you powered under any circumstances.

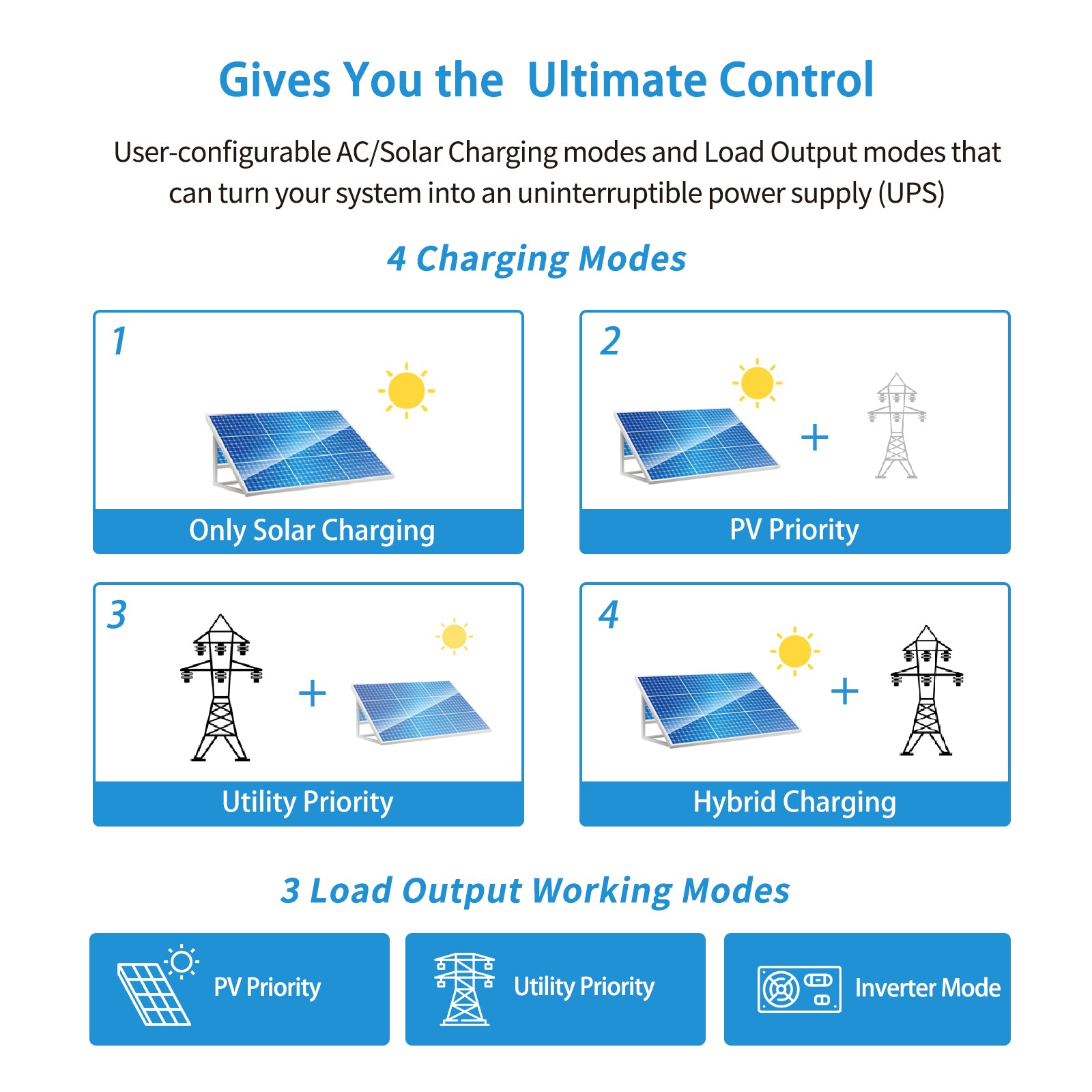

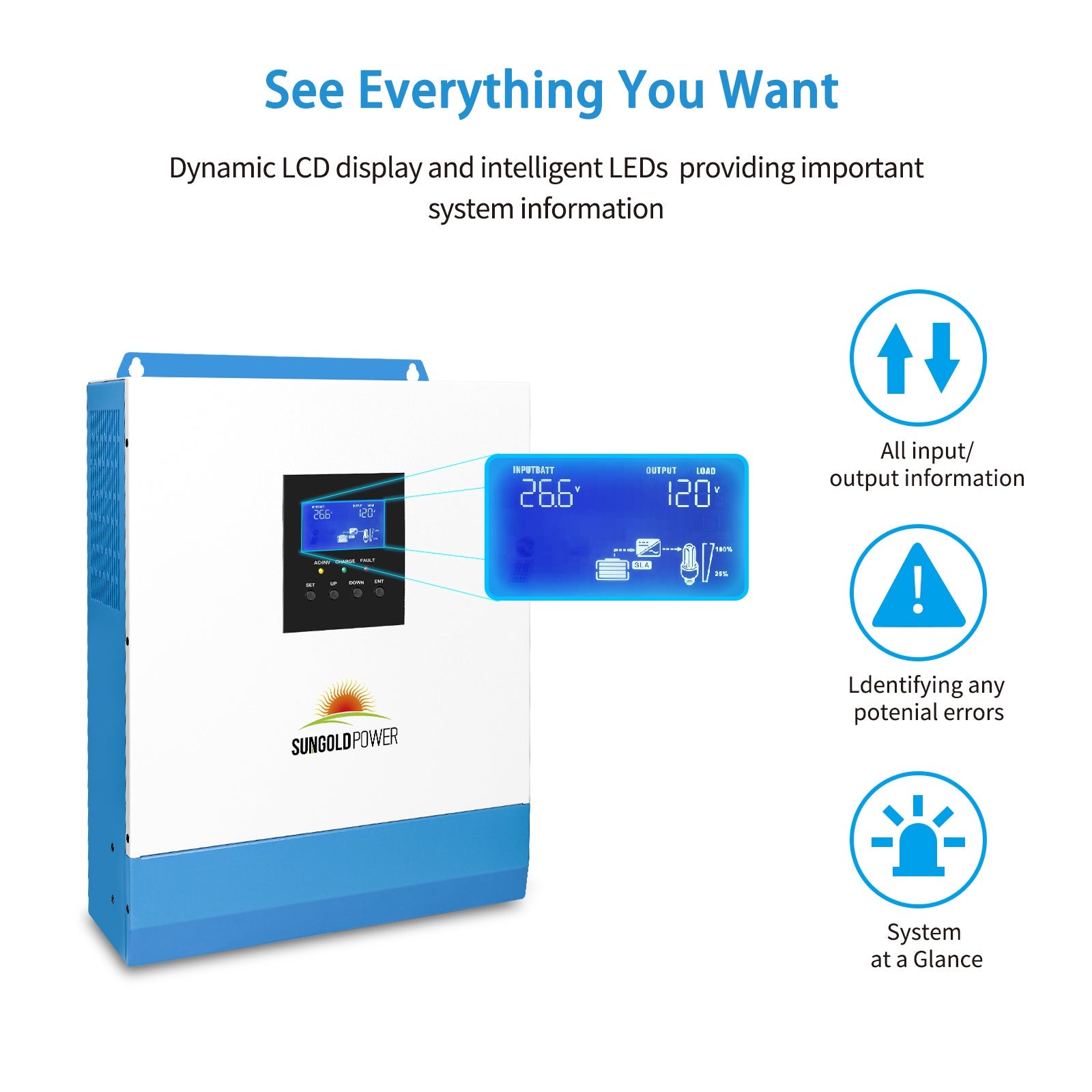

• ★ Four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging, Designed with LCD/LED dynamic display of system data and operating status.

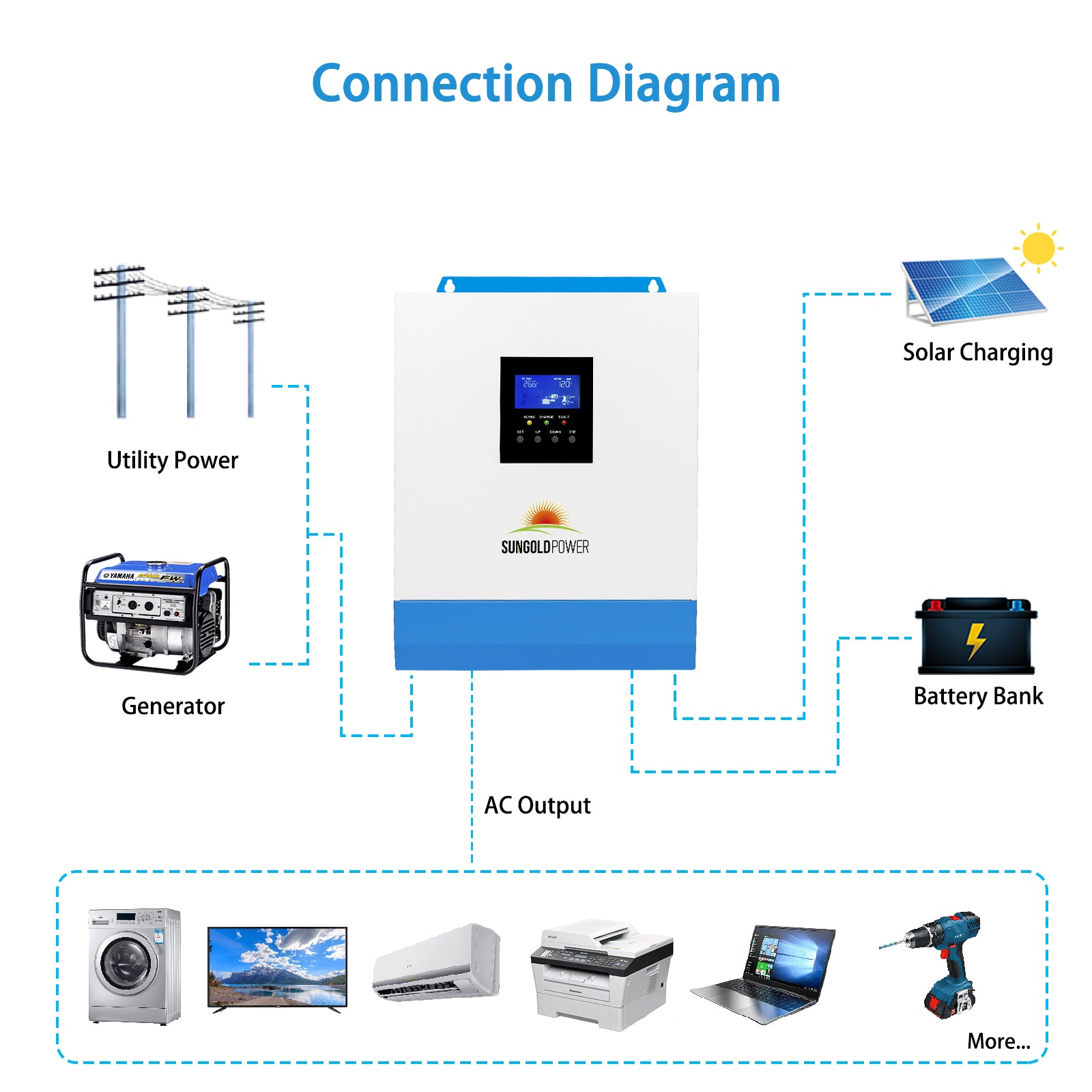

• ★ Uninterruptible Power Supply: If the main/generator is disconnected or the solar charging is insufficient, the Inverter Charger takes over the battery supply to the alternative option within 10ms, which will not let your electronics shut down.

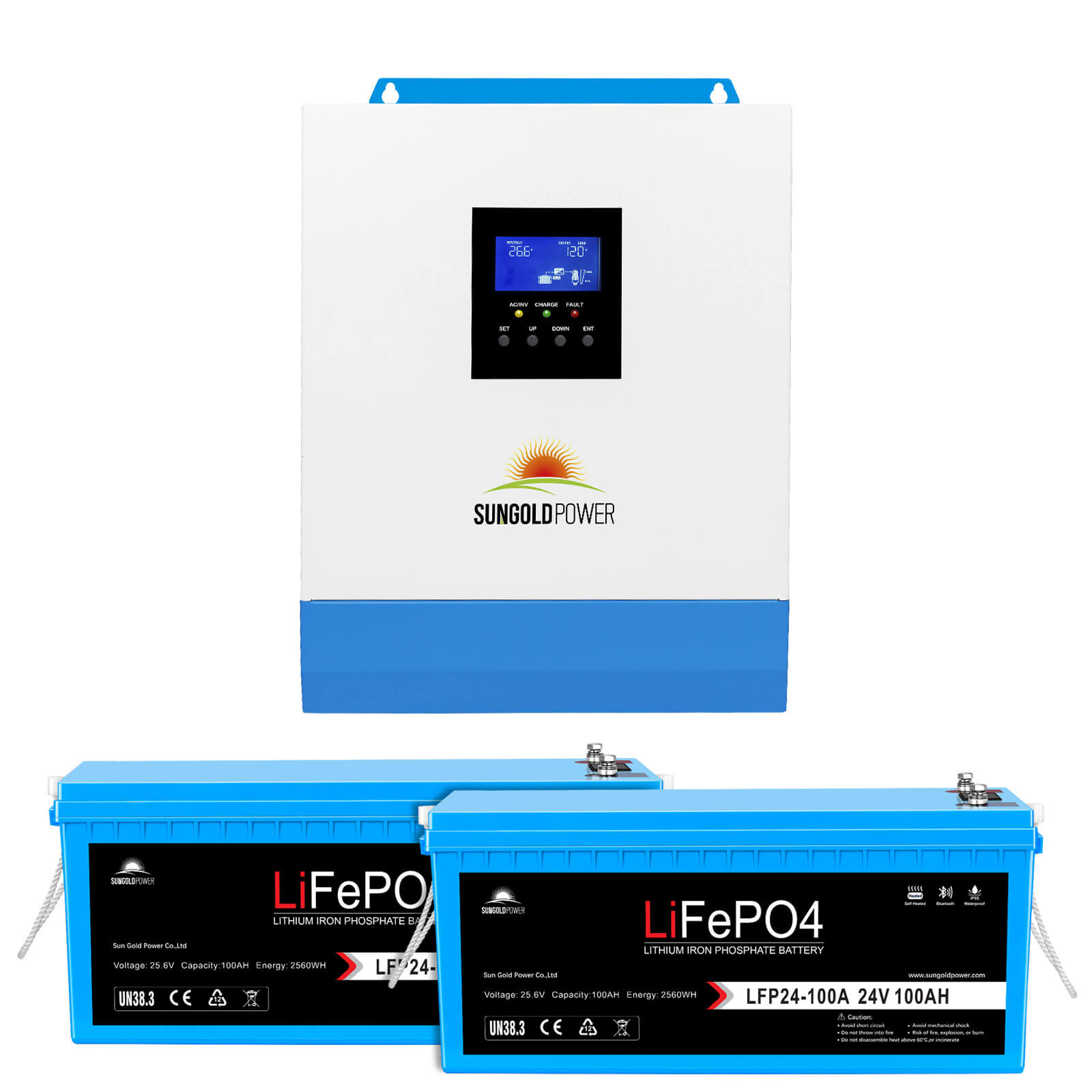

• ★ Battery type: 24V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types.

• ★ Reliable protection: including short circuit protection, over-voltage and under voltage, protection, overload protection, reverse protection, etc.

Features

• Built-in 60A MPPT solar charge controller, max PV input 1400W

• 40A Smart AC charger

• High-frequency transformer-less compact design

• Pure sine wave AC 120V output with 50hz/60hz switch

• Optional WiFi/ GPRS remote monitoring (extra cost)

• Overload, short circuit, over-discharge protection

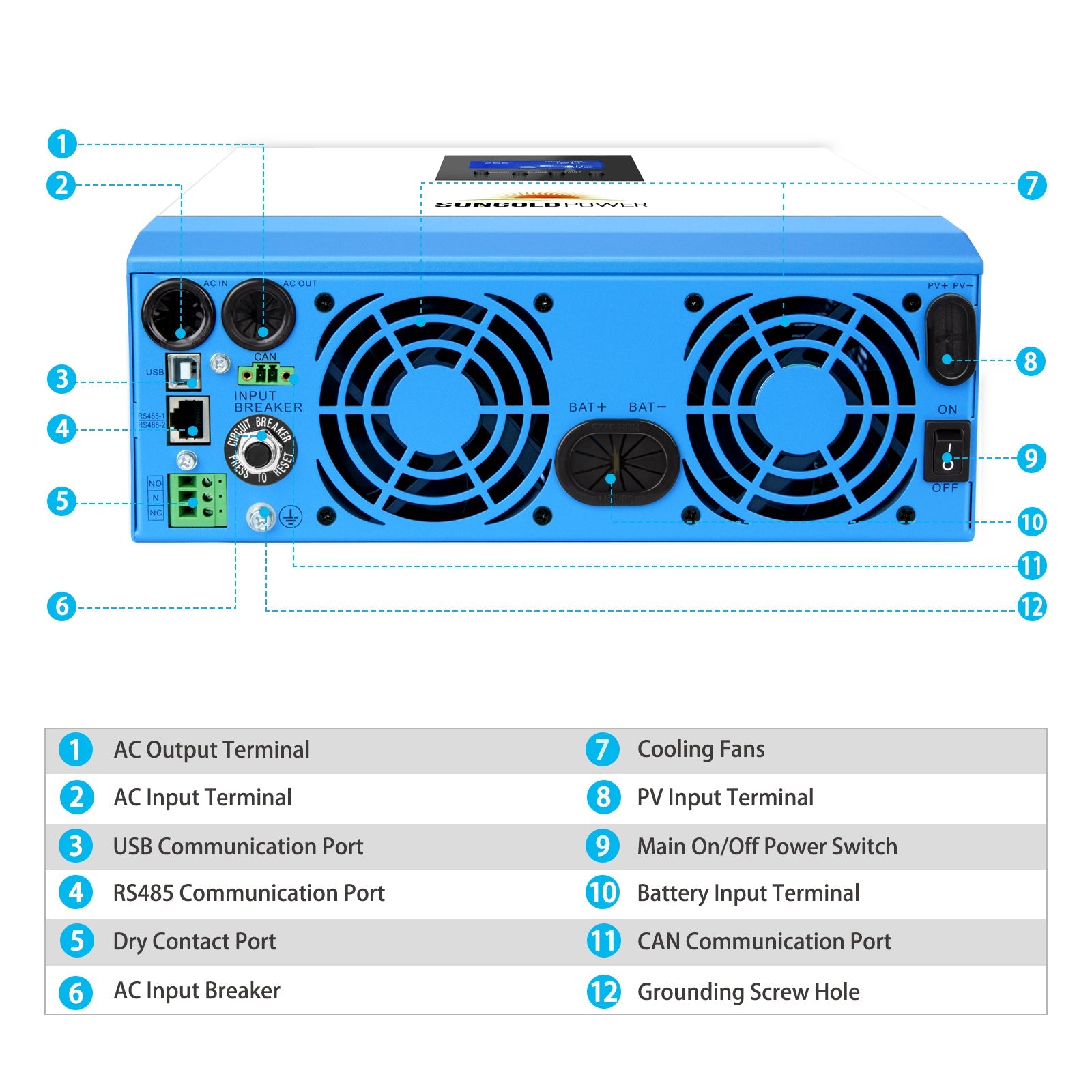

• Auto-start the generator (Dry Contacts for delivering signal)

Specification

• Output: Pure Sine Wave
• Surge Rating: 9000W (20 Seconds)
• Peak Power: 4500VA
• AC Output : 120VAC ,50HZ/60HZ
• Input Voltage / Rated Battery: 24VDC (minimum start-up voltage:22V
• Bypass Breaker Current: 40A
• Idle Power: 50W
• Power Saver Mode Idle Consumption: 25W

MPPT Solar Charging Mode:

• Maximum Input Power: 1400w
• PV Charging Current: 0-60A
• Max.PV Open Circuit Voltage: 100V
• PV operation voltage range: 30-100VDC
• Mppt Voltage Range: 30-85VDC
• Recommended wire: 8 AWG

AC Charging Mode:

• Rated AC input: 110V, 50HZ/60HZ
• Input Voltage Range: 90VAC-140VAC
• Conversion Time: 10ms
• Battery Type: Lead Acid and Lithium Battery
• Maximum Charging Current: 40A
• Charging Voltage Range:20-33VDC
• Short-Circuit Protection: Breakers and fuses
• Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

• Size: 378mm*280mm*103mm
• Net Weight: 6.8kg
• Noise: ≤60dB
• Operating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°C
• Cooling Fan: Yes

Product Guide

3000W 24V Solar Inverter Charger

 What Our Experts Think

• Steady Power Supply: Provides 3,000W continuous output, ideal for small to medium-sized solar energy systems.
• 24V Battery Compatibility: Optimized for efficient energy storage and smooth solar-to-battery integration.
• Advanced MPPT Technology: Maximizes solar charging efficiency, ensuring optimal energy utilization.
• Pure Sine Wave Output: Produces clean and stable power, protecting sensitive devices and electronics.
• Integrated Charger: Combines inverter and charger functionality for seamless battery management.
• Safety First: Equipped with overload, over-voltage, and short-circuit protections for long-lasting, reliable use.
• Compact Design: Lightweight, space-saving, and easy to install with intuitive controls.

Q&A

Q: What is the 3000W 24V Solar Inverter Charger (SPH302460A)?
A: A 3000W solar inverter charger designed for 24V solar and battery systems, providing efficient energy conversion and charging for residential and off-grid use.

Q: What are its key features?
A:

• 3000W continuous pure sine wave output
• Supports 24V battery systems
• Advanced MPPT controller for optimal solar energy harvest
• Integrated battery charger for reliable power storage
• Protection against overload, short circuits, and overvoltage

Q: What applications is it suitable for?
A: Ideal for small solar power systems, off-grid setups, RVs, and backup power for home appliances and sensitive electronics.

Q: Does it support energy storage?
A: Yes, it integrates seamlessly with 24V battery systems for efficient energy storage and backup power.

Q: Is it easy to install?
A: Yes, its user-friendly design ensures straightforward setup and reliable operation

Maintenance Tips

• Cooling System: Clean dust from fans and vents regularly to ensure proper airflow.
• Battery Maintenance: Check connections, voltage levels, and charge cycles to avoid issues.
• Wiring Inspection: Tighten and examine cables for signs of wear, corrosion, or damage.
• Environment: Install in a dry, well-ventilated area, away from moisture and extreme temperatures.
• Monitor Performance: Use the display or monitoring tools to track input/output values and detect faults.
• Firmware Updates: Keep firmware current for improved functionality and compatibility.
• Power Off for Servicing: Disconnect batteries and solar input before performing maintenance.
