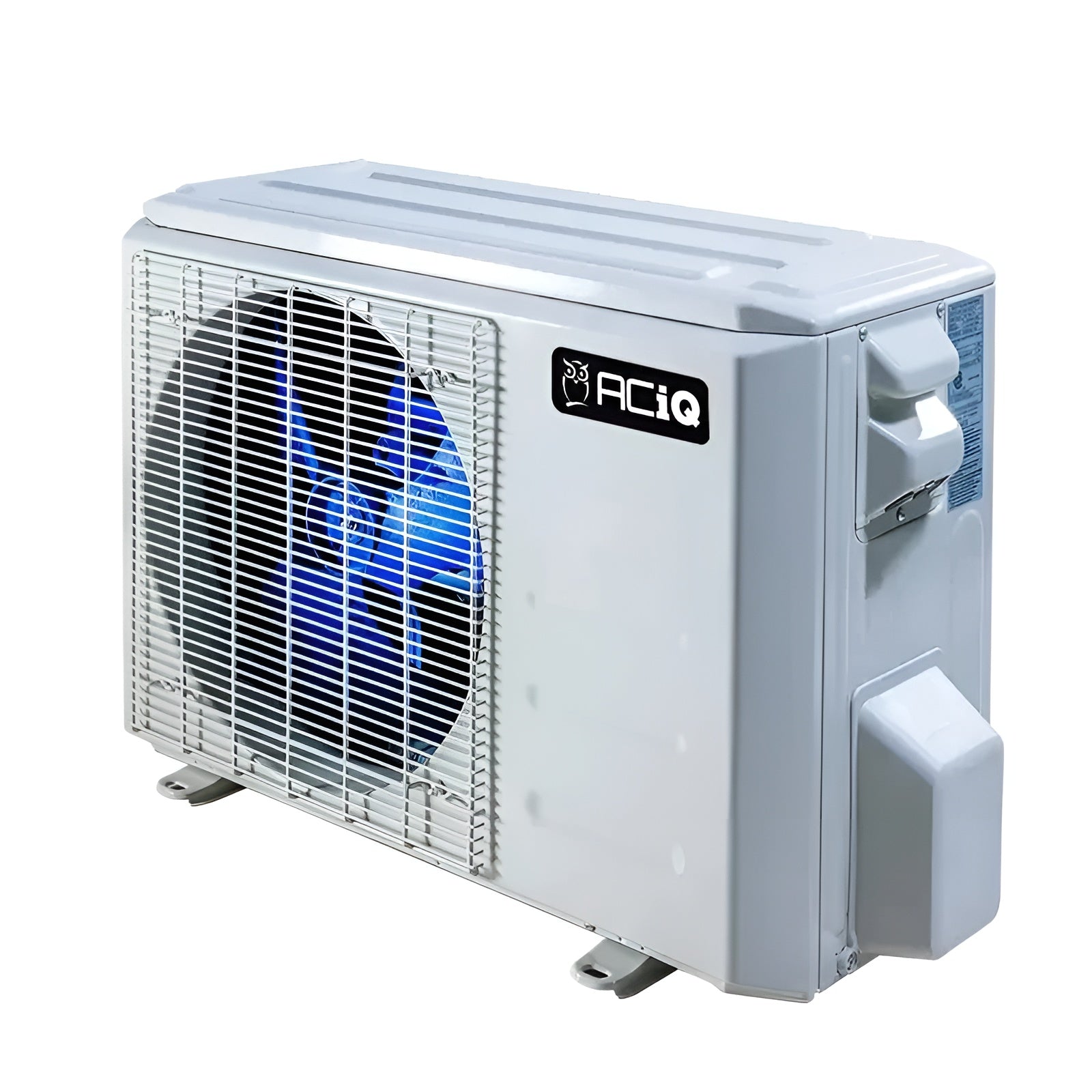

36,000 BTU ACiQ Energy Star Multi Zone Condenser

The ES-36Z-M4B is an adaptable, inverter condenser that can support up to 4 air handlers at 1.25 times its 36,000 BTU rating, equivalent to 45,000 BTU. It consistently adjusts itself to regulate the ideal amount of heating or cooling to maintain your desired temperature in every room or zone. You have the ability to set individual temperatures for each room and even turn off heating and cooling in unused areas. This feature, combined with its impressive 23.9 SEER2 efficiency rating, makes it a cost-effective and intelligent investment for your home.

Features

• 36,000 BTU, 23.9 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Efficient heating from -13°F to 75°F outdoor temperatures
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

Specifications

• Model: ES-36Z-M4B
• Available Zones: 4
• SEER2: 23.9
• Cooling BTU: 36,000
• Heating BTU: 37,000
• Electrical: 208/230V 1 Phase 60 Hz

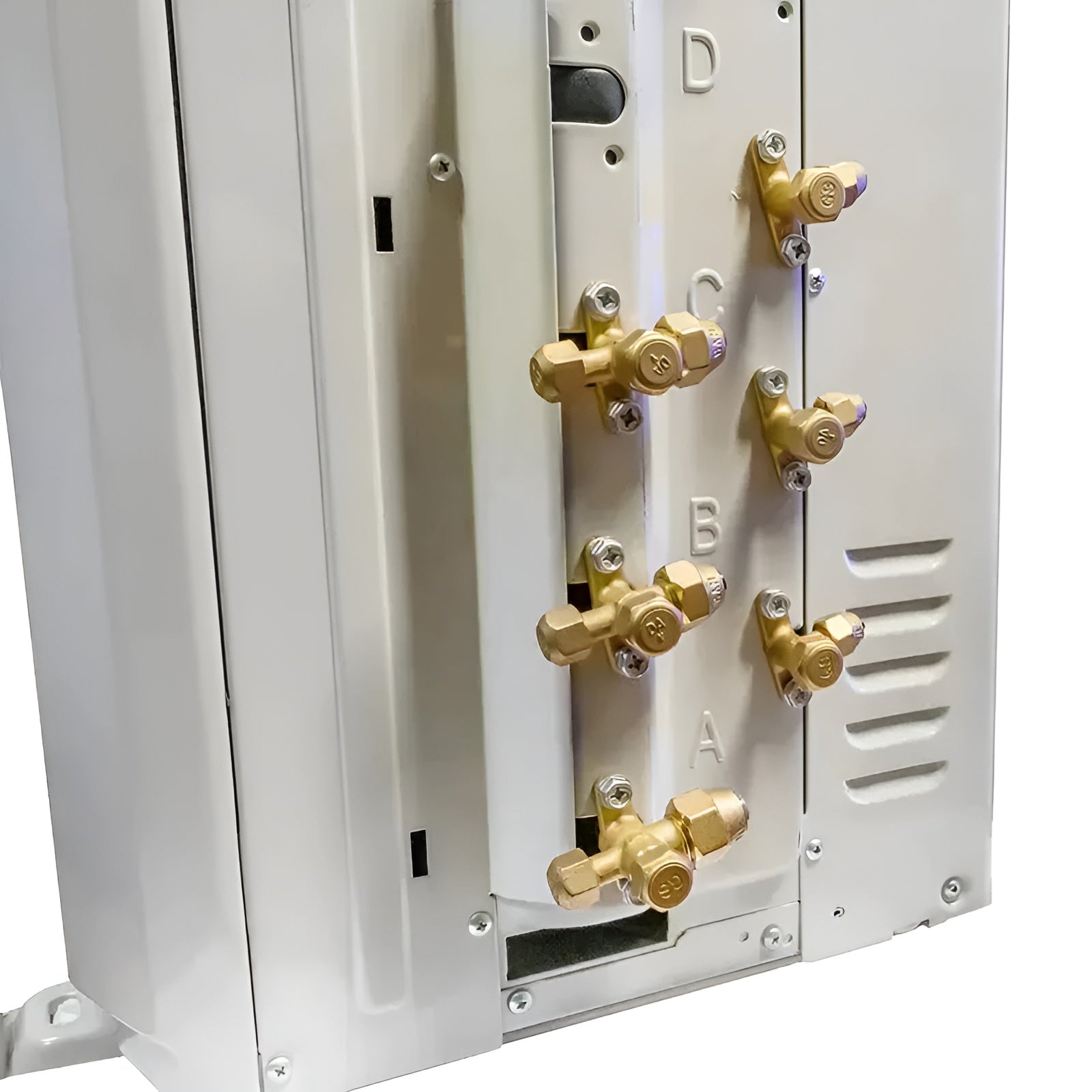

• Liquid Line: 1/4' (4)
• Suction Line: 3/8' (3) 1/2' (1)
• Height: 31.89'
• Width: 37.24'
• Depth: 16.14'
• Weight: 181.4 lbs
• Warranty: 12-Year Compressor / 7-Year Parts with Registration

 What Our Experts Think

• Powerful Multi-Zone Capability: The 36,000 BTU condenser supports multiple zones, ideal for cooling or heating larger homes or offices.
• Energy Efficiency: With Energy Star certification, it reduces energy consumption while maintaining comfort.
• Durability: Built to withstand harsh conditions, ensuring long-term reliability and performance.
• Quiet Operation: Designed for minimal noise, offering peace and quiet in your home or workspace.
• Versatile Performance: Efficient in extreme temperatures, delivering consistent performance year-round.
• Smart Integration: Compatible with WiFi systems for remote control and monitoring via smartphone or voice assistants.

Q&A

Q: What is the cooling capacity of the 36,000 BTU ACiQ Multi Zone Condenser?
A: It offers 36,000 BTU of cooling power, making it perfect for cooling multiple rooms or zones simultaneously.

Q: Is this unit Energy Star rated?
A: Yes, the 36,000 BTU ACiQ Multi Zone Condenser is Energy Star certified, ensuring energy efficiency and lower utility costs.

Q: Can this system be used in extreme temperatures?
A: Yes, it is designed to perform efficiently even in extreme heat or cold, providing year-round comfort.

Q: Does this system require professional installation?
A: Yes, professional installation is recommended for optimal performance and safety.

Q: Can I control this unit remotely?
A: Yes, the unit is compatible with WiFi, allowing for remote control via smartphone or voice assistants.

Q: How many zones can this system support?
A: This system is designed to support multiple zones, offering flexible cooling and heating solutions for various room configurations.

Maintenance Tips

• Clean the Filters: Inspect and clean the air filters every 1-2 months to ensure optimal airflow and efficiency.
• Check the Coils: Clean the condenser coils yearly to remove dirt and debris, improving heat exchange.
• Inspect Drain Line: Ensure the drainage line is clear to prevent water backup and moisture damage.
• Check Refrigerant Levels: Ensure refrigerant is at the proper level for maximum cooling performance.
• Inspect Insulation: Check insulation around refrigerant lines for wear or damage to maintain energy efficiency.
• Annual Professional Maintenance: Schedule a yearly service by a professional technician to ensure system longevity and peak performance.
