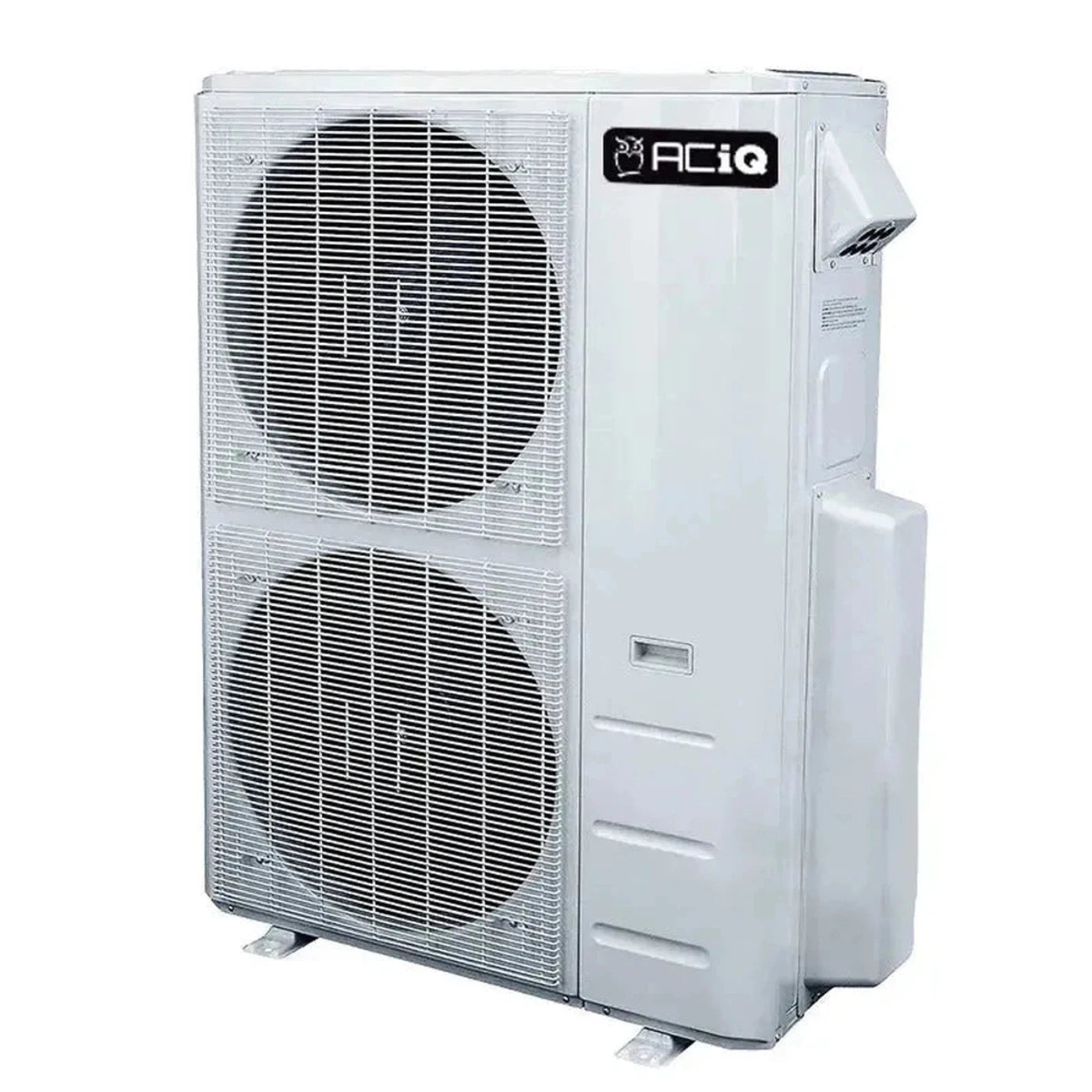

36,000 BTU ACiQ Multi Zone Condenser w/Max Heat

• 36,000 BTU, 21.5 SEER multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -22 F to 122 F outdoor temperatures
• Efficient heating from -22 F to 75 F outdoor temperatures
• Integrated Max Heat technology with base pan heater
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

Specifications:

• Model: ACiQ-36Z-HH-M4
• Available Zones: 4
• SEER2: 22.3
• Cooling BTU: 36,000
• Heating BTU: 36,000

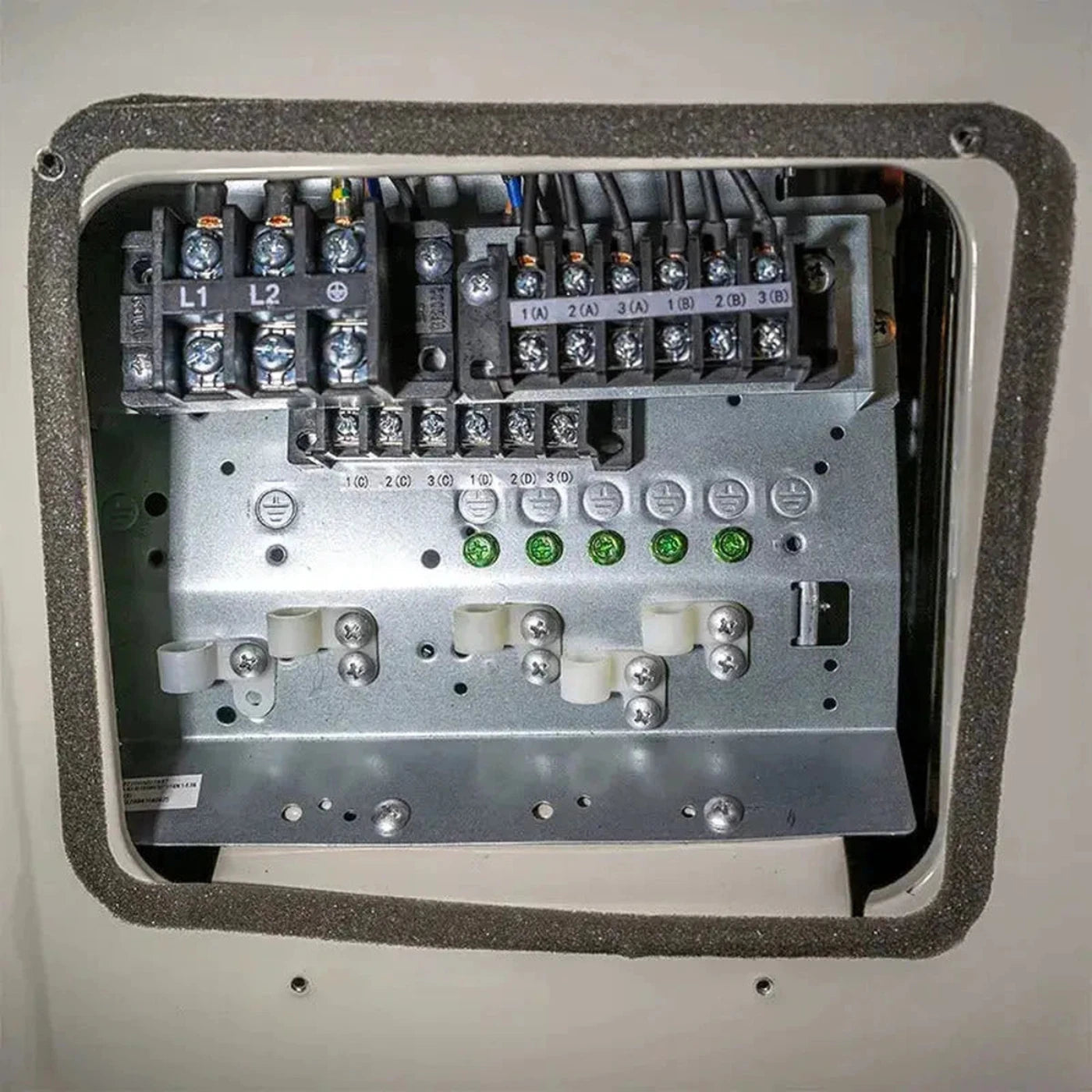

• Electrical: 208/230V 1 Phase 60 Hz

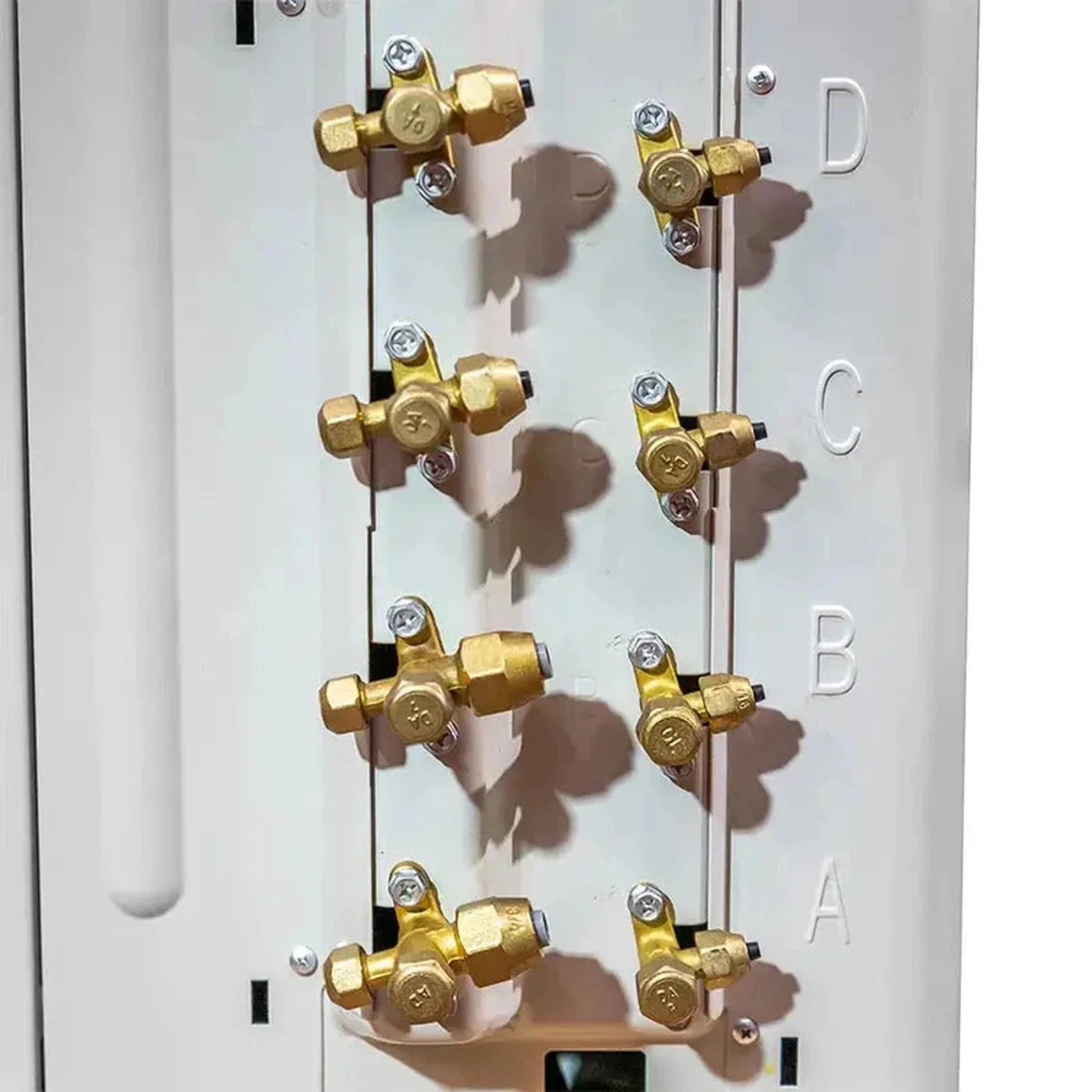

• Liquid Line: 1/4" (4)
• Suction Line: 3/8" (3) & 1/2" (1)
• Height: 52.5'
• Width: 37.5'
• Depth: 16.4'
• Weight: 255 lbs
• Warranty: 12-Year Compressor / 7-Year Parts with Registration

 What Our Experts Think

• High Efficiency: The 36,000 BTU ACiQ Multi Zone Condenser w/Max Heat provides exceptional energy efficiency with its Energy Star rating, saving you money on your utility bills.
• Year-Round Comfort: With Max Heat technology, this unit not only cools but also provides reliable heating during colder months.
• Versatile Multi-Zone Capability: Ideal for homes or offices with multiple rooms, it supports up to 5 zones, offering personalized comfort for each space.
• Durable & Reliable: Built to last, this condenser is designed for long-term performance, with premium components ensuring durability and reduced maintenance.
• Easy Installation & Maintenance: The system’s flexible design and straightforward maintenance requirements make it a hassle-free choice for homeowners.

Q&A

Q: What is the cooling capacity of the 36,000 BTU ACiQ Multi Zone Condenser?
A: It provides 36,000 BTUs of cooling, ideal for multiple rooms or spaces.

Q: Can this unit provide heating as well?
A: Yes, it features Max Heat technology, offering both cooling and reliable heating for year-round comfort.

Q: How many zones can the condenser support?
A: It supports up to 5 zones, allowing customized climate control for each room.

Q: Is the ACiQ Multi Zone Condenser energy-efficient?
A: Yes, it is Energy Star rated, helping reduce electricity costs while delivering high performance.

Q: How easy is it to maintain?
A: The system requires minimal maintenance, with simple tasks like cleaning filters and checking refrigerant levels.

Maintenance Tips

• Clean Filters Regularly: Clean or replace filters every 1-2 months to maintain airflow and efficiency.
• Inspect Coils: Clean the condenser coils annually to ensure optimal heat exchange and cooling performance.
• Clear Drain Line: Check and clear the drainage line to prevent clogs and water damage.
• Check Refrigerant Levels: Ensure refrigerant levels are correct for maximum efficiency and cooling.
• Inspect Insulation: Verify that refrigerant lines are properly insulated to prevent energy loss.
• Schedule Annual Service: Have a professional technician inspect and service the unit once a year for long-term performance.
