SunGold Power 5000W Solar Inverter+10.24KWH LifePO4 Battery Energy Storage 48V System

SunGold Power 5000W Solar Inverter+10.24KWH LifePO4 Battery Energy Storage 48V System

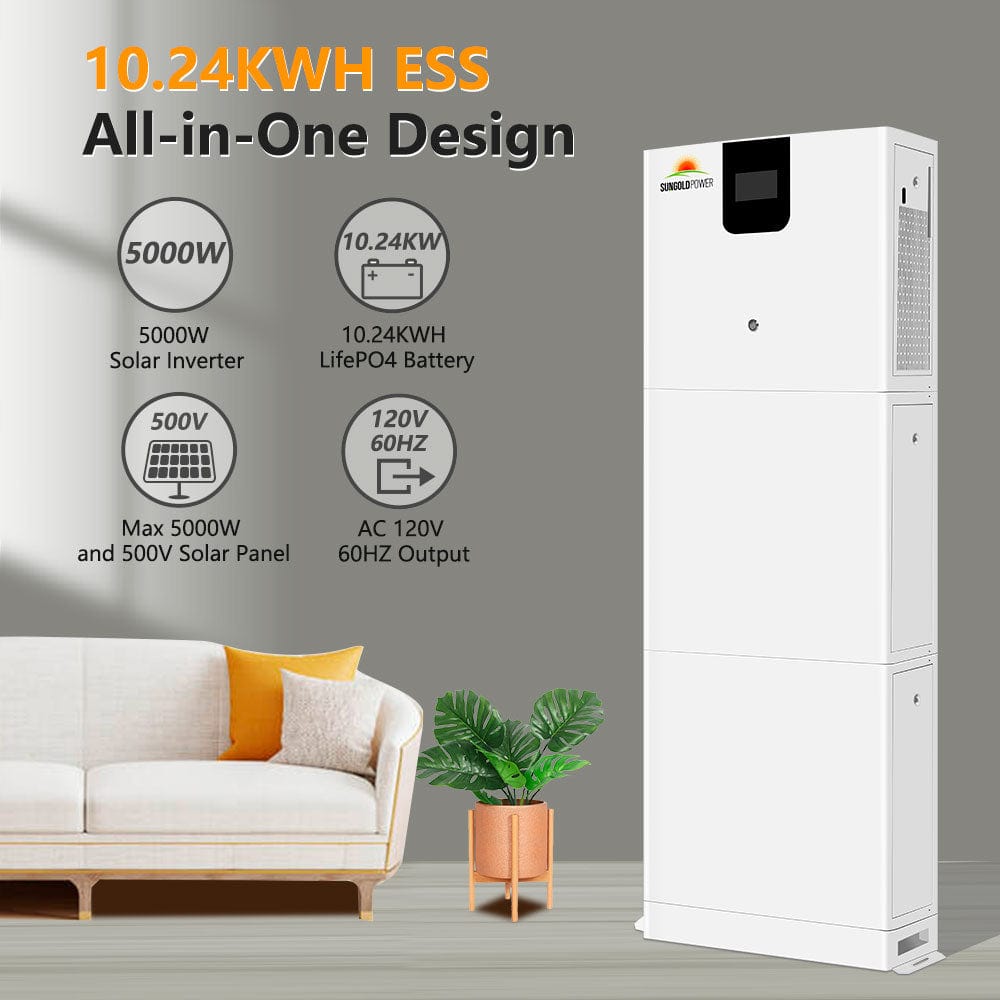

Integrated 5kW solar inverter and 10.24 kWh LiFePO4 battery DC 48V system, AC 120V 60hz output, Suitable for USA market Max 5000W solar panel input and 500V solar voltage BMS Communication Port (RS485,CAN,RS232) Charging mode from Solar panel, Grid or Generator Lithium Iron Phosphate battery 80% DOD 6000 cycles Scalable battery in parellel expansion up to 20kWh.

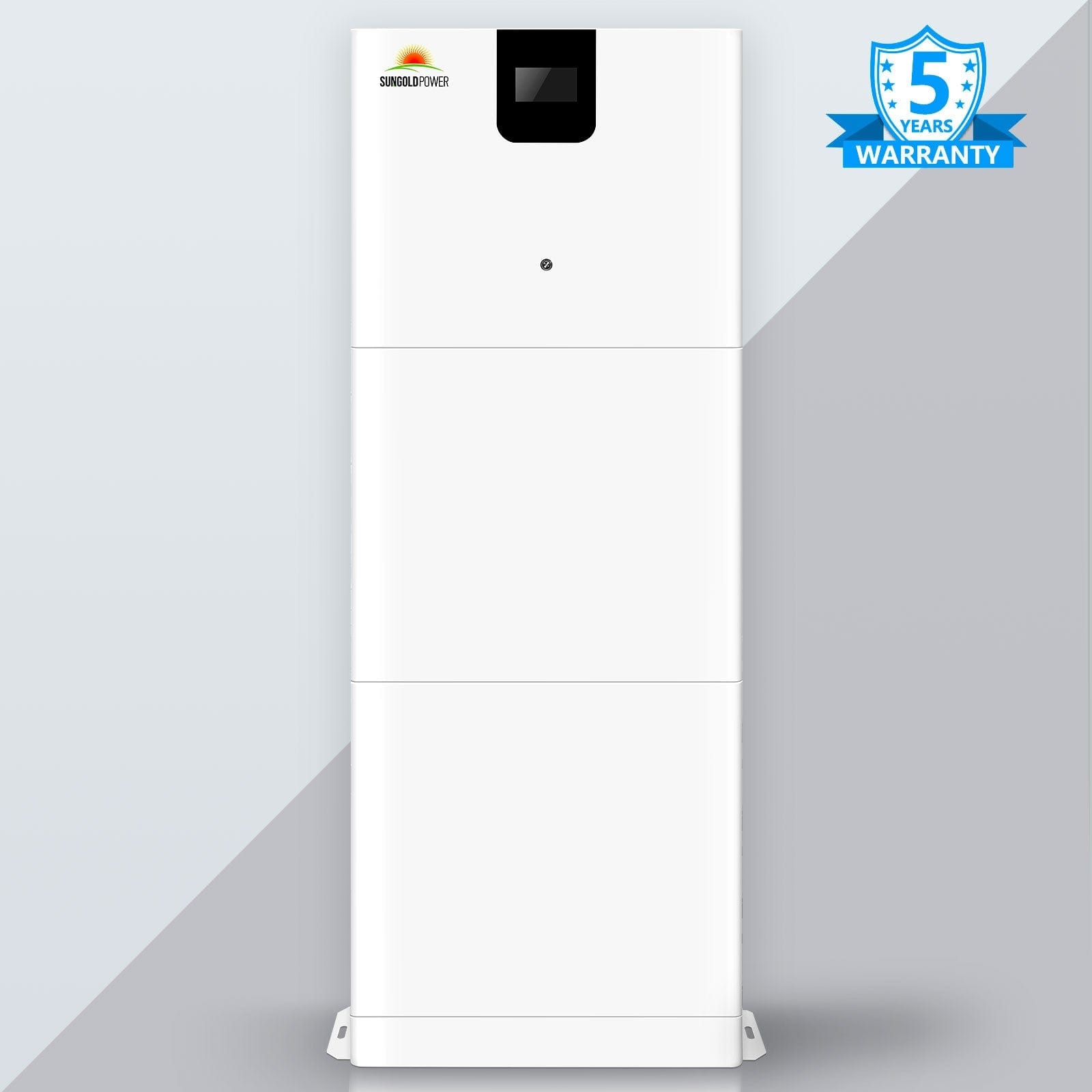

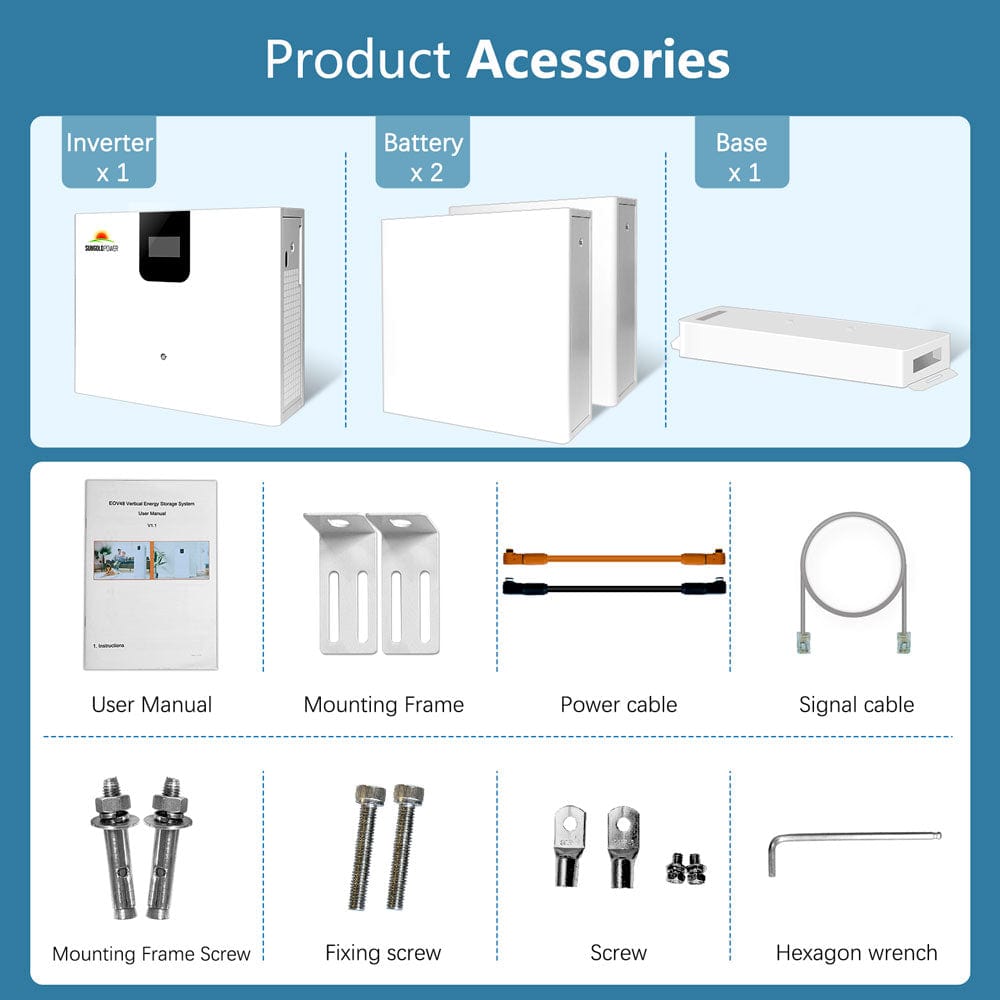

All in one design: energy storage machine is equipped with a 5KW inverter, solar charger, and 10.24kwh lithium iron phosphate battery cabinet for combination, its flexibility to plug-and-play installation.

5000W solar inverter: it is pure sine wave outputs, converts 48V DC into 120V AC output, 80A MPPT solar controller MAX 500V PV input, it is applicable for household appliances, power tools, and other AC loads.

Battery with intelligent BMS: it is equipped with 2pcs batteries, a single battery is 5.12kWh,6000 cycles 80% DoD. You can use 4 batteries in parallel at the same time and provide a maximum of 20kwh for your use. The lithium iron phosphate batteries with BMS high performance in energy storage.

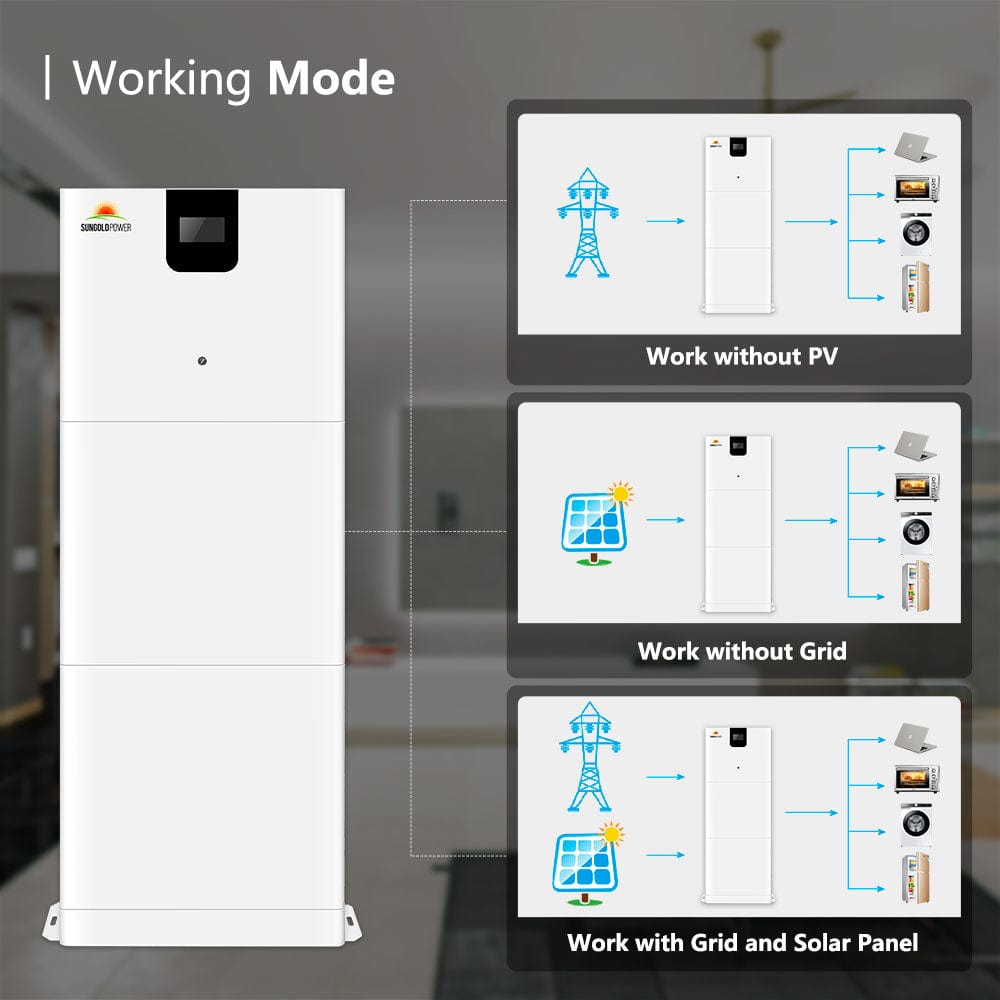

Multi working modes: A variety of charging methods, which can be charged with photovoltaic or grid power, or both at the same time, a variety of different power sourcing, the appliance can be powered by solar /grid /battery.

Top Brand And Warranty Guarantee: Buy with Confidence! SUNGOLDPOWER company is a professional manufacturer in the powerful energy field for over 10 years, customer service in USA. 5 year warranty guarantee, and Lifetime tech support.  UL1641(battery cell), UN38.3,MSDS

Specifications

Manuals

User's Manual

What Our Experts Think

• Reliable Power Supply: The 5000W inverter provides robust power for a variety of off-grid applications, supporting essential appliances and systems.
• Extended Energy Storage: The 10.24kWh LifePO4 battery ensures long-lasting energy storage, perfect for extended use, especially during low sunlight periods.
• 48V System Efficiency: Operating on a 48VDC system, it delivers higher efficiency and improved performance compared to lower voltage systems, reducing energy loss.
• Advanced Battery Technology: LifePO4 batteries offer superior safety, faster charging times, and a longer lifespan compared to traditional lead-acid batteries.
• Eco-Friendly Energy: This off-grid solar system promotes sustainable living by utilizing renewable energy, reducing dependence on fossil fuels.

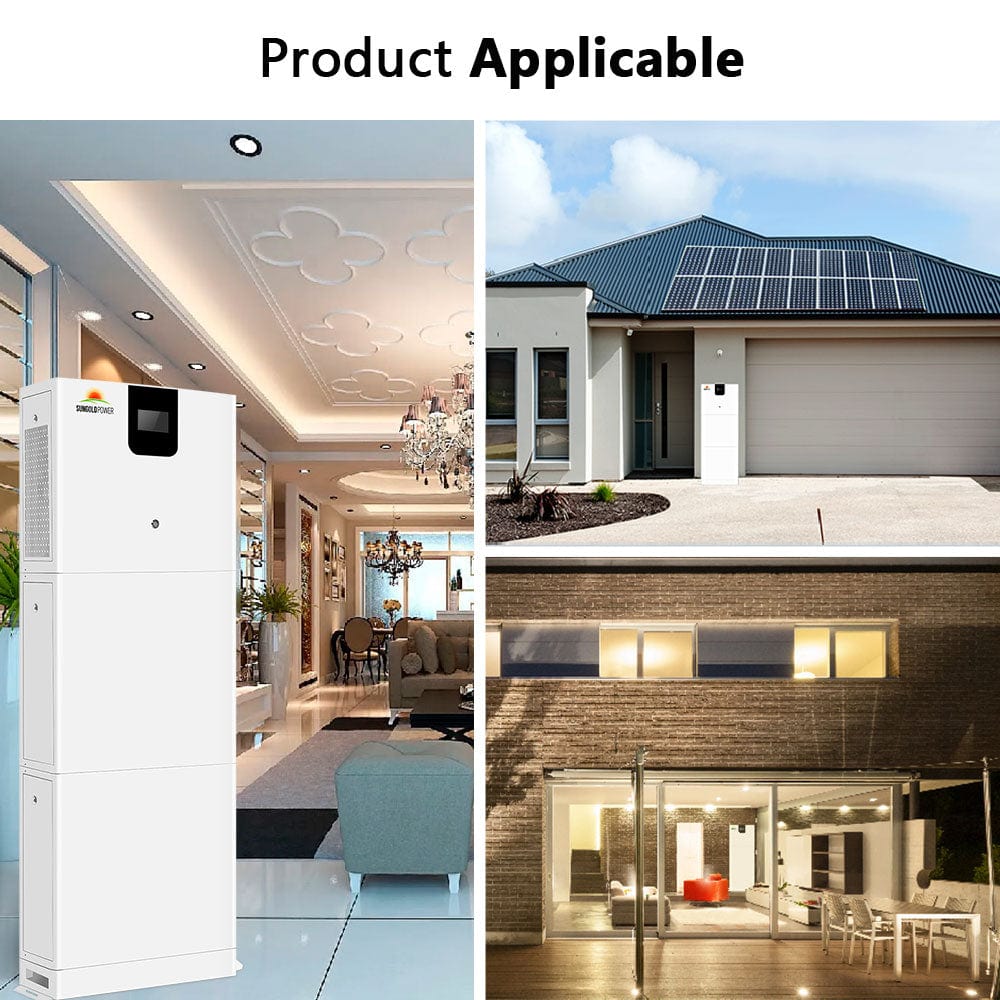

• Versatile Application: Perfect for residential, recreational, or backup power, this system is adaptable for diverse energy needs in remote areas or emergencies.

Q&A

Q: What is the SunGold Power 5000W Solar Inverter + 10.24KWH LifePO4 Battery Energy Storage System?
A: The SunGold Power 5000W Solar Inverter with a 10.24KWH LifePO4 Battery is an off-grid solar system designed for efficient energy storage and conversion. It provides reliable power for off-grid living or as a backup solution during power outages.

Q: What are the key components of this system?

• 5000W Solar Inverter: Converts 48V DC power from the solar panels into 120V AC power to run household appliances and devices.
• 10.24KWH LifePO4 Lithium Battery: High-capacity energy storage that ensures long-lasting power availability, even when the sun isn't shining.
• 48V System: Optimized for larger energy needs and more efficient storage, perfect for homes, cabins, or small businesses.

Q: How does this system work?
The solar inverter converts the energy from the solar panels into usable AC power. The lithium battery stores any excess energy for later use, making sure you have power during the night or on cloudy days.

Q: What are the benefits of using this system?

• Off-grid energy solution: Ideal for remote locations or areas prone to power outages.
• Reliable power storage: The LifePO4 battery offers long life cycles and safe energy storage.
• Environmentally friendly: Reduces reliance on fossil fuels and lowers your carbon footprint.

Q: Who is this solar energy system suited for?
This system is perfect for off-grid homes, cabins, remote businesses, or anyone looking to reduce their reliance on the electric grid while maintaining energy independence and sustainability.

Maintenance Tips

• Clean Solar Panels: Regularly clean panels with a soft cloth and mild detergent to ensure efficient solar energy absorption.
• Inspect Battery Health: Monitor the 10.24KWh LifePO4 battery for wear, and ensure it is charged/discharged within recommended limits to extend lifespan.
• Check Inverter & Connections: Periodically inspect the inverter and all wiring for corrosion, damage, or loose connections to maintain system performance.
• Ensure Ventilation: Keep the battery and inverter in a cool, well-ventilated area to prevent overheating and ensure smooth operation.
• Monitor Performance: Regularly check the system’s energy output and battery performance to ensure all components are functioning efficiently.
• Routine System Tests: Perform periodic tests on the system to verify that the inverter, battery, and panels are operating at full capacity.
