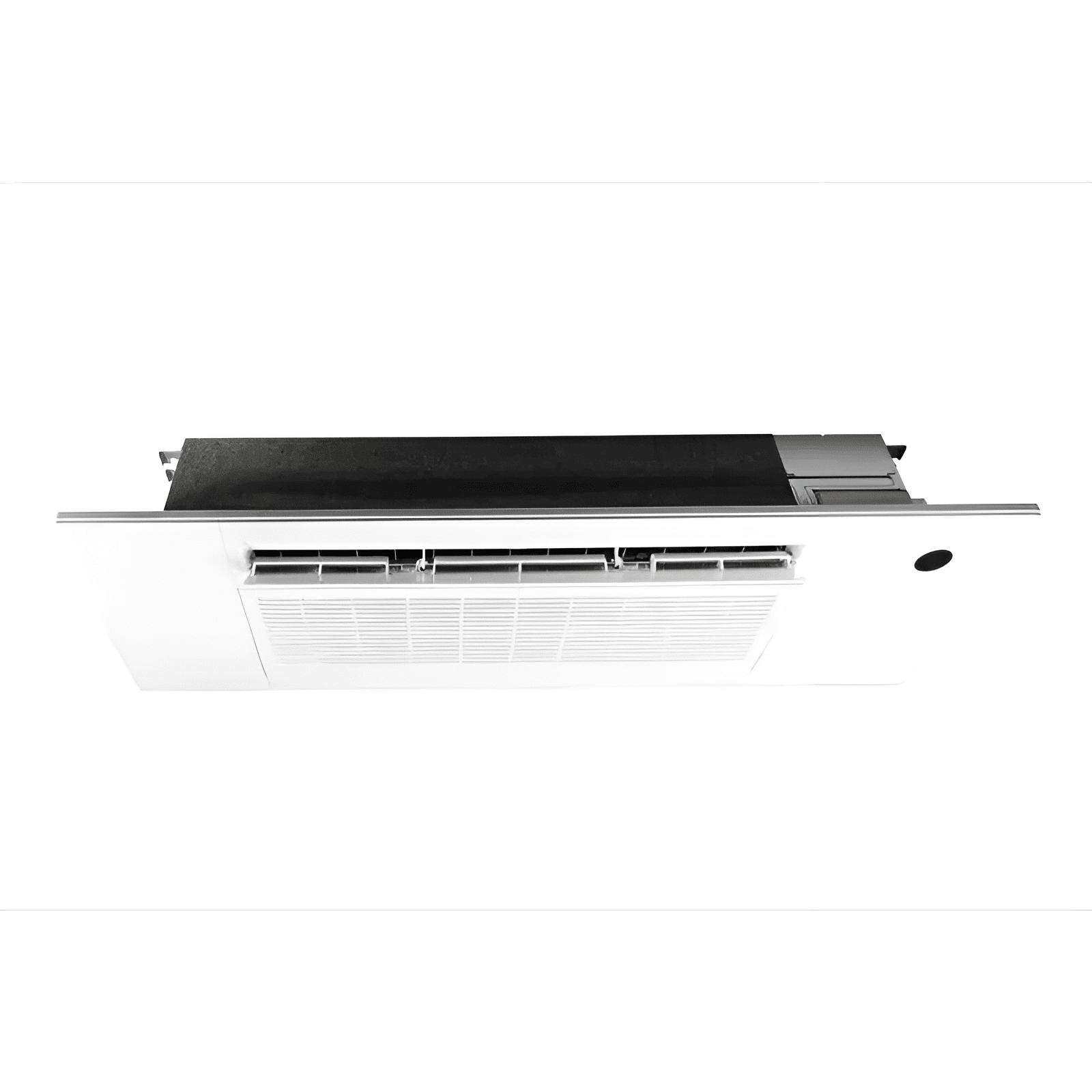

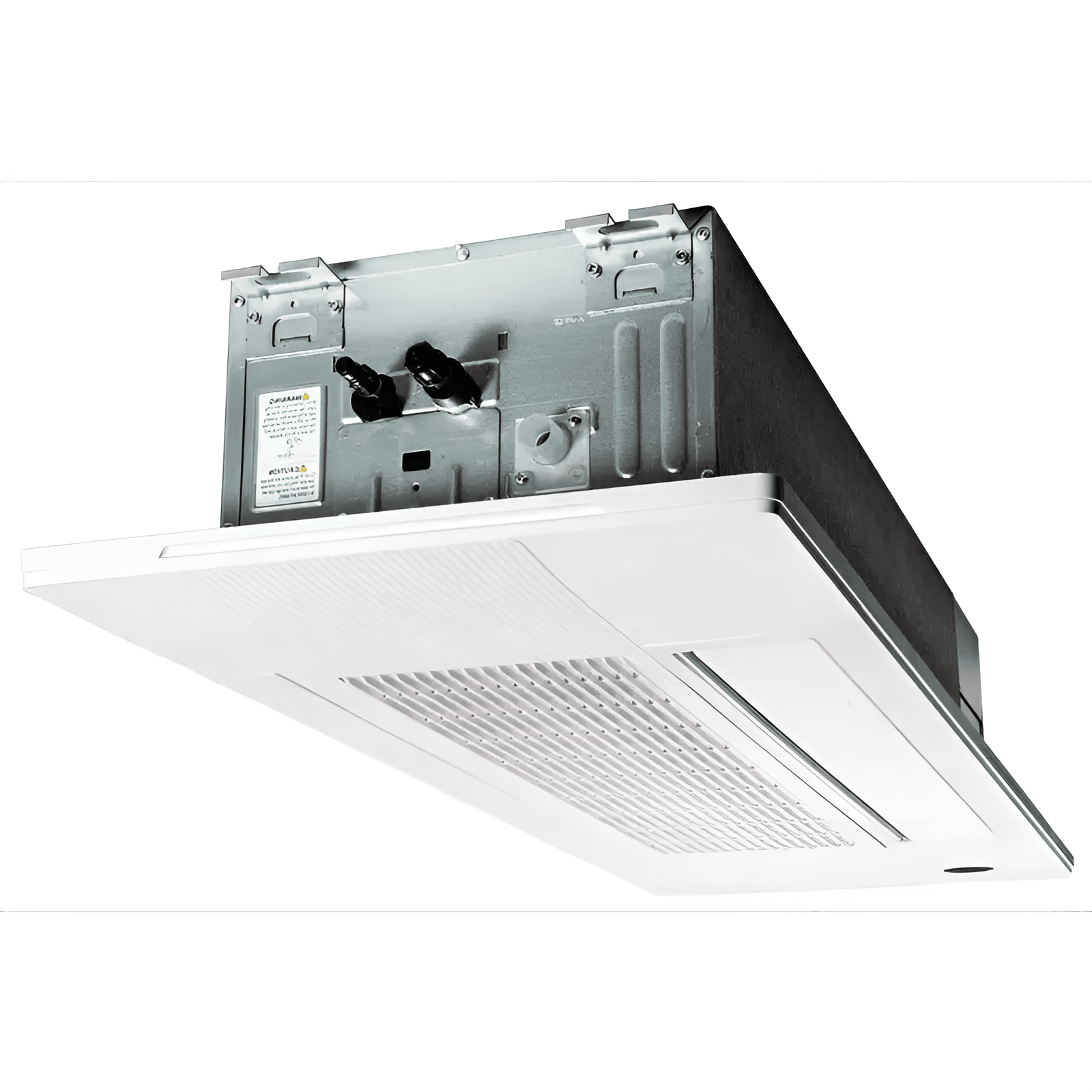

6,000/9,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler
The Slim Ceiling Cassette ACiQ Mini Split Air Handler combines the features of traditional cassettes with a sleek, slim design that fits neatly between 16”-on-center joists. This allows for a simpler installation in many cases. Unlike traditional ceiling cassettes that distribute air in four directions and take in return air at the center, this unit has a one-way air system, bringing in return air along one edge and delivering conditioned air on the opposite side. With a high-efficiency heating and cooling system and a convenient handheld remote control, Slim Ceiling Cassette air handlers offer the same performance as regular wall-mounted units with a more discreet, understated appearance.
Features
Narrow profile fits between 16 inch-on-center joists
Switchable size – select between 6,000 BTU and 9,000 BTU

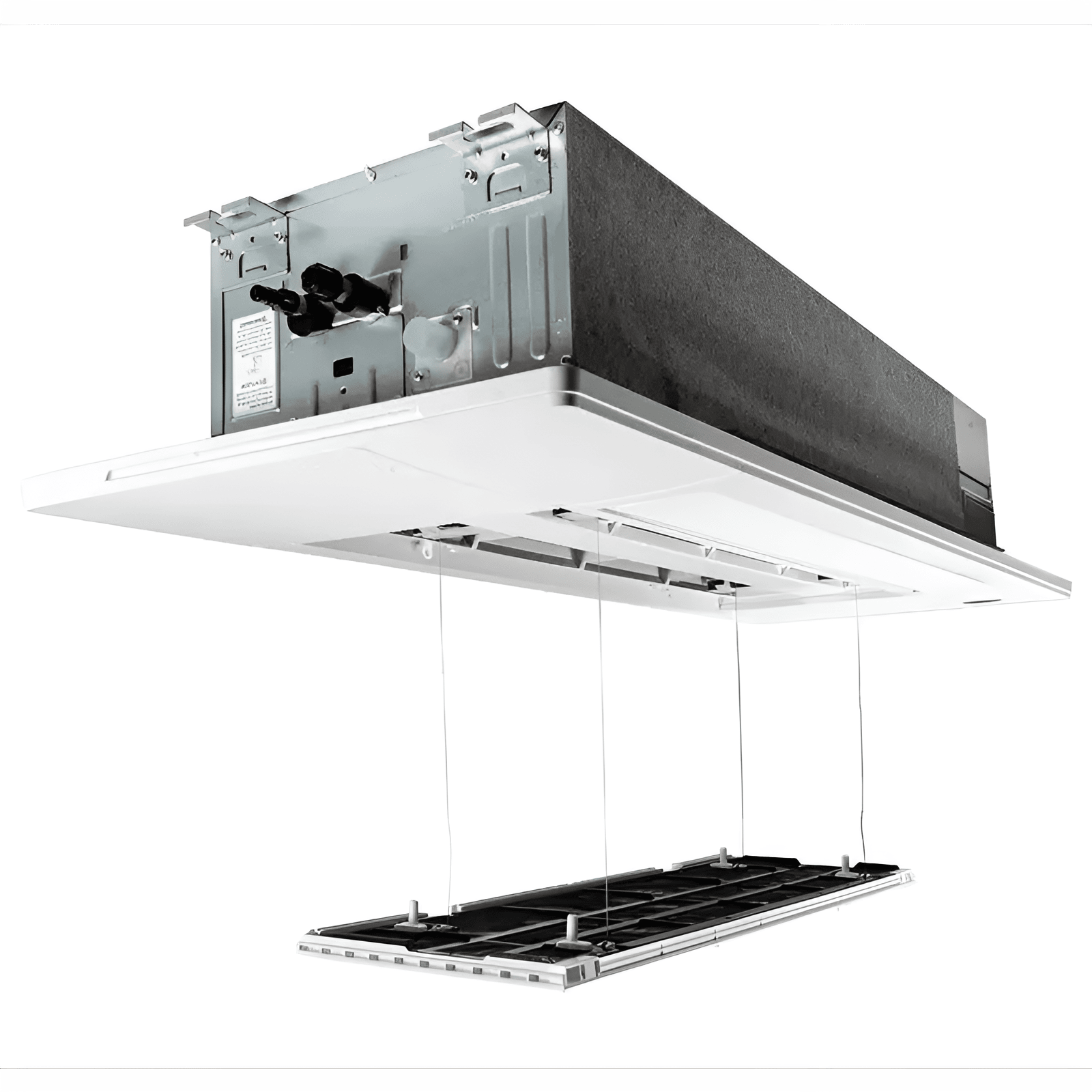

No-ladder filter cleaning – grille lowers on cables for easy access to filter

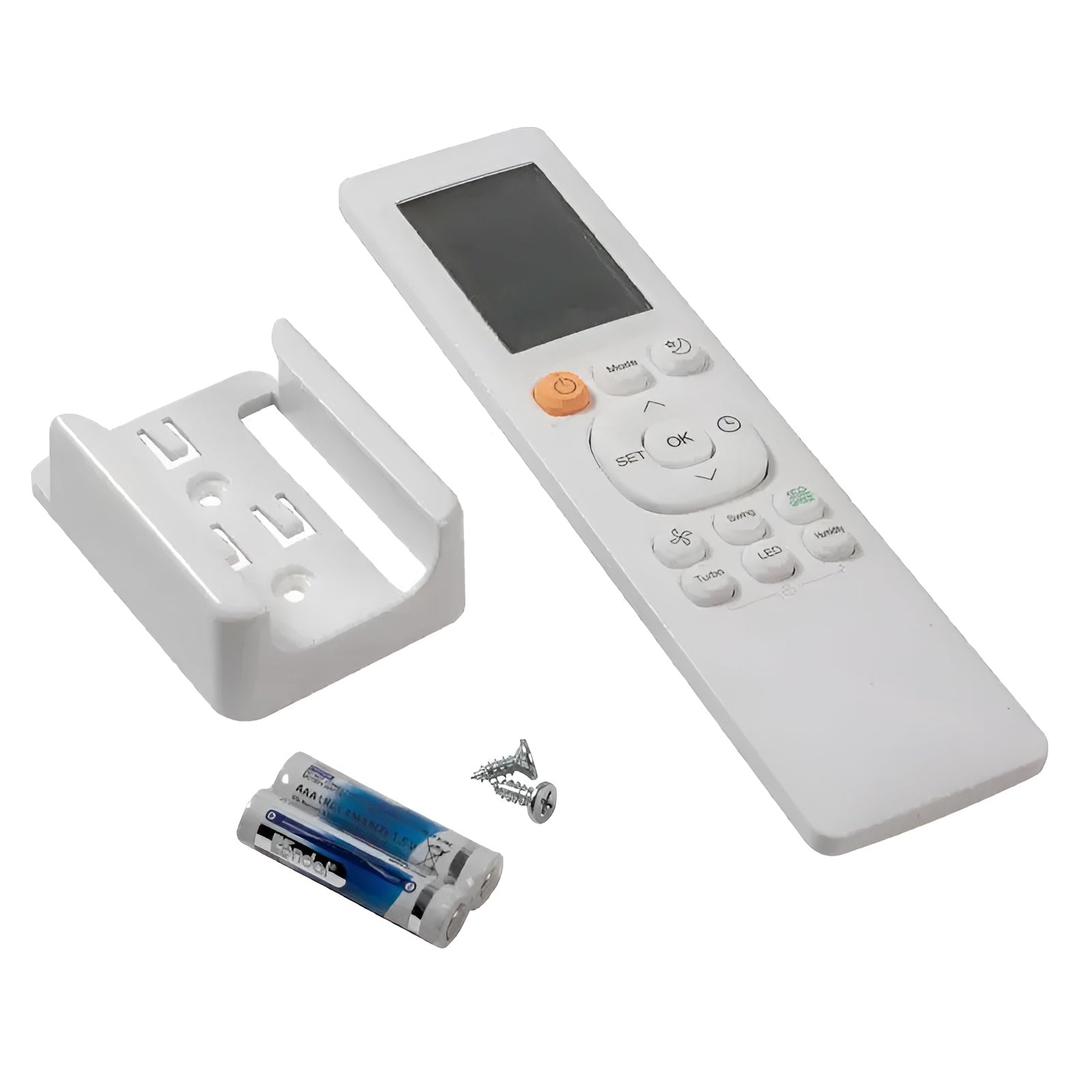

Handheld remote included

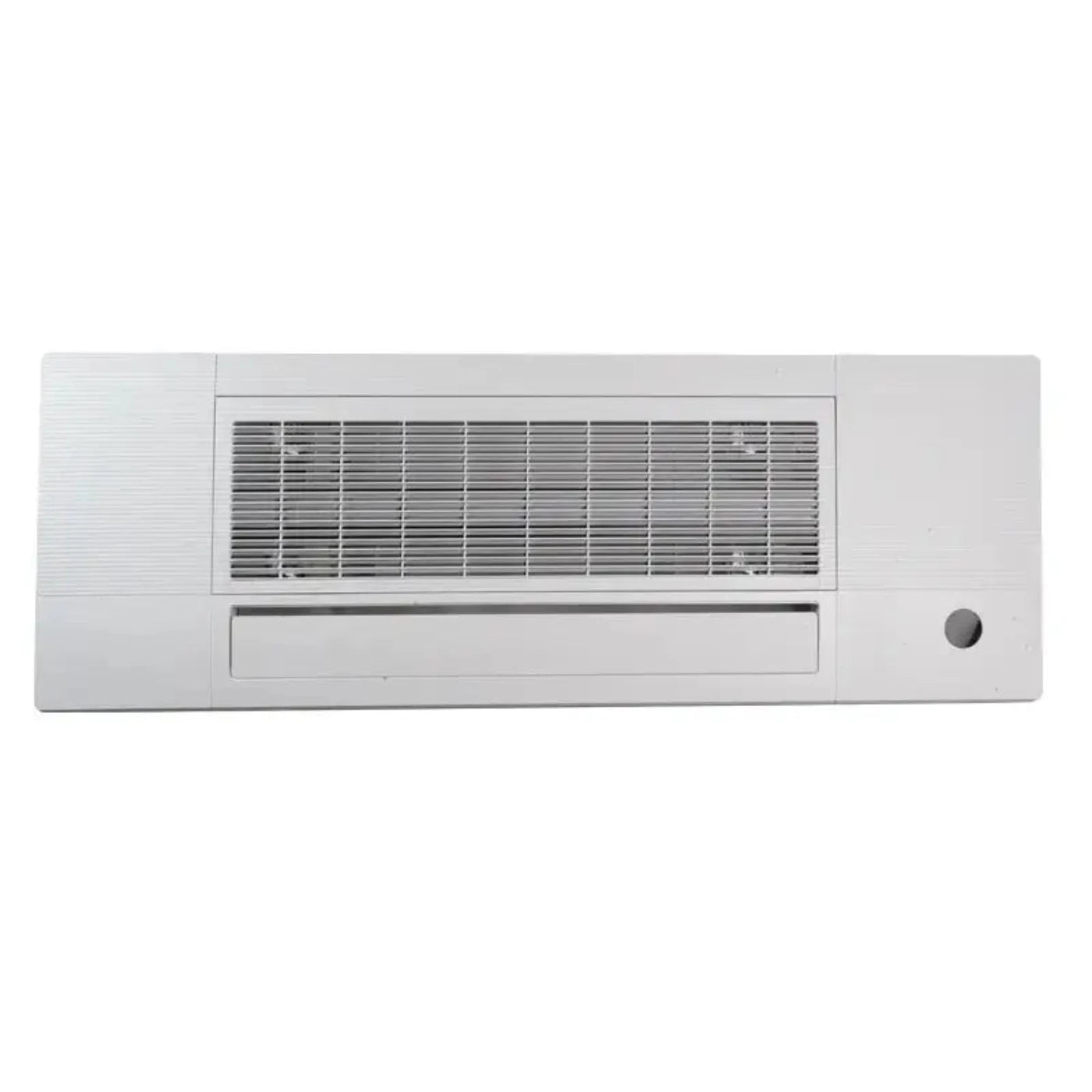

Decorative Grille included
Specifications
Switchable Sizing:
ACiQ-SCC0609 – 9,000 BTU default, switchable to 6,000 BTU by changing the dip switch
Model
SCC-0609-HH-M / SCC-GRILLE-0618
Cooling BTU
9,000
Heating BTU
10,900
Electrical
208/230V 1 Phase 60 Hz
Liquid Line
1/4'
Suction Line
1/2'
Communicating Capability
WiFi ready with optional kit
Remote
Wireless included
Weight
43.87 lbs
Dimensions HxWxD
8.98' x 50.31' x 13.19'
Warranty
12-Year Compressor / 7-Year Parts with Registration
What Our Experts Think
Compact & Efficient: The 6,000/9,000 BTU ACiQ Slim Ceiling Cassette provides effective cooling and heating without taking up floor space.
Quiet Operation: Delivers comfort with minimal noise, perfect for bedrooms or offices.
Energy-Saving: High SEER rating ensures low energy consumption while maintaining powerful performance.
Discreet Design: The slim profile integrates seamlessly into your ceiling, offering a sleek, unobtrusive look.
Ideal for Small Spaces: Perfect for apartments, small rooms, or zones that require flexible climate control.
Q&A
Q: What is the cooling capacity of this unit? A: It provides 6,000/9,000 BTUs of cooling, perfect for small to medium-sized rooms.
Q: Is it energy-efficient? A: Yes, with a high SEER rating, it ensures low energy consumption while delivering powerful performance.
Q: Can it be used for heating? A: Yes, it provides both cooling and heating, making it ideal for year-round comfort.
Q: How noisy is this unit? A: It operates quietly, providing comfort without disruptive noise.
Q: Is it easy to install? A: Yes, the slim design allows for easy ceiling installation, blending seamlessly with your space
Maintenance Tips
Clean Filters: Check and clean filters every 1-2 months to maintain airflow and efficiency.
Inspect Coils: Clean evaporator and condenser coils annually to ensure optimal performance.
Clear Drain Line: Regularly clear the condensate drain to prevent clogs and water damage.
Check Refrigerant Levels: Ensure refrigerant levels are adequate for efficient cooling and heating.
Annual Service: Schedule professional maintenance yearly to extend the unit's lifespan and ensure peak performance.
