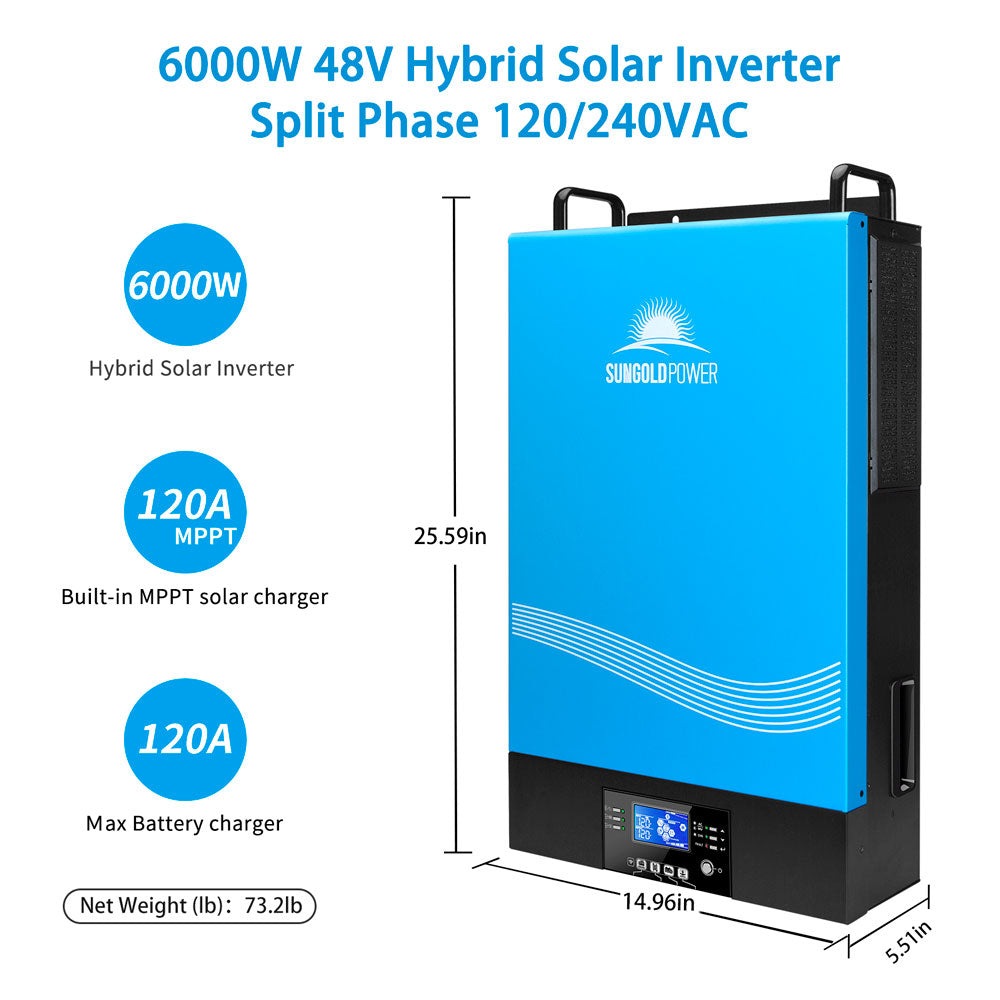

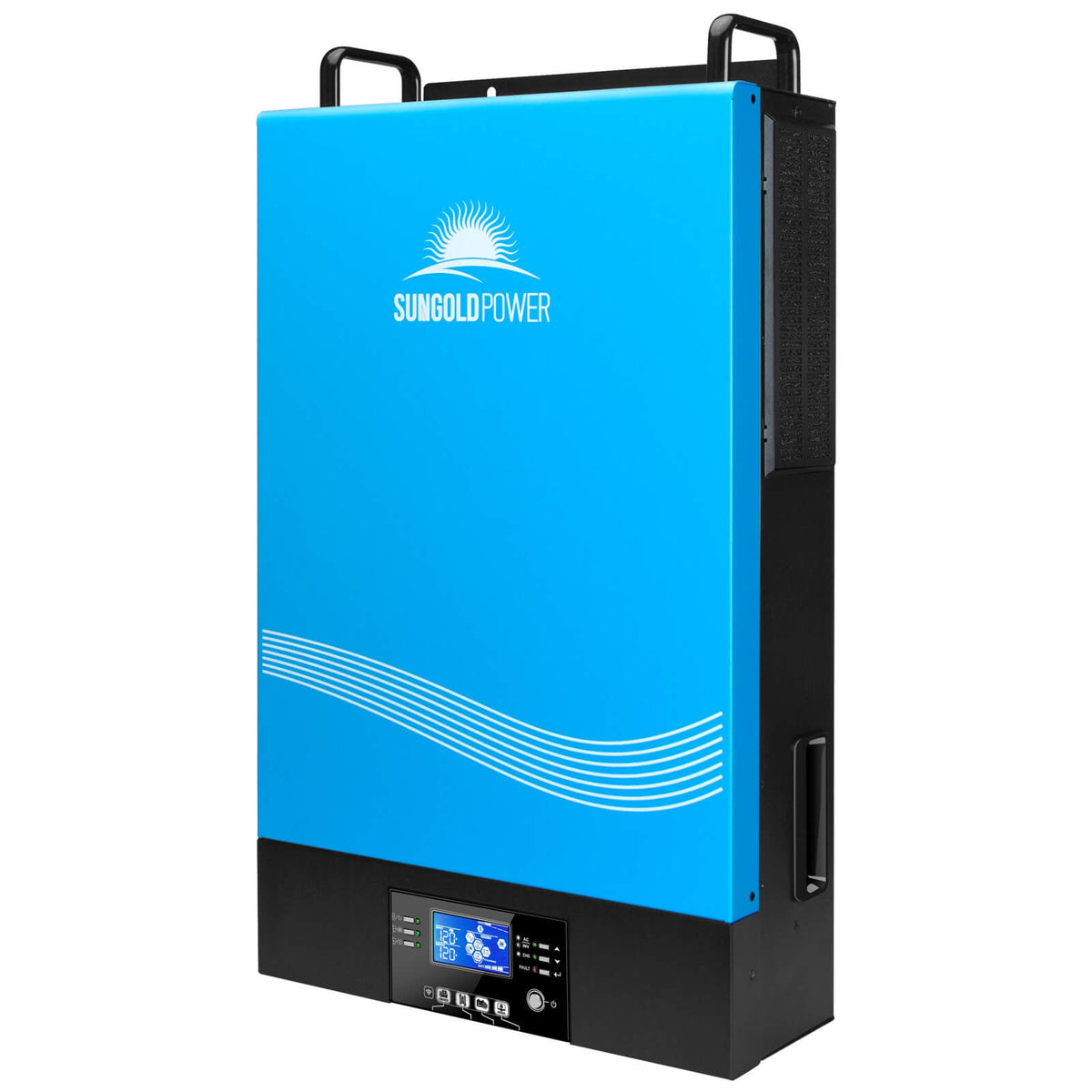

6000W 48V Hybrid Solar Inverter Split Phase 120/240VAC (Grid Feedback & Batteryless) - TP6048

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight

• ★ Solar Inverter: 6000W DC 48V Split Phase Low Frequency Inverter, AC input 240V AC, AC Output 120V/240V, MPPT Max 120A solar charger and 120A AC charger

• ★ Parallel Kit: parallel support up to 9 units (54KW Max), 120V/240V split phase output without needing to parallel

• ★ WIFI Model : Built-in WIFI transmitter for monitoring on iPhones and Androids

• ★ Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected ( single unit support)

• ★ BMS Support: BMS (RS485, CAN-BUS, RS232) communication ports support for Pylontech, Soltaro and Weco battery systems

• ★ Grid Feedback: Grid Injection may be enabled to feed excess PV power to grid  (note: be sure to check with local authority for approval before application)

 Features

• Genset starter dry contact

• Extensive programmable functions

• Adjustable bulk/float/low cut off setting

• Support either grid or generator input

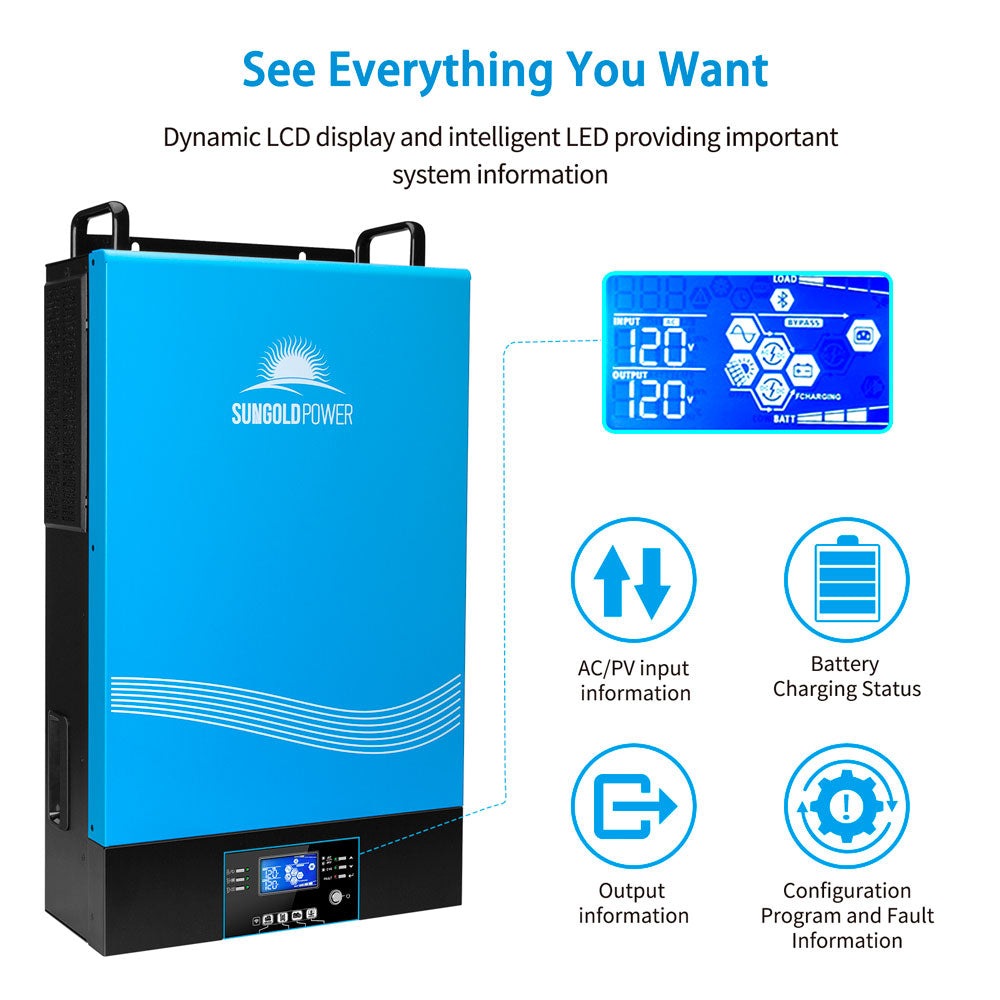

• LCD + LED indicators

• FREE monitoring software

• Parallel up to 9 units

• Built-in WIFI transmitter for monitoring on iPhones and Android

• BMS COMMUNICATION (Pylontech / Soltaro / WECO BMS systems are supported)

• Battery Optional：use PV panels straight to load

Specification

Product Guide

Download Hybrid Solar Inverter Charger User's Manual

 What Our Experts Think

• High Power Capacity: Delivers 6,000W continuous power, ideal for medium to large solar systems.
• Hybrid Functionality: Operates with or without batteries, offering flexibility for off-grid, grid-tied, or hybrid setups.
• Split-Phase Output: Provides 120V/240V, suitable for powering both standard appliances and heavy-duty equipment.
• Grid Feedback Capability: Enables excess energy to be fed back into the grid, maximizing efficiency and cost savings.
• MPPT Solar Technology: Ensures optimal solar charging performance with maximum energy harvesting.
• Pure Sine Wave Output: Produces clean, stable power to protect sensitive electronics and ensure reliable operation.
• Built-In Safety Features: Includes protections for overload, short circuit, and over-voltage for long-term durability.
• User-Friendly Operation: Compact design with intuitive controls and monitoring for seamless installation and management.

Q&A

Q: What is the 6000W 48V Hybrid Solar Inverter Split Phase 120/240VAC (TP6048)?
A: A 6000W hybrid solar inverter with split-phase 120/240V output, capable of operating with or without batteries, designed for off-grid, grid-tied, or backup power systems with grid feedback support.

Q: What are its key features?
A:

• 6000W pure sine wave output
• Split-phase 120/240V for diverse appliance compatibility
• Batteryless operation for cost-efficient systems
• Grid feedback support for exporting surplus energy
• Advanced MPPT for optimal solar power utilization
• Built-in protections: overload, overheat, and short circuit

Q: What applications is it ideal for?
A: Suitable for off-grid homes, grid-tied solar systems, batteryless setups, and backup power applications.

Q: Does it support energy storage?
A: Yes, but it can also operate without batteries, making it flexible for various configurations.

Q: Can it power high-demand appliances?
A: Yes, its split-phase design supports heavy loads like HVAC systems, water pumps, and other high-power devices.

Q: Is it easy to integrate with existing systems?
A: Yes, its hybrid functionality allows seamless integration with solar panels, the grid, and optional battery systems

Maintenance Tips

• Cooling System: Clean vents and fans regularly to ensure proper airflow and prevent overheating.
• Connection Inspection: Check AC wiring and PV connections for tightness and signs of wear or corrosion.
• Monitor Grid Feedback: Regularly review grid input/output performance using the monitoring interface.
• Environmental Conditions: Install in a dry, dust-free, and ventilated area, away from extreme heat or moisture.
• PV Array Maintenance: Ensure solar panels are clean and functioning efficiently to maintain inverter performance.
• Firmware Updates: Update firmware periodically to improve functionality and grid compatibility.
• Power Down Safely: Turn off all inputs and outputs before performing any servicing or cleaning.
