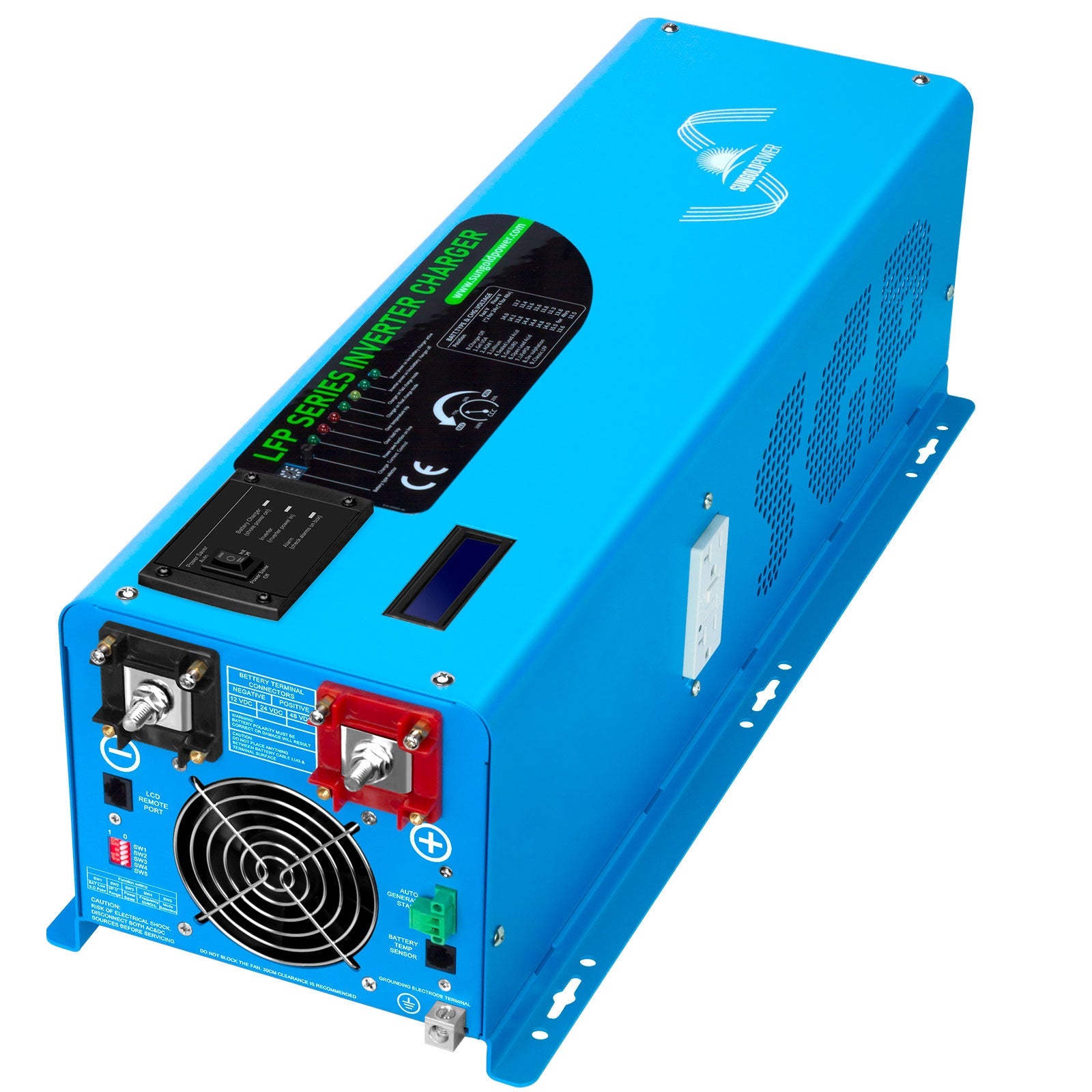

6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger - LFP6K24V230VSP

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight:

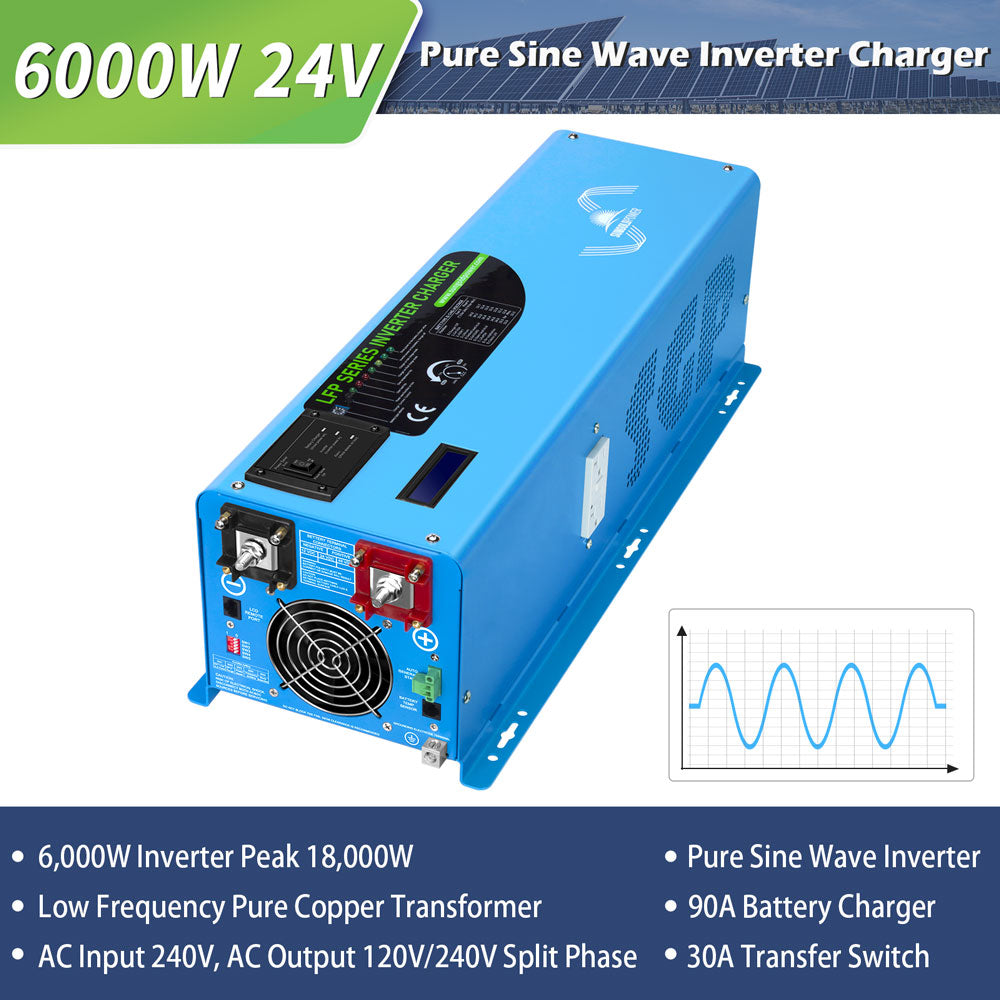

• ★ This LFP Series Pure Sine Wave Inverter is a combination of a 6000-watt inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our 240-volt inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The 24v inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Specifications

Main Features

*6000W Low Frequency Pure Sine Inverter With Charger.

*AC/Battery Priority Selector.

*Automatic Generator Start.

*Safety and Convenient.

*The low frequency inverter can power all kinds of appliances.

*LCD Display, Remote Control.

*Low Idle Consumption.

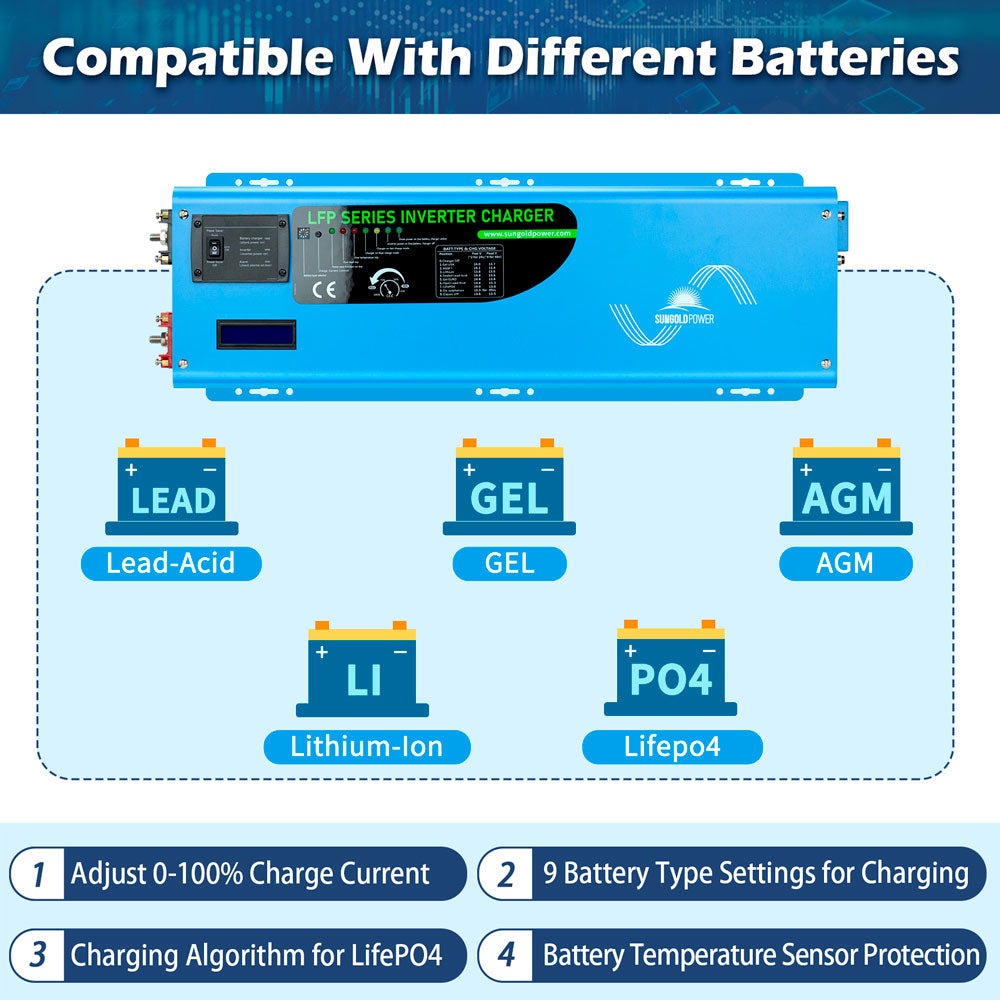

*9 battery type settings for charger.

*Multi Stage Smart charger 90+/-5A, charger can be disable.

*10msec typical transfer time.

Inverter Output

*Continuous Output Power: 6000W

*Surge Rating: 18000W (20 Seconds)

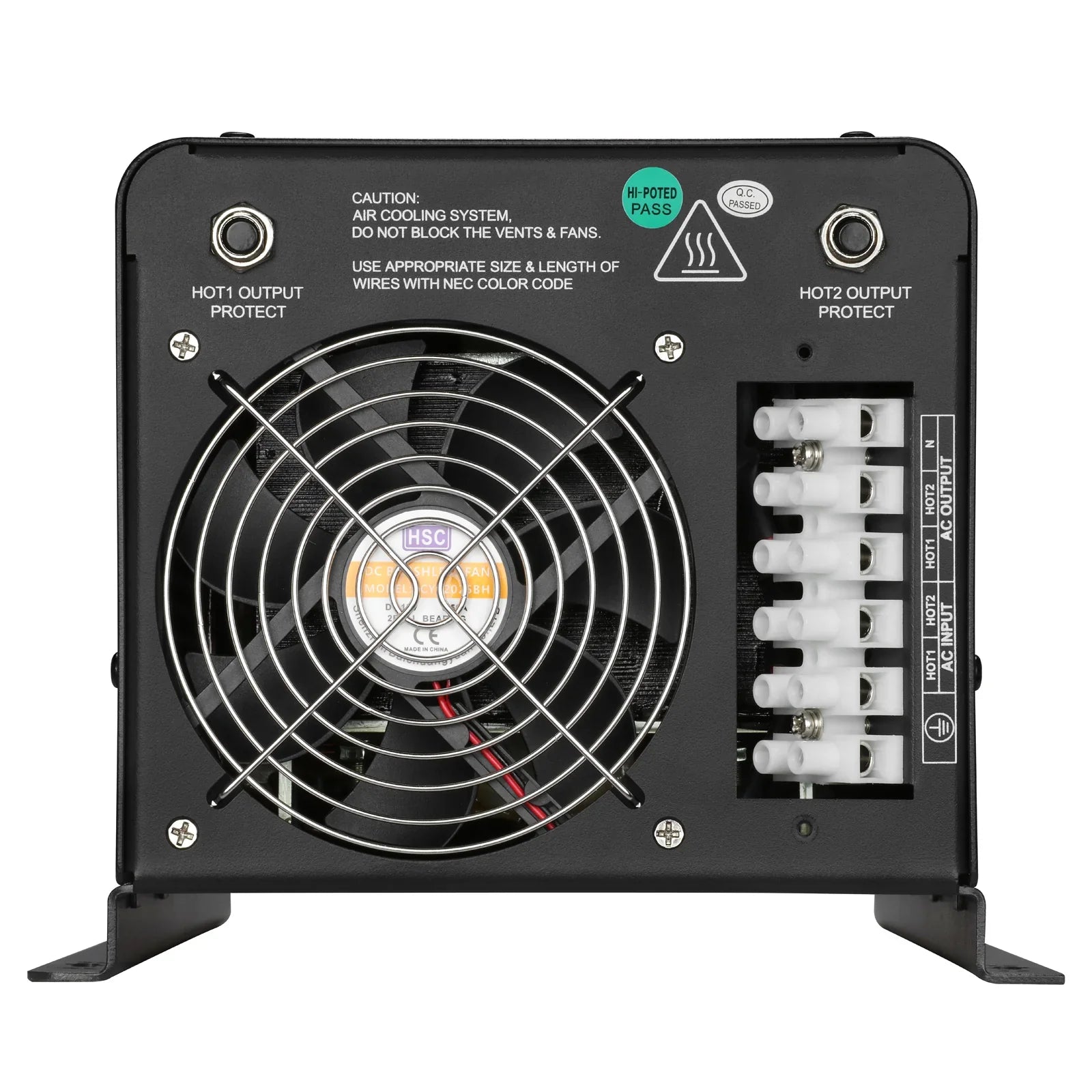

*AC Output: AC 120V and AC 240V
*AC Input: 240V

*Output Wave: Pure Sine Wave (bypass mode)

*Typical Transfer Time: 10ms (MAX)

*Nominal Efficiency: >88%

DC Input

*Nominal Input Voltage: 24.0Vdc

*Minimum Start Voltage: 20.0Vdc

*Low Battery Alarm: 21.0Vdc-22.0Vdc

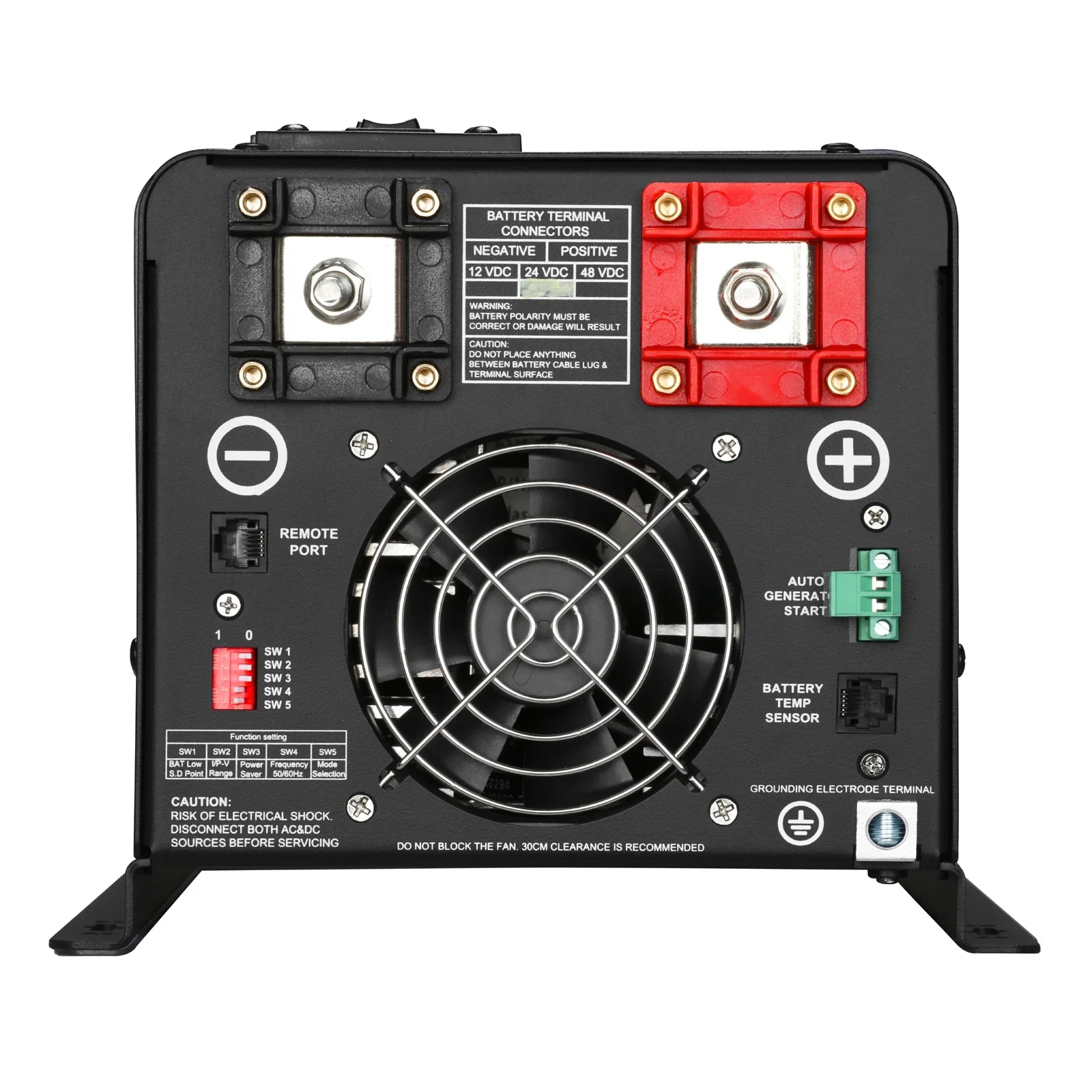

*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)

*High Voltage Alarm: 32.0Vdc

*Low battery Voltage Restart: 26Vdc

*Idle Consumption: 77W

*Power Saver Mode Idle Consumption: 29W

AC Charger

*Charger Rate: 90+/-5A

*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)

*Over Charge Protection Shutdown: 31.4V

*Selectable Charge Setting based on battery type

*Adjustable charge current: off 0%-100%

*3-step intelligent battery charger

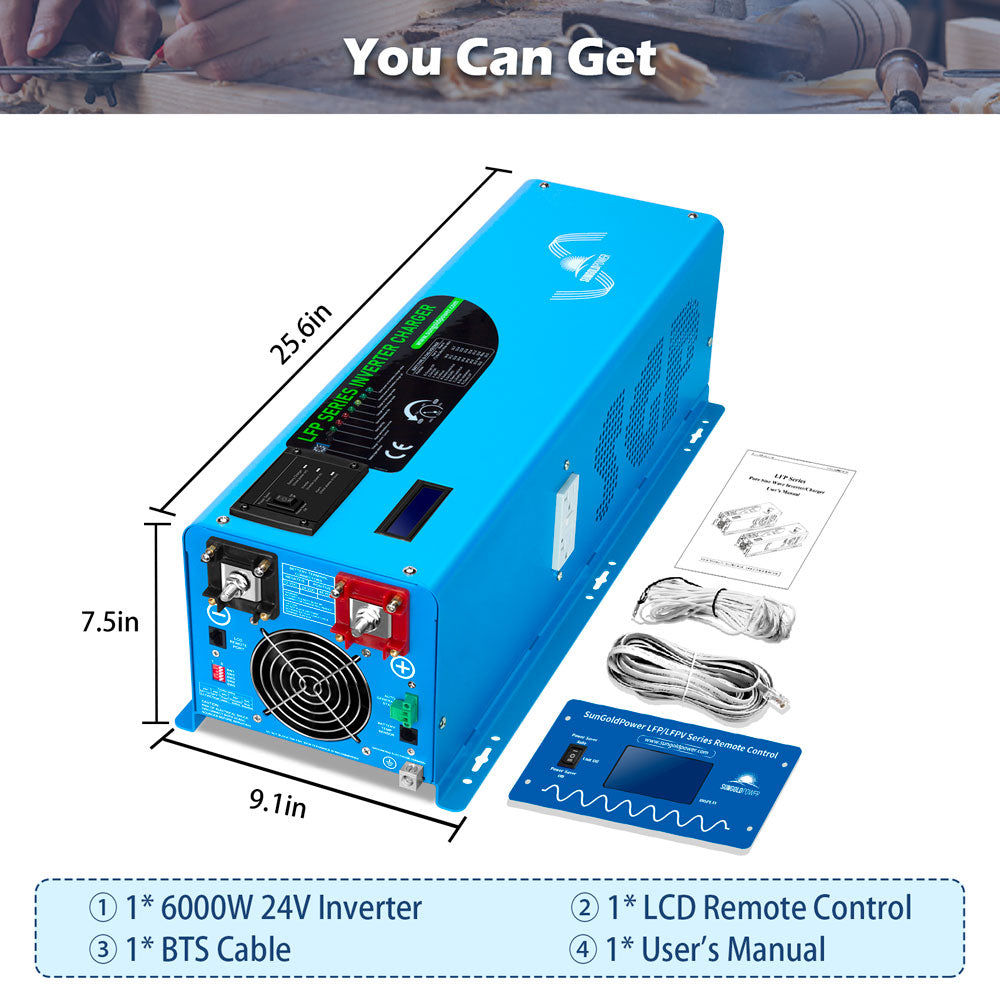

Packaging

*6000W 24V Low Frequency Pure Sine Inverter

*English Manual

*Remote Control

*BTS Cable

*Unit Weight: 76.7LB

*Unit Size: 25.6 x 9.1 x 7.5 inch

*Shipping Weight: 85.5LB

*Shipping Size: 30.3 x 13.4 x 12.8 inch

Product Guide

6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Manual

What Our Experts Think

• High Power Output: Delivers 6,000W continuous power, suitable for demanding off-grid and backup systems.
• Split-Phase Functionality: Offers 120V/240V output, supporting a wide range of appliances and heavy-duty equipment.
• Pure Sine Wave Technology: Provides clean, stable power, ensuring the safe operation of sensitive electronics.
• 24V DC System: Ideal for medium-sized energy setups with 24V battery banks, including RVs, boats, and small homes.
• Integrated Charger: Combines inverter and battery charging for seamless energy management.
• Enhanced Safety Features: Built with overload, over-voltage, and short-circuit protections for reliable and safe operation.
• User-Friendly Design: Compact, easy to install, with intuitive controls and clear indicators for monitoring system status.

Q&A

Q: What is the 6000W DC 24V Split Phase Pure Sine Wave Inverter with Charger (LFP6K24V230VSP)?
A: A 6000W pure sine wave inverter with split-phase 120V/240V output and an integrated charger, designed for 24V battery systems to provide stable power for a variety of applications.

Q: What are its key features?
A:

• 6000W continuous pure sine wave output
• Split-phase 120V/240V for versatile appliance compatibility
• Supports 24V battery systems
• Integrated charger for efficient battery recharging
• Built-in protections: overload, overheat, and short circuit

Q: What applications is it suitable for?
A: Ideal for off-grid solar systems, RVs, boats, and backup power, supporting both 120V and 240V appliances.

Q: Can it handle high-demand appliances?
A: Yes, it can power heavy-duty devices like water pumps, refrigerators, and power tools with ease.

Q: Is it safe for sensitive electronics?
A: Yes, the pure sine wave output ensures stable operation for sensitive electronics like TVs, laptops, and medical equipment.

Q: Is it easy to set up?
A: Yes, it features a user-friendly design for simple installation and reliable performance

Maintenance Tips

• Cooling System: Clean vents and fans regularly to prevent overheating.
• Battery Maintenance: Inspect battery voltage, terminals, and charge cycles frequently for proper operation.
• Wiring Check: Tighten and inspect all cables for corrosion, wear, or damage.
• Environment: Install in a dry, ventilated, and dust-free location to protect internal components.
• Performance Monitoring: Use the display or monitoring tools to track input/output levels and system health.
• Firmware Updates: Update firmware periodically to ensure optimal performance and compatibility.
• Safe Maintenance: Disconnect all power sources, including batteries, before performing any servicing.
