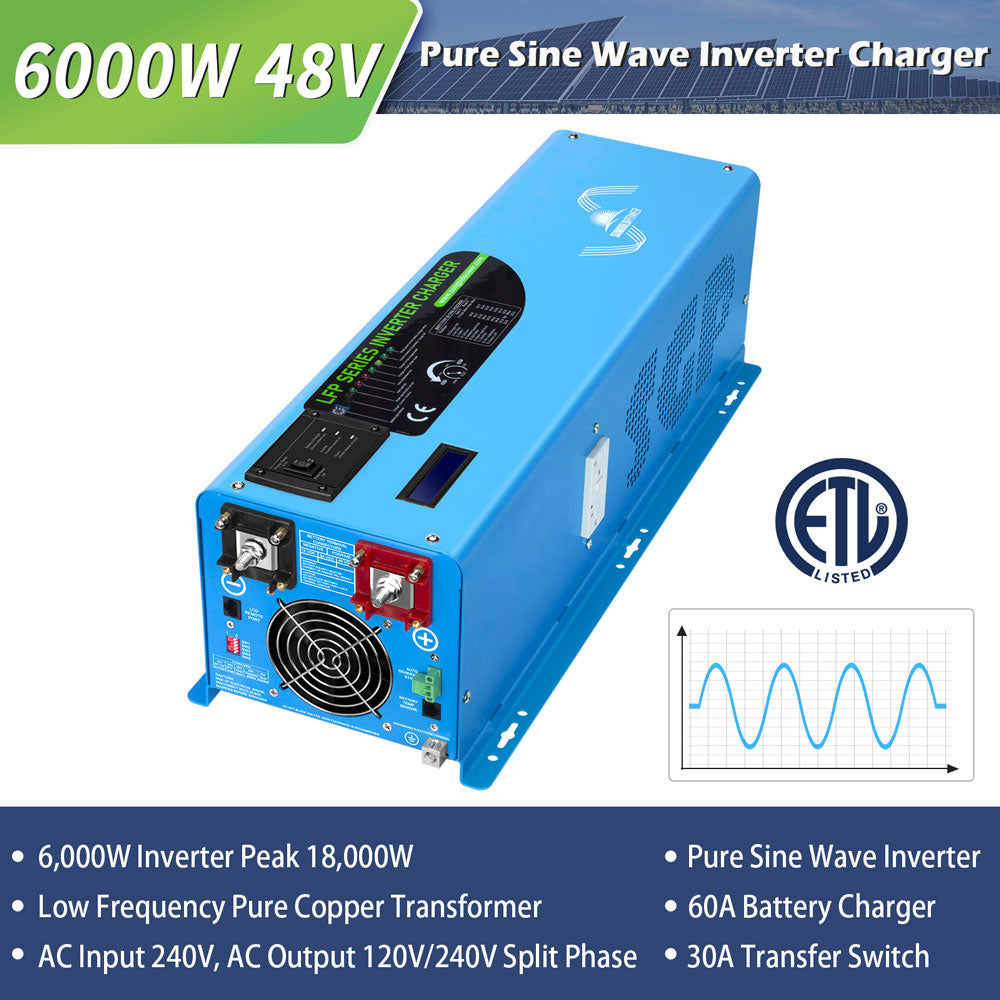

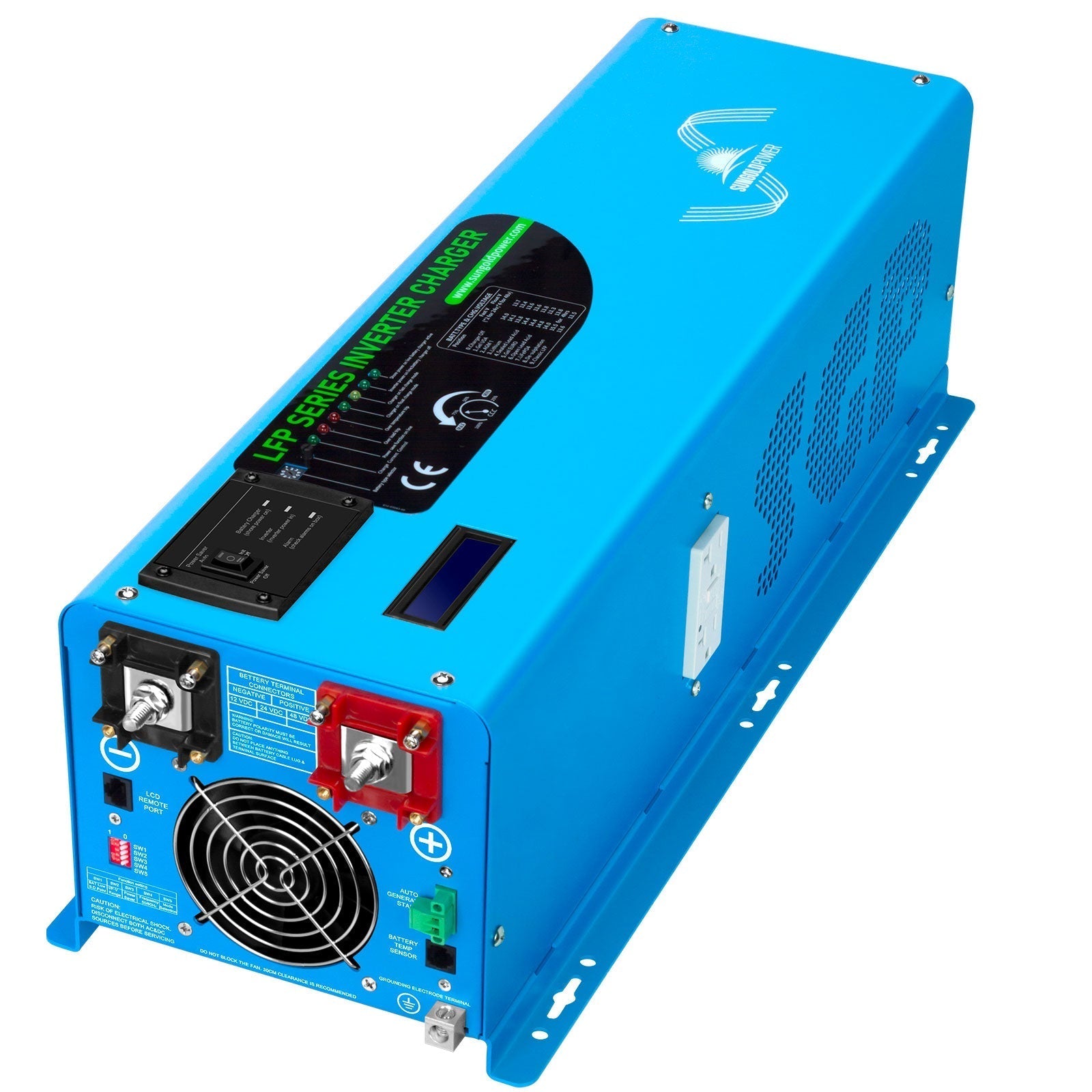

6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard - LFP6K48V230VSP

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight

• ★ This LFP Series 6000 watt Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control. It is UL1741 standard.

• ★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The inverter can start up a generator when battery voltage goes low, and turn the generator off after battery charging is finished.

Specification

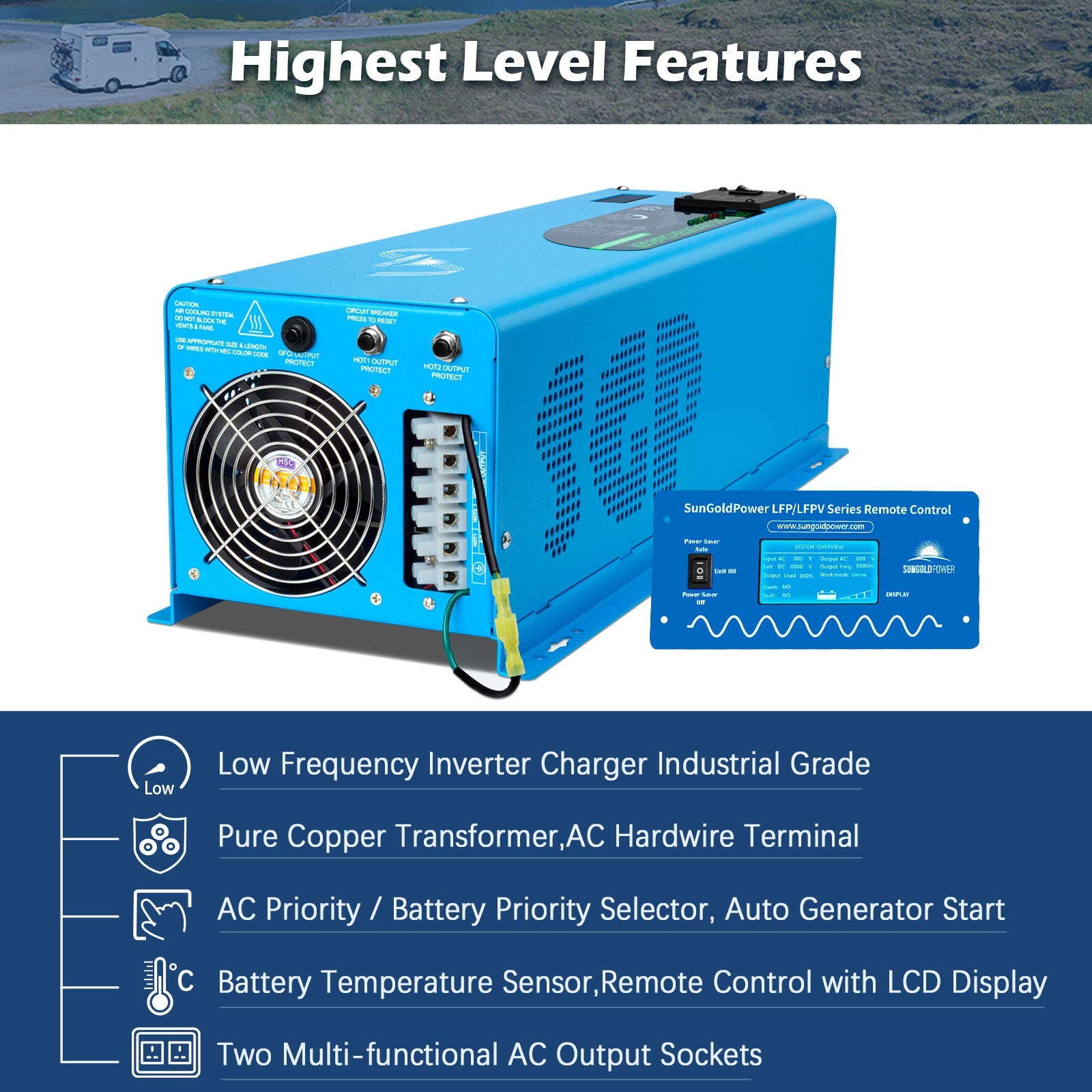

Main Features
*6000W Low Frequency Pure Sine Inverter With Charger.

*AC/Battery Priority Selector.

*Automatic Generator Start.

*Safety and Convenient.

*The low frequency inverter can power all kinds of appliances.

*LCD Display, Remote Control.

*Low Idle Consumption.

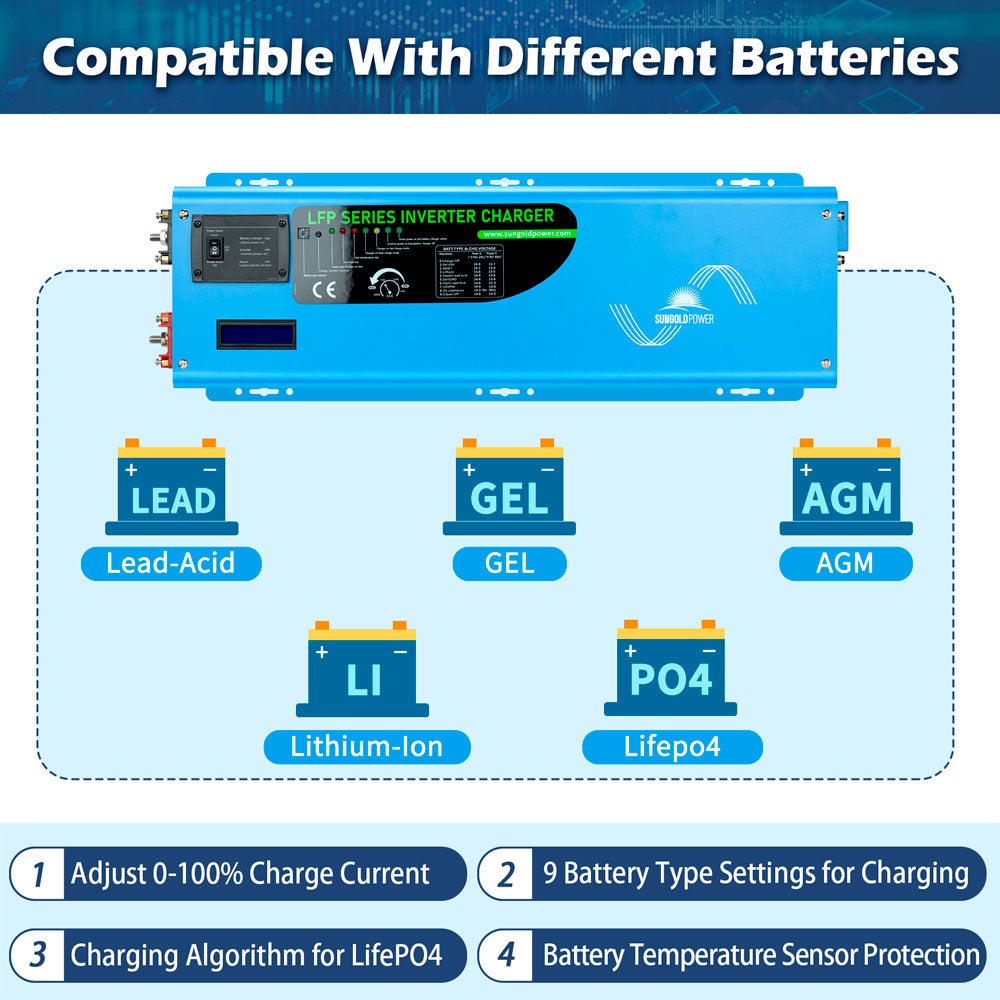

*9 battery type settings for charger.

*Multi Stage Smart charger 60+/-5A, charger can be disable.

*10msec typical transfer time.

Inverter Output
*Continuous Output Power: 6000W

*Surge Rating: 18000W (20 Seconds)

*AC Output: AC 120V and AC 240V

*AC Input: 240V

*Output Wave: Pure Sine Wave (bypass mode)

*Typical Transfer Time: 10ms (MAX)

*Nominal Efficiency: >88%

DC Input:
*Nominal Input Voltage: 48.0Vdc

*Minimum Start Voltage: 40.0Vdc

*Low Battery Alarm: 42.0Vdc-44.0Vdc

*Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1)

*High Voltage Alarm: 64.0Vdc

*Low battery Voltage Restart: 52Vdc

*Idle Consumption: 81W

*Power Saver Mode Idle Consumption: 30W

AC Charger
*Charger Rate: 60+/-5A

*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)

*Over Charge Protection Shutdown: 62.8V

*Selectable Charge Setting based on battery type

*Adjustable charge current: off 0%-100%

*3-step intelligent battery charger

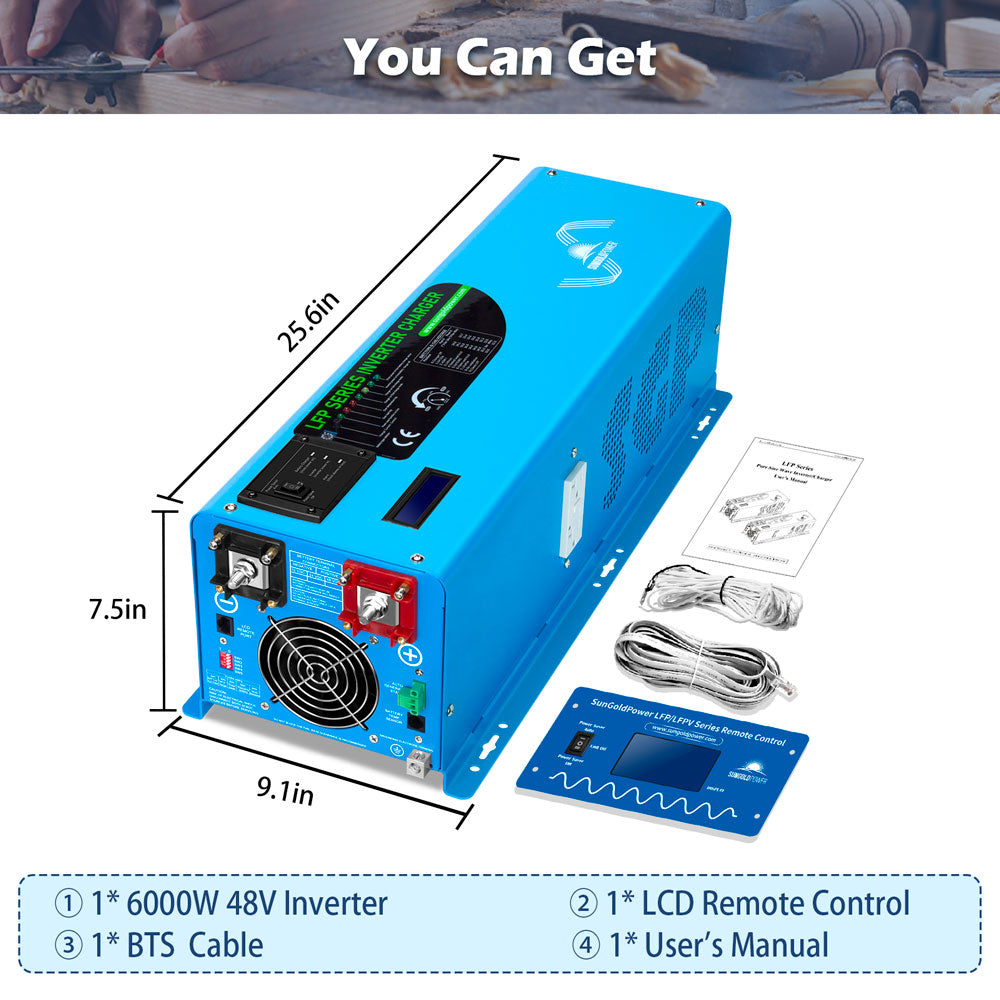

Packaging
*6000W 48V Low Frequency Pure Sine Inverter

*English Manual

*Remote Control

*BTS Cable

*Unit Weight: 76.7LB

*Unit Size: 25.6 x 9.1 x 7.5 inch

*Shipping Weight: 85.5LB

*Shipping Size: 30.3 x 13.4 x 12.8 inch

Product Guide

What Our Experts Think

• Robust Power Output: Delivers 6,000W continuous power, perfect for larger off-grid and backup systems.
• Split-Phase Functionality: Provides 120V/240V output, ideal for powering standard appliances and heavy-duty equipment simultaneously.
• Pure Sine Wave Technology: Ensures clean, stable power, protecting sensitive electronics and maximizing efficiency.
• 48V DC System: Optimized for high-capacity battery setups, suitable for residential and commercial energy needs.
• UL1741 Certified: Meets stringent safety and quality standards, ensuring reliable and secure operation.
• Integrated Charger: Combines inverter and battery charging functionality for seamless energy management.
• Comprehensive Safety Protections: Features safeguards against overload, over-voltage, and short circuits for dependable performance.
• User-Friendly Design: Compact and easy to install, with intuitive controls and monitoring indicators for hassle-free operation.

Q&A

Q: What is the 6000W DC 48V Split Phase Pure Sine Wave Inverter?
A: The LFP6K48V230VSP is a high-performance inverter delivering 6000W of pure sine wave power with split-phase functionality. It features a built-in charger and meets the UL1741 standard for safety and reliability.

Q: What are its key features?
A:

• Power Output: 6000W pure sine wave for smooth and efficient performance.
• Voltage: DC 48V input; split-phase 230V output.
• Charger: Integrated charger for seamless operation.
• Certification: UL1741 standard ensures safety and compliance.

Q: Who is this inverter ideal for?
A: Ideal for residential, commercial, and off-grid power systems requiring reliable and efficient energy conversion.

Q: Why choose this inverter?
A: It offers clean power, robust performance, and trusted UL1741 certification, ensuring top-tier quality for demanding energy needs

Maintenance Tips

• Keep Clean: Dust and wipe the unit regularly to prevent overheating.
• Inspect Connections: Ensure all wiring and terminals are secure and free of corrosion.
• Monitor Ventilation: Keep vents unobstructed to maintain optimal airflow and cooling.
• Battery Maintenance: Check the battery bank (if applicable) for proper charge levels and clean terminals.
• Firmware Updates: Stay updated with manufacturer-released firmware for peak performance.
• Check Charger Functionality: Periodically test the charger to ensure it operates correctly.
• Safety First: Always disconnect power before performing maintenance
