Eco-Worthy 600W 12V (3x Bifacial 195W) Complete MPPT Off Grid Solar Kit

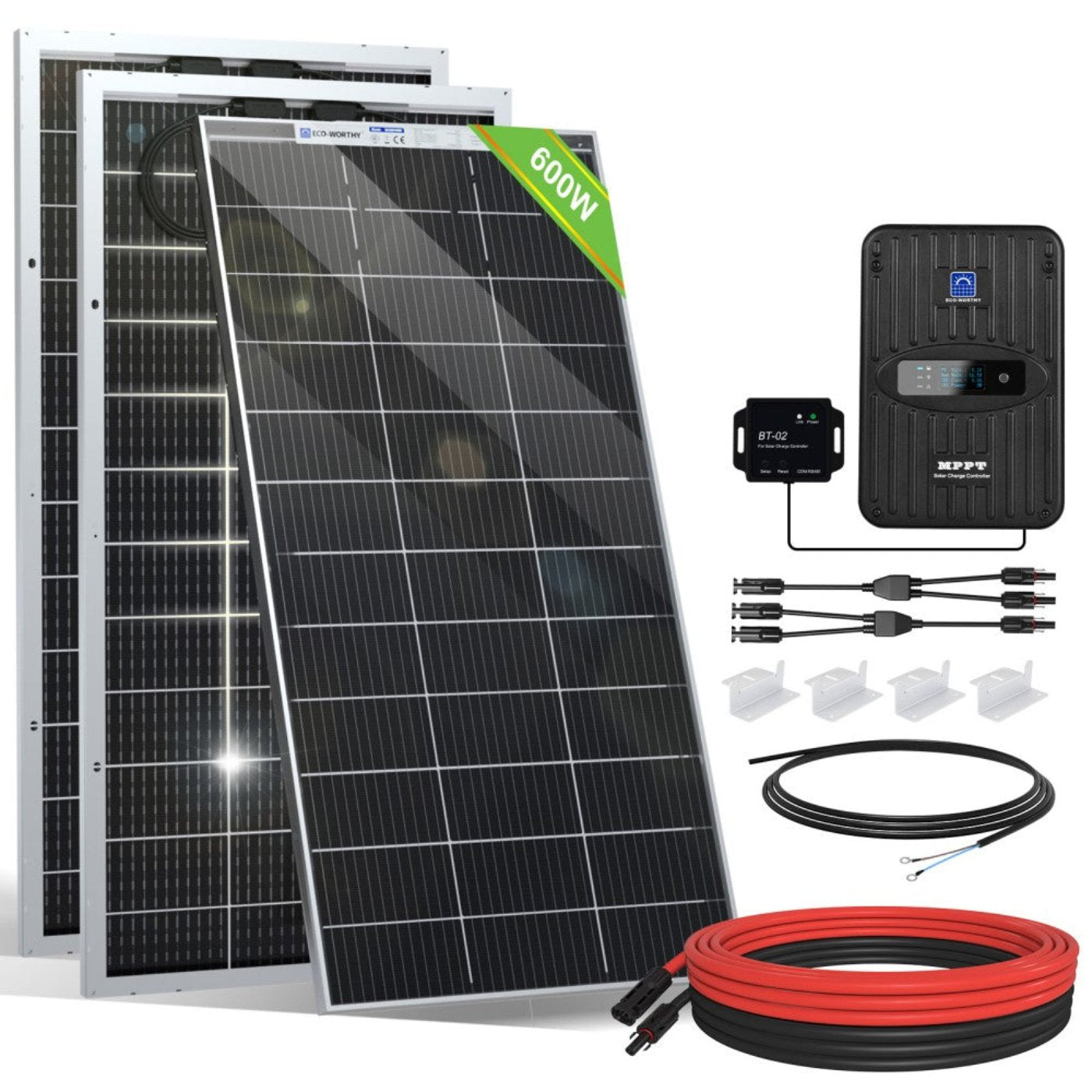

Package Includes
3x Bifacial 195W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Z Mounting Bracket
1x 1.5M Tray Cable
Inverter & Battery Options-
Inverter & 3.58kWh Lithium Battery (optional)
with
1x 2000W 12V-110V Pure Sine Wave Inverter
1x 280Ah 12V LiFePO4 Lithium Battery
Specifications
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |

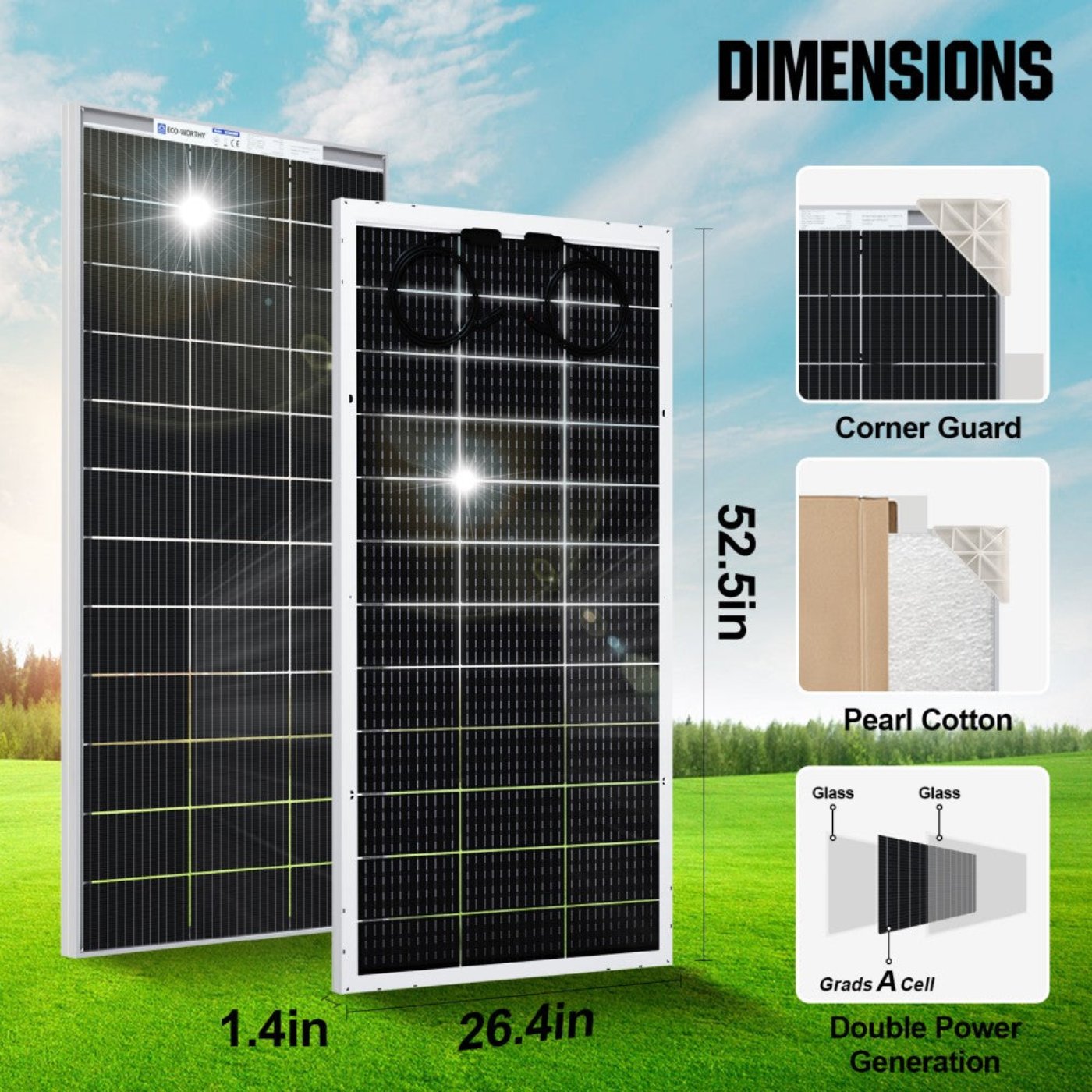

| Size: 52.6x26.38x1.38in (1335*670*35mm) |

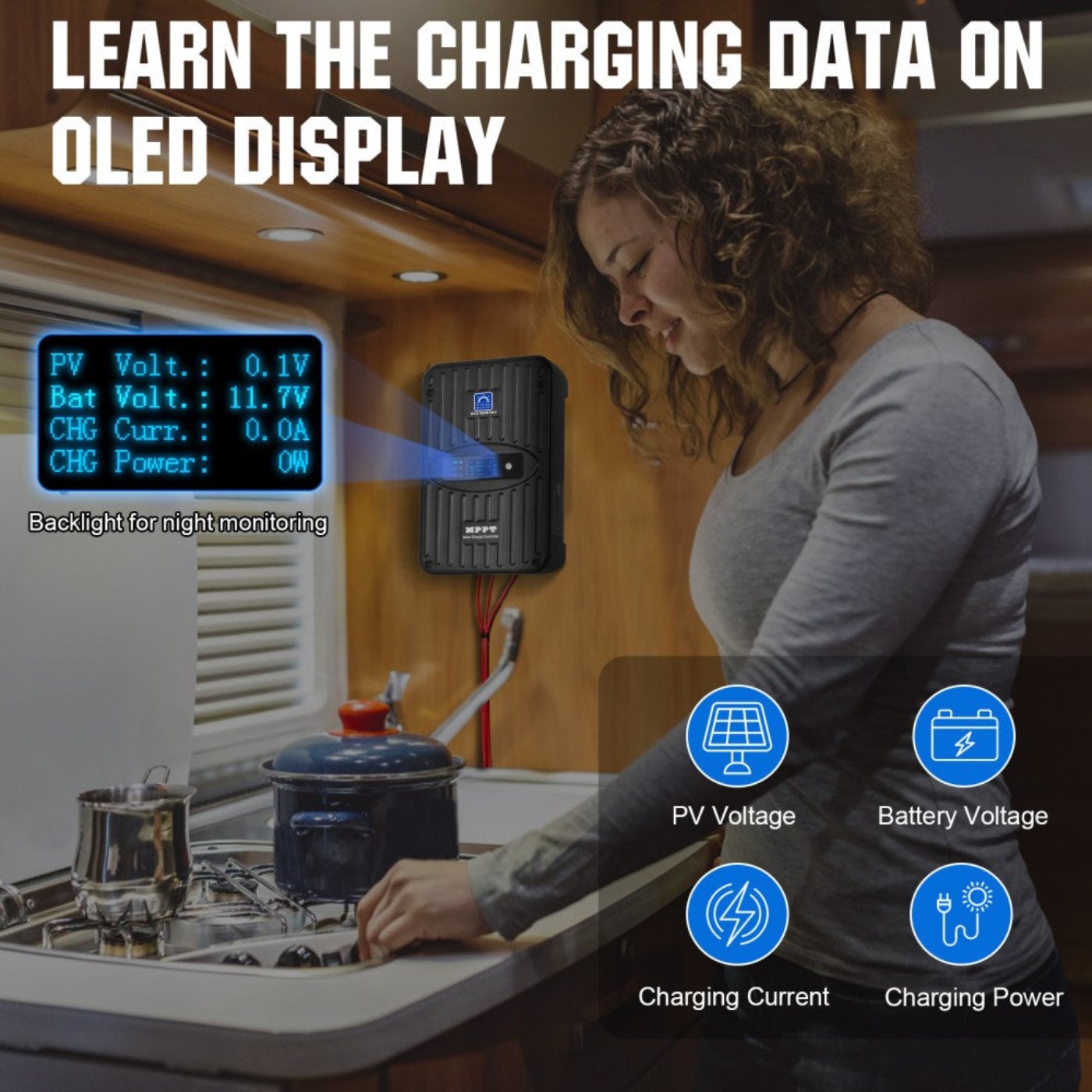

40A MPPT Solar Charge Controller
| Battery voltage：12V/24V | Max Solar Input Power：560/1120W |
| Charging mode：MPPT | Rated Load Current：20A |
| Charge Efficiency (Peak)：97% | Self-Consumption：1~2W |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | Size：220*148*64mm/8.7*5.8*2.5inch |
| Max Charge current：40A | Weight：1.5KG |
| Max.PV Open-Circuit Voltage：<100V |
2000W 12V Off Grid Inverter
| Output Continuous Watts(W): 2000W+18W USB | Surge Capacity (PeakPower): 4000W |
| Rated Input DC (V,A): 12V Battery, 200A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 | Rated Output AC (V,A): 115Vac±10%, 18A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1.2A |
| Optimum Efficiency: 85% min | Fuse (A): 40A*6 |
| FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 16.8*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |
280Ah LiFePO4 Lithium Battery
| Battery Capacity: 280Ah | Battery Power: 3584Wh |
| Battery Voltage: 12.8V | Maximum Charging Current: 250A |
| Maximum Discharging Current: 250A | Max Charge Voltage: 14.5V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥6000 at 50% DoD (depth of discharge) | Size: 20.98*9.48*8.81inch |
| Weight: 63.93lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
What Our Experts Think
- Reliable Off-Grid Power: Delivers 600W from 3 bifacial 195W solar panels, perfect for powering small off-grid homes, cabins, or RVs.

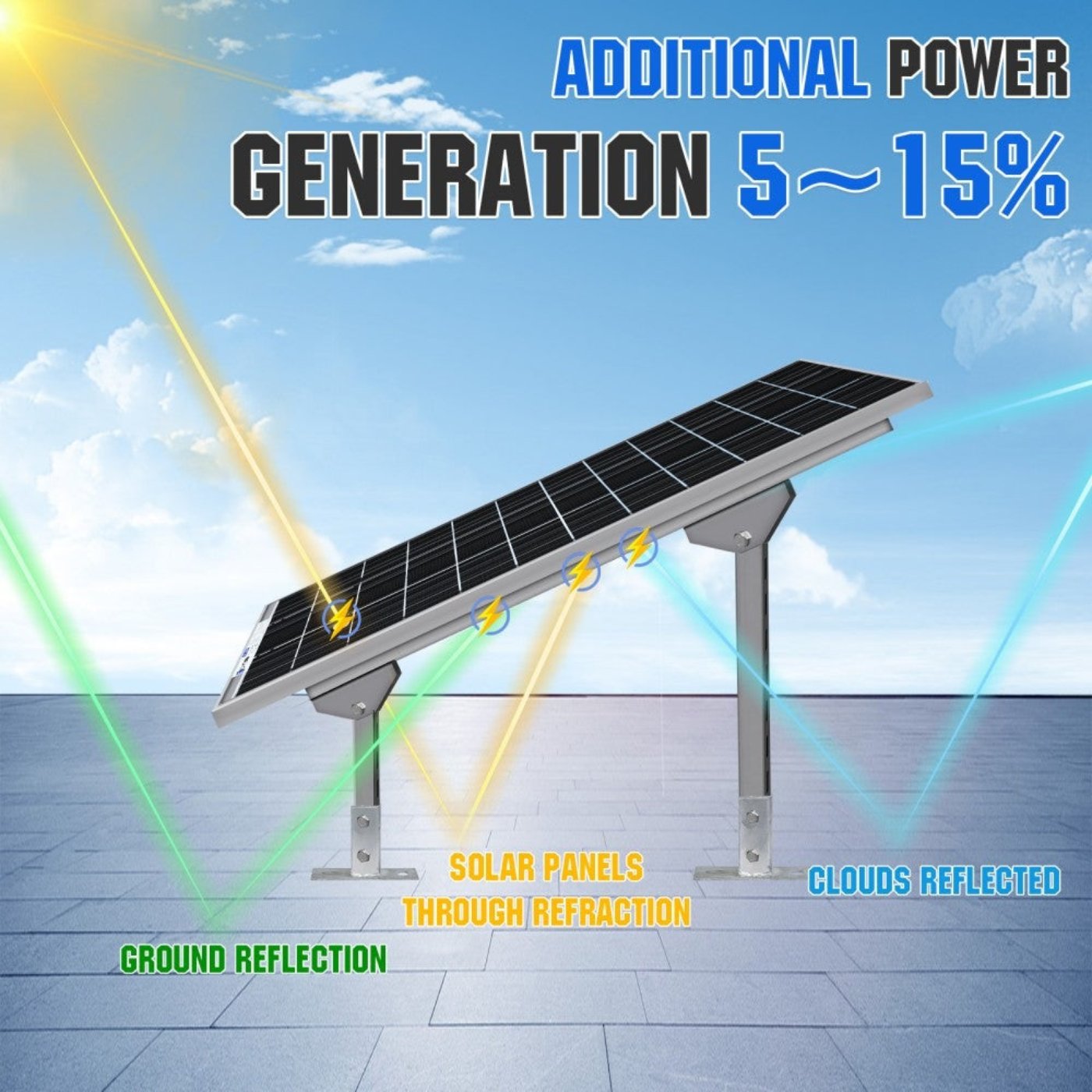

- Bifacial Efficiency: Dual-side energy capture boosts overall efficiency, increasing output by up to 25% compared to standard panels.
- MPPT Charge Controller: Maximizes energy conversion and battery charging efficiency for optimal performance.
- Compact and Versatile: A small, efficient system ideal for limited space or entry-level off-grid setups.
- Complete Kit: Includes all components necessary for installation—solar panels, MPPT charge controller, cables, and mounting hardware.
Q&A
Q: What is the Eco-Worthy 600W 12V Complete MPPT Off-Grid Solar Kit?
A: The Eco-Worthy 600W 12V solar kit includes three 195W bifacial solar panels and an MPPT charge controller, providing a reliable off-grid power solution for small-scale applications.
Q: What are its key features?
- Power Output: 600W total (3 x 195W bifacial panels).
- Panels: Bifacial design for enhanced energy capture from both sides, increasing efficiency.
- Controller: MPPT charge controller for optimal power conversion and battery management.
- Durability: Weather-resistant panels and components for long-lasting use in outdoor conditions.
- Applications: Ideal for small off-grid setups, including cabins, RVs, boats, or emergency backup systems.
Q: Who is this solar kit ideal for?
A: Ideal for off-grid living, camping, or as a backup power source for small-scale off-grid applications.
Q: Why choose the Eco-Worthy 600W Off-Grid Kit?
A: Its high-efficiency bifacial panels and MPPT technology provide a reliable, compact, and sustainable energy solution for smaller off-grid systems
Maintenance Tips
- Clean Solar Panels Regularly: Keep the bifacial 195W panels free from dirt, leaves, and snow to maximize energy absorption.
- Inspect Wiring and Connections: Check for signs of wear, corrosion, or loose connections in the system, ensuring everything is secure and functioning properly.
- Monitor Battery Charge Levels: Regularly check battery voltage and ensure it is within the recommended range to maintain battery health.
- Test MPPT Controller: Periodically verify that the MPPT controller is properly optimizing energy transfer from the panels to the batteries.
- Ensure Proper Ventilation: Install the system in a well-ventilated area to avoid overheating, especially for the charge controller and batteries.
- Check System Grounding: Verify the system is properly grounded to avoid electrical hazards.
- Inspect and Clean Inverter: Regularly clean the inverter’s cooling vents to avoid dust accumulation and ensure it operates efficiently
