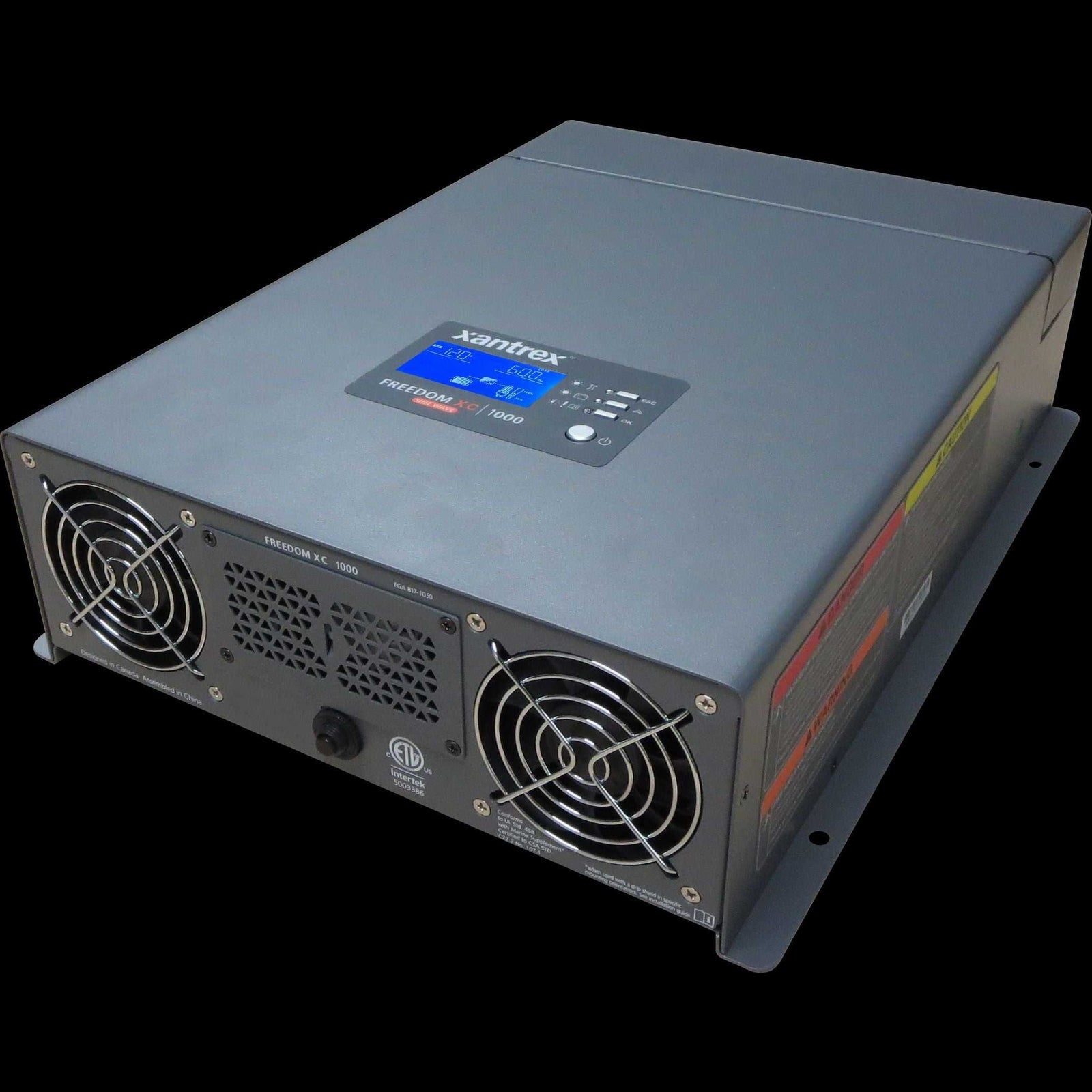

Xantrex 817-2080 Power Inverter Inverts 12 Volt DC To 120 Volt AC X168172080

817-2080 Xantrex Power Inverter

The Freedom XC inverter or charger offers premium performance in a lightweight compact package.True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications. It cranks out full output in invert or charge mode from -4 Degree Fahrenheit to 104 Degree Fahrenheit for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN or OUT make installation a breeze.

Specifications

Features

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads

• True Sine Wave AC Power: For operation of sensitive and motor loads

• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off

• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis

• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input

• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

Product Manual

✔ X168172080 Product Manual

What Our Experts Think

• Reliable Power Conversion: The Xantrex 817-2080 Power Inverter efficiently converts 12V DC to 120V AC, providing a reliable power source for appliances, tools, and electronics in RVs, boats, or off-grid systems.
• 2000W Continuous Power: With 2000W of continuous power, this inverter is ideal for running medium-sized appliances, electronics, and other power-demanding devices while on the go or in off-grid environments.
• Pure Sine Wave Output: The inverter provides pure sine wave power, ensuring safe and smooth operation of sensitive electronics such as laptops, TVs, medical devices, and audio equipment, preventing damage from electrical fluctuations.
• Compact & Lightweight: Designed with portability in mind, the Xantrex 817-2080 is compact and lightweight, making it easy to transport and install in tight spaces, whether in an RV, boat, or mobile setup.
• Safety Features: Equipped with built-in protection against overloads, short circuits, and overheating, the inverter ensures safe operation, keeping your devices and the inverter itself protected from potential electrical issues.
• Energy Efficient: The unit is designed to minimize power loss during conversion, providing more efficient energy usage and maximizing battery life, which is especially important for off-grid applications.
• User-Friendly Interface: Featuring easy-to-understand controls and clear status indicators, the inverter is simple to operate and monitor, even for users with minimal technical experience.

Q&A

Q: What is the Xantrex 817-2080 Power Inverter?
A: The Xantrex 817-2080 is a power inverter that converts 12V DC (direct current) from a battery into 120V AC (alternating current) power, making it suitable for powering a wide range of household appliances and electronics when away from a traditional power source.

Q: What is the power capacity of the Xantrex 817-2080?
A: The Xantrex 817-2080 provides continuous power of 2000 watts, with a surge power capacity of up to 4000 watts, allowing it to handle most appliances and devices.

Q: How does the Xantrex 817-2080 work?
A: This inverter takes the DC power stored in a 12V battery and converts it into usable 120V AC power, which can be used to run standard household electronics and appliances, such as small appliances, lights, and electronics.

Q: Is the Xantrex 817-2080 suitable for off-grid use?
A: Yes, the Xantrex 817-2080 is ideal for off-grid and mobile power applications such as RVs, boats, or remote cabins where access to a conventional power source is limited.

Q: What types of devices can the Xantrex 817-2080 power?
A: The Xantrex 817-2080 can power various devices including laptops, lights, small appliances, and power tools, depending on their wattage requirements.

Q: How efficient is the Xantrex 817-2080?
A: The Xantrex 817-2080 is designed to provide efficient power conversion with minimal energy loss, ensuring optimal performance for your appliances and devices.

Q: Is the Xantrex 817-2080 easy to install?
A: Yes, the Xantrex 817-2080 is straightforward to install and can be wired directly to your 12V DC battery system for immediate use. Professional installation may be recommended depending on your setup.

Q: Does the Xantrex 817-2080 have any safety features?
A: Yes, the Xantrex 817-2080 includes built-in protection against overload, over-temperature, and short circuits to ensure the safety of both the inverter and connected devices.

Q: Does the Xantrex 817-2080 come with a warranty?
A: Yes, the Xantrex 817-2080 is covered by a manufacturer's warranty. Please refer to the product details for specific warranty terms.

Maintenance Tips

• Regular Cleaning: Clean the exterior of the inverter with a soft, dry cloth to remove dust and dirt. If necessary, use a vacuum with a soft brush to clean vents and any exposed fan areas to maintain airflow.
• Ensure Adequate Ventilation: Place the inverter in a well-ventilated area with unobstructed airflow. Proper ventilation helps prevent overheating and ensures the inverter runs efficiently.
• Inspect Electrical Connections: Periodically check the DC input and AC output connections for signs of wear, corrosion, or looseness. Tighten any loose connections and clean terminals as needed to ensure a secure, safe connection.
• Monitor Performance: Regularly monitor the inverter for warning lights, unusual sounds, or error codes. If any issues arise, address them promptly to prevent potential damage.
• Check Fuses and Circuit Breakers: Inspect the inverter’s fuses and circuit breakers for damage or wear. Replace any faulty components immediately to ensure safe operation.
• Avoid Overloading: Be mindful of the devices connected to the inverter, ensuring they do not exceed its rated power capacity. Overloading can lead to overheating and damage to the internal components.
• Test Functionality: Periodically test the inverter by running a load to ensure it provides stable 120V AC output. This will help verify its continued performance.
• Proper Storage: When not in use for extended periods, store the inverter in a cool, dry place away from dust, moisture, and extreme temperatures to avoid damage.
