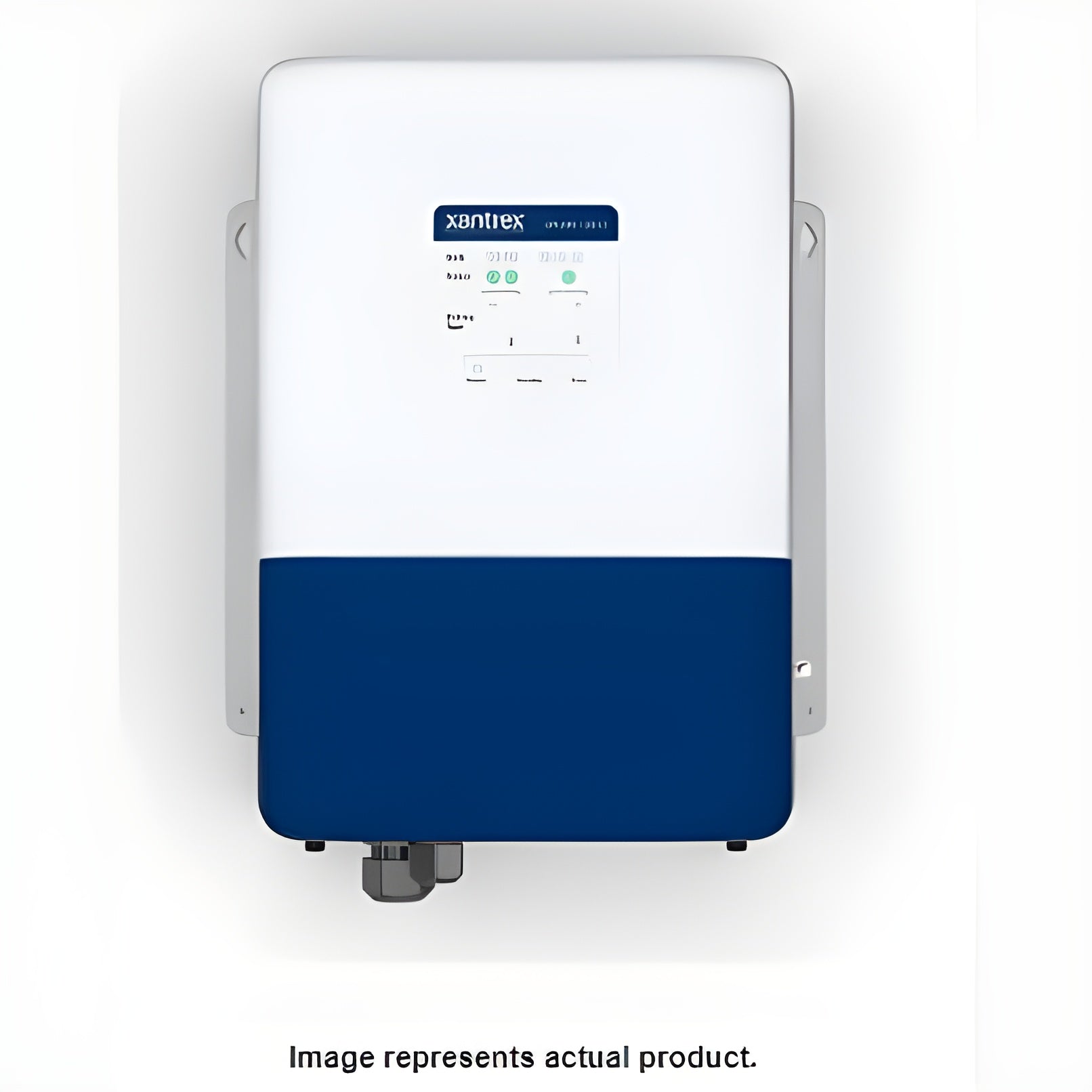

819-0120-12 Xantrex Llc Xplore 120/12 Charger
The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensure ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.
Specifications
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Max Total BAT1-6 DC Output Current | 120A |
| Max Total BAT1-2 DC Output | Current 5 to 120A (selectable) |
| Max Total BAT3-6 DC Output | Current 5 to 40A (selectable) |
| DC Output Voltage | 12Vdc (nominal) |
| DC Output Connections | 6 |
| AC Input Voltage (Auto Ranging) | 120Vac / 230Vac (nominal), 80 to 265 Vac |
| Power Factor at Full Charge Rate | > 98% |
| Charging Modes | 3-Stage, 2-Stage, Constant Voltage |
| Supported Battery Types | AGM, FLD, GEL, Xantrex LFP, Custom |
| Equalization (FLD Battery Only) | Yes |
| GENERAL SPECIFICATIONS | |
| Operating Temperature | 4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C) |
| Storage Temperature | 40 to 176 F (-40 to 80 C) |
| Operating Humidity | 5 to 95% RH, non-condensing |
| AC Input Terminal Connection | 3-position tool-free spring clamp terminal |
| DC Output Terminal Connection | BAT1-2: Two M6 stud terminals |
| L x W x H Charger | 16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm) |
| Ingress Protection (IP) Rating Charger: | IP-32 (vertical) |
| REGULATORY APPROVALS | |
| Safety | ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement) |
| EMC | 47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B) |
| Ignition Protection | SAE J1171, ABYC C-1500 |
Features
-
High-quality charging performance
-
Compatible with various devices
-
Compact and portable design
-
Efficient power
Product Manuals
819-0120-12 Xantrex Llc Xplore 120/12 Charger installation guide
819-0120-12 Xantrex Llc Xplore 120/12 Charger installation guide
What Our Experts Think
- Efficient Charging: Provides reliable 12V charging, designed to keep your batteries at optimal levels for off-grid systems, RVs, boats, and more.
- Compact and Lightweight: Its compact design allows for easy installation and portability, making it ideal for tight spaces and mobile setups.
- Versatile Use: Ideal for charging 12V batteries, it works well in a variety of off-grid applications, ensuring your devices stay powered without the need for frequent recharging.
- User-Friendly Operation: Features simple controls and an intuitive interface, making it easy to monitor and adjust charging settings.
- Reliable and Durable: Built to handle tough conditions, with a rugged design that ensures long-lasting performance even in harsh environments.
- Safe Charging: Equipped with built-in protection to prevent overcharging and ensure safe, consistent battery charging.
- Energy Efficient: Designed to charge batteries effectively while minimizing energy loss, extending battery life and reducing operational costs.
Q&A
Q: What is the purpose of the Xantrex Xplore 120/12 Charger?
A: The Xplore 120/12 Charger is designed to charge 12-volt battery systems from a 120-volt AC power source, ideal for off-grid applications, RVs, boats, or backup power systems.
Q: What is the charging capacity of the Xantrex Xplore 120/12?
A: This charger is capable of providing 12 amps of charging current, ensuring efficient charging for 12-volt battery banks.
Q: Is this charger suitable for all types of 12V batteries?
A: Yes, it is compatible with most 12V battery types, including flooded lead-acid, gel, and AGM batteries, providing flexible charging options.
Q: How does the Xantrex Xplore 120/12 differ from other chargers?
A: The Xplore 120/12 is designed for reliable and efficient charging in off-grid and mobile environments, offering simple installation and operation compared to more complex systems.
Q: Does the charger include safety features?
A: Yes, it includes built-in protections such as overcharge, short-circuit, and reverse polarity safeguards, ensuring safe operation during use.
Q: Can I use the Xplore 120/12 with other Xantrex products?
A: Yes, it can be integrated with other Xantrex power systems, such as inverters or solar setups, for a complete off-grid or backup power solution.
Q: What maintenance is required for the charger?
A: The charger requires minimal maintenance, but regular inspections for loose connections and ensuring proper ventilation for optimal performance are recommended.
Q: Is the Xplore 120/12 charger ideal for both residential and commercial use?
A: Yes, the Xplore 120/12 charger is versatile and can be used in both residential off-grid systems and small commercial applications that require 12V battery charging.
Maintenance Tips
- Ensure Proper Ventilation: Install the charger in a well-ventilated area to prevent overheating and ensure optimal performance.
- Inspect Connections: Regularly check all wiring, terminals, and connectors for signs of wear, corrosion, or looseness to ensure safe operation.
- Clean the Charger: Dust the charger with a dry cloth or soft brush to prevent dirt buildup, ensuring the cooling vents remain clear. Avoid direct contact with water.
- Check Battery Voltage: Ensure the connected battery voltage is within the recommended range for safe and efficient charging.
- Test Charging Functionality: Periodically check the charging process to confirm the charger is charging correctly and providing stable output.
- Inspect Fuses and Circuit Protection: Regularly check fuses and circuit breakers for functionality and replace them if damaged or blown.
- Look for Error Indicators: Monitor the charger’s display for any warning or error codes to identify potential issues early.
- Annual Maintenance: Schedule a professional inspection or service at least once a year to ensure the charger remains in optimal working condition.
