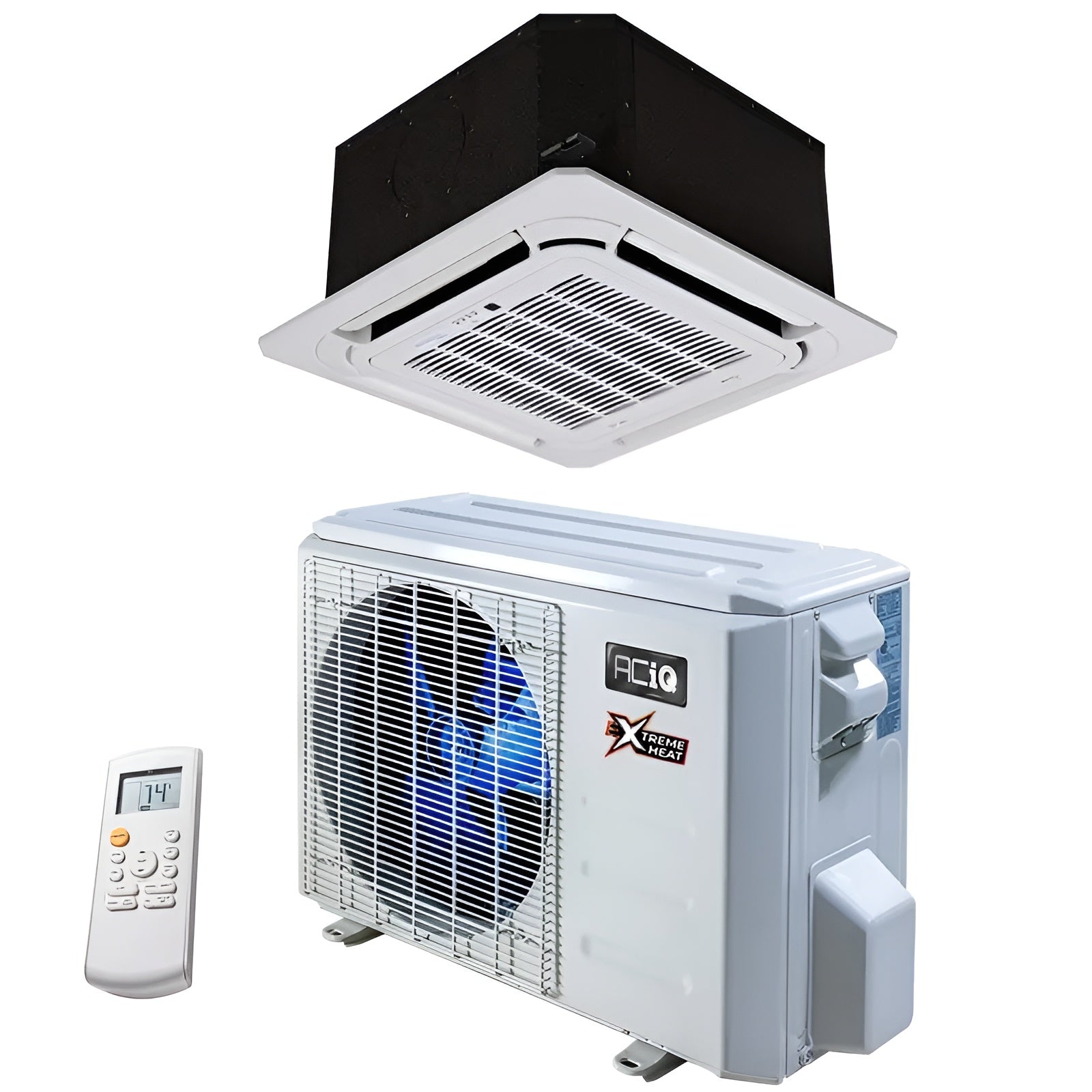

9,000 BTU 19 SEER ACiQ Platinum Single Zone Ceiling Cassette Mini Split System with Extreme Heat
The ACiQ Platinum series boasts Extreme Heat technology, allowing for consistent heating even in temperatures as low as -22 degrees. Its high SEER and HSPF ratings ensure maximum efficiency for both cooling and heating any space.
QUICK FACTS
- Maximum performance at an affordable cost
- Ideal for smaller rooms (depending on climate)
- 9,000 BTU, 28.1 SEER2 wall mounted mini split
- Efficient cooling from -22 degrees to 122 degrees outside temperature
- Efficient heating from -22 degrees to 75 degrees outside temperature
- Gold fin condenser full-protection coating
- Quiet operation at even the highest workloads

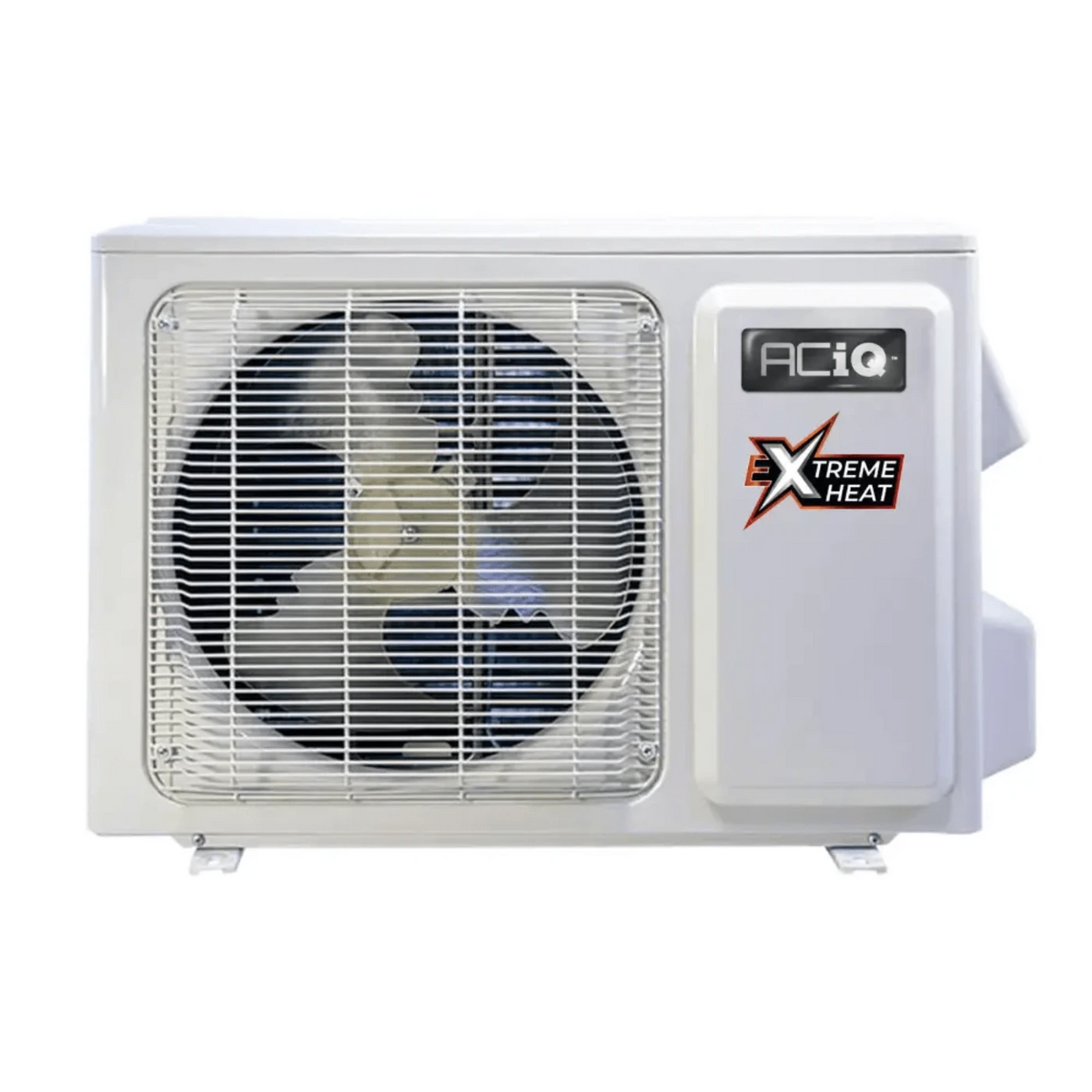

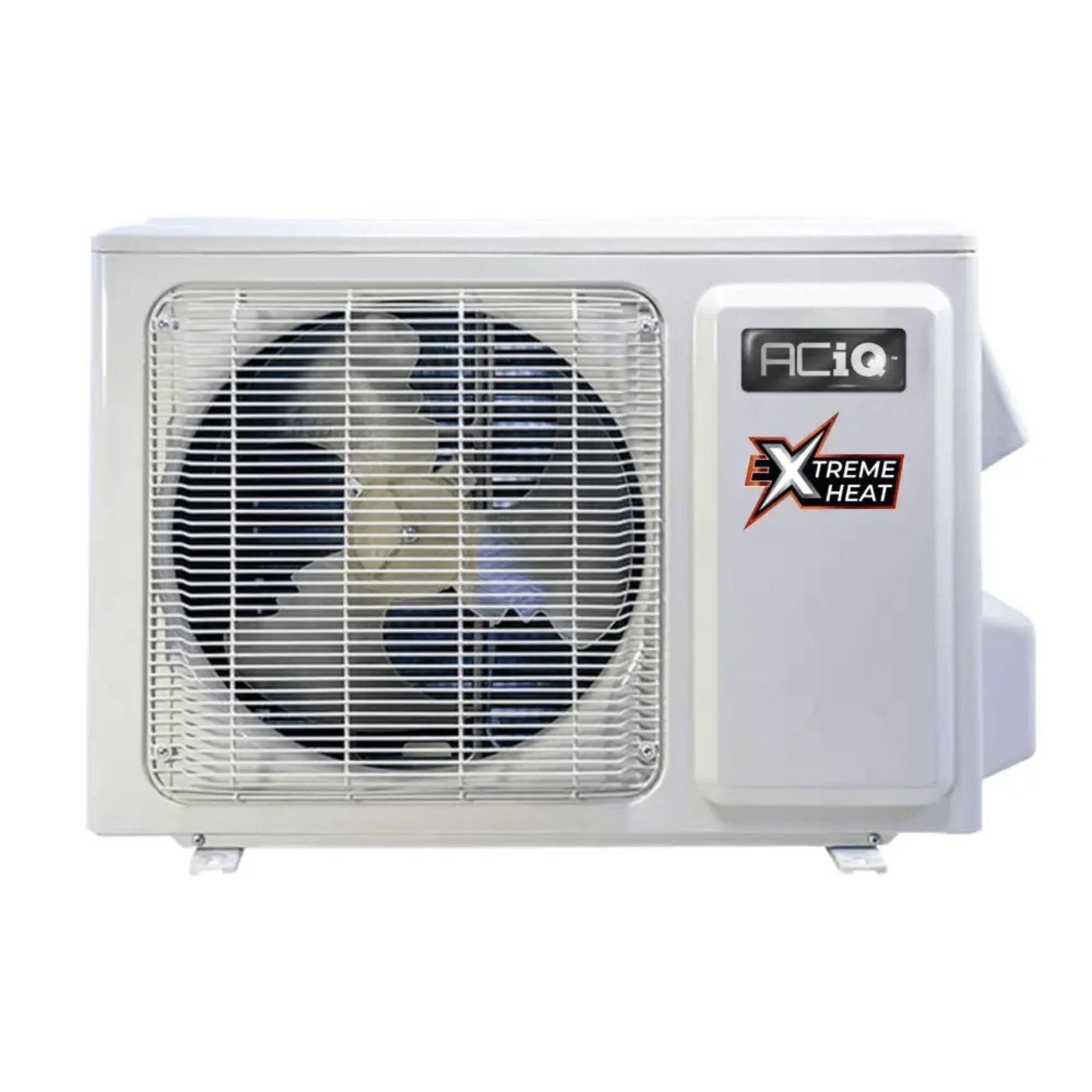

9,000 BTU, 28.1 SEER2
When paired with the ACIQ-09W-HP230B wall mounted air handler, the ACIQ-09ZPL-HP230B Condenser has the appropriate capacity for small to medium-sized rooms. Due to the dual rotary compressor and variable inverter technology, this system boasts incredibly high efficiency ratings. Note that this equipment model does not come with quick connect line set connectors and is not intended for DIY installation. Additional installation materials, such as line sets, control wire, drain hose, whip, and disconnect, can be purchased from the Accessories section on this page. Professional assistance is required to add refrigerant and vacuum the lines as needed. While the automated cleaning function is available, it is recommended to regularly manually clean the unit's filters.Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation. The best news of all? ACiQ includes these technologies with every multizone condenser – the competition makes you pay for it.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

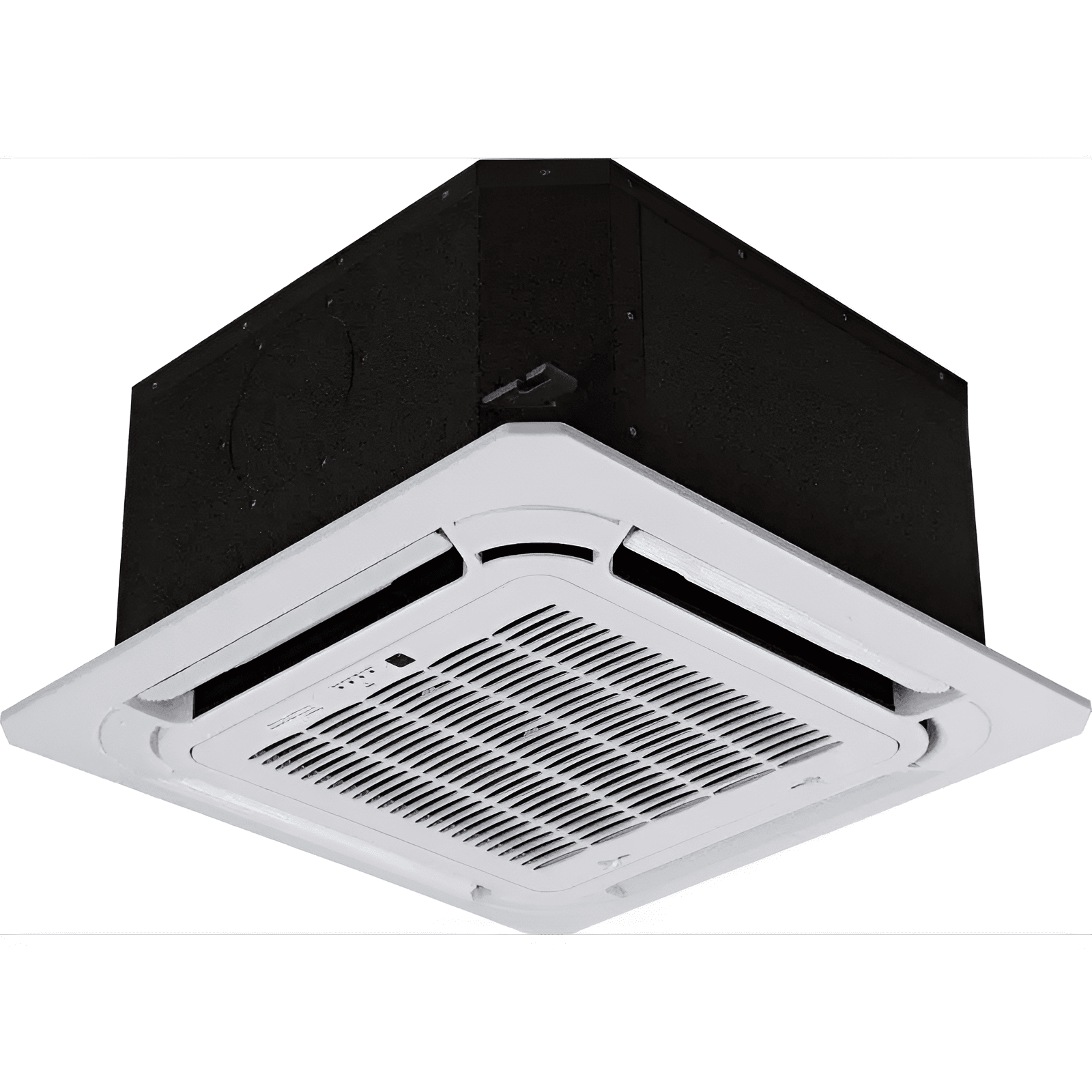

9,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Features
- 9,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
