Apollolift Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height A-3002

• Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
• High quality steel mast and strong steel construction ensures rigidity and durability.
• High efficient pumps makes the control easier to operate.
• Metal grid protects user from lift chains.
• With safety wheel guard and brake system to ensure safety during operation.
• Manually raise and lower loads with foot pump and handle operation.

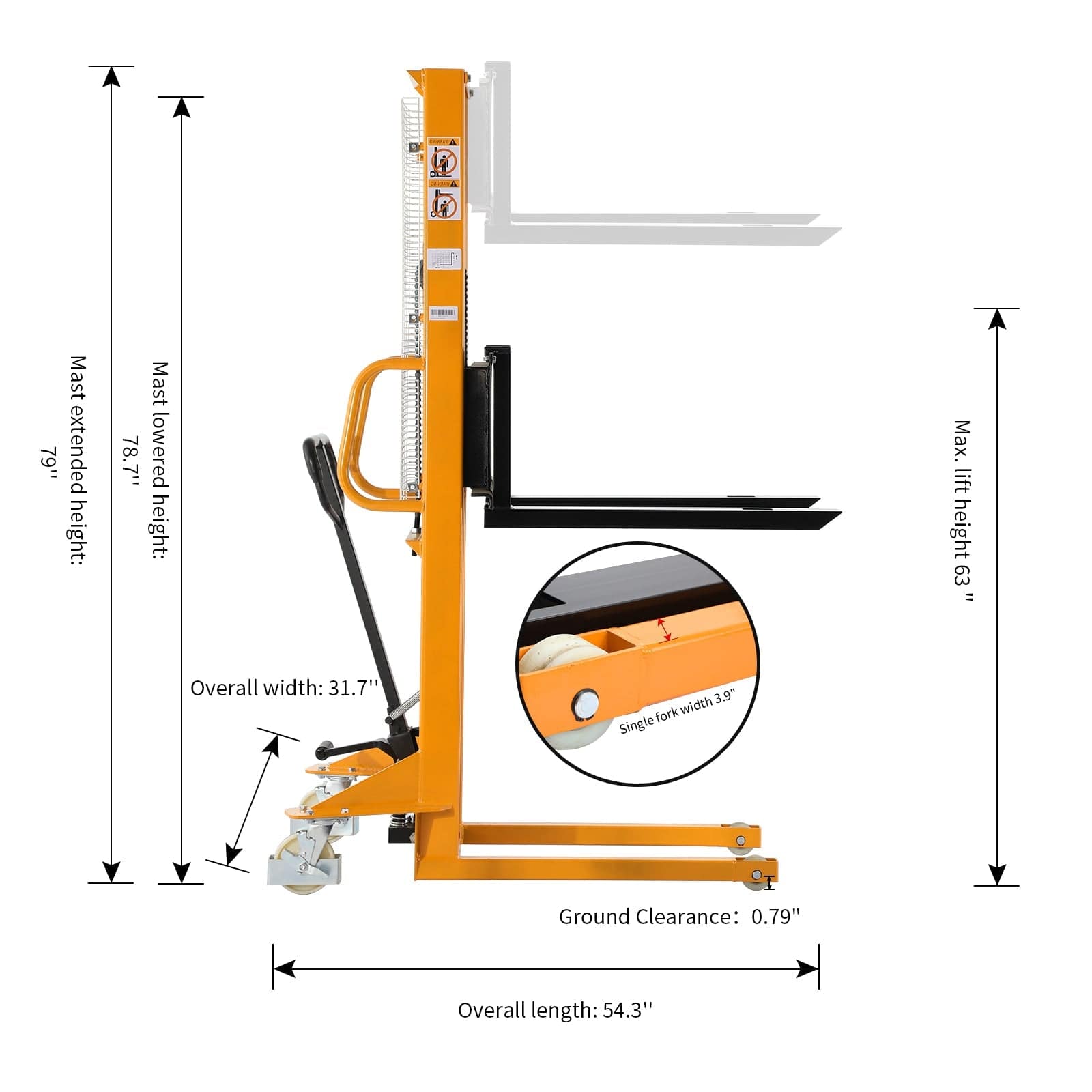

Dimensions

• Overall width: 31.7''
• Overall length: 54.3''
• Load center: 19.7''
• Recommended Aisle Width: 75.4"
• Turning radius: 48.6''
• Inner legs width: 16.5''
• Outer legs width: 20.5''

MAST

• Lifting height: 63''
• Mast lowered height:78.7''
• Mast extended height: 79''

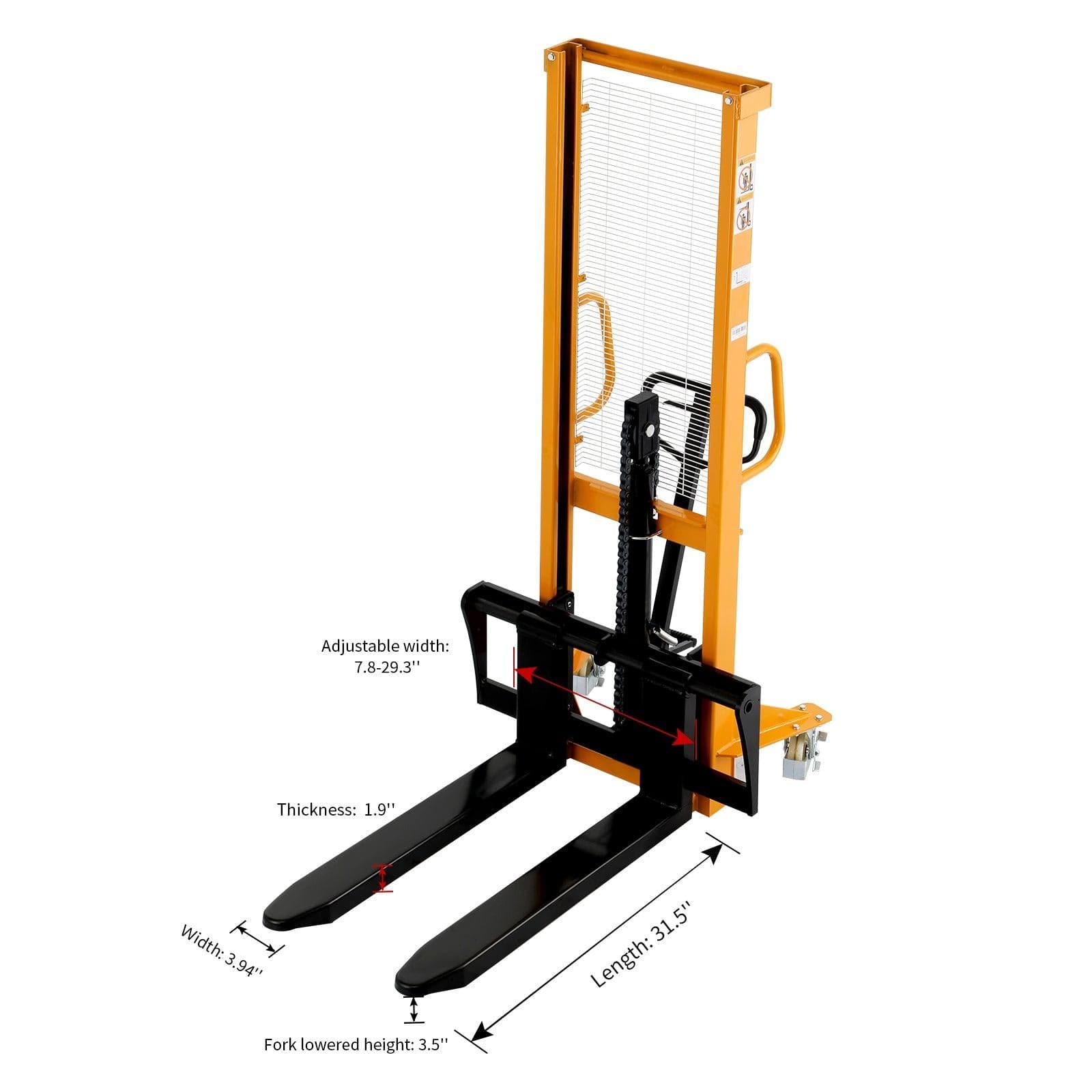

FORKS

• Adjustable width: 7.9-29.3''
• Thickness: 1.9''
• Width: 3.94''
• Length: 31.5''
• Fork lowered height: 3.5''

FEATURES

• Foot Operated Pump: Lift Height nearly 1'' per stroke.

Videos

What Our Experts Think

• 1100lbs Capacity: The Apollolift Manual Pallet Stacker with a 1100lbs capacity is ideal for light to medium-duty material handling tasks. It provides the perfect solution for businesses that need to lift and move smaller loads efficiently without requiring the heavy-duty lifting capacity of larger stackers.
• 63" Maximum Lift Height: The 63" lift height is excellent for accessing higher shelving or stacking goods in elevated locations. This feature enhances vertical storage capabilities, helping businesses optimize their warehouse or storage area by making full use of available space.
• Adjustable Forks for Versatility: The adjustable forks allow the stacker to handle different pallet sizes and types, providing a high level of versatility. Whether moving standard or oversized loads, the fork adjustment ensures easy accommodation, making this stacker suitable for various material handling needs.
• Manual Operation for Control and Cost-Effectiveness: With manual hydraulic operation, this pallet stacker offers precise control over load lifting and lowering. The simple manual system eliminates the need for electric power, making it a cost-effective solution with minimal maintenance requirements.
• Compact Design for Easy Maneuverability: The Apollolift Manual Pallet Stacker is designed with a compact footprint, making it easy to maneuver through narrow aisles and tight spaces. Its lightweight and nimble design enhance productivity by allowing operators to quickly and safely transport pallets around busy work environments.
• Durable and Robust Construction: Built with durable materials, the Apollolift Manual Pallet Stacker is designed to withstand daily use in industrial environments. Its robust frame ensures long-term durability and reliable performance, reducing the risk of damage and minimizing downtime for repairs.
• Ergonomic Handle for Operator Comfort: The ergonomically designed handle ensures ease of use, allowing operators to control the stacker with minimal strain. This feature improves comfort, reducing operator fatigue and enhancing overall efficiency during long shifts or repetitive tasks.
• Low Maintenance and Long-Lasting: As a manual stacker, this model requires minimal maintenance, which reduces operating costs over time. With fewer mechanical components than electric models, there’s less chance for malfunction, ensuring long-lasting and trouble-free operation.
• Non-Marking Wheels for Smooth Operation: Equipped with non-marking wheels, the pallet stacker ensures that floors remain undamaged during use. The wheels provide excellent traction and stability, making it suitable for both smooth and rough surfaces without leaving unsightly marks.
• Expert-Recommended: Experts highly recommend the Apollolift Manual Pallet Stacker for businesses that require a simple, efficient, and cost-effective solution for lifting and moving pallets. Its 1100lbs capacity, adjustable forks, and 63" lift height make it an excellent choice for warehouses, retail spaces, and manufacturing environments that require reliable, easy-to-use material handling equipment.

Q&A

Q: What is the Apollolift Manual Pallet Stacker A-3002?
A: The Apollolift A-3002 is a manual pallet stacker designed for lifting and stacking heavy loads. It features adjustable forks, a 1100 lbs weight capacity, and a maximum lift height of 63", making it ideal for material handling in warehouses and industrial environments.

Q: What is the weight capacity of the Apollolift A-3002 stacker?
A: The A-3002 has a weight capacity of 1100 lbs, making it suitable for handling lighter to medium loads in material handling and stacking tasks.

Q: What is the maximum lifting height of the A-3002 stacker?
A: The A-3002 can lift loads up to 63", providing enough vertical reach for efficient stacking and storage, especially for pallets and materials that need to be placed on elevated shelves or racks.

Q: How does the adjustable fork feature benefit the A-3002?
A: The adjustable forks allow the A-3002 to accommodate different pallet sizes, giving operators flexibility and making it a versatile tool for handling various loads. This feature enhances efficiency in material handling.

Q: How does the Apollolift A-3002 operate?
A: The A-3002 operates via a manual hydraulic system. Operators can lift and lower loads by pumping the handle, with precise control over the lowering speed. This makes it a reliable, energy-efficient solution for lifting tasks.

Q: Is the Apollolift A-3002 easy to operate?
A: Yes, the A-3002 is designed for ease of use. The manual hydraulic mechanism requires minimal effort from the operator, and the adjustable forks allow quick adaptation to different load sizes.

Q: How is the durability of the Apollolift A-3002?
A: The A-3002 is built with durable materials to withstand the demands of heavy-duty use. Its high-quality construction ensures long-lasting performance, even in tough industrial environments.

Q: How is the maintenance for the Apollolift A-3002?
A: The A-3002 requires minimal maintenance. Regular checks on the hydraulic system, fork adjustments, and wheels will keep it running smoothly. Proper lubrication of moving parts is recommended for optimal performance.

Q: Can the Apollolift A-3002 be used outdoors?
A: While the A-3002 is designed for indoor use, it can be used outdoors on flat, dry surfaces. It is best suited for environments with smooth, level floors to ensure efficient operation.

Q: What makes the Apollolift A-3002 ideal for material handling?
A: The A-3002's adjustable forks, compact design, and 1100 lbs capacity make it an efficient and versatile solution for stacking and transporting lighter to medium loads in industrial and warehouse settings. Its manual operation makes it cost-effective and energy-efficient.

Maintenance Tips

• Hydraulic System Check: Inspect the hydraulic system for leaks or damage, ensuring smooth operation when lifting and lowering. Check hydraulic fluid levels and top up as needed.
• Lubricate Moving Parts: Regularly lubricate the scissor mechanism, adjustable forks, and all moving parts to reduce friction and ensure smooth lifting and lowering.
• Fork and Frame Inspection: Check the forks for wear or damage and ensure they are securely attached and properly adjusted to avoid instability.
• Wheel and Caster Maintenance: Inspect the wheels and casters for wear, cracks, or debris buildup. Replace or clean them as necessary to maintain stability and smooth movement.
• Clean the Stacker: Clean the stacker regularly, particularly around the hydraulic components, forks, and wheels, to prevent dirt buildup that could affect performance.
• Test Functionality: Periodically test the lifting mechanism to ensure it operates smoothly, and the adjustable forks lock securely in place.
• Weight Capacity: Always adhere to the 1100lbs weight limit to prevent strain on the hydraulic system and to ensure safety during operation.
• Proper Storage: Store the pallet stacker in a dry, temperature-controlled area when not in use to protect it from moisture, dirt, and other environmental elements.
