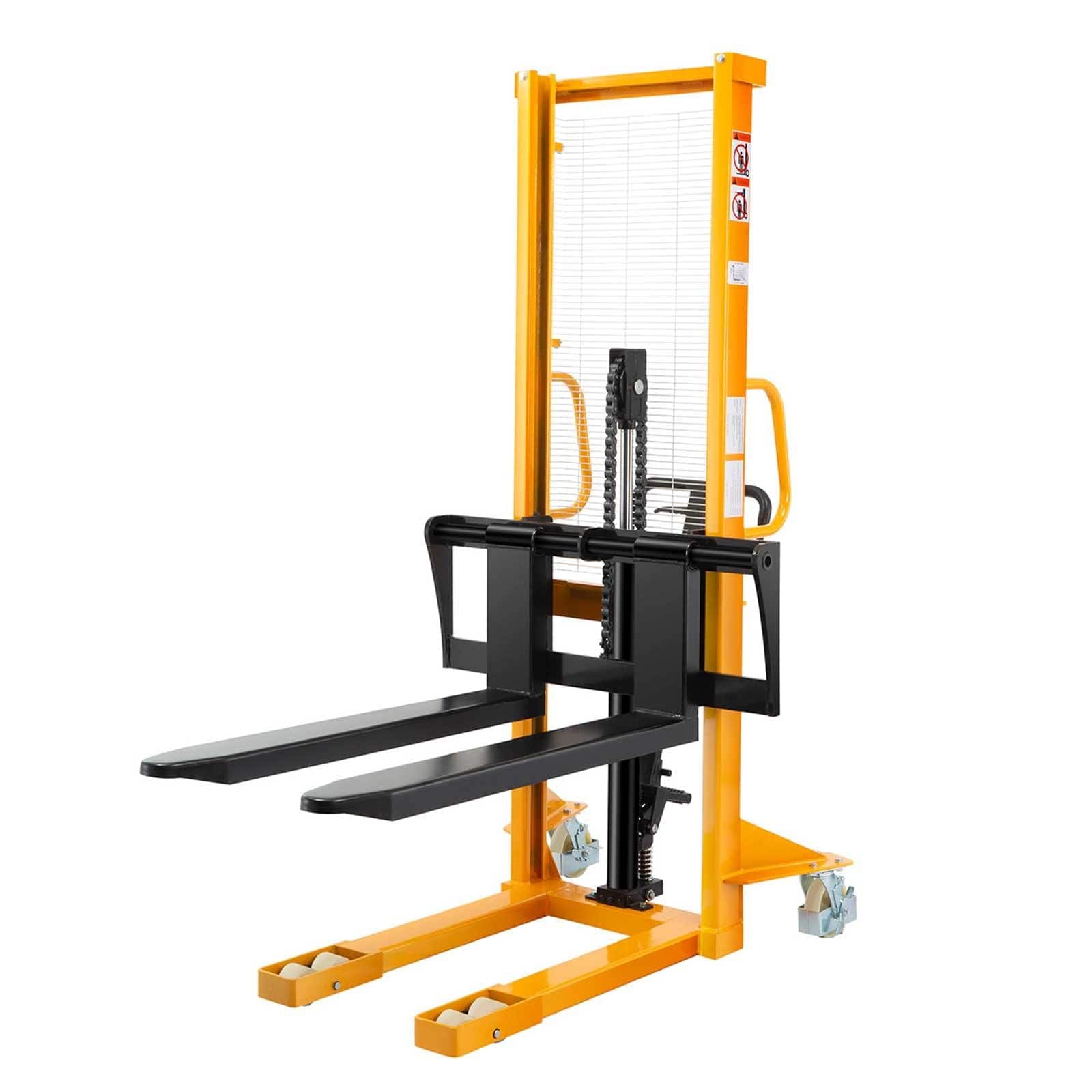

Apollolift Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height A-3003

Apollolift Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height A-3003

• Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
• High quality steel mast and strong steel construction ensures rigidity and durability.
• High efficient pumps makes the control easier to operate.
• Metal grid protects user from lift chains.
• With safety wheel guard and brake system to ensure safety during operation.
• Manually raise and lower loads with foot pump and handle operation.

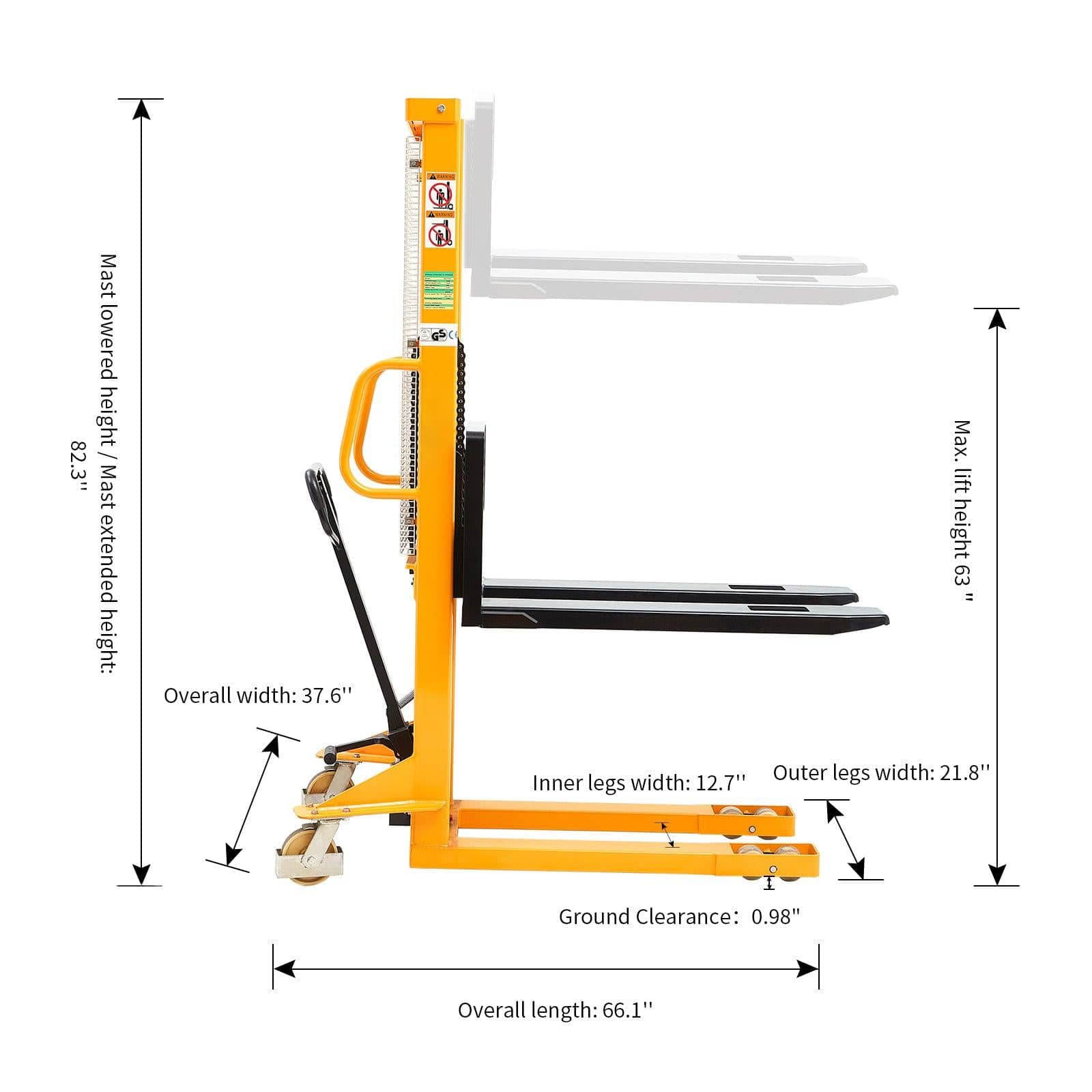

Dimensions

• Overall width: 37.6''
• Overall length: 66.1''
• Load center: 19.7''
• Recommended Aisle Width: 84.5"
• Turning radius: 48.6''
• Inner legs width: 12.7''
• Outer legs width: 21.8''

MAST

• Lifting height: 63''
• Mast lowered height: 82.3''
• Mast extended height: 82.3''

FORKS

• Adjustable width: 11.6-36.6''
• Thickness: 2.4''
• Width: 5.6''
• Length: 42''
• Fork lowered height: 3.5''

FEATURES

• Foot Operated Pump: Lift Height nearly 1'' per stroke.

Videos

What Our Experts Think

• 2200lbs Capacity: The Apollolift Manual Hydraulic Stacker with a 2200lbs capacity is ideal for medium-duty lifting and material handling tasks. With the ability to handle loads up to 2200lbs, it provides a reliable solution for businesses that need to lift, transport, and position heavy materials with ease in warehouses, factories, and industrial environments.
• 63" Maximum Lift Height: The stacker features a 63" maximum lift height, making it suitable for lifting items to elevated positions or storing materials on high shelves. Its impressive lifting range enhances vertical storage capacity and optimizes warehouse organization.

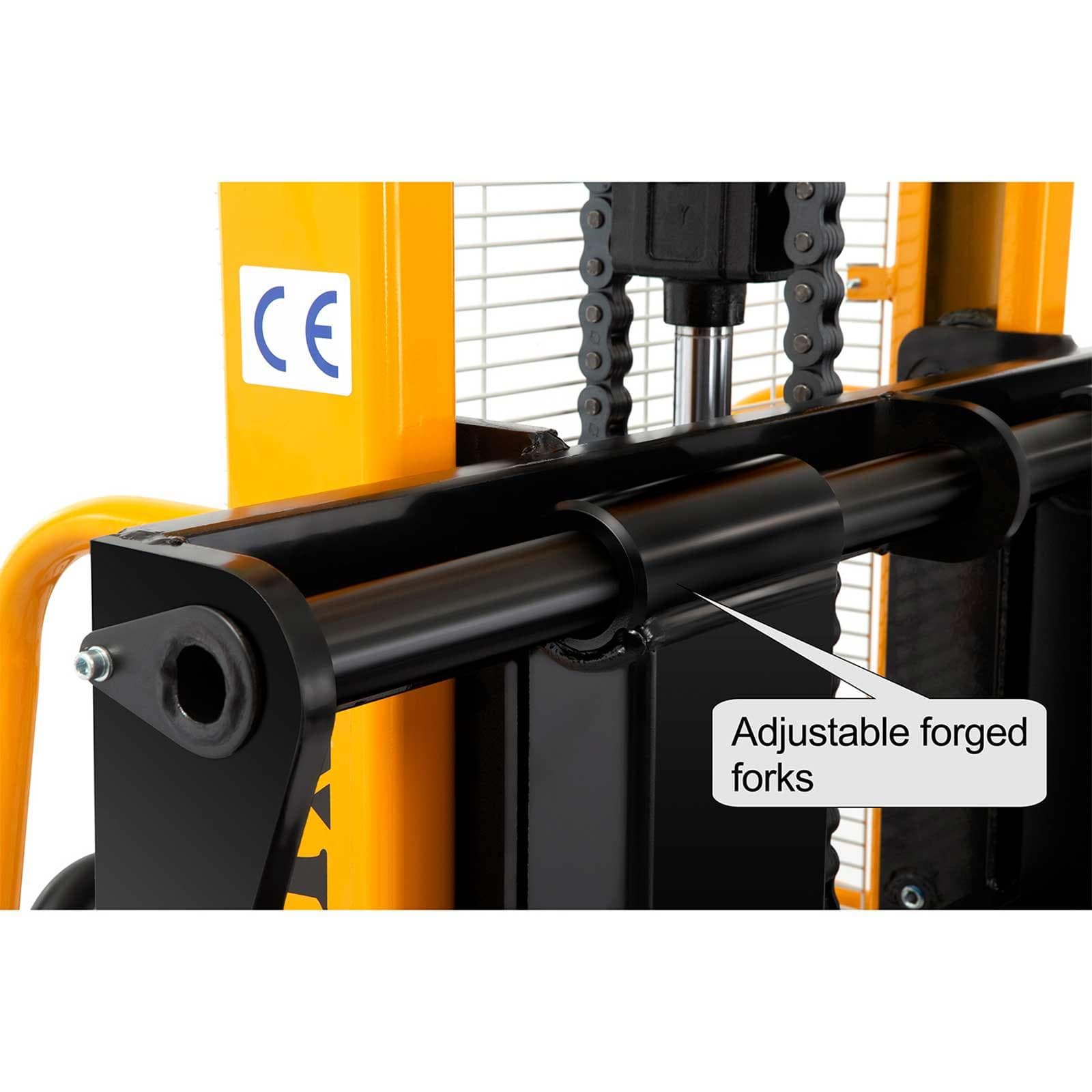

• Adjustable Forks for Versatility: The adjustable forks make this stacker incredibly versatile, allowing operators to easily handle pallets of varying sizes. Whether you're dealing with standard or oversized pallets, the adjustable forks offer flexibility for different material handling needs, improving efficiency.
• Manual Hydraulic Operation for Control: The manual hydraulic operation provides excellent control over lifting and lowering, allowing operators to easily maneuver the stacker and position loads precisely. The simple hydraulic system is easy to operate, reducing the need for electricity or batteries and making it an economical choice.
• Compact Design for Maneuverability: Despite its robust lifting capacity, the Apollolift Manual Hydraulic Stacker features a compact design that ensures easy maneuverability in tight spaces. Whether navigating narrow aisles or confined work areas, this stacker offers smooth and controlled movement, increasing operational efficiency.
• Durable Construction: Built with high-quality materials, the Apollolift Manual Hydraulic Stacker is designed to withstand the demands of daily use. Its durable frame and components ensure long-lasting performance, reducing the risk of wear and tear and minimizing downtime for repairs.
• Ergonomic Handles for Ease of Use: The ergonomic handle design ensures that operators can easily control the stacker without putting unnecessary strain on their hands or wrists. This feature improves user comfort and productivity, allowing workers to perform their tasks with minimal effort and discomfort.
• Low Maintenance and Cost-Effective: As a manual hydraulic stacker, the Apollolift requires minimal maintenance, lowering operational costs. Its simple mechanical design means fewer moving parts and less chance for breakdowns, making it a cost-effective solution for long-term use in material handling.

Q&A

Q: What is the Apollolift Manual Hydraulic Stacker A-3003?
A: The Apollolift A-3003 is a manual hydraulic stacker designed for material handling. It has a weight capacity of 2200 lbs and offers an adjustable fork size with a maximum lift height of 63". It is ideal for lifting and stacking materials in warehouses and other industrial environments.

Q: What is the weight capacity of the Apollolift A-3003 stacker?
A: The A-3003 has a weight capacity of 2200 lbs, making it suitable for handling medium to heavy loads in material handling and lifting operations.

Q: What is the maximum lifting height of the A-3003 stacker?
A: The A-3003 can lift loads up to a height of 63", providing sufficient vertical reach for stacking and storage in environments with tall shelves or racks.

Q: How does the adjustable fork feature benefit the A-3003?
A: The adjustable forks allow the A-3003 to accommodate different pallet sizes, providing flexibility for handling a variety of loads. This feature makes it versatile for various material handling tasks.

Q: How does the Apollolift A-3003 operate?
A: The A-3003 operates with a manual hydraulic system. The operator pumps the handle to lift the load and can control lowering speed using a valve. This system is efficient and reduces the need for electrical power.

Q: Is the Apollolift A-3003 easy to operate?
A: Yes, the A-3003 is designed for ease of use. Its manual hydraulic operation allows operators to lift and lower heavy loads with minimal effort, while the adjustable forks make it adaptable to different material sizes.

Q: How is the durability of the Apollolift A-3003?
A: The A-3003 is built with high-quality, durable materials, ensuring it can withstand heavy-duty use in industrial environments. Its robust construction provides long-lasting performance, even under tough conditions.

Maintenance Tips

• Hydraulic System Care: Regularly check the hydraulic system for leaks or damage, and ensure smooth lifting and lowering by testing the function of the lift. Top up hydraulic fluid if necessary.
• Lubricate Moving Parts: Apply lubrication to the scissor mechanism, adjustable forks, and other moving components to minimize friction and ensure smooth operation.
• Fork and Frame Inspection: Inspect the forks and frame for signs of wear, cracks, or damage. Ensure the forks are properly adjusted and securely locked in place.
• Wheel and Caster Checks: Inspect the wheels and casters for wear and damage. Clean or replace as necessary to maintain stable, smooth movement.
• Regular Cleaning: Clean the stacker, especially around the hydraulic components, wheels, and moving parts, to prevent dirt buildup that can affect performance.
• Test Lifting Mechanism: Periodically test the lifting mechanism to ensure it raises and lowers smoothly, and the adjustable forks are functioning properly.
• Weight Capacity: Always adhere to the 2200lbs weight limit to prevent overloading and damage to the stacker.
