Apollolift Counterbalanced Electric Stacker 3300lbs 177" High - A-3032

Apollolift Counterbalanced Electric Stacker 3300lbs 177" High - A-3032

HEAVY DUTY COUNTERBALANCED STACKER

• 1,200-watt drive motor, 4,500-watt lift motor.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller.

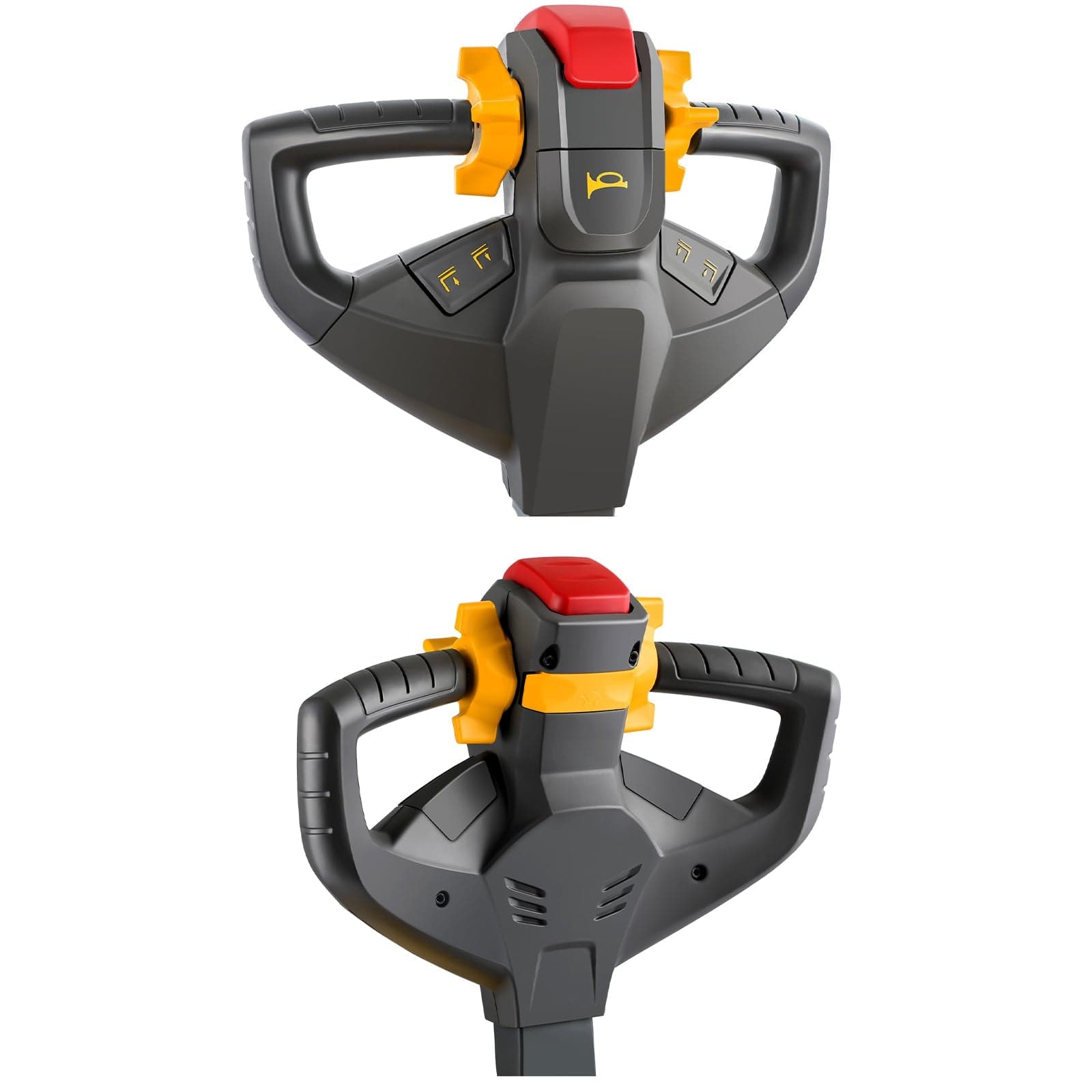

• Famous German brand handle tiller.
• Multi-function display shows the working hours, battery status and low-voltage protection.

DIMENSIONS

• Overall Length: 104.3"
• Overall width: 39''
• Recommended Aisle Width: 120.9"
• Turning Radius : 61.8"
• Load center : 19.7"

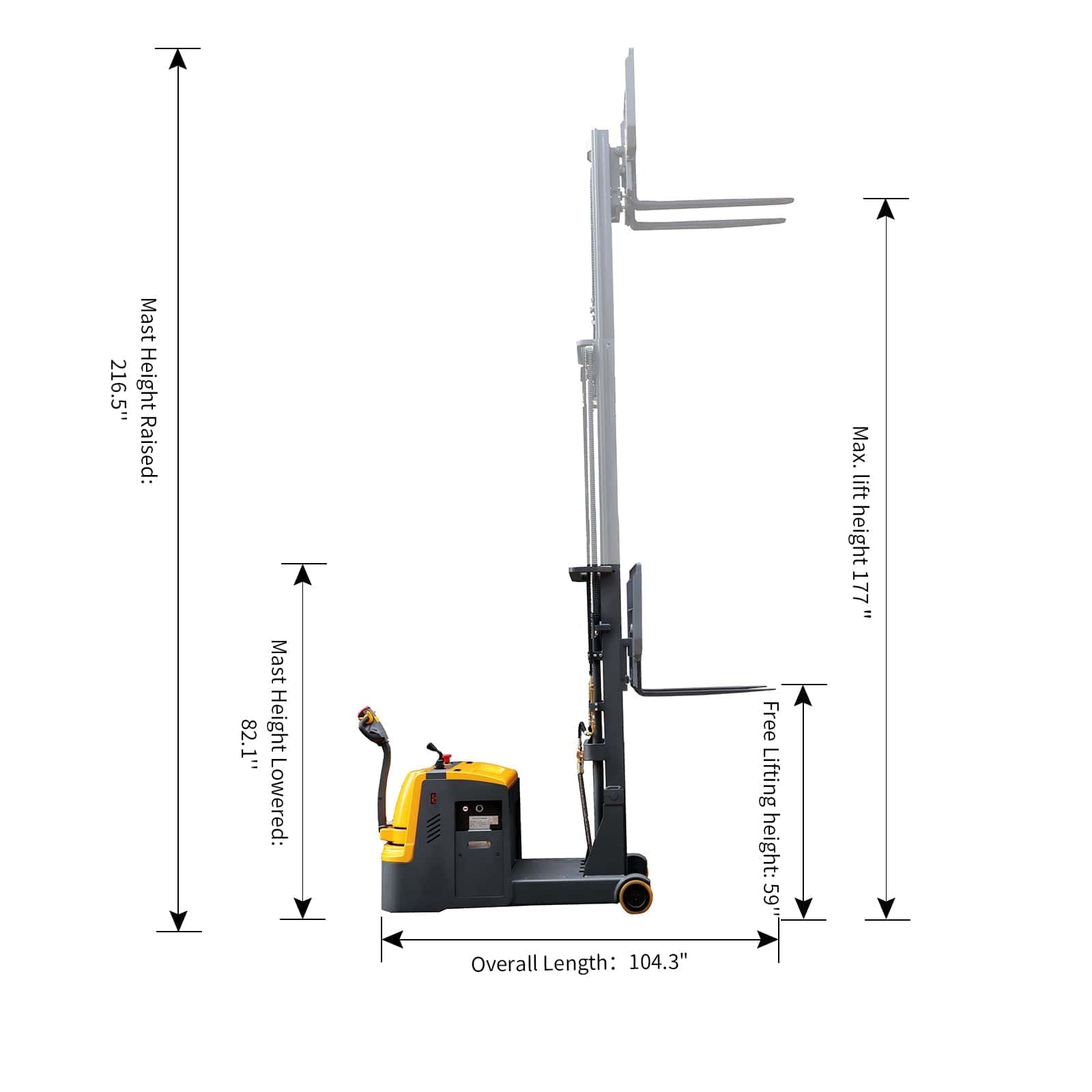

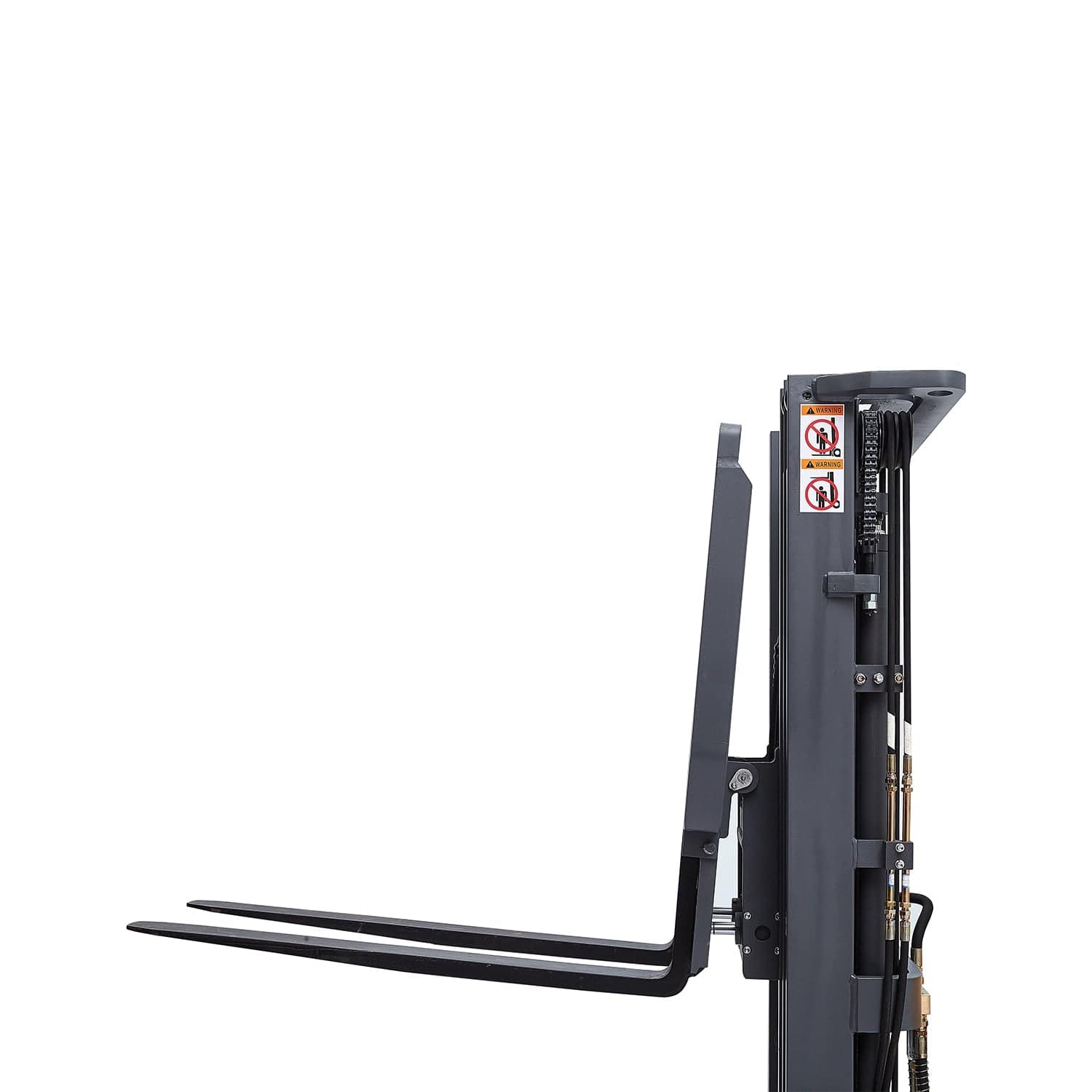

MAST

• Mast Height Lowered: 82.1''
• Max.Lifting height: 177''
• Mast Height Raised :216.5''
• Free Lifting height: 59''

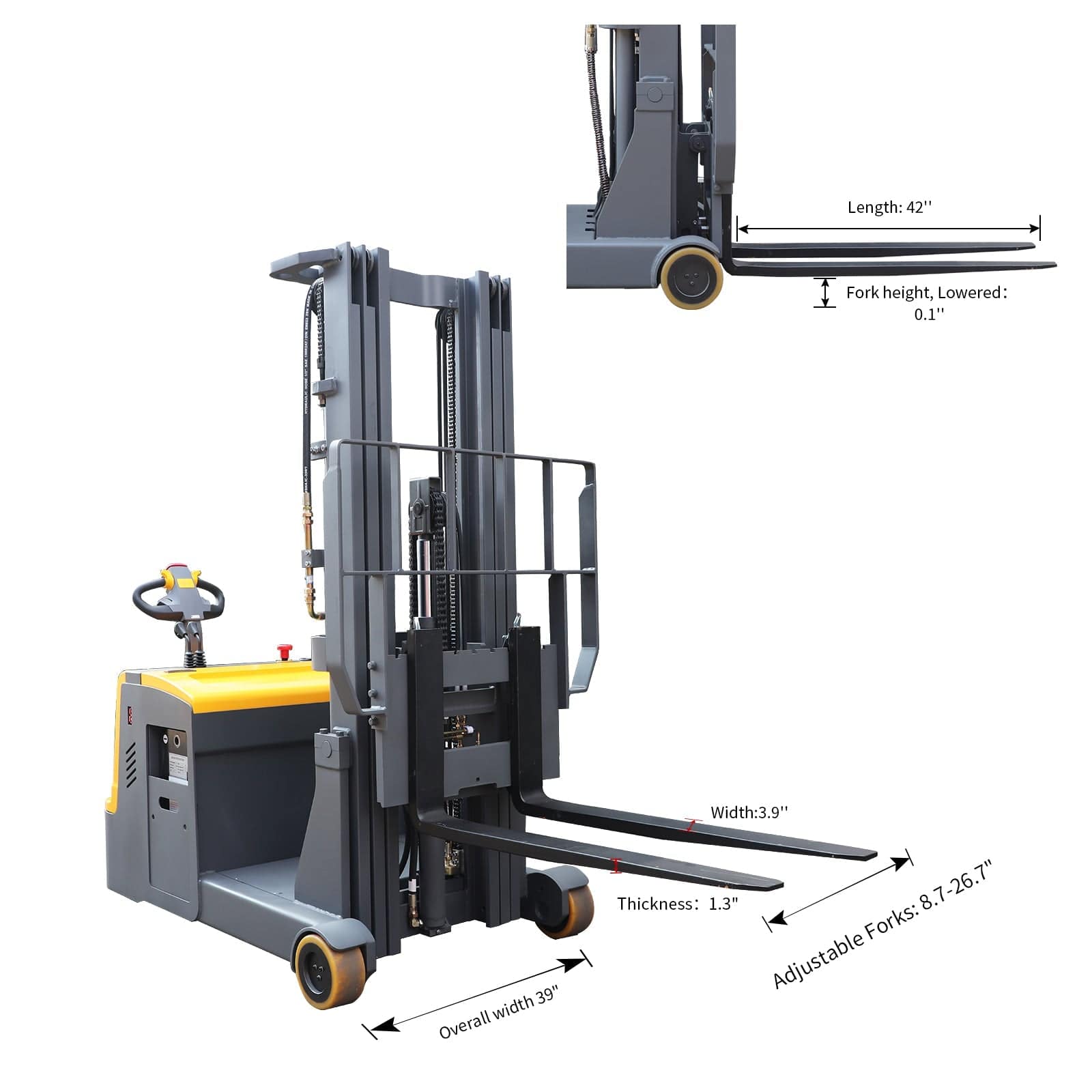

Forks

• Thickness: 1.3"
• Width: 3.9"
• Length: 42"
• Adjustable Forks: 8.7-26.7"

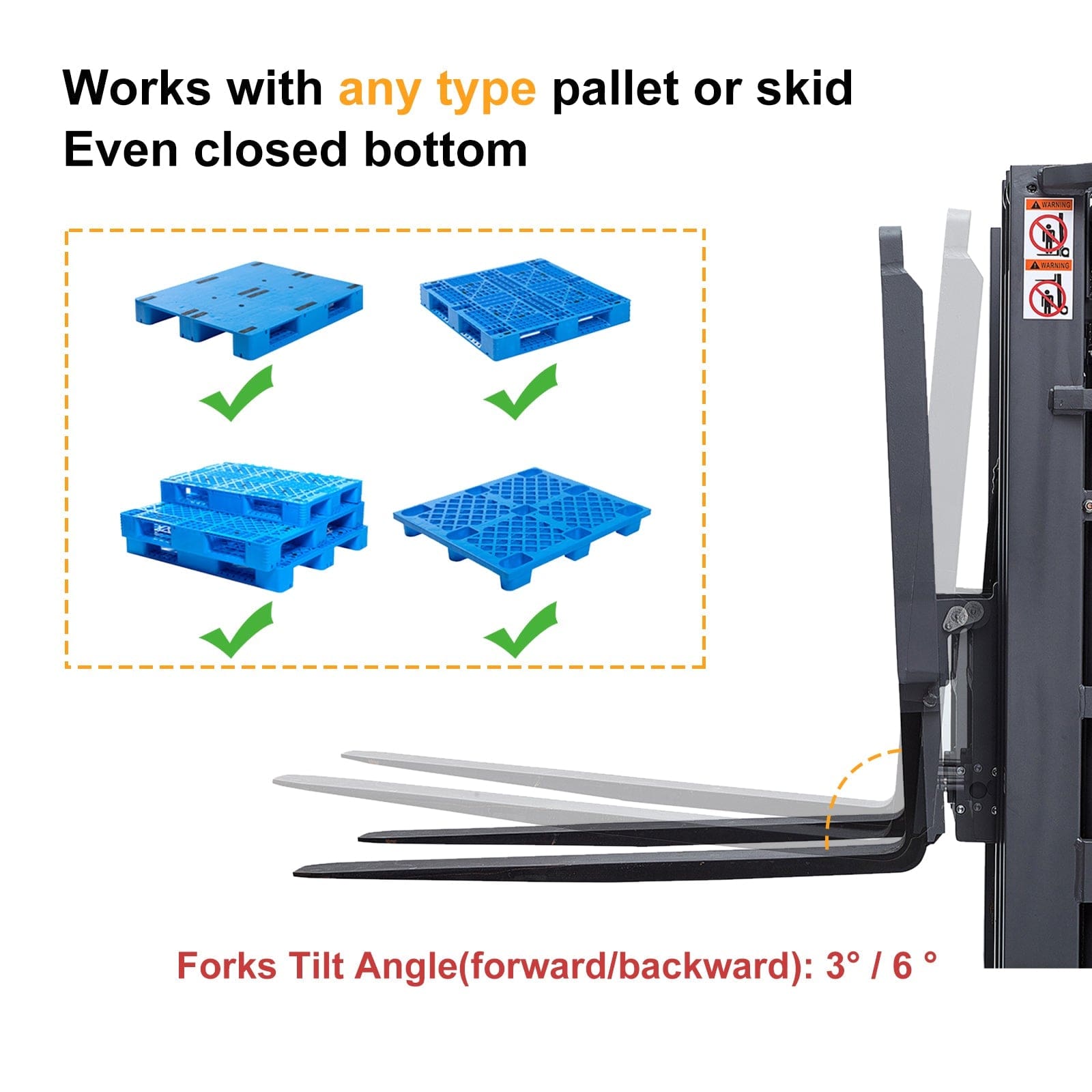

• Forks Tilt Angle(forward/backward): 3° / 6 °

Speed

• Travel Speed (laden/unladen): 3.6 /3.7 mile/h
• Lifting Speed (laden/unladen): 0 - 4.7 / 0 - 6.3 inch/s
• Lowering Speed (laden/unladen): 0 - 17.7 inch/s

Features

• Gradeability(laden/unladen): 6%/10%

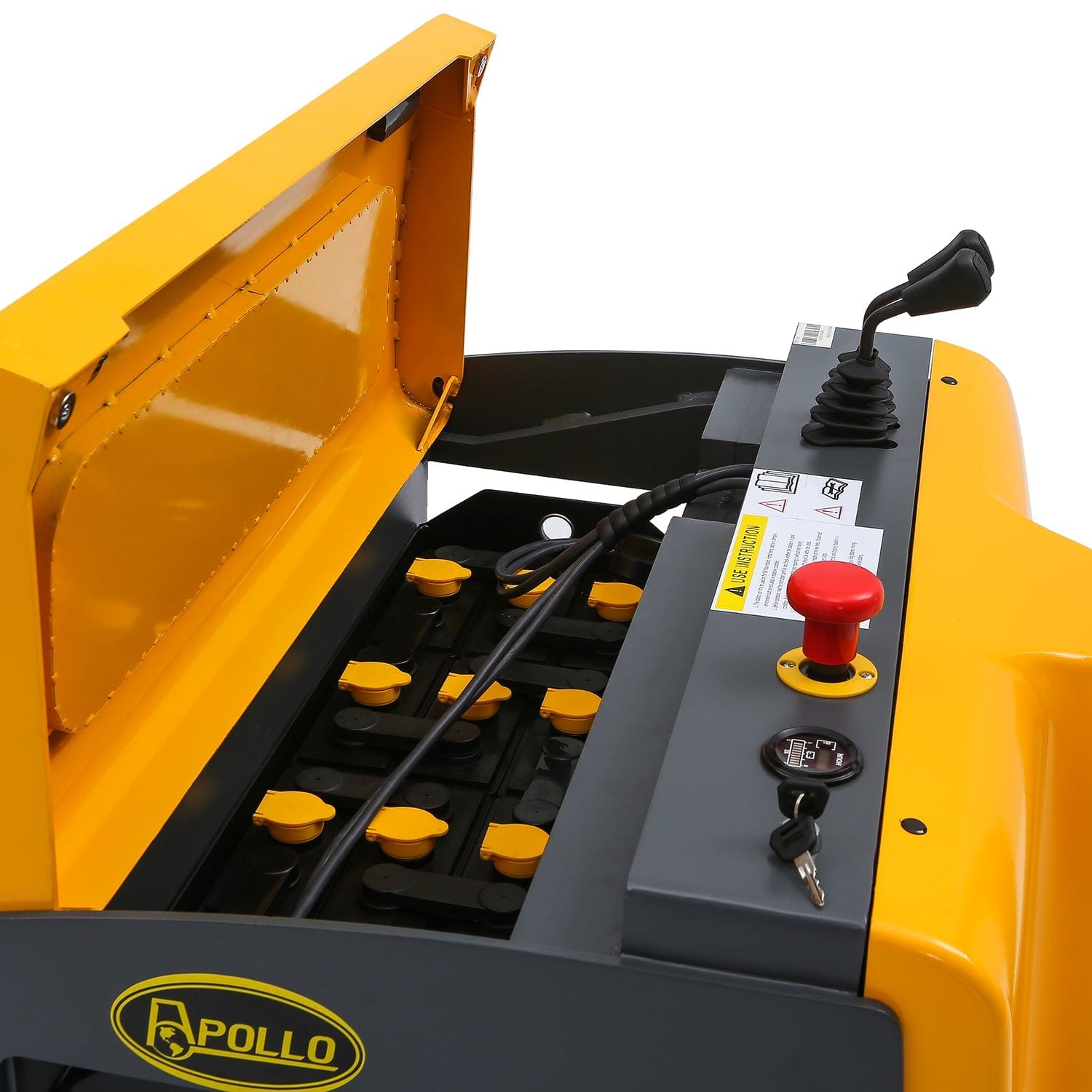

• 8 hours service per charge with big power lead-acid battery capacity 24V/280AH
• 8 hours charging time
• Long handle structure makes it steering light and flexible
• Vertical driving wheel, driving efficiency, easy installation& maintenance
• AC frequency conversion traction motor, compact structure, good performance

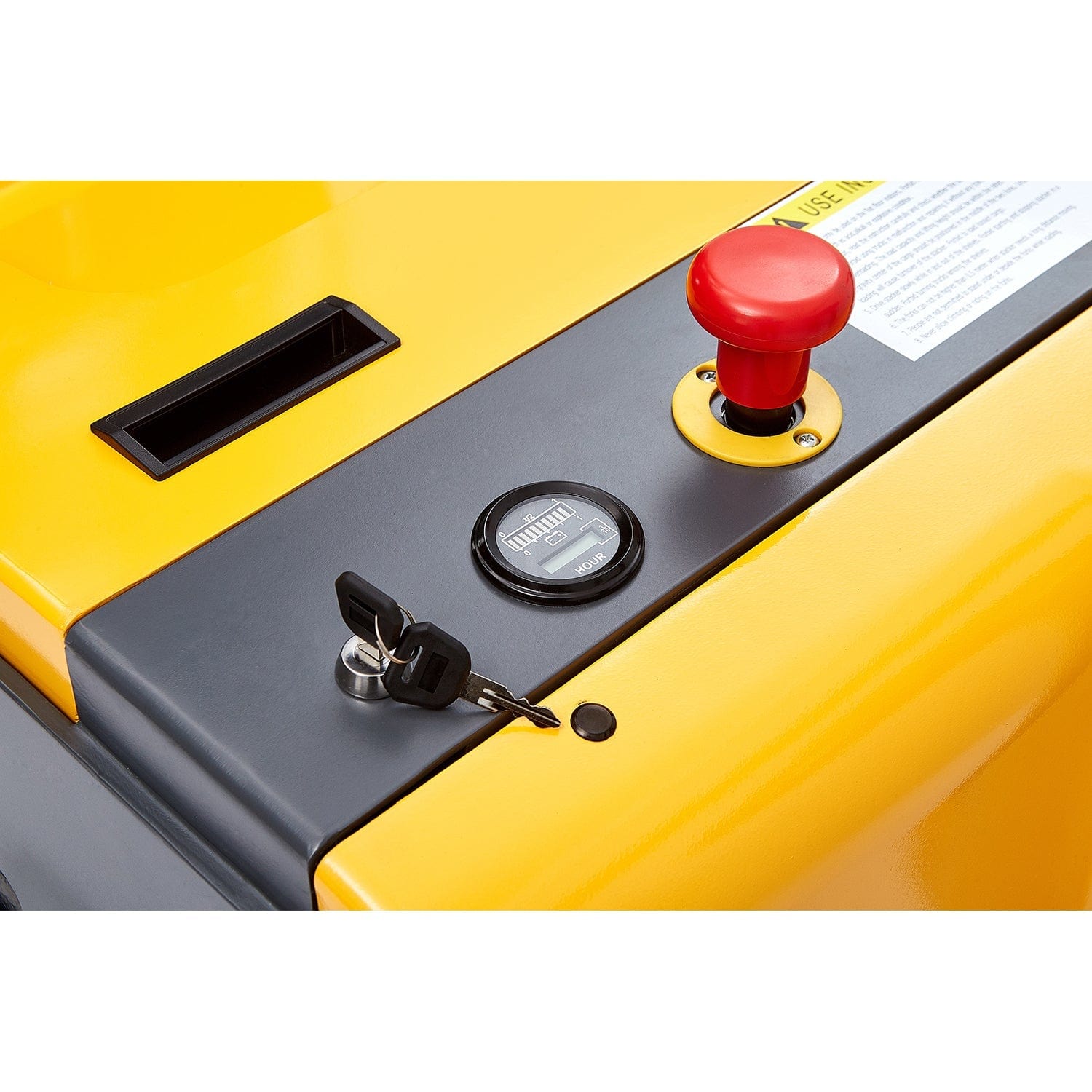

• With emergency stop switch and electricity lock button for safety
• Tilting system forks easy for loading and stacking


Specifications

• Not explosion proof.
• This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.

Videos

Manuals

• A-3032  Detail Page

What Our Experts Think

• 3300lbs High Capacity: The Apollolift Counterbalanced Electric Stacker offers a strong lifting capacity of up to 3300lbs, making it an ideal solution for handling heavy loads and improving operational efficiency in warehouses, distribution centers, and manufacturing facilities.
• 177" Maximum Lift Height: With a 177" lifting height, this electric stacker provides excellent vertical reach, allowing for efficient stacking and retrieval of goods on high shelves or racks. It’s perfect for environments that require the handling of materials in multi-level storage systems.
• Counterbalanced Design for Stability: The counterbalanced design provides exceptional stability while lifting, reducing the risk of tipping when handling heavy loads. This feature is crucial for safety in high-lift applications, ensuring smooth operation without compromising load balance.
• Electric Powered for Effortless Operation: The electric-powered system reduces the physical effort required for lifting, enabling faster, more efficient operations. Operators can easily lift, move, and stack heavy materials with minimal manual effort, increasing productivity.
• Durable Construction: Built with high-quality materials, the Apollolift electric stacker is designed for heavy-duty use and durability. Its robust construction ensures reliability and long-lasting performance, even under harsh working conditions.
• Precision Controls for Smooth Operation: The stacker is equipped with precise, easy-to-use controls that allow operators to lift and lower loads smoothly. This ensures safe and accurate placement of materials, preventing accidents and damage to goods.
• Maneuverability in Tight Spaces: Despite its high lifting capacity, the Apollolift counterbalanced electric stacker is designed for excellent maneuverability. It’s compact enough to navigate narrow aisles and confined spaces, making it ideal for smaller or crowded storage environments.
• Energy-Efficient Design: The battery-powered system ensures that the stacker is energy-efficient, offering long operational periods on a single charge and reducing the need for frequent recharging. This ensures that the equipment remains productive throughout the day.
• Low Maintenance Needs: The electric stacker’s simple design and quality construction make it easy to maintain. With minimal servicing requirements, it reduces downtime and lowers maintenance costs, making it a cost-effective solution for long-term operations.
• Expert-Recommended: Experts highly recommend the Apollolift Counterbalanced Electric Stacker for businesses seeking a high-capacity, efficient, and safe solution for lifting and stacking materials. Its powerful performance, stability, and ease of use make it an excellent investment for warehouses and industries that require heavy lifting and vertical storage capabilities.

Q&A

Q: What is the Apollolift Counterbalanced Electric Stacker A-3032?
A: The Apollolift A-3032 is a counterbalanced electric stacker designed to lift and stack heavy loads. With a 3300 lbs capacity and a lifting height of up to 177", it is ideal for use in warehouses and industrial environments that require high stacking and efficient load handling.

Q: What is the weight capacity of the Apollolift A-3032 electric stacker?
A: The Apollolift A-3032 has a weight capacity of 3300 lbs, making it suitable for lifting and stacking heavy pallets and materials in high-density storage areas.

Q: What is the maximum lifting height of the A-3032 electric stacker?
A: The A-3032 can lift loads up to a height of 177", making it ideal for stacking materials at significant heights, improving vertical storage capacity.

Q: How does the counterbalanced design benefit the A-3032?
A: The counterbalanced design allows the A-3032 to operate in tighter spaces while maintaining stability when lifting heavy loads. It is perfect for areas with limited space where traditional forklifts may not be effective.

Q: How does the electric system work in the A-3032?
A: The A-3032 operates with an electric motor, providing smooth and controlled lifting and lowering of heavy loads. This reduces manual effort and increases efficiency during material handling tasks.

Q: How long does the battery last on a single charge?
A: The battery provides sufficient power to handle an entire work shift, depending on load weight and usage, with a fast recharge time to minimize downtime.

Q: Is the Apollolift A-3032 easy to operate?
A: Yes, the A-3032 is designed for easy operation with ergonomic controls and smooth electric movement. It allows for precise handling of loads, even in narrow aisles or tight spaces.

Q: What are the dimensions of the Apollolift A-3032 electric stacker?
A: The A-3032 features standard pallet fork dimensions, making it compatible with most pallets and ideal for lifting and transporting materials in various industrial settings.

Q: How is the maintenance for the Apollolift A-3032?
A: The A-3032 requires minimal maintenance, thanks to the electric system and high-quality components. Regular inspections and battery checks will help ensure reliable performance.

Q: Is the Apollolift A-3032 built for durability?
A: Yes, the A-3032 is built with durable materials designed to withstand heavy-duty use in demanding environments, ensuring long-lasting reliability and performance.

Q: Can the Apollolift A-3032 be used outdoors?
A: While the A-3032 is primarily designed for indoor use, it can be used outdoors on dry, level surfaces but is best suited for indoor environments where smooth floors are available for optimal operation.

Maintenance Tips

• Battery Management: Charge the battery after each use, avoiding full discharge. Store in a cool, dry location when not in use to extend battery life.
• Tire Inspection: Regularly check tires for wear or damage. Replace if necessary to ensure smooth operation and safety.
• Lift Mechanism Checks: Inspect the lifting mechanism for smooth operation and any signs of wear or damage. Lubricate parts as needed.
• Clean the Stacker: Keep the stacker clean, especially around the lift components, motor, and control area, to prevent dirt buildup that could affect performance.
• Inspect the Hydraulic System: Ensure the hydraulic system is free of leaks and functions smoothly. Test the lift and lower functions regularly.
• Test Controls: Regularly test the controls, including steering, lifting, and lowering, to ensure proper responsiveness.
• Weight Capacity: Do not exceed the 3300lbs weight capacity to prevent strain on the motor and hydraulic components.
