The A-iPower 9000E provides 9,000 watts of starting power and 7,250 watts of running power. It’s well-suited for the construction job site or as backup power for your home during emergencies. The generator features electric start – battery included. Powered by an A-iPower 420cc/14hp OHV engine and combined with an, efficient high-output alternator designed and manufactured by Senci, this unit delivers greater peak wattage when starting motor-driven tools and appliances. The generator features an easy-to-reach, ergonomically angled compact control panel, which conveniently provides easy, user-friendly access and visibility to the panel.
The SUA9000E can power up lights, TV, refrigerator, pumps, air conditioner, and fan all at the same time. It is capable of running 3 to 4 power tools. With a 7-gallon, heavy-duty, all-steel fuel tank with built-in fuel gauge, it provides an average run time of 8.5 hours at 50% load. New for 2017 – we’ve built flexibility and safety in to our SUA9000 with the addition of a 12VDC, USB Ready, Multifunction port and GFCI outlet protection on our 120V outlets.
Features
- 9,000 starting watts / 7,250 running watts
- 60Hz, 120 VAC / 240 VAC, single phase
- 420cc / 14hp ohv, single cylinder, air cooled, 4 stroke engine with electric start
- High performance alternator - provides greater peak wattage, which allows motor-driven appliances and tools to operate simultaneously

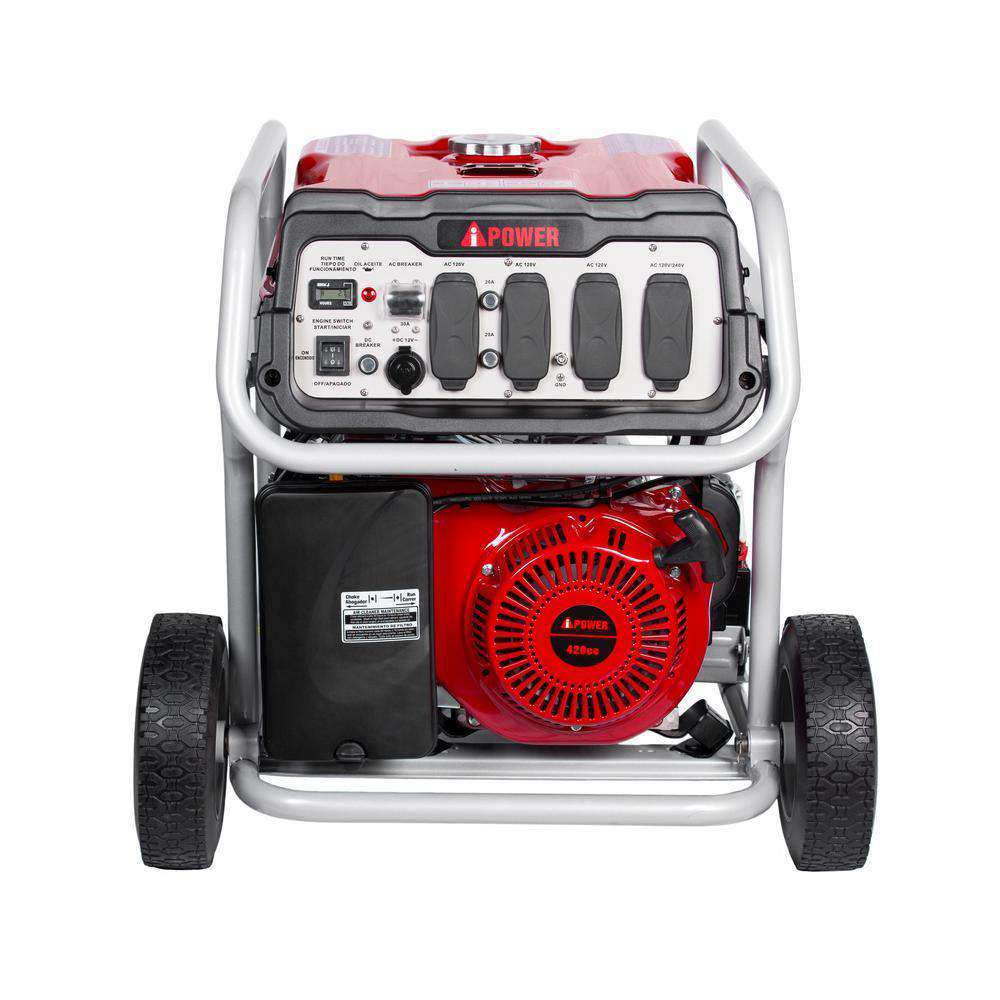

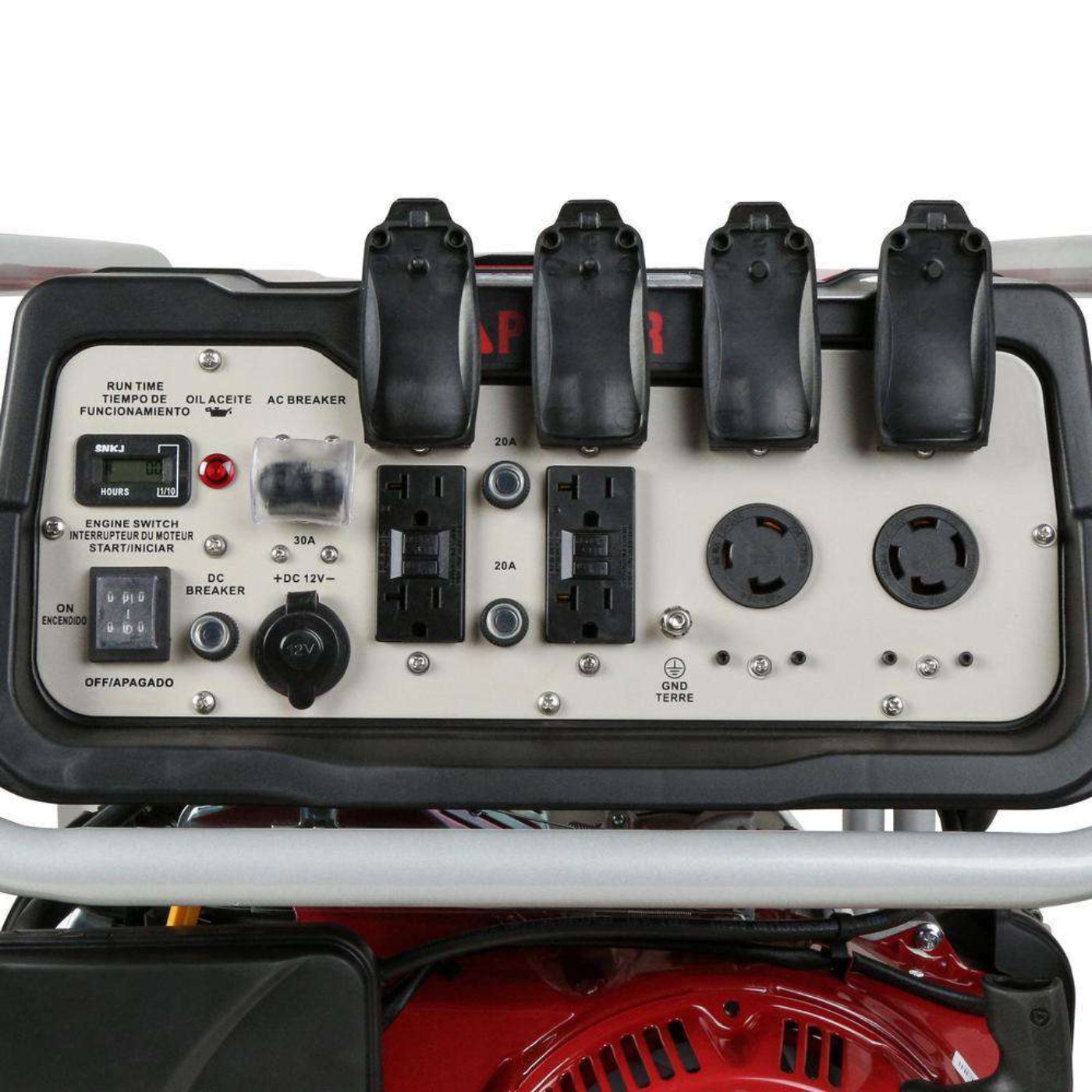

- Easy-access, ergonomically-angled compact control panel
- Multiple front panel outlets for easy power connections; weatherproof covers provide added protection from the environment and rugged working conditions
- Keyless one touch push button start
- Backup recoil start
- Cast iron cylinder sleeves
- Intelligent automatic voltage regulator
- Fuel tank breather hose
- Attractive and rustproof
- Seamless welding
- Built in, easy to read fuel gauge
- Stainless steel fuel cap
- 7 gallon, heavy duty, all steel fuel tank provides up to 9 hours of run time at 50% load
- GFCI protected outlets
- Digital hour meter
- Push - to - reset circuit breakers
- Weatherproof breaker and switch covers
- Built in DC adapter plug and DC charging cables
- Cord protective cover
- Low oil shutdown
- Dual element air filter
- Low tone muffler with USDA approved spark arrestor
- Neutral bonded to frame for added safety
- 1.2" diameter silver grey powder coated rigid tubular steel frame
- Built in ergonomically designed handle

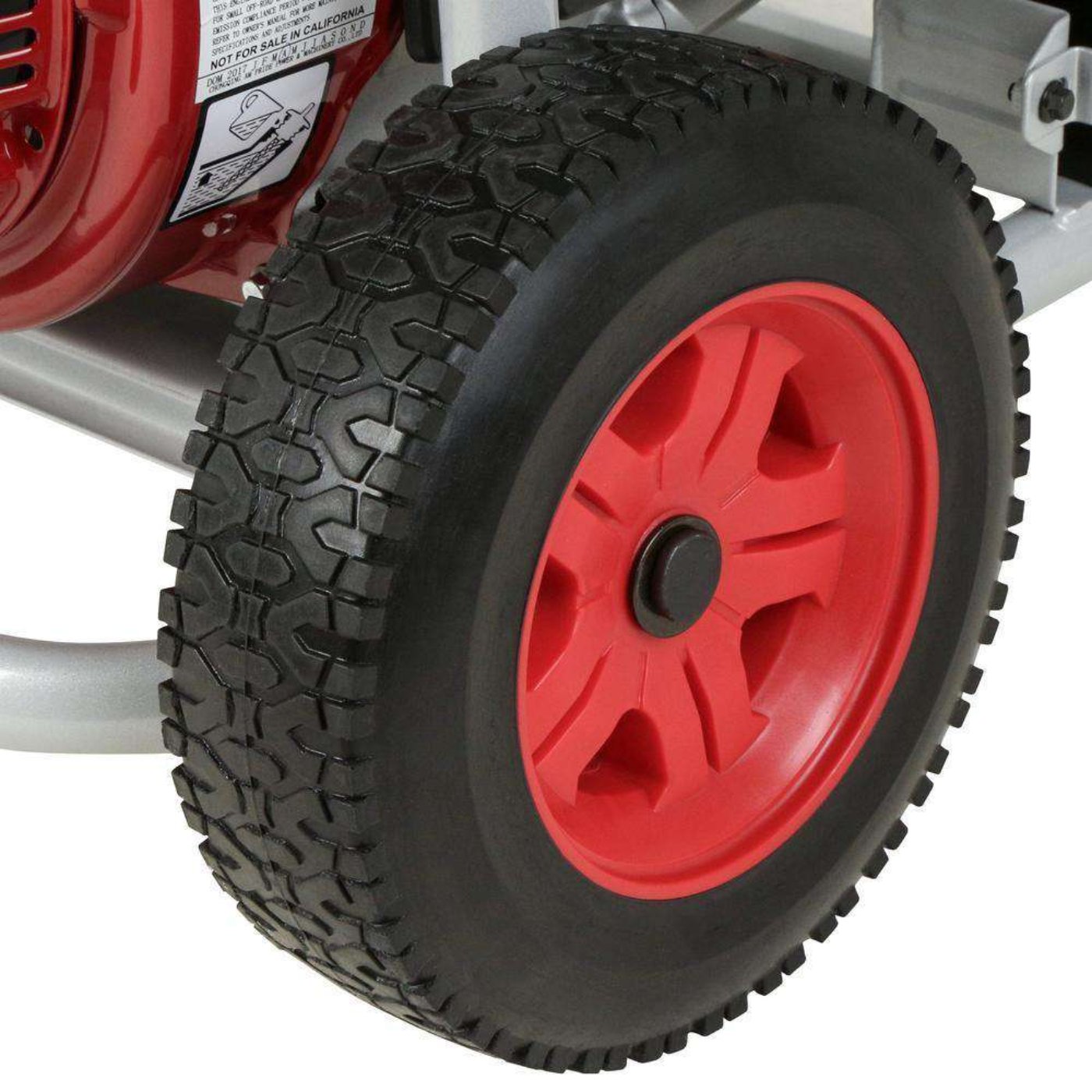

- 9" never flat wheels
- Easy to assemble
- 12v-14ah maintenance-free battery included
Specifications
| MODEL |
SUA9000E |
| UPC CODE |
616641364823 |
| RUNNING WATTS |
7250 |
| STARTING WATTS |
9000 |
| ALTERNATOR |
SENCI |
| AUTOMATIC VOLTAGE REGULATOR |
YES |
| AC LOAD |
120/240V |
| PHASE/FREQUENCEY |
SINGLE/60HZ |
| ENGINE (OHV) |
420CC/14HP |
| STARTING METHOD |
ELECTRIC START |
| LUBRICATION |
SPLASH |
| LOW-OIL SHUTDOWN |
AUTOMATIC |
| RUNNING VAC AMPERAGE |
30.2A |
| LOW-OIL ALERT LAMP |
1 |
| CIRCUIT BREAKER |
20A, 30A |
| FOUR NEMA 120VAC 20A GFCI-PROTECTED OUTLETS |
4 GFCI |
| NEMA 120VAC 30A, L5-30R TWIST-LOCK OUTLET |
1 |
| 120/240VAC 30A NEMA L14-30R TWIST-LOCK OUTLET |
1 |
| 12V 8.3A MULTIFUNCTION PORT - USB READY |
1 |
| WEATHER PROTECTED OUTLET COVERS |
4 |
| NEUTRAL BONDED TO FRAME |
YES |
| FUEL TANK CAPACITY |
7 GAL |
Manual
User's Manual
What Our Experts Think
-
Reliable Power Output: With a peak power of 9000W, this generator offers ample capacity for most household or jobsite needs.
-
Electric Start: The electric start feature ensures hassle-free operation, making it ideal for those who prefer convenience over manual recoil start.
-
Efficient Fuel Usage: Its fuel efficiency allows for longer runtimes, offering both performance and cost-effectiveness during extended use.
-
User-Friendly Design: Designed with portability and ease of use in mind, this model includes never-flat tires and a simple control panel.
-
Ideal for Emergency Backup: With CARB compliance, it's a great choice for emergency power during outages, capable of running essential appliances.
Q&A
Q: What is the power output of the A-iPower SUA9000E?
A: The A-iPower SUA9000E provides 7250W rated and 9000W peak power, perfect for powering large appliances or tools.
Q: Does it feature an electric start?
A: Yes, the SUA9000E includes an electric start for easy and reliable operation, eliminating the need for manual recoil.
Q: Is this generator CARB compliant?
A: Yes, it is CARB compliant, making it suitable for use in all 50 states, including California.
Q: How long can it run on a full tank?
A: With a 7.0-gallon fuel tank, it offers a runtime of up to 10 hours at 50% load, making it ideal for extended use.
Q: Can it power sensitive electronics?
A: Yes, the SUA9000E is equipped to handle sensitive electronics, providing stable power with minimal THD (Total Harmonic Distortion).
Maintenance Tips
-
Regular Oil Changes: Change the oil every 50 hours of use or at least once every 6 months.
-
Fuel System Maintenance: Use fresh fuel and add a fuel stabilizer to prevent gumming and corrosion in the carburetor.
-
Air Filter Cleaning: Clean or replace the air filter every 25 hours of operation to ensure proper airflow and engine performance.
-
Spark Plug Inspection: Check and clean the spark plug every 100 hours of use to ensure efficient ignition.
-
Battery Care: Keep the battery charged and inspect it regularly to avoid electrical issues.
-
General Inspection: Regularly check for loose parts, leaks, or damage and tighten bolts as needed.
