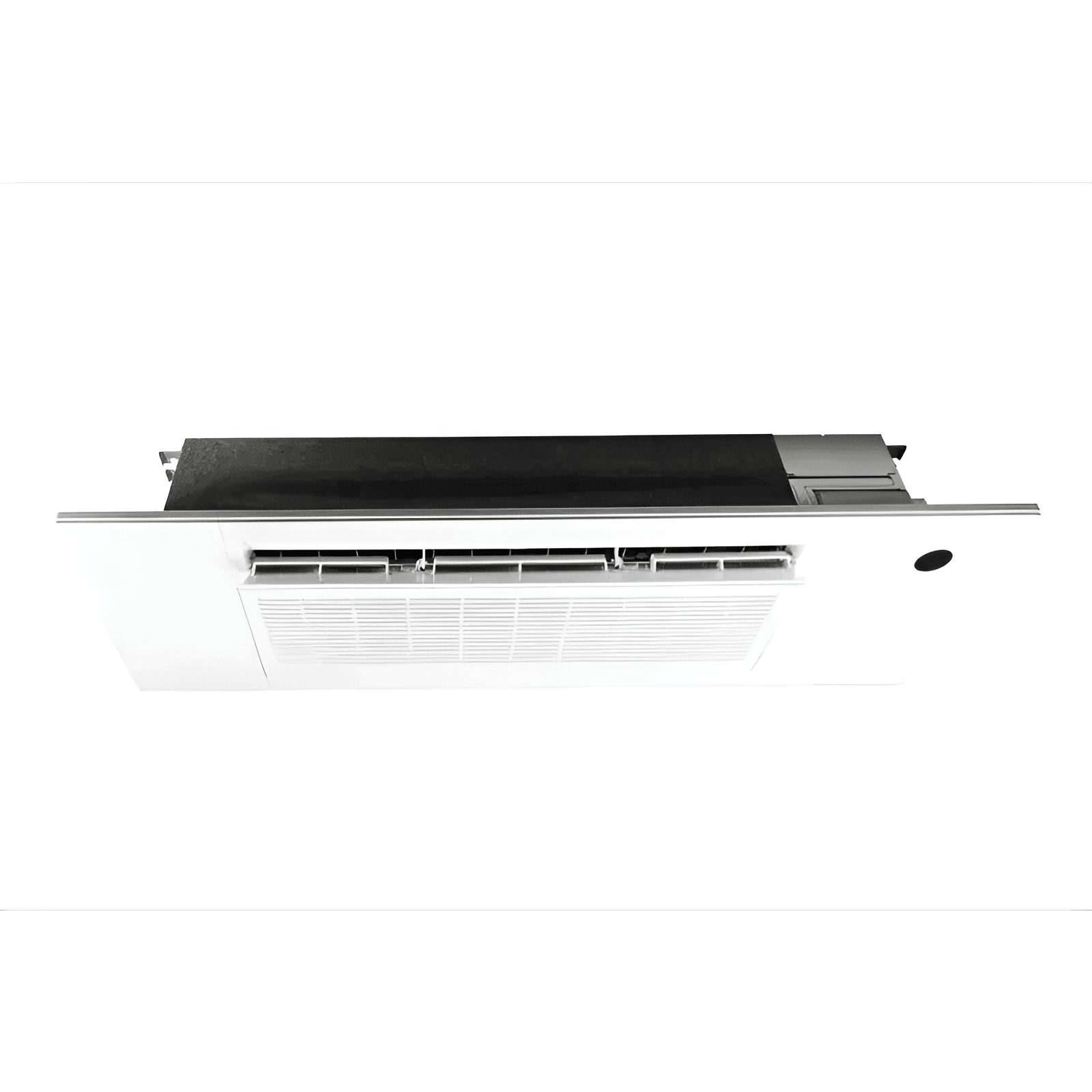

ACiQ 12,000/18,000 BTU Slim Ceiling Cassette Mini Split Air Handler

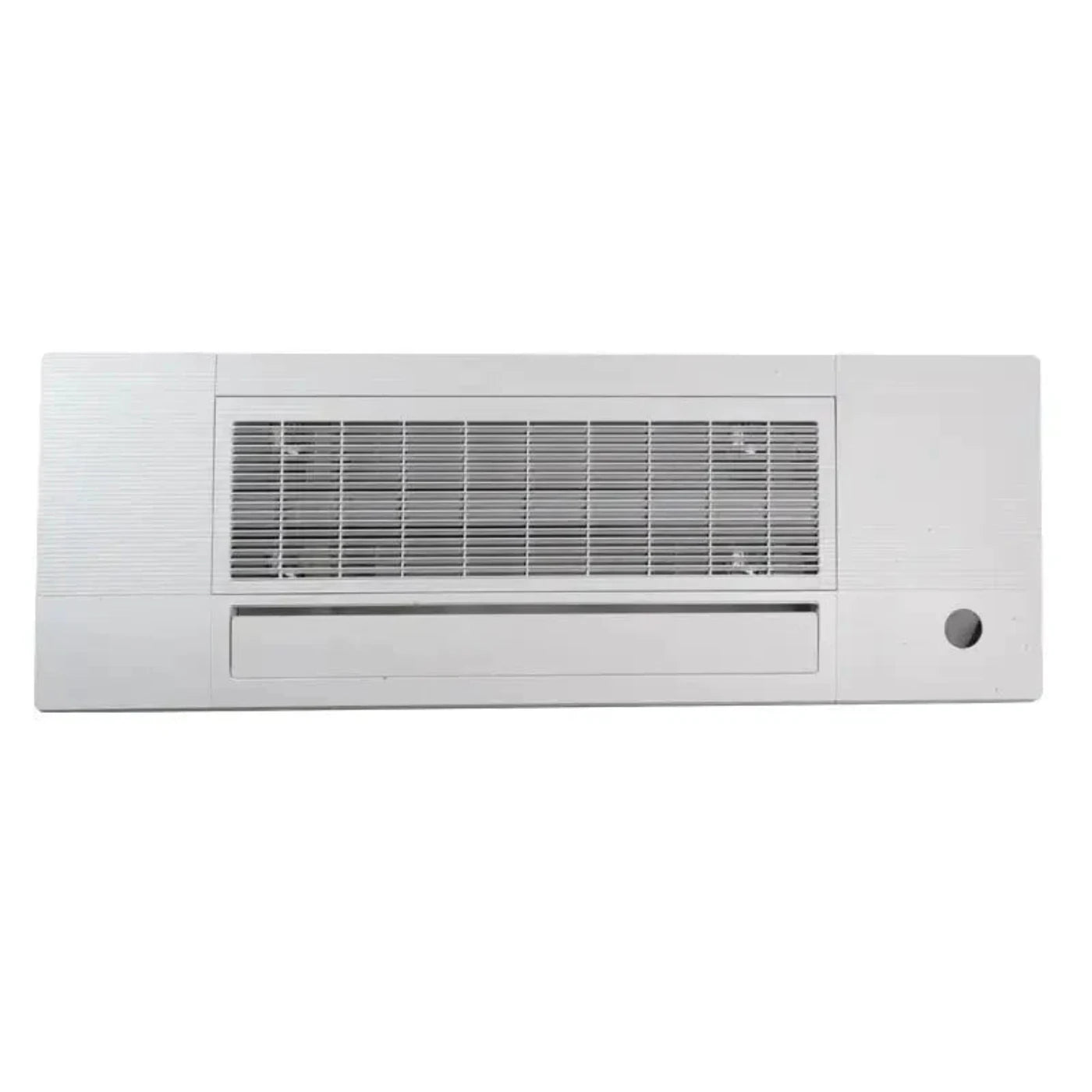

Slim Ceiling Cassettes offer the benefits of a traditional cassette, but with a slimmer design made to fit between 16”-on-center joists. This allows for easier installation in many scenarios. One-way air is featured in Slim Ceiling Cassettes, with return air being drawn in along one edge and conditioned air being delivered from the opposite side. In comparison, traditional ceiling cassettes distribute conditioned air in four directions and take in return air at the center. With high-efficiency heating and cooling capabilities similar to a standard wall-mounted unit, Slim Ceiling Cassette air handlers also include a handheld remote control. Once installed in the ceiling, only the grille is visible, providing a subtle and discreet appearance.

Switchable Sizing

• ACiQ-SCC1218 – 18,000 BTU default, switchable to 12,000 BTU by changing the dip switch

Installation Considerations

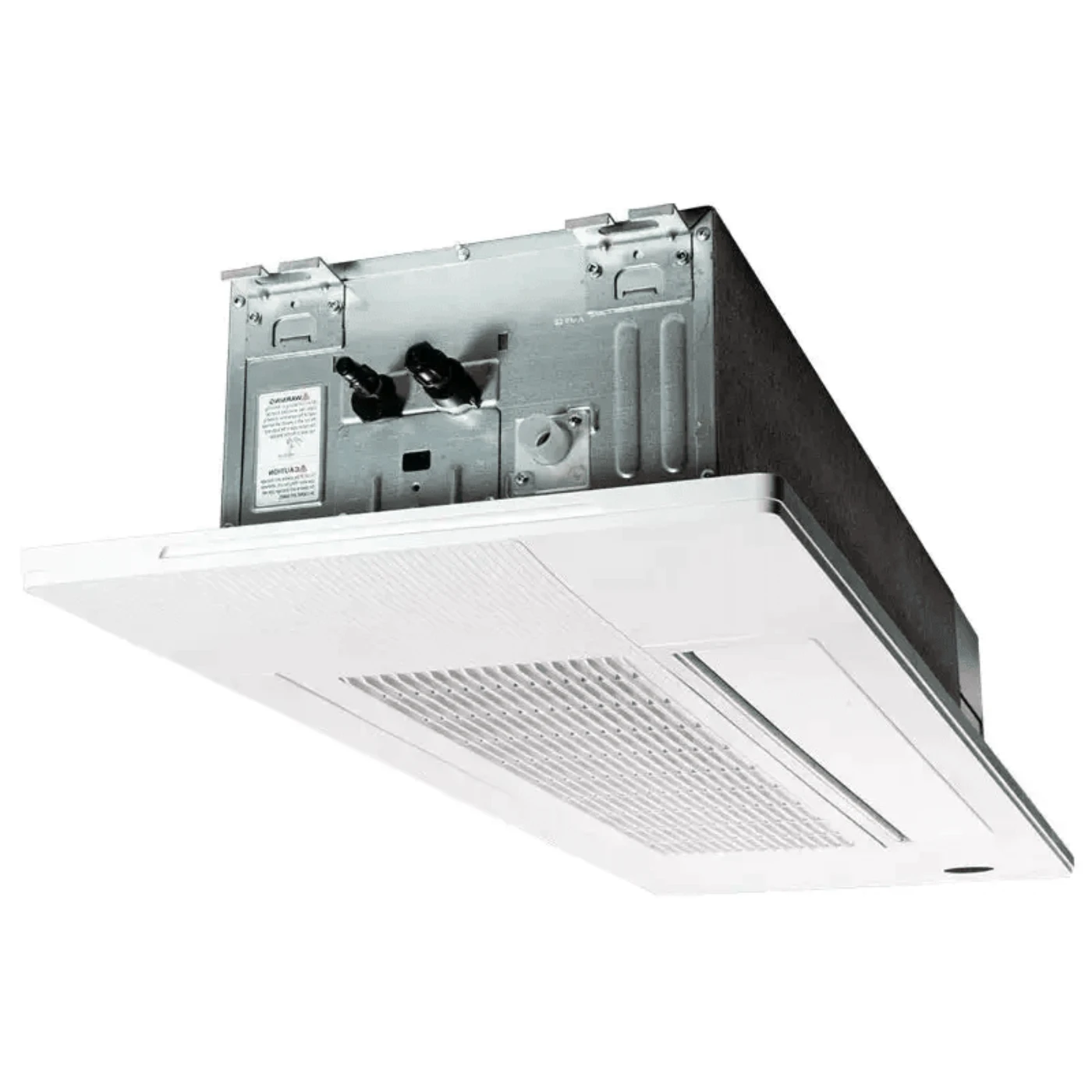

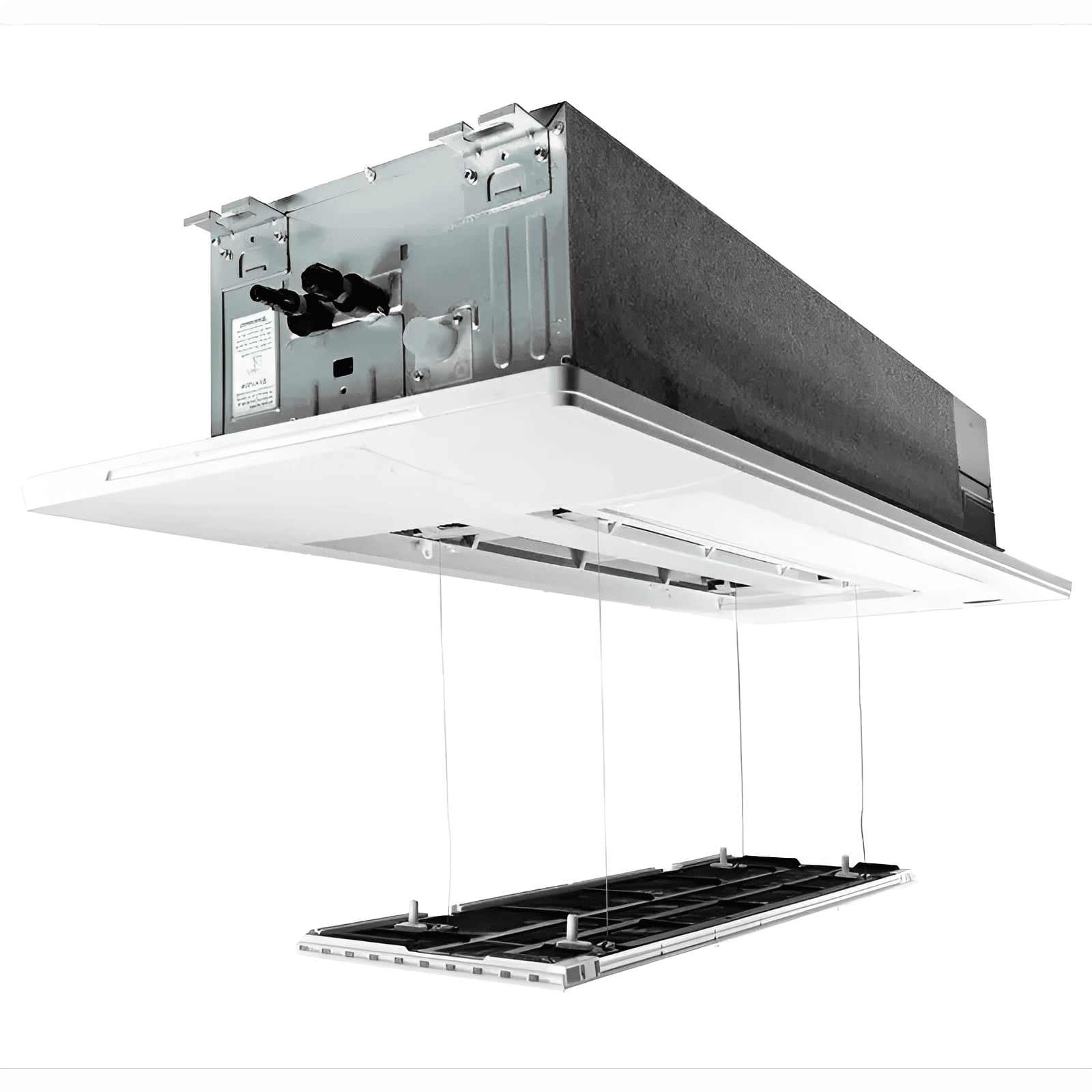

Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling cassette is designed to fit between 16” on center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.

 Specifications

SKU	SCC-1218-HH-M / SCC-GRILLE-0618
Weight (in lbs)	43.870000
Brand/Manufacturer	ACiQ

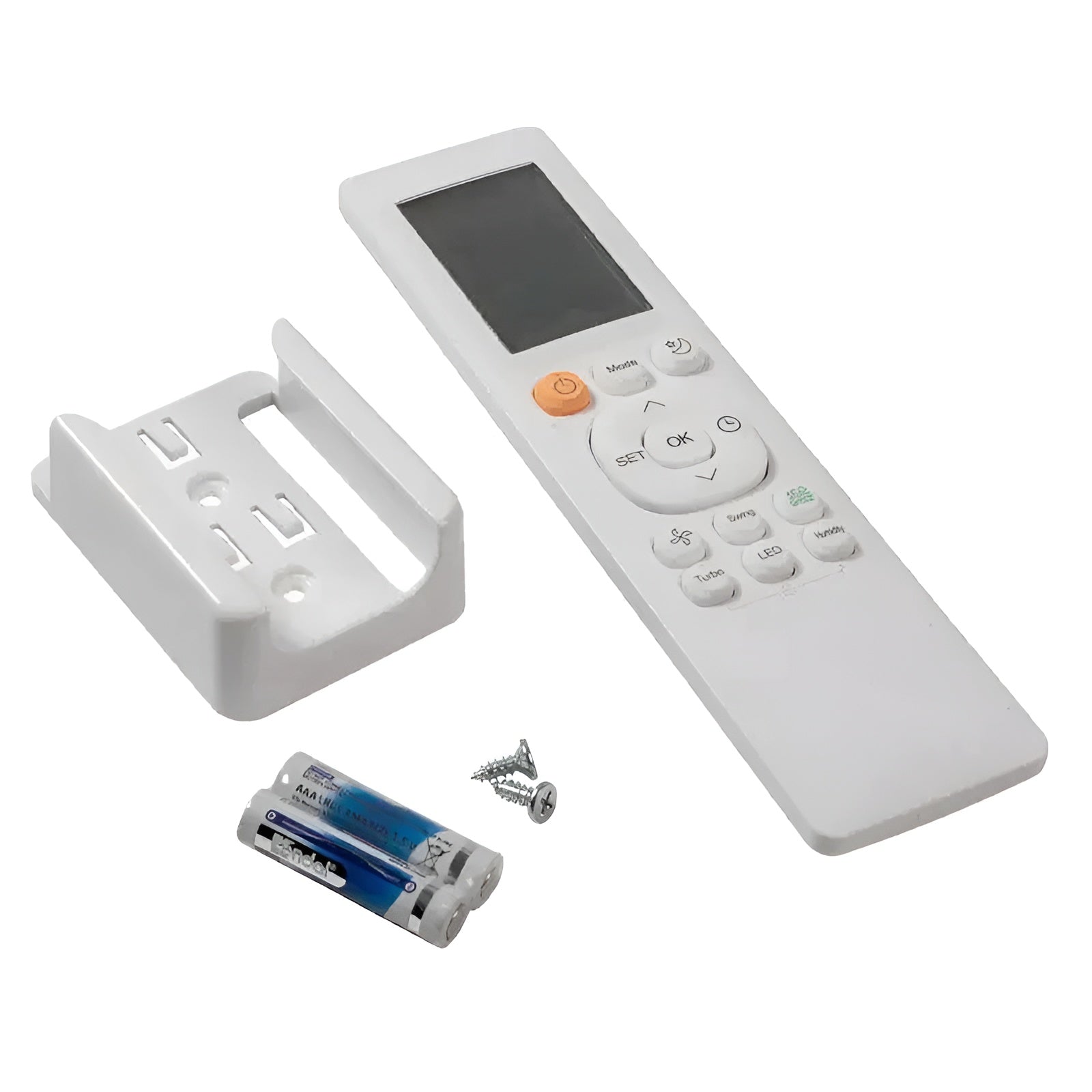

Controller	Wireless Included
Cooling BTU	16700 BTU
Heating BTU	20000 BTU
Maximum CFM	400
Decibel Level (dBA)	35
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	1/4'
Suction Line	1/2'
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini-Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	8.98'
Width	50.31'
Depth	13.19'
Warranty	12 year compressor, 7 year parts with online registration



What Our Experts Think

• Powerful & Efficient: Offers 12,000 to 18,000 BTU of cooling and heating capacity, making it ideal for medium to large rooms.
• Space-Saving Design: The slim, ceiling-mounted unit saves wall space and fits seamlessly into any room.
• Energy-Efficient Inverter: Reduces energy consumption while maintaining consistent temperature control.
• Quiet Performance: Operates quietly for a comfortable, noise-free environment.
• Easy Installation & Maintenance: Simple to install and maintain, ensuring long-term reliability with minimal upkeep.

Q&A

Q: What is the cooling and heating capacity of this unit?
A: The ACiQ Slim Ceiling Cassette Mini Split offers 12,000 to 18,000 BTU cooling and heating capacity, perfect for medium to large rooms.

Q: Is this unit energy-efficient?
A: Yes, it features advanced inverter technology, ensuring low energy consumption while maintaining optimal temperature control.

Q: Can this unit be installed in a ceiling?
A: Yes, its slim design is specifically designed for ceiling installation, saving wall space and blending seamlessly into any room.

Q: Is this mini split unit easy to install?
A: Yes, the unit is designed for quick and hassle-free installation, with minimal downtime for setup.

Q: Does it work for both cooling and heating?
A: Yes, the ACiQ Mini Split provides both cooling and heating capabilities, offering year-round comfort.

Maintenance Tips

• Clean the Filter Regularly: Check and clean the air filter every month to ensure optimal airflow and efficiency.
• Inspect Coils and Fins: Clean the evaporator and condenser coils annually to prevent dirt buildup, improving performance.
• Check Drainage: Ensure the drainage system is free from blockages to prevent water damage and mold growth.
• Inspect Seals: Regularly check the seals around the unit for any gaps, ensuring they are intact to maintain energy efficiency.
• Professional Servicing: Schedule annual maintenance with a professional technician to check refrigerant levels and ensure proper operation.
