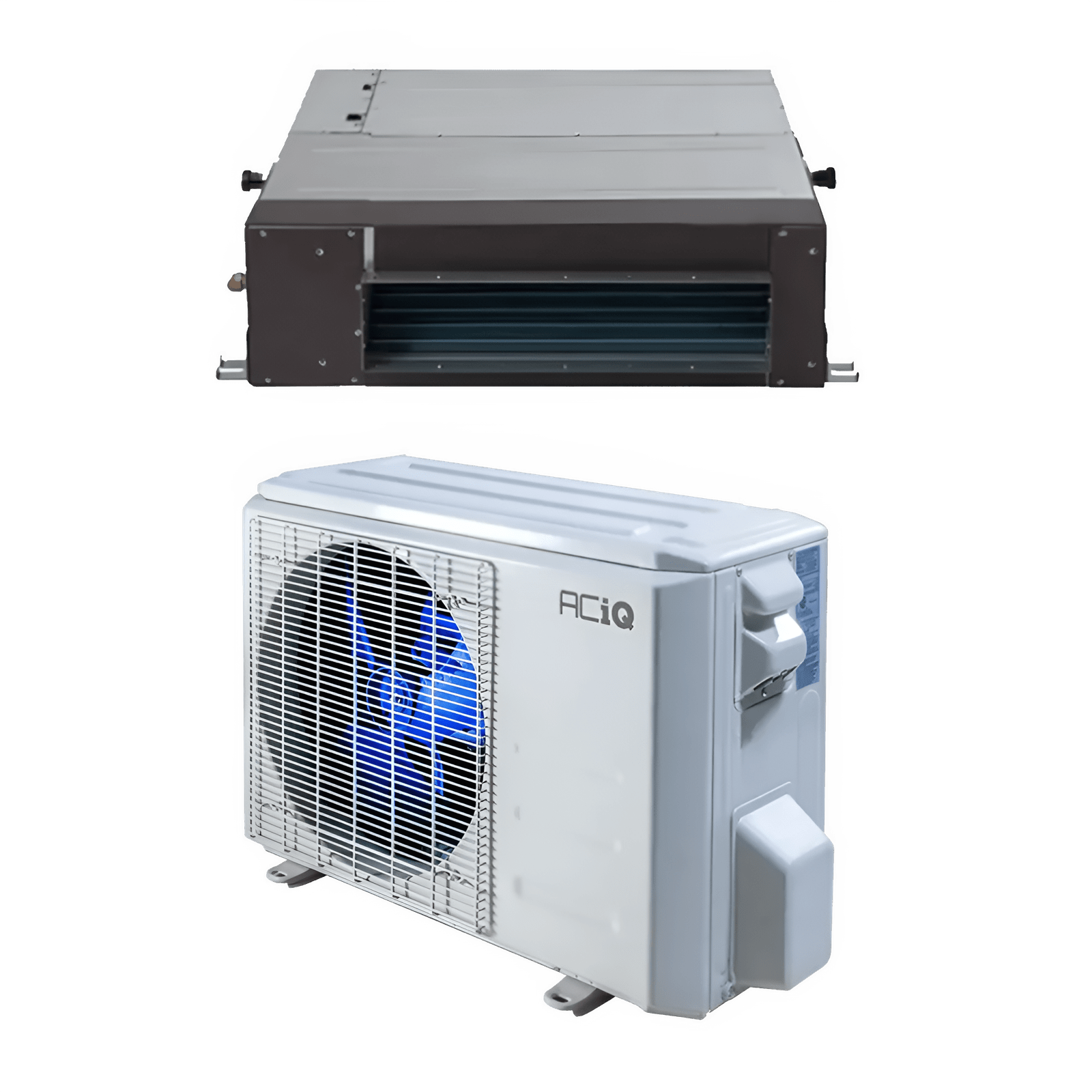

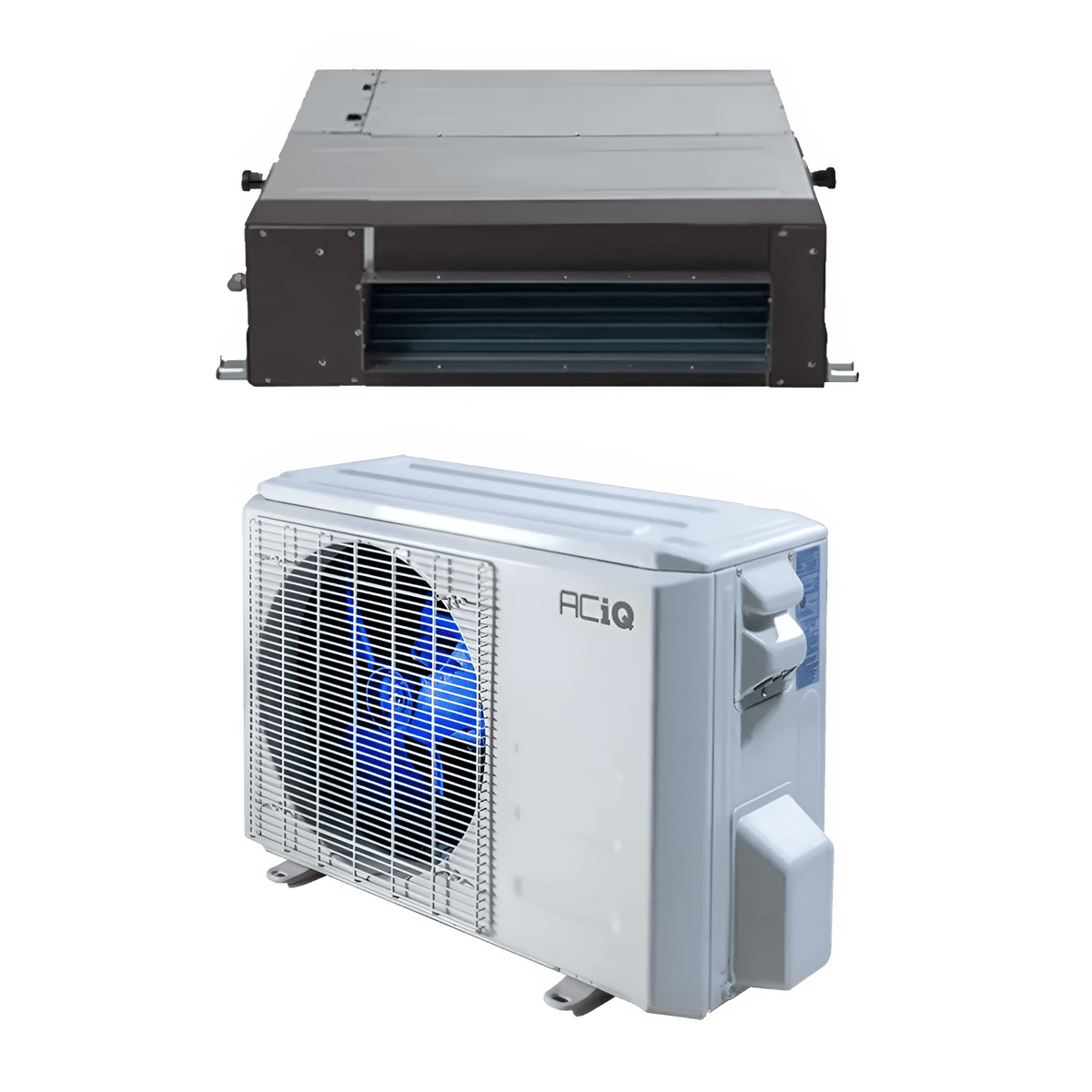

ACiQ Platinum 12,000 BTU 25 SEER Single Zone Concealed Duct Mini Split System w/ Extreme Heat

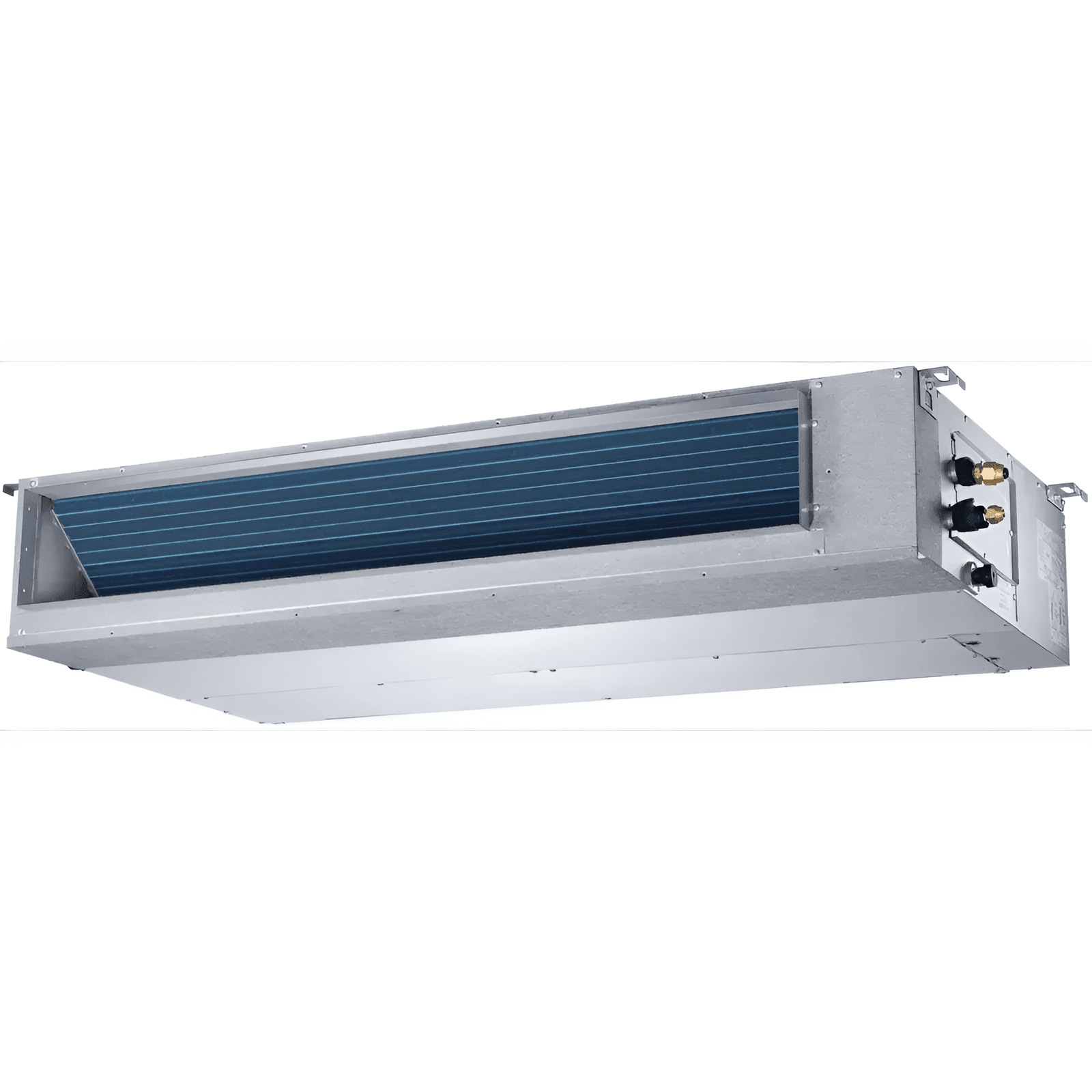

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Installation Considerations

Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.

Feature

• 12,000 btu of Heating or Cooling
• Dry and Fan modes also available
• Good for a smaller room in most climates
• Wall mounted thermostat included

Specifications

What Our Experts Think

• Top-tier Efficiency: With a 25 SEER rating, the ACiQ Platinum 12,000 BTU Mini Split delivers outstanding energy savings.
• Ideal for Residential & Commercial Use: Perfect for single-zone cooling and heating in medium-sized spaces.
• Extreme Heat Performance: Designed to handle extreme temperatures, ensuring reliable heating even in cold climates.
• Quiet Operation: Runs quietly, providing comfort without disturbing noise.
• Compact Design: The concealed duct system saves space while delivering powerful performance.
• Smart Technology: Features advanced controls for precise temperature management and easy operation.
• Long-lasting Durability: Built to last with high-quality materials and cutting-edge engineering.

Q&A

Q: What is the cooling capacity of the ACiQ Platinum 12,000 BTU system?
A: It provides 12,000 BTU of cooling, perfect for medium-sized spaces.

Q: Does it also provide heating?
A: Yes, this system offers efficient heating with extreme heat capabilities for cold climates.

Q: What is the SEER rating?
A: The system has an impressive 25 SEER rating, ensuring excellent energy efficiency.

Q: Is it quiet during operation?
A: Yes, it operates quietly, providing comfort without disruptive noise.

Q: Is this unit suitable for residential and commercial use?
A: Yes, it is ideal for both residential and commercial spaces.

Q: Does it require professional installation?
A: Yes, professional installation is recommended for optimal performance and efficiency

Maintenance Tips

• Clean the Filters: Check and clean the air filters every 30 days to maintain optimal airflow and efficiency.
• Inspect the Ductwork: Ensure ducts are clear of debris and properly sealed for maximum performance.
• Clean the Coils: Clean the evaporator and condenser coils annually to prevent buildup and maintain cooling and heating efficiency.
• Check the Drain Line: Ensure the condensate drain is clear to prevent water damage and mold growth.
• Test the System: Run the heating and cooling functions periodically, especially during off-seasons.
• Schedule Professional Maintenance: Have a technician inspect the system annually to ensure peak performance and longevity.
