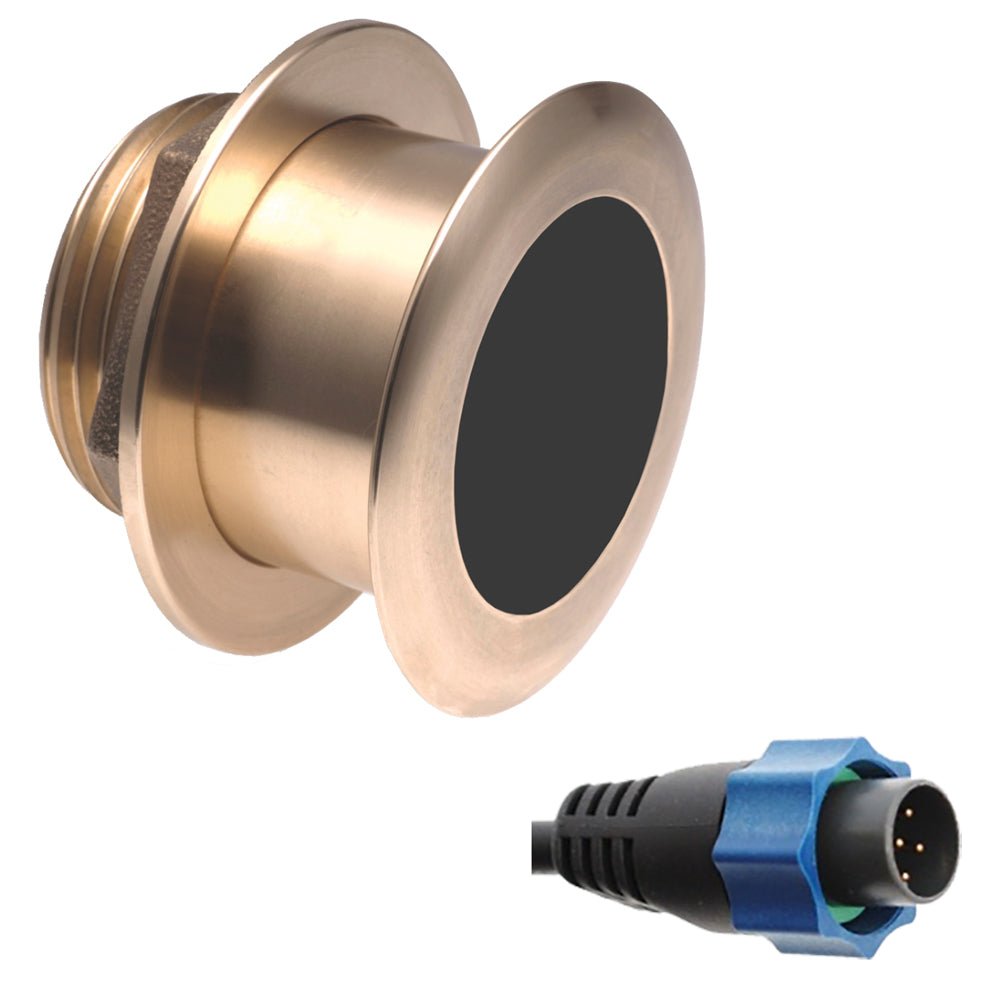

Airmar B164 1kW 0° Thru-Hull Transducer for Simrad w/Blue Connector - CW59852

Airmar B164 1kW 0° Thru-Hull Transducer for Simrad w/Blue Connector - B164-0-BL

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.

The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.

Features

• Power output 1000W

• 3.875" hole size (98mm)

• Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz

• Maximum depth 1200-1800 ft @ 50kHz

• Maximum depth 500-800 ft @ 200kHz

Specification

What Our Experts Think

• Superior Signal Quality: The Airmar B164 1kW 0° Thru-Hull Transducer delivers excellent sonar performance for precise fishfinding.
• Durable Construction: Built with robust bronze housing, it ensures long-lasting use even in harsh marine environments.
• Easy Installation: The transducer is designed for straightforward installation with the included blue connector for Simrad systems.
• Wide Compatibility: It integrates seamlessly with compatible Simrad fishfinders, providing reliable performance.
• Highly Accurate: Its 0° beam angle ensures superior bottom tracking and depth readings, ideal for recreational or professional use.

Q&A

Q: What type of fishfinders is the Airmar B164 transducer compatible with?
A: The Airmar B164 is specifically designed for use with Simrad fishfinders.

Q: What is the beam angle of the B164 transducer?
A: The B164 features a 0° beam angle for accurate bottom tracking and depth measurements.

Q: Is the Airmar B164 durable for marine environments?
A: Yes, the transducer has a robust bronze housing, ensuring long-lasting durability even in harsh marine conditions.

Q: Does the B164 transducer come with an installation kit?
A: Yes, it includes the blue connector for easy installation with compatible Simrad systems.

Q: What power output does the Airmar B164 provide?
A: The B164 is a 1kW transducer, offering high-powered sonar performance.

Maintenance Tips

• Regular Cleaning: Inspect and clean the transducer periodically to remove marine growth, debris, or salt buildup, ensuring optimal performance.
• Check for Damage: Inspect the transducer for cracks, corrosion, or wear, especially after rough trips or docking.
• Test Frequency: Perform routine checks by testing the sonar signal to ensure it's clear and uninterrupted.
• Monitor Wiring: Regularly inspect the blue connector and wiring for any signs of wear, corrosion, or loose connections.
• Protect During Winter: If not in use during the winter, disconnect the transducer and store it in a dry, safe location to avoid potential damage from freezing temperatures.
