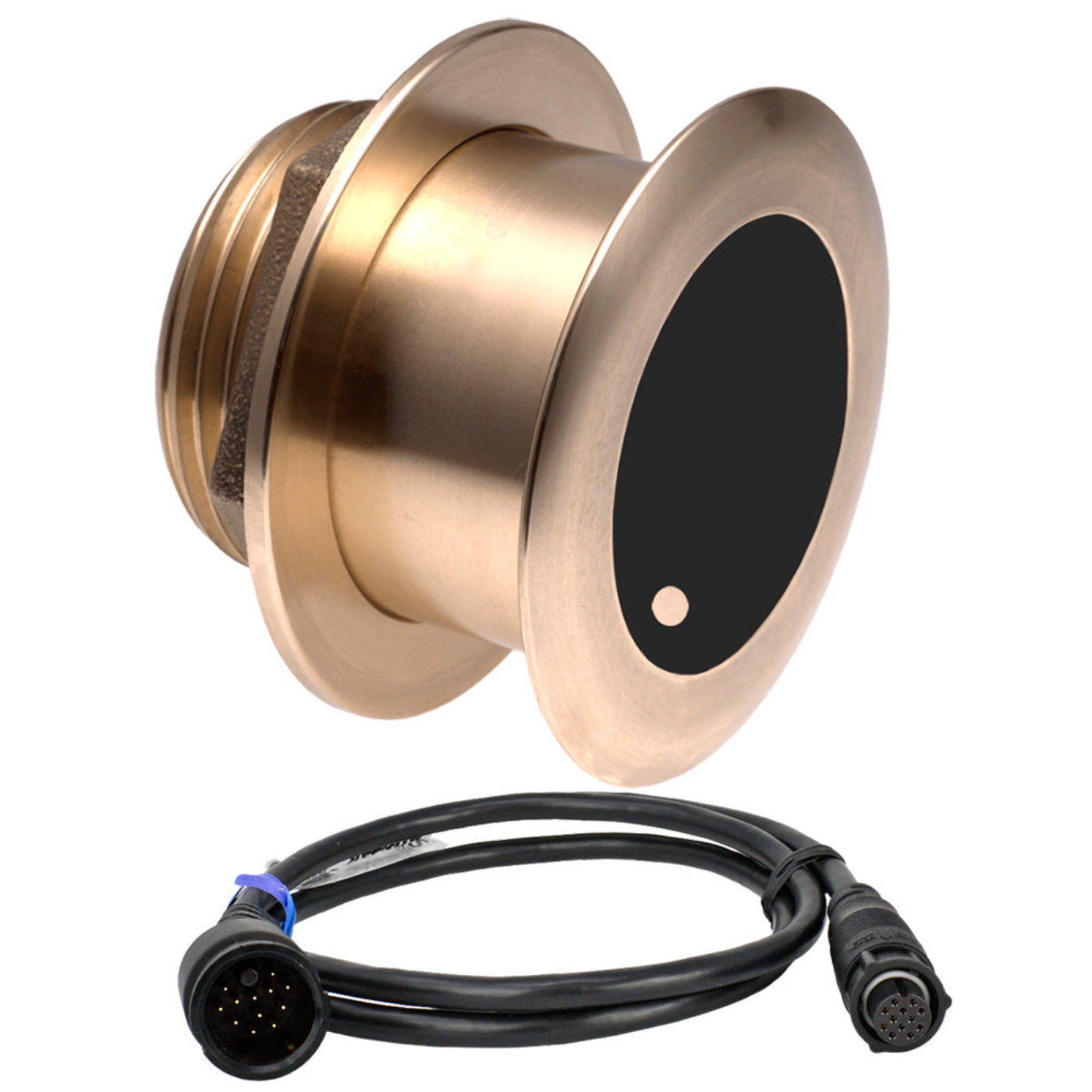

Airmar B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull 12-Pin Transducer - CW103572

The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Features

• Fixed 20° tilted version for 16° to 24° hull deadrise

• 12 Pin Connector for Furuno TZTouch3 12" and 16" Displays

• Depth and fast-response water-temperature sensor

• 1 kW with depth tracking down to 400 m (1,300#39;)

• Medium frequency: 60-100 kHz

Specifications

What Our Experts Think

• High Performance: The Airmar B175MW delivers exceptional clarity and range, making it ideal for a variety of fishing conditions.
• Advanced CHIRP Technology: With 1kW power and a 20° beam angle, this transducer excels in providing detailed medium to shallow water imaging.
• Versatile Compatibility: Designed for use with Garmin 12-pin systems, ensuring seamless integration with your setup.
• Reliable Durability: Built with a robust bronze housing for reliable performance in harsh marine environments.
• Ideal for Offshore and Coastal Fishing: The ultra-wide coverage provides an unmatched advantage in locating fish and structures in various depths.

Q&A

Q: What is the beam angle of the Airmar B175MW?
A: The Airmar B175MW features a 20° beam angle, providing a wide coverage for superior fish detection.

Q: Which sonar systems are compatible with this transducer?
A: This transducer is designed for use with Garmin 12-pin systems, ensuring seamless integration.

Q: Is this transducer suitable for deep-water fishing?
A: While it excels in medium to shallow waters, it is ideal for offshore and coastal fishing, offering great clarity and range.

Q: What power output does the Airmar B175MW offer?
A: The B175MW delivers 1kW of power, ensuring high-performance imaging even in challenging conditions.

Q: What material is the transducer housing made from?
A: The housing is constructed from durable bronze, providing long-lasting reliability in marine environments.

Maintenance Tips

• Regular Inspection: Check the transducer regularly for debris or growth that can affect performance. Clean with fresh water and a soft brush.
• Hose Off After Use: Rinse the transducer with fresh water after each use to remove saltwater and prevent corrosion.
• Protect from Impact: Ensure the transducer is not exposed to physical damage. Avoid running aground or hitting objects while boating.
• Check for Leaks: Periodically inspect the installation for leaks or signs of wear to maintain performance and prevent water intrusion.
• Store Properly: When not in use, store the boat in a dry, cool area to avoid damage from the elements
