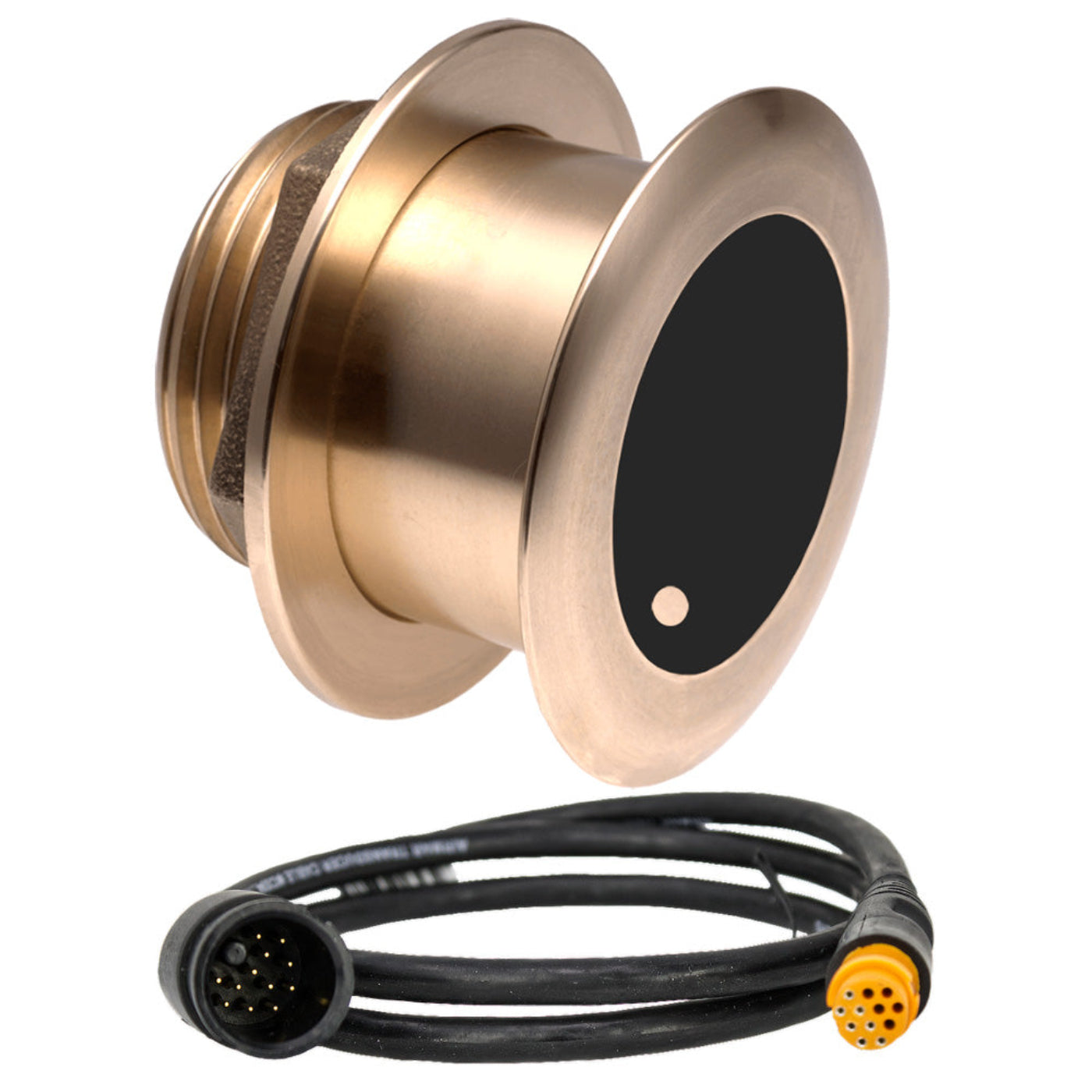

Airmar B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin - CW103573

Airmar B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin - B175C-20-MW-12G

Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Features

• Fixed 20° tilted version for 16° to 24° hull deadrise

• 12 Pin Connector for Garmin FishFinders

• 1 kW with depth tracking down to 400 m (1,300#39;)

• Medium frequency: 60-100 kHz

• 16° average fore/aft

• 40 kHz of total bandwidth from one transducer

• Exclusive Xducer ID® technology

Specifications

What Our Experts Think

• Excellent Signal Clarity: The Airmar B175MW delivers outstanding signal clarity, making it ideal for both shallow and deep water applications.
• Wide Beam Coverage: With a 20° ultra-wide beam angle, it provides superior coverage, enhancing target separation and bottom detail.
• Durability: Built to withstand harsh marine environments, the bronze construction ensures longevity and resistance to corrosion.
• Easy Integration: The 12-pin Garmin compatibility ensures seamless integration with Garmin sonar systems for hassle-free installation.
• Versatile Use: Perfect for recreational and professional mariners who demand high performance in medium-depth fishing.

Q&A

Q: What is the primary function of the Airmar B175MW 1kW Chirp Transducer?
A: The Airmar B175MW is designed to provide exceptional medium-frequency, ultra-wide sonar coverage, delivering clear and detailed underwater imaging for Garmin systems.

Q: What boat types is this transducer suitable for?
A: Ideal for mid-to-large-sized boats, the B175MW offers a robust solution for recreational and commercial vessels, ensuring high performance in a variety of marine conditions.

Q: Is the transducer compatible with all Garmin systems?
A: The Airmar B175MW is compatible with Garmin units that support a 12-pin connection, offering seamless integration for superior performance.

Q: What frequency does this transducer operate on?
A: This transducer operates at 1kW with a 20° beam angle, optimized for medium-depth sonar readings, making it perfect for both shallow and deep-water navigation.

Q: How do I install the Airmar B175MW?
A: The B175MW is a thru-hull transducer and requires professional installation to ensure optimal performance. Ensure proper hull preparation and mounting for best results.

Q: Does the Airmar B175MW require any additional equipment?
A: Yes, the B175MW requires a Mix & Match cable for installation, which must be purchased separately.

Maintenance Tips

• Regular Cleaning: Rinse the transducer with fresh water after each use to remove salt, debris, and algae buildup.
• Inspect for Damage: Check the transducer for cracks or wear, especially after long trips or heavy usage.
• Keep Clear of Fouling: Periodically inspect for marine growth around the transducer and remove any build-up to maintain signal clarity.
• Check Cable Connections: Ensure the 12-pin cable connection is secure and free from corrosion.
• Annual Professional Check: Have the transducer and installation inspected by a professional annually for optimal performance.
