Airmar B265LH Bronze Chirp - B265C-LH-MM- CW68019

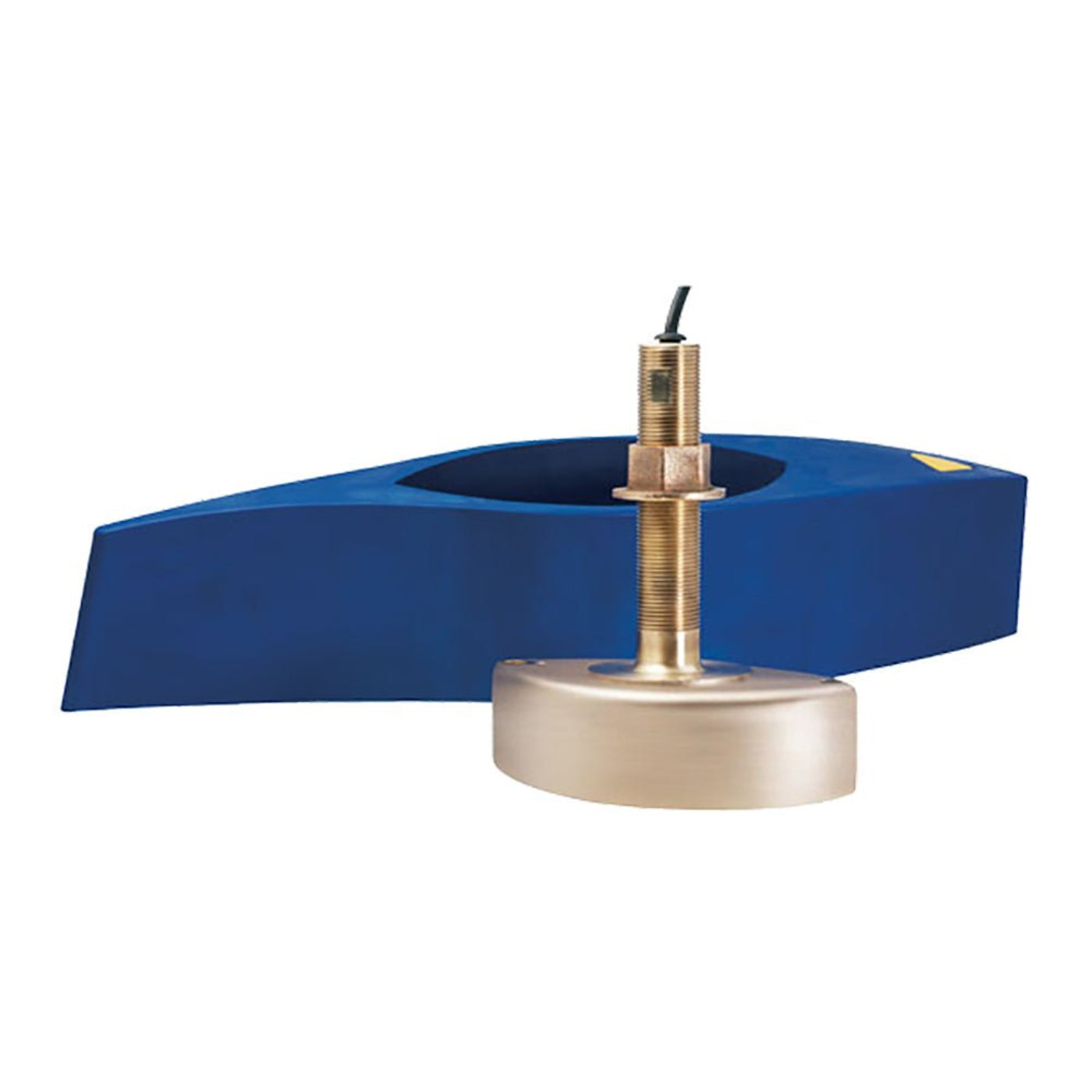

B265LH Bronze Chirp Thru Hull 1kW with Fairing Block

Imagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.

Features

• Depth & fast-response water-temperature sensor

• Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth

• High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth

• 103 kHz of total bandwidth from one transducer

• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Specification

What Our Experts Think

• High-Quality Performance: The Airmar B265LH Bronze CHIRP transducer delivers excellent deep-water performance with both low and high-frequency capabilities.
• Durable Bronze Construction: Made from corrosion-resistant bronze, ensuring long-lasting durability and reliability in harsh marine environments.
• Versatile Frequency Range: Ideal for various fishing conditions, offering detailed sonar images with extended depth capabilities.
• Easy Integration: Designed to work seamlessly with compatible sonar systems, requiring Mix & Match cable for a customized setup.
• Efficient Installation: A reliable choice for those looking to enhance their vessel's sonar performance without complicated installation.

Q&A

Q: What is the frequency range of the Airmar B265LH?
A: The B265LH offers both low and high-frequency capabilities for enhanced sonar imaging and deep-water performance.

Q: Does the Airmar B265LH require additional components for installation?
A: Yes, it requires a Mix & Match cable for optimal installation with compatible sonar systems.

Q: Is the B265LH transducer durable?
A: Yes, it is made from corrosion-resistant bronze, ensuring long-lasting durability even in harsh marine environments.

Q: What types of vessels is the B265LH suitable for?
A: It is perfect for recreational and professional boats looking to enhance their sonar capabilities for fishing and navigation.

Maintenance Tips

• Regular Cleaning: Clean the transducer with fresh water after each use to remove salt, dirt, or debris.
• Inspect for Damage: Periodically check for signs of wear, cracks, or corrosion. Replace any damaged components promptly.
• Check Cable Connections: Ensure cables are secure and free from wear to maintain signal integrity.
• Avoid Growth: Apply anti-fouling coatings to prevent marine growth, ensuring optimal sonar performance.
• Dry Storage: Store the transducer in a dry, cool place when not in use to prevent long-term damage.
