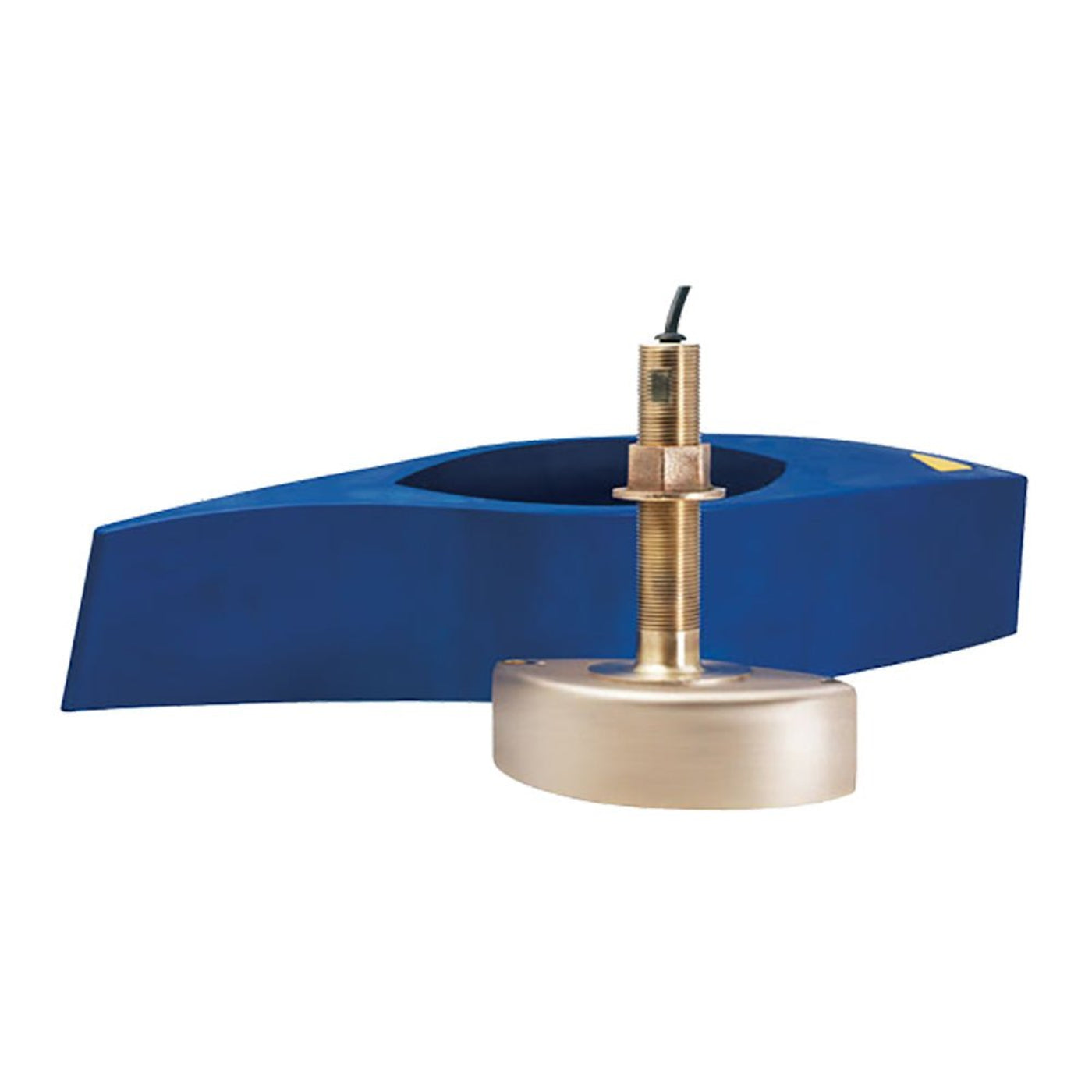

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed -CW68041

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed

The B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.

Features

• Depth & fast-response water-temperature sensor

• 1kW power for excellent deep to mid-depth performance

• Low frequency: 42 kHz to 65 kHz

• 25° to 16° beamwidth (port-starboard)

• Maximum depth 3000' (914 m)

• Medium frequency: 85 kHz to 135 kHz

• 16° to 11° beamwidth

• Maximum depth 1500' (457M)

• 73 kHz of total bandwidth from one transducer

• Recommended boat size: 8 m (25') and above

• Hull Type: Fiberglass or wood

Specifications

What Our Experts Think

• Optimal Performance: The Airmar B265LM delivers impressive low- and medium-frequency CHIRP sonar capabilities, perfect for both shallow and deep-water environments.
• Durable Design: Constructed from bronze, this transducer ensures long-lasting durability and resistance to harsh marine conditions.
• Easy Installation: The included fairing block simplifies installation, ensuring accurate positioning for enhanced performance.
• Versatile Compatibility: Requires Mix & Match cable for easy integration with various sonar systems.
• Reliable Imaging: The 1kW power output provides clear, detailed imaging for better fish finding and navigation in both freshwater and saltwater environments.

Q&A

Q: What sonar frequencies does the Airmar B265LM support?
A: The Airmar B265LM supports low and medium-frequency CHIRP sonar for enhanced fish detection and detailed imaging.

Q: Do I need additional cables for installation?
A: Yes, the Airmar B265LM requires a Mix & Match cable for compatibility with various sonar systems.

Q: What type of material is the transducer made from?
A: The transducer is made of durable bronze, providing long-lasting protection in harsh marine environments.

Q: Does this transducer include a fairing block?
A: Yes, the B265LM comes with a fairing block for easier installation and accurate sonar readings.

Q: What power output does this transducer support?
A: The Airmar B265LM provides 1kW of power, ensuring clear and reliable sonar imaging in both shallow and deep waters.

Maintenance Tips

• Clean Regularly: Use a soft cloth and fresh water to clean the transducer. Avoid abrasive materials that could damage the surface.
• Inspect for Damage: Regularly check the transducer for any signs of wear or corrosion, particularly around the fairing block.
• Prevent Fouling: Apply anti-fouling paint to prevent marine growth from affecting performance.
• Monitor Cable Connections: Ensure that the Mix & Match cable is securely connected and free from wear.
• Check for Water Leaks: Ensure the installation remains watertight to avoid water damage. Reapply sealing if necessary.
