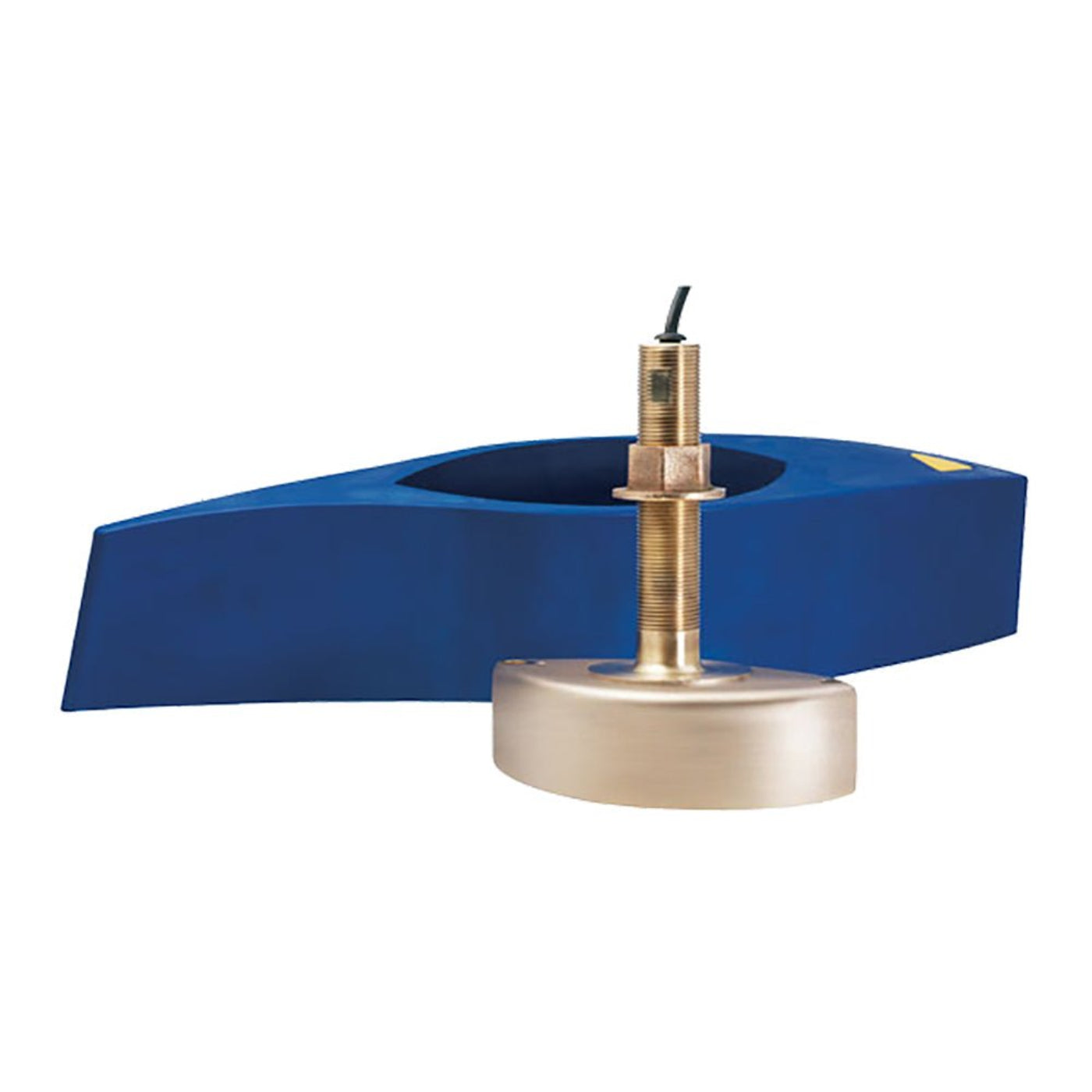

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed - CW77744

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed

The B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.

Features

• Depth & fast-response water-temperature sensor

• 1kW power for excellent deep to mid-depth performance

• Low frequency: 42 kHz to 65 kHz

• 25° to 16° beamwidth (port-starboard)

• Maximum depth 3000' (914 m)

• Medium frequency: 85 kHz to 135 kHz

• 16° to 11° beamwidth

• Hull Type: Fiberglass or wood

• Models also available in Transom Mount (TM265LM), Pocket Mount (PM265LM), Cavity Mount (CM265LM), In-Hull (M265LM)

• Exclusive Xducer ID® technology

Specifications

What Our Experts Think

• Exceptional Clarity: Provides high-quality CHIRP sonar with exceptional depth penetration and target separation.
• Durability: The bronze construction ensures longevity, resisting harsh marine environments and corrosion.
• Versatile Performance: Ideal for both low and high-frequency applications, delivering reliable results at various depths.
• Easy Installation: Includes a fairing block, simplifying the installation process for optimal performance.
• High Efficiency: Requires Mix & Match cable, allowing for flexible configurations to suit your system.
• Ideal for Professionals: Perfect for serious anglers and marine professionals who demand precise and accurate sonar readings.

Q&A

Q: What is the frequency range of the Airmar B265LM transducer?
A: The B265LM supports both low and high-frequency CHIRP sonar for enhanced depth penetration and target separation.

Q: Is the fairing block included?
A: Yes, the B265LM comes with a fairing block to ensure optimal installation and performance.

Q: What type of cable is required for this transducer?
A: The B265LM requires a Mix & Match cable for flexible compatibility with your system.

Q: Is this transducer suitable for deep-sea fishing?
A: Yes, the 1kW power output and dual-frequency capability make it ideal for deep-sea and offshore applications.

Q: Can this transducer be used on smaller boats?
A: While it’s suitable for a wide range of vessels, it's best for medium to larger boats due to its size and installation requirements.

Maintenance Tips

• Regular Cleaning: Inspect and clean the transducer regularly to remove marine growth and debris for optimal sonar performance.
• Check for Damage: Periodically check the transducer and fairing block for cracks, corrosion, or other damage.
• Inspect Cable Connections: Ensure the Mix & Match cable is properly connected and free from wear.
• Protect from Harsh Conditions: If possible, remove the transducer during off-season storage to protect it from extreme weather and conditions.
• Use Freshwater: After each use in saltwater, rinse the transducer with fresh water to prevent corrosion.
• Check Alignment: Ensure the transducer is properly aligned and flush with the hull to maintain accurate readings.
