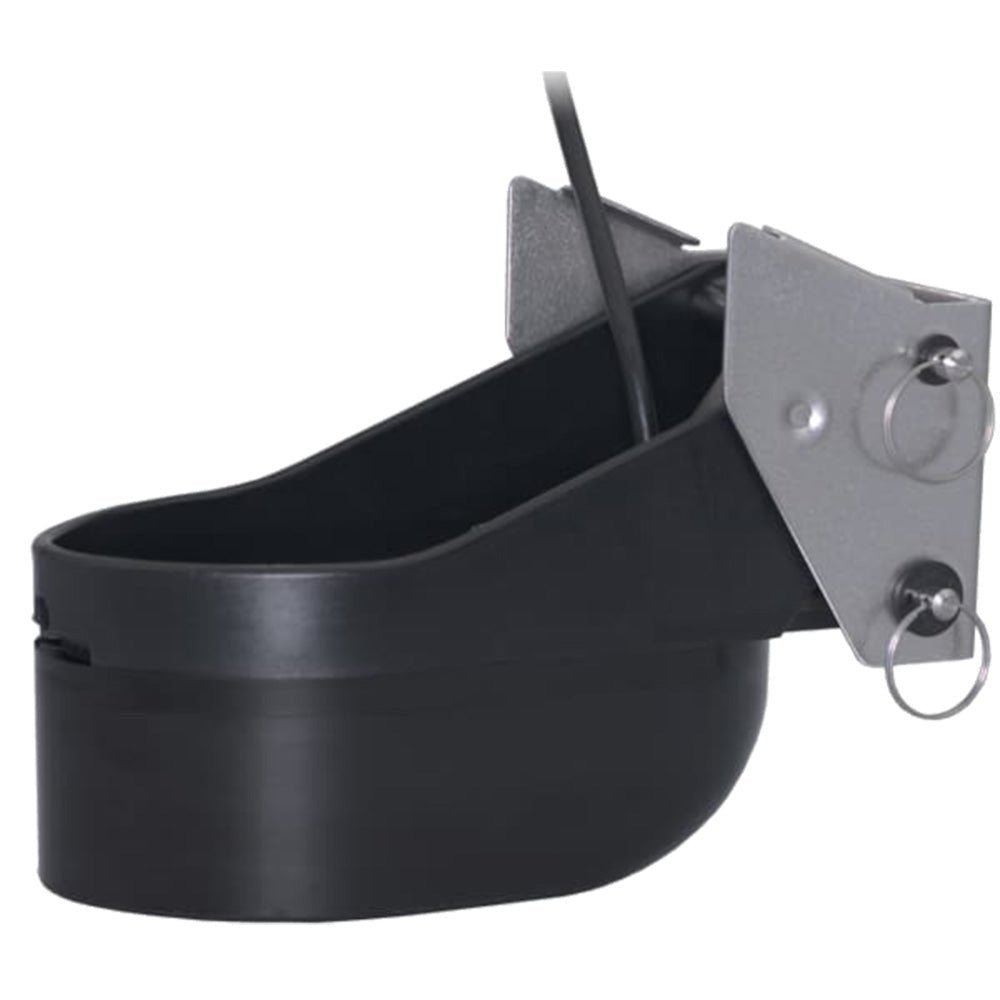

Airmar TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-CW95812

Airmar TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin f/Navico

TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of today’s fishfinders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features

• Top-of-the-line narrow-beam transom-mount

• Designed for bottom fishing

• Wide 19° beam at 50 kHz

• Narrow 6° beam at 200 kHz

• Interfaces to any 600 W or 1 kW sounder

• The depth and fast-response water-temperature sensor

• Kick-up assembly locks in the “up” position and will not damage the transom

• Accommodates transom angles between 3° and 21°

• Urethane housing

• Boat Size: Up to 12 m (40’)

Specifications
