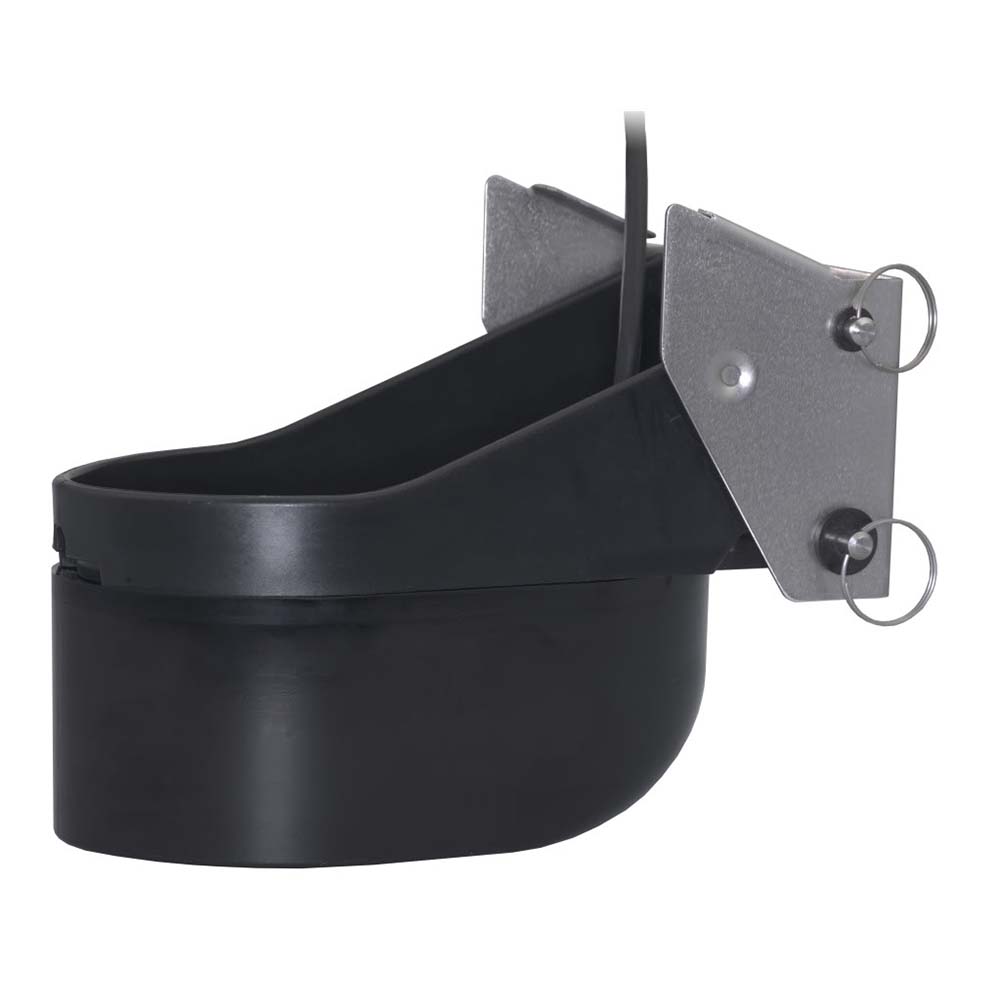

Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F - CW91424

Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F - CW91424

Rely on Airmar's broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fishfinders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, CHIRP uses a precise sweep pattern of many frequencies within a long-duration transmits pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fishfinder.

Features

• 8-Internal, Broadband Ceramic Elements

• Depth & fast-response water-temperature sensor

• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)

• Operating frequencies:

• Low—Chirps from 42 kHz to 65 kHz

• Medium—Chirps from 85 kHz to 135 kHz

• Beamwidth (Adjustable):

• Low—25° to 16°

• Medium—24° to 16°

• 10 m (33’) cable

• The depth and fast-response water-temperature sensor

• 12 Pin Connector for use with Furuno TZT12F and TZT16F Displays

• Urethane transducer housing and stainless steel mounting bracket

• Boat Size: 8 m to 12 m (25’ to 40’)

• Hull Type: Fiberglass, wood, or metal

• Exclusive Transducer ID
