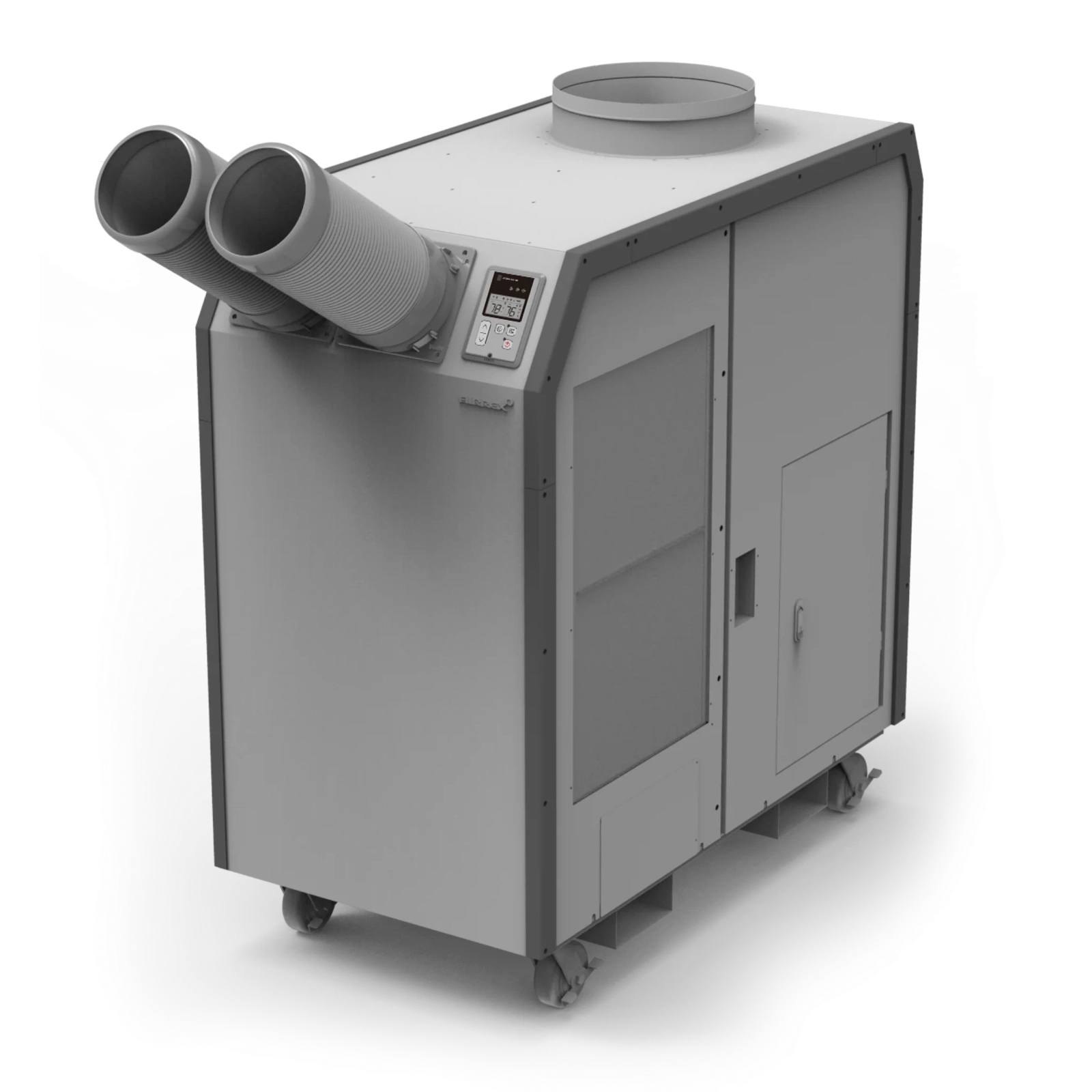

TEMP-AIR Airrex 84,000 BTU 7-Ton (480/3) Spot Cooler - HSC-70P

TEMP-AIR Airrex 84,000 BTU 7-Ton (480/3) Spot Cooler - HSC-70P

• Operating temperature range: 68°F to 113°F
• Refrigerant: Eco-friendly 410A refrigerant
• Fresh air supply may be required for proper operation
• Includes removable, washable air filters for easy maintenance
• Thermostatically protected compressor with high and low-pressure warnings
• Mobility: Moves easily on swivel casters (2 locking) and has a built-in condensate pump
• HSC-70P model features:
  • Cold air discharge: Two 7" diameter front nozzles
  • Warm air discharge: 16" diameter top discharge

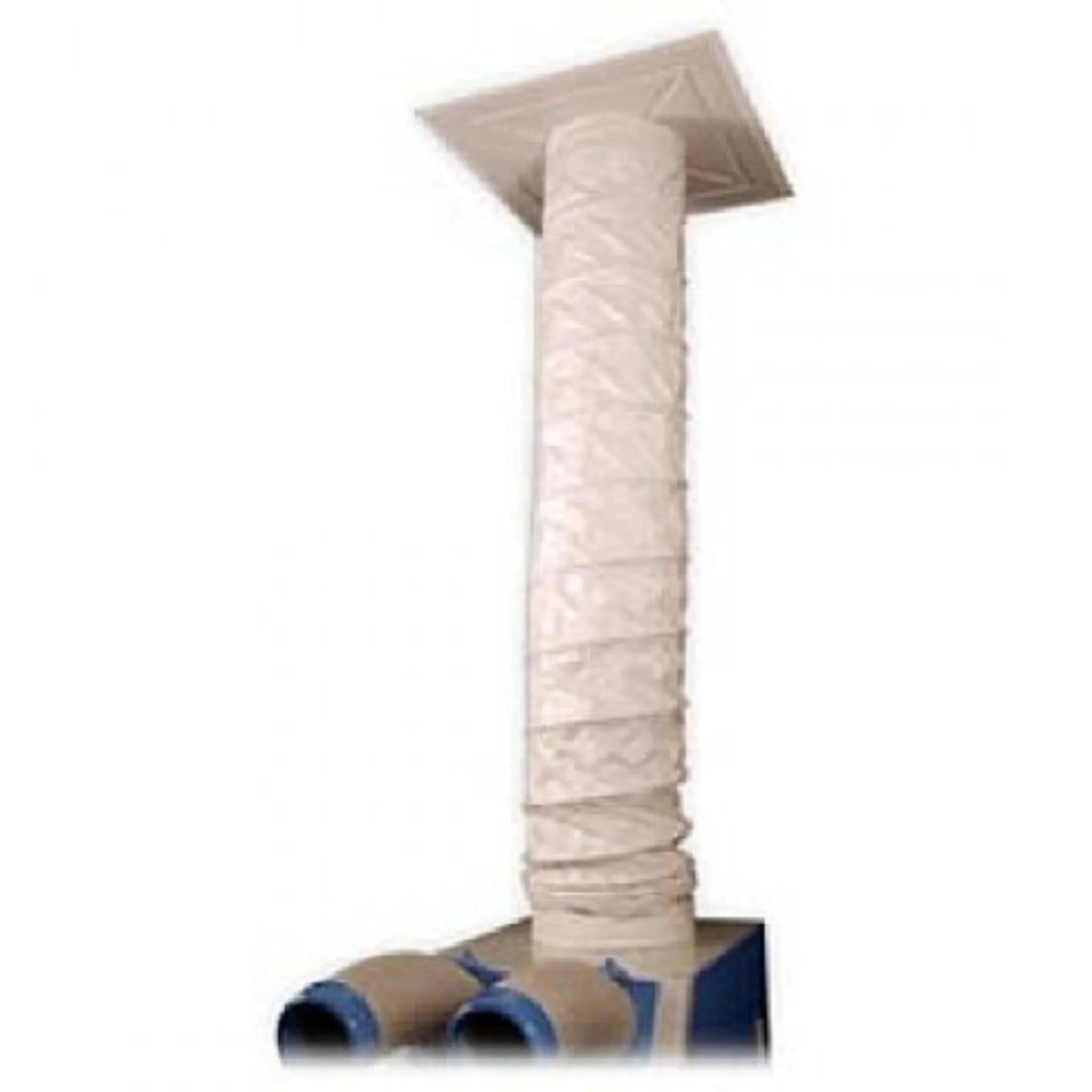

• Optional Warm Air Duct includes 8'L ducting and a 2’ x 2’ ceiling flange for warm air exhausting
• ETL listed
• Warranty: 1 Year Warranty, 3 Year LG compressor warranty
• Additional function: Dehumidification mode included as standard in all portable air conditioners and heat pumps.

Product sheet

Product sheet

Manual

Manual

Diagram of the unit

Diagram of the unit

What Our Experts Think

The TEMP-AIR Airrex 84,000 BTU 7-Ton (480/3) Spot Cooler - HSC-70P is a powerhouse solution for industrial and large commercial cooling needs. Here's why it's a top choice:

• Massive Cooling Capacity: 84,000 BTU efficiently cools large areas up to 3,000 sq. ft., ideal for high-heat environments like factories and warehouses.
• Industrial-Grade Performance: Designed for heavy-duty use, providing reliable cooling in demanding conditions.
• Three-Phase Power: The 480/3 power configuration ensures consistent and high-efficiency operation in large-scale applications.
• Energy Efficient: Despite its high capacity, the unit maintains low energy consumption, helping reduce operational costs.
• Quiet and Effective: Runs with minimal noise while delivering exceptional cooling performance.

Q&A

Q: What is the TEMP-AIR Airrex 84,000 BTU 7-Ton (480/3) Spot Cooler (Model: HSC-70P)?
A: It is a heavy-duty, high-performance portable spot cooler offering 84,000 BTU of cooling power, designed for large, industrial environments that require intensive temperature control.

Q: Who is this product for?
A: Ideal for large industrial facilities, warehouses, and commercial spaces needing robust, focused cooling for equipment or specific areas.

Q: Why should I choose this product?
A: Its powerful 84,000 BTU capacity and industrial-grade cooling capabilities make it the perfect solution for managing heat in demanding environments.

Maintenance Tips

• Clean or Replace Filters: Regularly clean or replace filters every 1-2 months to maintain airflow and cooling efficiency.
• Inspect Condensate Drain: Ensure the condensate drain is clear to avoid water buildup and potential leaks.
• Clean Coils Annually: Check and clean evaporator and condenser coils once a year to prevent dirt buildup and ensure optimal performance.
• Check Hoses and Connections: Inspect hoses for any leaks or damage, ensuring all connections are secure for efficient operation.
• Monitor Refrigerant Levels: Have a professional check refrigerant levels and recharge as needed to maintain maximum cooling capacity.
• Inspect Electrical Connections: Regularly check for loose or damaged wiring and connections to ensure safe operation.
