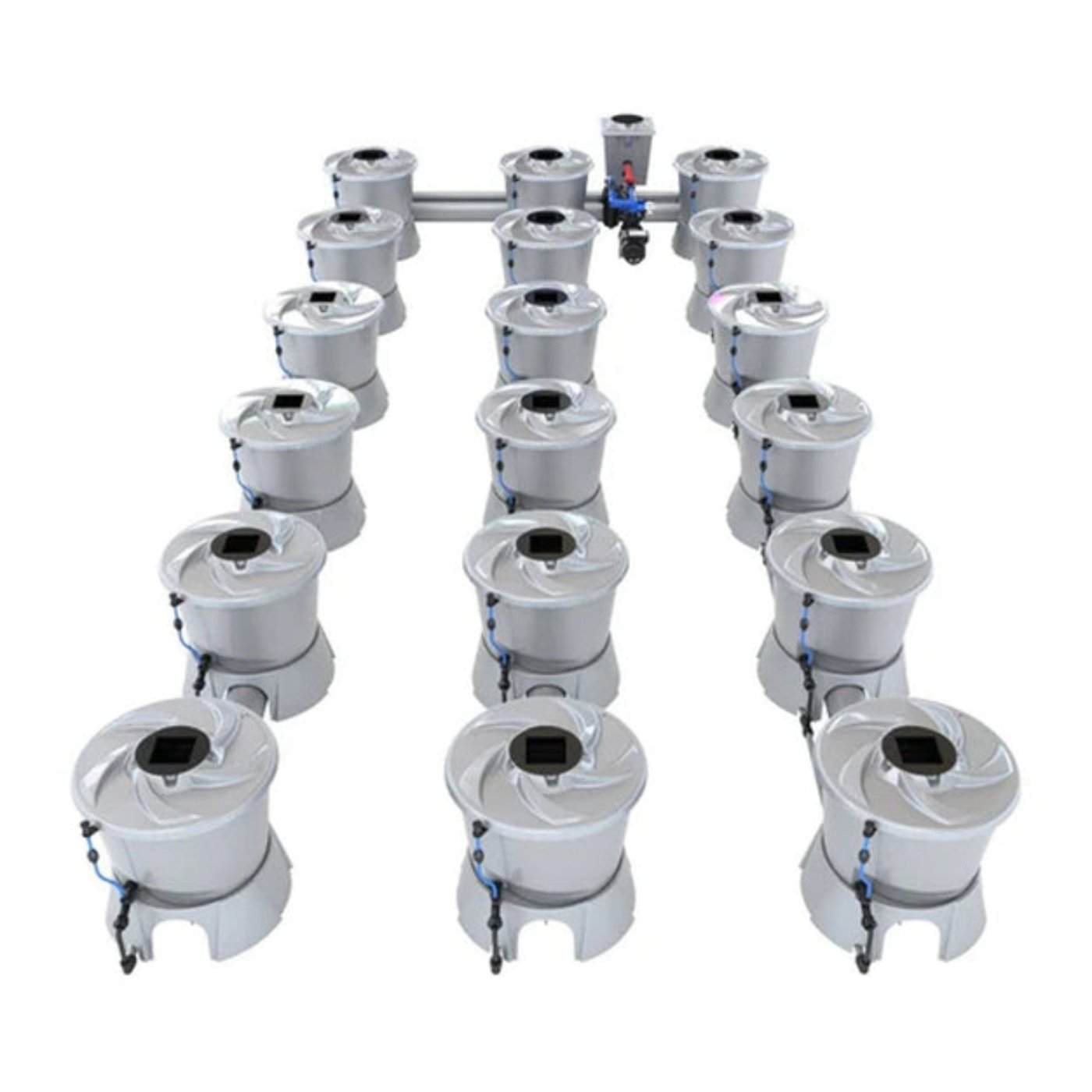

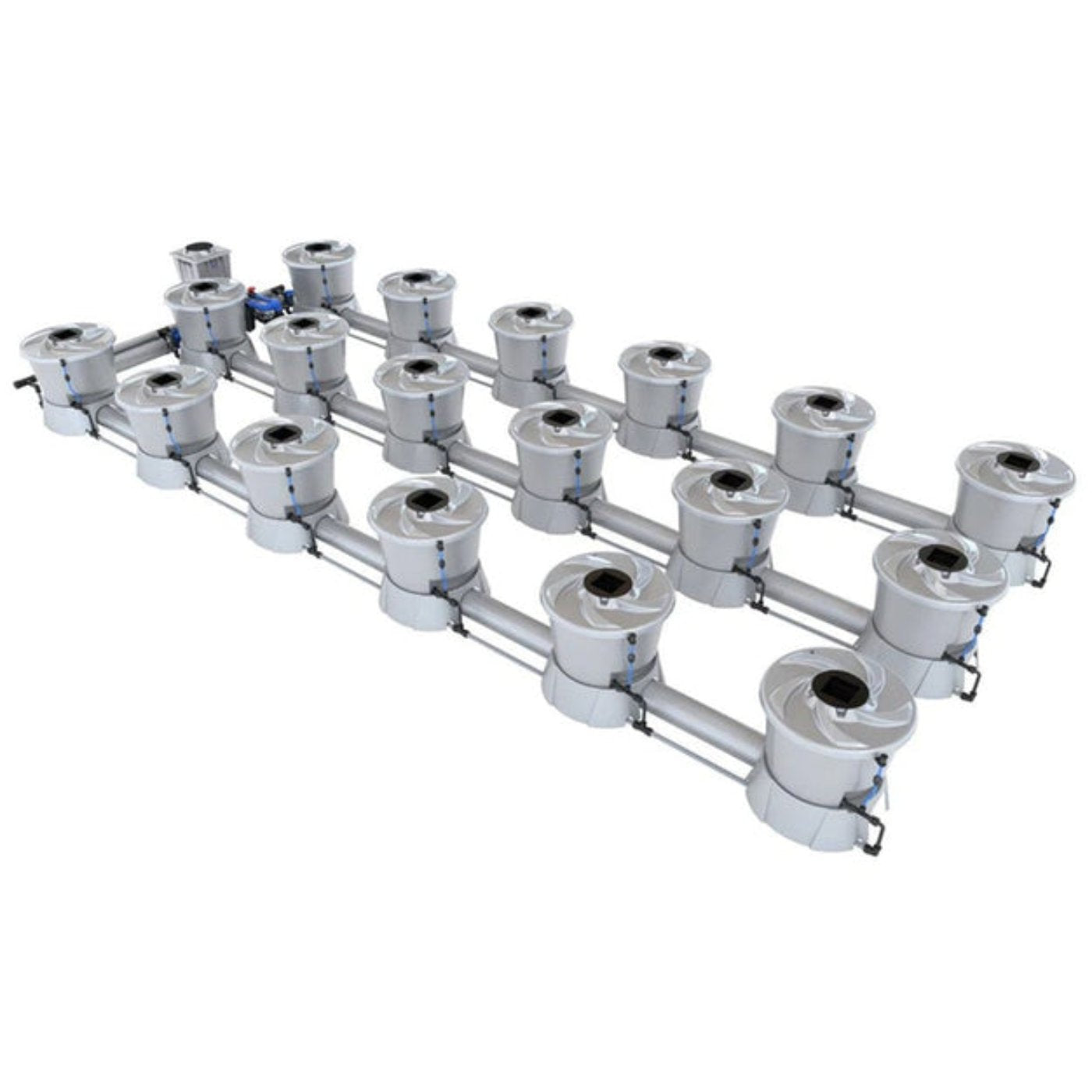

Alien Hydroponics 18 Pot (3 Row) V-System RDWC - BD100-0011
Welcome to the future of hydroponics. The powerful V-SYSTEM™ has been designed to help you grow trees with brand-new technology never seen before in the industry. Years have been spent developing this highly oxygenated RDWC system that will give you the healthiest root zones and massive yields.
In an industry first, the V-SYSTEM™ doesn’t use an air pump to oxygenate the nutrient solution. Instead, using precision design, the water flow creates a whirlpool that oxygenates the fluid content of the entire pot, rather than just the area around the air source. No matter where your roots are growing in the pot, they will receive the highest oxygen levels to grow exceptional crops.
Features
-
15 Gallon (58L) V-Pot: Large capacity pots for substantial root growth.
-
Water Fill Line: Easy monitoring of water levels.
-
Total-Drainage Bases: Ensure the freshest water for plant growth.
-
Venturi Injectors: Efficient oxygenation without an air pump.
-
Inspection Covers: Easy access for system maintenance.
-
5" Spiral Tubing: Customizable length for flexible setup.
-
5" Dual-Flow™ Fittings: Enhanced nutrient flow and distribution.
-
Integrated Filtration: Keeps nutrient solution clean and free of debris.
-
T304 Stainless Clamps: Durable and rust-resistant.
-
Heavy-Duty Components: Built to last and withstand rigorous use.
-
Push-Fit Feed Connections: Simplifies setup and maintenance.
-
JET-STREAM® Vortex™ Pump: Ensures optimal water flow and oxygenation.
Specification
| Number of pots | 18 |
|---|---|
| Number of rows | 3 |
| Kit total fluid volume | 293.8 gallons (1112 L) |
| Length | 12' 1.3" (145.3 inches / 3690 mm) |
| Width | 5' 9.3" (69.3 inches / 1760 mm) |
| Model | V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h |
| Wattage | 1100 watts |
| Flow Rate | 4676 gal/hr (17700 L/hr) |
| Recommended water chiller minimum capacity | 528 gallons (2000 L) |
Package Include
-
1x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
-
V-Pot 58L18x V-Pot 58L
-
V-Pot Base18x V-Pot Base
-
V-Pot Lid18x V-Pot Lid
-
V-Pot Lid Inspection Cover18x V-Pot Lid Inspection Cover
-
Square Net Pot18x Square Net Pot
-
V-Pot Clip18x V-Pot Clip
-
Air Filter for V-SYSTEM Venturi, 6mm18x Air Filter for V-SYSTEM Venturi, 6mm
-
Silencer for Venturi18x Silencer for Venturi
-
Venturi - V-SYSTEM 3/4"18x Venturi - V-SYSTEM 3/4"
-
Nut 5"19x Nut 5"
-
Washer 5" Green Silicone19x Washer 5" Green Silicone
-
5" Stainless Steel Clamp44x 5" Stainless Steel Clamp
-
Distribution Tee 40mm1x Distribution Tee 40mm
-
DM Push-Fit Elbow 22-15mm V-SYSTEM3x DM Push-Fit Elbow 22-15mm V-SYSTEM
-
DM Push-Fit Elbow 22mm V-SYSTEM3x DM Push-Fit Elbow 22mm V-SYSTEM
-
DM Push-Fit Tee 22-15mm V-SYSTEM15x DM Push-Fit Tee 22-15mm V-SYSTEM
-
Drain Cap 1/2"1x Drain Cap 1/2"
-
Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb
-
Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point
-
Elbow 5" Threaded Dual-Flow4x Elbow 5" Threaded Dual-Flow
-
Filter Manifold, Complete1x Filter Manifold, Complete
-
Float Valve1x Float Valve
-
Header Pot 20L Silver (With Chiller & Float Holes)1x Header Pot 20L Silver (With Chiller & Float Holes)
-
Silver Lid1x Silver Lid
-
Header Pot Blank1x Header Pot Blank
-
Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green
-
Inlet Tube18x Inlet Tube
-
Nut 3/4" - for Venturi18x Nut 3/4" - for Venturi
-
Pipe 22mm Rigid 1 Meter - Venturi Feed18x Pipe 22mm Rigid 1 Meter - Venturi Feed
-
Pipe 32mm Red 1 Meter Spiral1x Pipe 32mm Red 1 Meter Spiral
-
Pipe 40mm Silver 1 Meter Spiral4x Pipe 40mm Silver 1 Meter Spiral
-
Pipe 5" Spiral 80cm20x Pipe 5" Spiral 80cm
-
Pipe 6mm Blue 1 Meter9x Pipe 6mm Blue 1 Meter
-
Tee 5" Barbed2x Tee 5" Barbed
-
Tee Threaded 5" Dual-Flow15x Tee Threaded 5" Dual-Flow
-
Threaded Tank Connector 1"2x Threaded Tank Connector 1"
-
V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread2x V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread
-
Vortex Pump Inlet Manifold Size 21x Vortex Pump Inlet Manifold Size 2
-
Washer 12 X 19mm1x Washer 12 X 19mm
-
Washer 15 X 24mm18x Washer 15 X 24mm
-
Wing Nut 3/4"18x Wing Nut 3/4"
-
1" Cap for Chiller Connections2x 1" Cap for Chiller Connections
-
Drain Cap 1/2"1x Drain Cap 1/2"
-
T/Connector Straight 32mm1x T/Connector Straight 32mm
-
T/Connector Straight 40mm1x T/Connector Straight 40mm
-
Terminal Manifold Left1x Terminal Manifold Left
-
Terminal Manifold Center1x Terminal Manifold Center
-
Terminal Manifold Right1x Terminal Manifold Right
-
22mm Insert for 22mm Barrier Pipe42x 22mm Insert for 22mm Barrier Pipe
-
Clamp Size 22x Clamp Size 2
-
Clamp Size 310x Clamp Size 3
-
8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp
-
Wrench 5"1x Wrench 5"
-
Wrench for Float Valve1x Wrench for Float Valve
-
8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp
-
Pipe Cutter 50mm1x Pipe Cutter 50mm
Product Manual
What Our Experts Think
- Efficient Growth System: The RDWC (Recirculating Deep Water Culture) design delivers constant oxygen and nutrients, promoting faster and healthier plant growth.
- Advanced V-System: The innovative V-shaped pot system ensures optimal root space and nutrient distribution, improving yield potential.
- Large Capacity: With 18 pots arranged in 3 rows, it’s perfect for medium to large-scale hydroponic setups.
- Durable Build: High-quality materials and airtight connections provide long-lasting performance and leak prevention.
- Easy Maintenance: Simplified draining and recirculation make cleaning and upkeep hassle-free.
This system is a top choice for growers seeking maximum efficiency, consistent results, and high yields in a scalable hydroponic setup.
Q&A
Q: What is the main feature of the Alien V-System RDWC?
A: The system provides efficient deep water culture with high oxygenation, promoting faster plant growth and healthier root systems.
Q: How many pots are included in this system?
A: It includes 18 pots arranged in three rows, ideal for medium to large-scale hydroponic setups.
Q: Is it easy to set up?
A: Yes, it features a user-friendly design with clear instructions for quick installation and operation.
Q: What makes the V-System unique?
A: The innovative V-shaped design ensures optimal nutrient circulation and prevents clogging for consistent plant growth.
Q: What materials are used?
A: It is constructed with durable, high-quality components that withstand wear and ensure long-term performance.
Maintenance Tips
- Regular Cleaning: Flush the system and clean pots, pipes, and reservoirs after each grow cycle to prevent algae and nutrient buildup.
- Inspect Connections: Check for leaks, cracks, or loose fittings in the system and tubing to ensure smooth operation.
- Monitor Water Quality: Use clean, pH-balanced water and replace it regularly to maintain healthy plant growth.
- Maintain Air Pumps: Check air stones and pumps for blockages and clean or replace them as needed.
- Check Nutrient Levels: Monitor and adjust nutrient solutions to avoid imbalances that could harm plants.
- Prevent Biofilm: Use an appropriate system cleaner or sterilizer periodically to avoid bacterial growth.
Consistent maintenance ensures peak performance and healthier plants.
