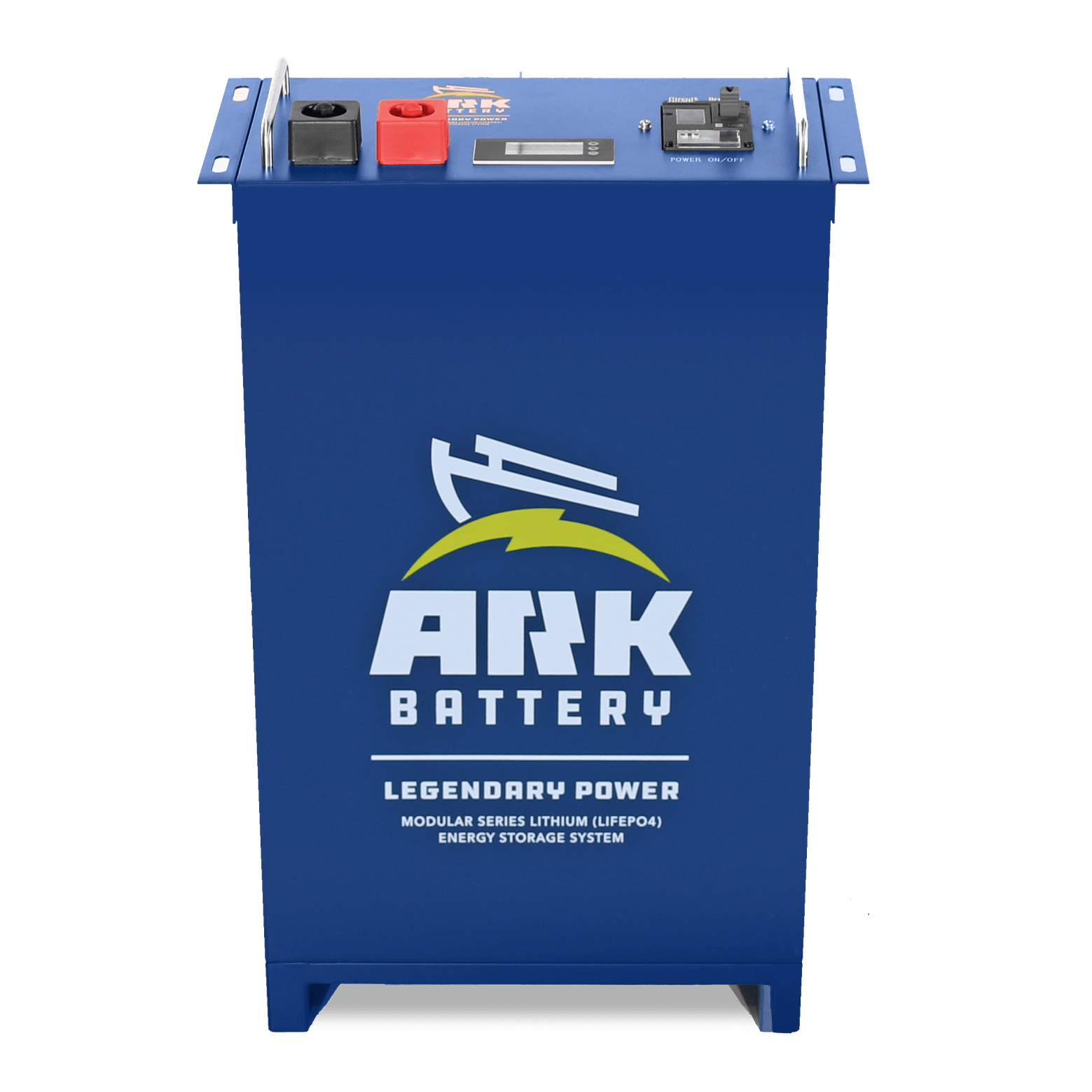

Ark Lithium Battery – ARK256200, 25.6 Volts, 200AH, LiFe PO4 Battery - ARK256200

Ark Lithium Battery – ARK256200, 25.6 Volts, 200AH, LiFe PO4 Battery - ARK256200

Each ARK Battery has a distinct (Impactiv) balancing system to ensure that all cells are charged and discharged equally. This achieves the same result as “equalizing” a lead-acid battery. LiFePO4 batteries may not be capable of external equalization, but it is imperative that each cell maintain the same voltage. A battery that is “imbalanced” will have a lower capacity, a considerably lower cycle life, and annoying BMS shut-offs.

All ARK Batteries employ IMPACTIV balancing, which increases dissipative consumption if a cell reaches an unsafely high voltage and distributes extra power from high-voltage cells to low-voltage cells.

Features

• Stable Voltage.

• Maintenance Free.

• Light Weight.

• Field Serviceable.

• Integrated breaker protection.

• Temperature Protected.

• BMS Protected.

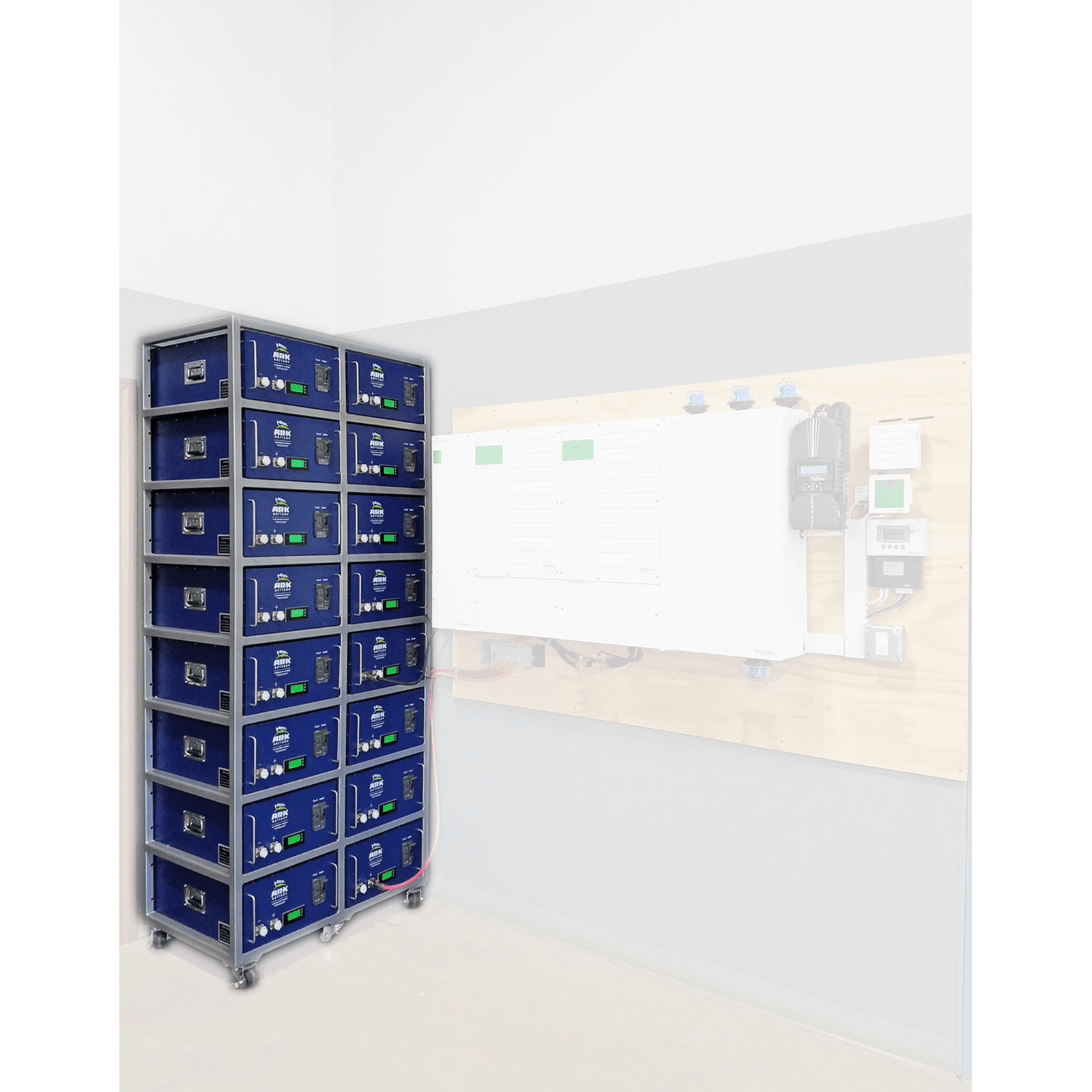

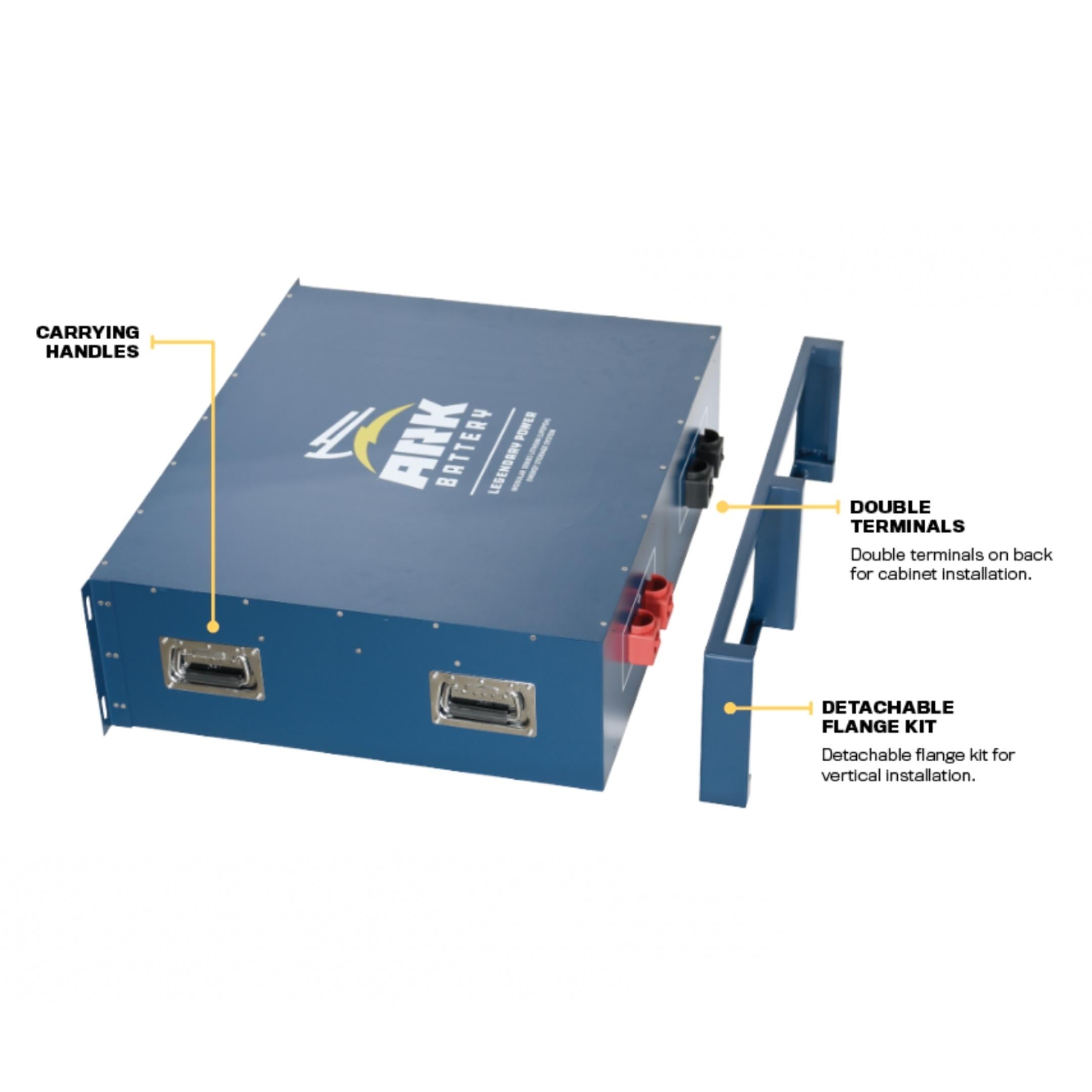

• ARK Batteries can be mounted either vertically or horizontally in a rack or cabinet. The device has terminals on the front and back that make it simple to cable either position.

• ARK Batteries can be charged in significantly less time than lead acid batteries.

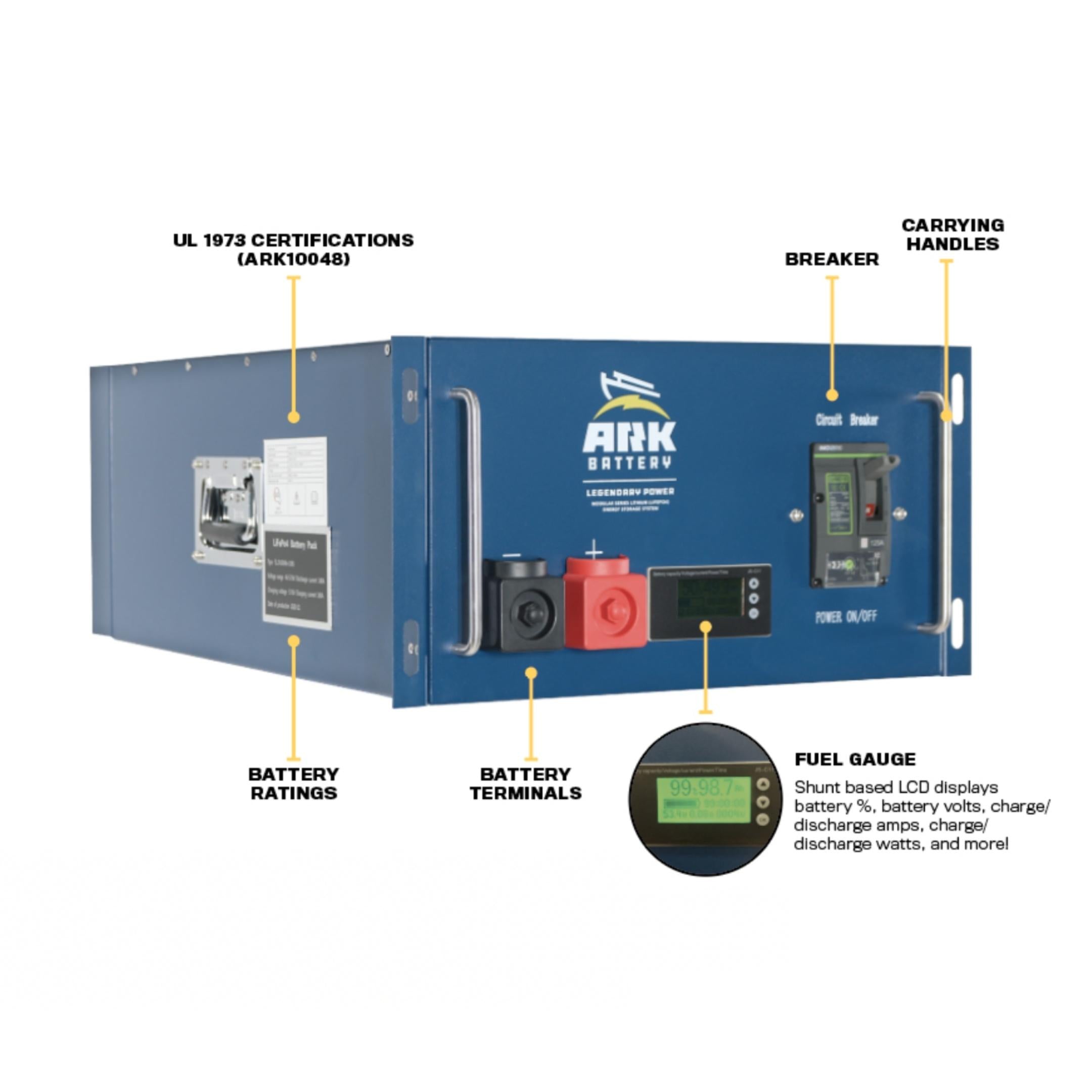

• A shunt-based LCD shows the battery percentage, battery voltage, charge/discharge amps, and charge/discharge watts.

Specifications

Downloads & Manual

ARK256200 Battery Spec Sheet

What Our Experts Think

• High Power Output: The Ark Lithium Battery ARK256200 offers 200Ah capacity at 25.6V, ideal for systems requiring steady, substantial power.
• LiFePO4 Technology: Features advanced Lithium Iron Phosphate chemistry for enhanced safety, longer lifespan, and excellent thermal stability.

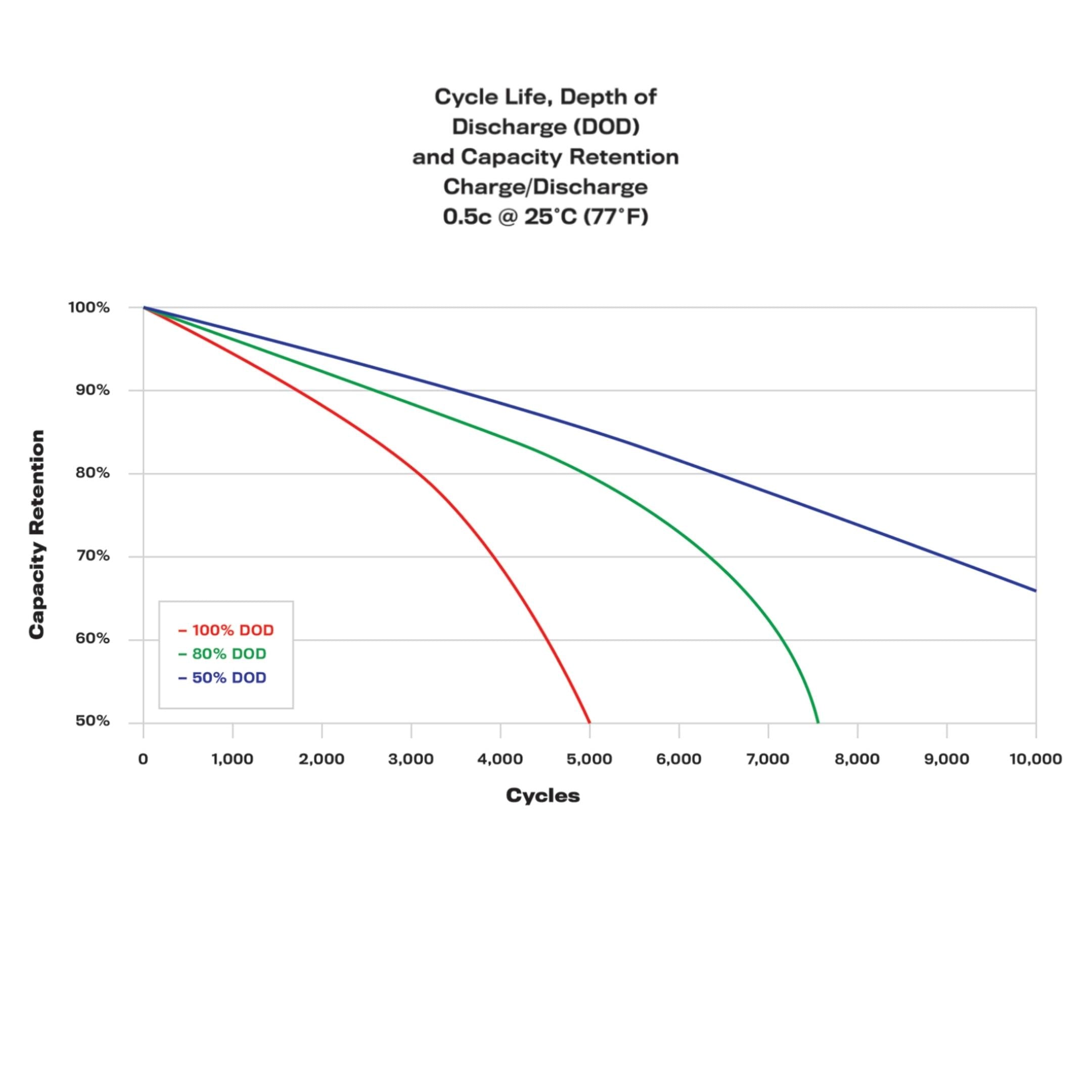

• Extended Cycle Life: Built to last with up to 4,000 charge cycles, reducing the need for frequent replacements and offering great long-term value.
• Rapid Charging: Designed for quick recharging, ensuring your systems stay powered with minimal downtime.
• Smart Battery Management System (BMS): Safeguards against overcharging, overdischarge, and overheating, maximizing performance and longevity.
• Versatile Use: Perfect for solar power setups, RVs, off-grid systems, and other high-demand applications.

Q&A

A: The Ark Lithium Battery ARK256200 is a high-capacity LiFePO4 battery with 25.6 volts and 200AH, designed for reliable, long-lasting power in renewable energy systems, off-grid setups, and other demanding applications.

Q: What are the key features of the ARK256200?
A:

• 200Ah capacity with 25.6 volts for steady and efficient power.
• LiFePO4 technology offering superior efficiency, safety, and a long cycle life (up to 6000 cycles).
• Integrated Battery Management System (BMS) for enhanced safety, including overcharge, over-discharge, and temperature protection.
• Lightweight and compact design, making it easy to install and maintain.
• Suitable for solar energy storage, RVs, backup power, and marine applications.

Q: How does the ARK256200 compare to traditional lead-acid batteries?
A: It is lighter, more energy-efficient, and lasts significantly longer than lead-acid batteries. Additionally, it is safer with a lower risk of issues like thermal runaway.

Q: What applications is the ARK256200 ideal for?
A: Perfect for off-grid solar systems, backup power solutions, recreational vehicles (RVs), marine applications, and other high-power systems.

Q: How long can the ARK256200 last?
A: The battery can last up to 6000 charge cycles with proper care, offering much longer durability than traditional battery options

Maintenance Tips

• Regular Charging: Use a LiFePO4-compatible charger and ensure the voltage stays within the recommended range (25.6V nominal).
• Avoid Deep Discharge: Don't let the battery discharge below 20% to maintain optimal performance and lifespan.
• Check Voltage: Monitor battery voltage periodically to ensure it's within the healthy range.
• Clean Terminals: Keep battery terminals free of corrosion by cleaning them with a terminal brush as needed.
• Store Properly: If unused for long periods, store in a cool, dry place and charge every 3-6 months to avoid deep discharge.
• Optimal Temperature: Use and store the battery in temperatures between 0°C and 45°C (32°F to 113°F) for best performance.
• Inspect for Damage: Regularly check for signs of swelling, leakage, or physical damage, and discontinue use if any issues arise.
