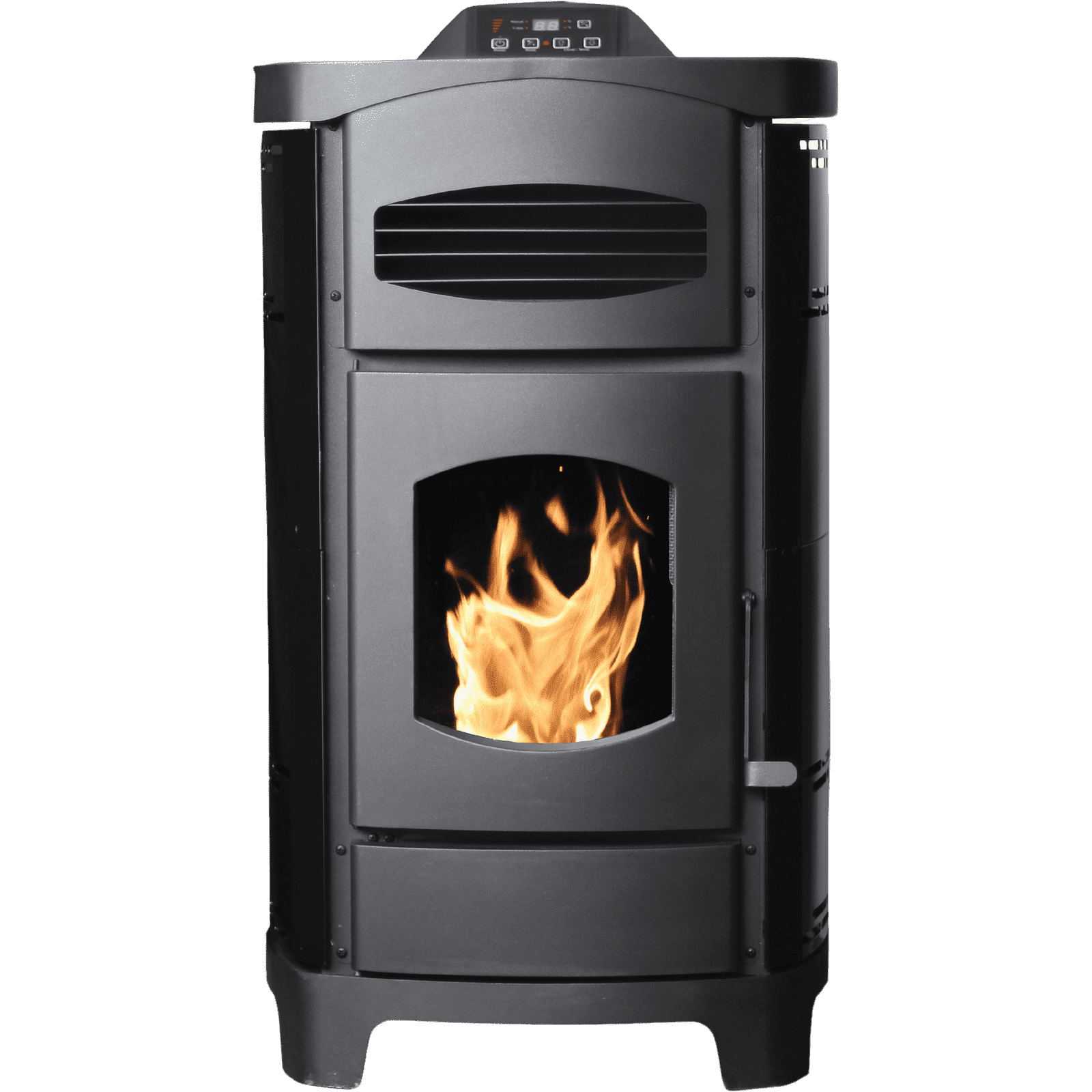

Clean lines, gentle curves and modern technology meet with the AP5780E. This slim line pellet stove is designed to fit into tighter spaces yet produces the same amount of heat as a full size pellet stove. It can heat up to 2,200 Sq. Ft. The all digital control system comes with a temperature readout and a remote control for simple adjustments. It comes with a 46 Lb. hopper to provide up to 32 hours of burn time between fillings. This stove is a show piece with its curved black sides and flat black accents. The AP5780E wood pellet stove exceeds 75% efficiency and qualifies for the 30% IRS Sec.(25C) Residential Energy Tax Credit.
Features
- 75% efficient with the new Aurora engine
- Infrared remote control allows you to make adjustments from your recliner
- Top mounted, digital controls with temperature readout for easy access and adjustment
- Removable side panels for easy maintenance access
- 46 lb hopper provides up to 32 hours (lowest setting) of use between fillings
- Qualifies for the IRS 25C Residential Energy Tax Credit
Specifications
| Product Wood Or Pellet Burning |
Pellet |
| Product Heating Area (ft²) |
2200 |
| Maximum BTU |
48000 |
| Hopper Capacity (ft³) |
46 |
| Flue Size |
3" or 4" |
| Electrical Rating |
120V AC, 60 Hz, 3.0 Amps |
| Watts (operational) |
125 |
| Watts (igniter running) |
310 |
| Stove Type |
Freestanding |
| Cooktop |
No |
| Air Wash System |
Yes |
| Ash Drawer |
No |
| Blower |
Yes |
| Catalytic/Non Catalytic |
Non Catalytic |
| Vent Location |
Rear |
| Auto Ignition |
Yes |
| Brick-Lined Firebox |
No |
| Venting Required |
Yes |
| Vent Diameter (in) |
3 |
| Touchpad Controls |
Yes |
| Remote Control |
Yes |
| Product Color / Finish |
Black |
| Product Vented Or Vent-Free |
Vented |
| CSA Certified |
Yes |
| EPA Approved |
Yes |
| Assembled Depth (in) |
22.25 |
| Assembled Width (in) |
20.8 |
| Assembled Height (in) |
37.16 |
| Package Depth |
24" |
| Package Width |
31" |
| Package Height |
40.5" |
| Package Weight |
205 lbs. |
| Product Manufacturer Warranty |
Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts |
PACKAGE CONTENTS
Ashley Hearth AP5780E
Remote control
User's Manual
Manual

User's Manual
What Our Experts Think
-
Powerful Heating: The Ashley Hearth AP5780E Pellet Stove provides 48,000 BTUs of heating power, efficiently warming up to 2,200 sq. ft., making it ideal for large homes or spaces.
-
Large Hopper Capacity: With a 46 lb hopper, it offers extended burn times, reducing the need for frequent reloading while ensuring consistent heat output.
-
Remote Control Convenience: The included remote control allows for easy operation from anywhere in the room, enabling precise temperature adjustments without leaving your seat.
-
Eco-Friendly & Efficient: Designed to burn pellets cleanly, the AP5780E provides an eco-conscious alternative to traditional heating methods, lowering emissions and improving fuel efficiency.
-
Built-In Blower: The powerful blower ensures effective heat distribution, ensuring that warmth reaches every corner of the room.
Q&A
Q: What is the Ashley Hearth AP5780E Pellet Stove?
A: The Ashley Hearth AP5780E is a high-performance pellet stove designed to heat up to 2,200 square feet. It features a 46 lb hopper, a powerful 48,000 BTU output, and comes with a remote control for convenient operation.
Q: What are the key features of the Ashley Hearth AP5780E Pellet Stove?
A: The AP5780E includes a 46 lb hopper for extended burn time, a 48,000 BTU output for efficient heating, a remote control for easy temperature adjustments, and a sleek design that fits seamlessly into various home environments. It also features an easy-to-use digital control panel and low emissions for eco-friendly performance.
Q: How efficient is the Ashley Hearth AP5780E Pellet Stove?
A: The AP5780E is designed for maximum efficiency, providing consistent heat with minimal pellet consumption. Its 48,000 BTU output ensures that it can effectively heat large spaces while maintaining environmentally-friendly, low-emission operation.
Q: Is the Ashley Hearth AP5780E Pellet Stove easy to control?
A: Yes, the AP5780E comes with a remote control, allowing you to easily adjust heat settings, fan speed, and ignition from anywhere in the room. The stove also features a digital control system for simple operation and monitoring.
Q: Why choose the Ashley Hearth AP5780E Pellet Stove?
A: The AP5780E is a perfect choice for homeowners looking for an efficient, powerful, and convenient pellet stove to heat large spaces. With its large hopper, remote control, and eco-friendly operation, it offers both comfort and convenience for year-round heating.
Maintenance Tips
-
Regular Cleaning: Clean the firebox, burn pot, and surrounding areas frequently to remove ash, soot, and debris. Use a soft brush or vacuum to clear out the firebox and burn pot. Regular cleaning ensures efficient burning and helps prevent clogs in the pellet feed system.
-
Chimney and Vent Inspection: Clean the chimney and vent pipe at least once a year to remove creosote buildup, which could lead to a fire hazard. Hire a professional chimney sweep if needed.
-
Check the Pellet Hopper: Inspect the pellet hopper regularly for any blockages or moisture. Ensure that pellets are dry and free of debris to avoid clogging the feed system.
-
Burn Pot Cleaning: Clean the burn pot regularly to remove ash buildup. A clogged burn pot can disrupt combustion and lead to inefficient heating.
-
Blower and Fan Maintenance: Clean the blower motor and fan blades periodically. Dust and debris can accumulate on the fan, affecting airflow and heating performance. Lubricate the motor according to the manufacturer’s guidelines.
-
Ash Removal: Empty the ash pan regularly, at least once a week or after every few burns. This will prevent ash buildup and ensure proper airflow, which is vital for efficient heating.
-
Gasket Inspection: Check the door and hopper gaskets for wear or damage. A damaged gasket can cause air leaks and reduce stove efficiency. Replace worn gaskets to maintain an airtight seal.
-
Pellet Storage: Store pellets in a dry, cool location to prevent moisture absorption. Wet pellets will not burn efficiently and may clog the auger or feed system.
-
Air Intake and Exhaust Cleaning: Periodically inspect and clean the air intake and exhaust pipes. Blockages can affect combustion, efficiency, and lead to the buildup of harmful gases.
-
Remote Control and Electronics: Ensure the remote control and electronic components are functioning correctly. Replace batteries as needed and check for any loose connections.
-
Safety Checks: Ensure the stove is properly installed according to local building codes. Check all components, including the wiring and venting, to ensure safe operation and to prevent carbon monoxide buildup.
