Baileigh SH-5210; 220V 1Phase Hydraulic Powered Shear 52" Length 10 Gauge Mild Steel Capacity

Baileigh SH-5210; 220V 1Phase Hydraulic Powered Shear 52" Length 10 Gauge Mild Steel Capacity

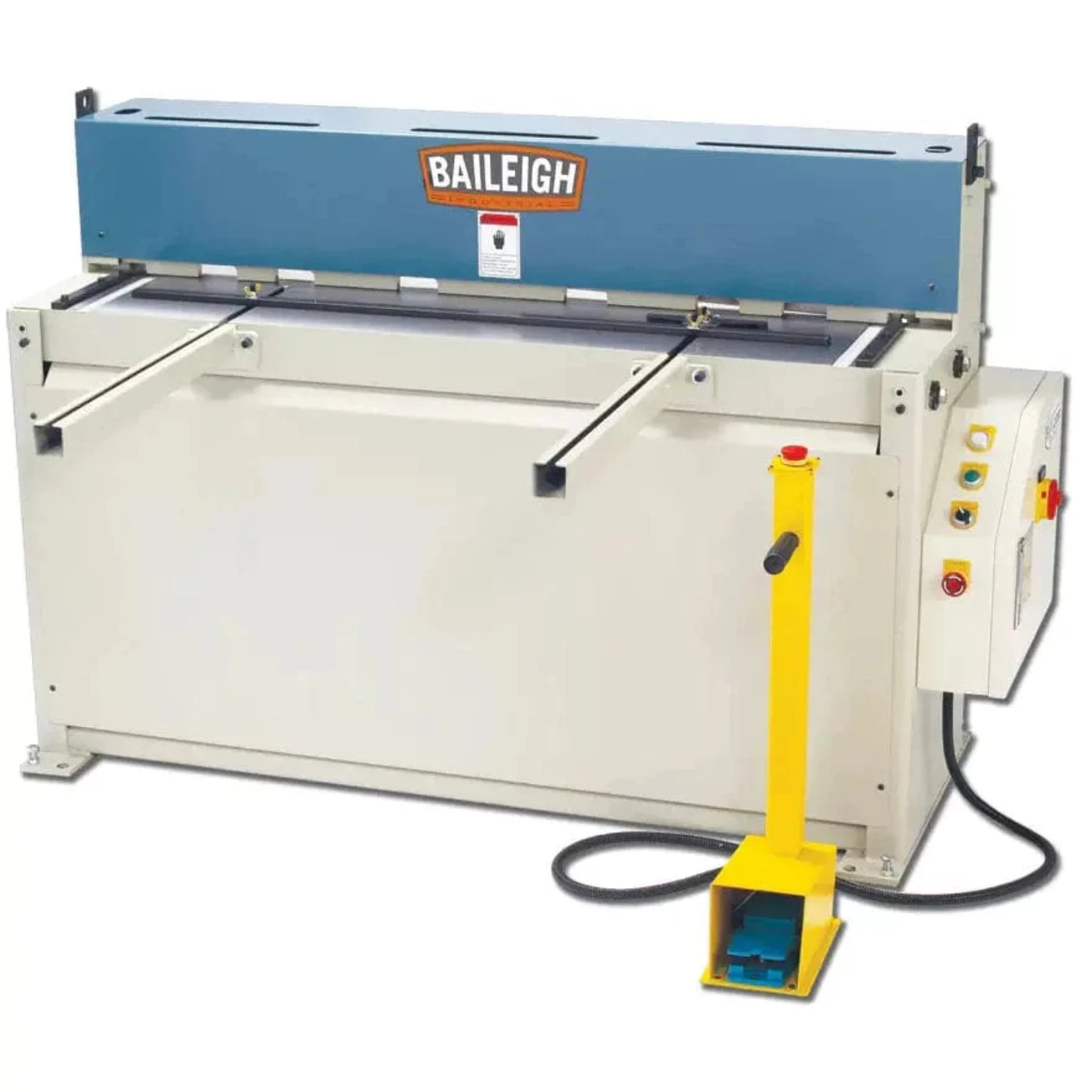

This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its welded steel frame, the SH-5210 sheet metal shear makes perfect cuts every time.

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 5 hp motor runs on 220-volt single-phase power.
• Up to 28 strokes per minute.

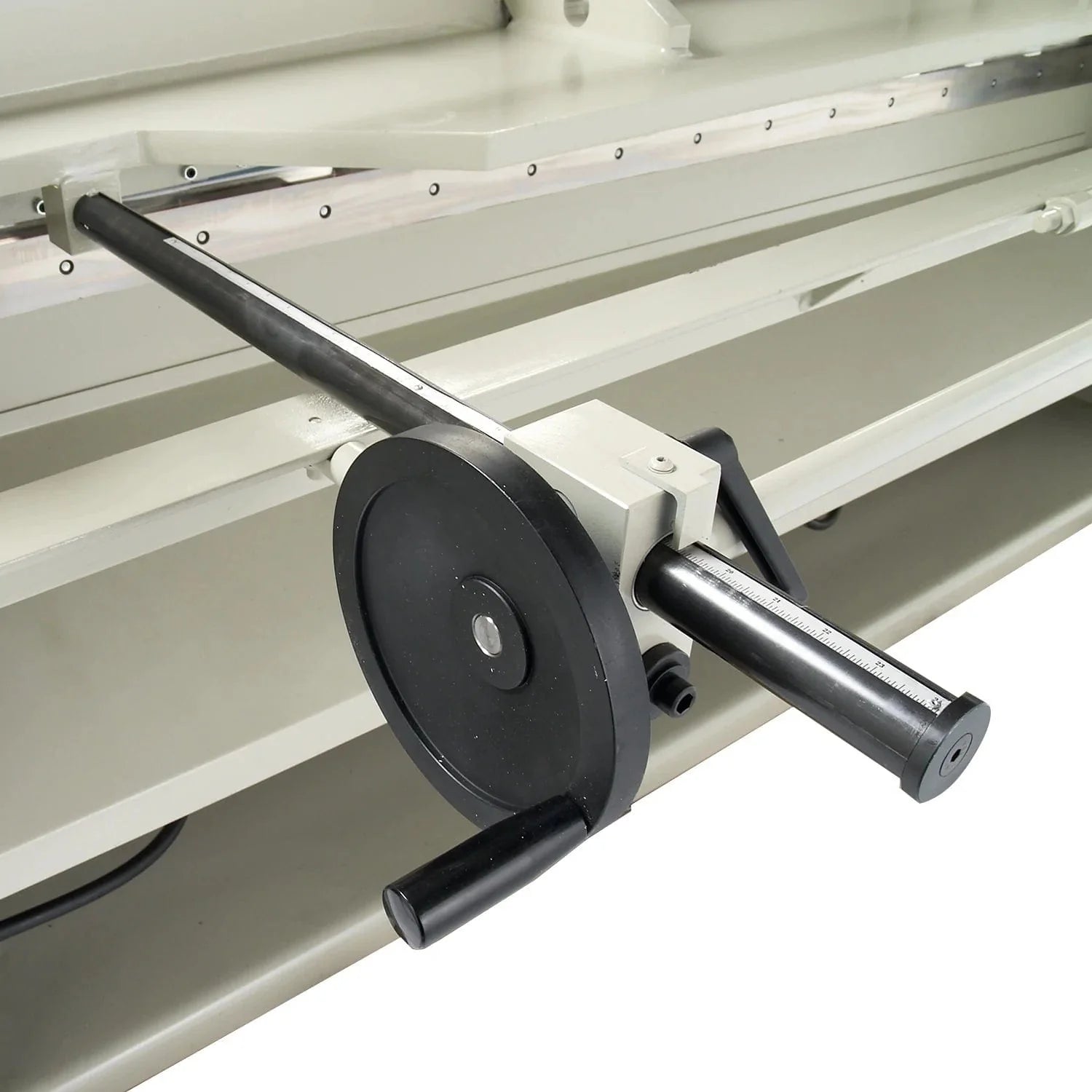

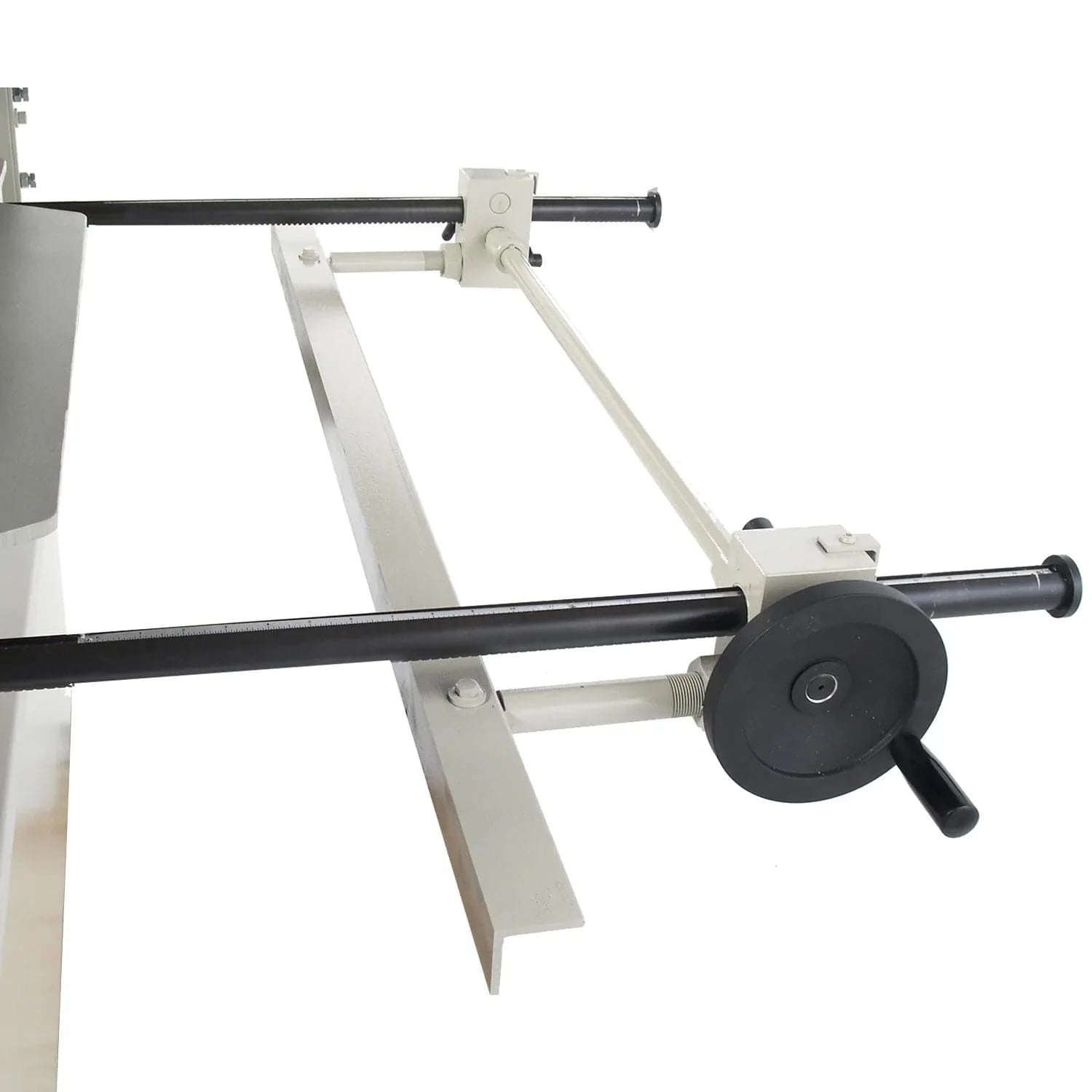

• Adjustable 24” backgauge ensures precise repeatability.

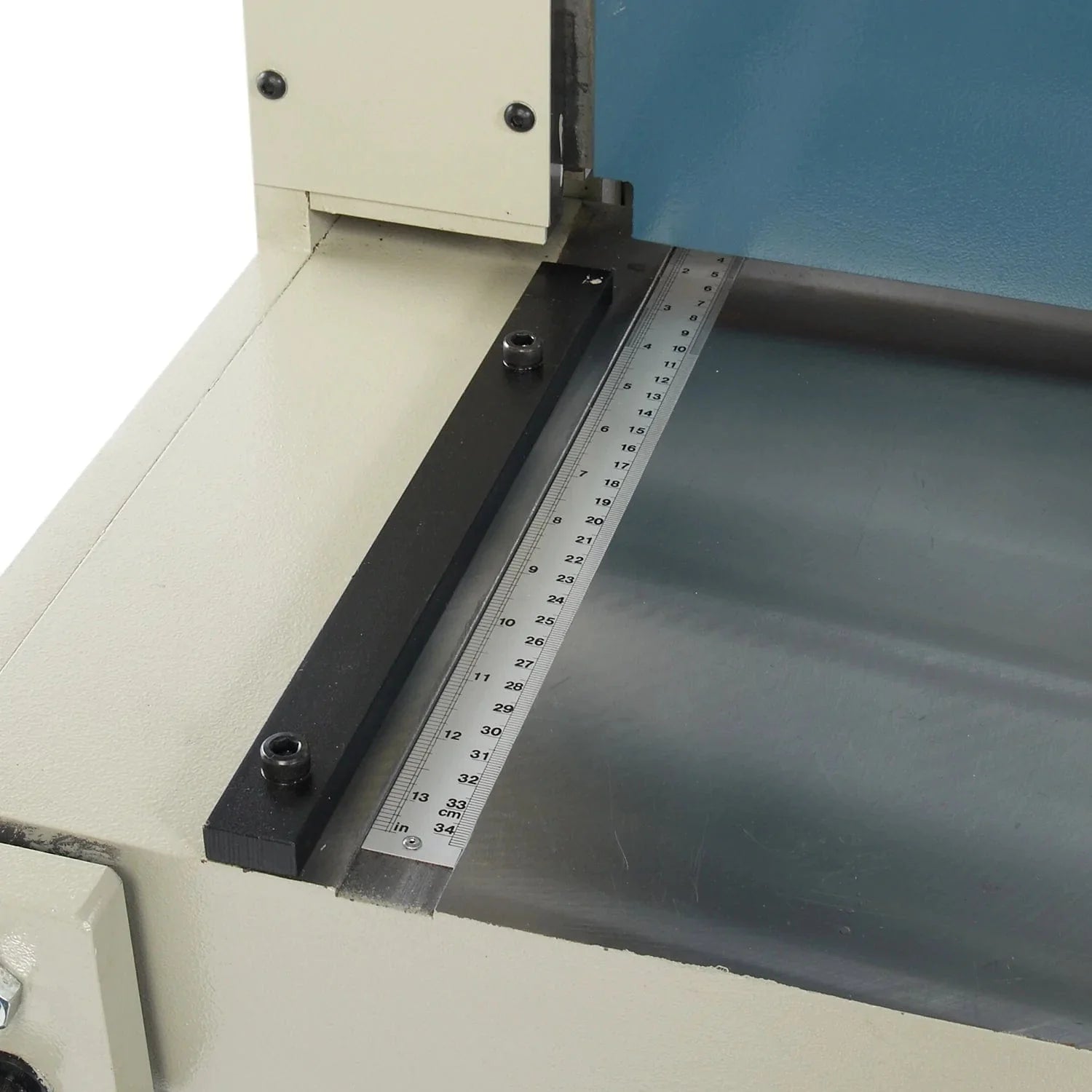

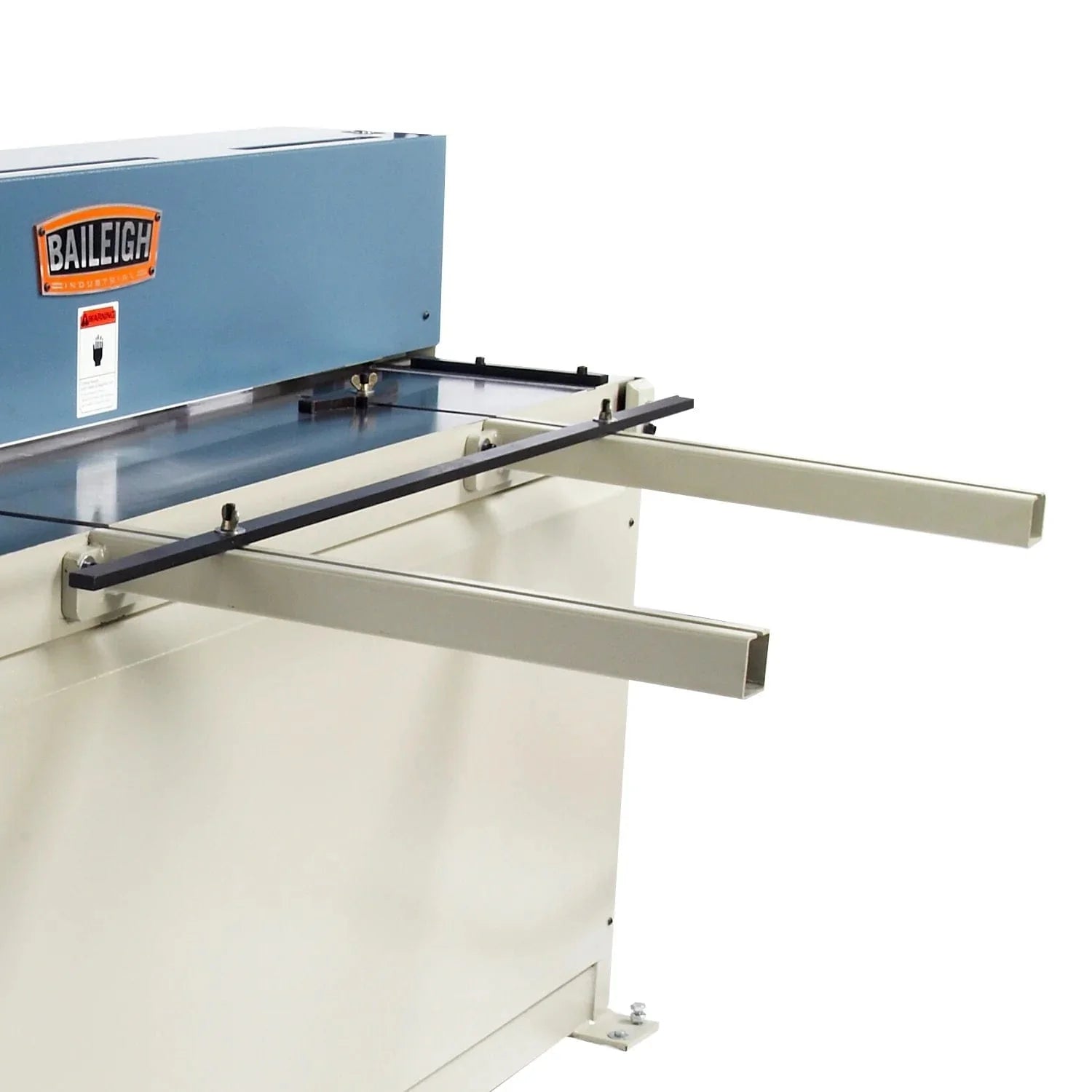

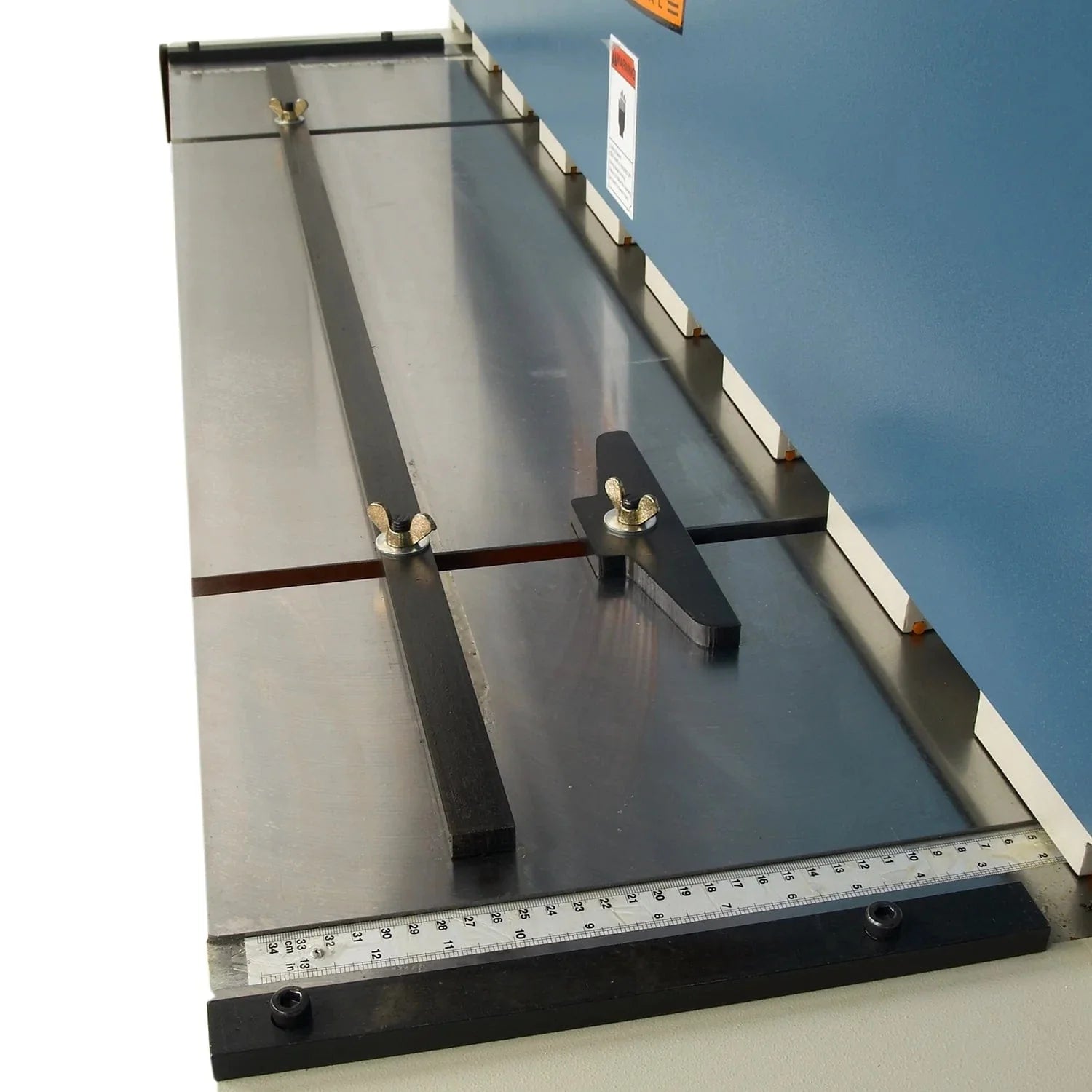

• Front support arms and table guides keep the material square to the blade.

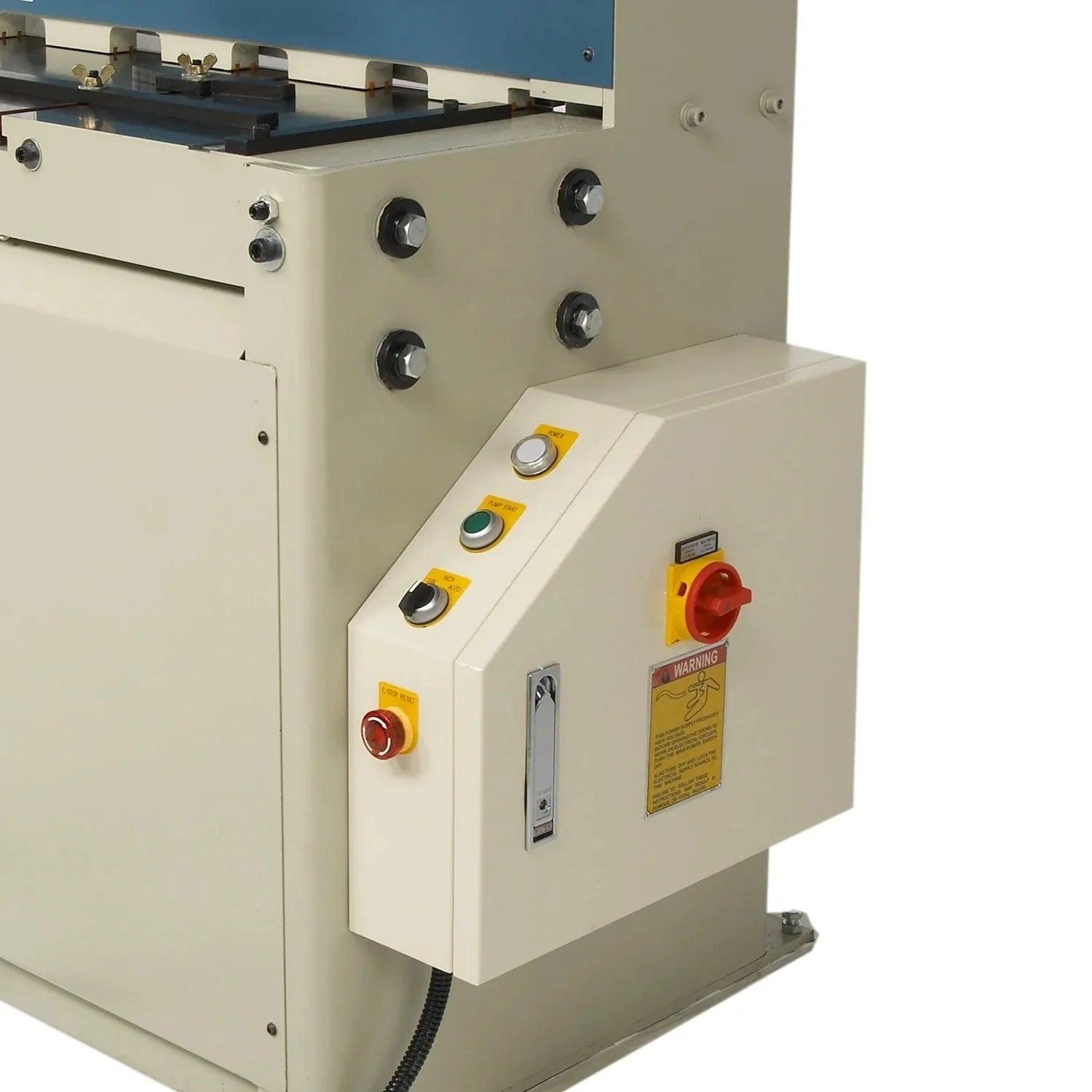

• 3 modes on the operator console:
• Inch mode: Jog the control and ease the blade down to the material.

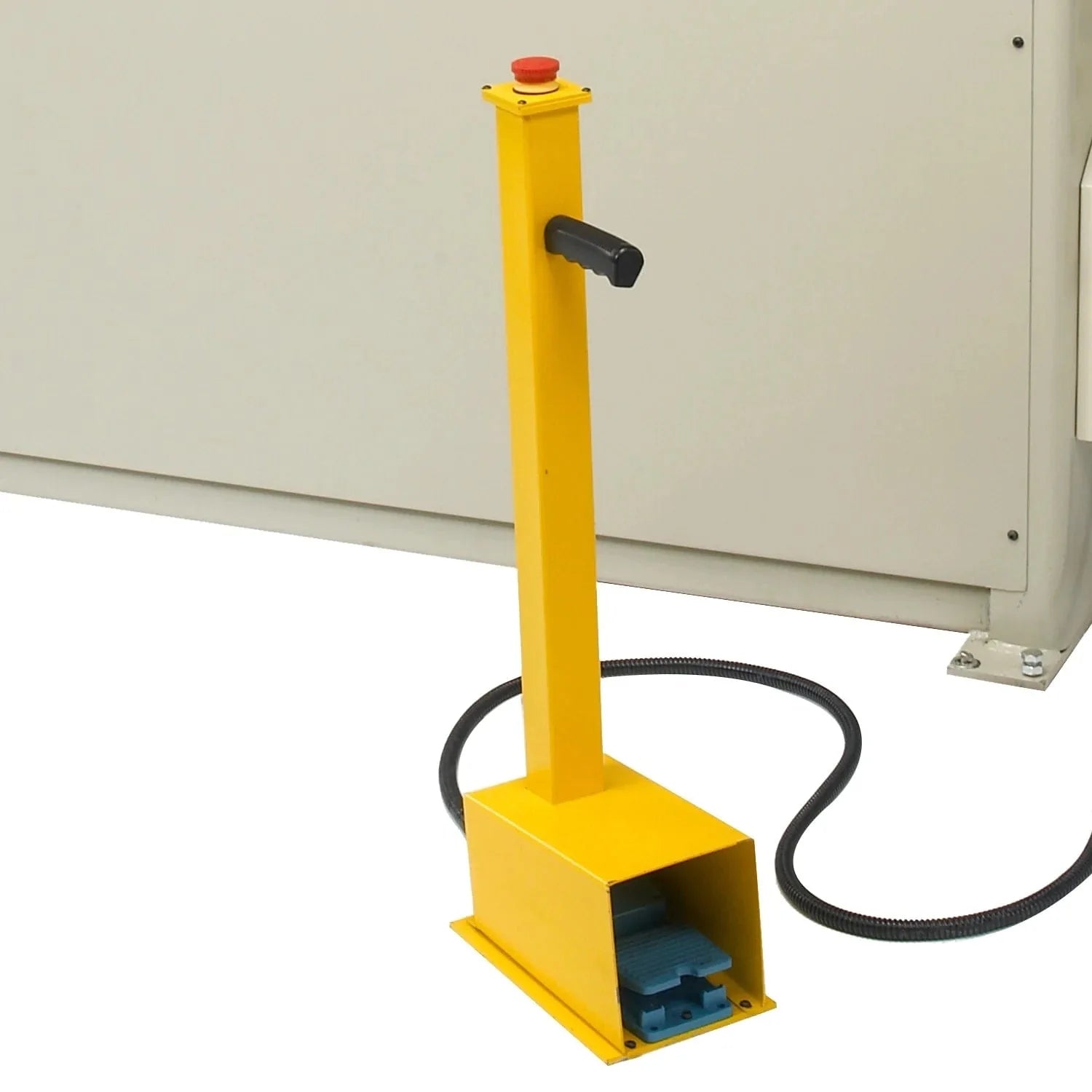

• Single mode: Make one cut cycle per foot pedal push.
• Auto mode: Continue cycling as you hold the pedal down.
• This hydraulic shear comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

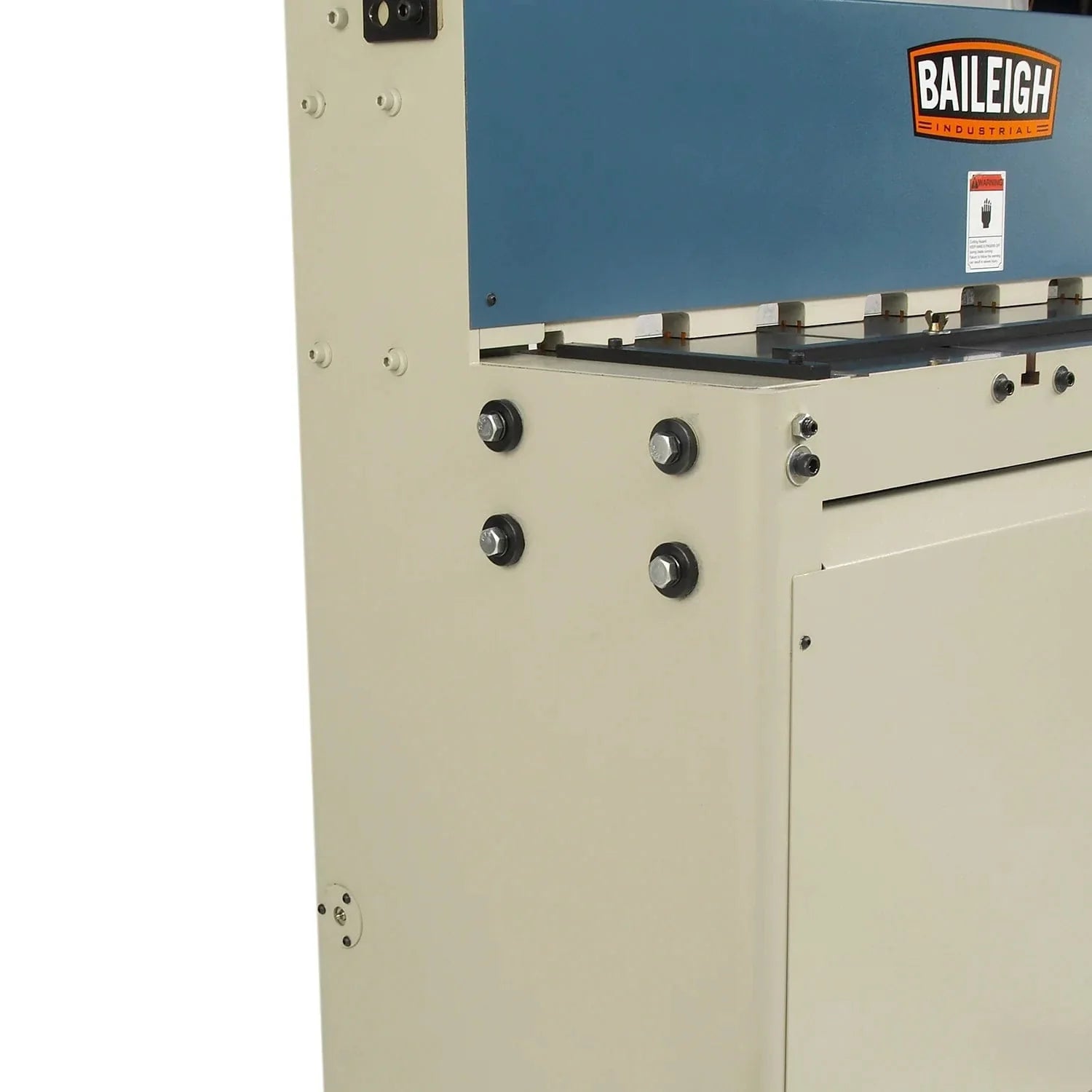

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• This 10 gauge sheet metal shear is covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Specifcations

Item Number SH-5210
Back Gauge Length 24'
Shear Length 52'
Motor 5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 28
Front Gauge Length 24'
Blade Angle 1°
Power 220V Single Phase
Shipping Weight 3150lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 75x35x59

What Our Experts Think

• Versatile Cutting Capacity: The Baileigh SH-5210 can handle up to 10-gauge mild steel with a 52" cutting length, making it a great choice for both small and medium-sized fabrication tasks.
• Hydraulic Precision: Powered by a hydraulic system, this shear ensures clean, accurate cuts with minimal effort, ideal for professional and high-volume work environments.
• User-Friendly Operation: Featuring simple controls and easy-to-read gauges, the SH-5210 allows for quick setup and efficient operation, even for less experienced users.
• Durable and Reliable: Built with sturdy materials, this shear offers excellent reliability, making it a solid choice for long-term use in demanding workshops.
• Space-Saving Design: Its compact design allows for easy integration into small to mid-sized shops, making it a perfect solution for tight spaces without compromising performance

Q&A

Q: What is the Baileigh SH-5210 Hydraulic Powered Shear?
A: The Baileigh SH-5210 is a hydraulic-powered shear designed for cutting 52" lengths of mild steel up to 10 gauge in thickness. It is ideal for industrial sheet metal cutting with precision and ease.

Q: What is the cutting capacity of the Baileigh SH-5210?
A: The Baileigh SH-5210 can cut 10 gauge mild steel up to 52 inches in length, making it a versatile tool for various metalworking applications.

Q: What type of power does the Baileigh SH-5210 use?
A: The Baileigh SH-5210 operates on a 220V 1-phase power supply, ensuring reliable operation in most industrial and commercial settings.

Q: What are the key features of the Baileigh SH-5210 Hydraulic Powered Shear?
A:

• Hydraulic Operation: Provides smooth, efficient, and powerful cutting.
• Cutting Capacity: Cuts 10 gauge mild steel up to 52" in length.
• Heavy-Duty Build: Designed for high durability and consistent performance.
• Precision Cutting: Delivers clean, accurate cuts with minimal material distortion.
• Foot Pedal Control: Allows for hands-free operation for convenience and safety.
• Safety Features: Built-in safety features to protect operators during use.

Q: Is the Baileigh SH-5210 suitable for industrial use?
A: Yes, the Baileigh SH-5210 is built for industrial applications, providing consistent, high-performance cutting for sheet metal in manufacturing environments.

Q: How easy is it to operate the Baileigh SH-5210?
A: The Baileigh SH-5210 is user-friendly, with hydraulic operation and foot pedal control for hands-free cutting, making it efficient and simple to use.

Q: Can the Baileigh SH-5210 cut materials other than mild steel?
A: While the Baileigh SH-5210 is optimized for mild steel, it can also cut other metals like aluminum and stainless steel, depending on the material’s thickness and properties.

Q: What is the build quality of the Baileigh SH-5210?
A: The Baileigh SH-5210 is constructed with a heavy-duty frame and high-quality hydraulic components, ensuring long-lasting reliability and excellent performance in demanding environments

Maintenance Tips

• Lubrication: Regularly lubricate all moving parts, including the shear blades and pivot points, with high-quality oil to ensure smooth operation and reduce wear.
• Hydraulic Fluid: Check hydraulic fluid levels frequently. If low, refill with the recommended fluid and inspect for any leaks in hoses or fittings.
• Blade Care: Inspect the cutting blades regularly for wear, nicks, or dullness. Have them professionally sharpened or replaced as necessary to maintain cutting efficiency.
• Cleanliness: Keep the shear clean by removing metal scraps, dust, and debris from the machine. Use a soft cloth and non-abrasive cleaner for regular wipe-downs.
• Tighten Fasteners: Periodically check all bolts, screws, and fasteners for tightness to ensure stability and reduce vibration.
• Inspect Electrical Connections: Ensure electrical wiring and connections are secure, free from corrosion, and operating properly. Regularly inspect the control panel for function.
• Safety Features: Regularly check that all safety guards, emergency stop buttons, and safety interlocks are intact and operational.
• Blades Alignment: Periodically check the alignment of the cutting blades to ensure consistent and accurate cuts. Recalibrate the system as needed.
• Storage: When not in use for extended periods, cover the machine to protect it from dust and moisture.
• Professional Servicing: Schedule regular professional inspections and servicing to ensure the machine is operating at peak performance and to identify potential issues before they become major problems
