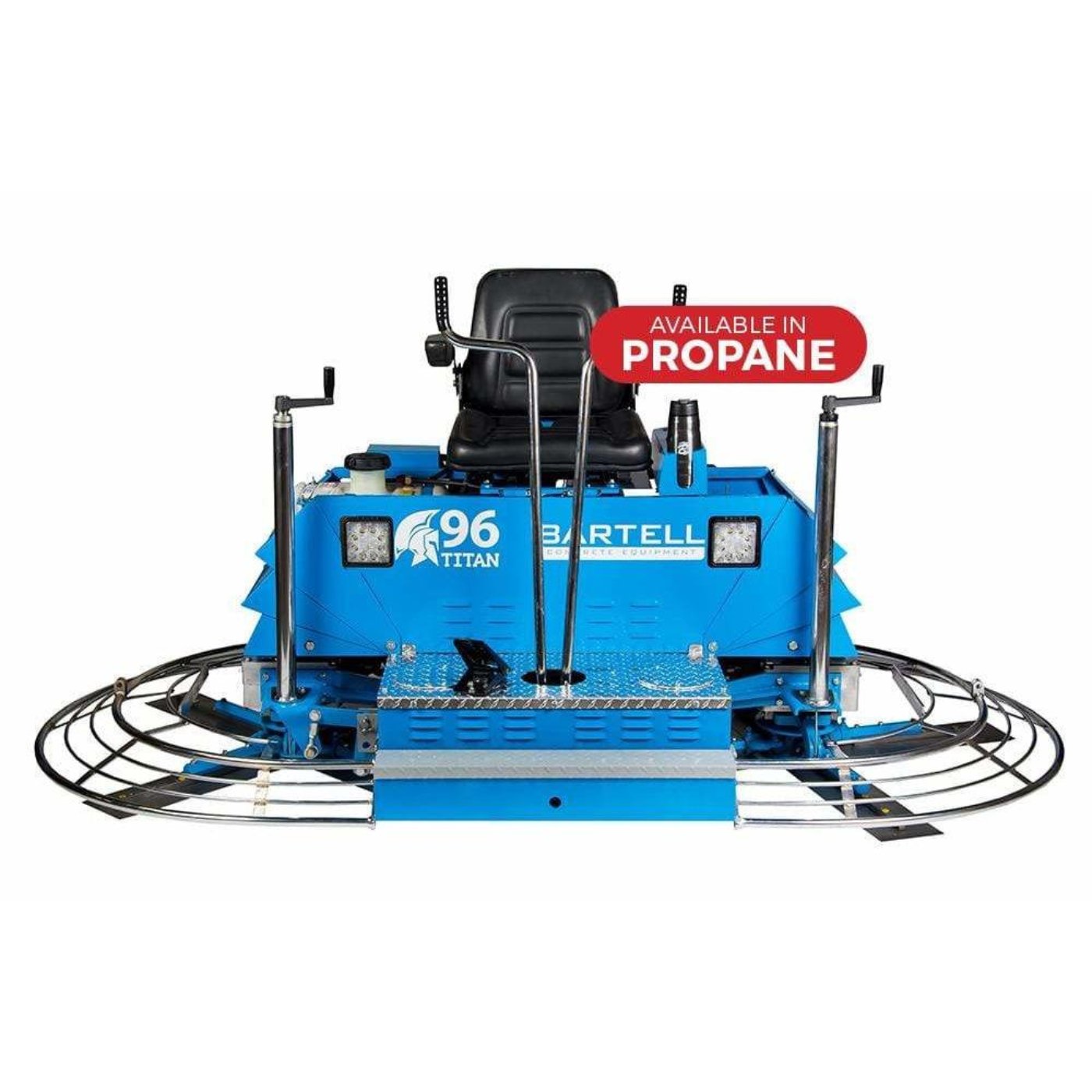

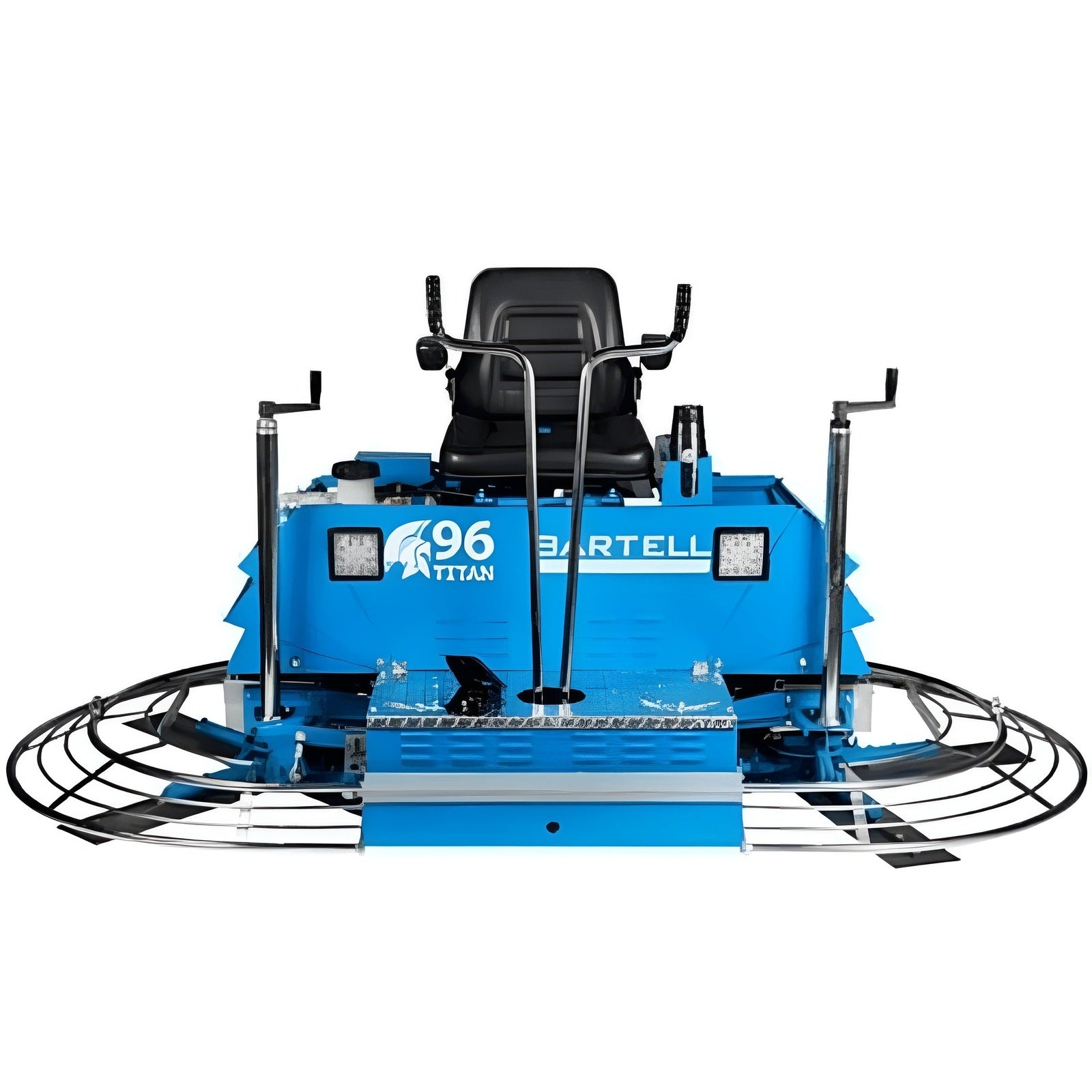

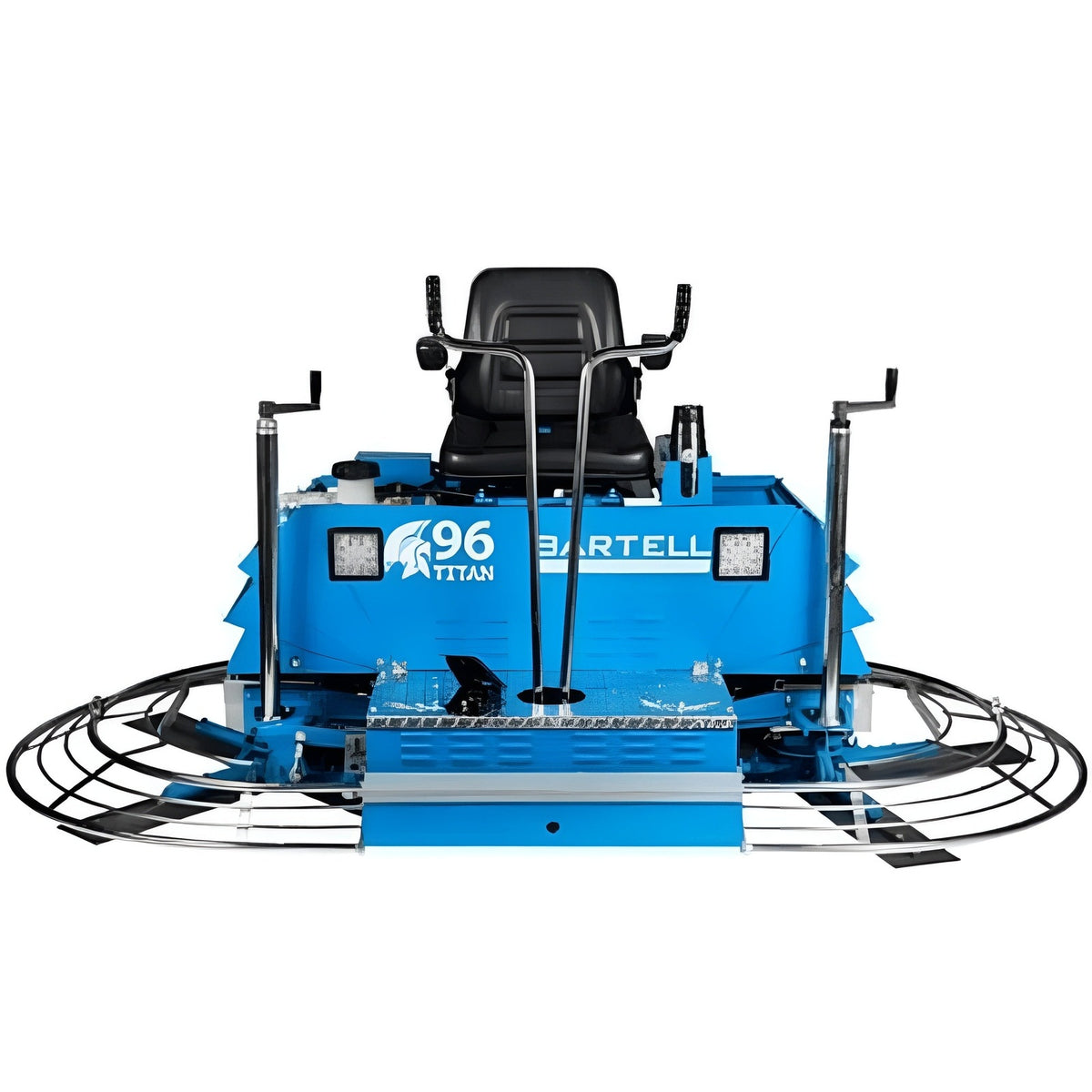

Bartell Global Titan 96 Ride On Power Trowel Machine, Concrete, Vanguard Engine, Propane Option - TITAN96

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

Well respected for its power and torque in a sleek, low profile design. TheTitan 96 8-foot rider delivers an incredibly smooth finish while providing optimum operator comfort. Lower profile design gives the operator a better feel and sightline of the slab. Blade speeds of 180 RPM can be reached with this machine and it comes standard with Dual Position Steering.

• 6″ lower to the ground

• 19″ height from bottom of foot to seat

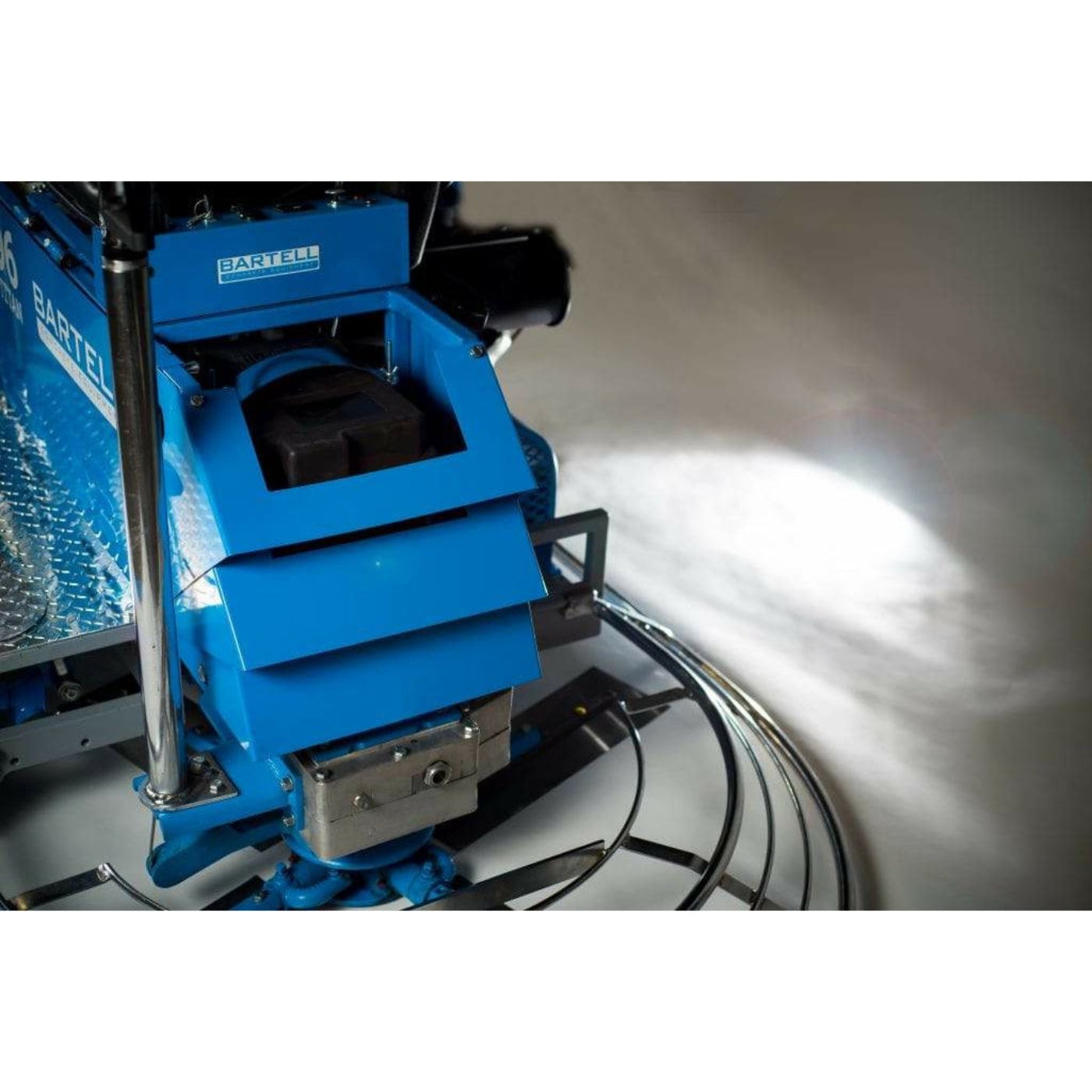

• LED Lights in front and rear

• 12v USB charging port and cup holder

• Greater visibility to blade

• New accelerator pedal

• Low profile design (puts operator closer to concrete)

• Heavy duty gearbox

• Multiple engine selection

• Weight plate add-on (add up to 225lbs)

• New compact transport system

• Lift off front panel for easy maintenance

• Under seat safety switch

• Completely interchangeable steering positions

• Grizzly Blades

• Greater RPM (Up to 180 RPM with select engines)

• Four lift points, in addition to a single lift hook under the seat.

• Included toolbox

Specifications

Type: Panning & Finishing

Power Source: Gas/Petrol – Vanguard 35/37 EFI

                          Propane – Vanguard 993cc

Power Output: Gas/Petrol – 35/37hp

                           Propane – 35hp

RPMs: 180

Float Blade Size: 10” x 18” (25cm x 46cm)

Finish Trowel Size: 6” x 18” (15cm x 46cm)

Combination Blade Size: 8” x 18” (20cm x 46cm)

Float Pan: 46” (117cm)

Operating Weight: 940lbs (427kg)

Length: 96” (244cm)

Width: 48” (122cm)

Height: 46” (117cm)

Weight: 904lbs (410kg)

Manuals

Spec Sheet

What Our Experts Think

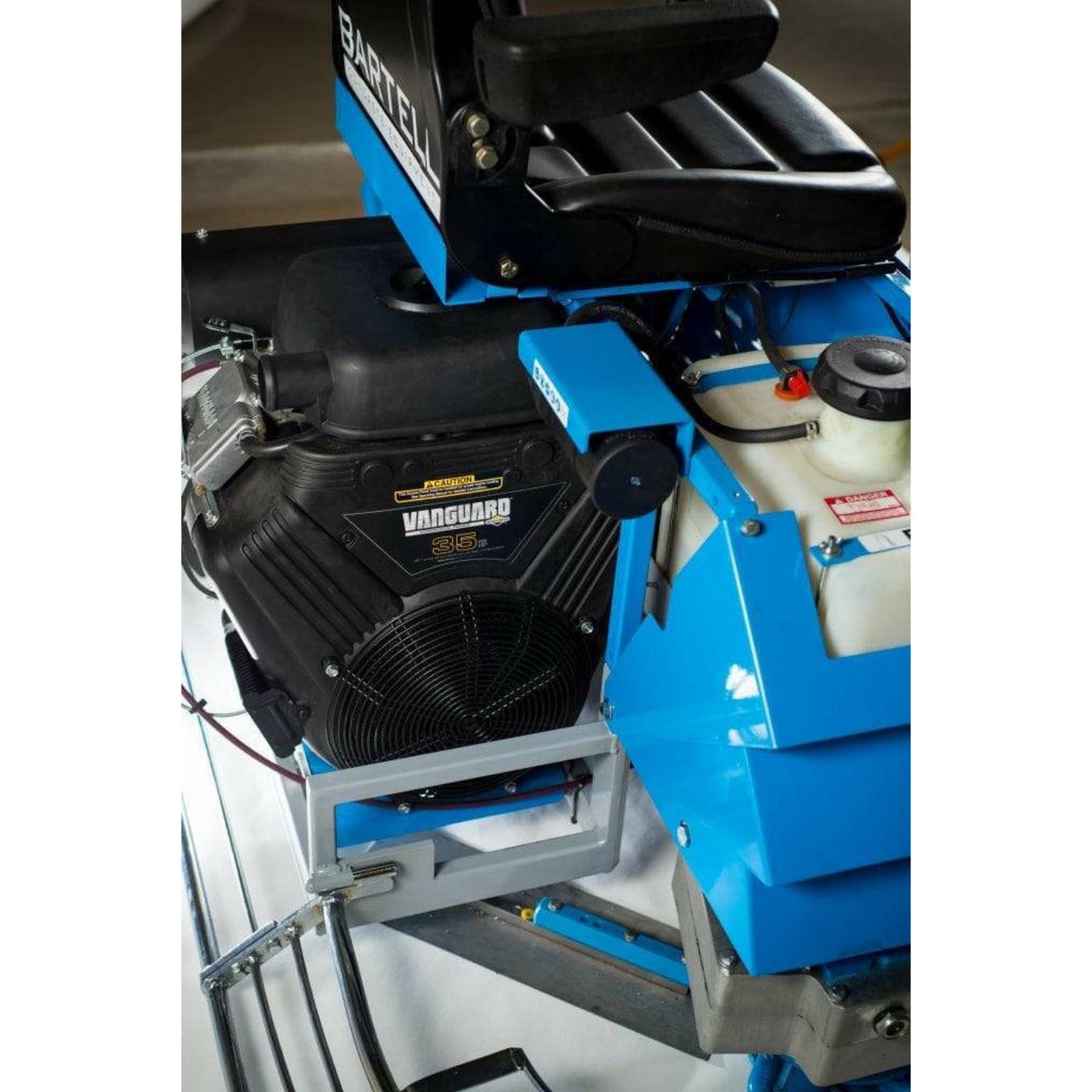

• Powerful Vanguard Engine: The Bartell Global Titan 96 Ride-On Power Trowel is equipped with a high-performance Vanguard engine, offering unmatched power for large-scale concrete finishing tasks.
• Massive Coverage: With a 96-inch working width, the Titan 96 efficiently covers large surfaces, reducing work time and boosting productivity for expansive commercial and industrial projects.
• Propane Option: The Titan 96 comes with a propane option, providing clean and efficient power, making it ideal for outdoor and remote job sites where traditional fuel sources may be less practical.
• Rugged and Reliable: Designed for tough job sites, the Titan 96 is built with durable materials that ensure long-lasting performance and reduced maintenance costs.
• Smooth and Precise Finishing: This power trowel delivers superior smoothness and control, creating a professional-grade finish on concrete surfaces with consistent results.
• Operator-Friendly Design: The ride-on configuration ensures comfort and ease of use, reducing operator fatigue and allowing for greater control over the machine throughout long hours of operation.
• Perfect for Large-Scale Projects: Whether it's a massive warehouse floor or a large commercial building, the Titan 96 is tailored for high-volume, large-area projects where both speed and precision are crucial

Q&A

Q: What is the Bartell Global Titan 96 Ride-On Power Trowel used for?
A: The Bartell Global Titan 96 is a ride-on power trowel designed for high-efficiency finishing of large concrete slabs. It provides a smooth, durable surface for commercial and industrial concrete projects.

Q: What are the key features of the Bartell Global Titan 96 Ride-On Power Trowel?
A: The Titan 96 features a powerful Vanguard engine with a propane option for reliable performance. It includes a ride-on design for enhanced operator comfort, adjustable trowel blades for superior finishing, and is built for high productivity on large concrete jobs.

Q: How does the Bartell Global Titan 96 improve productivity?
A: The Titan 96 allows operators to cover large concrete surfaces quickly and efficiently with its ride-on design and powerful Vanguard engine. The propane option provides a cleaner, more efficient fuel source, improving both performance and environmental impact.

Q: Is the Bartell Global Titan 96 Ride-On Power Trowel easy to operate?
A: Yes, the Titan 96 is equipped with user-friendly controls and a comfortable seat for extended use, making it easy for operators to achieve a smooth, high-quality finish.

Q: Does the Bartell Global Titan 96 Ride-On Power Trowel come with a warranty?
A: Yes, the Titan 96 is backed by a manufacturer’s warranty, ensuring durability and reliability for demanding concrete finishing applications

Maintenance Tips

• Engine Maintenance: Regularly check the Vanguard engine oil levels and change the oil as recommended by the manufacturer. Replace the air filter as needed to maintain engine efficiency and air quality.

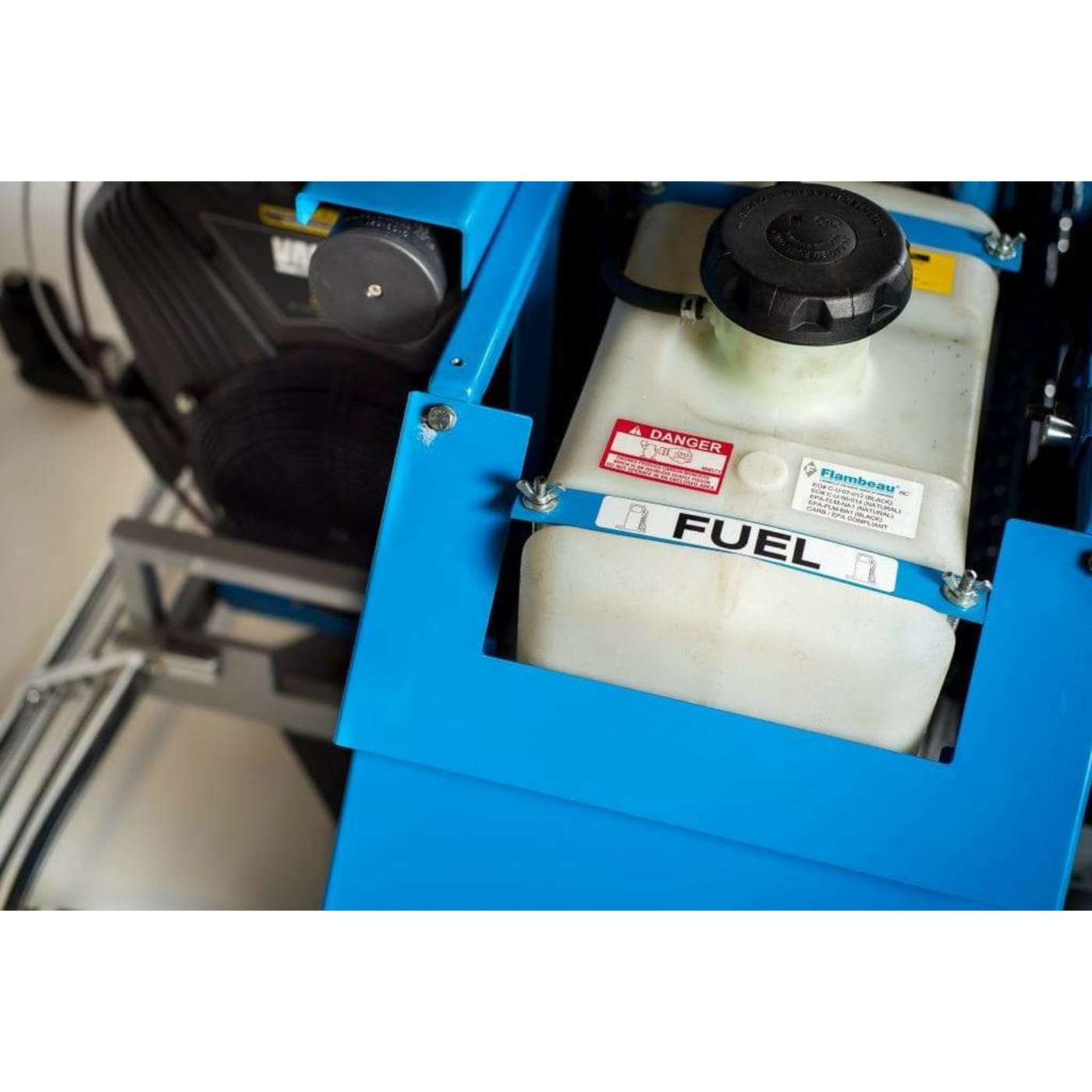

• Propane System Check: Ensure the propane tank is securely attached and free from leaks. Regularly inspect the fuel lines and connectors, replacing them if any signs of wear or damage are present.

• Trowel Blade Inspection: Regularly check the trowel blades for wear and tear. Replace damaged or worn blades to ensure an even concrete finish and prevent excessive strain on the engine.

• Grease Moving Parts: Lubricate all moving parts, including the trowel head and any joints or bearings, to reduce friction and ensure smooth operation.

• Tire Pressure: Verify that the tires are inflated to the correct pressure to ensure stability and proper operation. Over- or under-inflated tires can impact machine performance and safety.

• Hydraulic Fluid Check: Inspect hydraulic fluid levels and check hoses for leaks or damage. Replace any damaged hoses to maintain the trowel’s hydraulic performance.

• Battery Care: If the unit includes a battery, ensure it is fully charged and the terminals are clean and free of corrosion. Replace the battery when necessary to ensure reliable operation.

• Bolt Tightening: Regularly check and tighten all bolts, nuts, and fasteners to avoid parts loosening due to vibrations during use.

• Cleaning After Use: Clean the machine thoroughly after each use to remove concrete build-up, especially from the trowel blades and other components, to prevent residue from affecting future performance.

• Safety System Testing: Test all safety features, such as emergency shutoffs and kill switches, to ensure they are functioning correctly, prioritizing operator safety.

• Proper Storage: Store the Titan 96 Ride-On Power Trowel in a dry and secure area to protect it from the elements, especially moisture, which could cause rust or corrosion.
