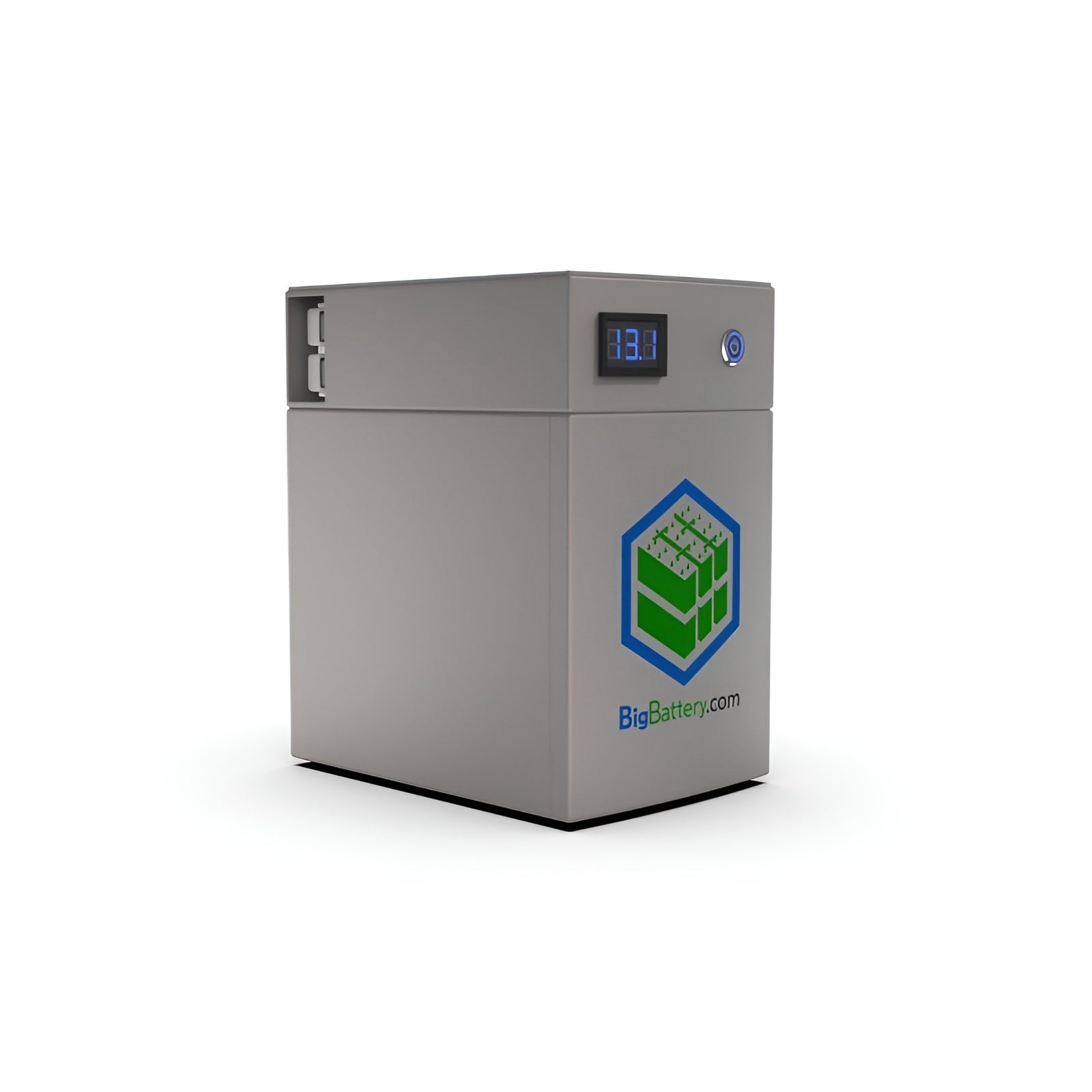

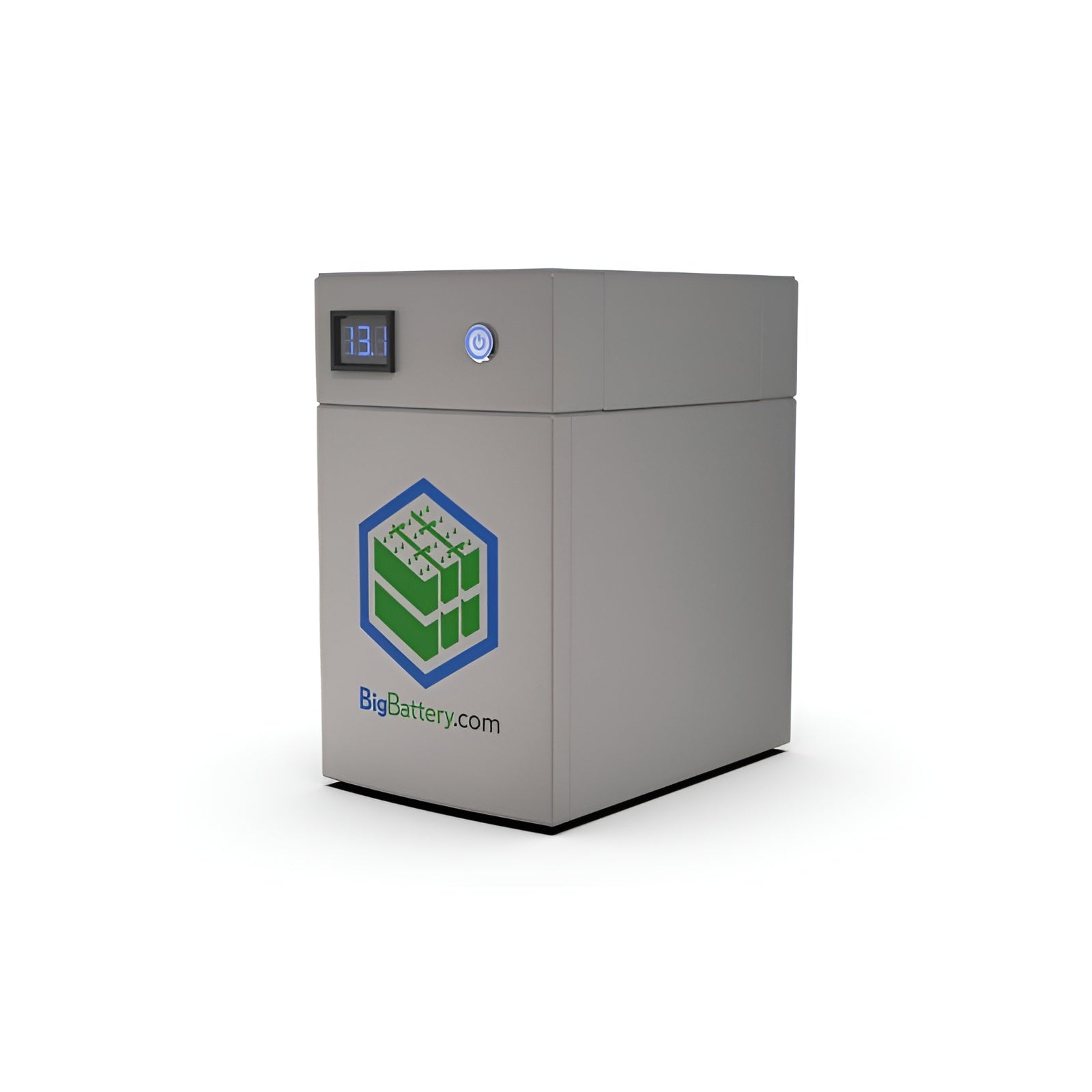

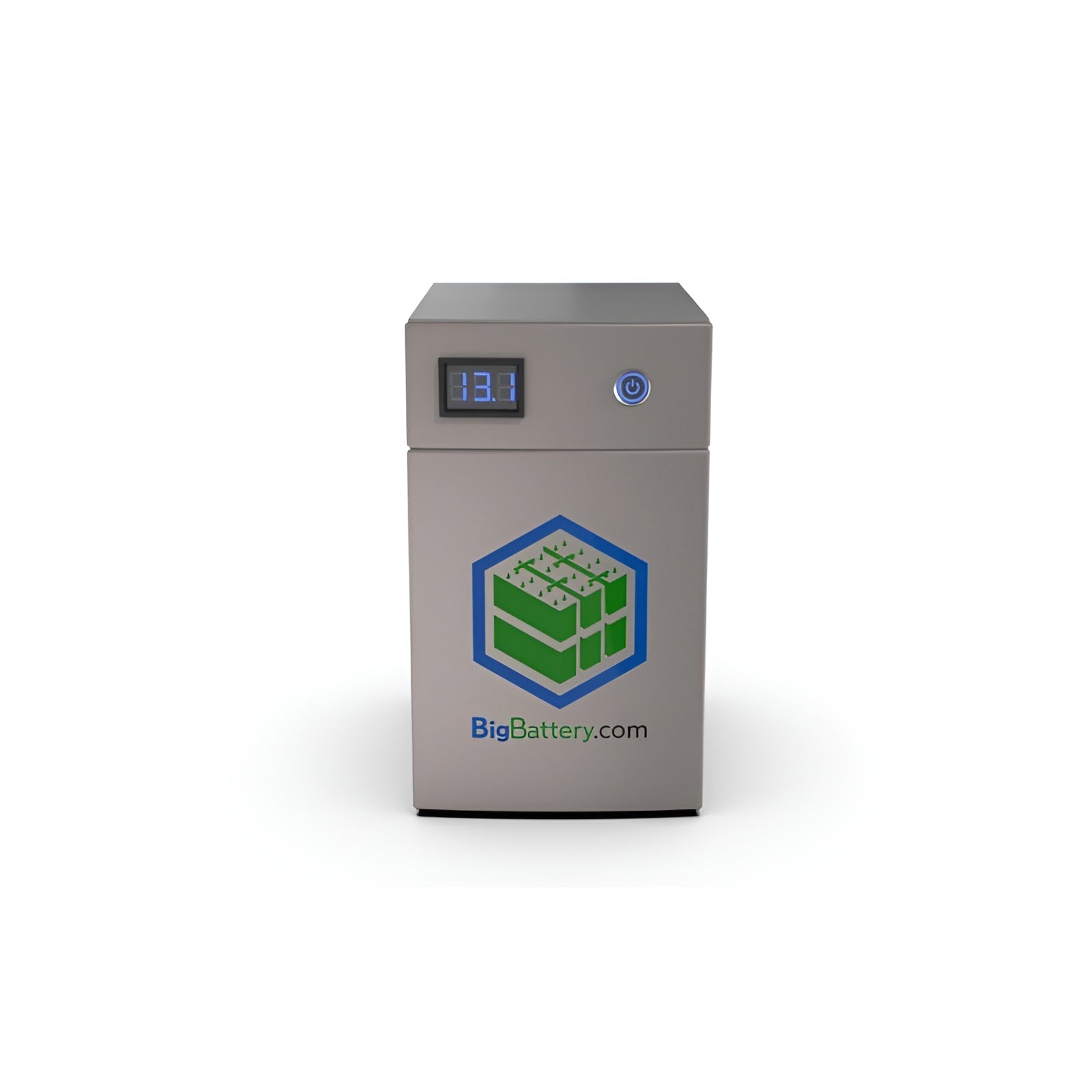

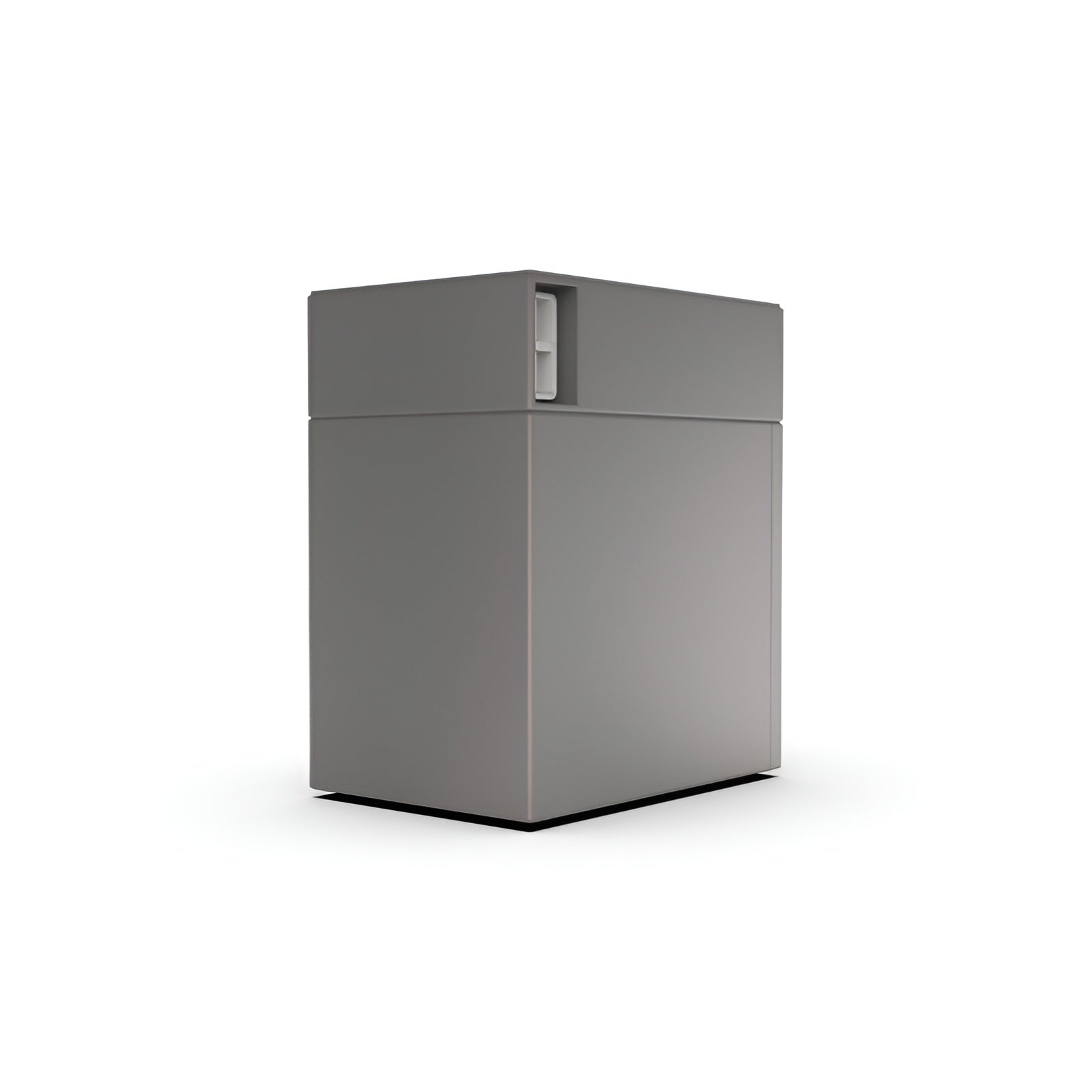

BigBattery 12V OWL 170Ah LiFePO4 Power Block | 2.17KwH Lithium Solar Battery

BigBattery 12V OWL

The battery provides a solution to the problem of energy wasted from solar installations at night or during periods that are not sunny. The BigBattery Lithium Solar Battery is an innovative system that captures and stores electricity from the sun, stores it in lithium ion flammable cells, and supplies power to your home when you need it.
We have made them highly efficient while delivering extended life—around 4000 cycles versus 2000 for lead acid batteries. To store excess solar energy, line up a row of panels with enough space between each panel so there's no shadow on any one panel. We recommend anywhere between three to six panels minimum for optimal performance.

The new Big Battery 12V 2.2kWh battery is designed around our NEW LiFePO4 cells, which come pre-installed with an advanced BatteryEVO BMS that will protect your cells from being damaged once they become discharged to a certain level at 24°Ffahrenheit for optimal safety and longevity of the pack.

With a 300A fuse and built-in low charging disconnects at -24oF, this Lithium Iron Phosphate electric battery has been upgraded so you can use it as a drop-in replacement for almost any Golf Cart or Off-Grid Power System application! The all-new two thousand watt hours lithium iron phosphate power block can provide nearly four times more power than standard lead acid 12v deep

For it’s size, this is the strongest 12V Power Block in the USA providing you with More Power Capacity, Shorter Charge Times and Longer Life Cycles. You’ll see and feel the difference

Features

Specifications

• SKU: A-OWL-12021-G1
• System Voltage: 12V
• Nominal Voltage: 12.8V
• Chemistry: LiFePO4
• Charging Voltage Range: 13.9 - 14.5V
• Max Charge Voltage: 14.7V
• Operating Voltage Range: 9.8 – 14.6V
• kWh Capacity: 2.17kWh
• Ah Capacity: 170Ah
• Cell Configuration: 4S
• Max Continuous Discharge Current: 175A
• Max Continuous Power: 2240W
• Max Discharge Peak Current: 350A (6 Seconds)
• Max Charge Current: 175A
• Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
• Discharge Temperature Range: -30°C (-22°F) / 55°C (131°F)
• Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
• Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
• Weight: 51 lb (23.1 kg)
• Depth: 10.1 in (25.7 cm)
• Width: 7.2 in (18.3 cm)
• Height: 13.1 in (33.3 cm)
• Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
• Max Connections: Up To (8) Parallel

What Our Experts Think

• High Capacity: The BigBattery 12V OWL 170Ah LiFePO4 Power Block provides a substantial 2.17kWh of energy storage, ideal for off-grid solar systems or backup power solutions.
• Long-Lasting Durability: Built with LiFePO4 (Lithium Iron Phosphate) technology, offering superior longevity, high cycle life, and enhanced safety compared to traditional lithium-ion batteries.
• Efficient Energy Storage: Designed to handle high current loads with minimal voltage drop, ensuring reliable power delivery for your energy needs.
• Compact & Lightweight: Offers a compact form factor, making it easy to integrate into a variety of setups without taking up too much space.
• Environmentally Friendly: As a sustainable and safe energy source, it’s ideal for eco-conscious users looking to reduce their carbon footprint.
• Versatile Applications: Perfect for solar power systems, RVs, boats, and other off-grid setups, providing dependable energy storage in various environments.

Q&A

Q: What is the BigBattery 12V OWL 170Ah LiFePO4 Power Block?
A: The BigBattery 12V OWL 170Ah LiFePO4 Power Block is a high-capacity lithium iron phosphate (LiFePO4) battery designed for solar energy storage, providing 2.17kWh of energy for off-grid, RV, or solar applications.

Q: What are the key features of the BigBattery 12V OWL 170Ah LiFePO4 Power Block?
A: Key features include 170Ah capacity, 2.17kWh energy storage, LiFePO4 chemistry for long-lasting performance, lightweight and compact design, and high efficiency for solar systems and backup power.

Q: How long does the BigBattery 12V OWL 170Ah Power Block last?
A: The LiFePO4 chemistry ensures a long lifespan of 3,000-5,000 charge cycles, significantly outlasting traditional lead-acid batteries.

Q: Is the BigBattery 12V OWL 170Ah LiFePO4 Power Block suitable for solar systems?
A: Yes, this battery is ideal for solar energy storage, providing reliable power for off-grid systems, RVs, and other renewable energy applications.

Q: How do I charge the BigBattery 12V OWL 170Ah LiFePO4 Power Block?
A: The battery can be charged using a compatible solar panel, DC charger, or other charging systems designed for 12V LiFePO4 batteries.

Q: What is the size and weight of the BigBattery 12V OWL 170Ah LiFePO4 Power Block?
A: The battery is designed to be compact and lightweight. Specific dimensions and weight can be found in the product details.

Q: Does the BigBattery 12V OWL 170Ah LiFePO4 Power Block come with a warranty?
A: Yes, it comes with a warranty. Please check with the retailer for the specific warranty details.

Q: Can I connect multiple BigBattery 12V OWL 170Ah Power Blocks together?
A: Yes, you can connect multiple batteries in series or parallel, depending on your power requirements and system design.

Q: Is the BigBattery 12V OWL 170Ah Power Block safe to use?
A: Yes, the LiFePO4 chemistry is known for being safer than other lithium-ion batteries, with built-in protection circuits to prevent overcharging, overheating, and short circuits.

Maintenance Tips

1. Keep It Charged: Regularly charge the battery to maintain optimal performance. Avoid letting it discharge completely, as this can shorten the lifespan.
2. Store Properly: If not in use for extended periods, store the battery in a cool, dry place at around 50% charge to prevent damage.
3. Avoid Overcharging: Use a compatible charger with built-in protection to prevent overcharging, which could lead to battery damage.
4. Monitor Temperature: Keep the battery in a well-ventilated area and avoid exposure to extreme temperatures (above 140°F or below 32°F).
5. Clean the Terminals: Periodically clean the battery terminals with a dry cloth to ensure proper connectivity and prevent corrosion.
6. Check Battery Health: Regularly inspect the battery for any signs of damage, swelling, or leakage. If any issues are noticed, discontinue use and consult the manufacturer.
7. Use Compatible Equipment: Ensure that all connected devices are compatible with the battery's voltage and specifications to prevent overloading or damage.
