Calcana Standard Output, 10' Outdoor Patio Heater, Patented Modulating Temperature Control, Ventable - PH-40V-10
Where people gather outside

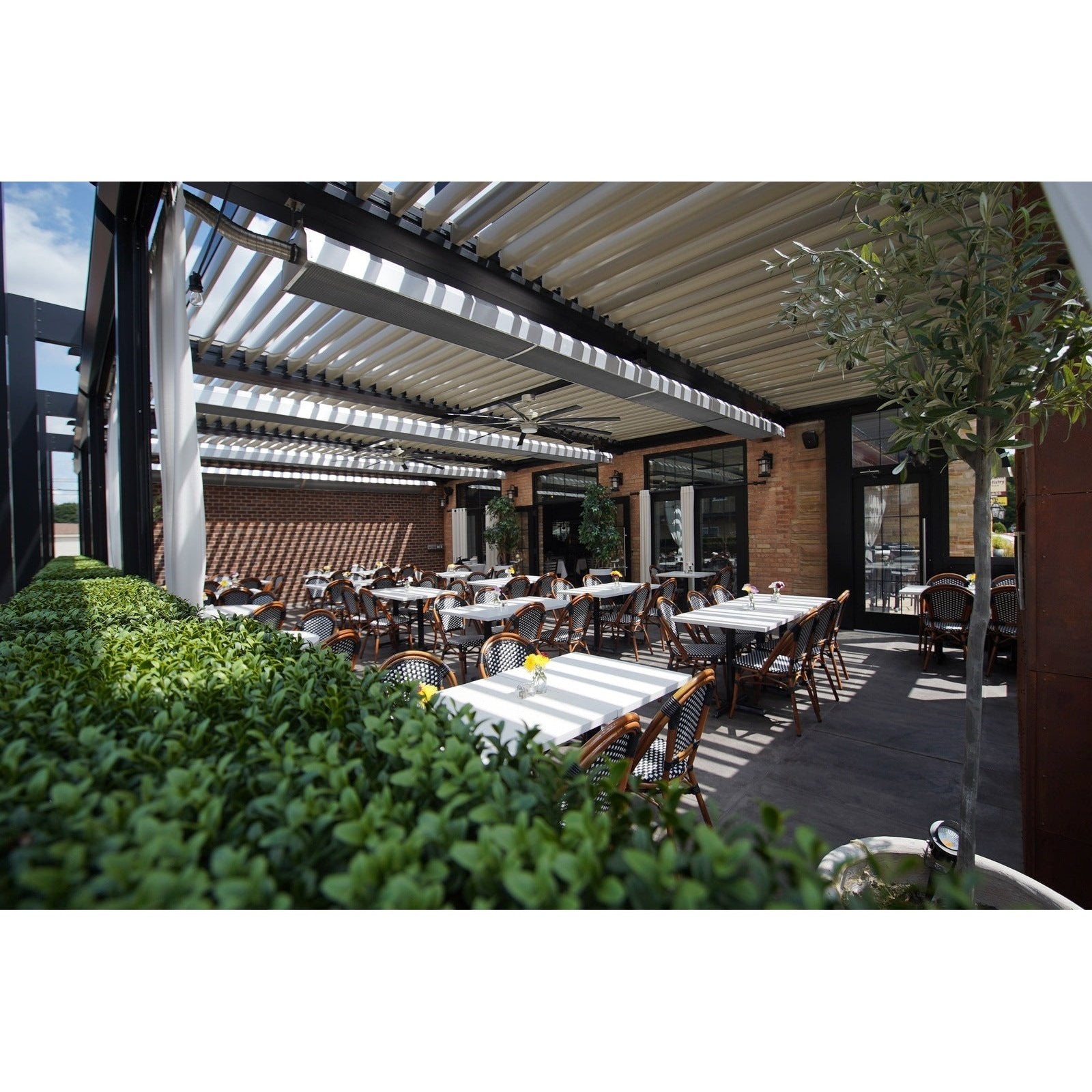

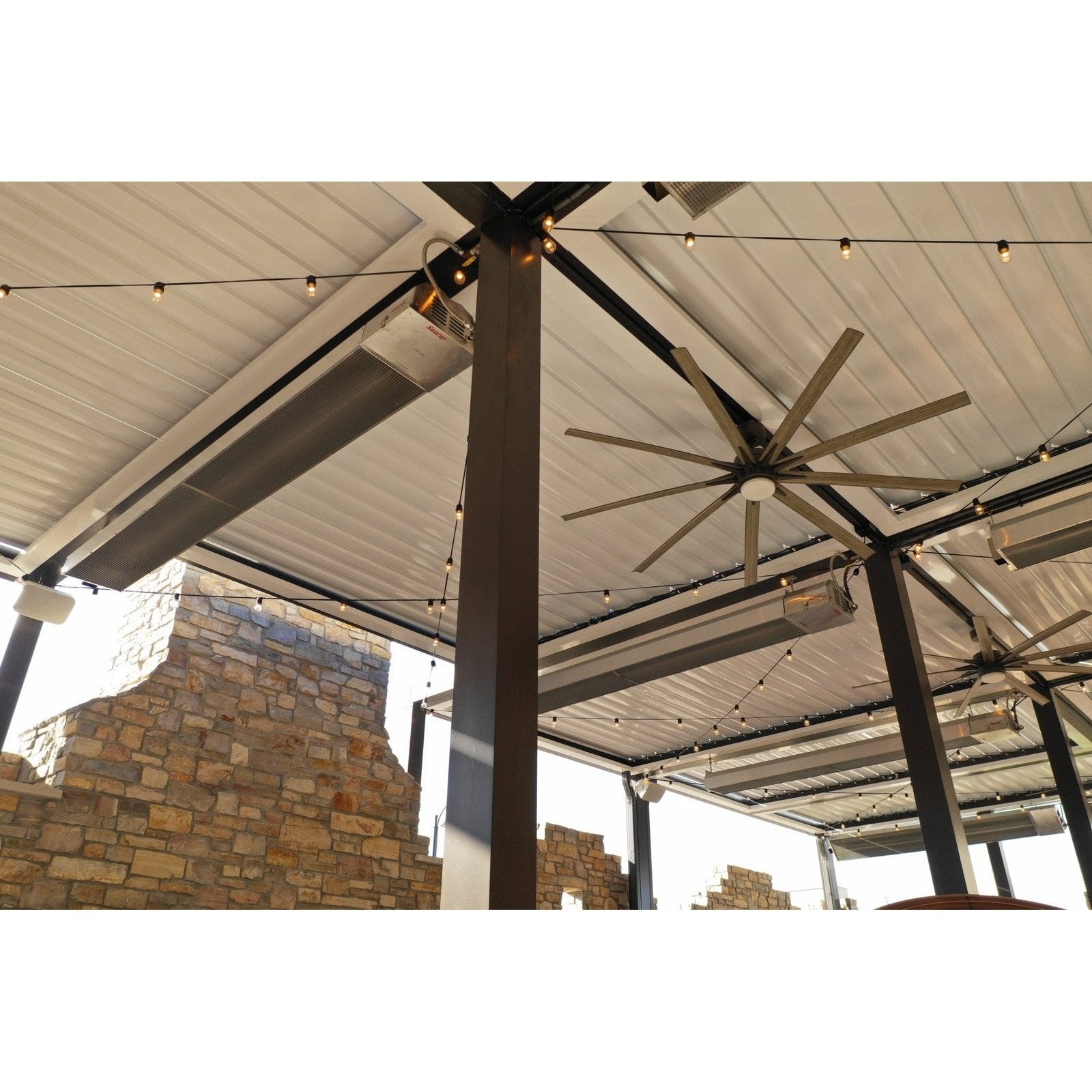

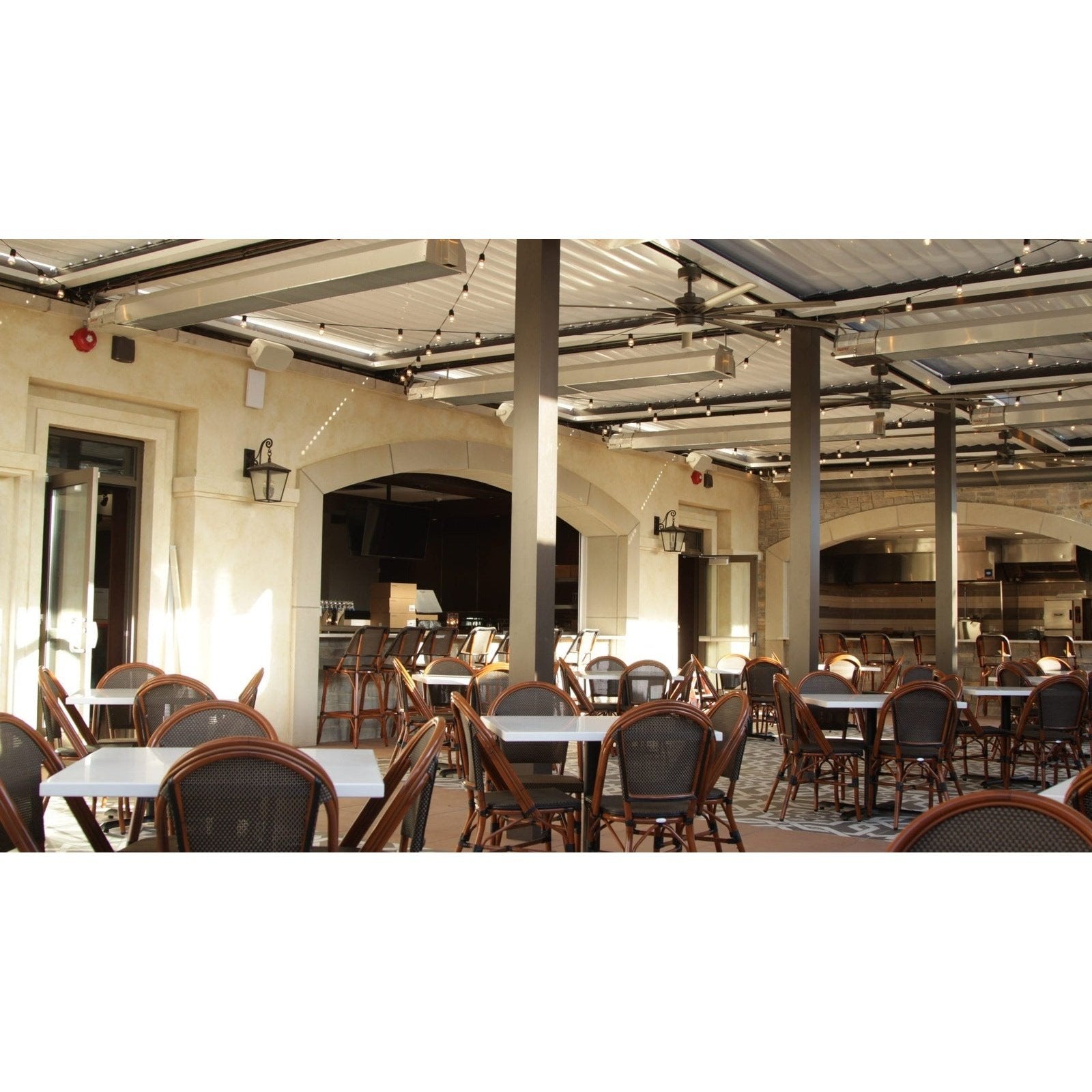

Golf courses/driving ranges, garages, outdoor sporting facilities, night club line-ups, loading docks, outdoor smoking areas, doorman/valet stations, restaurant patios, residential decks anywhere that people gather outside can be enhanced by a Calcana Infrared Outdoor Heating System.
Safety & Design
The PH, CAL and SR Series are all approved for outdoor use by CSA. Application, location and purpose dictate which is the best heater for the job. Heater elevation, exposure to wind, and performance expectation are additional factors to be considered when designing the best outdoor heating solution. Please contact the factory for more information about our design services.

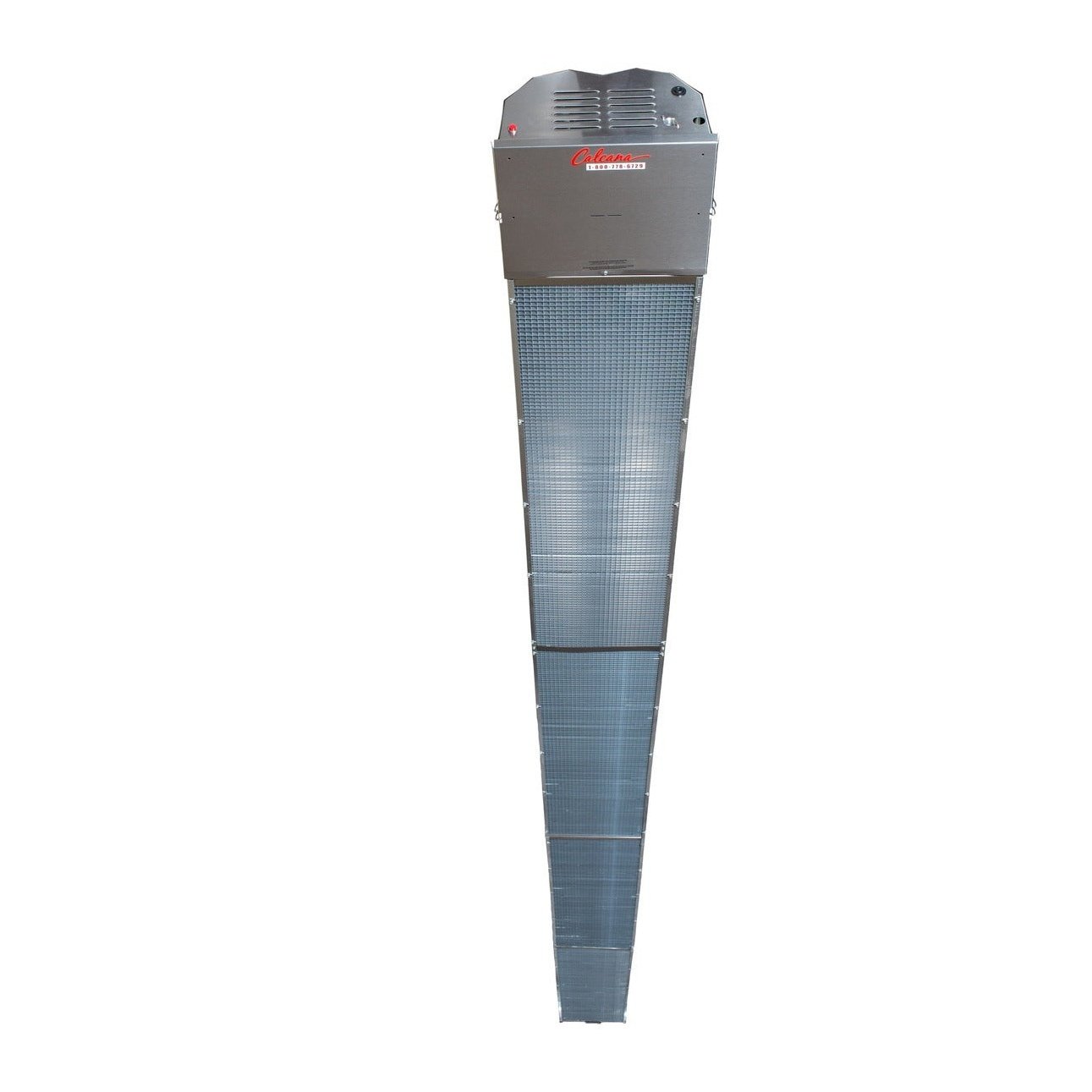

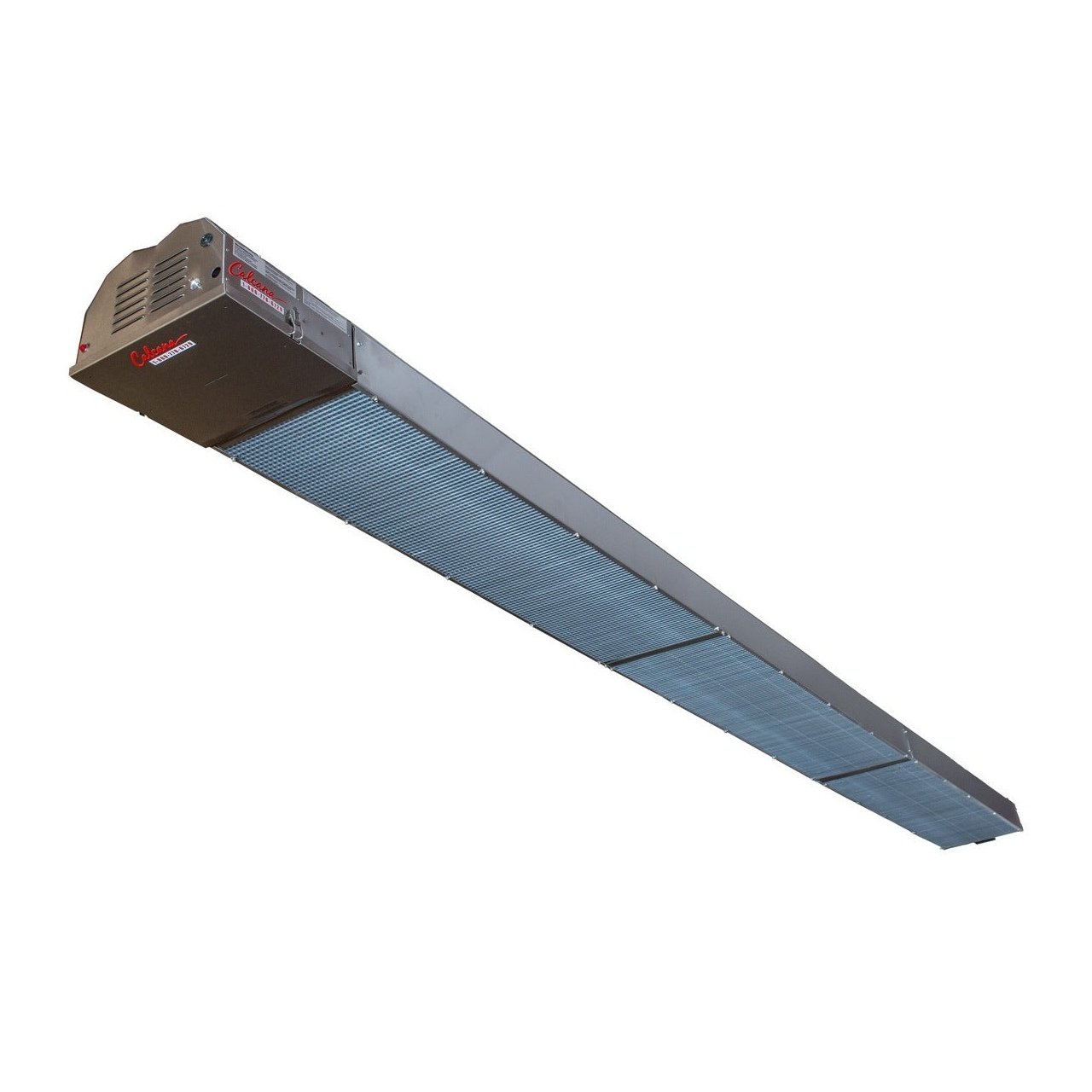

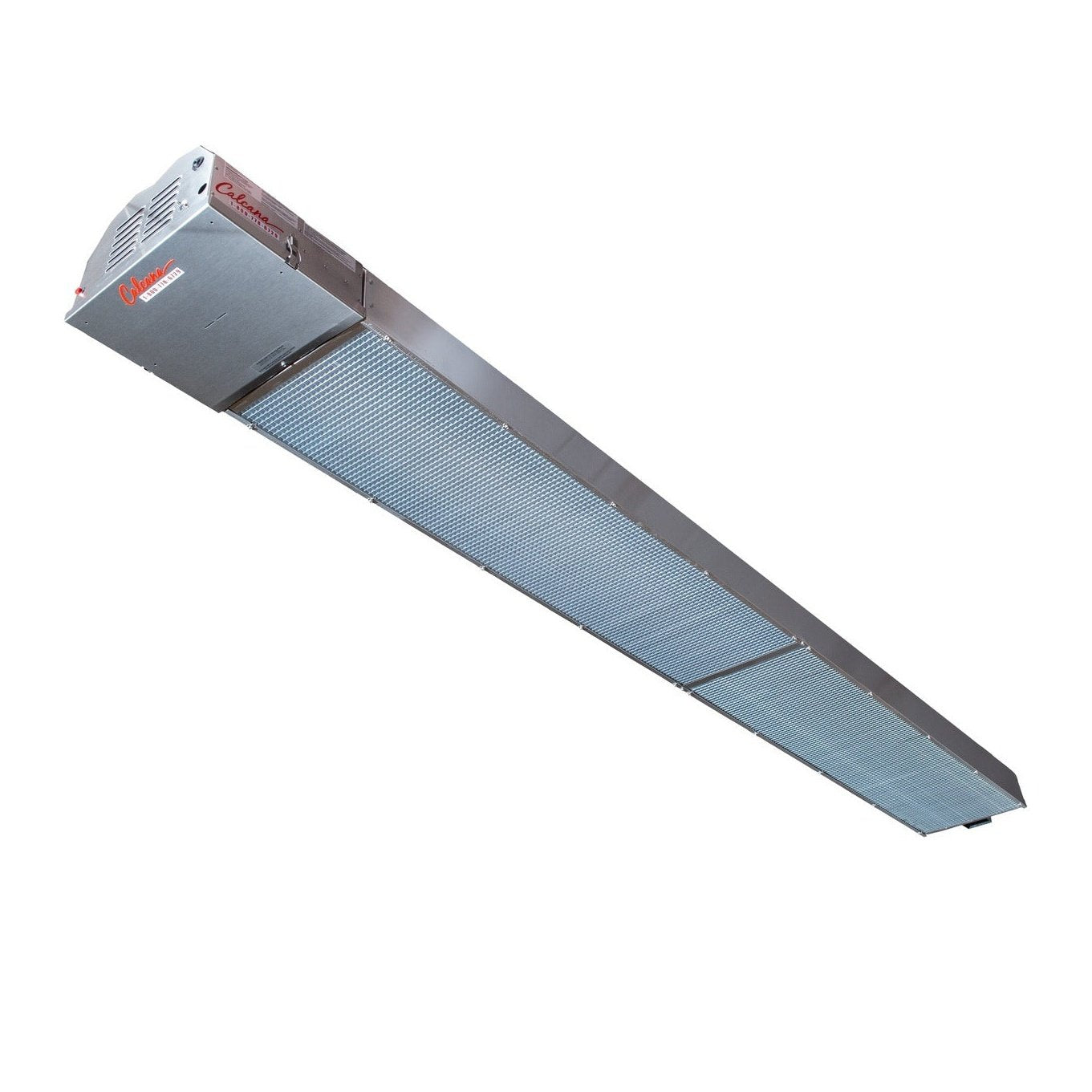

Available in sizes: 10' (Model PH-40), 15' (Model PH-50), and 20' (Model PH-70) . If corrosion due to saltwater is a possible problem, choose a marine-grade finish.
Features
-
Easy to operate, just flick the switch
-
No pilot lights!
-

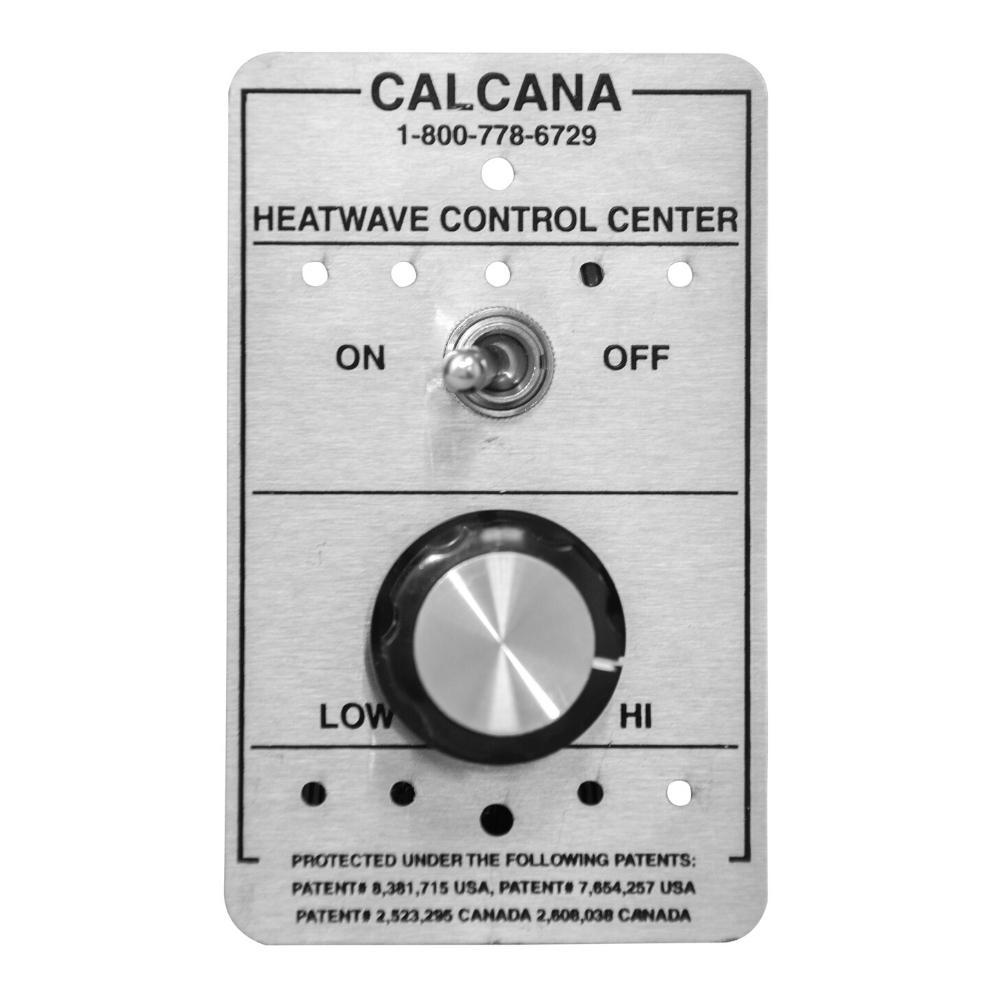

Patented Variable heat settings
-
Low clearance to combustible requirements
-
Sleek, architectural design
-
Various lengths and configurations available
-
Available in natural gas or propane
-
Inputs from 40,000 to 75,000 BTUs/Hr
-
Heavy-duty construction, with anti-walk reflector design (will not shift or twist during expansion and contraction)
-
3-Try Direct Spark Ignition system, with 100% safety shut off
-
Largest and heaviest gauge reflector in the industry
-
8-sided aluminum reflector
-
Virtually maintenance free
-
Certified to 40F weather conditions
-
Wind/weather proof enclosed burner chamber
-
Effective in snow/ice melt applications
Specification
| Model Number: |
PH-40 / PH-50 / PH-75 |
| Manufacturer: |
Calcana |
| Series: |
High Output |
| Indoor/Outdoor: |
Outdoor Only |
| Fuel Type: |
Liquid Propane / Natural Gas |
| Installation: |
Wall / Ceiling Mounted |
| Material: |
Stainless Steel |
| Grade: |
Commercial / Residential / Marine |
| Ignition: |
Direct Spark Ignition |
| Heater Type: |
Infrared |
| Heating Area: |
64 sq. ft. / 144 sq. ft. |
| Emitter Grid: |
Aluminized Steel |
| Safety Shut Off Valve |
With Safety Shut-Off |
| BTUs: |
40,000 / 75,000 |
| Volts: |
120V AC or 24V DC |
| Amps: |
1 |
| Dimensions: |
5' or 10' Length with 1' 3" Width |
| Certifications: |
CSA Approved for the US and Canada
|
Package Include
-
Restaurant Patios
-
Residential Patios / Decks
-
Golf course / Driving ranges
-
Night Club / Bar line-ups
-
Ski Lift areas
-
Doorman / Valet areas
-
Smoking areas
-
Swimming Pool / Hot Tub areas
-
Anywhere people gather outside
Product Manual
Product Manual - PH-40V-10
