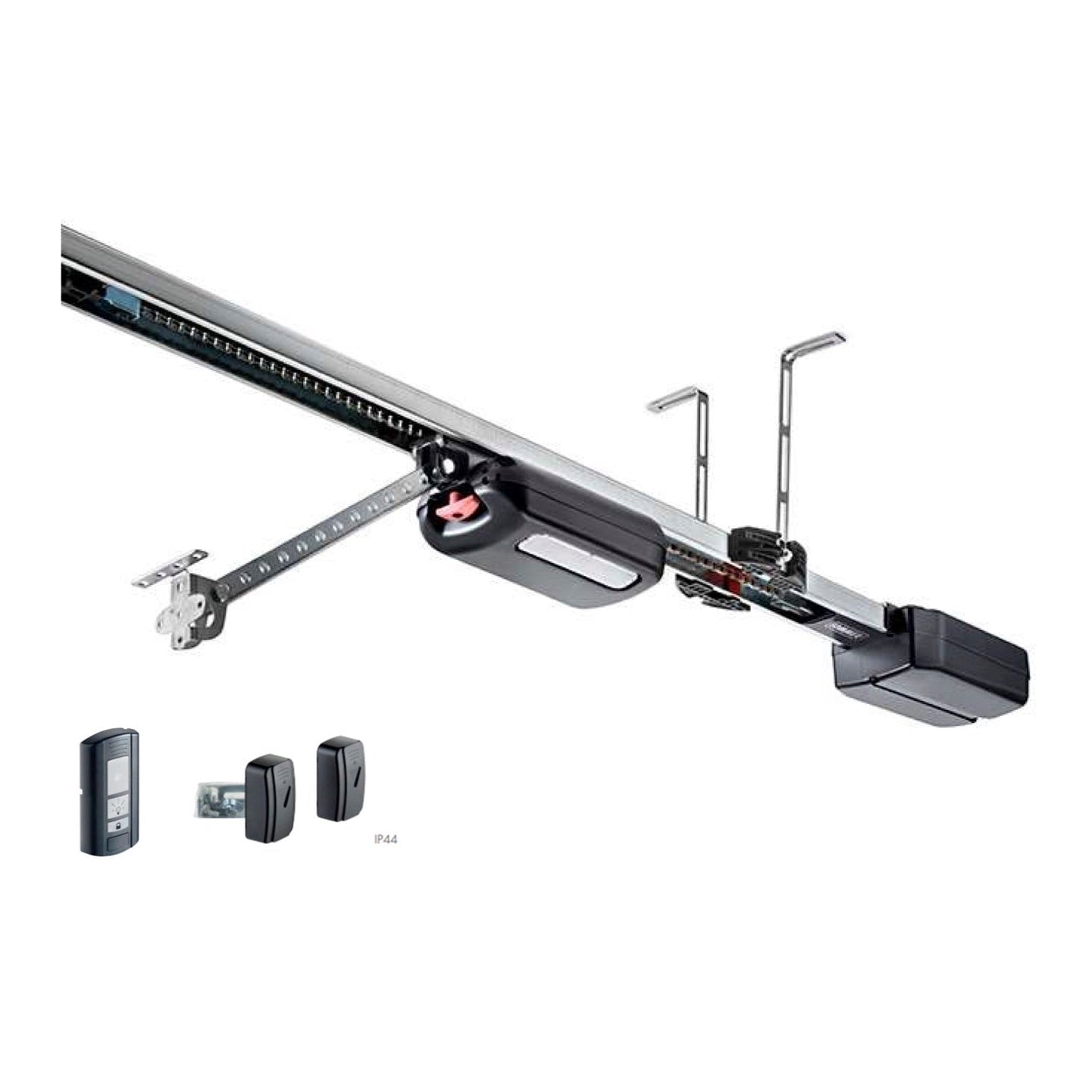

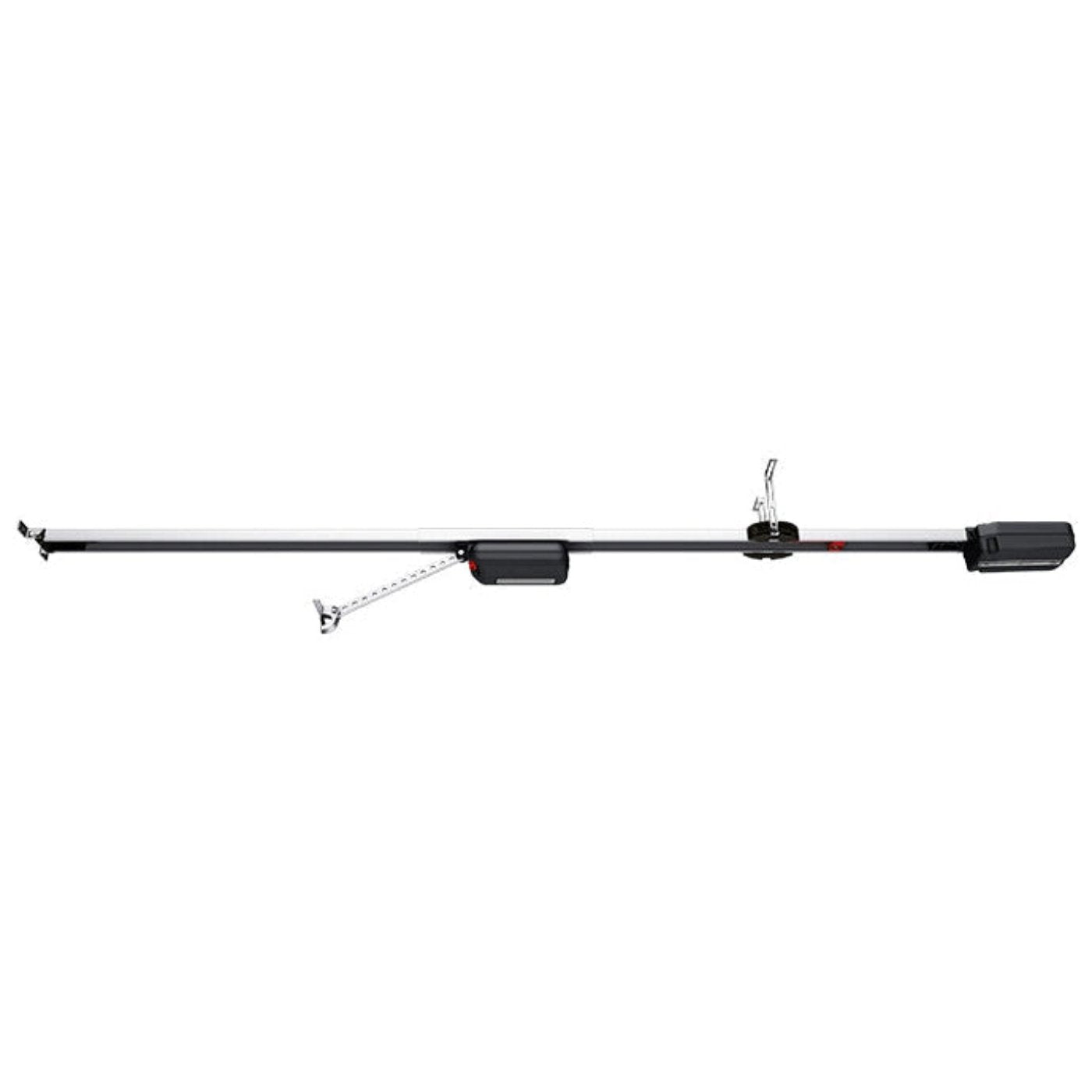

Sommer 2060 evo+ 8' Standard operator kits no transmitter with battery back up - YUSKS10256-00021
Compatible with evo+ and pro+

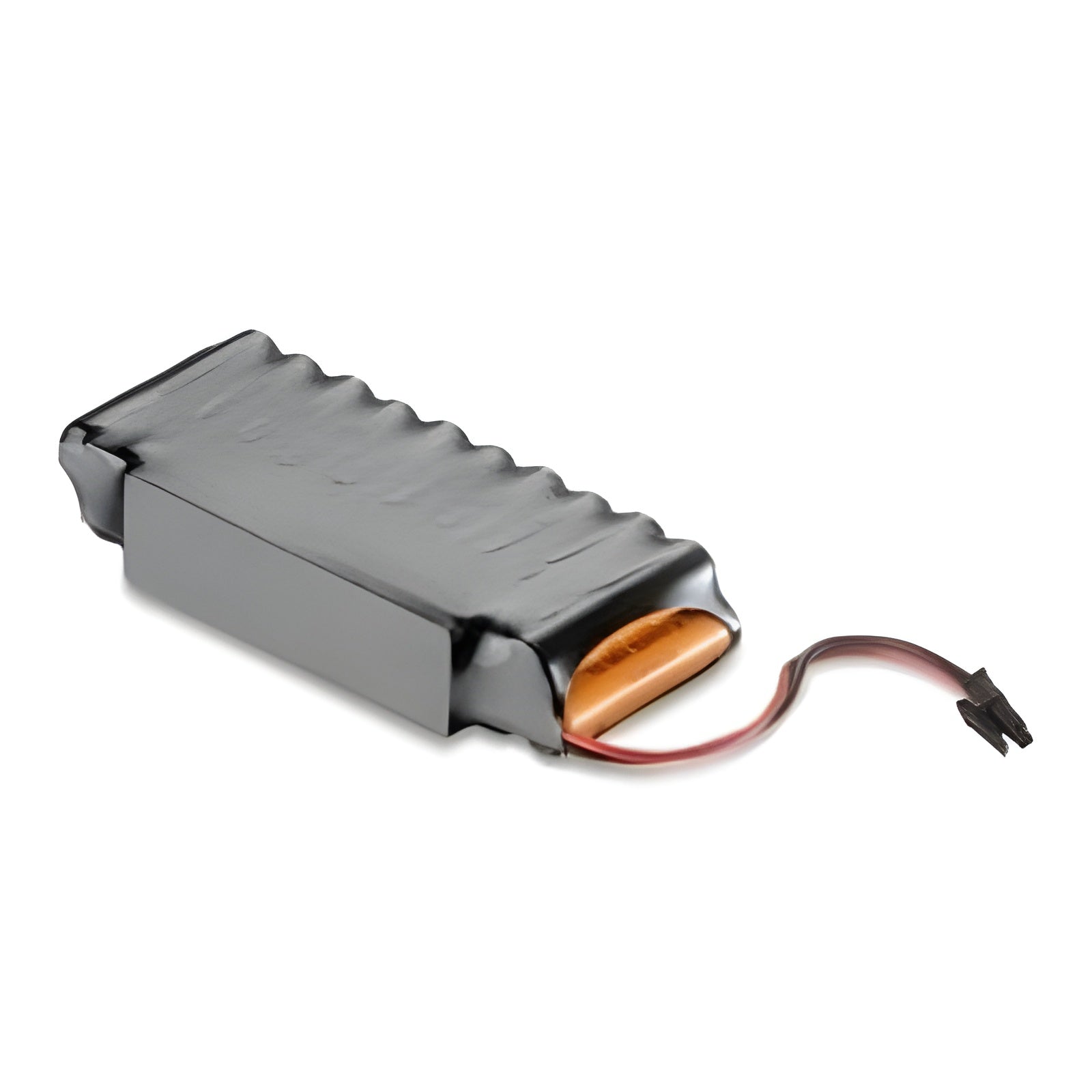

Battery backup
Integrated in the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.
Features
-
600 Newton Motor (3/4 HP equivalent)
-
3-piece c-channel rail for doors up to 8' tall
-
Wired safety sensors
-

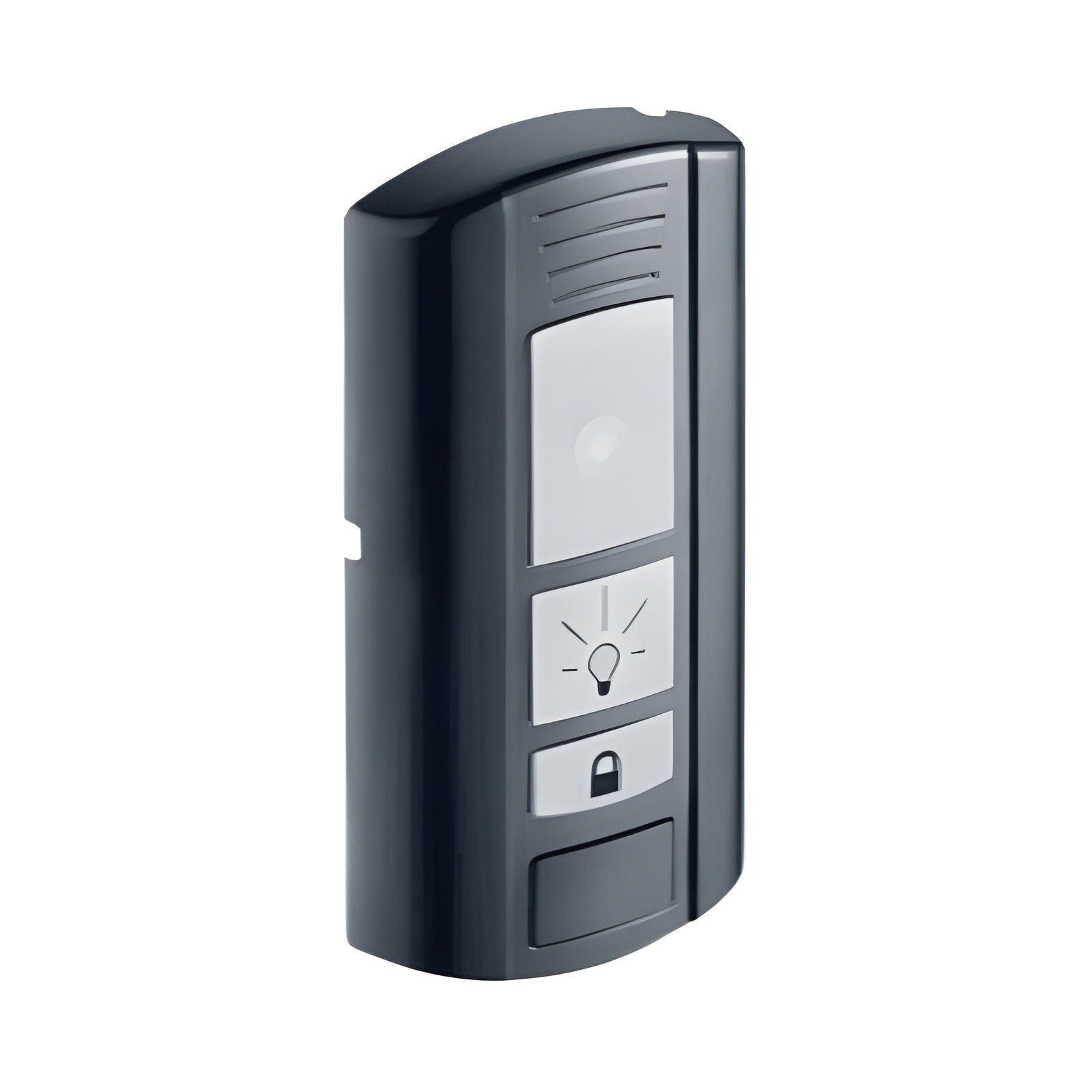

Wired 3-button wall station
-

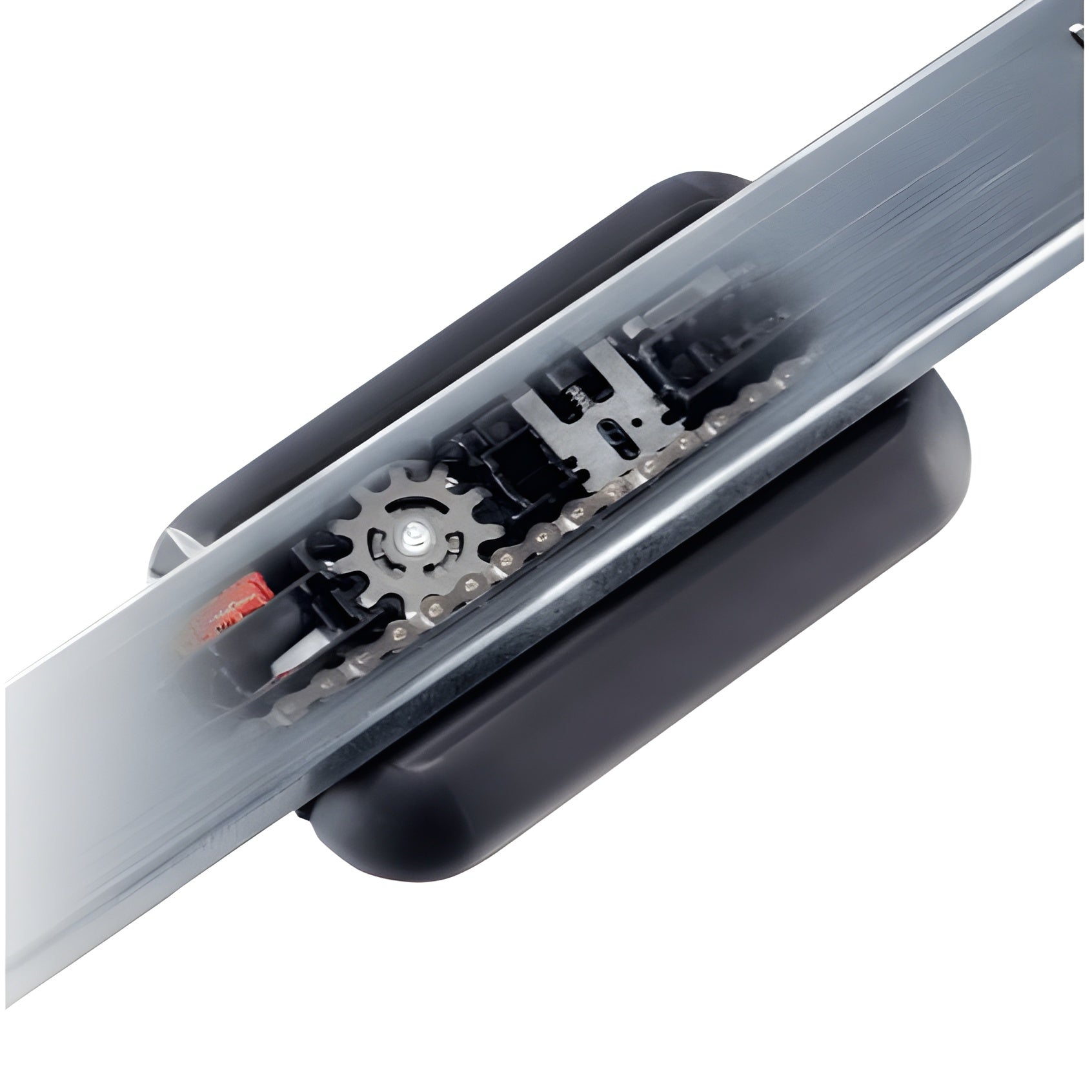

Direct drive technology with one moving part for maximum force and longevity
-
Soft start and stop on a variable curve ramp
-
Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
-
Active motor braking during travel helps minimize loss of control during door malfunction
-
The operator actively pushes in the closed direction during an attempted break-in
-
The emergency release can be disengaged and re-engaged in any position
-
Built-in LED lighting at the motor carriage
-
Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
-
Add Short, Medium, or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
-
Monitored safety edge and optical safety edge terminals on the motor carrier to avoid coil cords or taking up reels
-
Interlock capable for pass doors, mechanical locks, etc.
-
Repeating and forwarding radio functions for maximum range
-

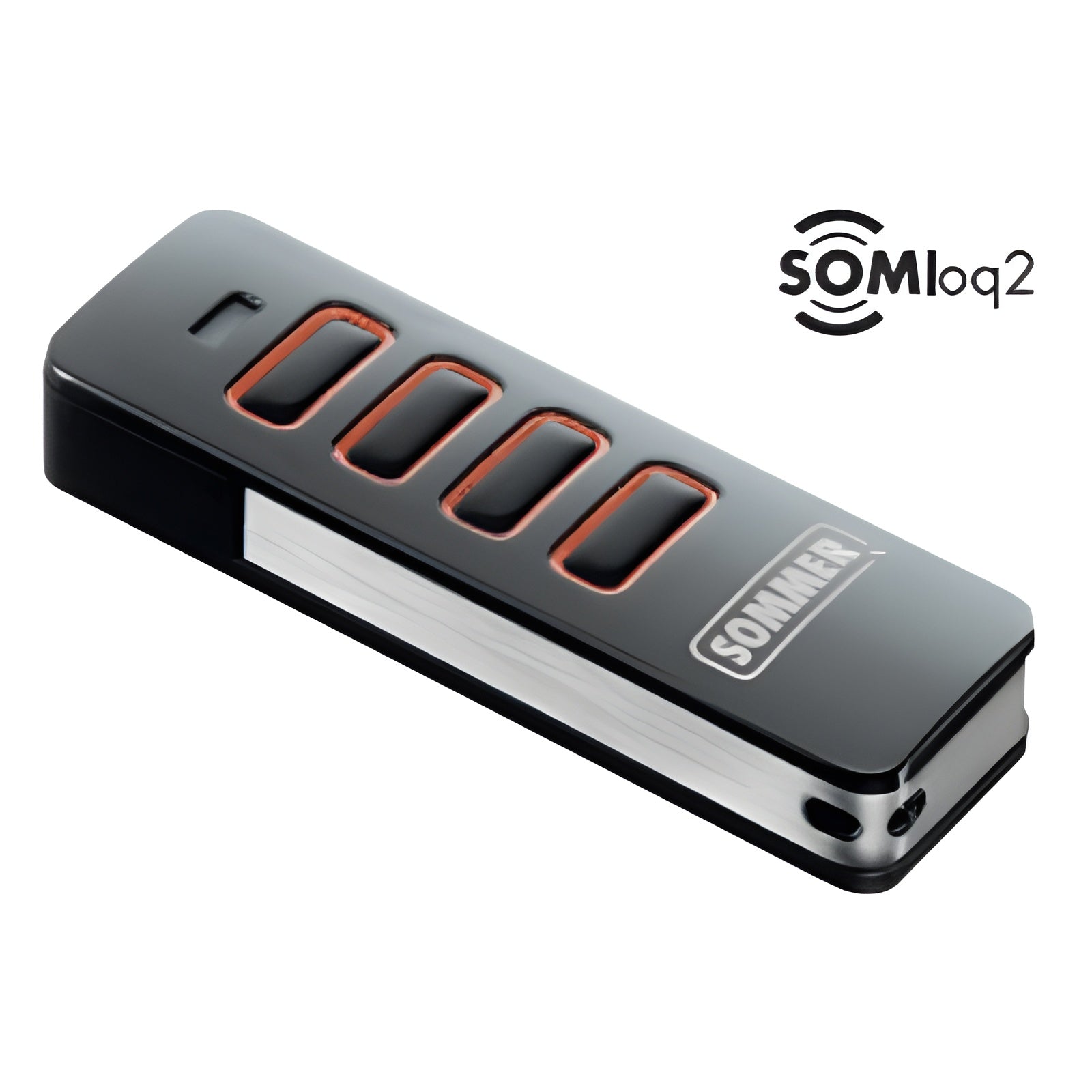

Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
-
Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
-
Transmitter management on-site or remotely through Codemaster+
-
Accu internal battery backup or Accu 2.2 external battery backup provides power for standby operation during power outages
-
Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
-
Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
-
Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
-
Use Relay for switching external garage lighting up to 240V/5A
-
Maintenance-free for most environments
-
The motor carriage can be easily removed for service or repair without needing to disassemble rail
-
~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface
Technical Specifications
| Assembled Size | 140.8" L x 4.37" W x 5.55" H |
|---|---|
| Radio Frequency | 922.5 MHz with 128-bit AES encryption |
| Radio System | SOMloq2 |
| Rolling Code | Yes |
| Receiver | 4-channel on-board receiver |
| Receiver Memory | 40-slot, expandable to 450 slots with Memo |
| Homelink Module | Included for 310 MHz direct programming |
| Cycle Threshold | Tested to 125,000 cycles in beta phase |
| Door Weight Capacity | Rated for up to 600 lbs. counter-balanced weight |
| Operating Speed | Up to 9.4" per second at 7,800 RPM |
| Duty Rating | 40% |
| Max Travel with Extensions | 24' |
| UL Certification | UL listed, compliant with current UL325 requirements |
| Power Cord | 6' |
| Power Input | 120V AC 60 Hz |
| Transformer | 24V AC, 100 VA with Class 2 UL protection rating |
| Motor | 24V DC |
| Power Draw | 1A max with >3 W standby power |
| Noise Level | >59 dBA (operator only) |
| Rating | NEMA 1 / IP 21 |
| FCC ID | T8C206 |
| IC ID | 6496A-206 |
Items Included in the Box
-

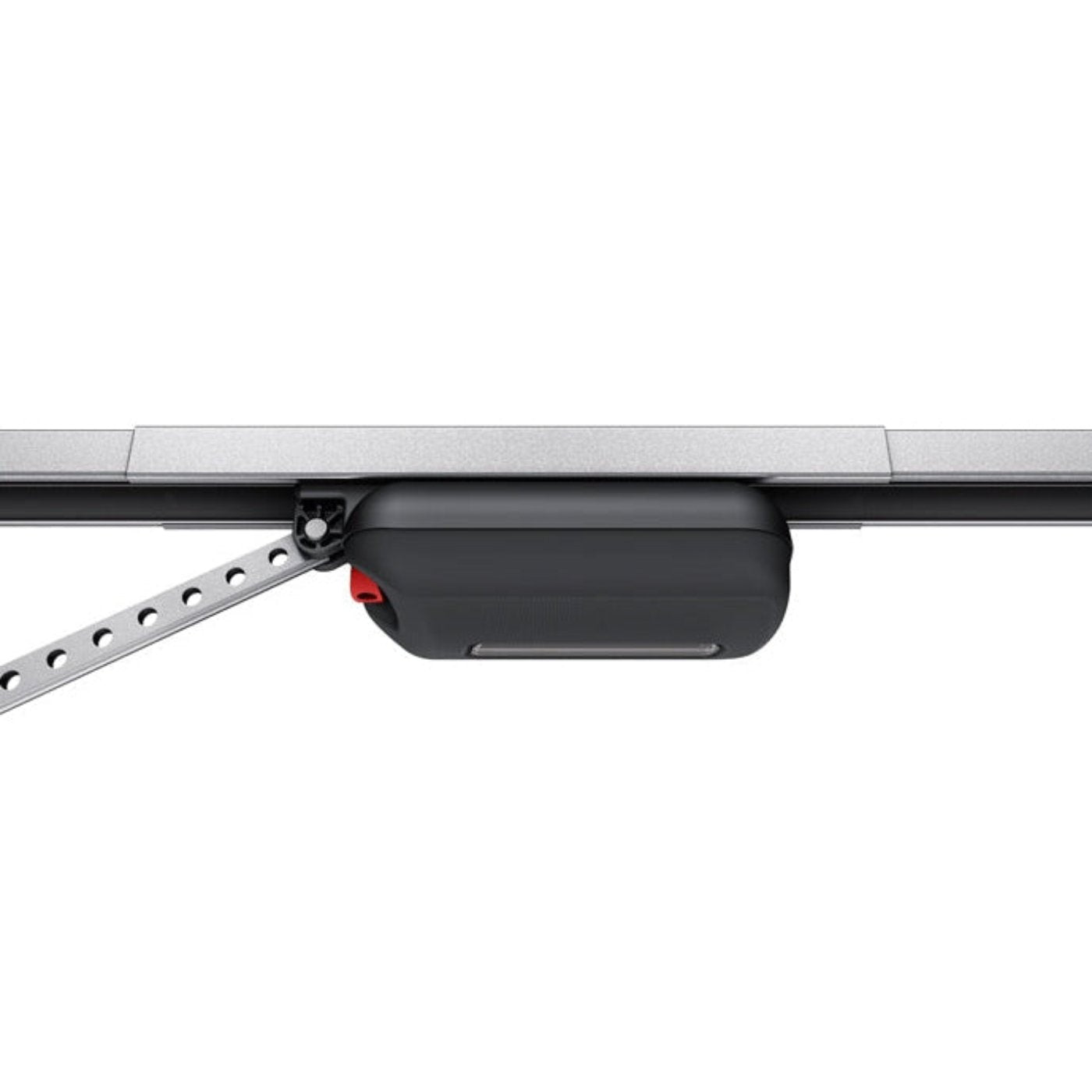

2060 motor carriage
-
Control Housing
-
3x operator rail
-
2x connecting sleeve
-
Chain with isolator
-
Straight door arm
-
Curved door arm
-
Installation bag
-
Door hardware bag
-
Ceiling bracket kit
-
Safety sensor kit
-
Wired 3-button wall station kit
-
Wiring kit
-
Docs bag
-
English technical manual
-
Spanish technical manual
Video
Additional Documents
evo+ Brochure
evo+ Quick Install Guide
What Our Experts Think
- Battery Backup Included: Ensures uninterrupted operation even during power outages, providing added convenience and security.
- Durable and Powerful: Designed for 8' garage doors, it delivers consistent performance with a robust motor and durable components.
- Quiet Operation: Built with noise-reduction technology, making it an excellent choice for homes with attached garages.
- Space-Saving Design: The compact build optimizes space while maintaining functionality and ease of installation.
- Customizable Options: Compatible with a variety of transmitters and accessories to tailor the system to your specific needs.
- User-Friendly Installation: Simplified installation process suitable for professionals and DIY enthusiasts alike.
Q&A
Q: What is the Sommer 2060 EVO+ 8' Standard Operator Kit with Battery Backup - YUSKS10256-00021?
A: This is a high-performance garage door operator kit from Sommer, featuring the 2060 EVO+ system designed for 8-foot garage doors, complete with a battery backup for uninterrupted operation during power outages. Note: No transmitter is included in this kit.
Q: What are its key features?
- 8-Foot Garage Door Compatibility: Suitable for residential garage doors up to 8 feet in height.
- Battery Backup: Ensures reliable operation even during power outages.
- Quiet Belt Drive Technology: Offers smooth, silent performance with minimal maintenance.
- Powerful and Efficient: Designed to handle heavy doors with a durable, high-torque motor.
- Expandable Features: Compatible with optional transmitters and smart accessories (sold separately).
Q: Does this kit include a transmitter?
A: No, the kit does not include a transmitter. Additional accessories, including transmitters, can be purchased separately.
Q: Why choose the Sommer 2060 EVO+ Standard Operator Kit?
A: It is an excellent choice for homeowners seeking a reliable, efficient, and quiet garage door operator with the added assurance of battery backup for consistent performance.
Q: Is professional installation required?
A: While it is designed for straightforward installation, professional setup is recommended to ensure optimal performance and safety
Maintenance Tips
-
Regular Cleaning: Clean the operator and rails with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners that could damage the components.
-
Battery Maintenance: Periodically check the battery backup system. Ensure it is charged, and replace the battery every 2–3 years or as recommended.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the moving parts, such as rails and hinges, every six months to maintain smooth operation.
-
Inspect for Wear: Regularly inspect cables, gears, and mounting hardware for signs of wear or damage. Tighten or replace any loose or compromised parts.
-
Test Safety Features: Frequently test the safety sensors and reverse mechanisms to ensure they are functioning correctly. Adjust or repair if necessary.
-
Protect Against Power Surges: Use a surge protector to safeguard the unit's electrical components from potential power fluctuations.
-
Keep Dry and Ventilated: Ensure the operator is installed in a dry area with adequate ventilation to prevent moisture buildup that can damage internal components.
-
Avoid Overloading: Do not exceed the maximum door weight or height specifications to prevent motor strain.
-
Check Battery Backup Function: Test the battery backup periodically by unplugging the operator and ensuring it functions during a power outage.
-
Schedule Professional Servicing: Arrange for an annual professional inspection to ensure all parts and systems are in optimal working condition.
