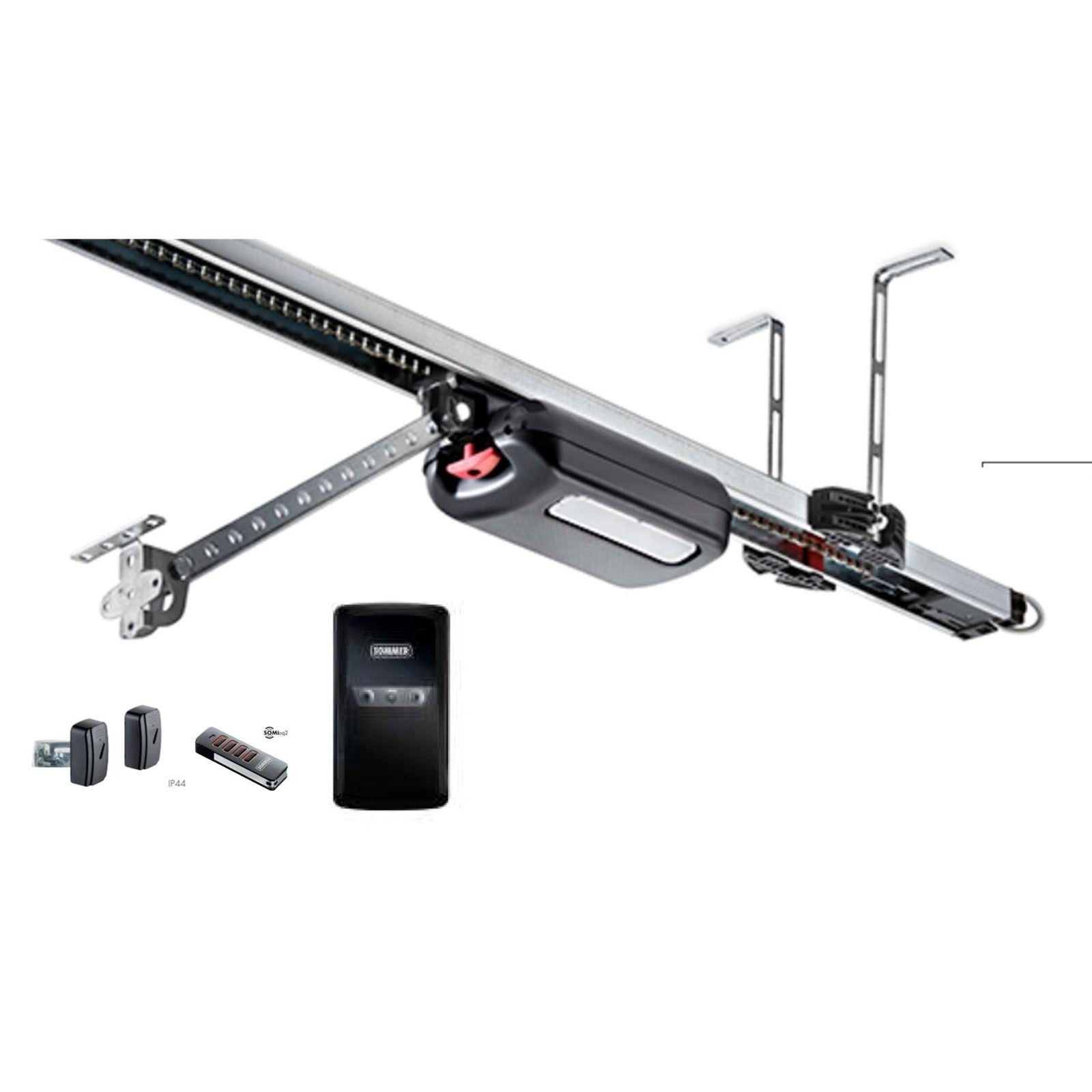

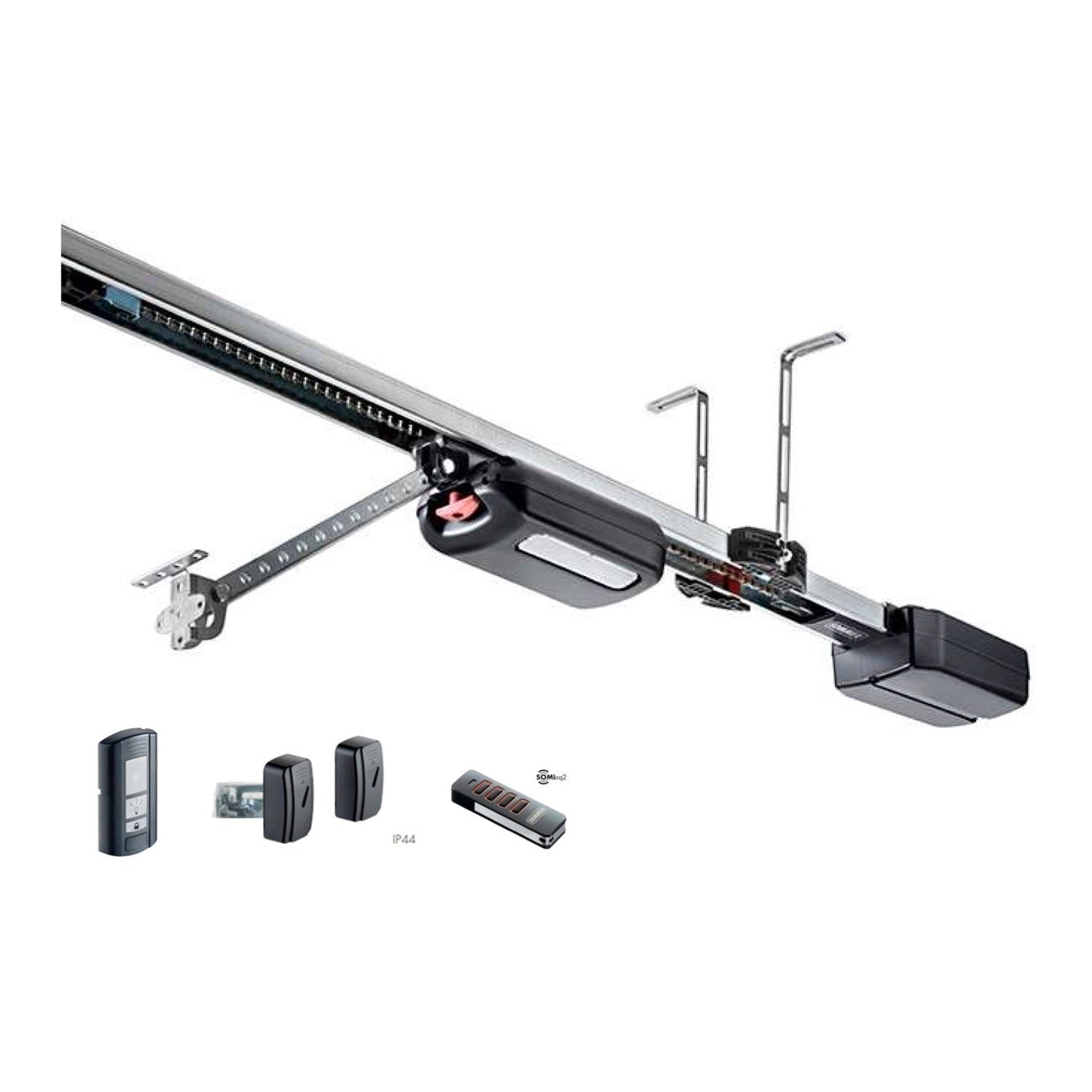

Sommer 2060 evo+ 8' with Pearl Transmitter incl. Accu - YUSKS10256-00013

Sommer 2060 evo+ 8' with Pearl Transmitter incl. Accu - YUSKS10256-00013

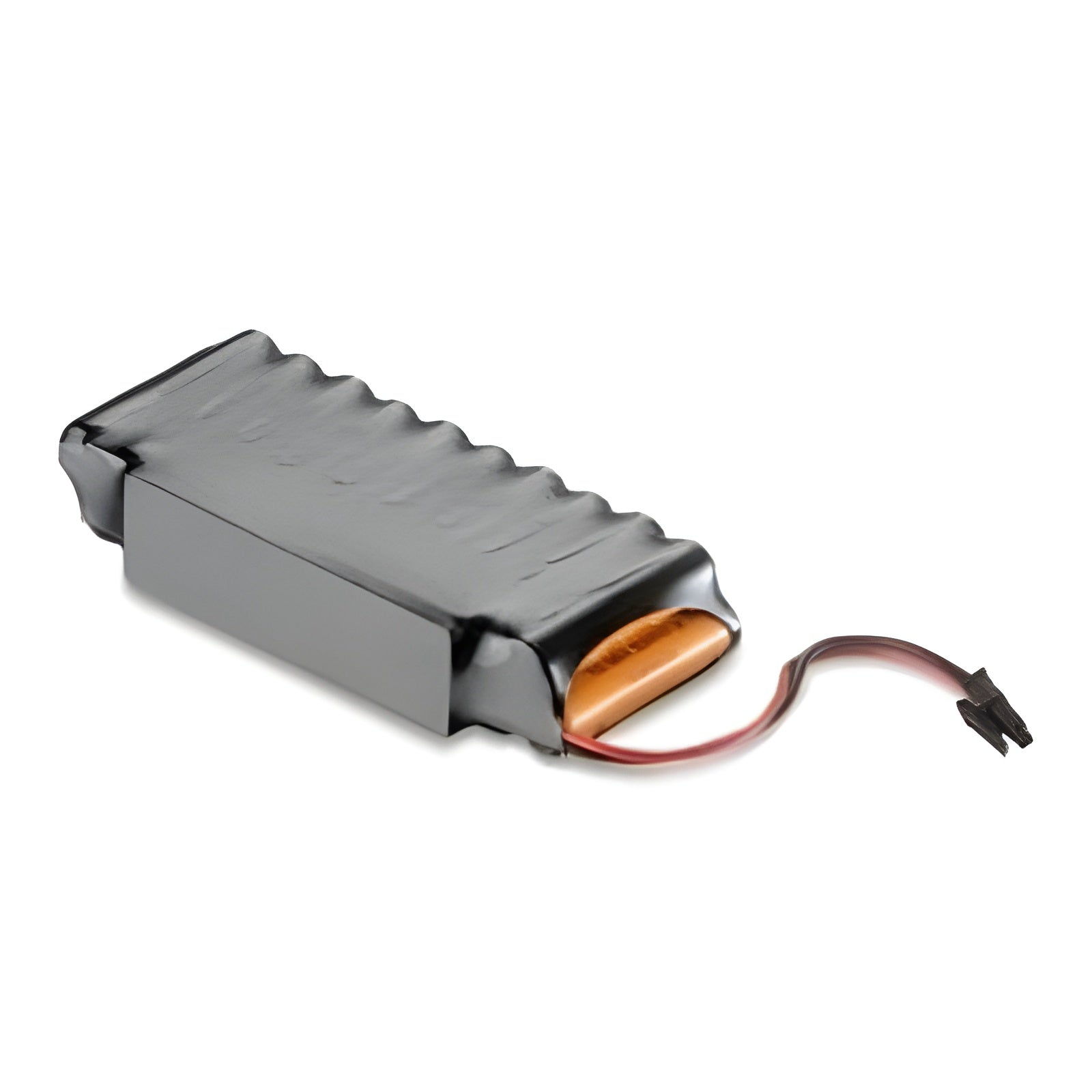

Accu - Battery backup

Compatible with evo+ and pro+

Battery backup
Integrated into the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 600 Newton Motor (3/4 HP equivalent)

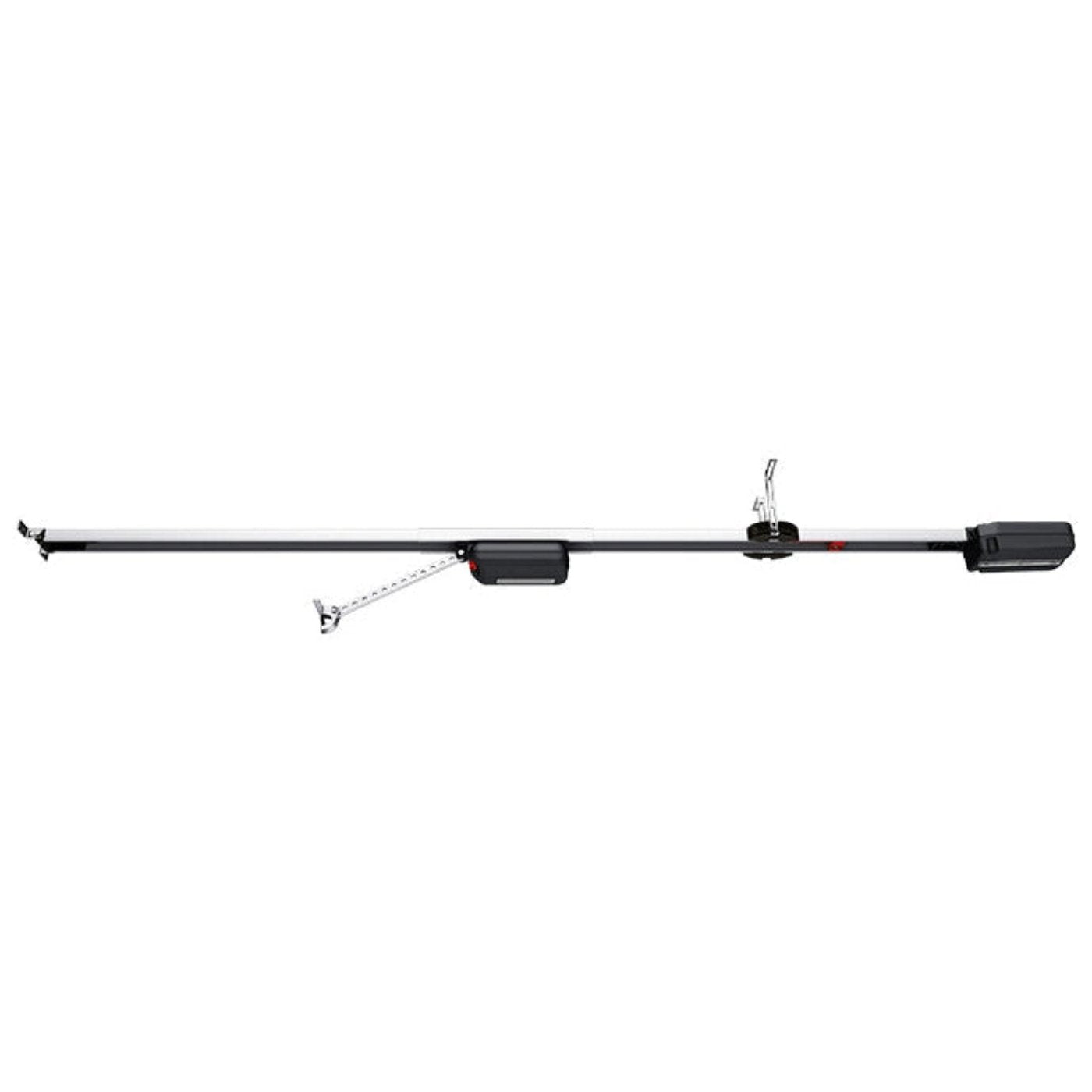

• 3-piece c-channel rail for doors up to 8' tall

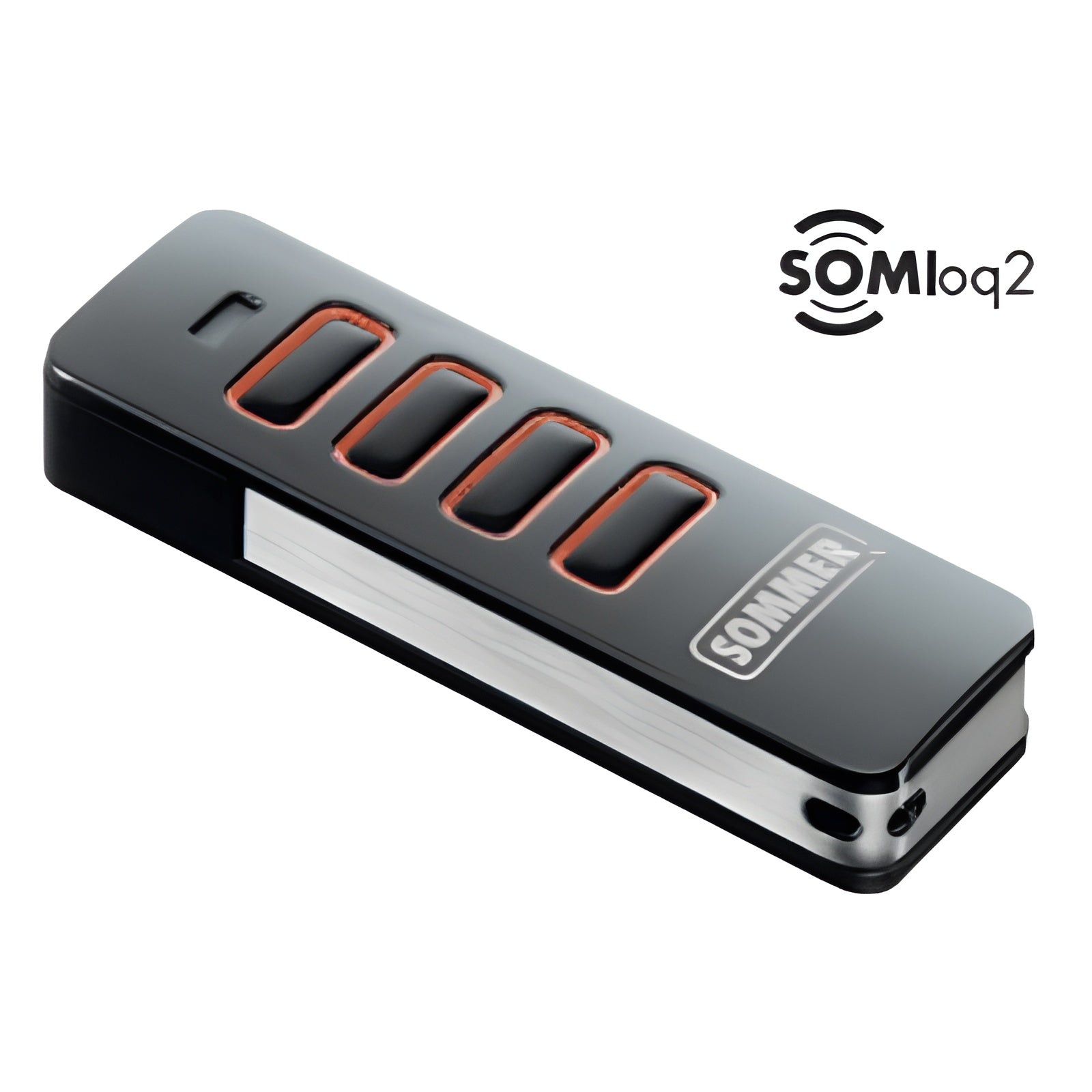

• One 4-button Pearl transmitter included
• Wired safety sensors
• Wired 3-button wall station

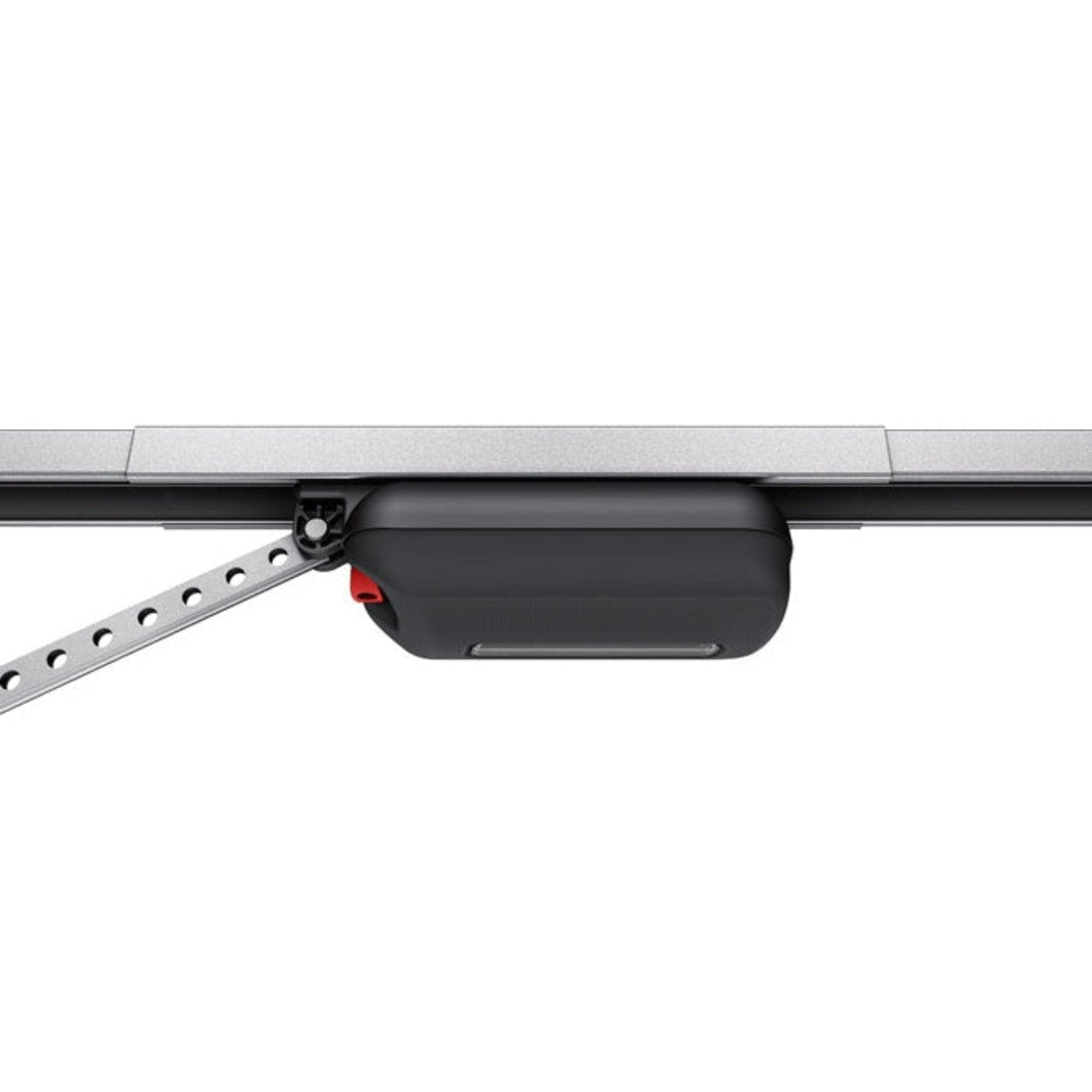

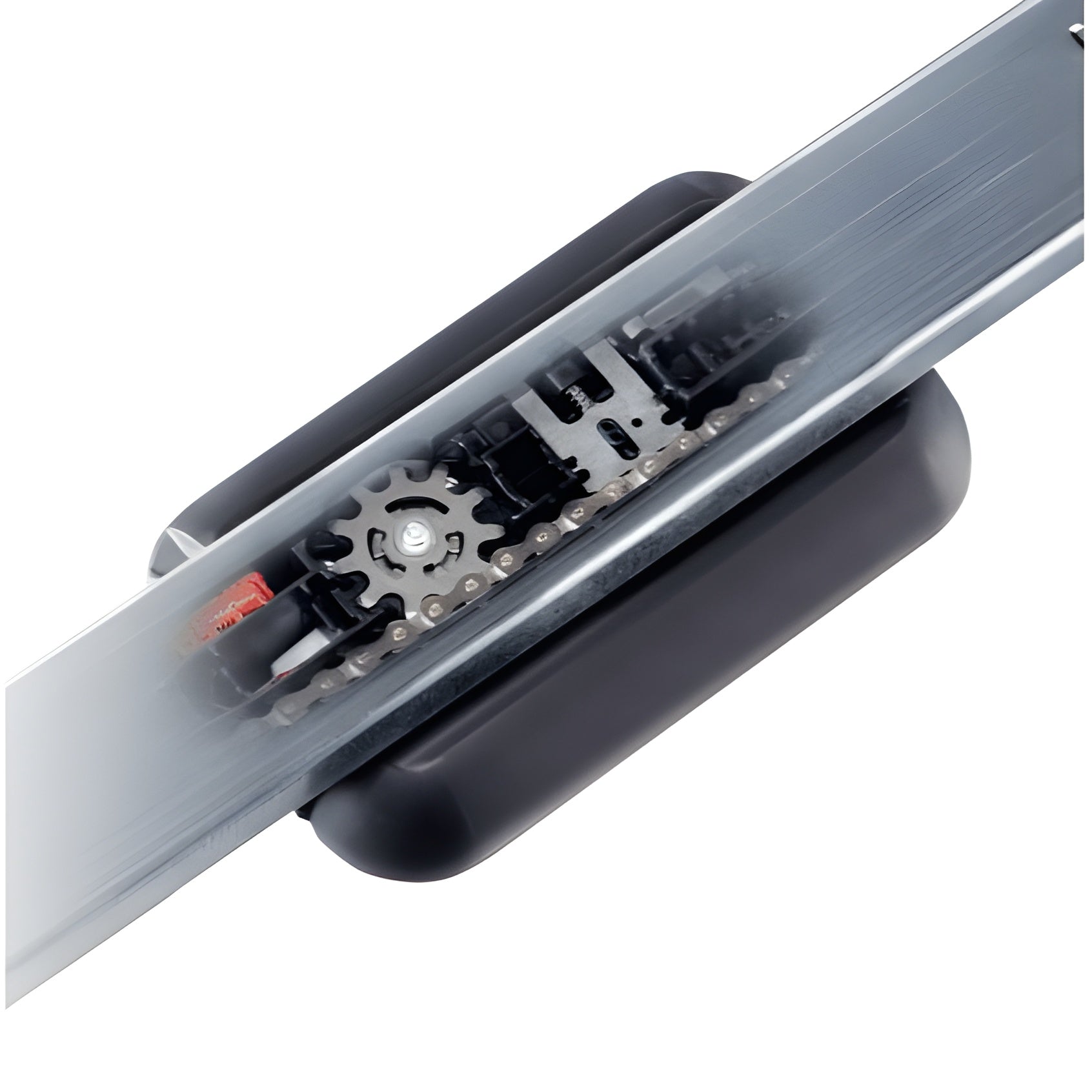

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• The operator actively pushes in the closed direction during an attempted break-in
• The emergency release can be disengaged and re-engaged in any position
• Built-in LED lighting at the motor carriage
• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short, Medium, or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on the motor carrier to avoid coil cords or taking up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Pre-programmed 4-button Pearl transmitter in the box
• Repeating and forwarding radio functions for maximum range
• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
• Transmitter management on-site or remotely through Codemaster+
• Accu internal battery backup or Accu 2.2 external battery backup provides power for standby operation during power outages
• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2060 motor carriage
2. Control Housing
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Wired 3-button wall station kit
14. Wiring kit
15. Docs bag
16. English technical manual
17. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Comprehensive Package: Includes the Pearl Transmitter for seamless operation and the Accu (battery backup) for uninterrupted performance during power outages.
• Powerful and Durable: Engineered for 8' garage doors, ensuring smooth, consistent, and long-lasting operation.
• Whisper-Quiet Mechanism: Designed with noise reduction, making it ideal for attached garages or noise-sensitive environments.
• Compact and Space-Saving: Efficient design that integrates easily into various setups while maintaining full functionality.
• Enhanced Connectivity: The Pearl Transmitter offers reliable, long-range communication for effortless control.
• Effortless Installation: User-friendly installation process suitable for professionals and DIY enthusiasts alike.

Q&A

Q: What is the Sommer 2060 EVO+ 8' with Pearl Transmitter and Accu - YUSKS10256-00013?
A: The Sommer 2060 EVO+ 8' system is a motorized garage door operator with a Pearl Transmitter for convenient remote control. This version includes the Accu (battery backup) for uninterrupted operation during power outages, making it a complete solution for residential garage doors up to 8 feet in height.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Designed for residential doors up to 8 feet tall.
• Pearl Transmitter: Provides easy remote control for operating the garage door.
• Accu Battery Backup: Ensures the system operates smoothly even during power outages.
• Silent Belt Drive: Offers a quiet, smooth, and reliable operation.
• Powerful and Efficient: High-torque motor handles heavy garage doors with ease.
• Expandable Options: Compatible with additional accessories for enhanced functionality.

Q: Does this kit include a transmitter and backup battery?
A: Yes, this kit includes the Pearl Transmitter for remote control and the Accu battery backup to ensure continuous operation during power failures.

Q: Why choose the Sommer 2060 EVO+ 8' with Pearl Transmitter and Accu?
A: This complete system is ideal for homeowners seeking a quiet, reliable, and efficient garage door operator with the convenience of remote control and battery backup.

Q: Is professional installation required?
A: While the system is designed for easy installation, professional setup is recommended to ensure optimal performance and safety

Maintenance Tips

• Regular Cleaning: Keep the operator, transmitter, and Accu battery clean by wiping them down with a dry cloth. Avoid using harsh cleaning agents that could damage the surface.

• Battery Maintenance: Periodically check the battery in the Pearl transmitter and Accu backup system. Replace the transmitter battery as needed, and ensure the Accu battery is fully charged or replaced according to the manufacturer’s guidelines (typically every 2-3 years).

• Lubricate Moving Parts: Apply silicone-based lubricant to the moving parts (rails, hinges) every 6 months to ensure smooth operation and prevent friction wear.

• Inspect Components: Check for wear or damage to the rails, motor, cables, and hardware. Tighten or replace any loose or worn parts to maintain reliable function.

• Test Safety Features: Regularly test the safety sensors and reverse mechanism. Adjust or recalibrate them if necessary to ensure they respond correctly to obstructions.

• Prevent Power Surges: Use a surge protector to safeguard the electrical components and the transmitter from potential power surges.

• Test Transmitter & Receiver: Periodically check the Pearl transmitter’s functionality and ensure it syncs properly with the operator. Replace the transmitter if it shows signs of malfunction.

• Check Accu Battery Function: Test the Accu battery backup regularly by simulating a power outage to ensure it functions correctly when needed.

• Secure Connections: Ensure that all electrical connections are tight and free of corrosion. Loose or corroded connections can lead to operational issues.

• Professional Servicing: Schedule annual maintenance with a professional technician to ensure that all components, including the operator and battery systems, are in optimal working order.
