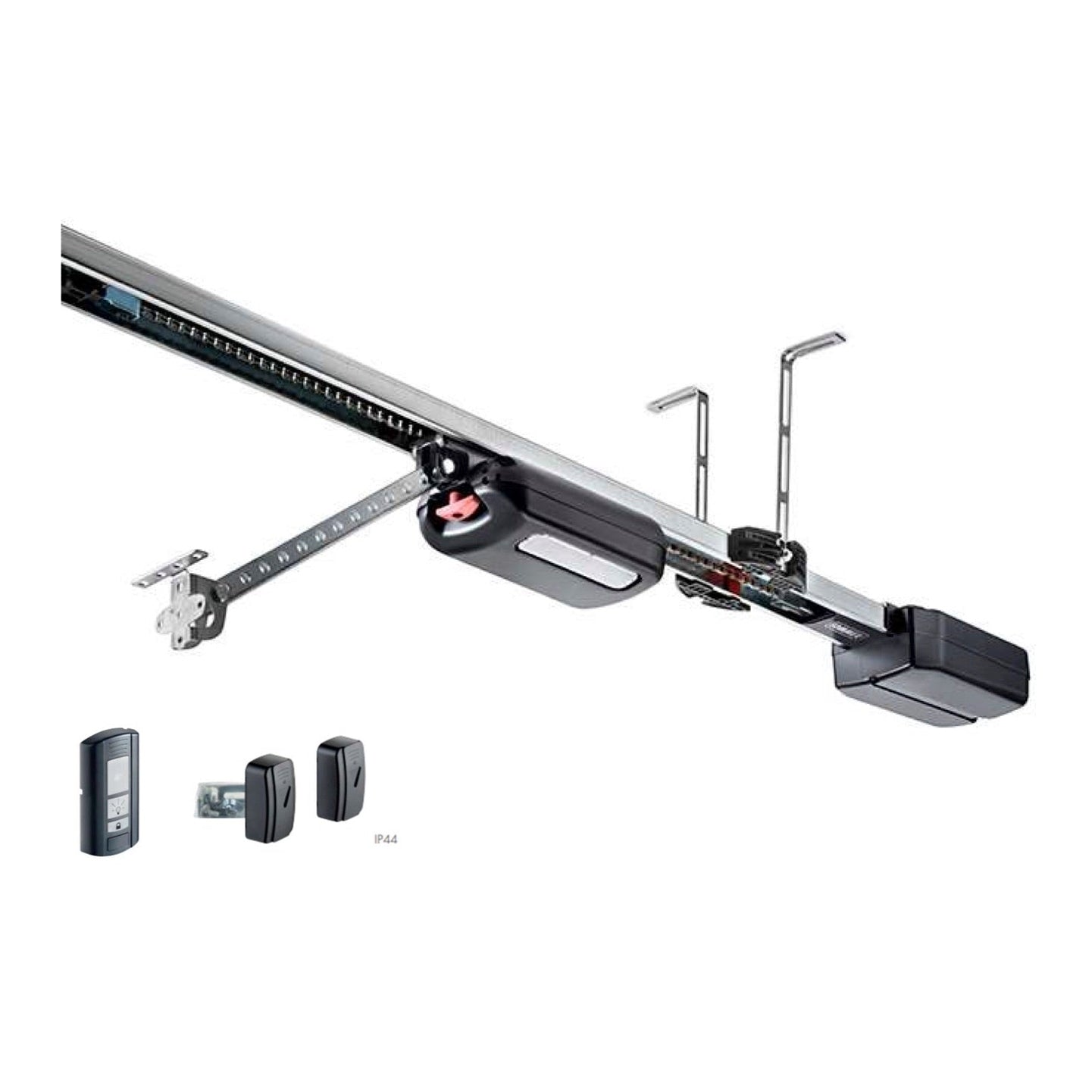

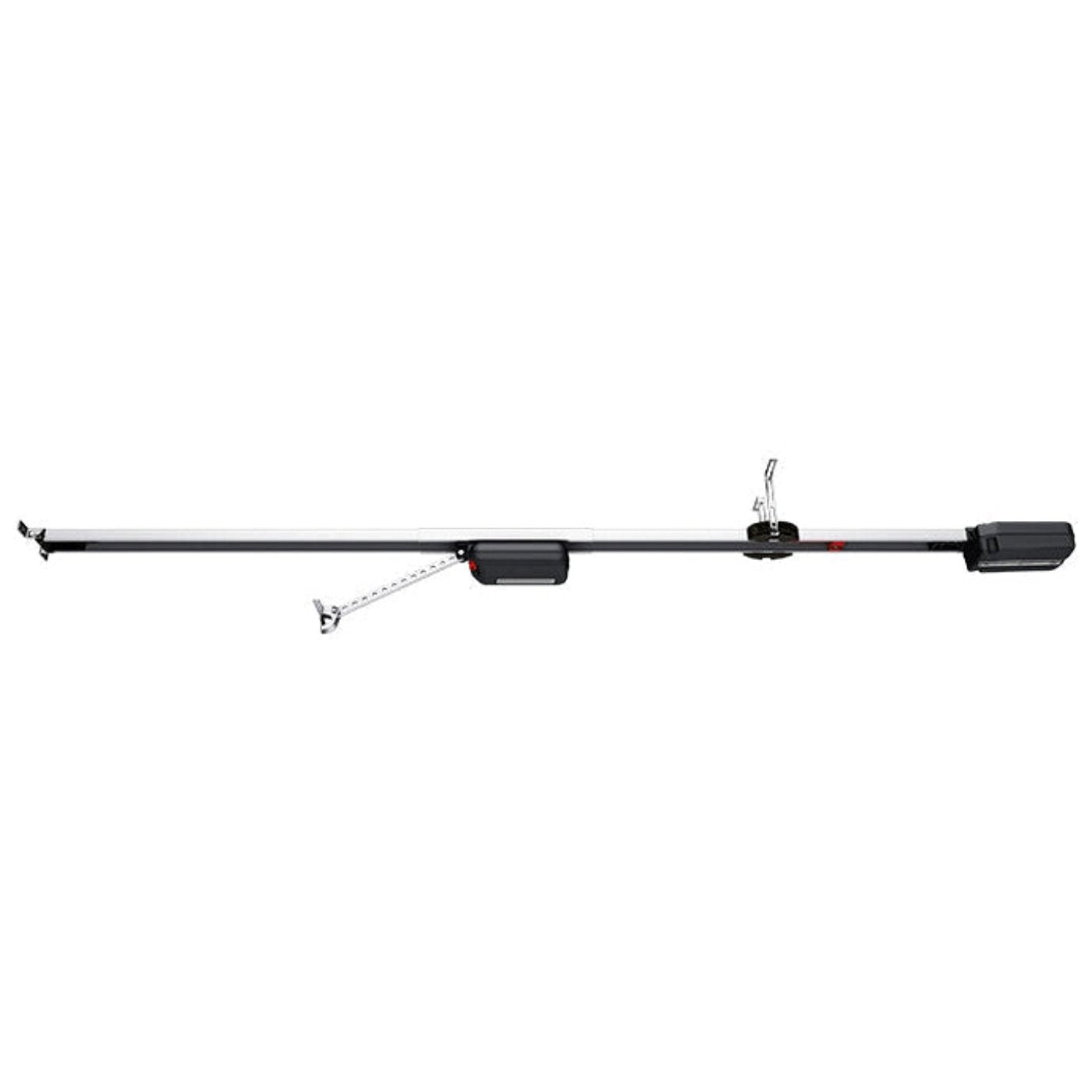

Sommer 2060 evo+ 8' Standard operators no transmitter - YS10256-00005

Sommer 2060 evo+ 8' Standard operators no transmitter - YS10256-00005

Features

• 600 Newton Motor (3/4 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

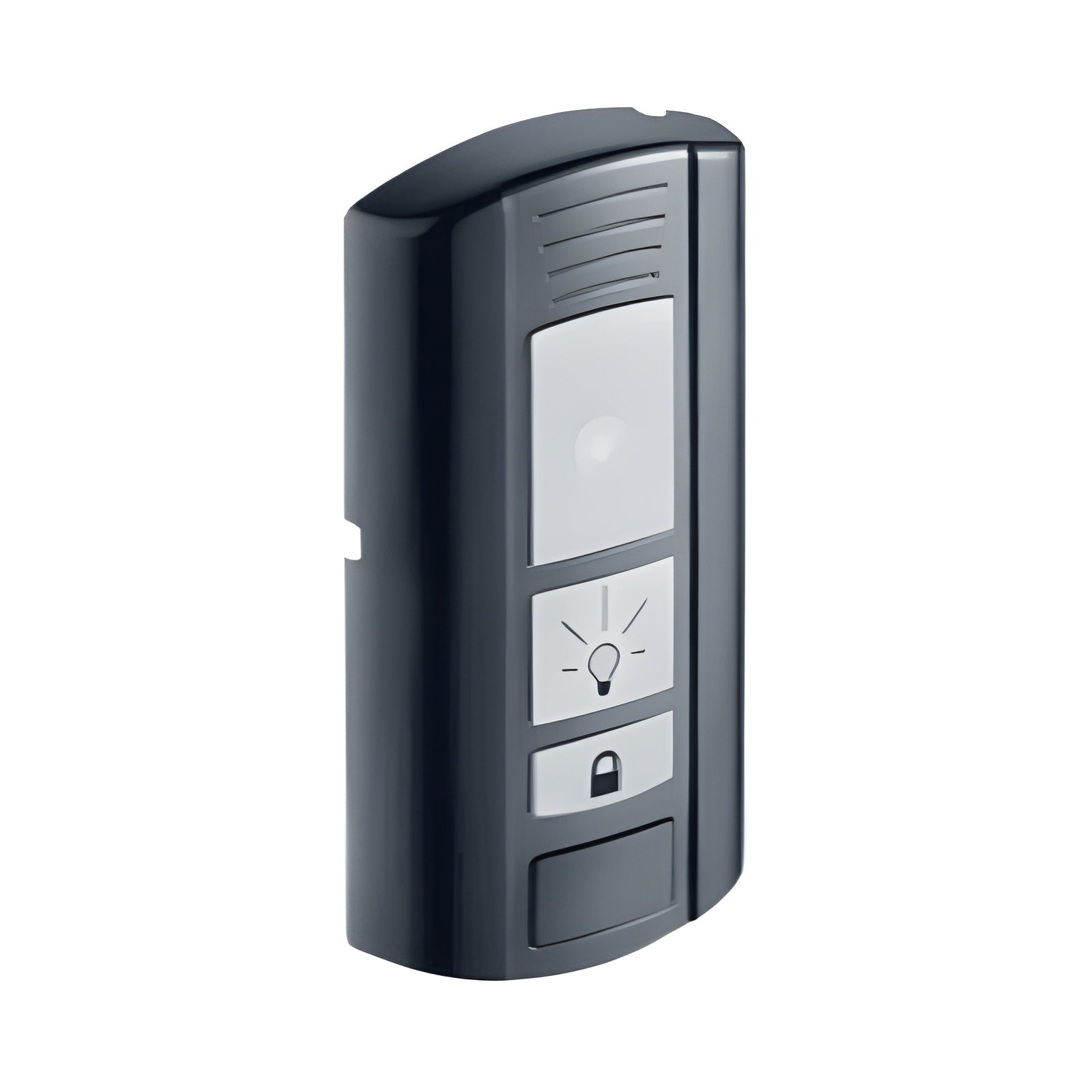

• Wired 3-button wall station

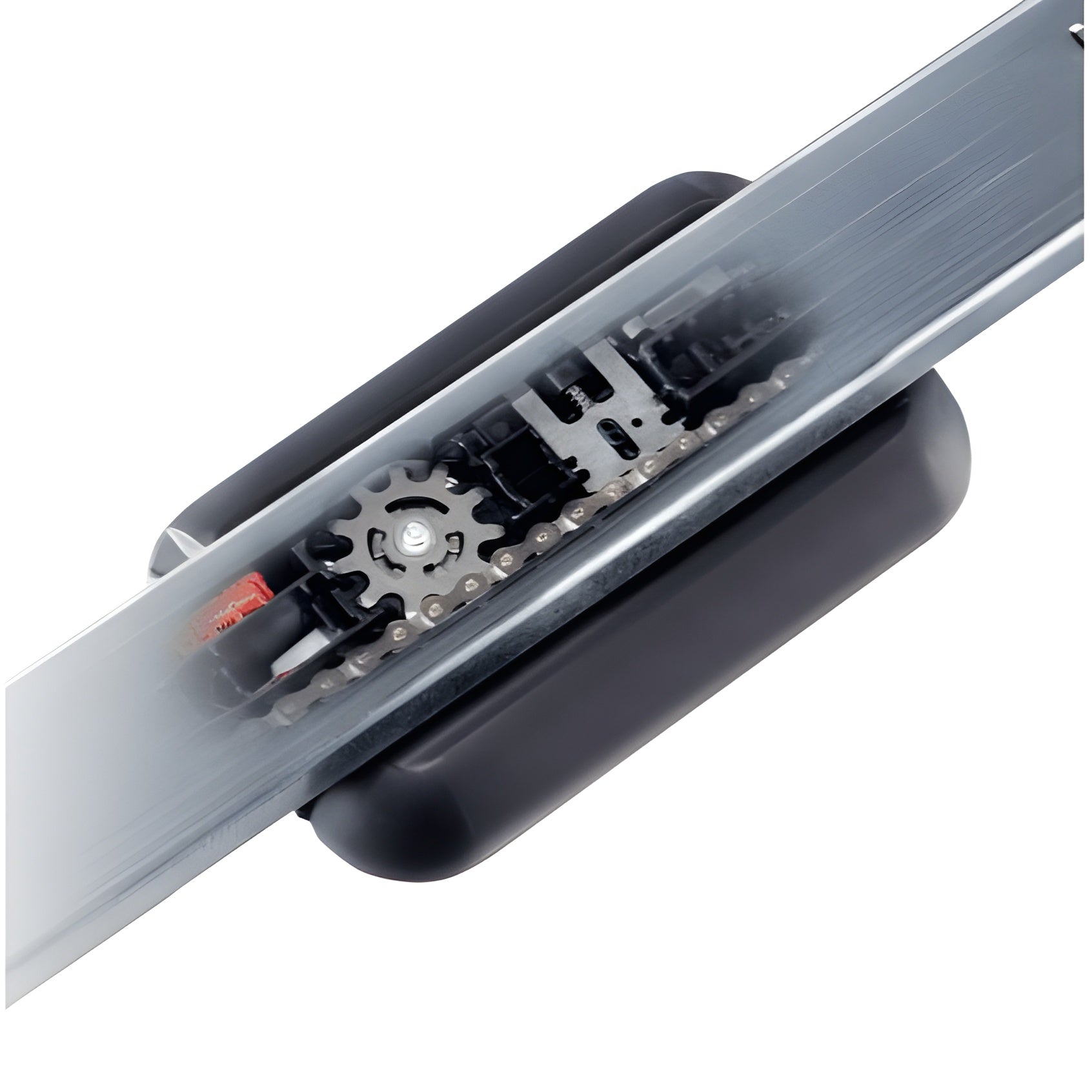

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• The operator actively pushes in the closed direction during an attempted break-in

• The emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage

• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium, or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on the motor carrier to avoid coil cords or taking up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

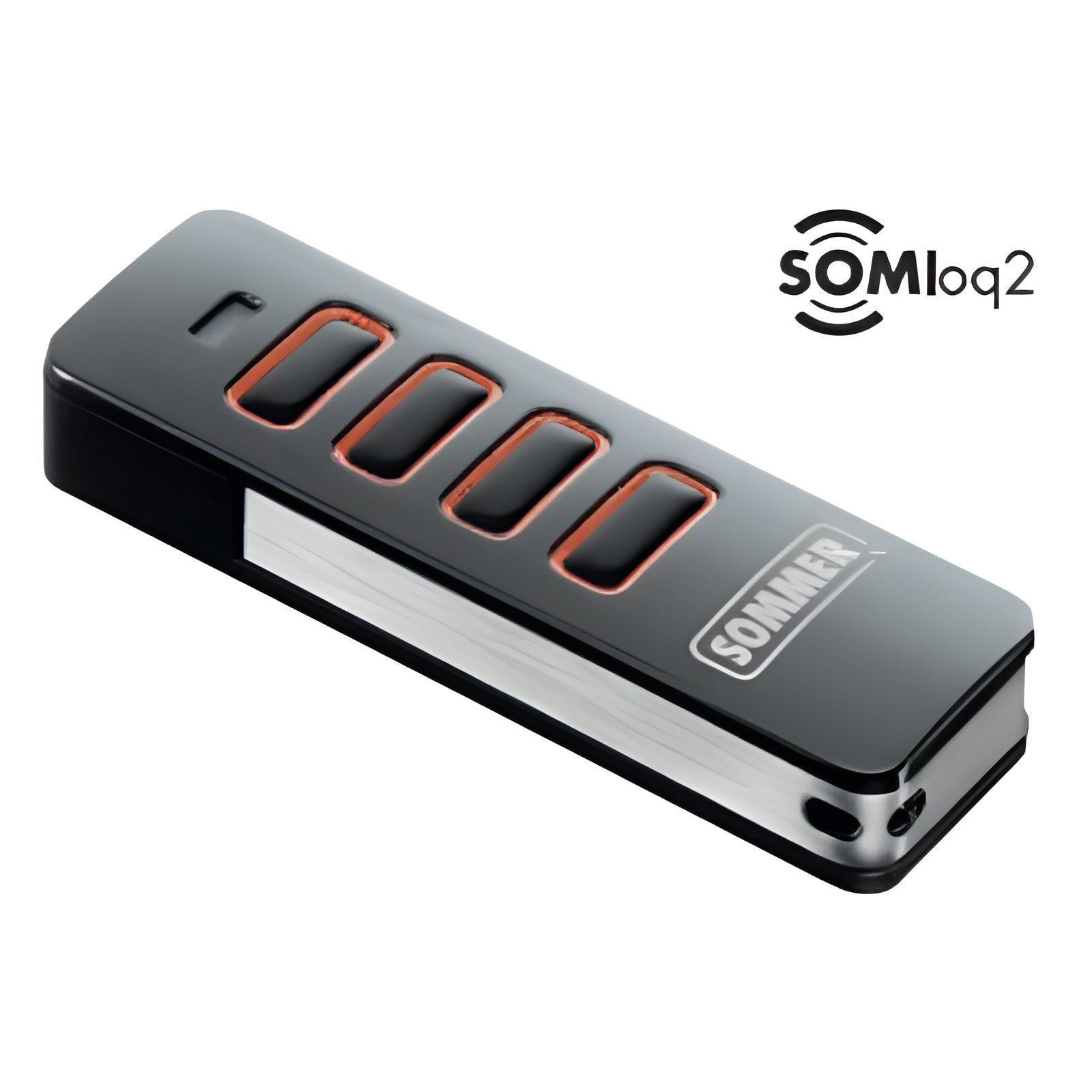

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator

• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close

• Transmitter management on-site or remotely through Codemaster+

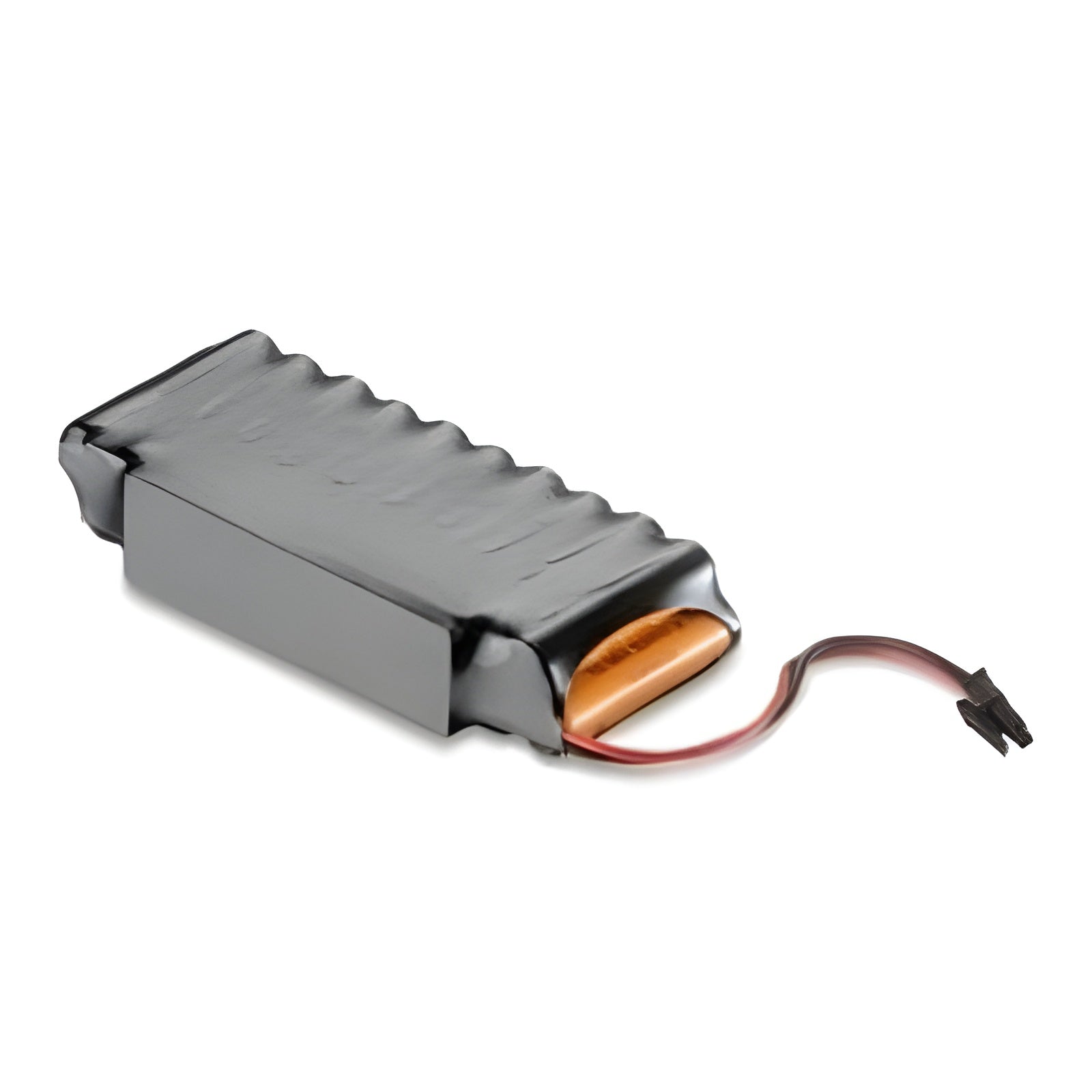

• Accu internal battery backup or Accu 2.2 external battery backup provides power for standby operation during power outages

• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Specifications

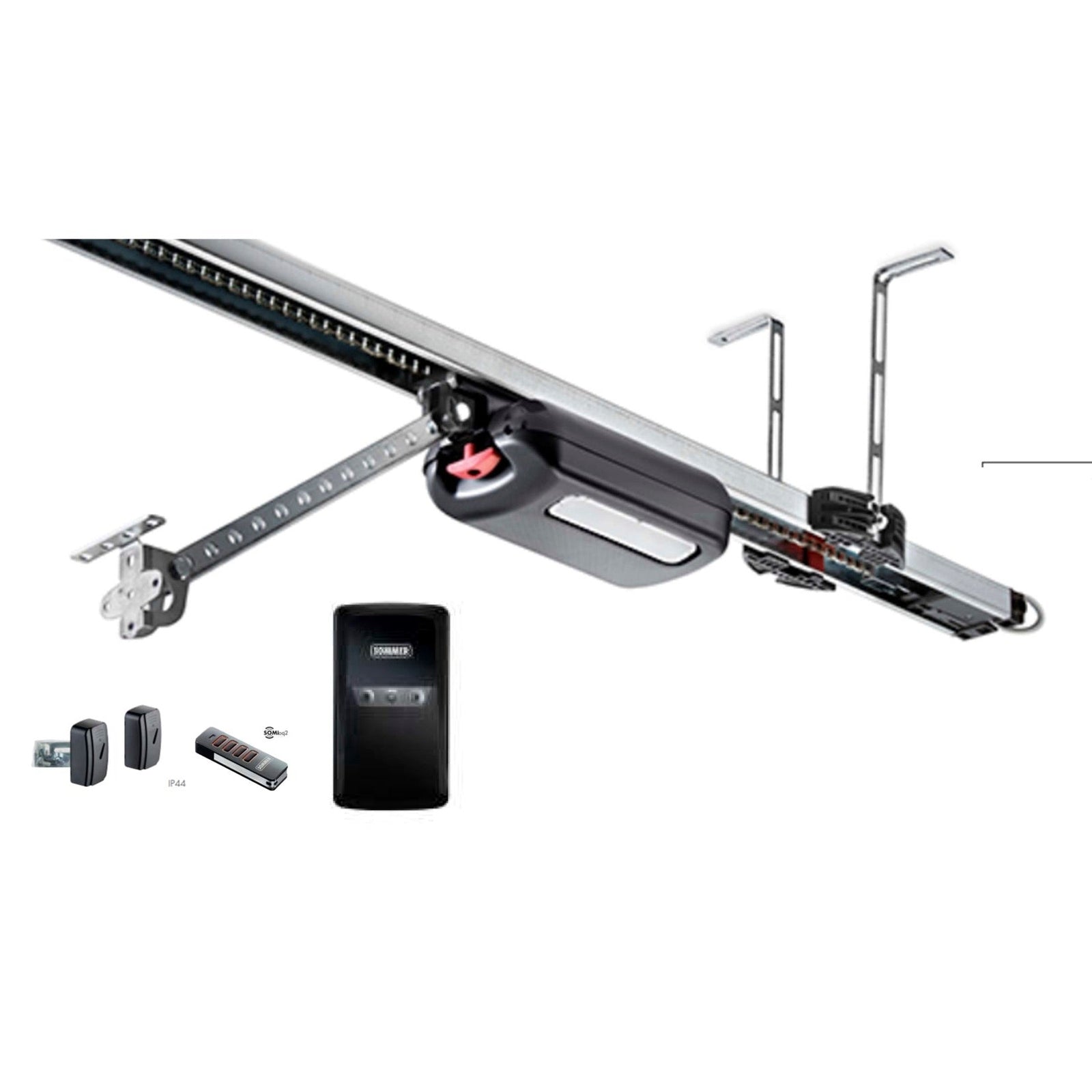

Items Included in the Box

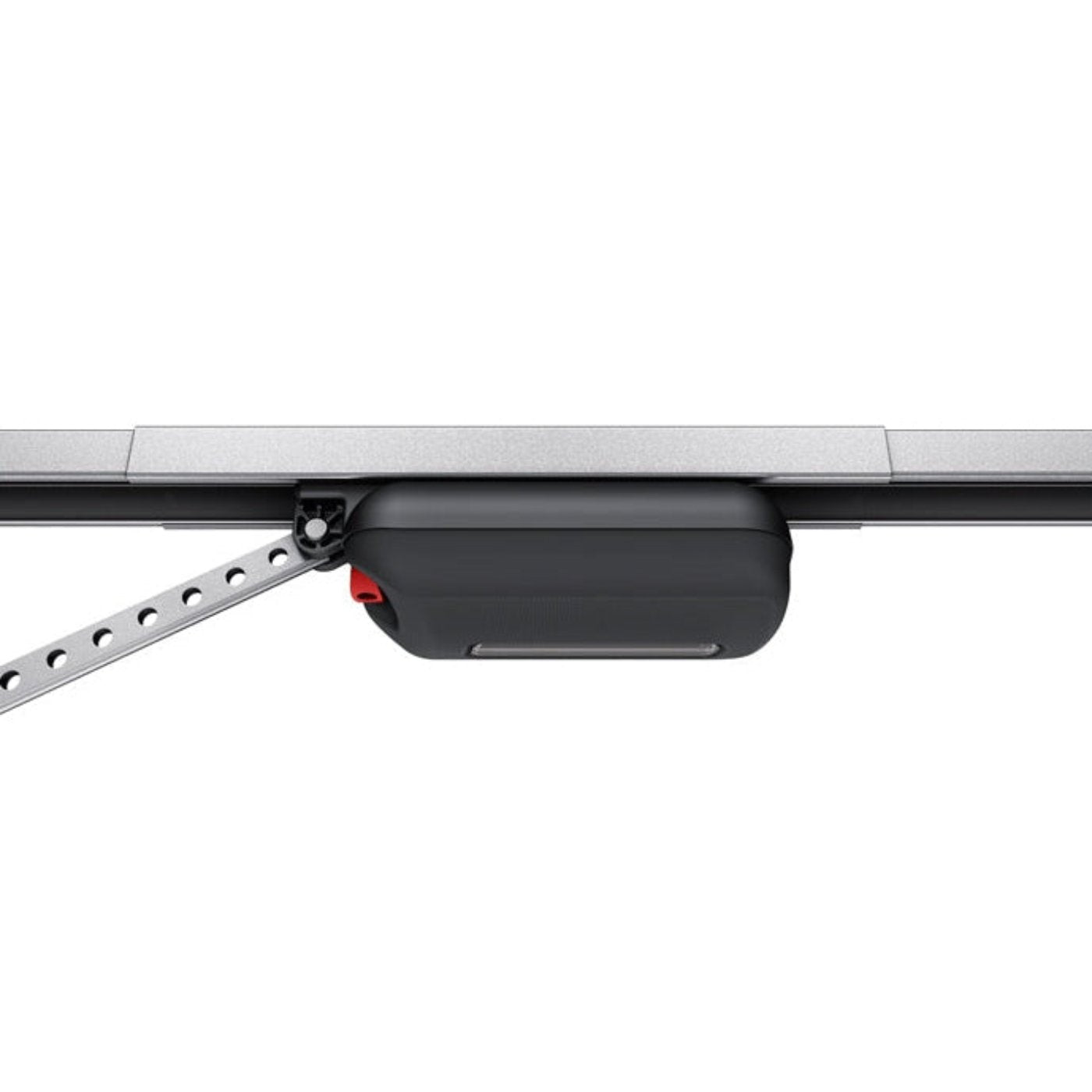

1. 2060 motor carriage
2. Control Housing
3. 3x operator rail
4. 2x connecting sleeve
5. Chain with isolator
6. Straight door arm
7. Curved door arm
8. Installation bag
9. Door hardware bag
10. Ceiling bracket kit
11. Safety sensor kit
12. Wired 3-button wall station kit
13. Wiring kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Reliable Performance: Designed to handle 8' garage doors with ease, ensuring smooth and consistent operation.
• Durable Construction: Built with high-quality materials to withstand daily use and harsh conditions.
• Quiet Operation: Engineered with noise-reduction technology, ideal for residential garages.
• Compact Design: Space-saving design that integrates seamlessly into various setups.
• Customizable Compatibility: Works with a range of transmitters and accessories, allowing you to expand functionality as needed.
• Straightforward Installation: Easy to install, making it suitable for both professional and DIY users.

Q&A

Q: What is the Sommer 2060 EVO+ 8' Standard Operator Kit (No Transmitter) - YS10256-00005?
A: This is a reliable and efficient garage door operator kit from Sommer, designed for 8-foot garage doors. It includes the 2060 EVO+ operator but does not come with a transmitter.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Perfect for residential garage doors up to 8 feet tall.
• Quiet Operation: Features a smooth and silent belt-drive mechanism.
• High-Torque Motor: Provides powerful and consistent performance, suitable for heavy doors.
• Durable Design: Built with high-quality materials for long-lasting reliability.
• Expandable System: Compatible with additional accessories and transmitters (sold separately).

Q: Does this kit include a transmitter or backup battery?
A: No, the kit does not include a transmitter or battery backup. These can be purchased separately for expanded functionality.

Q: Why choose the Sommer 2060 EVO+ Standard Operator Kit?
A: It offers a dependable and quiet garage door solution, ideal for homeowners seeking efficient performance with the flexibility to add accessories as needed.

Q: Is installation easy?
A: While designed for user-friendly installation, professional setup is recommended to ensure safe and proper operation

Maintenance Tips

• Regular Cleaning: Wipe down the operator, rails, and motor housing with a soft, dry cloth. Avoid using water or harsh chemicals.

• Inspect Components: Routinely check the motor, rails, and hardware for any signs of wear, damage, or loosening. Tighten or replace components as needed.

• Lubricate Moving Parts: Use a silicone-based lubricant on the rails and hinges every 6 months to ensure smooth operation.

• Test Safety Features: Verify that the safety sensors and reverse mechanism are working correctly. Perform tests monthly and adjust if necessary.

• Keep the Area Clear: Ensure the operator's installation area is free from debris, dust, or obstructions that could interfere with functionality.

• Avoid Overloading: Ensure the door size and weight do not exceed the operator's specified limits to prevent strain on the motor.

• Protect Electrical Components: Use a surge protector to safeguard the unit against power fluctuations.

• Check Wiring and Connections: Regularly inspect the wiring for wear or loose connections and repair them if required.

• Professional Servicing: Schedule annual maintenance with a professional technician to inspect and service the operator for optimal performance.

• Store Properly When Not in Use: If not installed, keep the operator in a clean, dry environment away from extreme temperatures or moisture.
