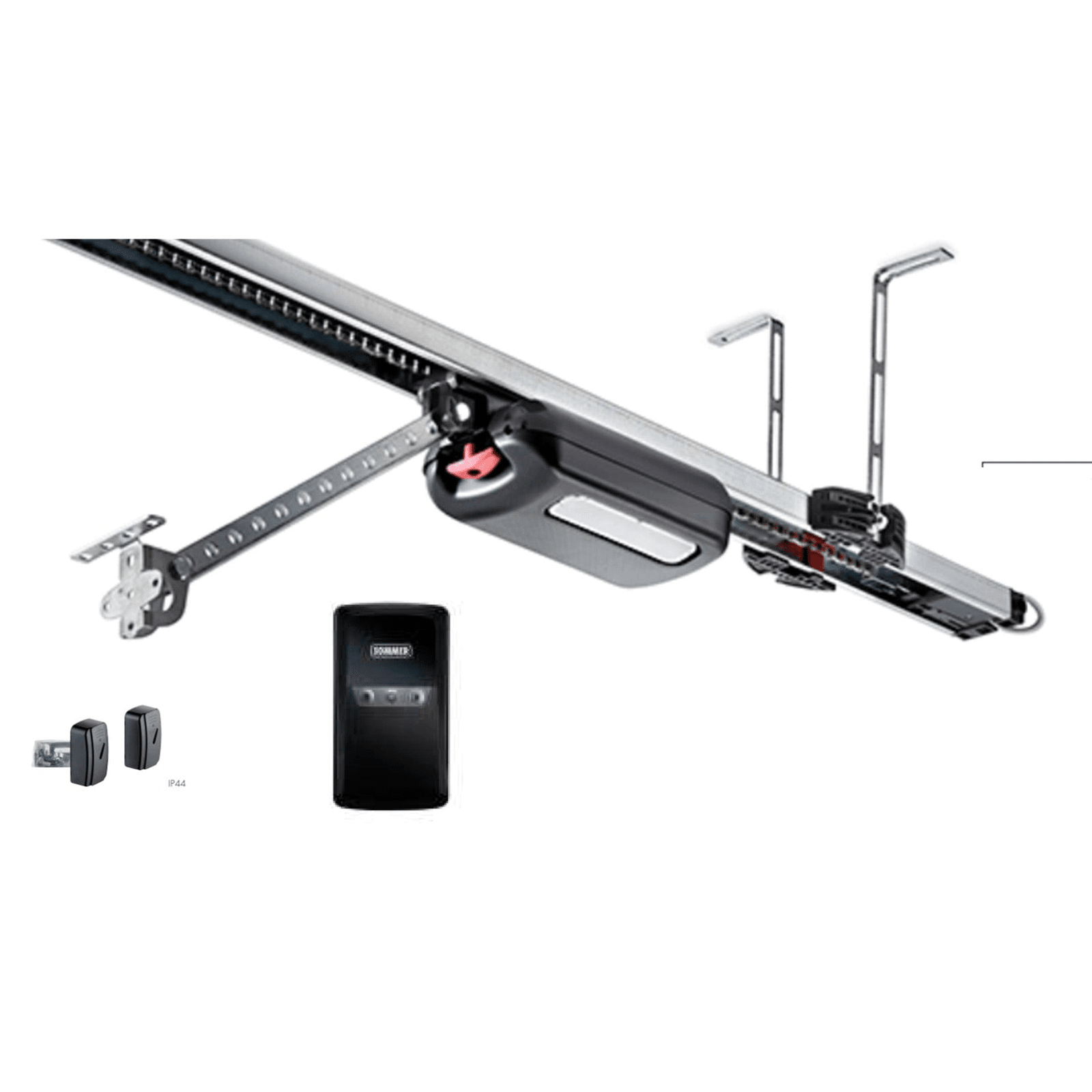

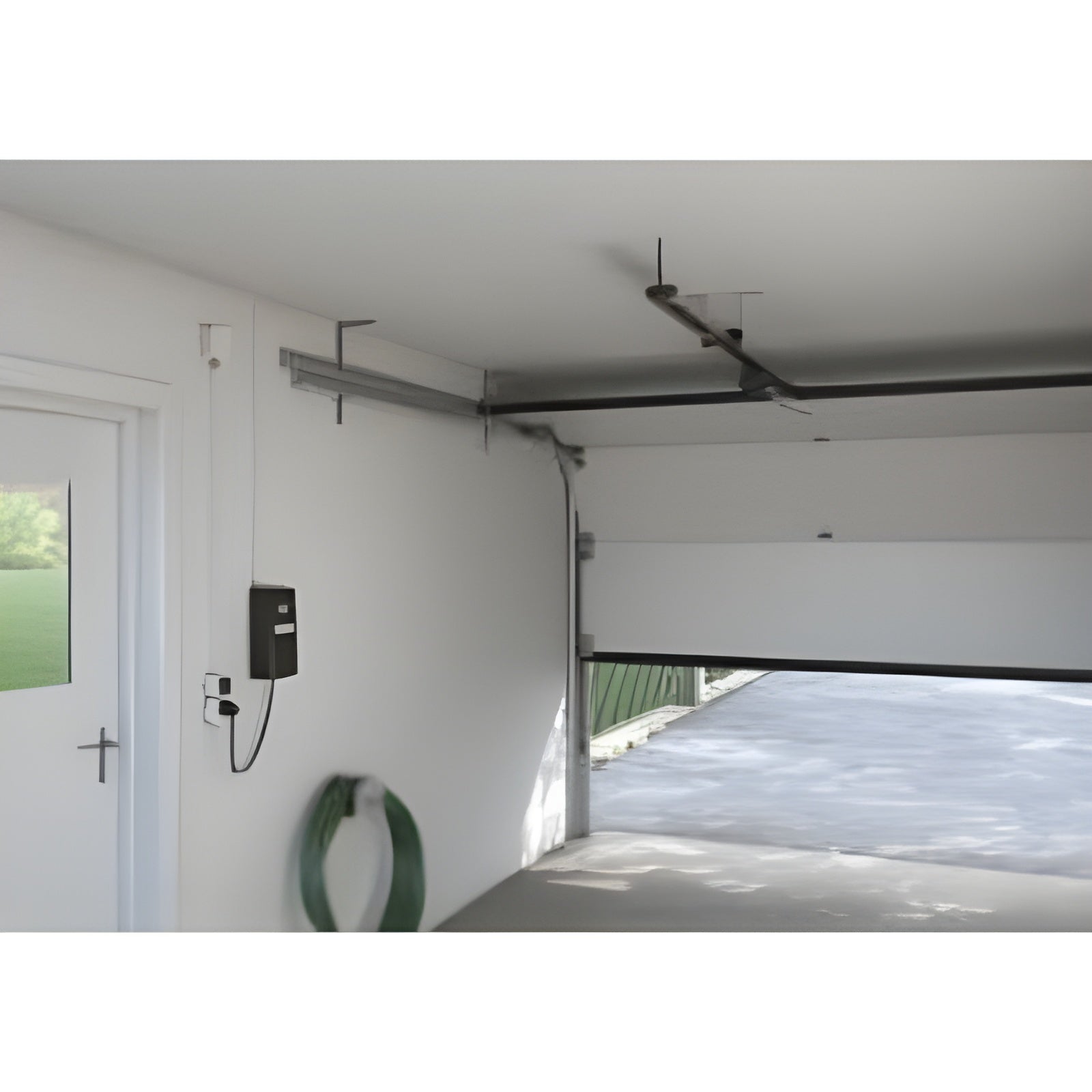

Sommer 2060 pro+ 8' Standard operator kits no transmitter with battery back up - YUSKS10249-00021

Sommer 2060 pro+ 8' Standard operator kits no transmitter with battery back up - YUSKS10249-00021

Compatible with evo+ and pro+

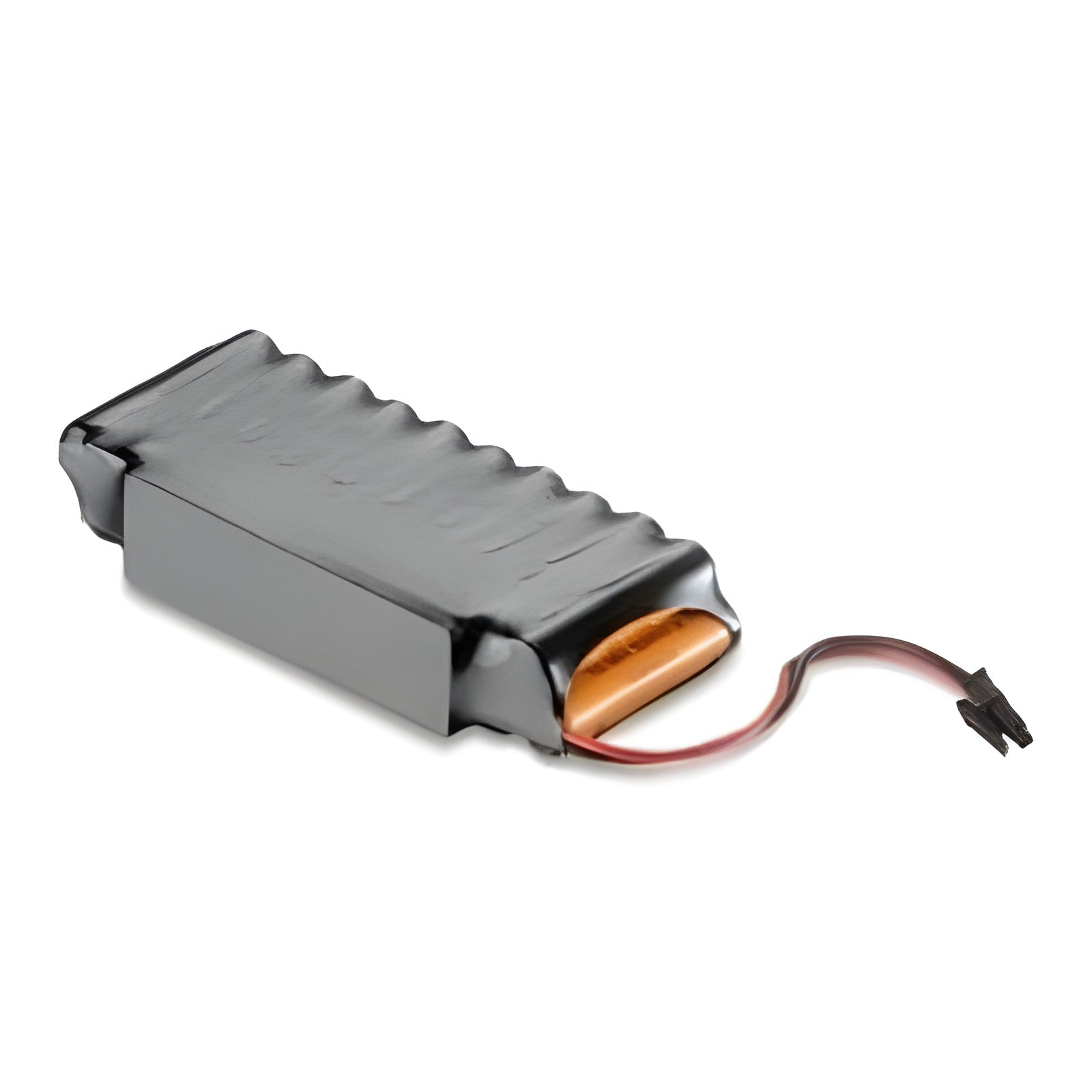

Battery backup
Integrated in the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 600 Newton Motor (3/4 HP equivalent)

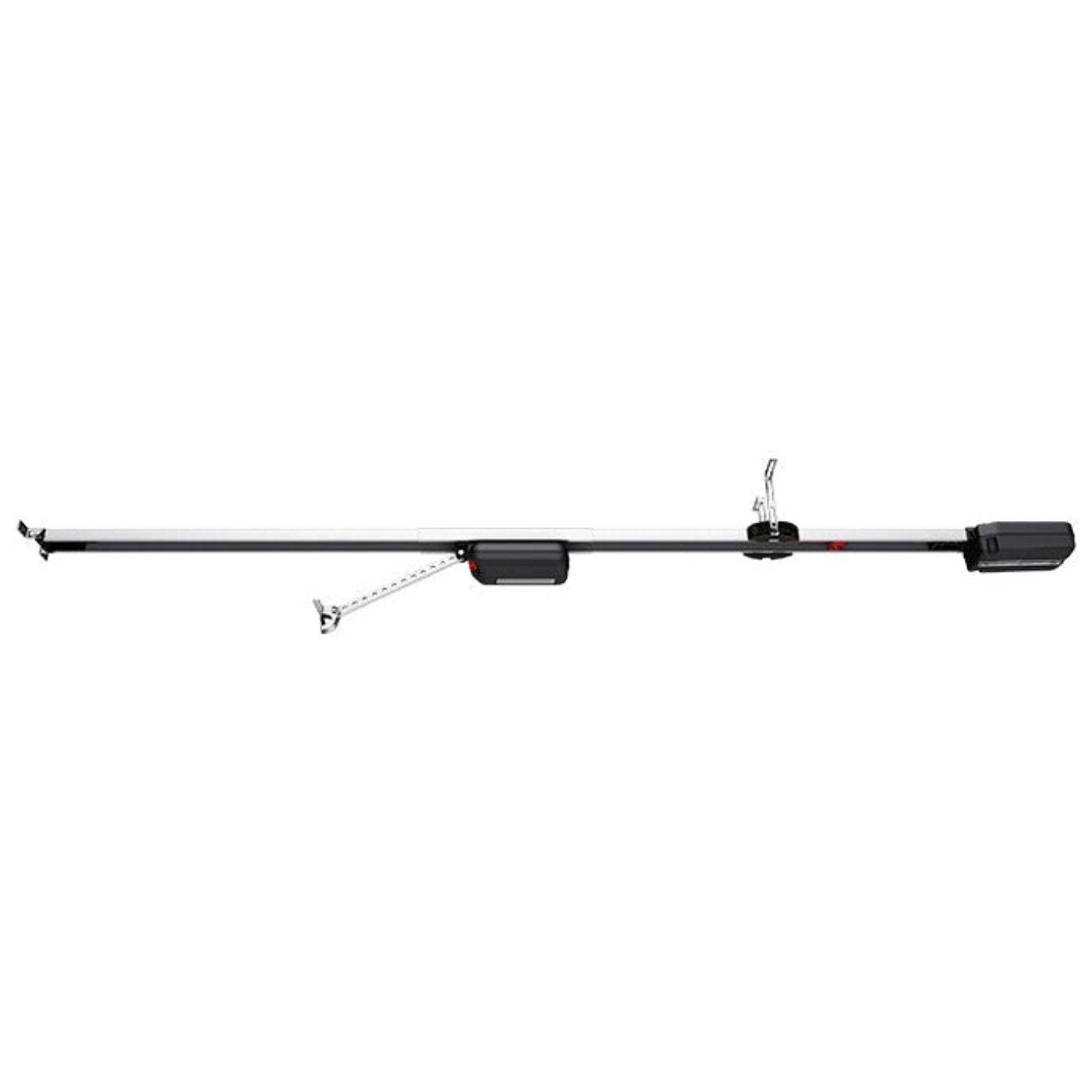

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

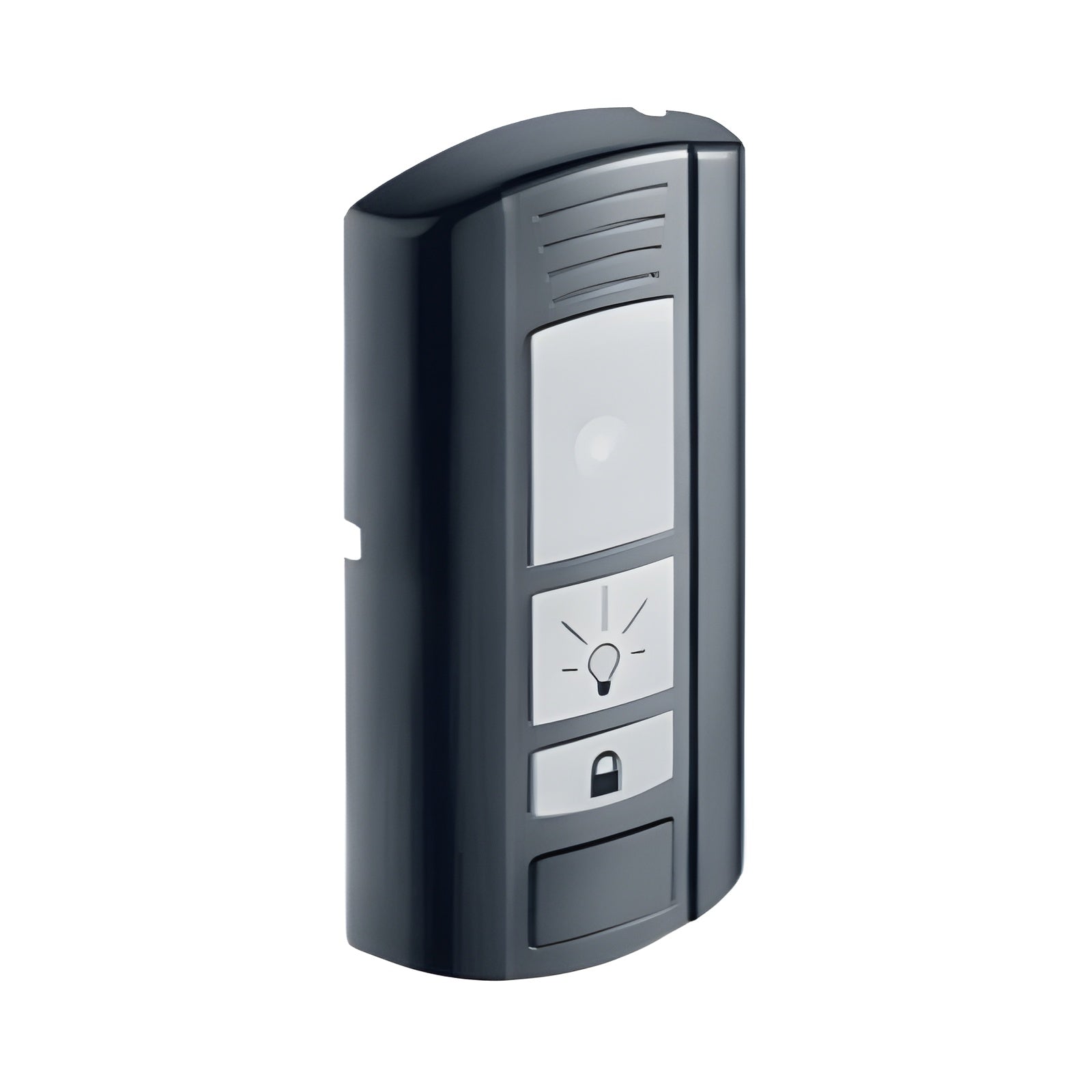

• Remote-mount control housing with integrated buttons

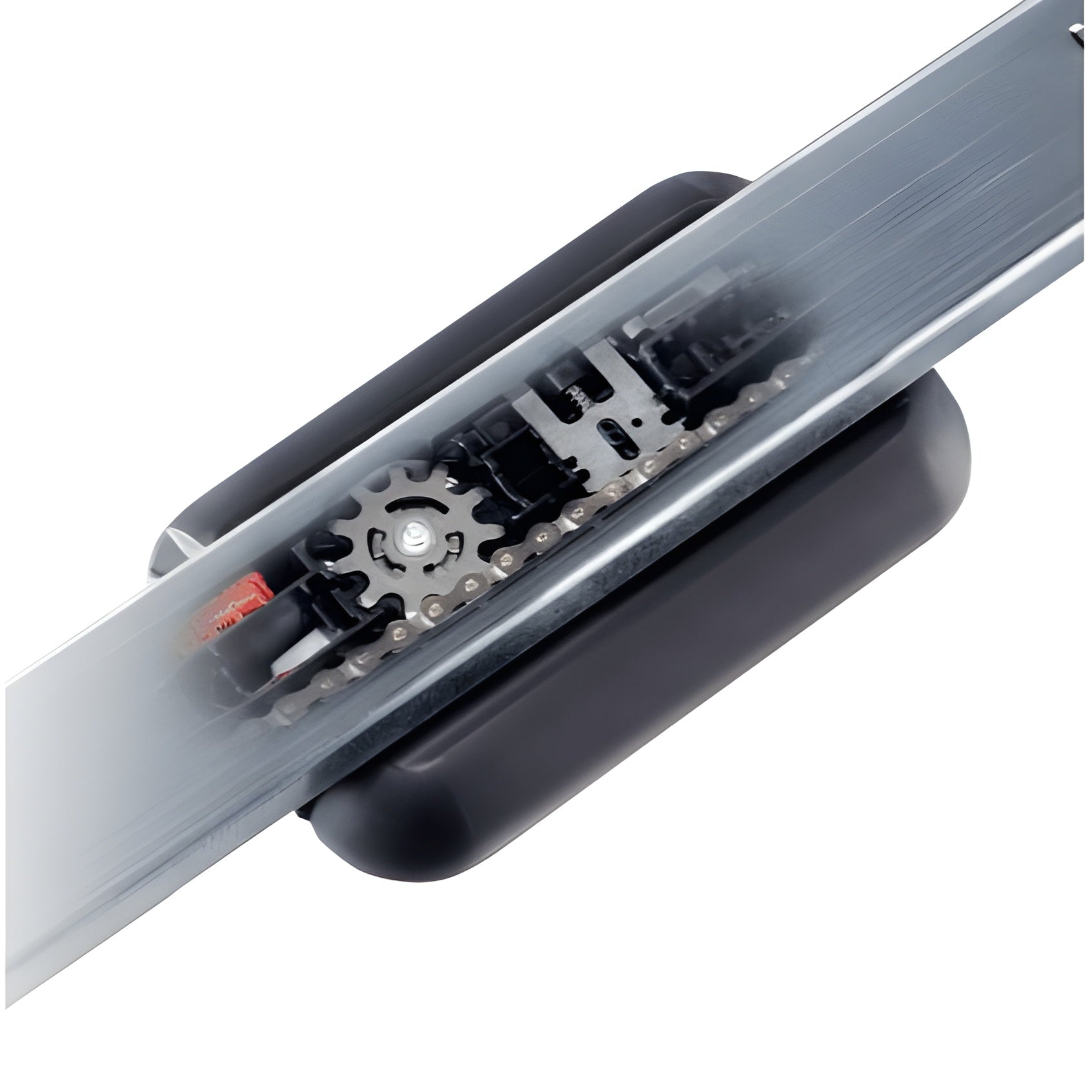

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• Operator actively pushes in the closed direction during attempted break-in

• Emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage and control housing

• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

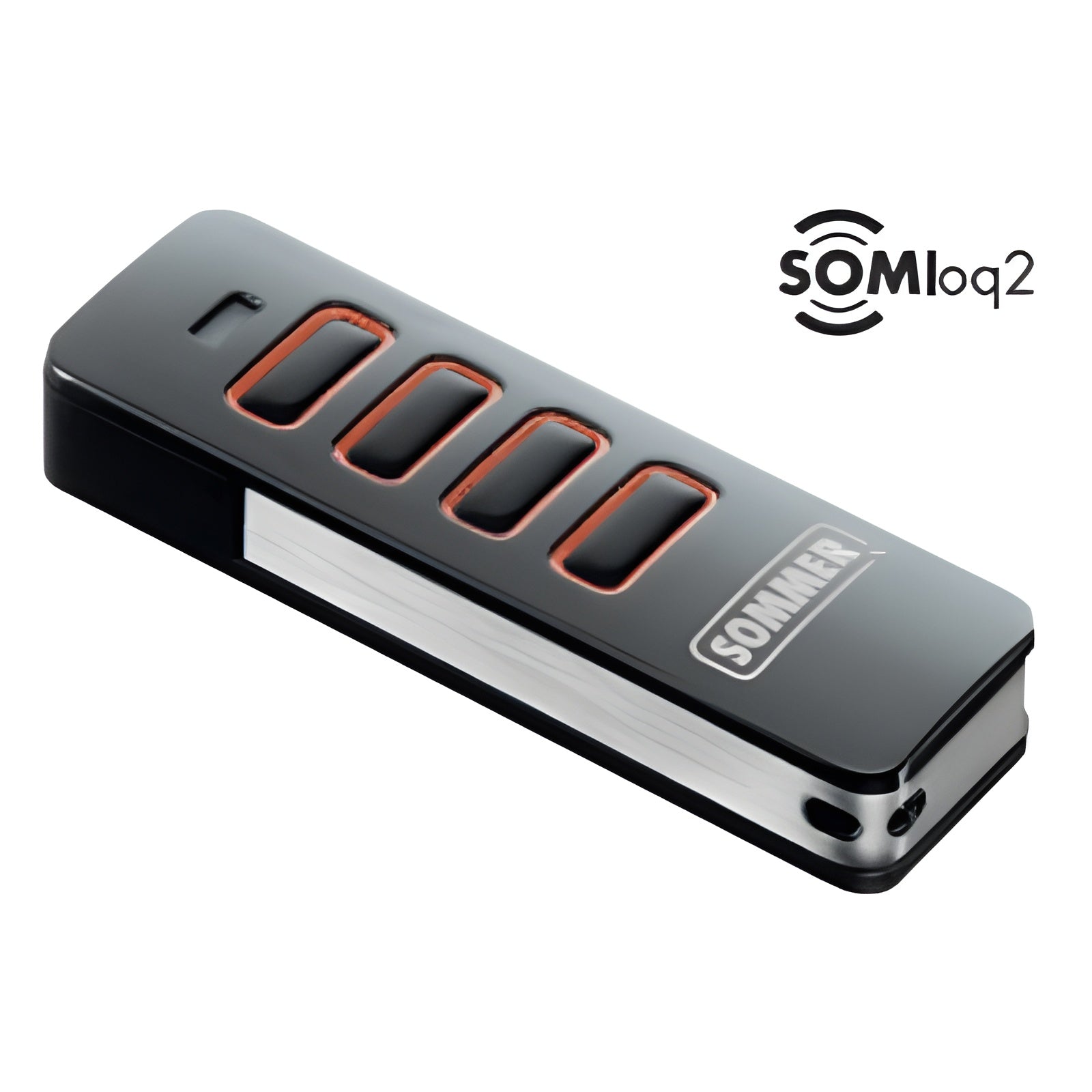

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator

• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close

• Transmitter management on-site or remotely through Codemaster+

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages

• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble the rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

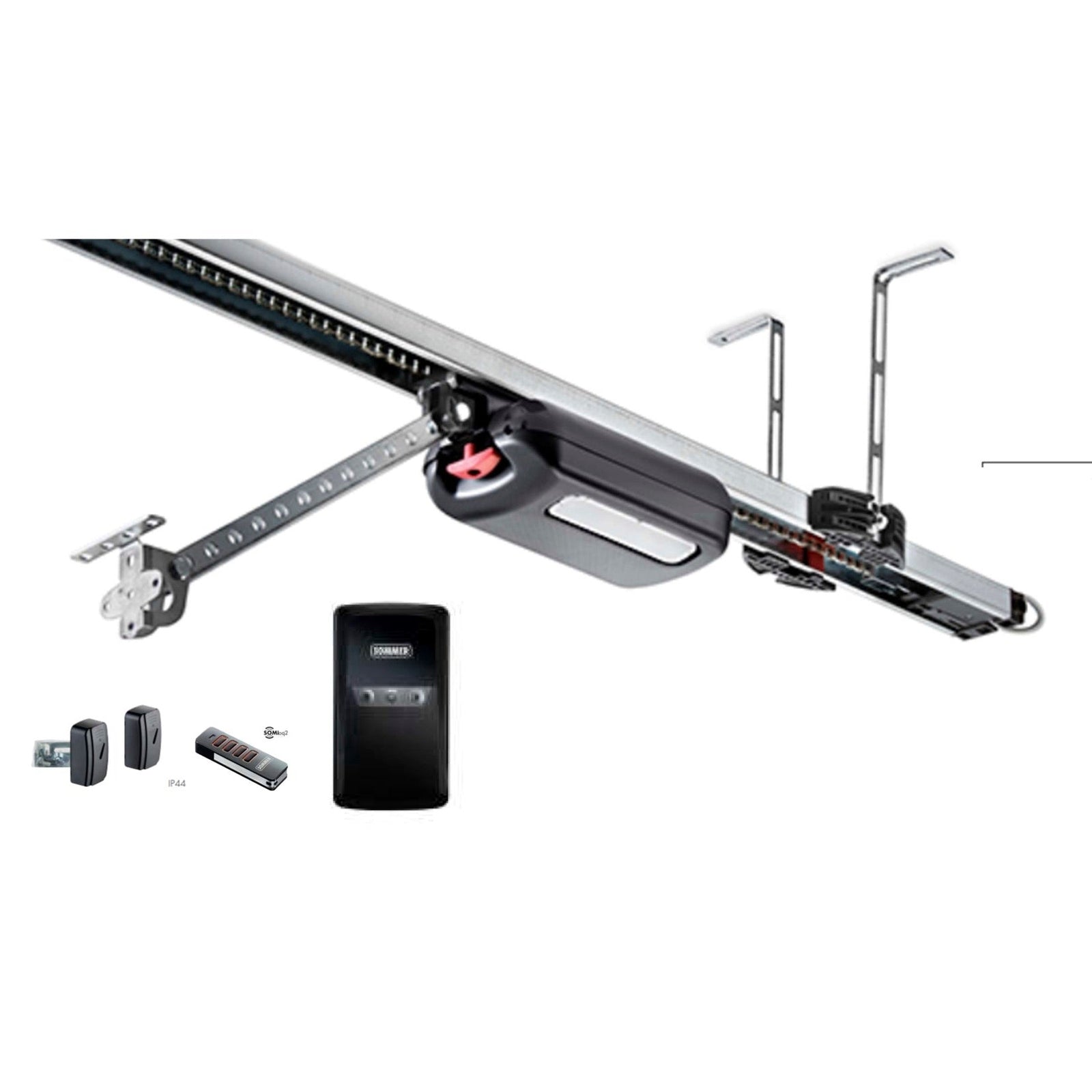

Items Included in the Box

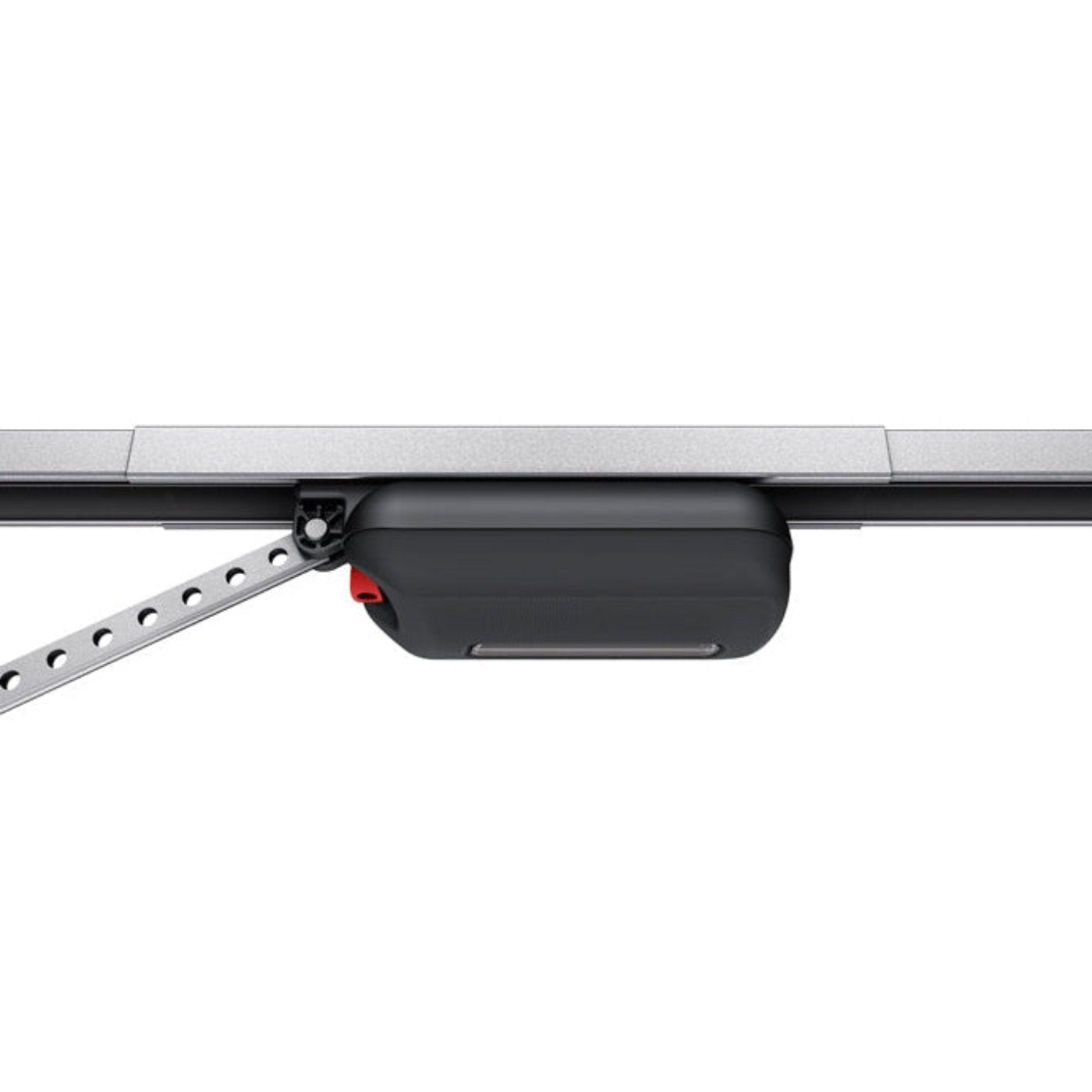

1. 2060 motor carriage
2. Control housing
3. 3x operator rail

4. 2x connecting sleeve
5. Connector wire
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Docs bag
14. English technical manual
15. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Reliable Battery Backup: Ensures consistent operation even during power outages, providing peace of mind.
• Heavy-Duty Performance: Built for 8' garage doors, offering superior lifting power and durability for long-term use.
• Quiet and Smooth Operation: Advanced technology minimizes noise, making it suitable for homes with attached garages.
• Robust and Durable Build: Designed with premium materials to withstand daily use and harsh weather conditions.
• Space-Efficient Design: Compact and easy to install, optimizing garage space while maintaining powerful performance.
• Customizable: Compatible with various transmitters and accessories to suit your specific needs.

Q&A

Q: What is the Sommer 2060 PRO+ 8' Standard Operator Kit with Battery Backup - YUSKS10249-00021?
A: The Sommer 2060 PRO+ 8' is a high-performance garage door operator designed for 8-foot doors, featuring a battery backup to ensure continuous operation during power outages. This kit comes without a transmitter but provides a reliable and efficient garage door opener solution.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Designed for residential garage doors up to 8 feet high.
• Battery Backup: Guarantees the door functions even during power failures.
• Quiet Belt Drive: Provides smooth and silent operation, reducing noise compared to chain drives.
• Powerful Motor: Delivers reliable performance for heavy-duty garage doors.
• Durable Build: High-quality components ensure long-lasting reliability and minimal maintenance.
• Expandable Options: Compatible with optional transmitters and additional accessories (sold separately).

Q: Does this kit include a transmitter?
A: No, this kit does not include a transmitter. You can purchase a compatible transmitter separately for remote control.

Q: Why choose the Sommer 2060 PRO+ 8' Standard Operator Kit?
A: This operator kit is ideal for homeowners seeking a quiet, powerful, and dependable garage door opener with battery backup for added peace of mind during power outages.

Q: Is professional installation recommended?
A: While the system is designed for straightforward installation, professional installation is recommended for optimal setup and performance

Maintenance Tips

• Regular Cleaning: Keep the operator, motor, and rails free from dust and debris by wiping them down regularly with a dry cloth. Avoid using water or harsh chemicals.

• Battery Maintenance: Inspect the battery backup system periodically. Ensure the battery is fully charged, and replace it every 2-3 years or as recommended by the manufacturer.

• Lubricate Moving Parts: Apply a silicone-based lubricant to the moving parts, such as rails and hinges, at least once every 6 months to reduce friction and ensure smooth operation.

• Inspect Components: Regularly check the operator's components, including the motor, gears, and hardware, for any signs of wear or damage. Tighten any loose parts and replace worn components as needed.

• Test Safety Features: Test the safety sensors and reverse mechanism monthly to ensure they are functioning properly. Adjust the settings if necessary.

• Check Wiring and Connections: Examine all electrical connections for signs of wear, fraying, or corrosion. Tighten any loose connections and repair damaged wires promptly.

• Prevent Overloading: Ensure the door’s weight and dimensions are within the operator's specified limits to prevent overstraining the motor and other components.

• Use a Surge Protector: Install a surge protector to protect the operator and its electronic components from power surges and fluctuations.

• Test the Battery Backup: Simulate a power failure to ensure the battery backup is operational and capable of running the system for a sufficient period.

• Professional Servicing: Consider scheduling professional maintenance at least once a year to inspect the operator, battery system, and other components for optimal performance
