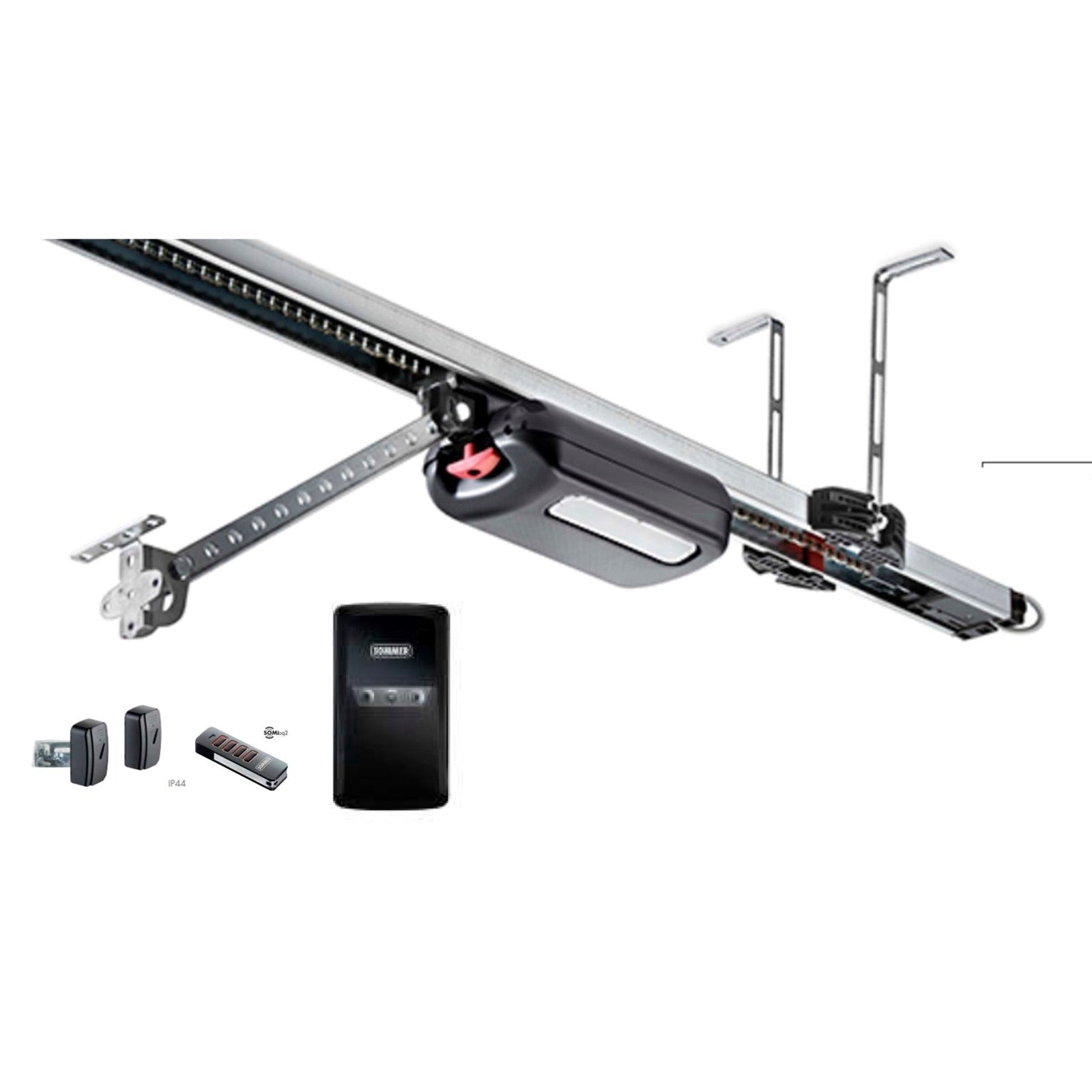

Sommer 2060 pro+ 8' with Pearl Transmitter incl. Accu -YUSKS10249-00013

Sommer 2060 pro+ 8' with Pearl Transmitter incl. Accu -YUSKS10249-00013

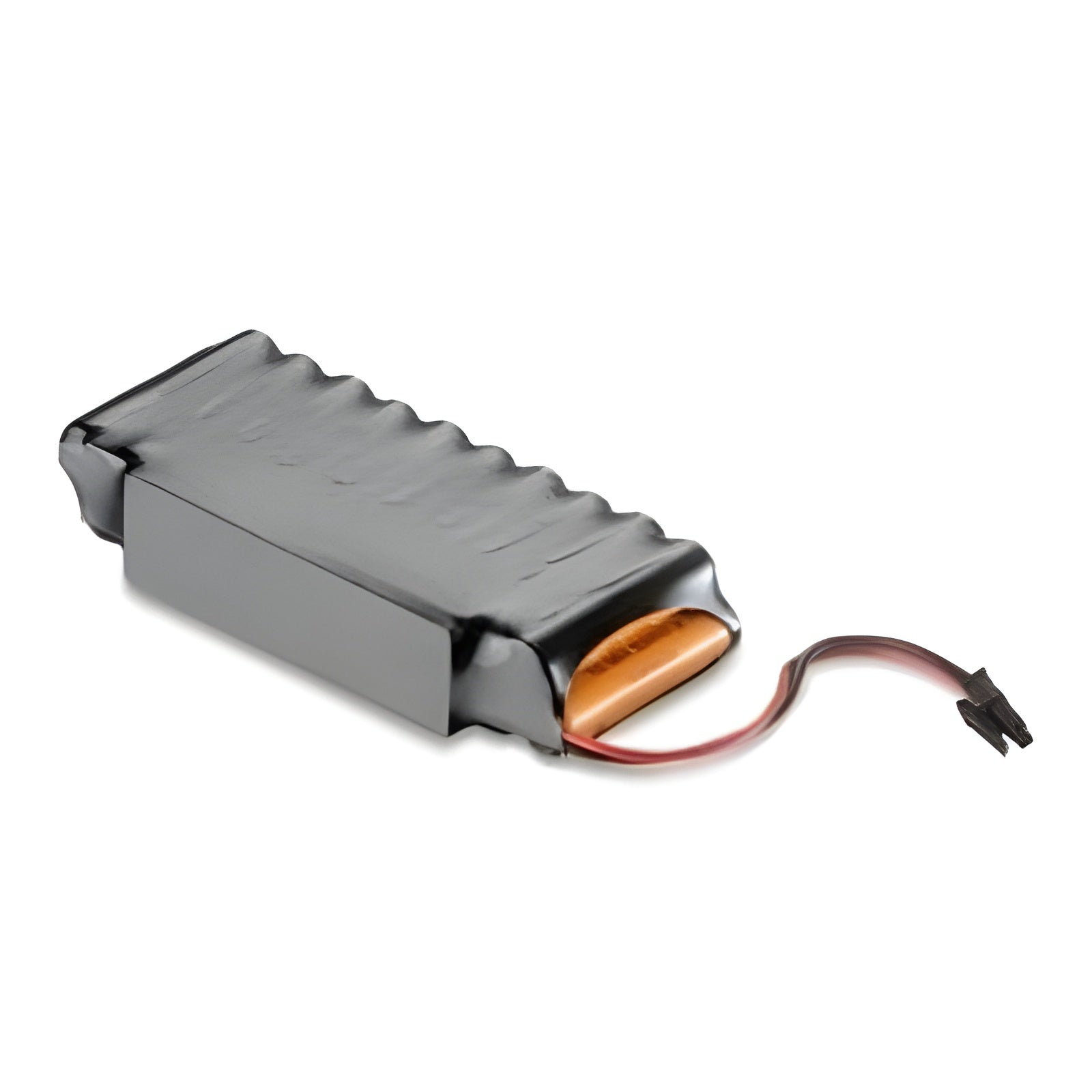

Accu - Battery backup

Compatible with evo+ and pro+

Battery backup
Integrated into the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 600 Newton Motor (3/4 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

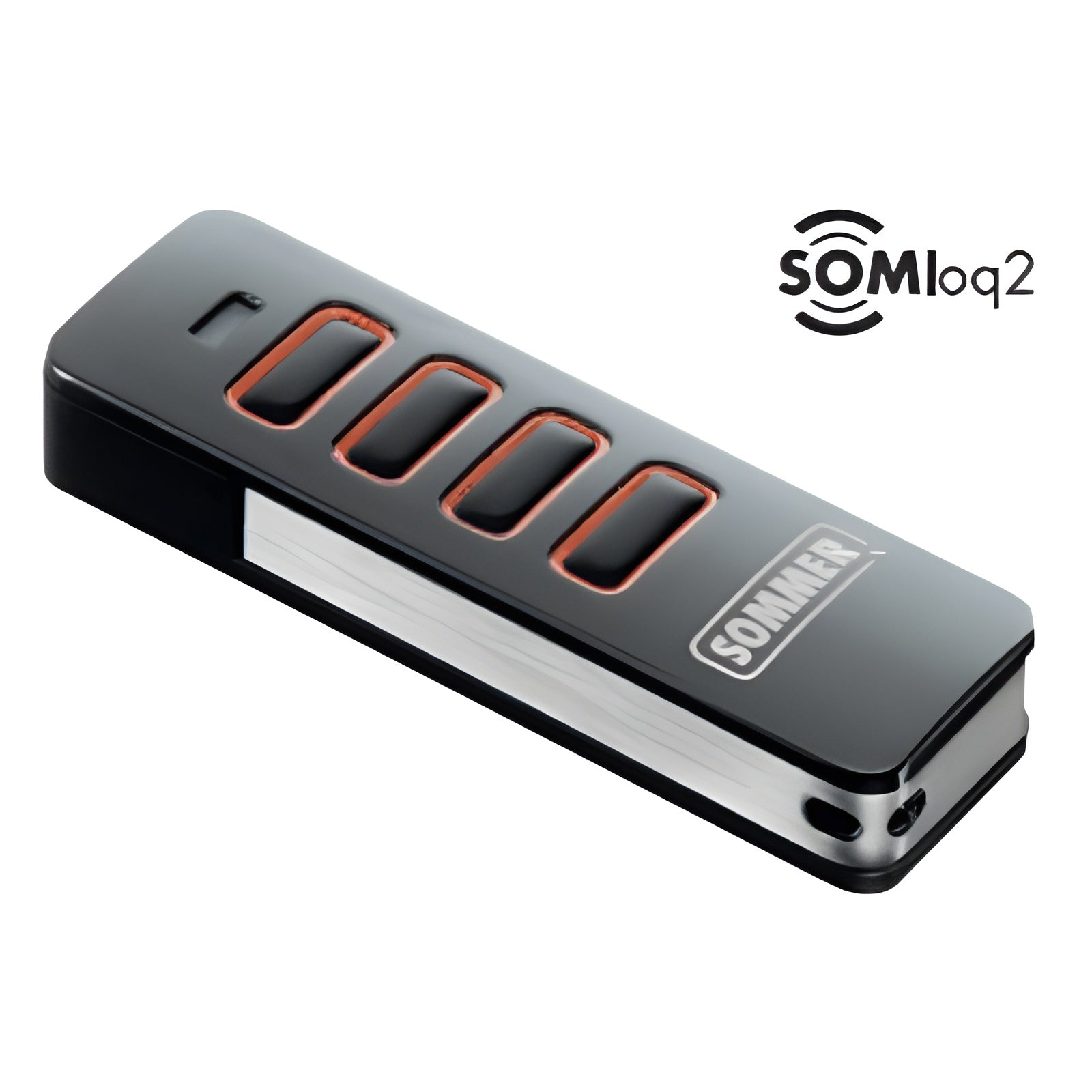

• One 4-button Pearl transmitter included

• Wired safety sensors

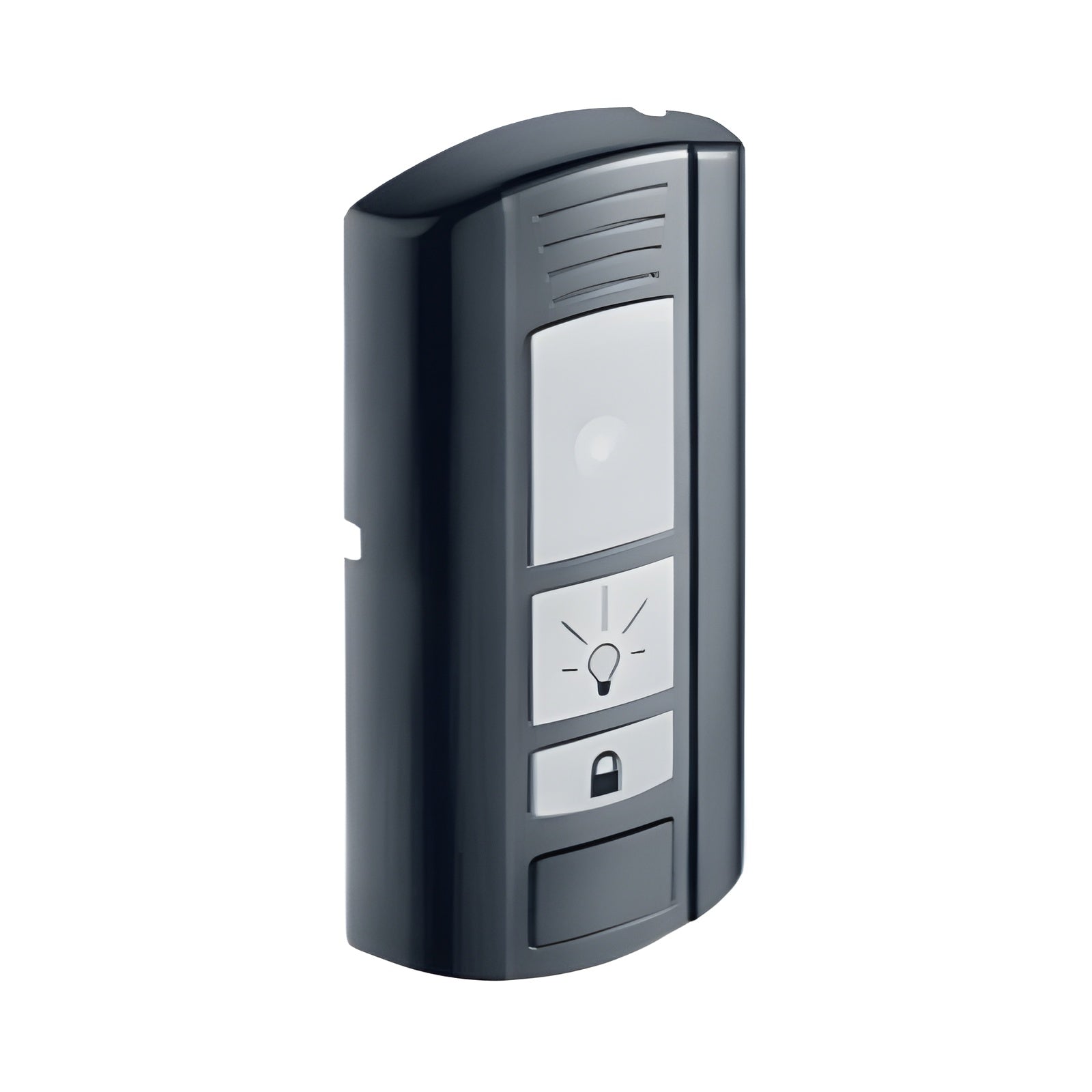

• Remote-mount control housing with integrated buttons

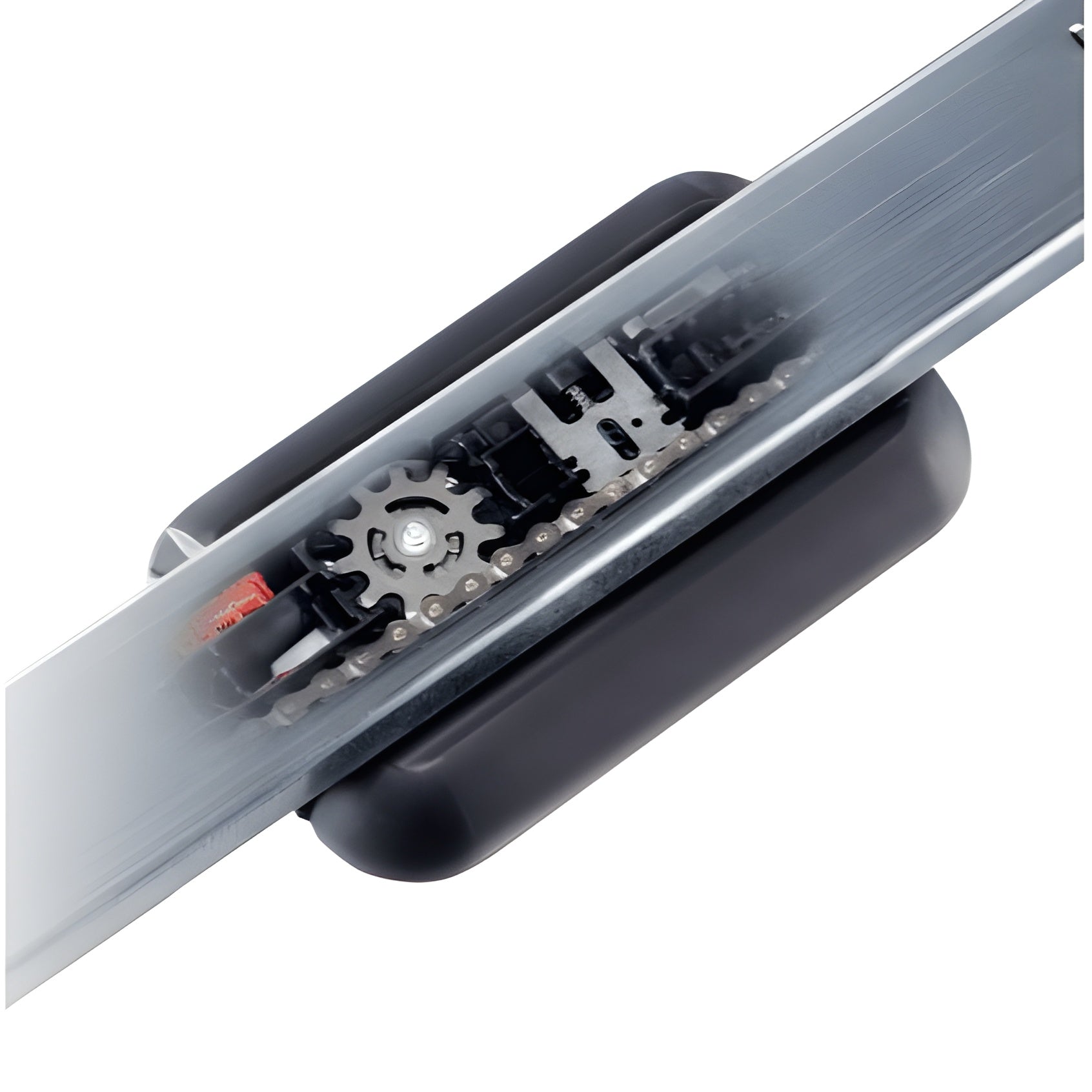

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• Operator actively pushes in the closed direction during attempted break-in

• Emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage and control housing

• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Pre-programmed 4-button Pearl transmitter in the box

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator

• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close

• Transmitter management on-site or remotely through Codemaster+

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages

• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble the rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2060 motor carriage
2. Control housing
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Connector wire
7. Chain with isolator
8. Straight door arm
9. Curved door arm
10. Installation bag
11. Door hardware bag
12. Ceiling bracket kit
13. Safety sensor kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Battery Backup (Accu): Ensures uninterrupted operation during power outages, providing continuous access to your garage.
• High-Performance Design: Built for 8' garage doors, offering powerful, consistent operation for long-term use.
• Quiet Operation: Advanced noise-reduction technology makes it perfect for homes with attached garages, providing smooth and silent function.
• Pearl Transmitter Included: Offers long-range, secure communication for easy control from a distance, even when away from home.
• Durable Construction: Engineered with high-quality materials to withstand harsh conditions and daily use.
• Compact and Efficient: Space-saving design that integrates easily into various garage configurations while maintaining powerful performance.

Q&A

Q: What is the Sommer 2060 PRO+ 8' with Pearl Transmitter and Accu - YUSKS10249-00013?
A: The Sommer 2060 PRO+ 8' system is a high-performance garage door opener, which includes the Pearl Transmitter and an Accu (battery backup) for uninterrupted operation. It’s designed for 8-foot residential garage doors, ensuring reliable and quiet performance.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Designed for residential garage doors up to 8 feet high.
• Pearl Transmitter: Included for easy, remote control of the garage door.
• Battery Backup (Accu): Ensures continuous operation even during power outages, offering peace of mind.
• Quiet Belt Drive System: For smooth, silent operation, ideal for noise-sensitive areas.
• Powerful and Durable Motor: Provides reliable and consistent performance, capable of handling heavy garage doors.
• Premium Quality: Built with high-quality materials for durability and low maintenance.

Q: Does this kit include a transmitter and battery backup?
A: Yes, this kit includes both the Pearl Transmitter and a battery backup (Accu), ensuring reliable, uninterrupted use of your garage door opener even during power outages.

Q: Why choose the Sommer 2060 PRO+ 8' with Pearl Transmitter and Accu?
A: This operator kit is perfect for homeowners looking for quiet, efficient, and dependable garage door operation. The Pearl Transmitter adds convenience, while the battery backup ensures your garage door operates seamlessly even in case of power interruptions.

Q: Is professional installation recommended?
A: While this system is designed for straightforward installation, professional installation is recommended for optimal setup and safety

Maintenance Tips

• Clean Regularly: Wipe down the operator, motor, and surrounding components with a soft, dry cloth to remove dust and debris. Avoid water or harsh cleaning agents that may damage the system.

• Lubricate Moving Parts: Apply a silicone-based lubricant to the rails, hinges, and any moving parts at least twice a year to ensure smooth operation and prevent wear.

• Check and Maintain the Battery (Accu): Since this model includes a battery backup, check the battery charge level regularly. Ensure it holds charge and is free of corrosion. Replace the battery every 2-3 years or if it shows any signs of weakening.

• Inspect Safety Features: Regularly test safety mechanisms like photo eyes and reverse mechanisms to ensure they are functioning properly. Clean and recalibrate them as needed to maintain safety.

• Transmitter Battery Check: Periodically check the battery in the Pearl Transmitter for low charge. Replace the battery when necessary to ensure reliable communication with the operator.

• Inspect for Wear and Tear: Check all mechanical parts, including the motor, gears, and moving components, for any signs of wear or damage. Replace any worn-out parts to prevent system failure.

• Secure Electrical Connections: Examine all electrical connections for signs of looseness or corrosion. Clean and tighten the connections to ensure optimal performance.

• Prevent Overload: Make sure the system is not exposed to excessive weight or force beyond the manufacturer's specifications. Overloading can strain the motor and other components.

• Surge Protection: Install a surge protector to safeguard the electrical components from power surges and fluctuations that could cause long-term damage.

• Professional Inspection: Schedule a professional inspection of the system, including the operator, battery, and transmitter, at least once a year to ensure everything is functioning at peak efficiency.
